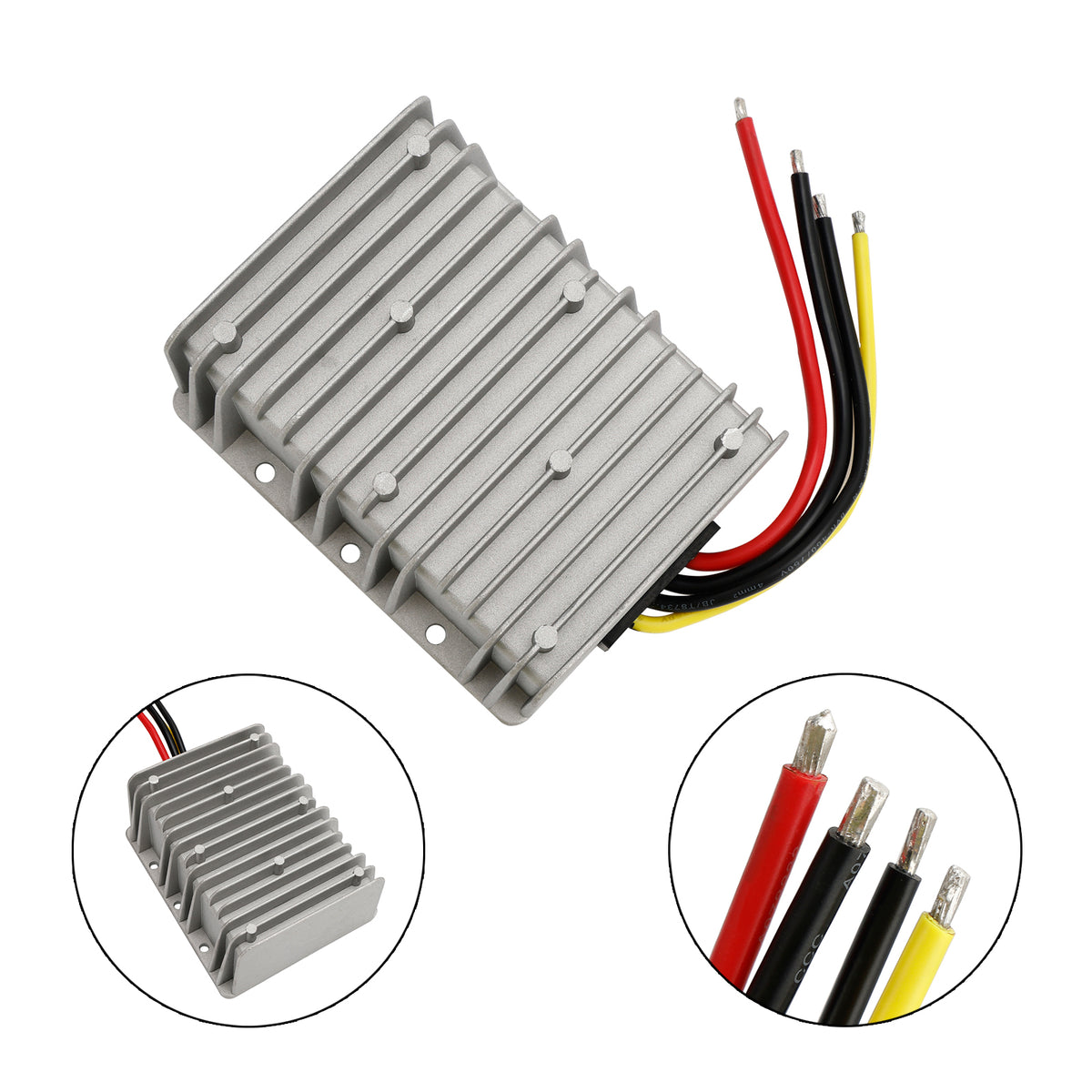

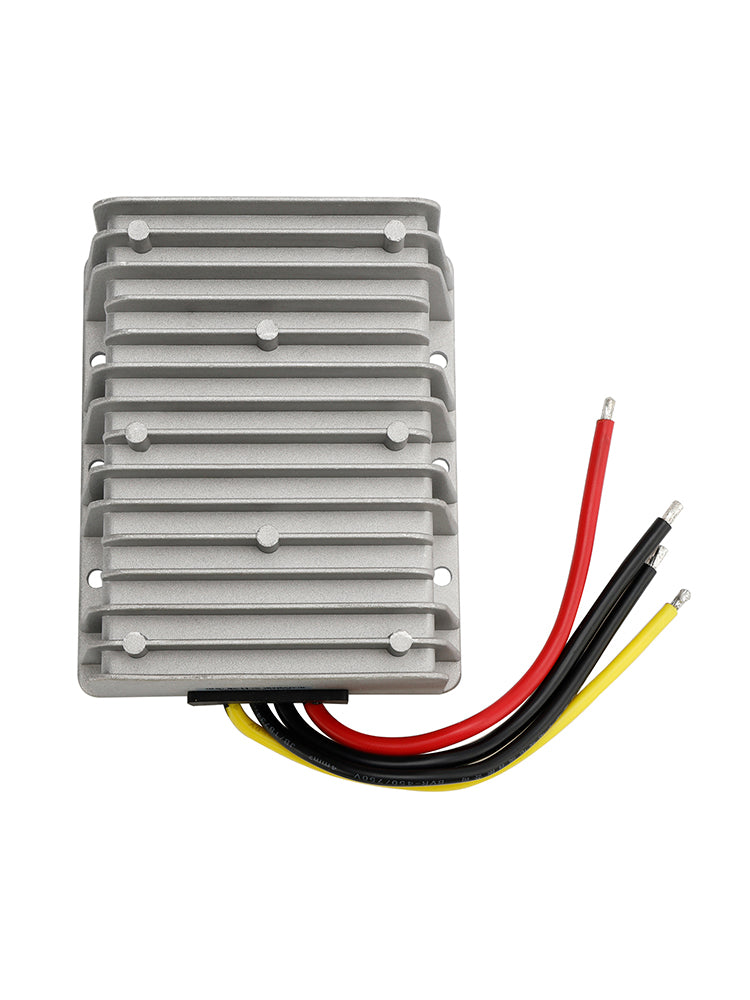

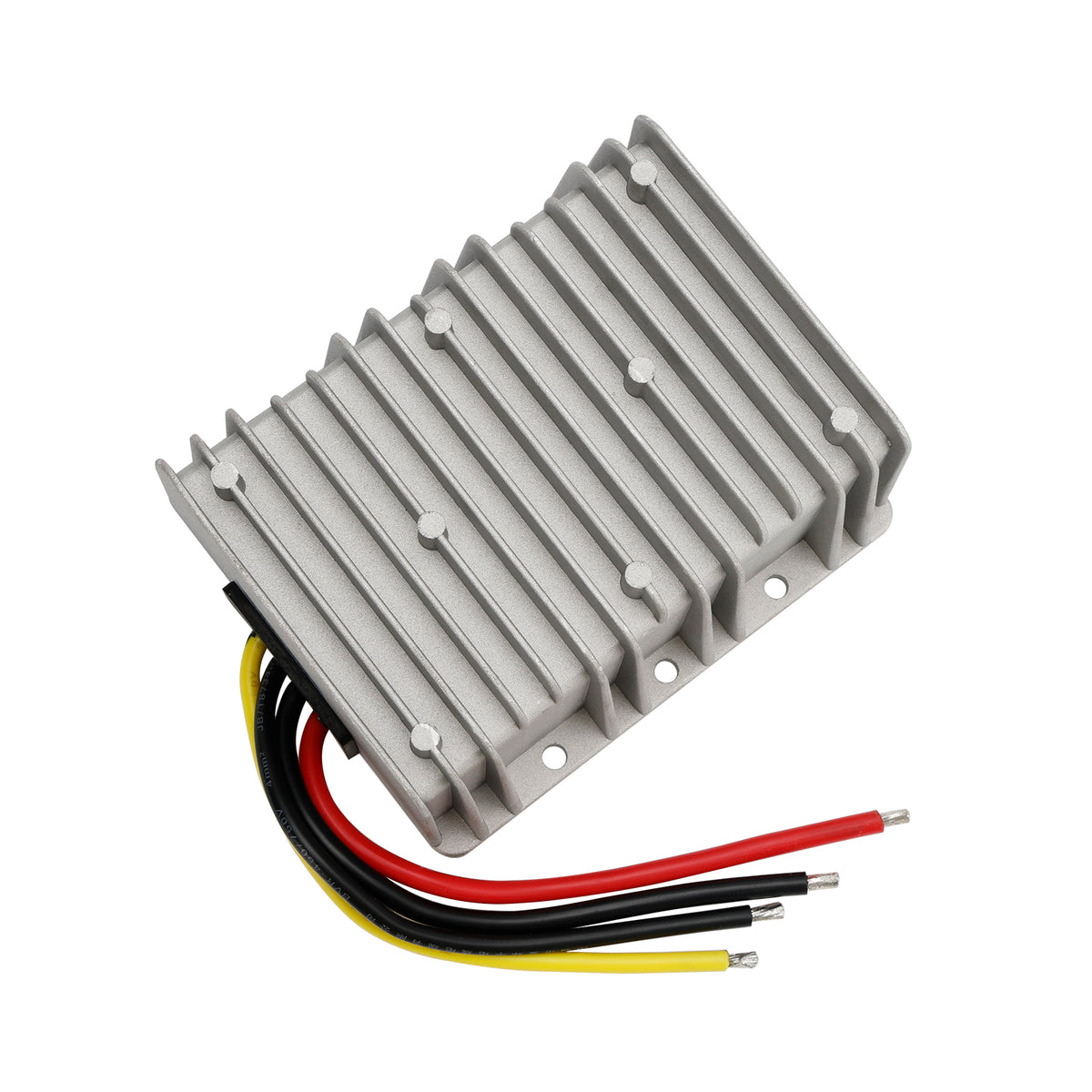

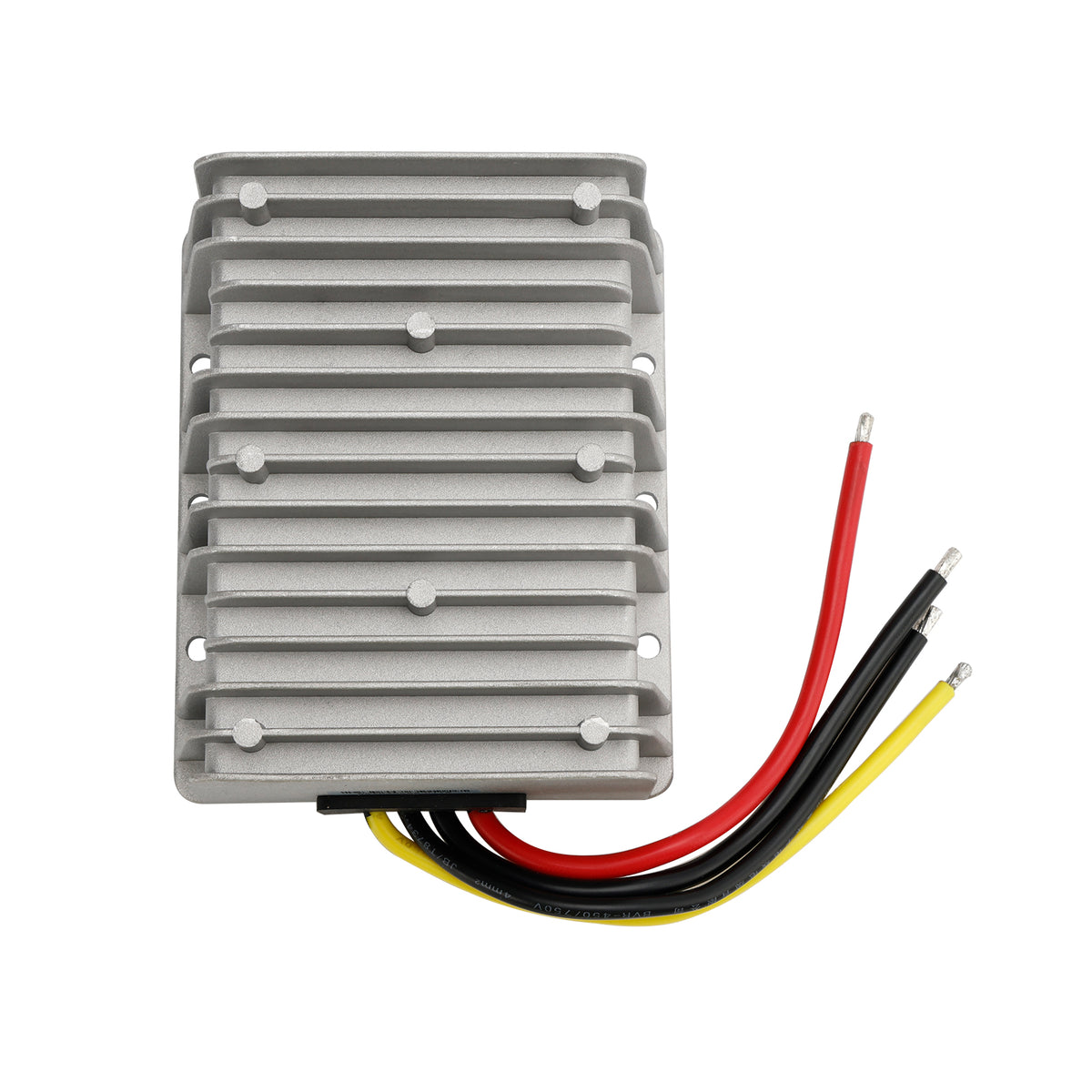

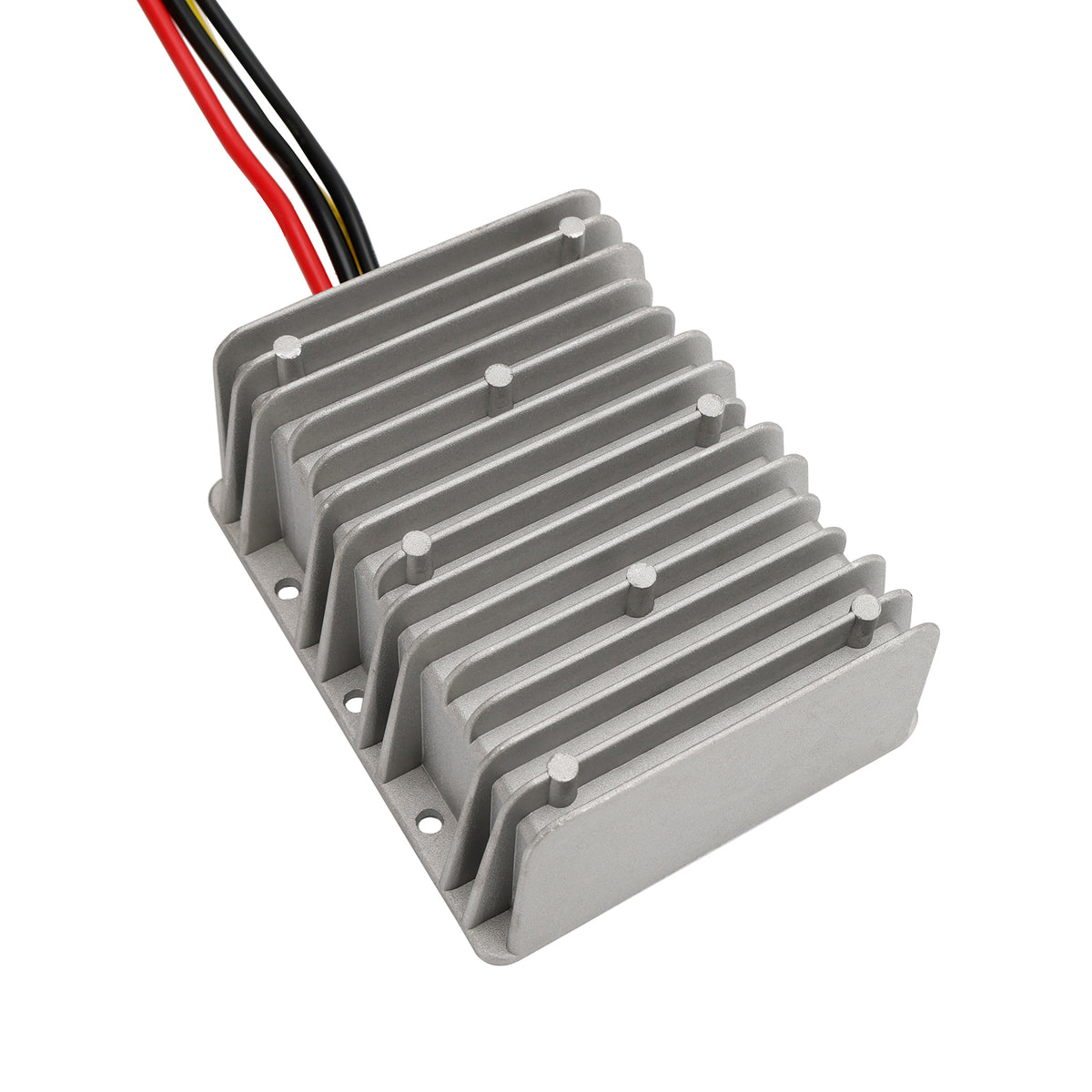

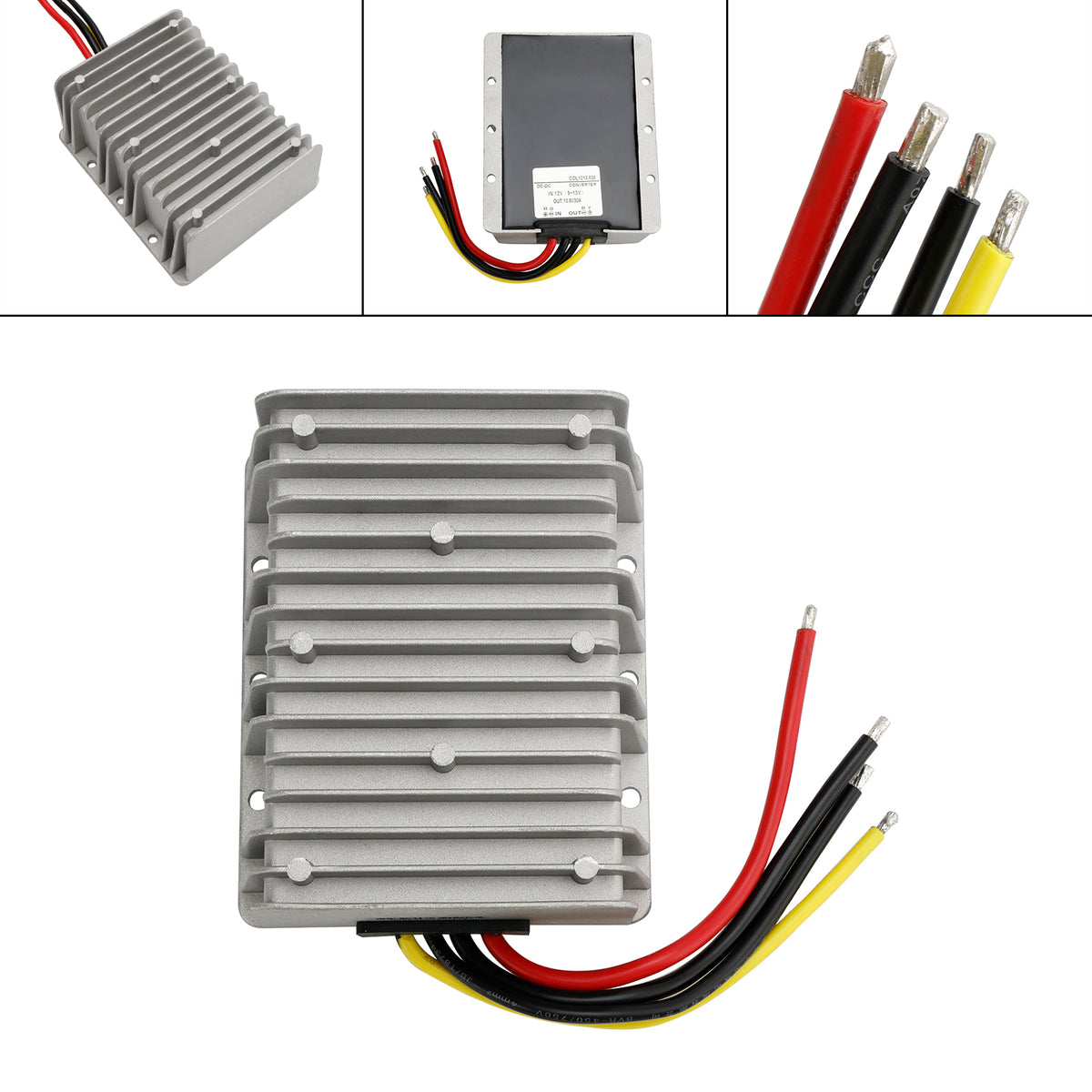

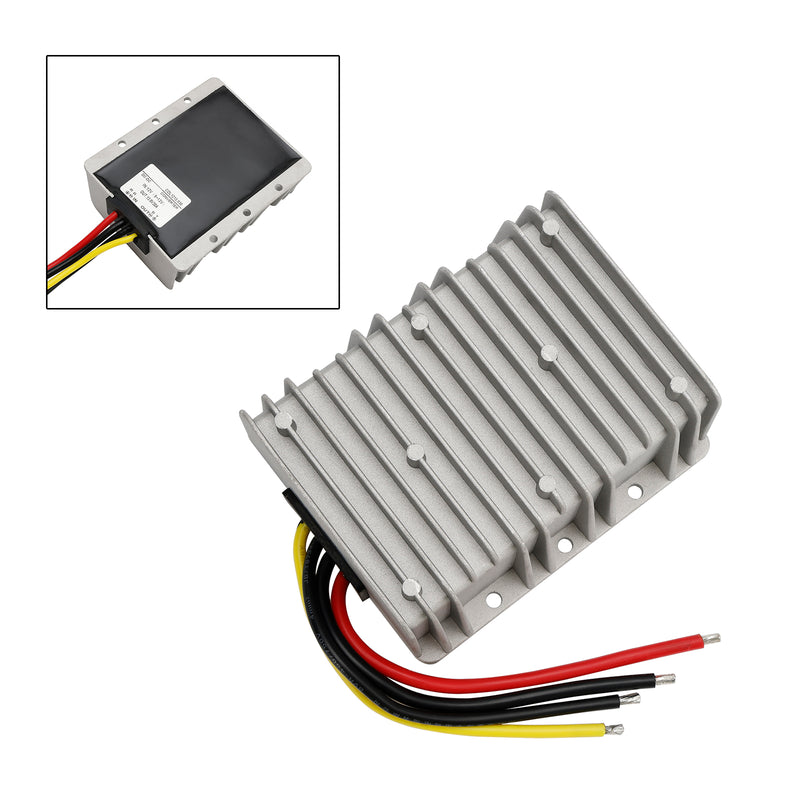

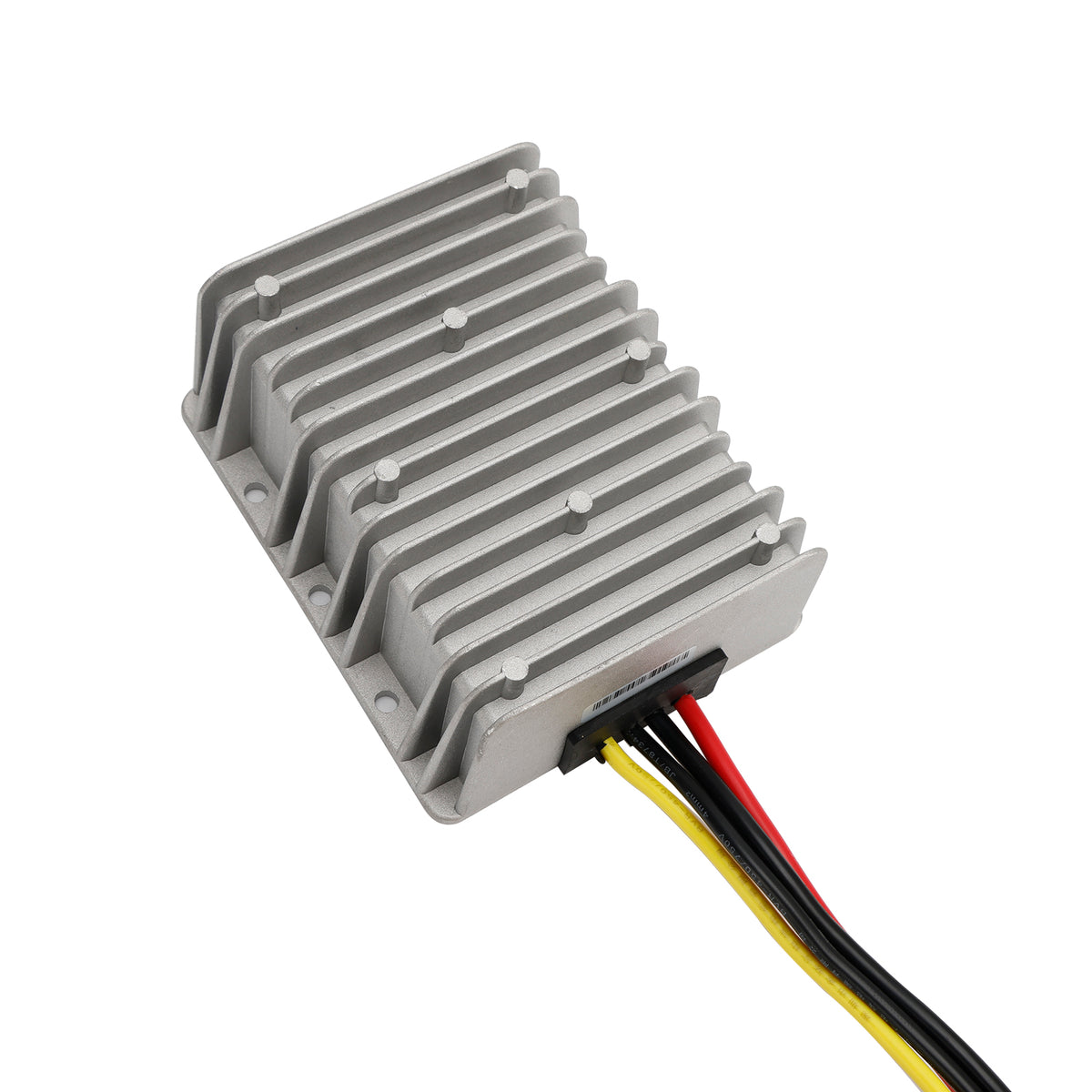

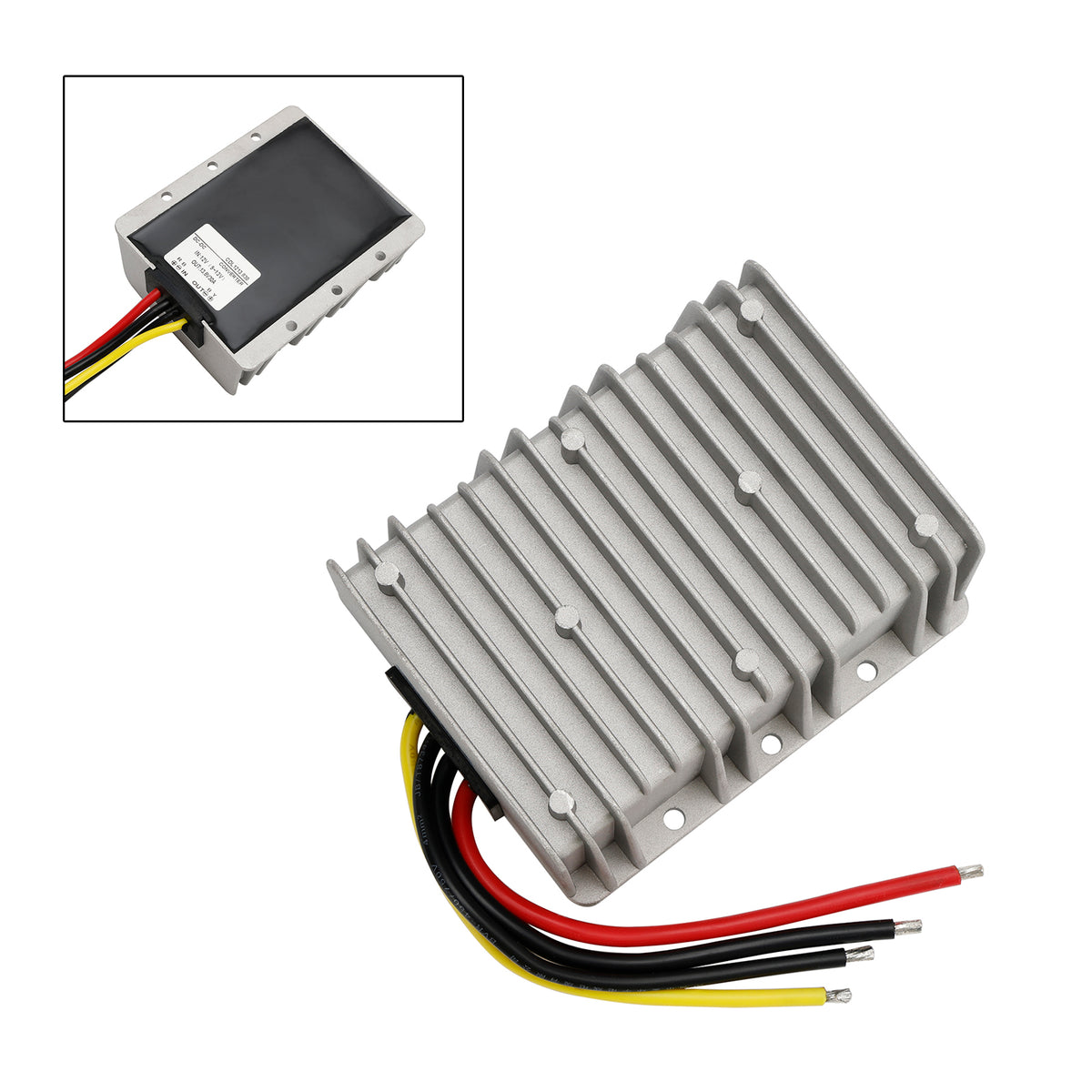

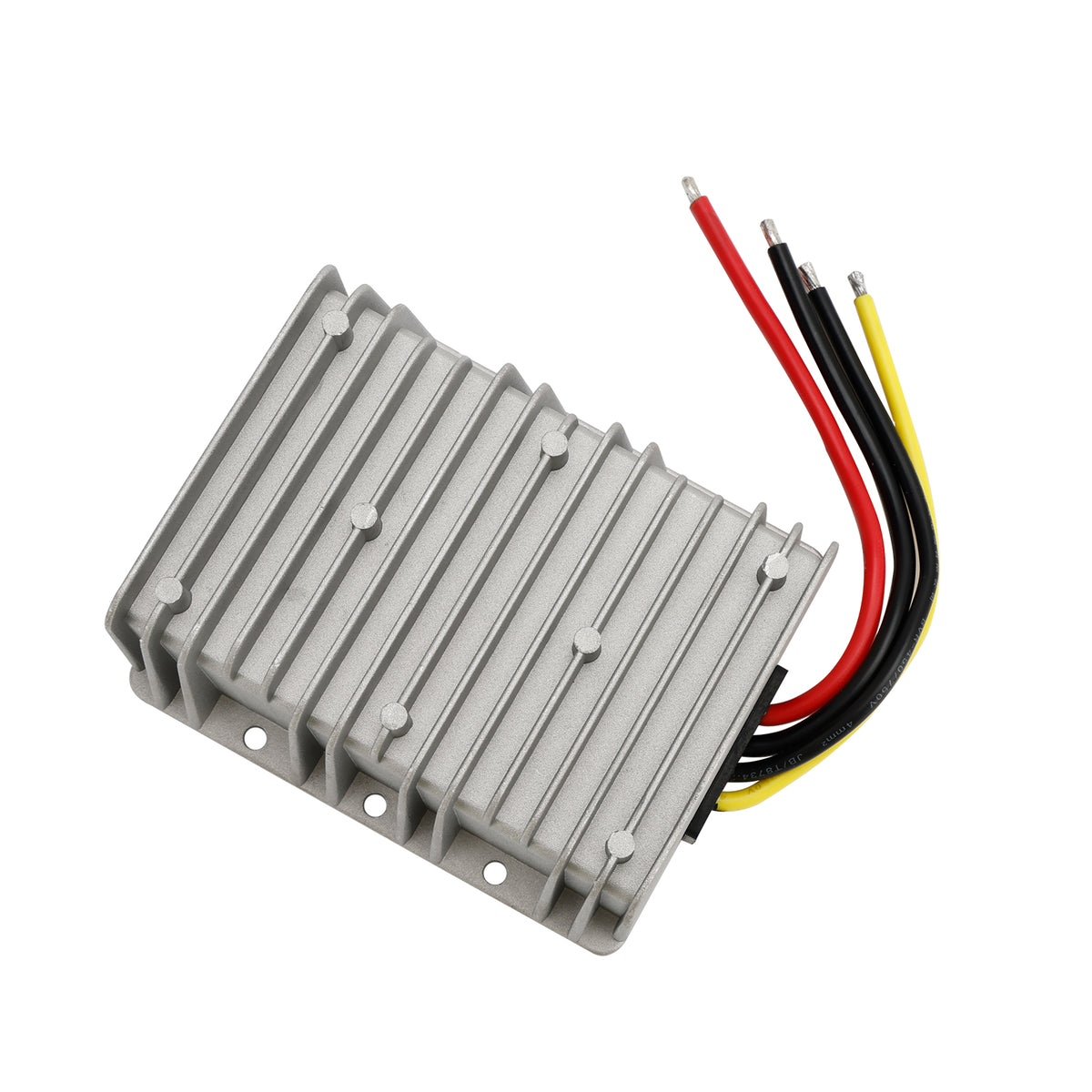

Waterproof DC/DC Converter Regulator 12V Step Up to 13.8V 30A 414W

Waterproof DC/DC Converter Regulator 12V Step Up to 13.8V 30A 414W

Feature:
1: High quality thermal silica potting, waterproof, dust-proof, shockproof effect.
2: Aluminum Outer Case material, long term stable and reliable.
3: Easy to install, anti-aging, good heat dissipation.

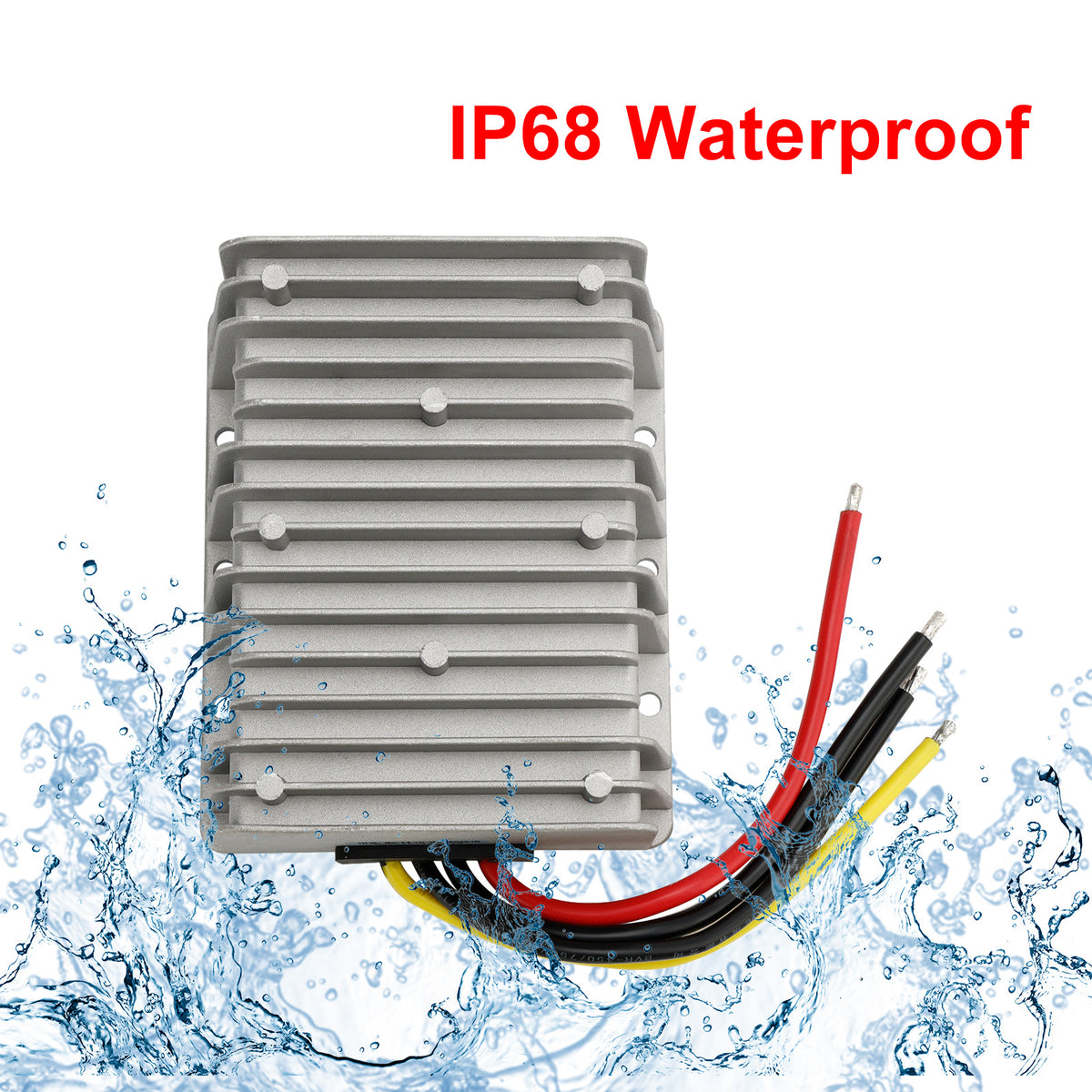

4: IP68 waterproof and shockproof design, suitable for different outdoor harsh environment.
5: With over-current, over-voltage, over-temperature and short circuit protection, reliable multi-protection design to enhance your using safety.

Specifics:
Condition: 100% Brand New

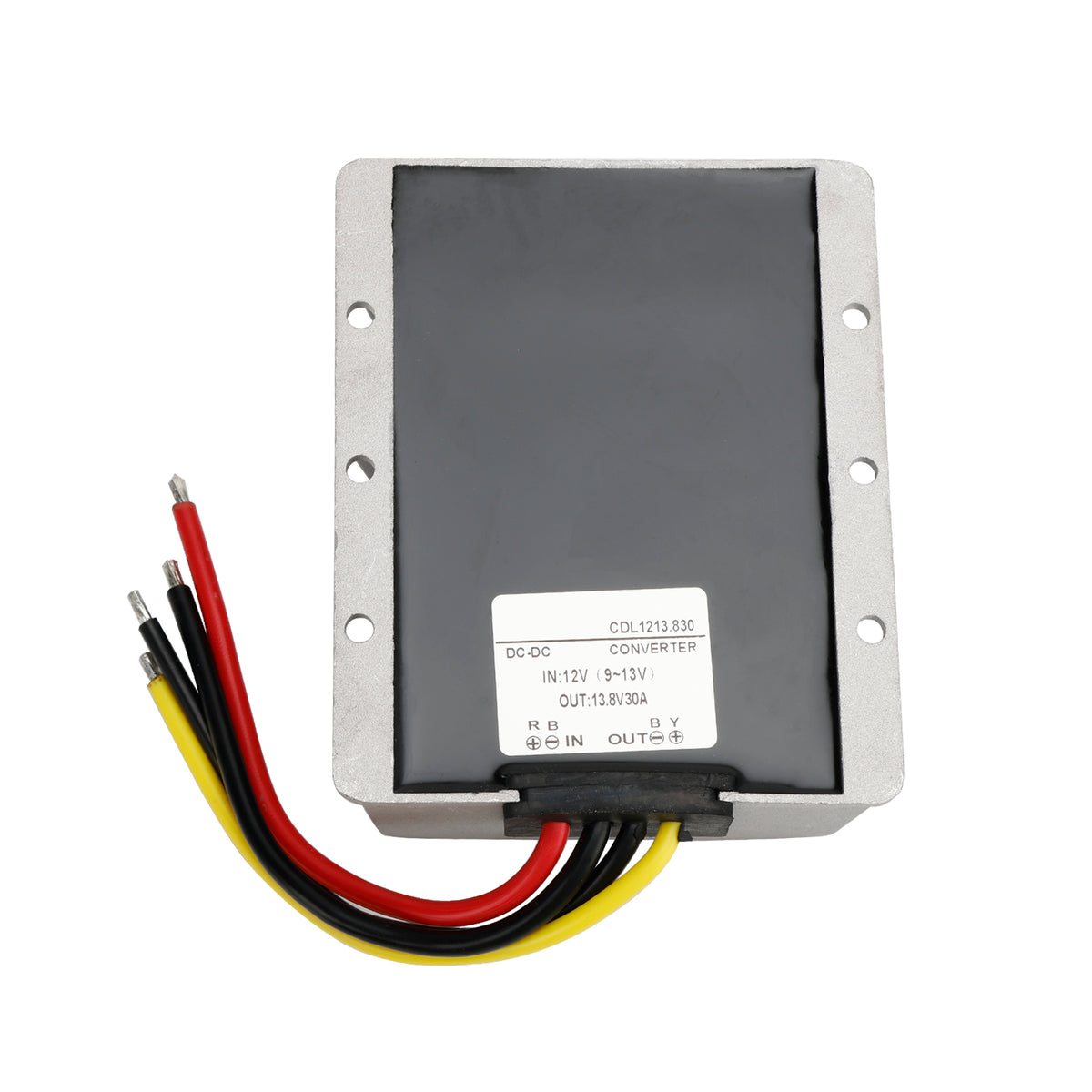

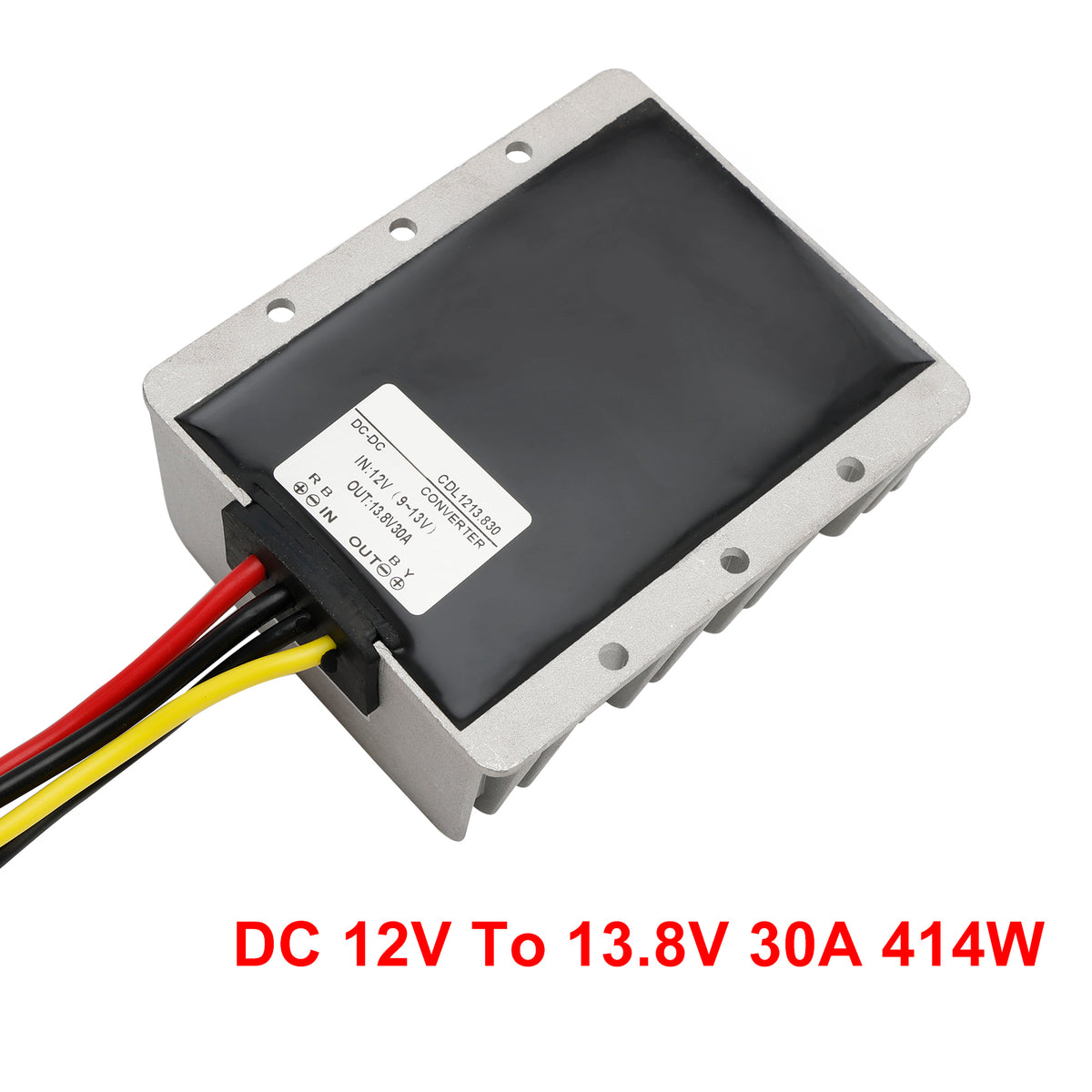

Model: DC 12V To 13.8V 30A 414W
Shell Material: Die-cast aluminum alloy
Input voltage: 12V DC
Input voltage range: 9 ~ 13V DC
Output voltage: 13.8V DC
Output current: 30A (max), 414W
Operating temperature: -40°C ~ +80°C
Efficient conversion: More than 90%
Waterproof Rating: Ip68
Wire lengths: 130mm/5.12inch

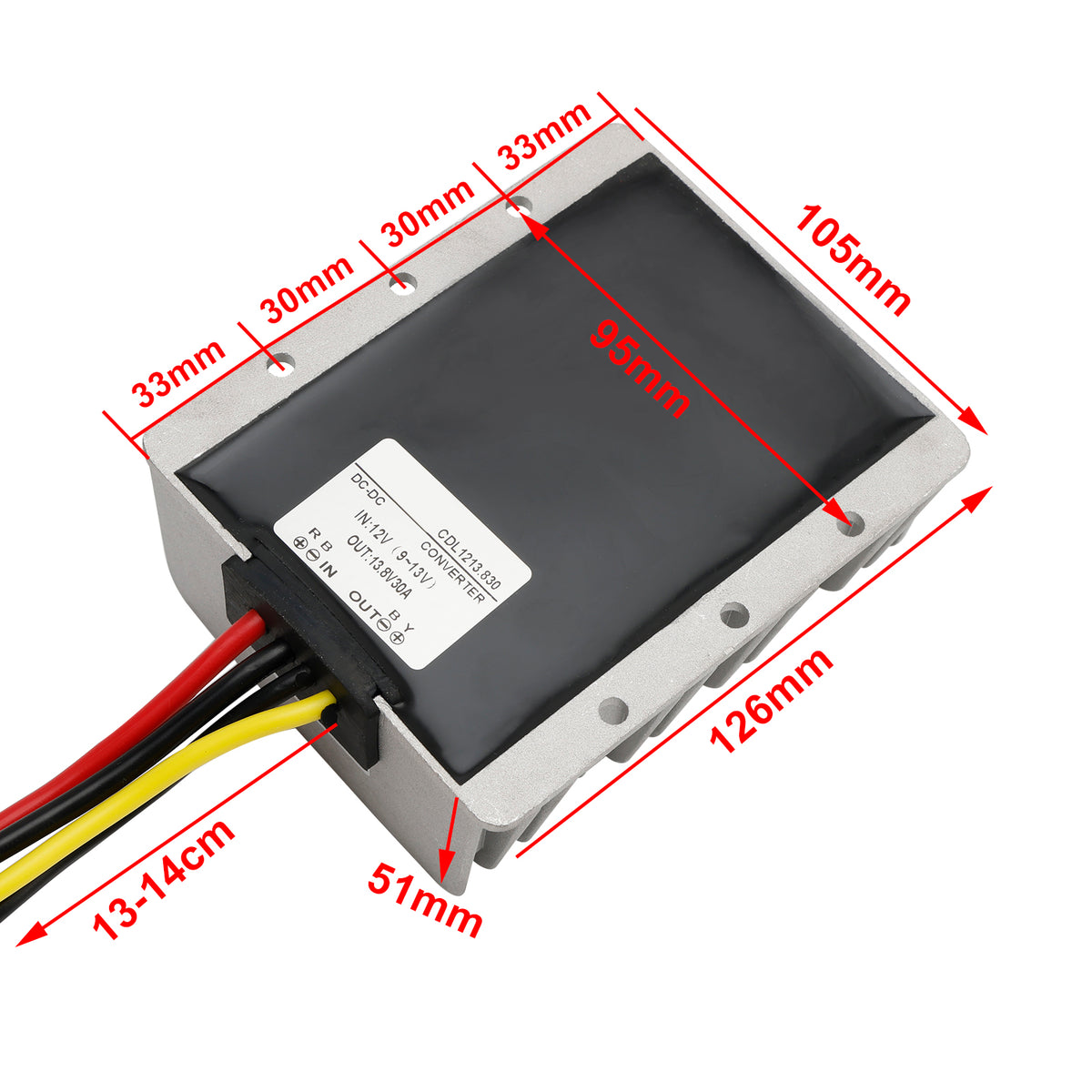

Size: 126*105*51mm/4.96*4.13*2.01inch
Weight:approx.260g

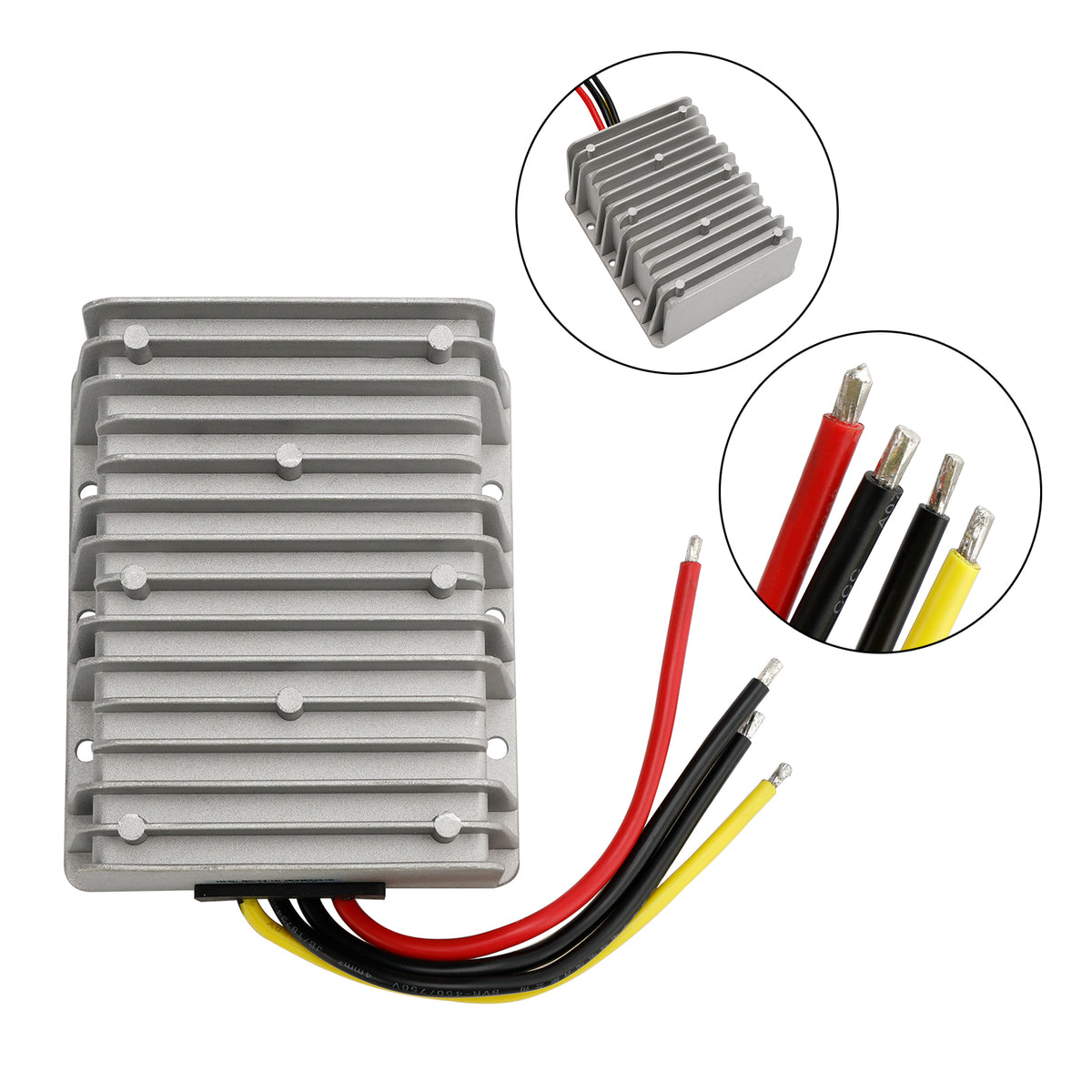

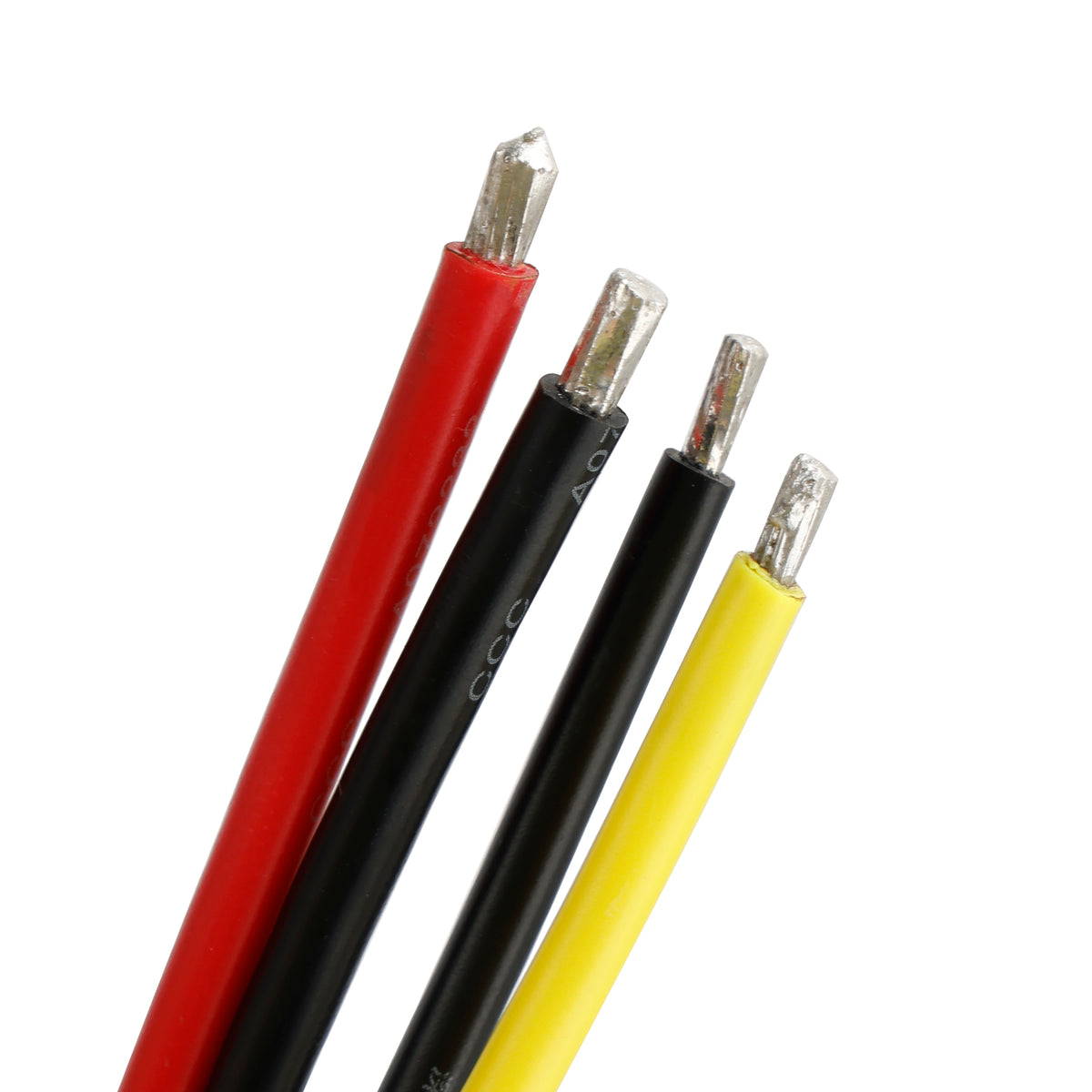

Input wire color : (+)Red, (-)Black.
Output wire color : (+)Yellow, (-)Black.

Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment

Package Included:
1x DC/DC Converter Regulator
