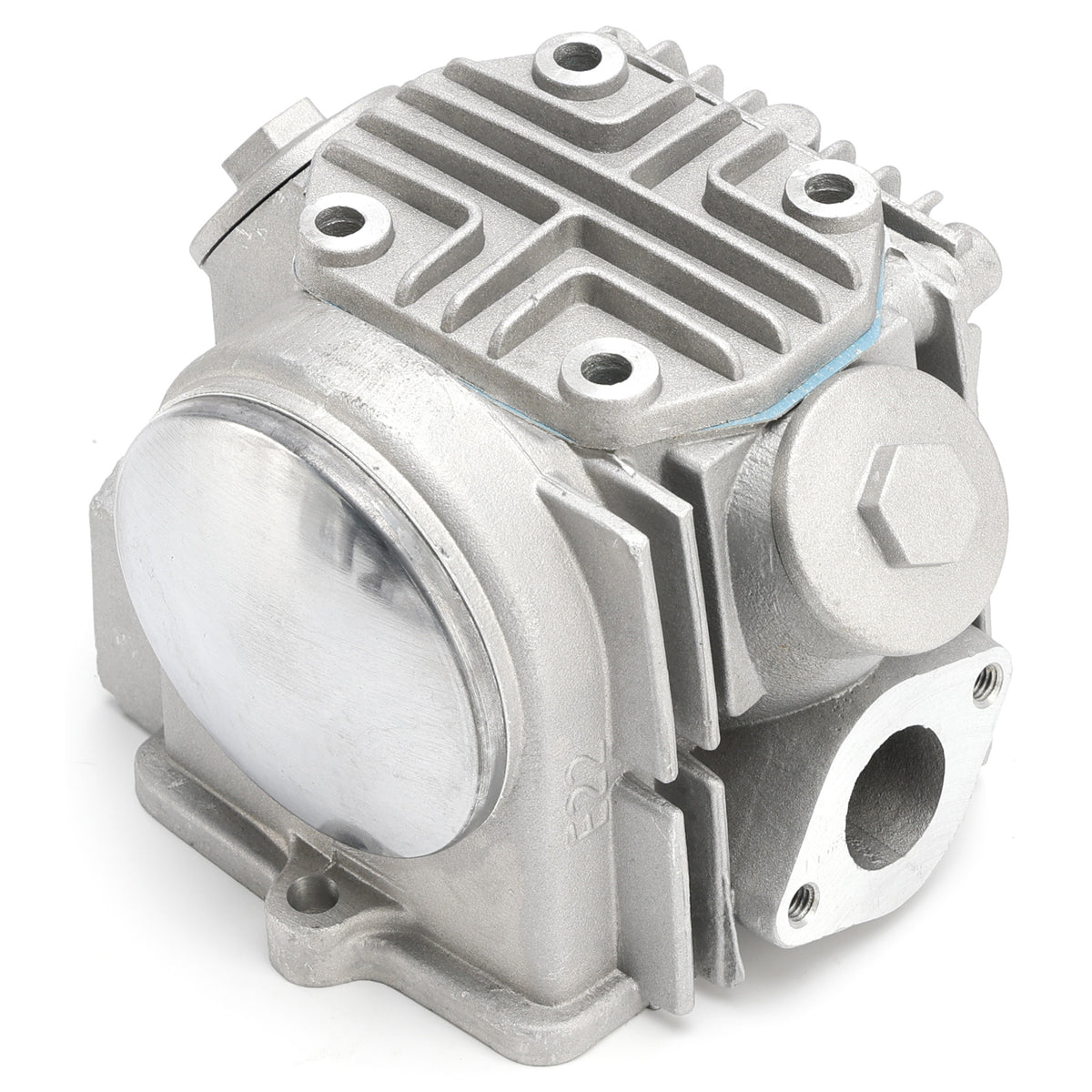

47mm Cylinder Head Piston Gasket Top End Rebuild Kit 70cc For Honda CT70 CRF70 XR70 ATC70 TRX70

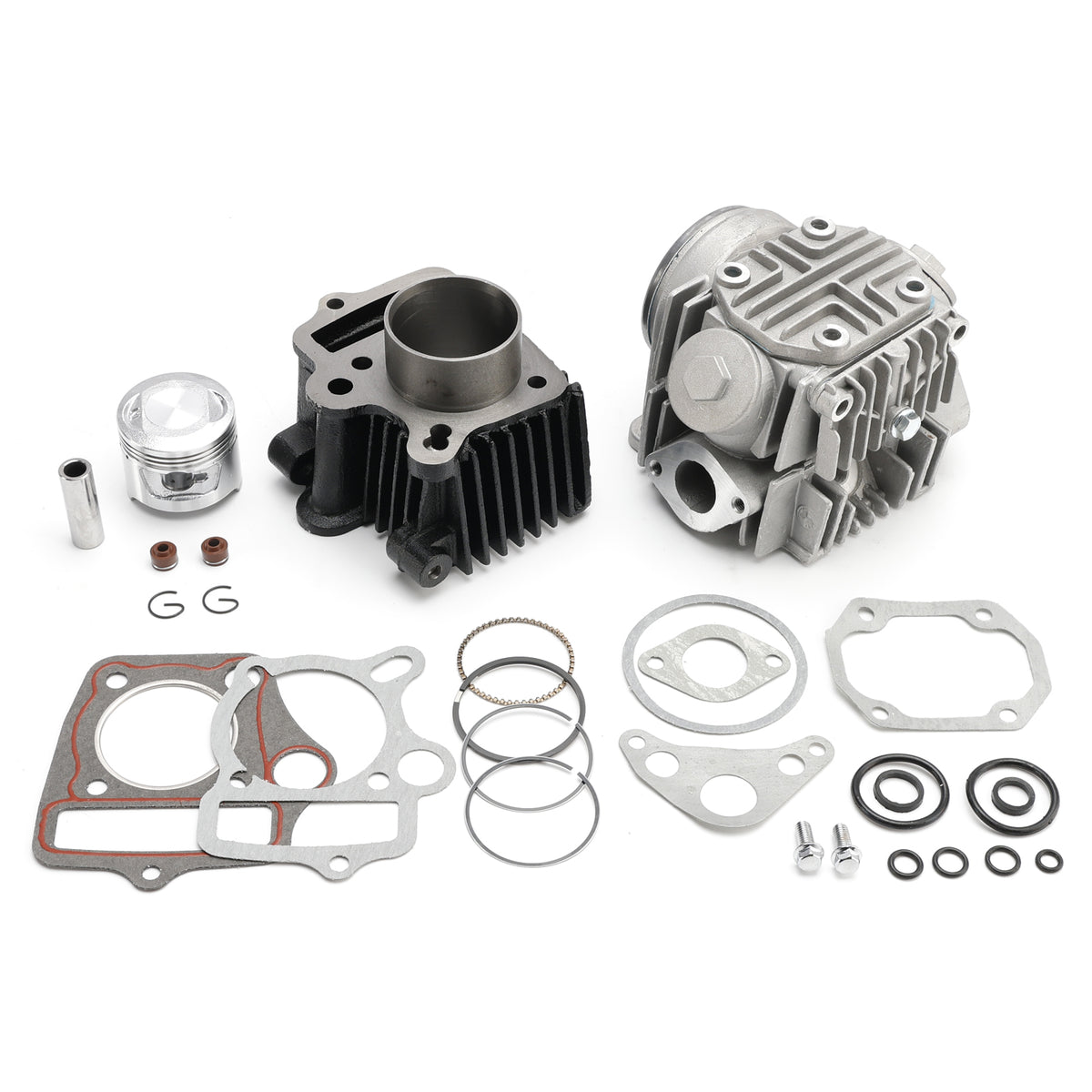

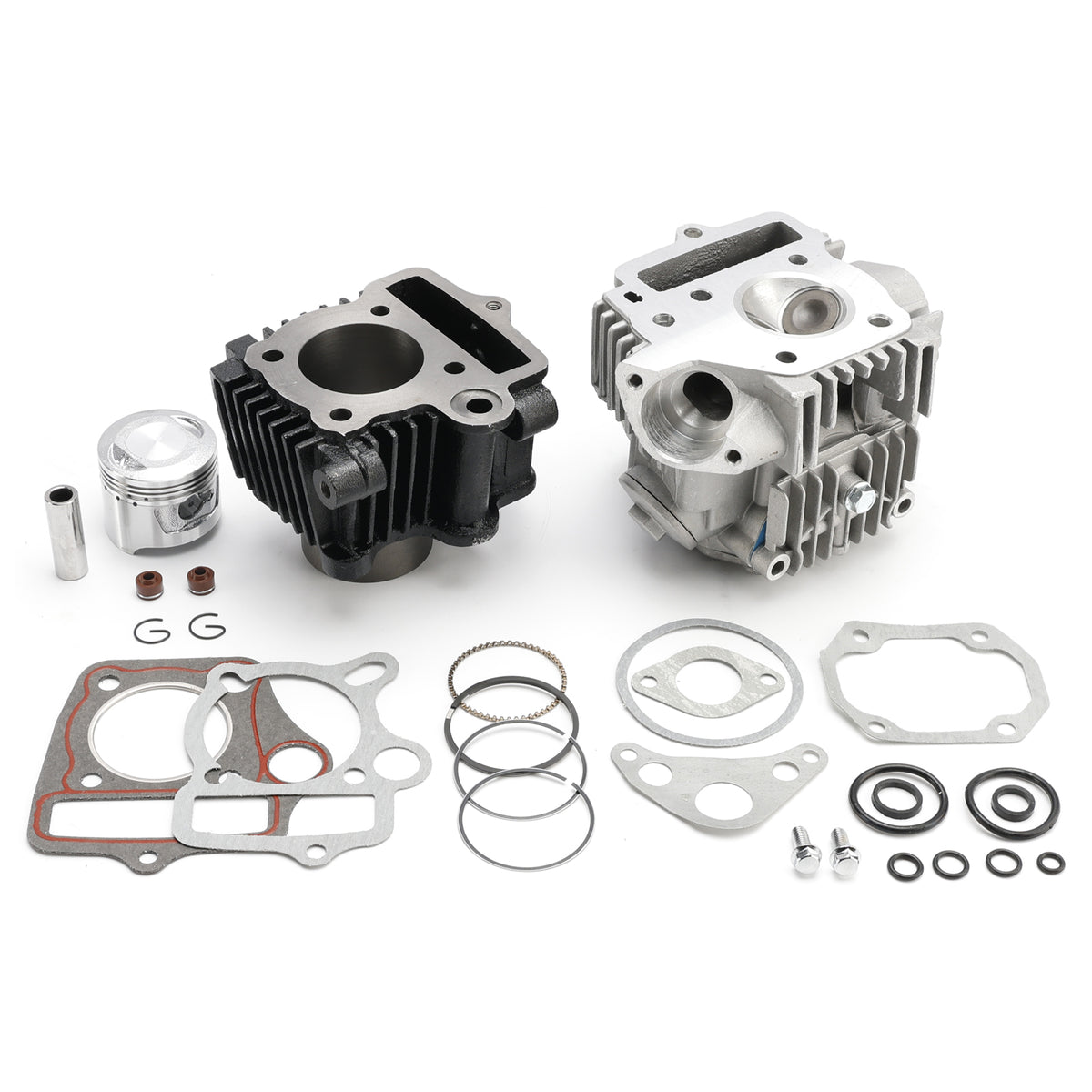

Features: Complete engine cylinder Top end rebuild kit for Honda 70cc. If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you. Kit includes cylinder, cylinder head, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). Includes all gaskets pictured to rebuild top end. Kit is for standard bore size - 47mm, 13mm steel piston pin. This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications: Condition: Aftermarket 100% Brand New Quantity: 1 Set Material: Aluminum, Steel Displacement: 72cc Bore Type: Standard Bore Bore Size: STD 47mm Pin Diameter: 13mm Pin Overall Length: 38.5mm
Replacement Part Number: Cylinder: 12101-GB0-910, 12101-087-000, 12101-087-010, 12101-HB2-000, 12101-098-670, 12101-098-671 Cylinder Head: 12200-GB0-913, 12200-GT0-751 Cylinder Head Cover: 12301-086-000 Cylinder Head Cover Gasket: 12391-KVM-C20 Cylinder Head R Side Cover: 12331-GB0-910 Cylinder Head R Side Cover Gasket: 12394-GW8-681 (Generator Cover Gasket) Cylinder Head L Side Cover: 12341-040-000 Cylinder Head L Side Cover Gasket: 12395-GW8-681 Oil Drain Plug(x2): 12361-035-000 Cylinder Base Gasket: 12191-GW8-682 Cylinder Head Gasket: 12251-GB0-306 Piston (Std): 13101-GB5-930 Pin, Piston: 13111-GB0-910 Piston Ring Set (Std): 13015-HB2-305 Circlips, piston: 94601-13000 Valve Stem Seals: 14730-GB0-912 Carb Insulator Gasket: 16201-GB0-910
Fits Make/Model/Year: Fit for Honda S65 1969 Fit for Honda TRX70 1986-1987 Fit for Honda ATC70 1978-1985 Fit for Honda C70 Passport 1971-1972, 1980-1983 Fit for Honda CT70 Trail 1969-1994 Fit for Honda CRF70F 2004-2009, 2011-2012 Fit for Honda XR70R 1997-2003 Fit for Honda XL70 1974-1976 Fit for Honda SL70 Motosport 1971-1973 Fit for Honda CL70 Scrambler 1969-1972
(will not fit models with domed piston.)
Please compare our kit with your original part to make sure this is the correct kit that you want.
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

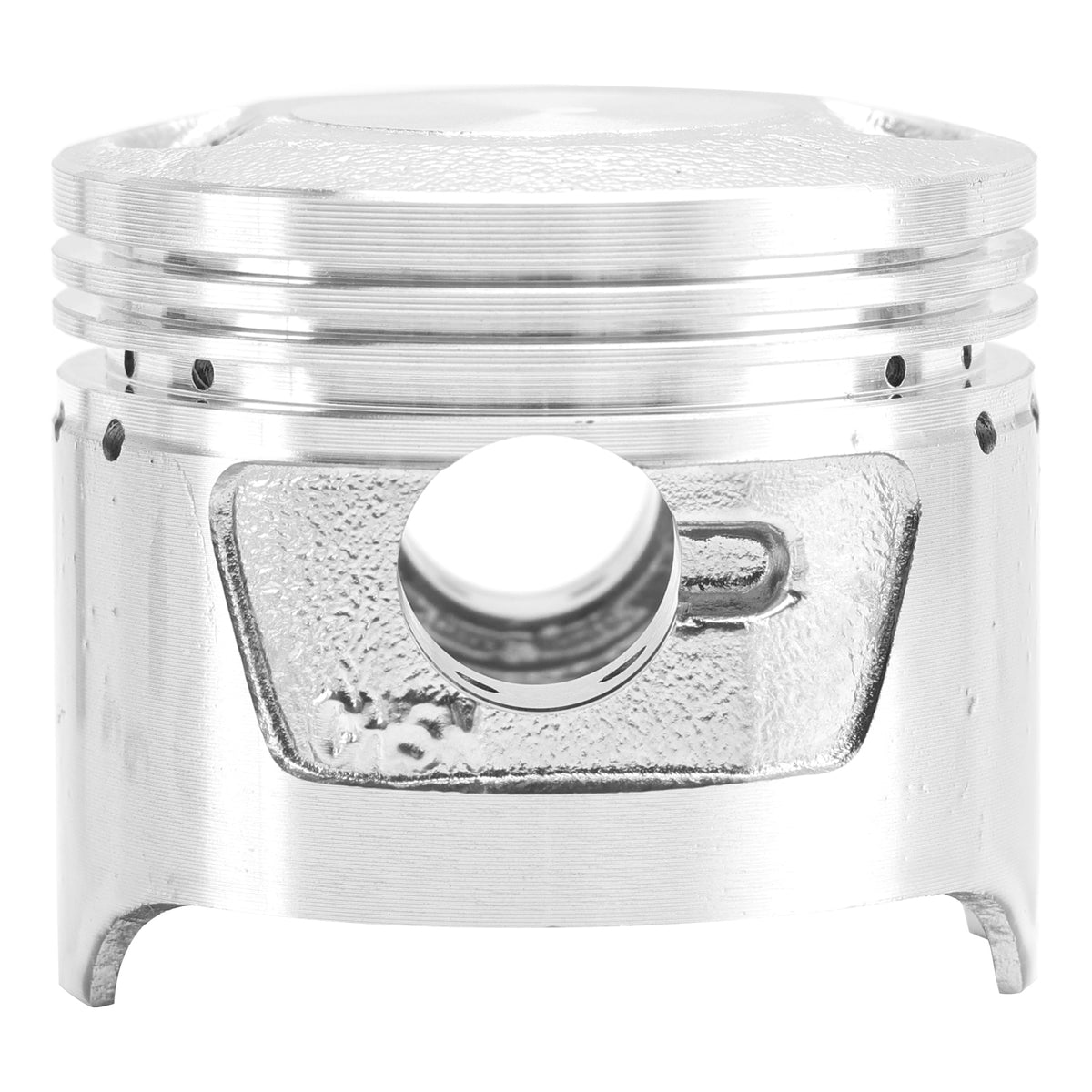

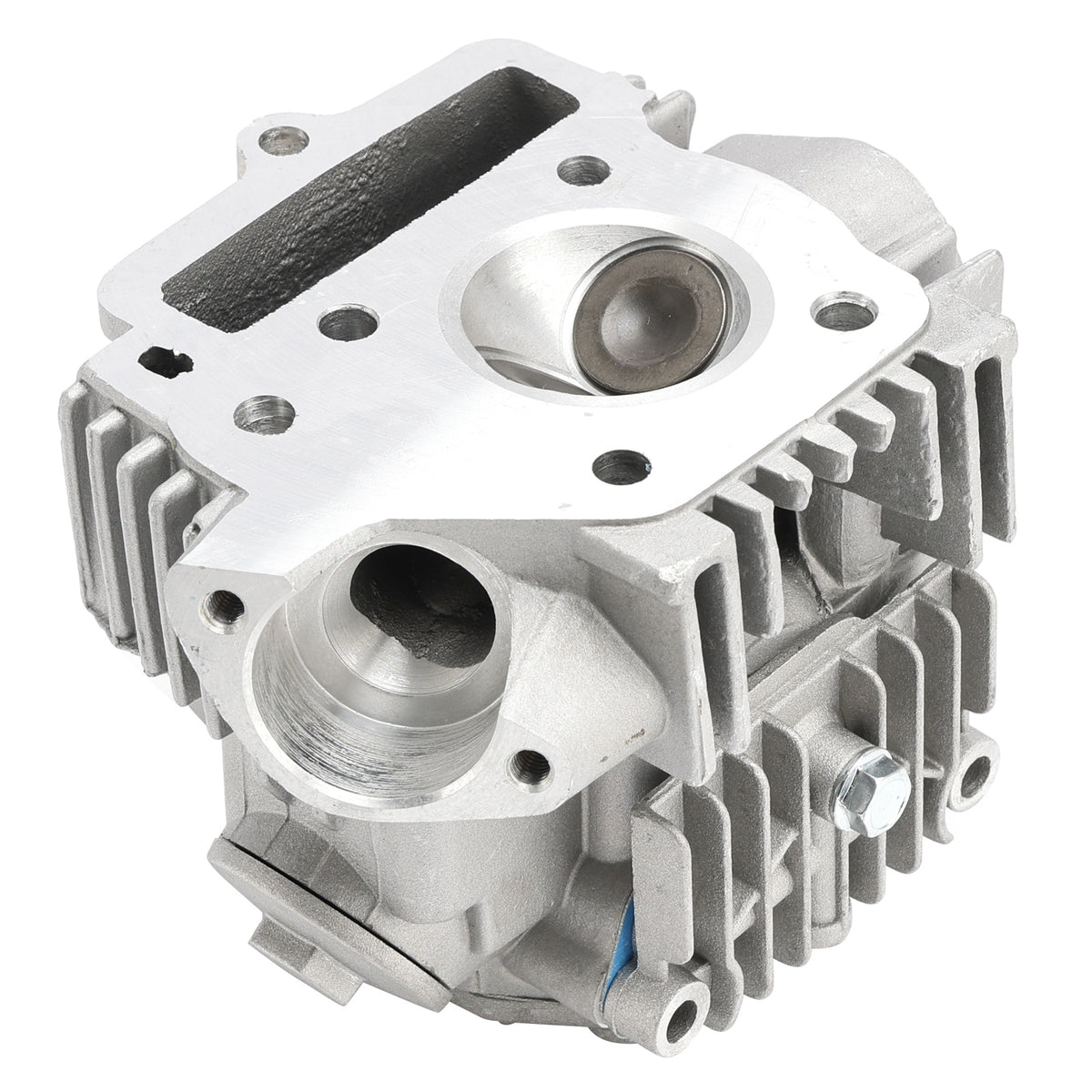

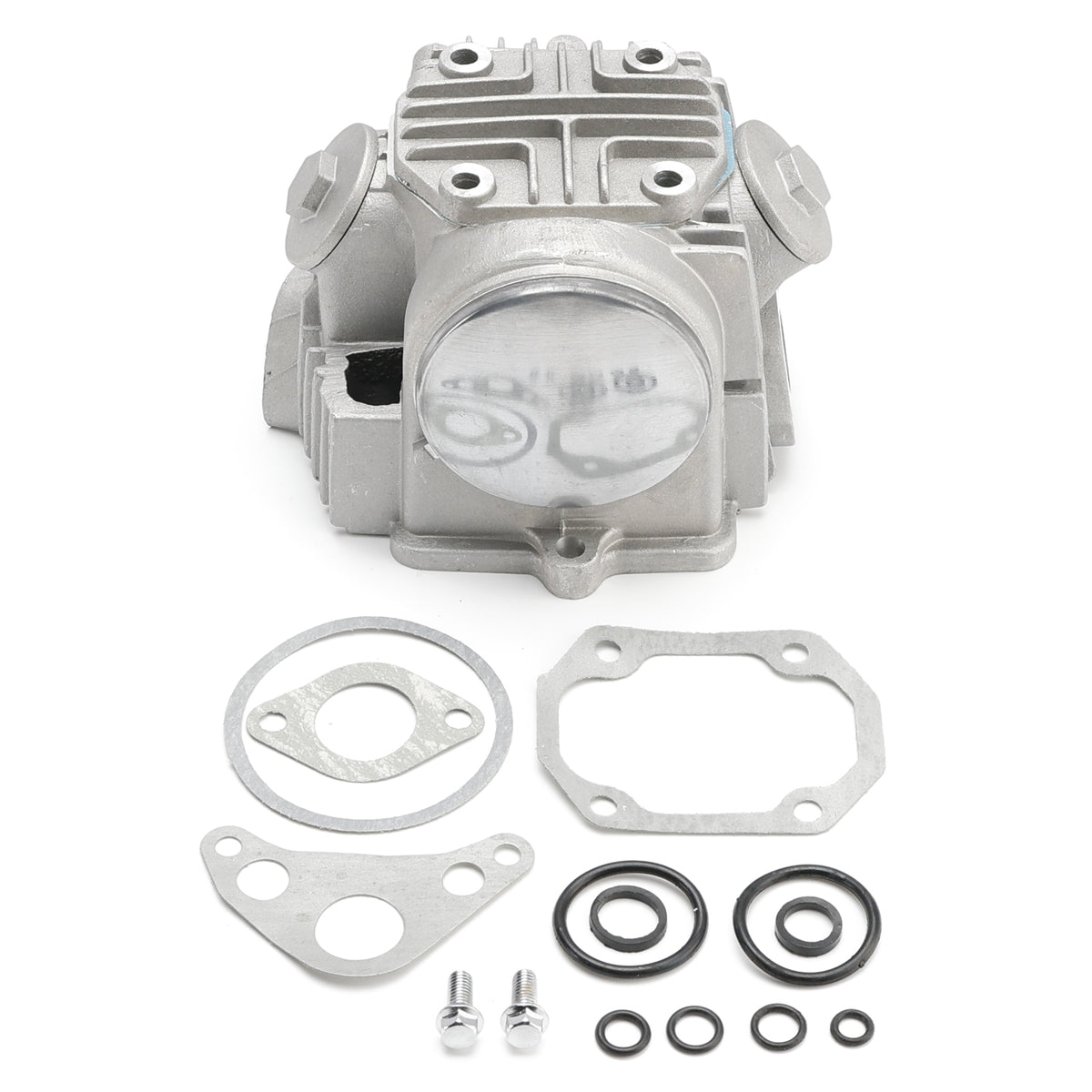

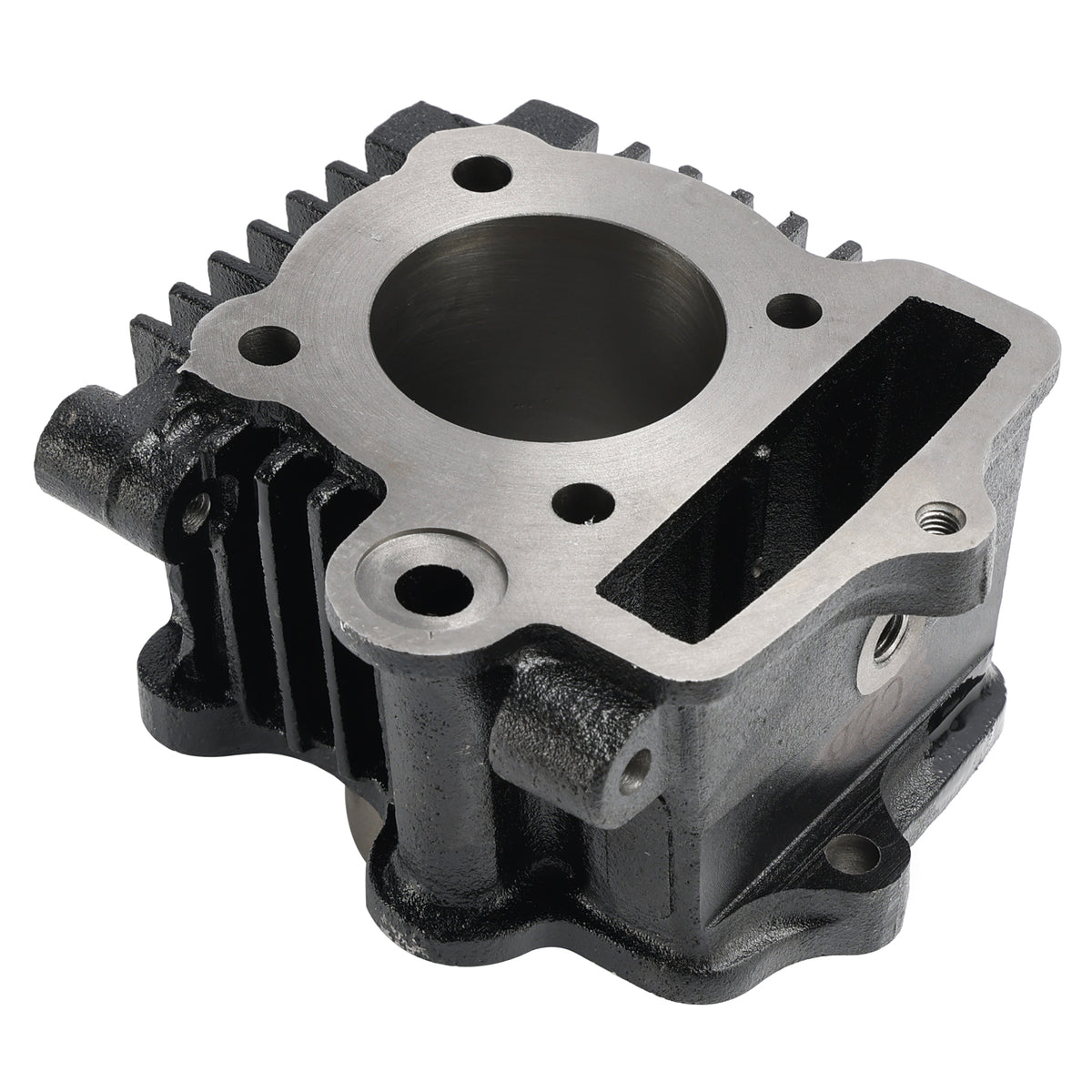

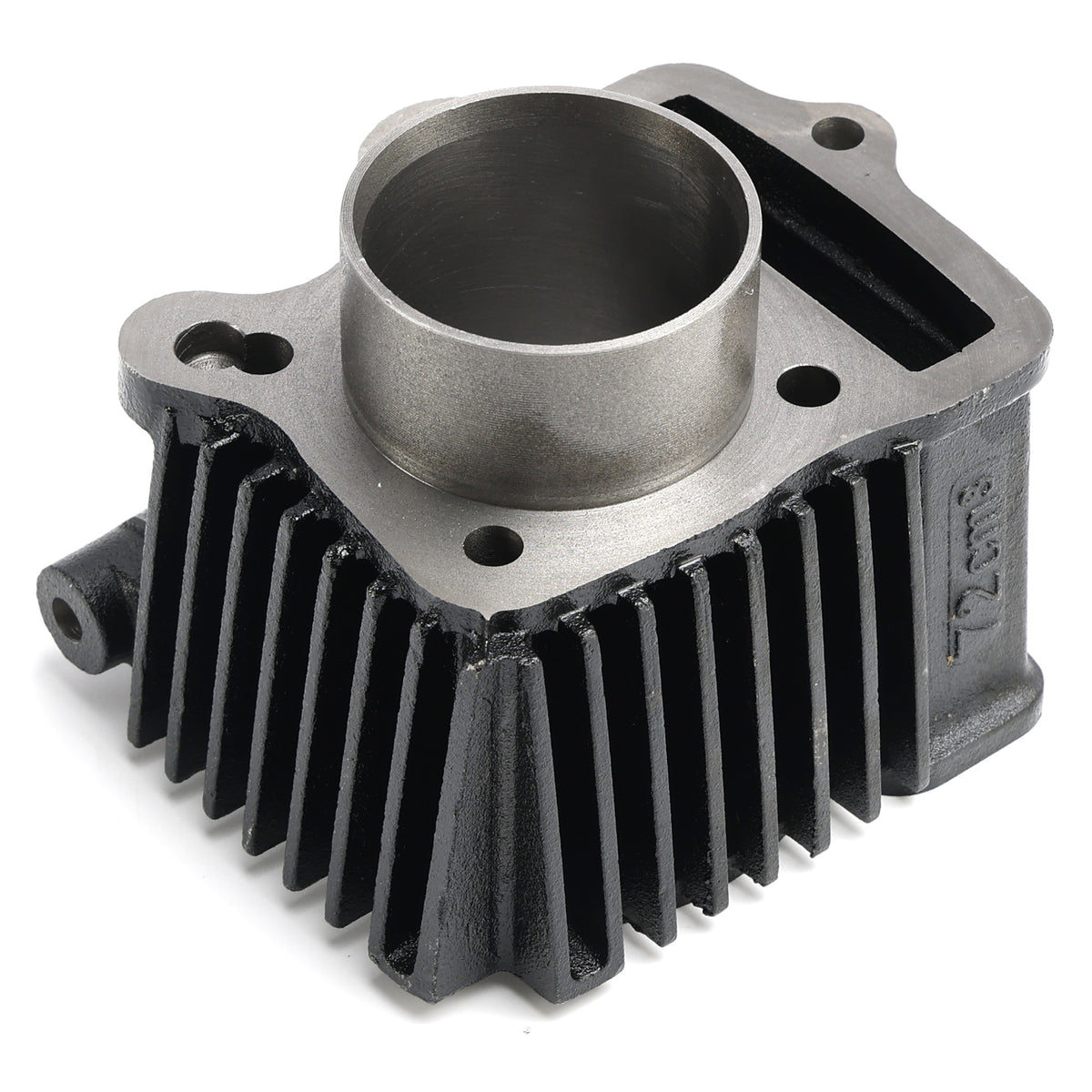

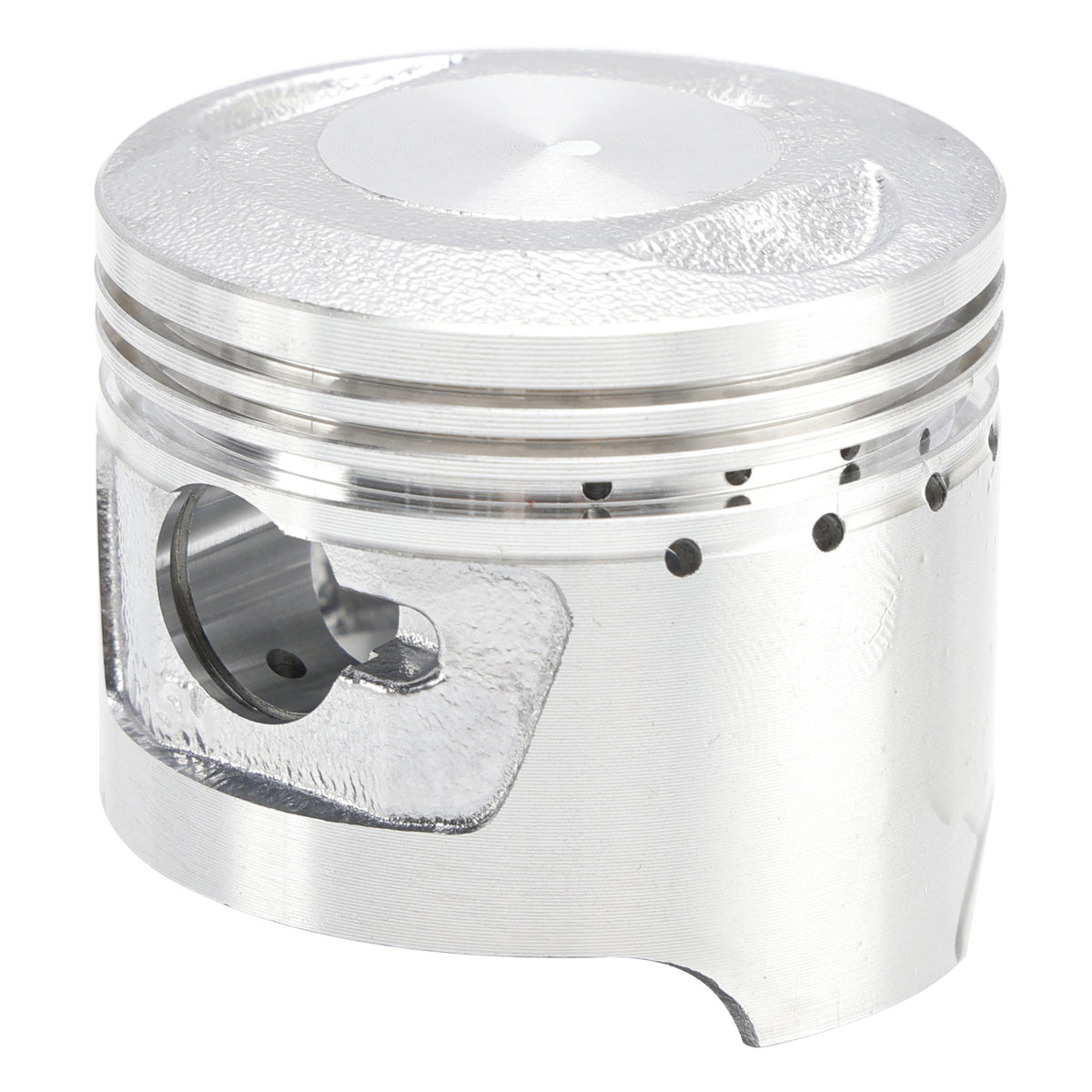

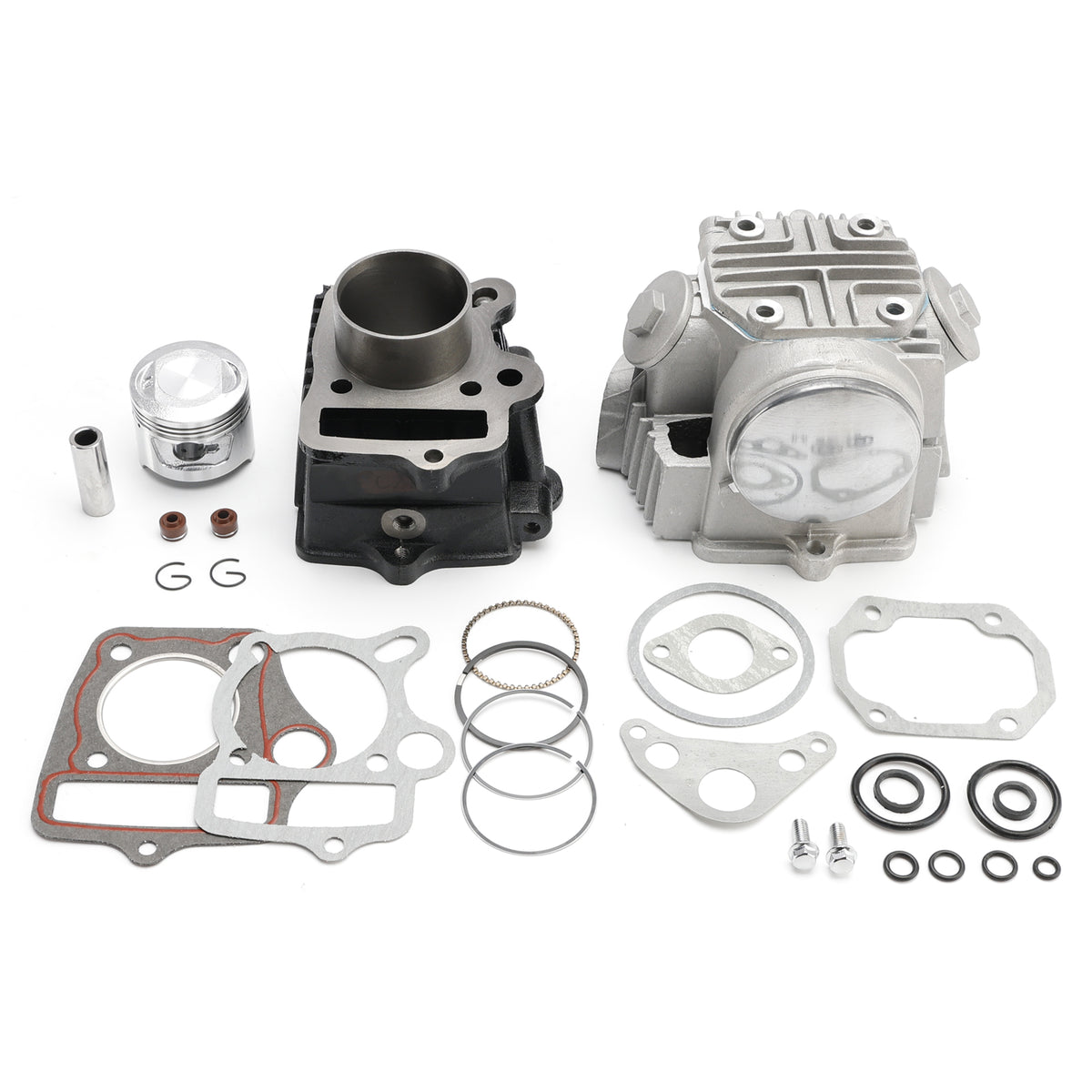

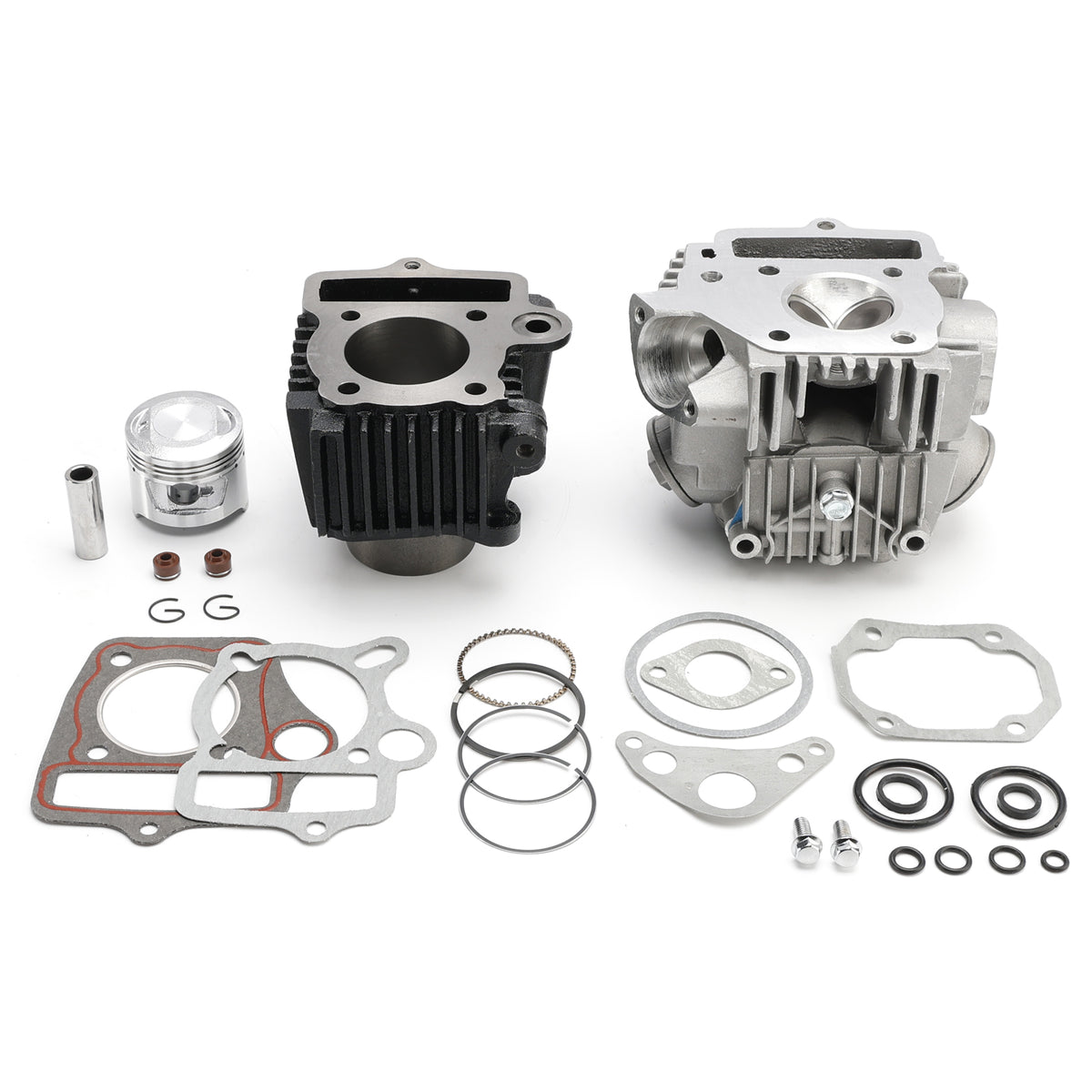

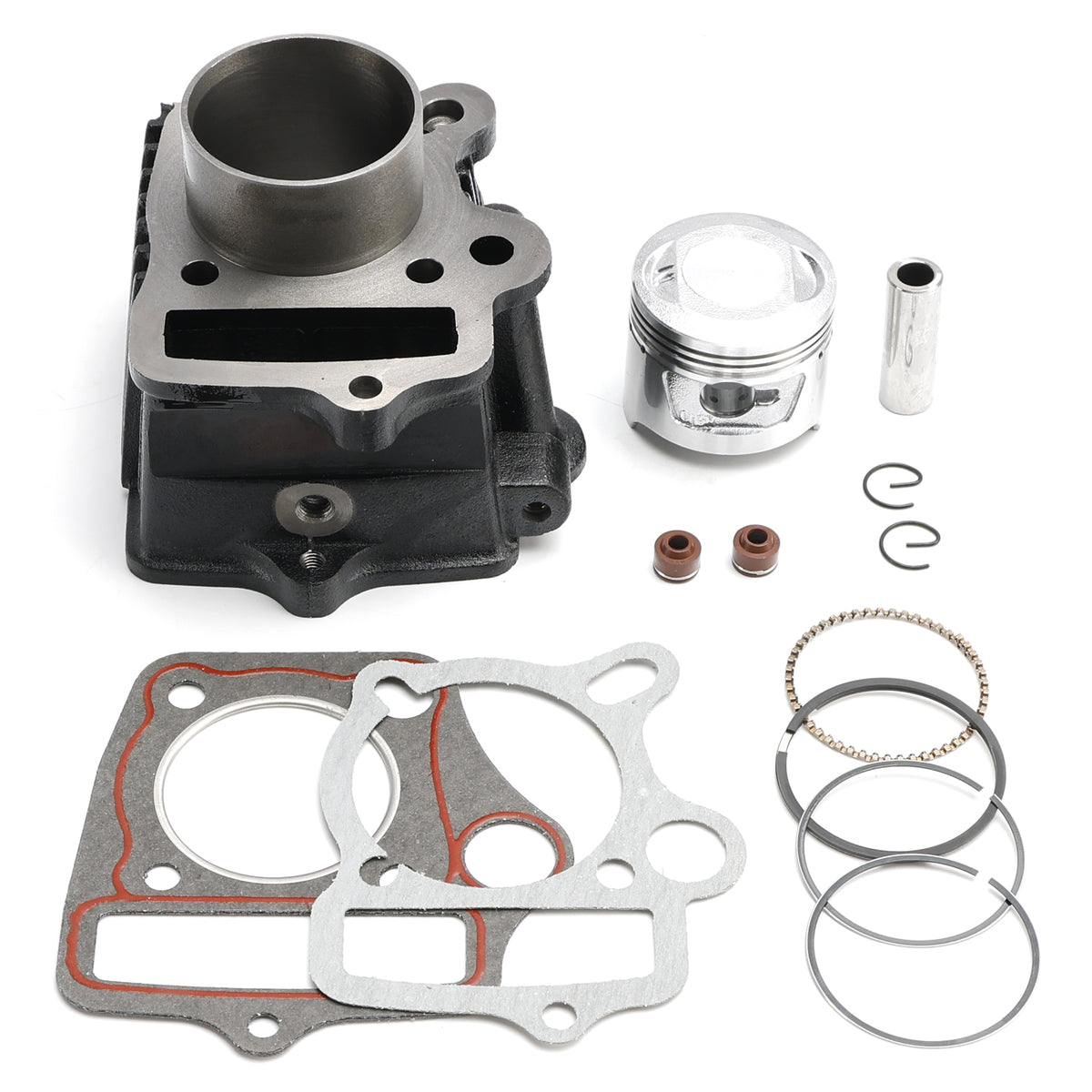

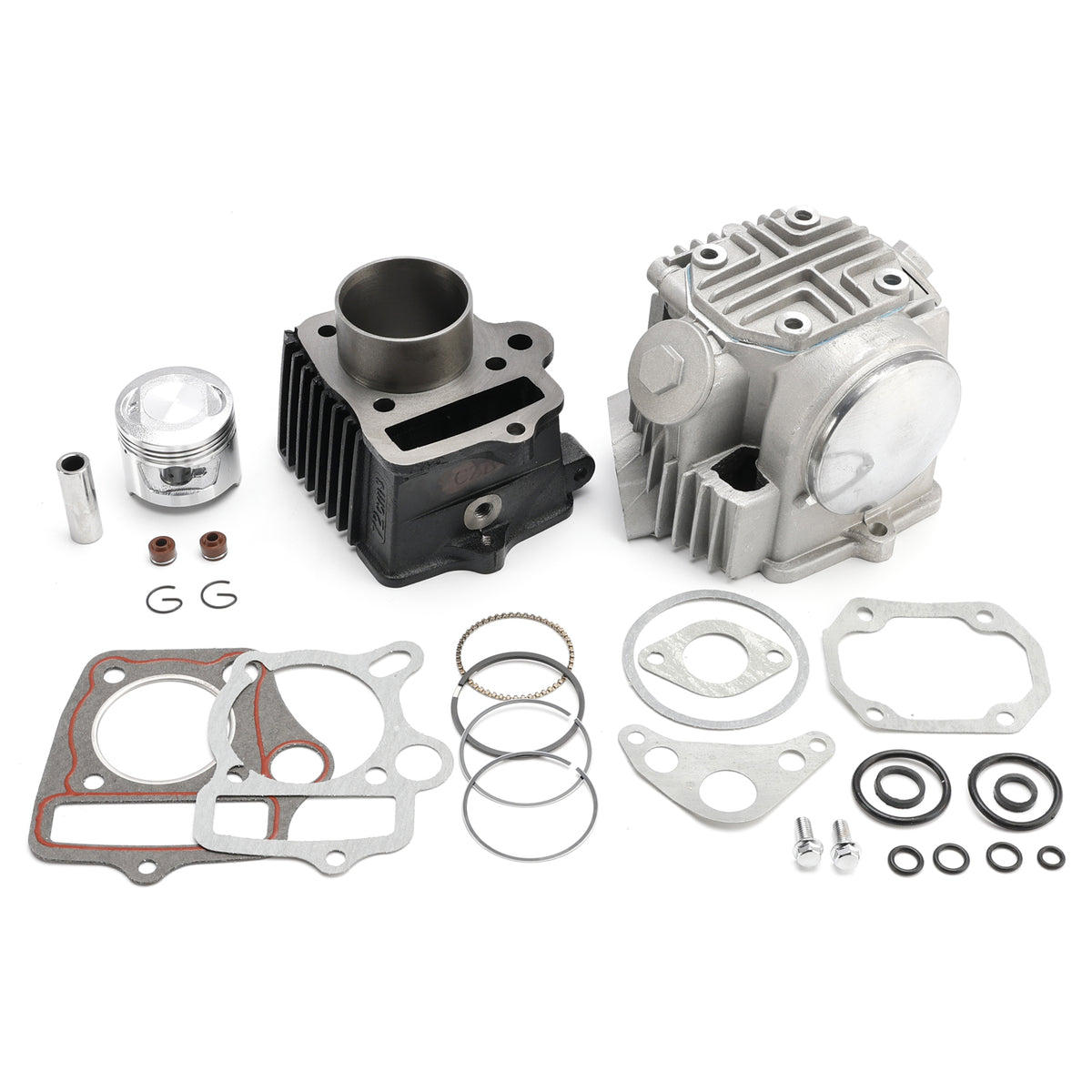

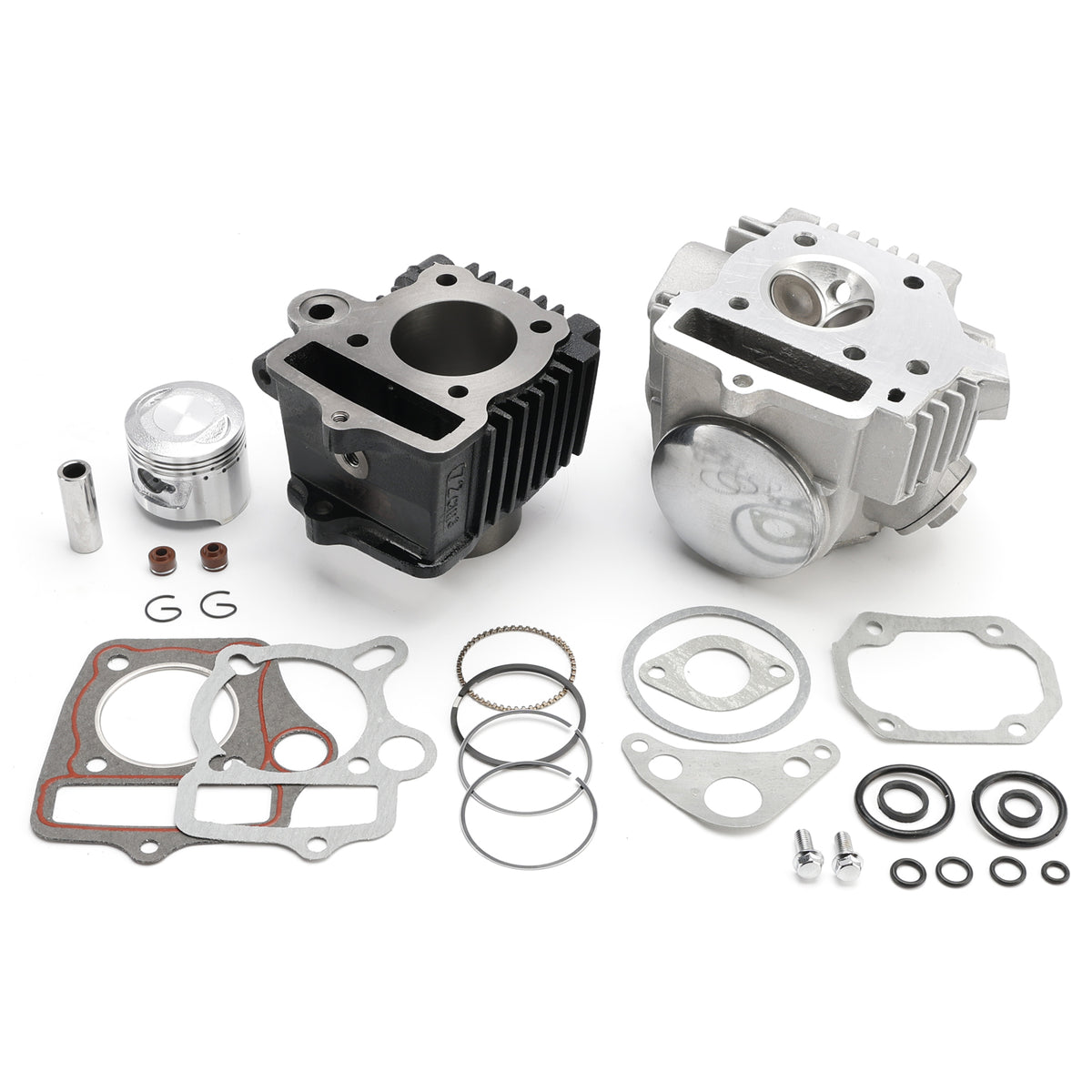

Package Includes: 1x Cylinder 1x Cylinder Head 1x Cylinder Head Cover 1x Cylinder Head Cover Gasket 1x Cylinder Head R Side Cover 1x Cylinder Head R Side Cover Gasket 1x Cylinder Head L Side Cove 1x Cylinder Head L Side Cover Gasket 2x Oil Drain Plug 1x Cylinder Base Gasket 1x Cylinder Head Gasket 1x Flat Piston 1x Piston Pin 1x Piston Ring Set 2x Circlips 2x Valve Stem Seals 1x Carb Insulator Gasket 1x O-Ring kit
Note: Please note that this kit is intended to be installed in it's entirety. It is built to work as a unit and will not necessarily be an exact swap with individual existing components on different Honda 70 models. Please confirm that the engine in your bike is the year and model you expect. Some of these bikes are over 50 years old now and are not always all original.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
