Cylinder Piston Gasket Top End Rebuild Kit For Yamaha Raptor 700 2006-2025

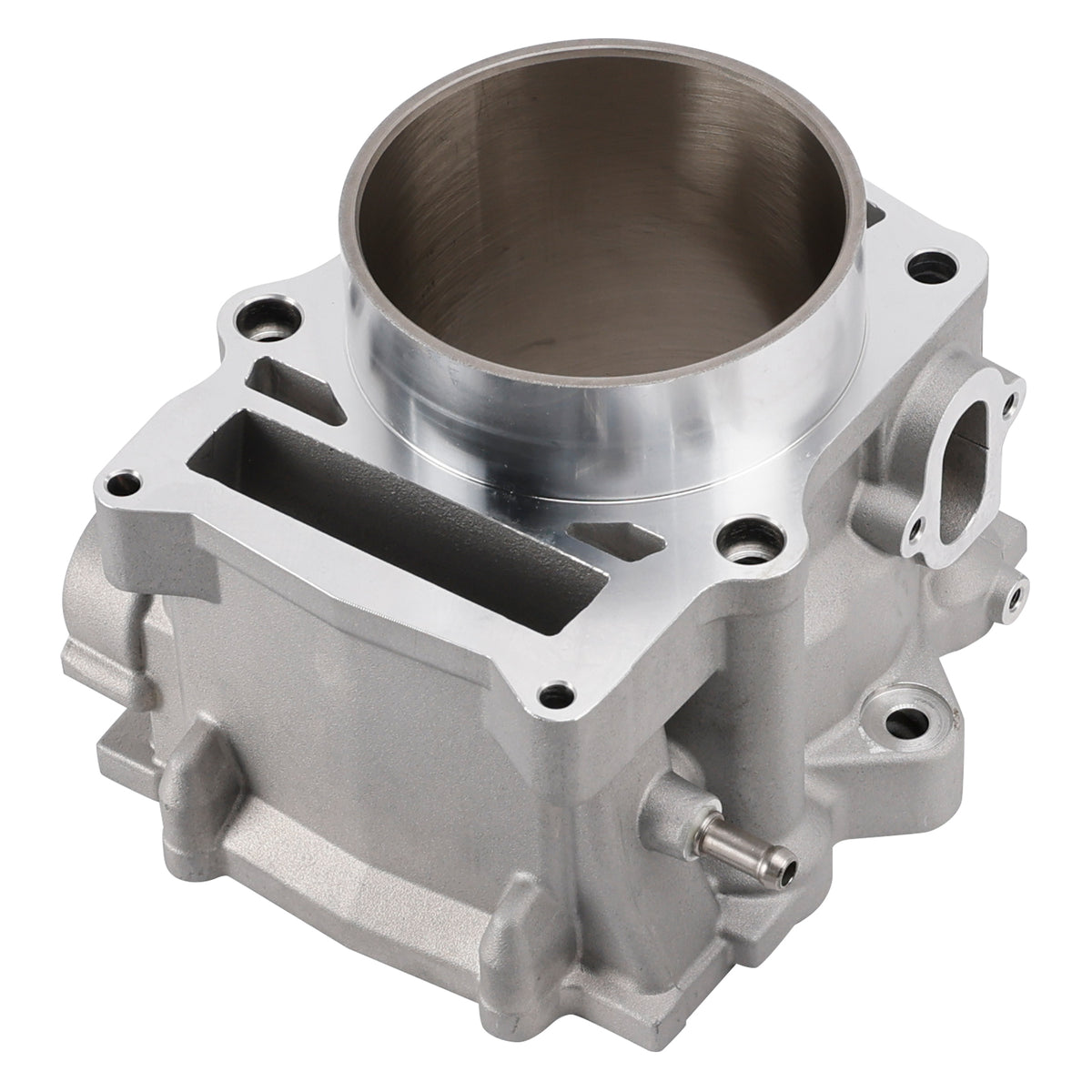

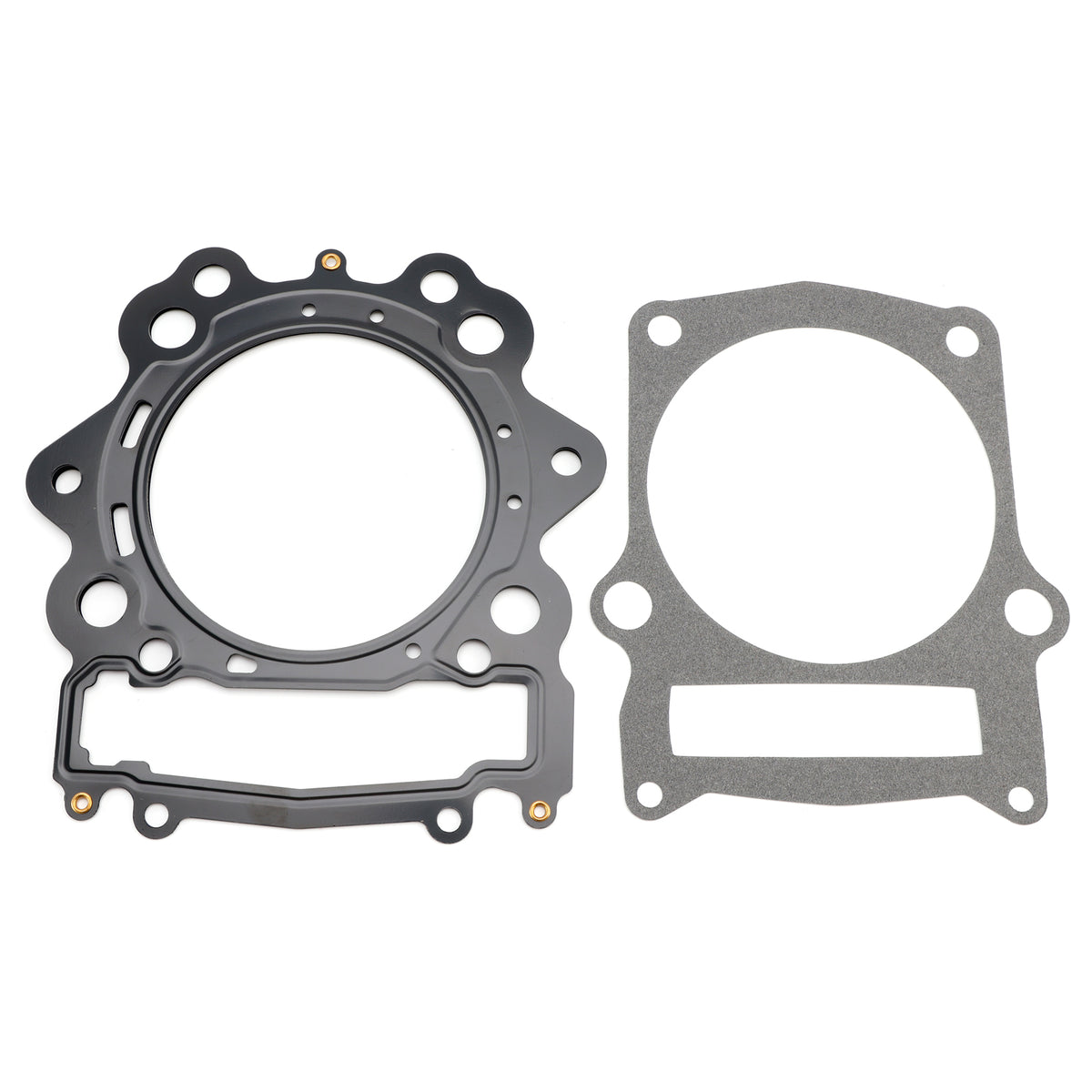

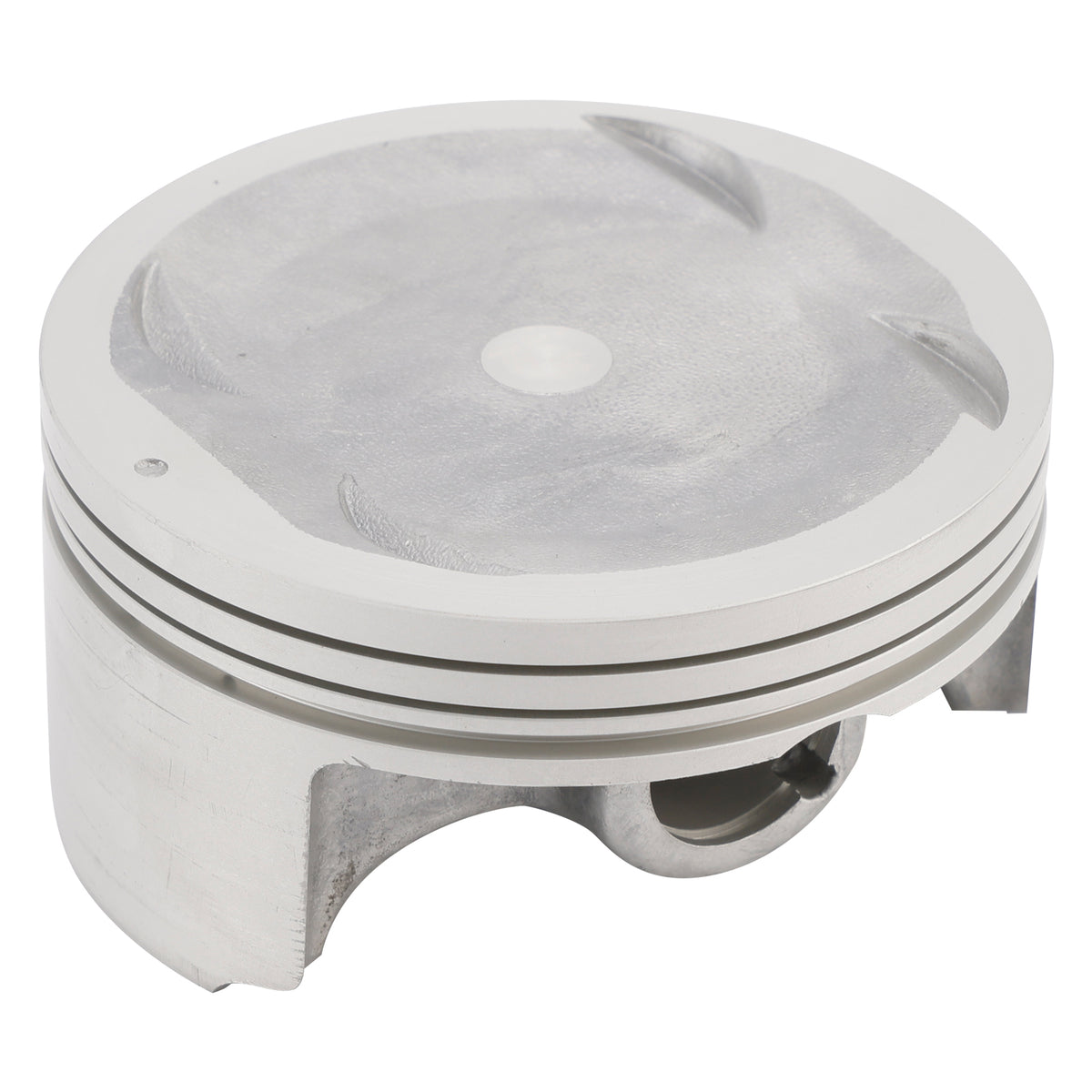

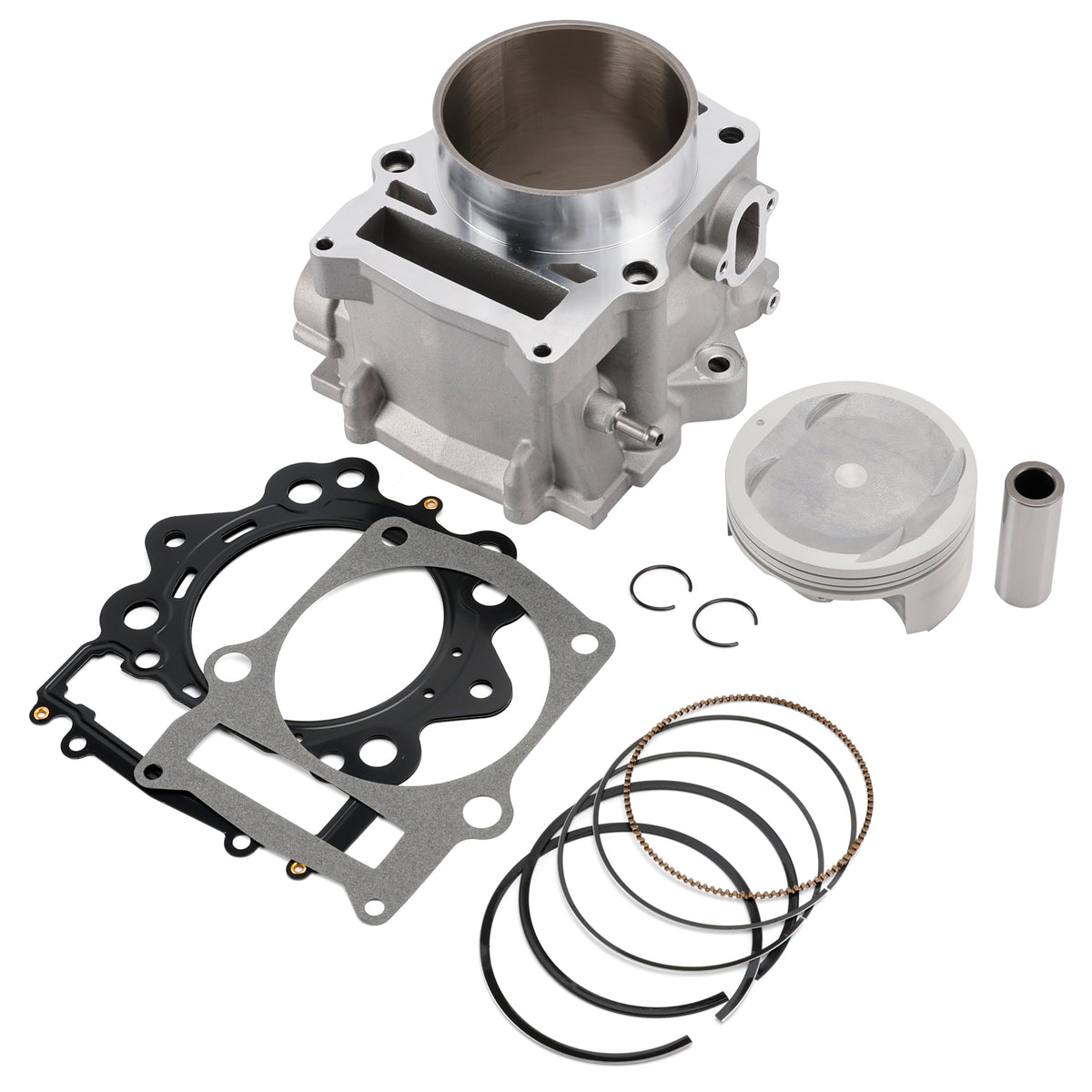

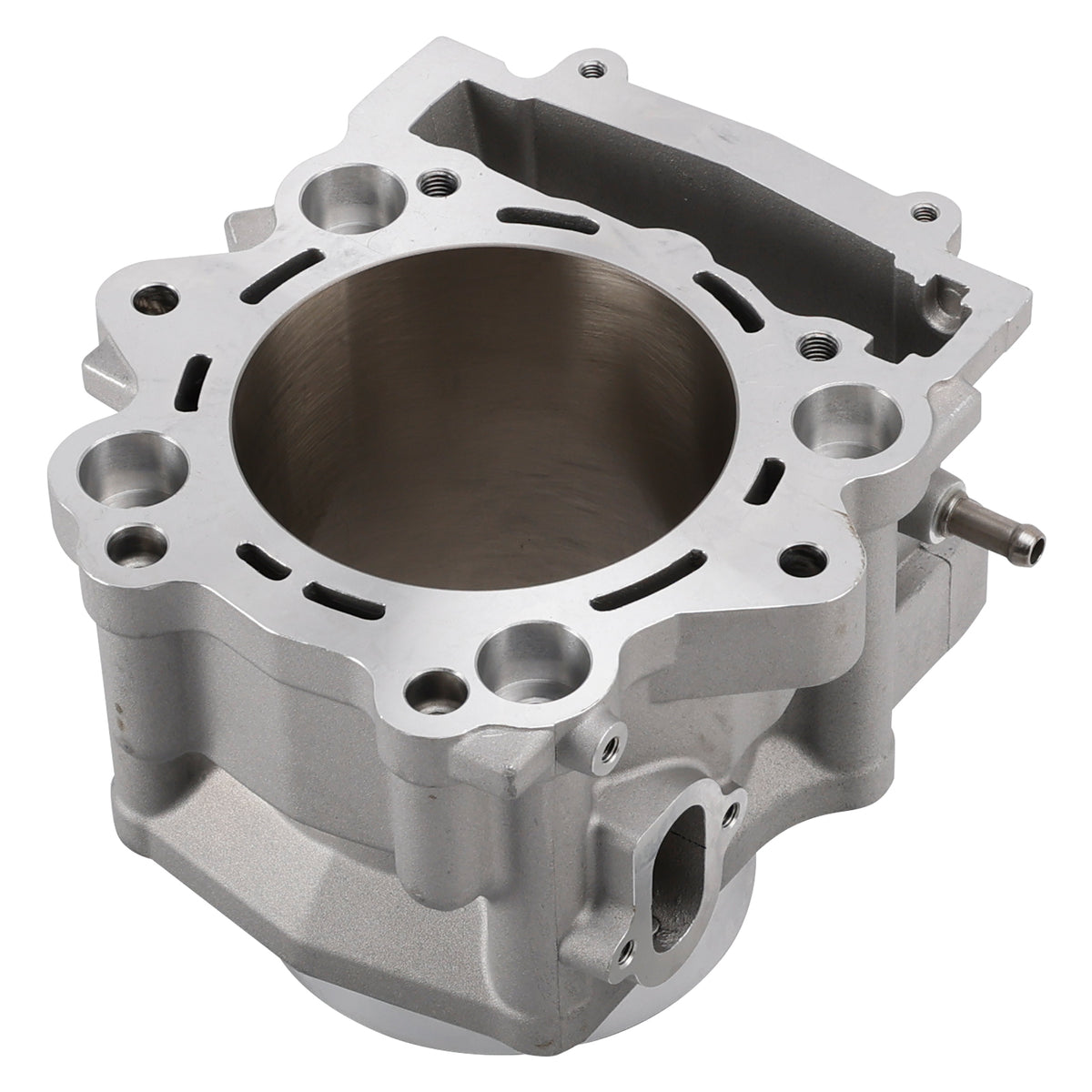

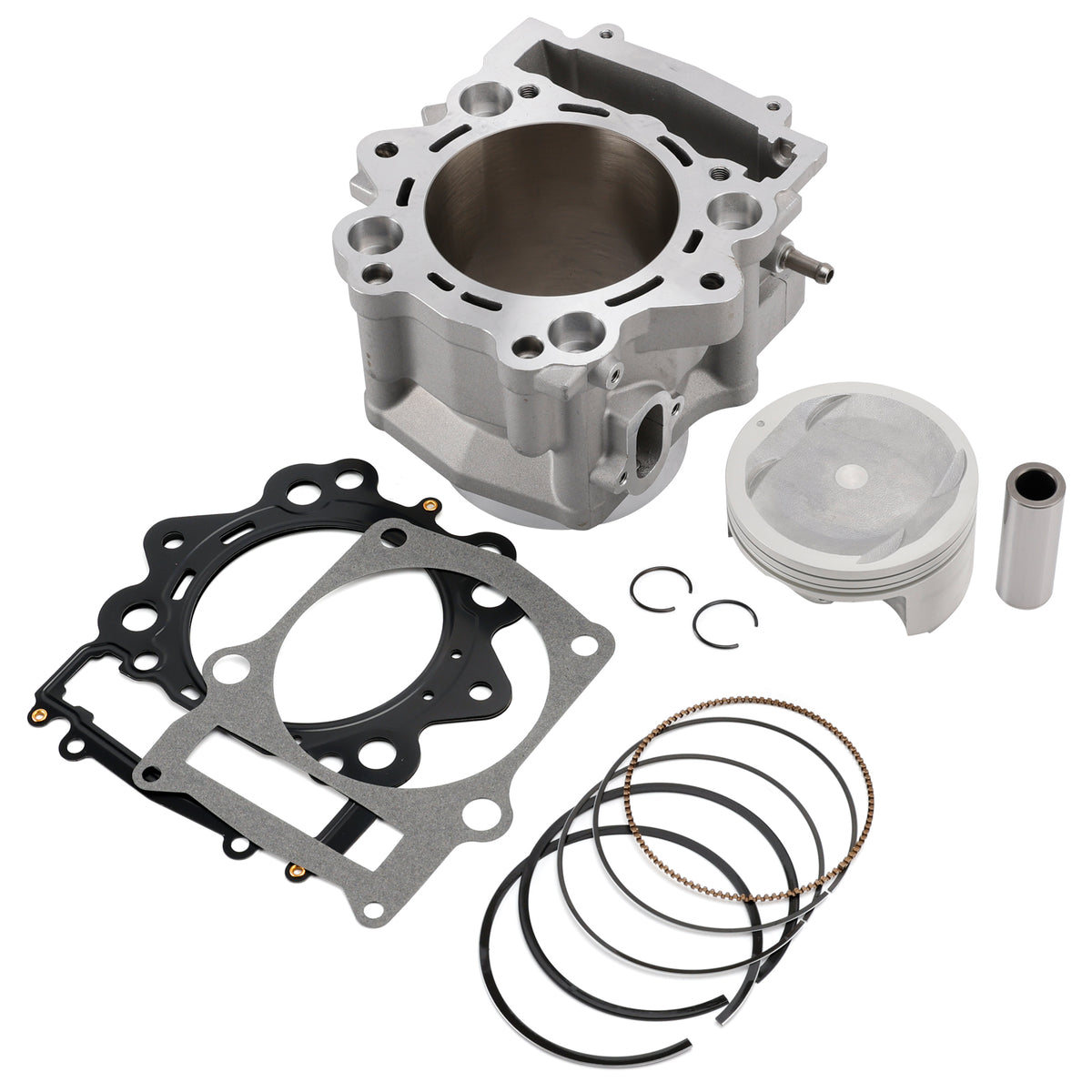

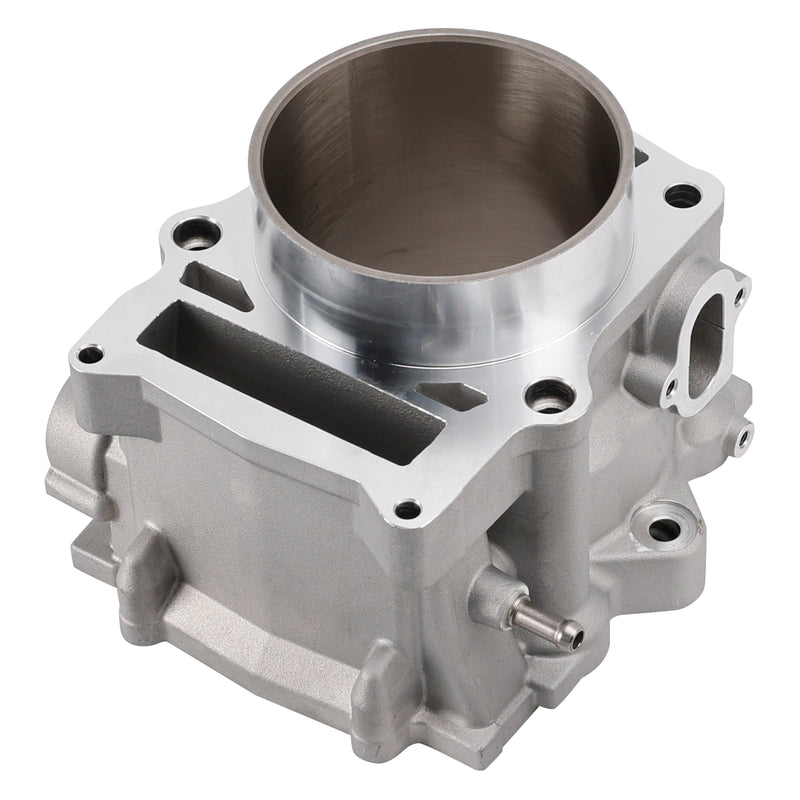

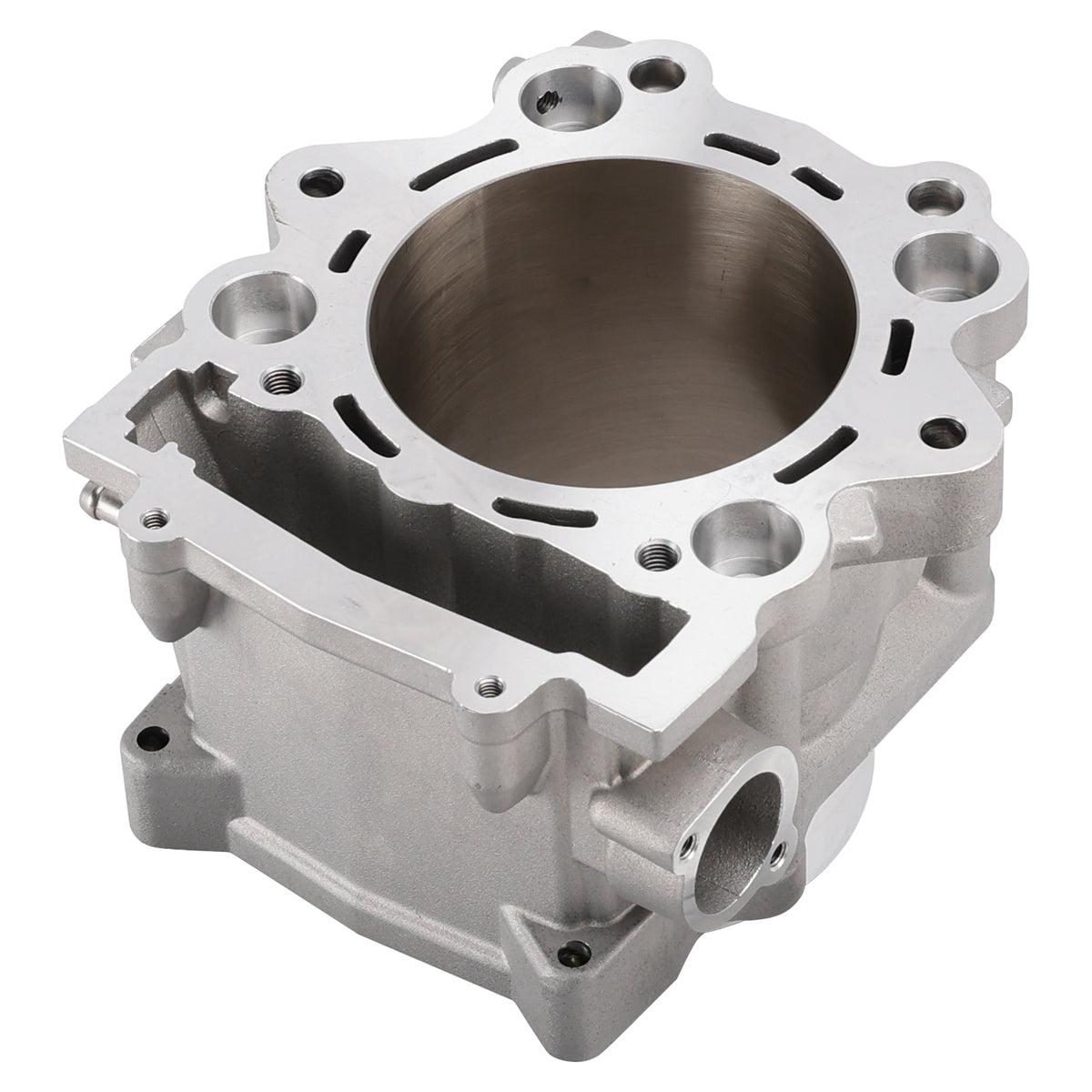

Features: If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you. Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment). The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for standard bore size - 102 mm x 84 mm stroke, 23 mm steel piston pin. This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications: Condition: Aftermarket 100% Brand New Quantity: 1 Set Material: Aluminum, Steel Displacement: 686cc Bore Type: Standard Bore Bore diameter: 102mm Stroke: 84 mm Pin diameter: 23mm Pin length: 65mm
Replacement Part Number: Cylinder: 1S3-11310-00, 1S3-11310-01 Cylinder Head Gasket: 3B4-11181-00 Cylinder Base Gasket: 1S3-11351-00 Piston: 1S3-11631-10, 2BG-11631-00 Pin, Piston: 5VK-11633-00 Piston Ring Set (Std): 1S3-11603-10 Circlips, piston (2): 93450-24154
(Always compare part numbers to your parts schematics and cross reference appropriately.) (This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)
Fits Make/Model/Year: Fit for Yamaha YFM700 YFM700R Raptor 2006-2025
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

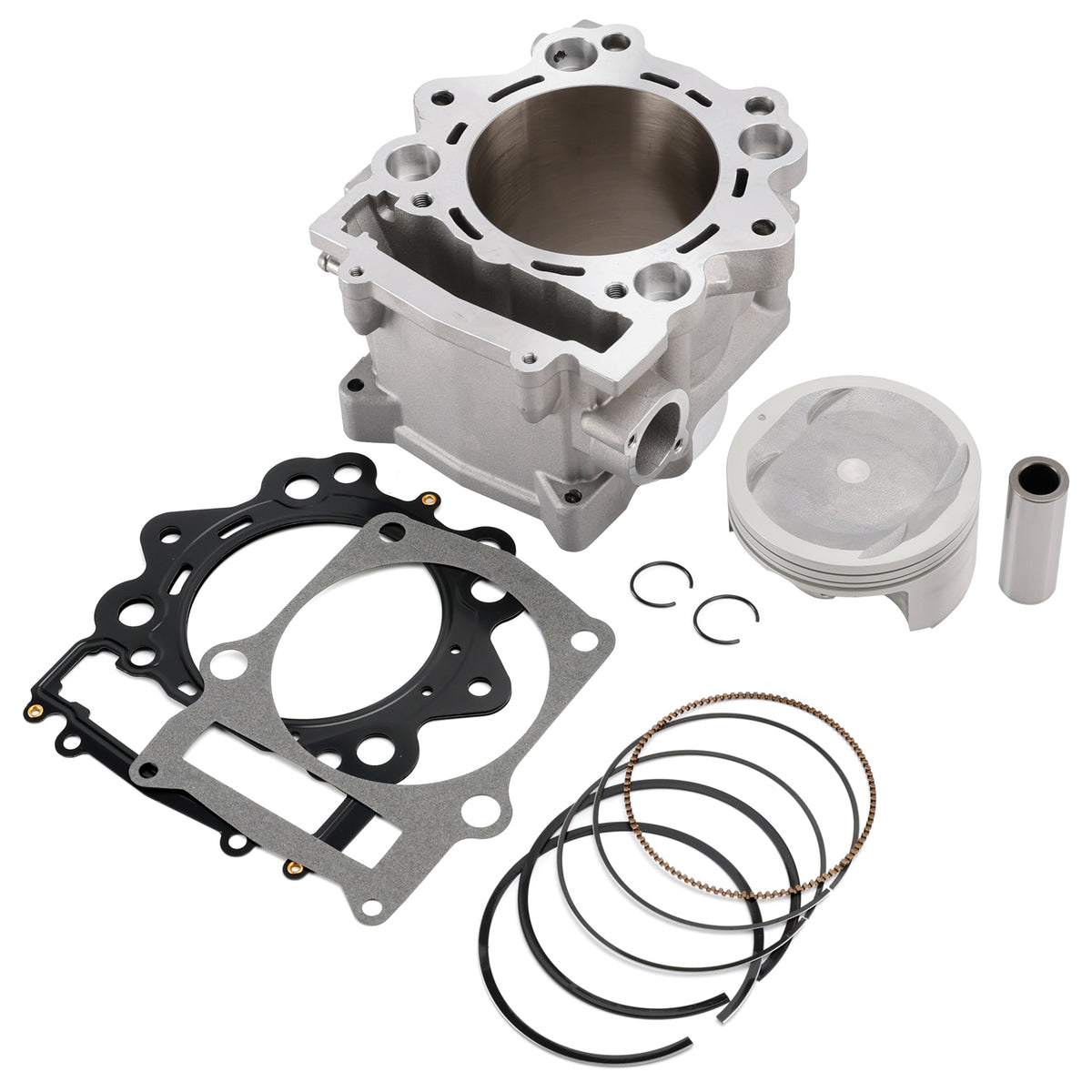

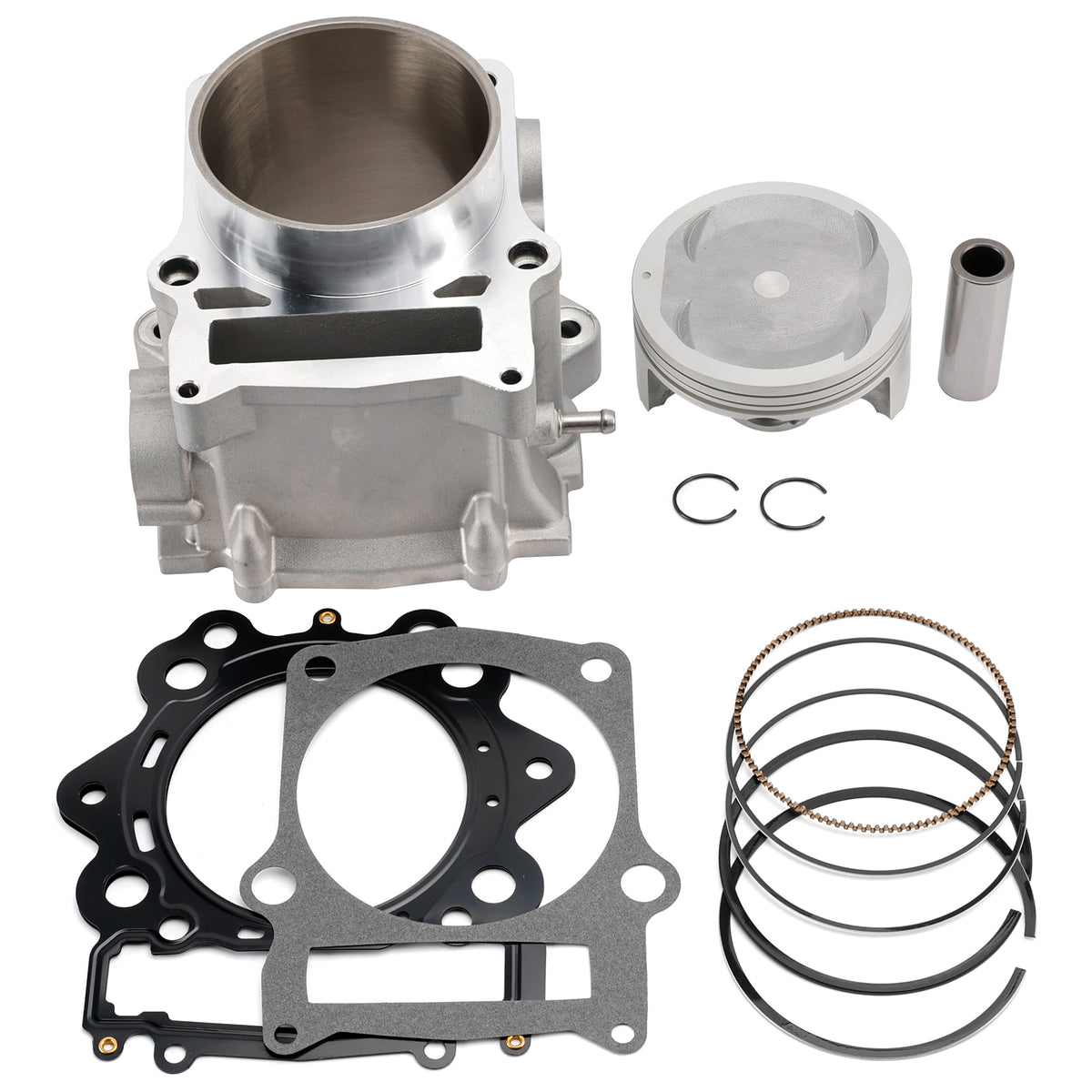

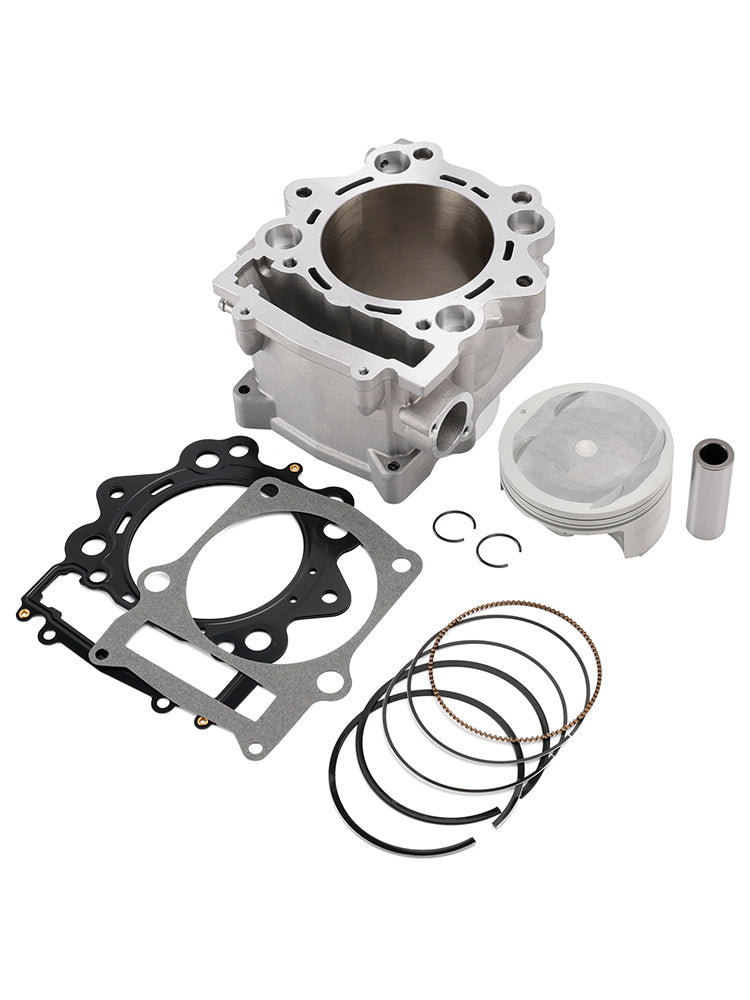

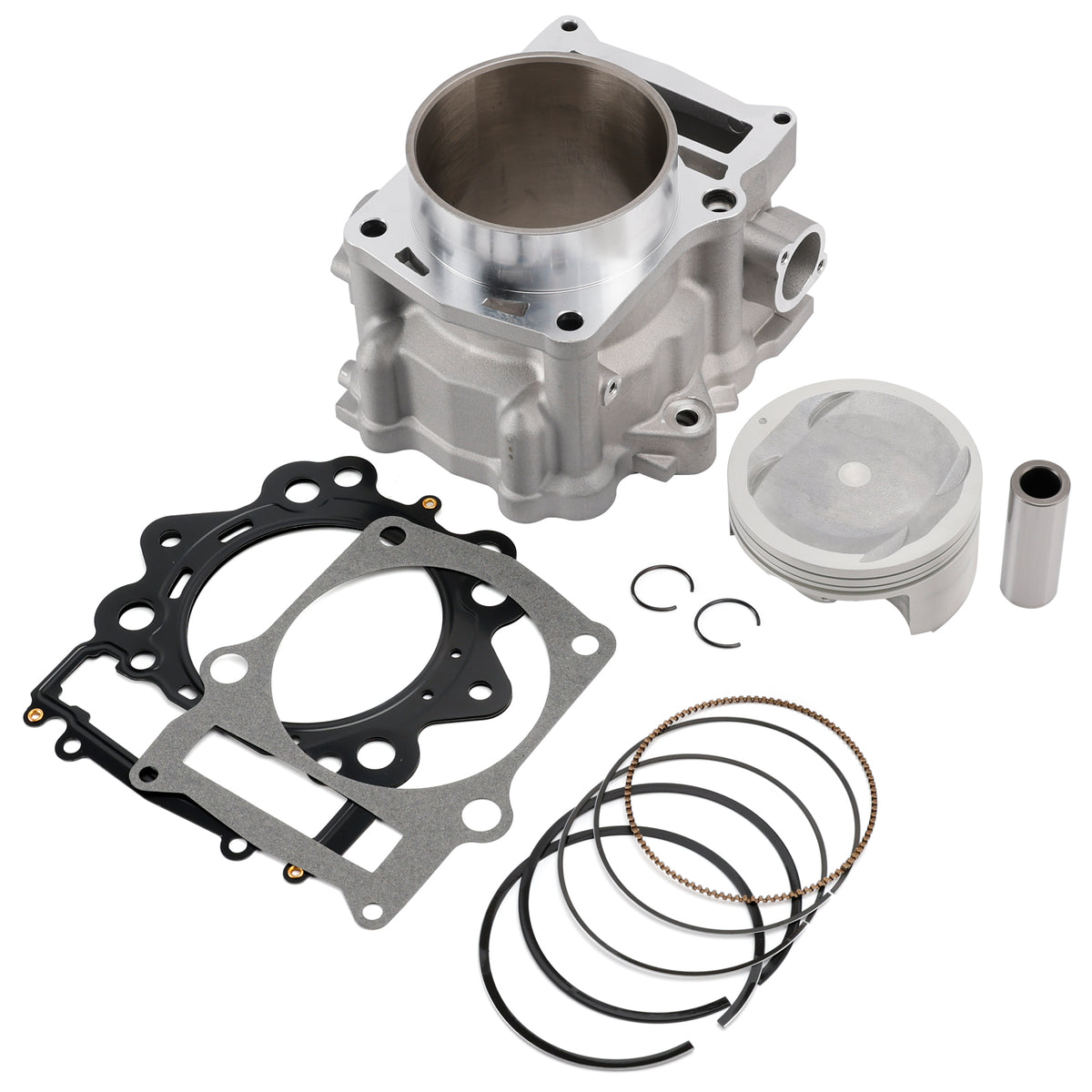

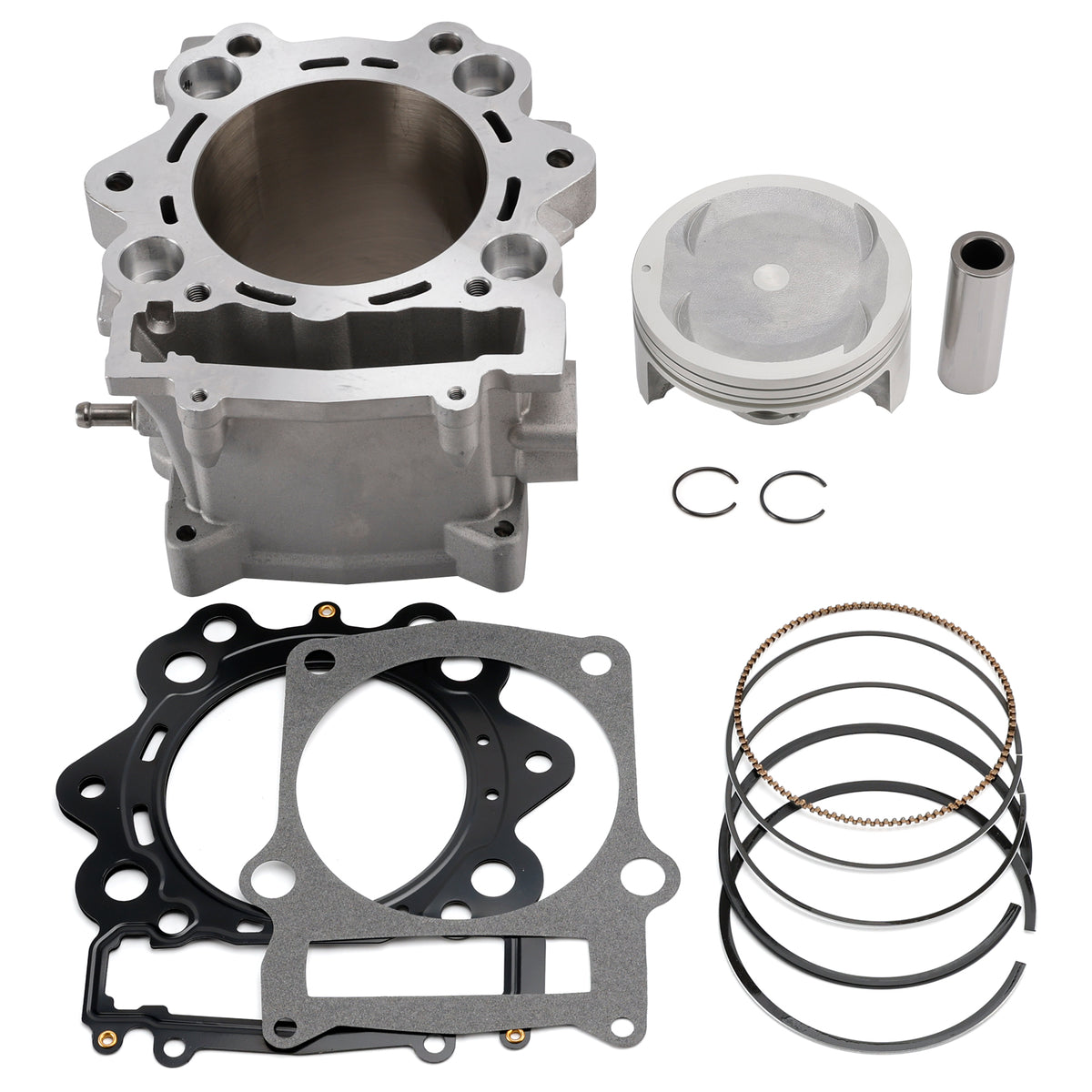

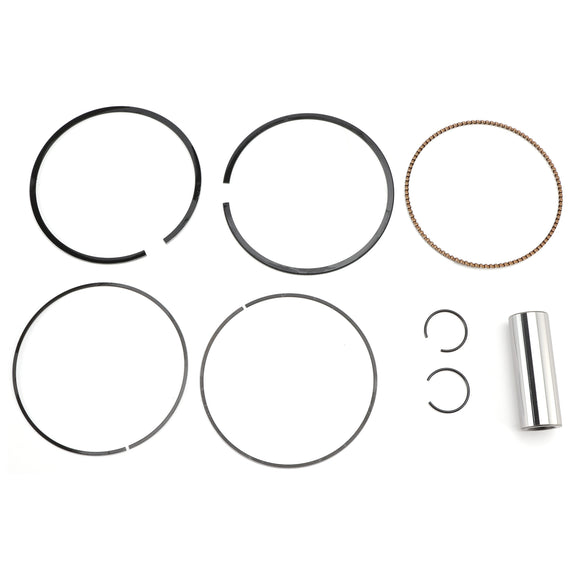

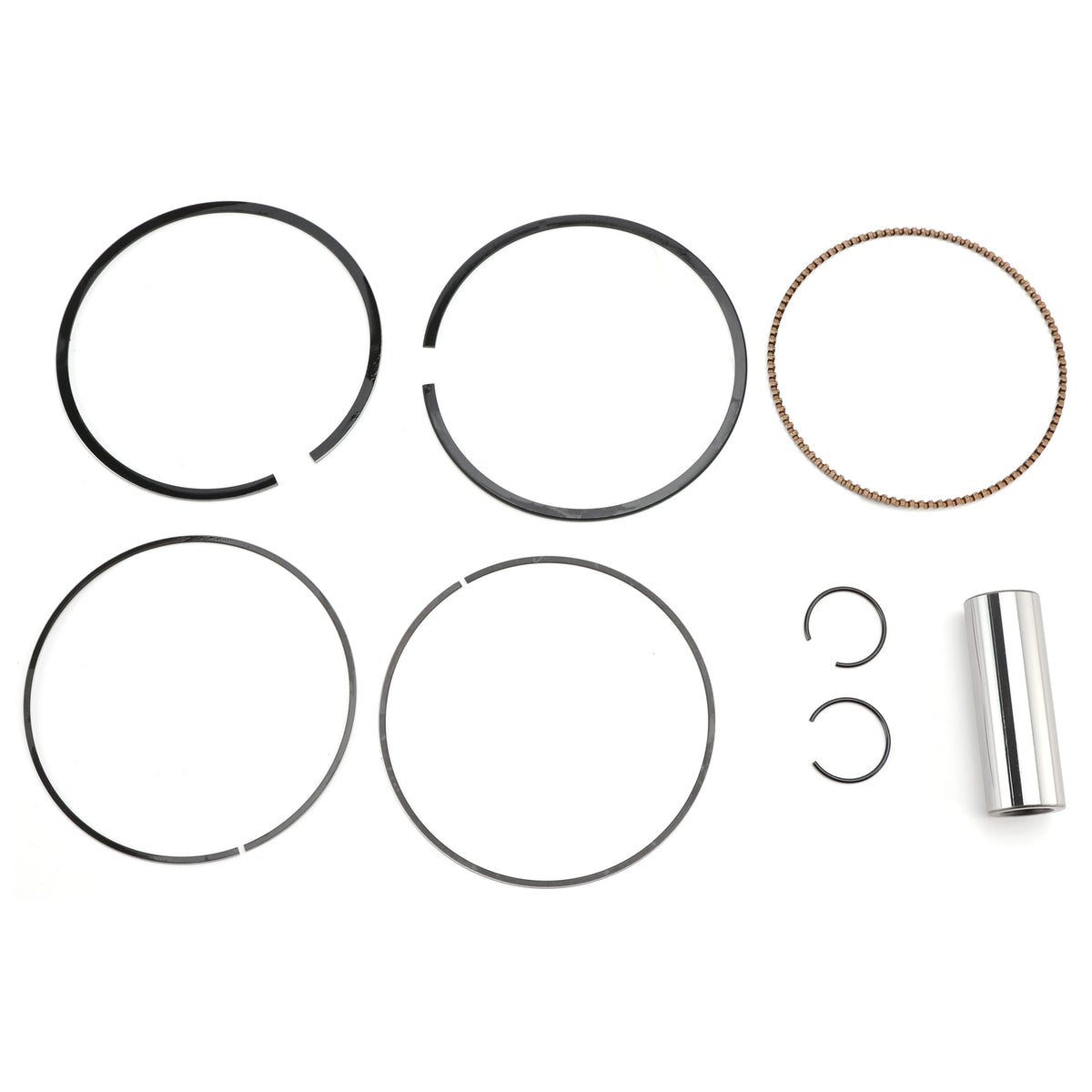

Package Includes: 1x Cylinder 1x Piston 1x Piston Ring Set 1x Wristpin 1x Circlip(2) 1x Cylinder Head Gasket 1x Cylinder Base Gasket
(Comes exactly as pictured.)
Note: Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
