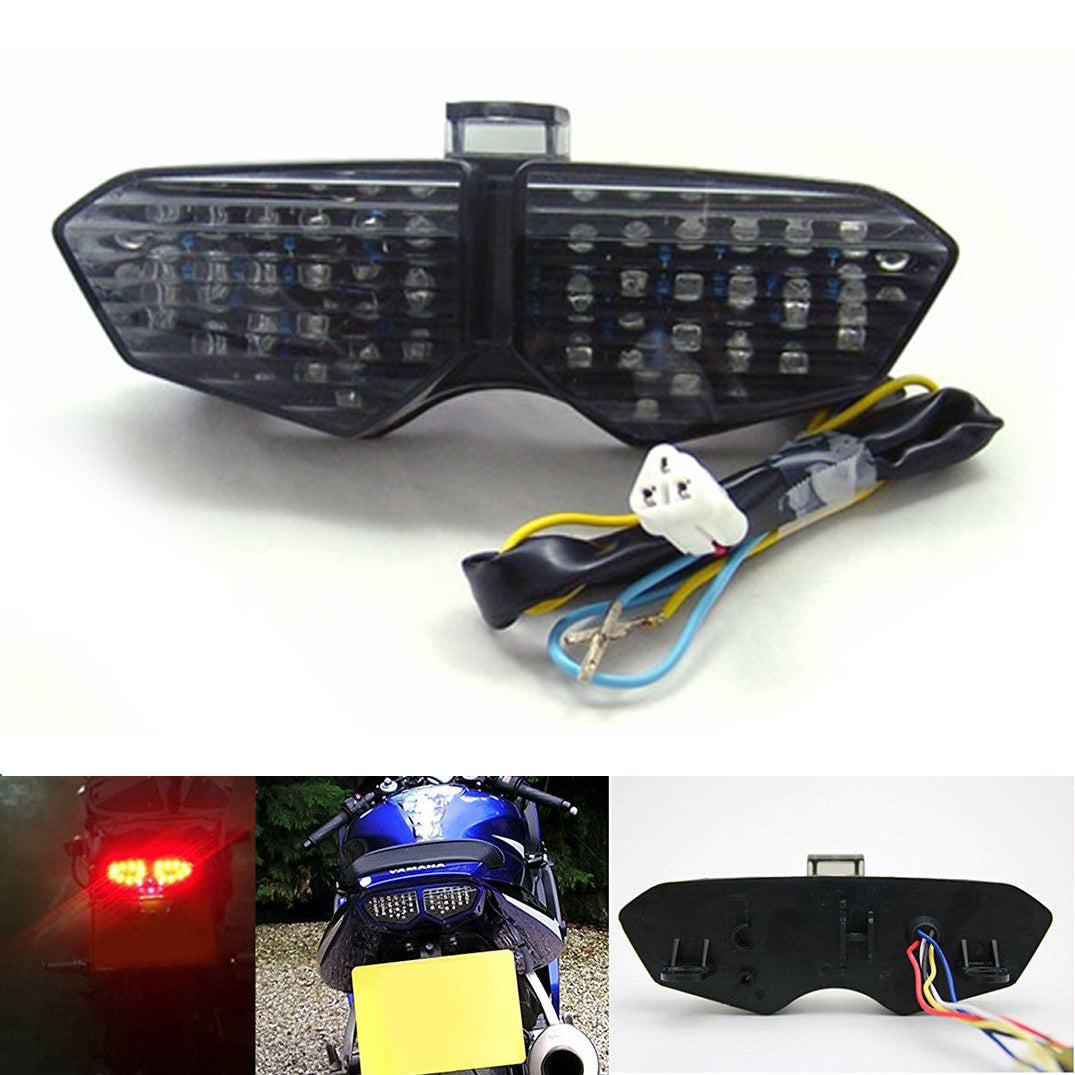

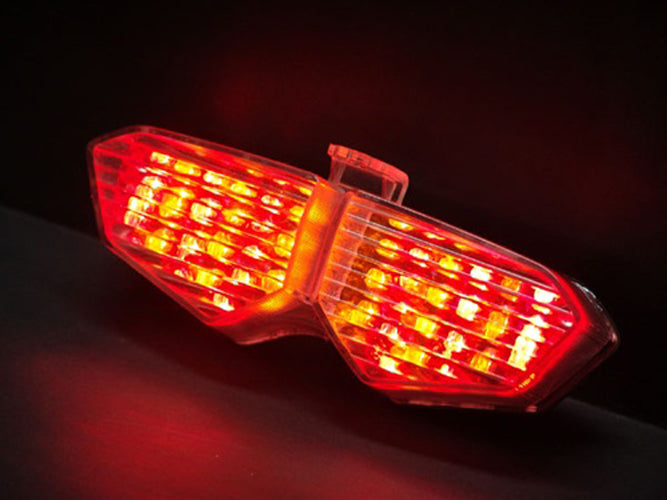

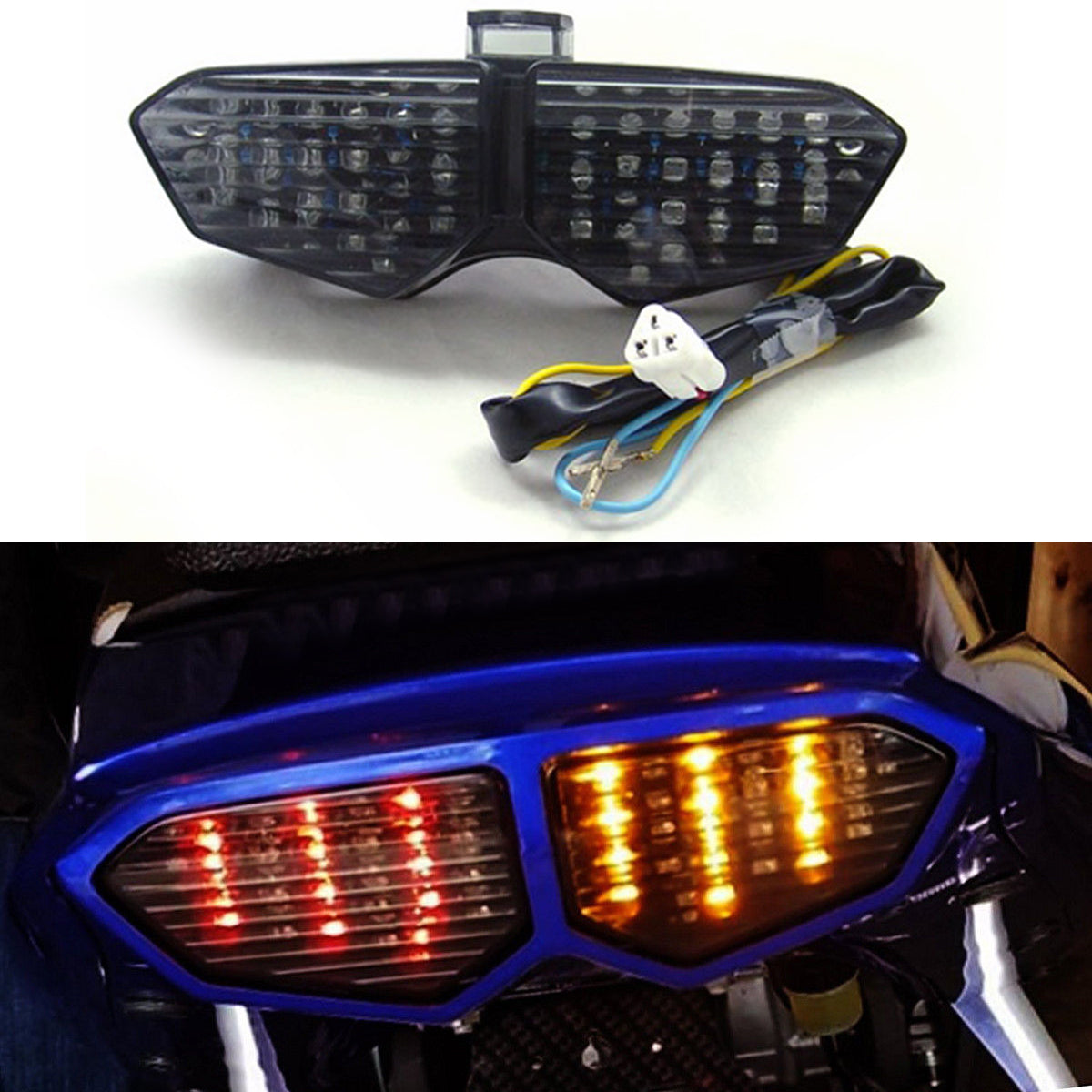

2003-2005 Yamaha YZF R6 2006-2009 R6S XTZ1200 Smoke Integrated LED TailLight Turn Signals

Enhance the look with these EURO Clear LED Tail Light with Turn Signals (you can remove your rear turn signals)
Laser weld finished; not glued
Direct bolt on; Easy installation, no modification required
Condition: Brand New
Quantity: 1

Approximate Dimensions: 6 5/8" x 2 1/2" x 2 3/4" (Width x Height x Depth) measured at normal mounting position including housing.
Fitment:
For YAMAHA YZF R6 2003-2005
For YAMAHA YZF R6S 2006-2009
For YAMAHA XTZ1200 2012-2021

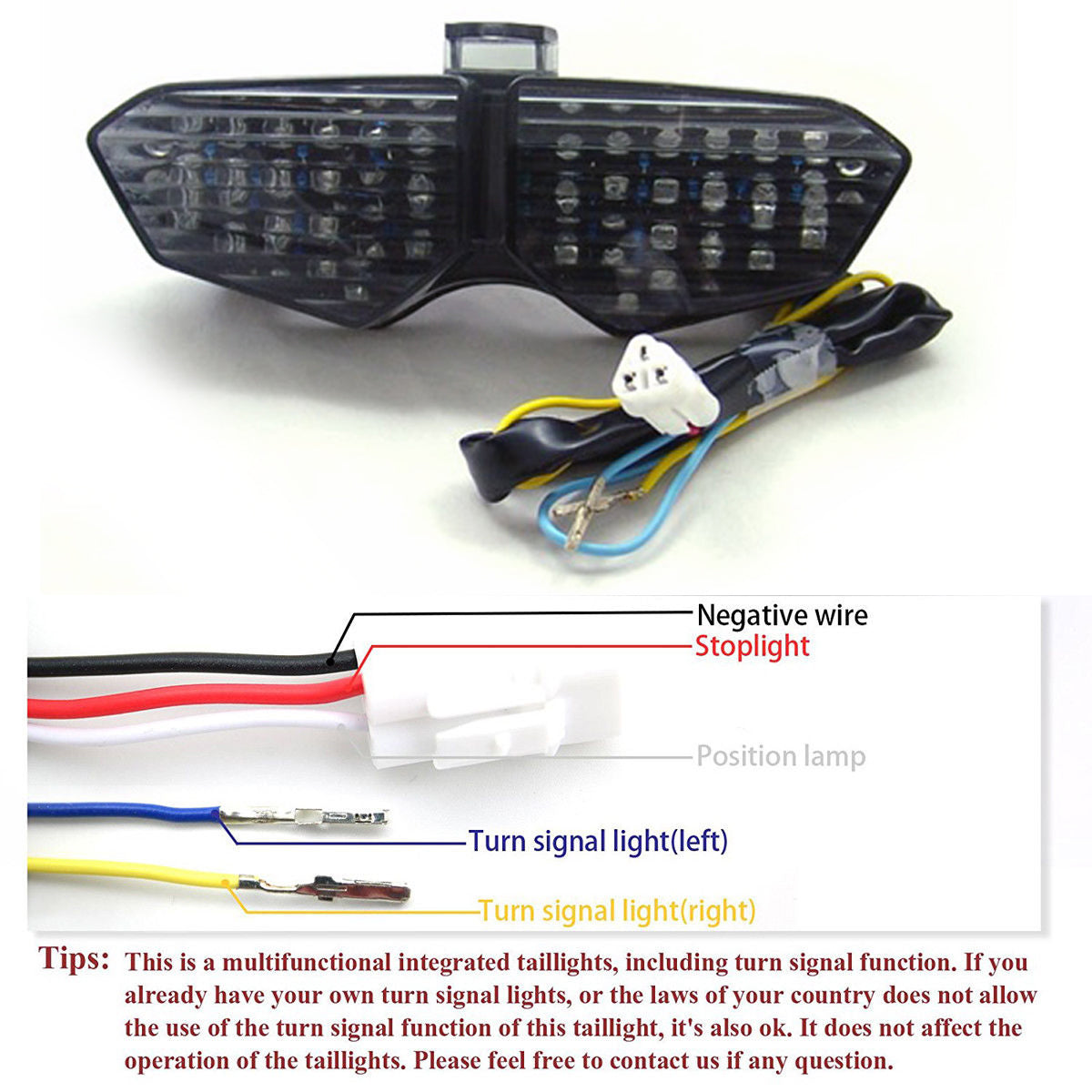

Wire Diagram (by color):
1. Black = Ground Wire
2. Red = Brake Light
3. White = Running Light
4. Yellow = Right Turn Signal
5. Blue = Left Turn Signal
NOTE: The BLACK(ground wire), RED(break light) and WHITE(running light) wires must be inserted into the (white) wire clip provided and plugged into motorcycle wire clip.

***Please be sure to place the wire in the correct slots; based on the setup of the motorcycle.
