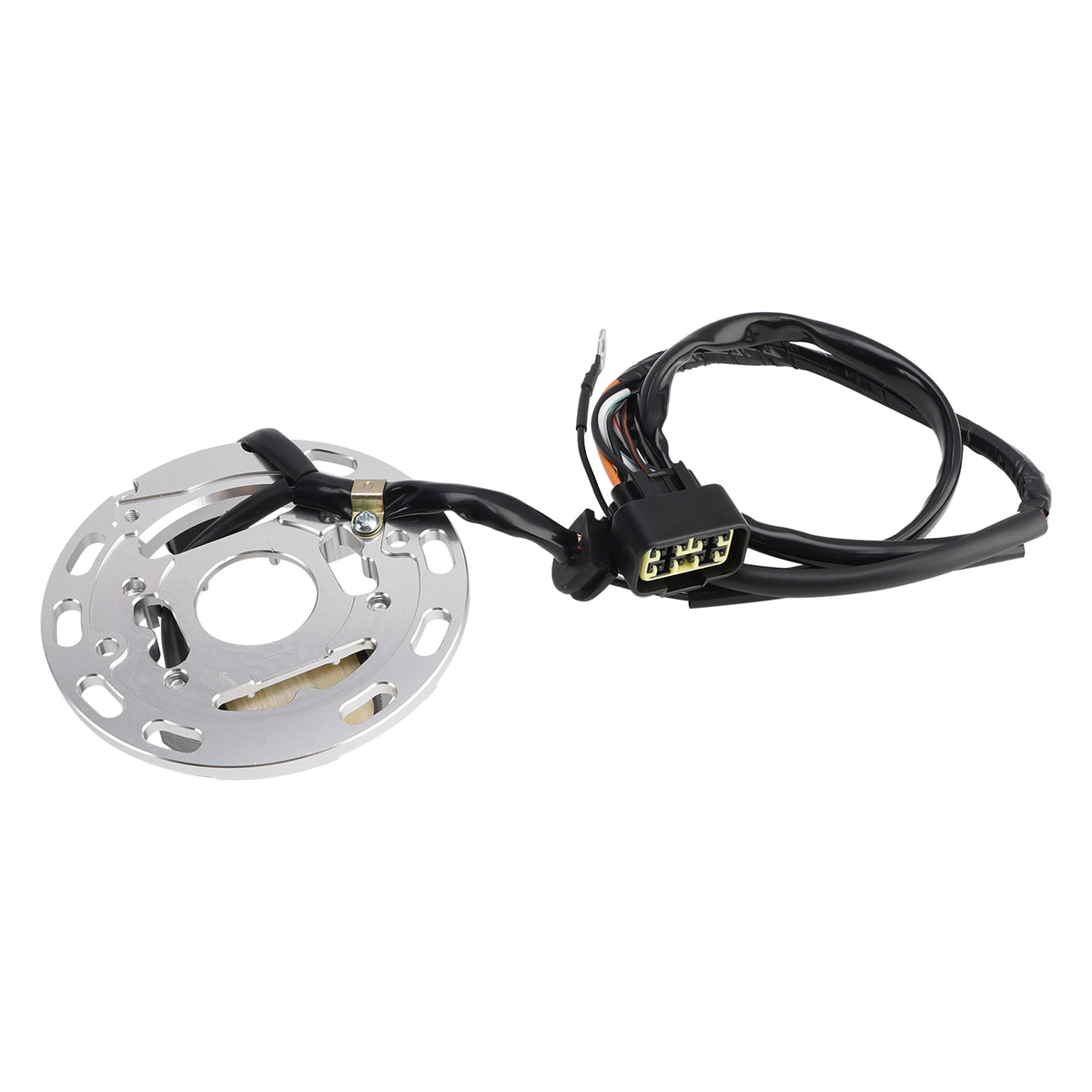

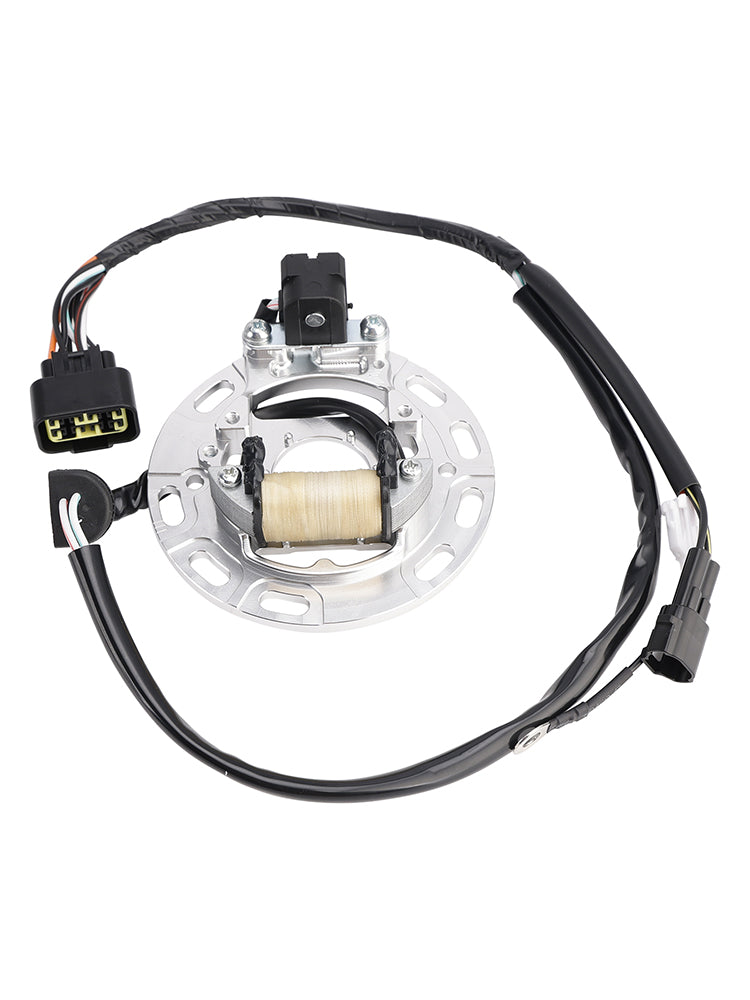

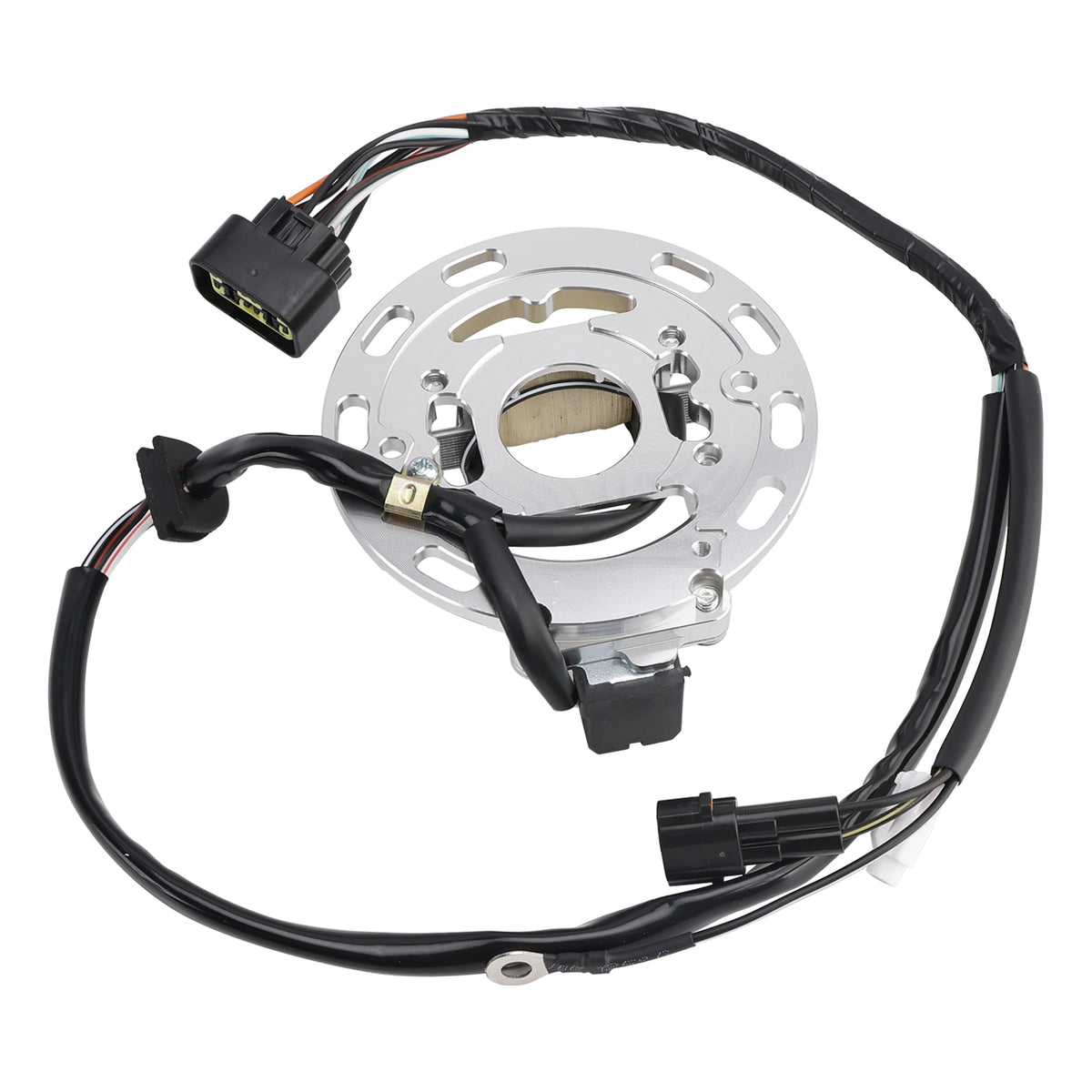

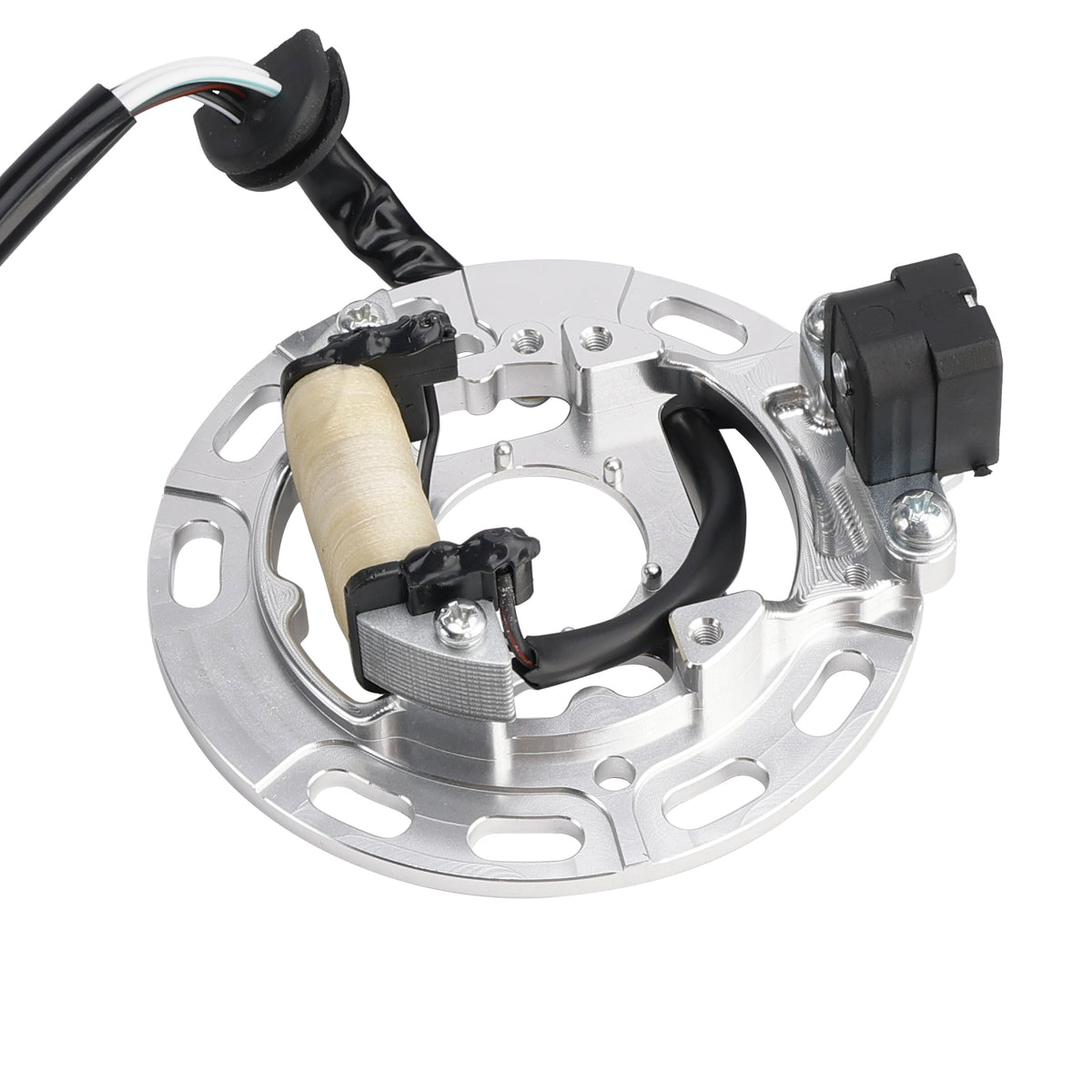

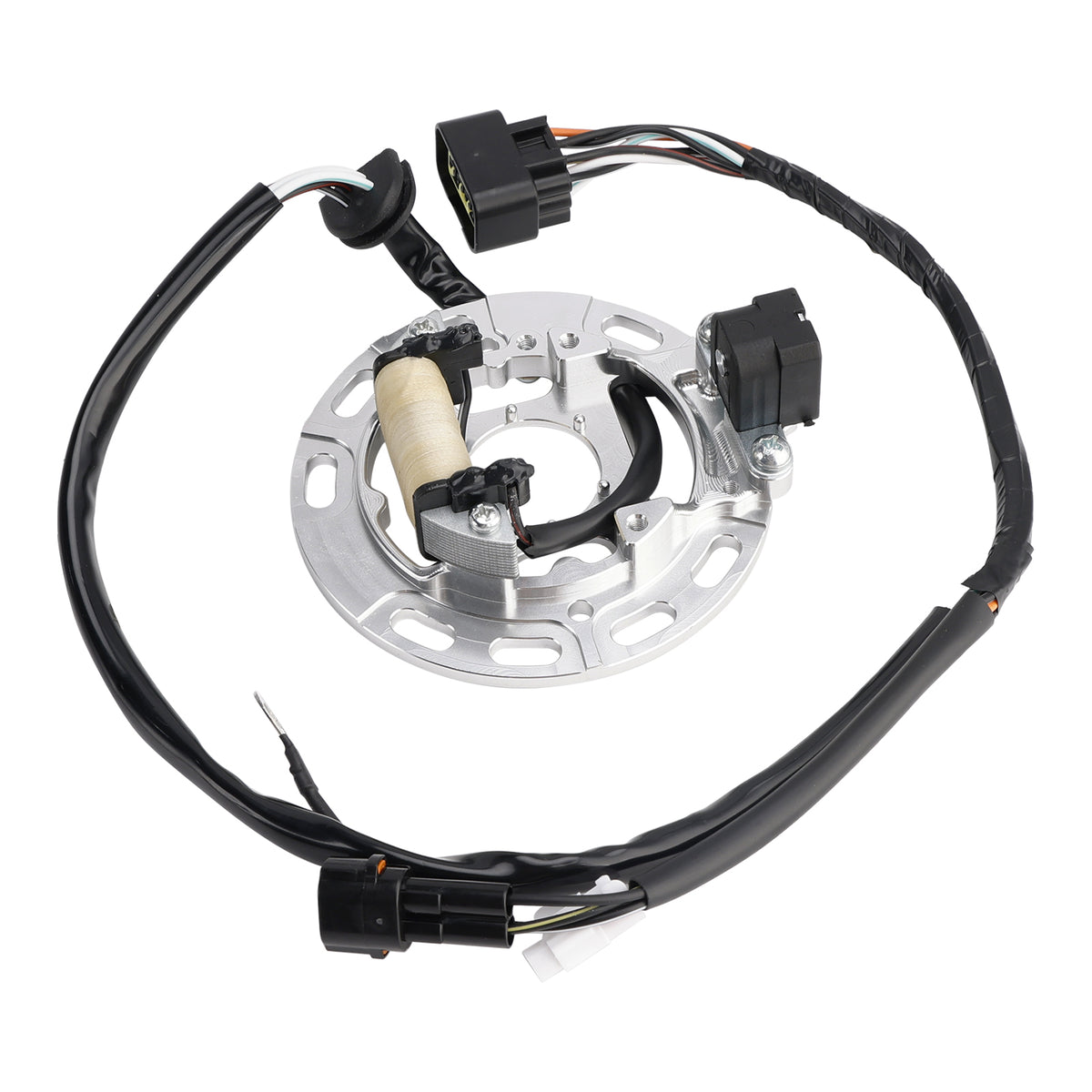

Magneto Generator Stator Base Assy Fit for Kawasaki KX 85 KX100 2006-2025
Features: Direct replacement to your original unit Highest grade lamination materials. Pick up pulsar coil included. Connector included. Rubber grommet included. All products shipped are tested.
Specifications: Condition: Aftermarket 100% Brand New Type: Stator Coil

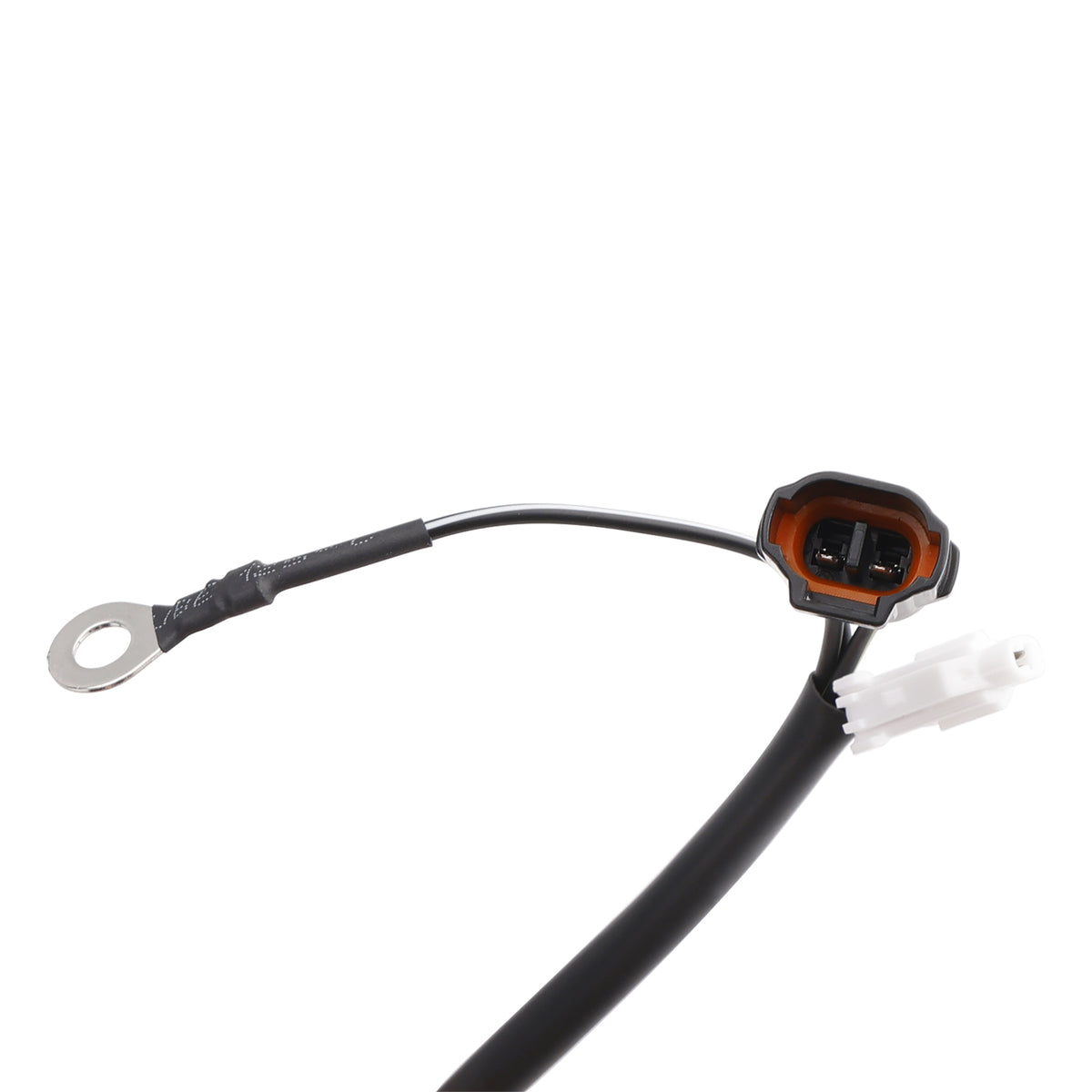

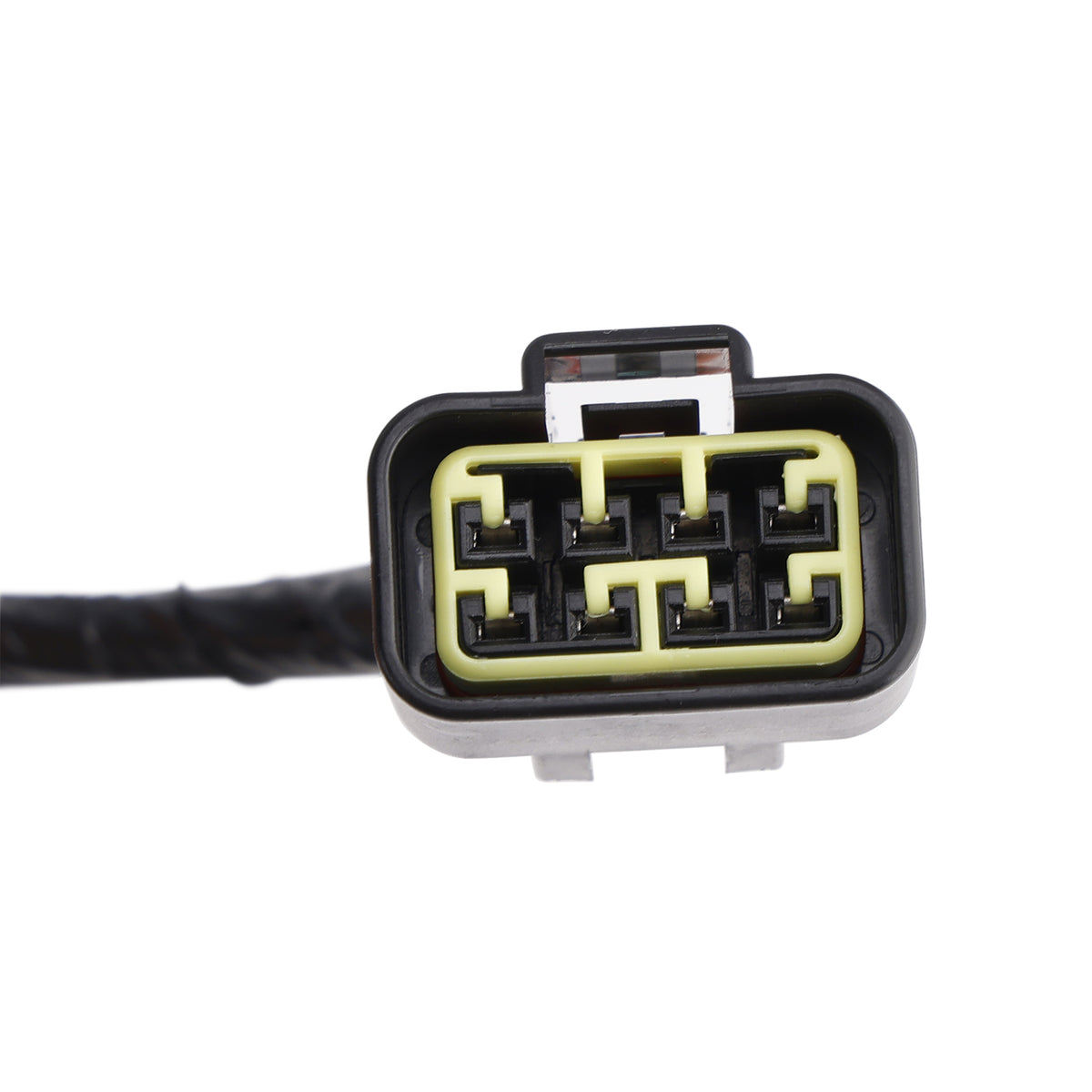

other specifications: Number of wires: 8 Number of plugs: 3 Number of pins: 8 + 2 + 1 + 1
Please compare the number of pins and plugs with the old part before purchasing.
Replacement Part Number: 21003-0032 21003-0104 21003-0150 21003-0219
(Always compare part numbers to your parts schematics and cross reference appropriately.) (This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)
Fits Make/Model/Year: 21003-0032 21003-0104 Fit for Kawasaki KX85 KX85A 2006-2013 Fit for Kawasaki KX100 KX100D 2006-2013
21003-0150 Fit for Kawasaki KX85 KX85C/D 2014-2021 Fit for Kawasaki KX100 KX100F 2014-2021
21003-0219 Fit for Kawasaki KX85 2022-2025 Fit for Kawasaki KX112 2022-2025
Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included: 1x Stator Base Assy
NOTICE: Before installing your new stator
Check the AC output of the stator. Replace any burned or corroded connectors on stator and regulator/rectifier. Check and repair any melted wiring. Use hi-temp dielectric grease on all connectors Our stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
