Cylinder Piston Gasket Rebuild Kit For Yamaha N Max N-Max 155 Aerox 155 R15 V3 VVA MT-15 WR155 XR155
Features: Kit includes piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). Piston is anodized for superior heat resistance and longer lifespan. The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for standard bore size.

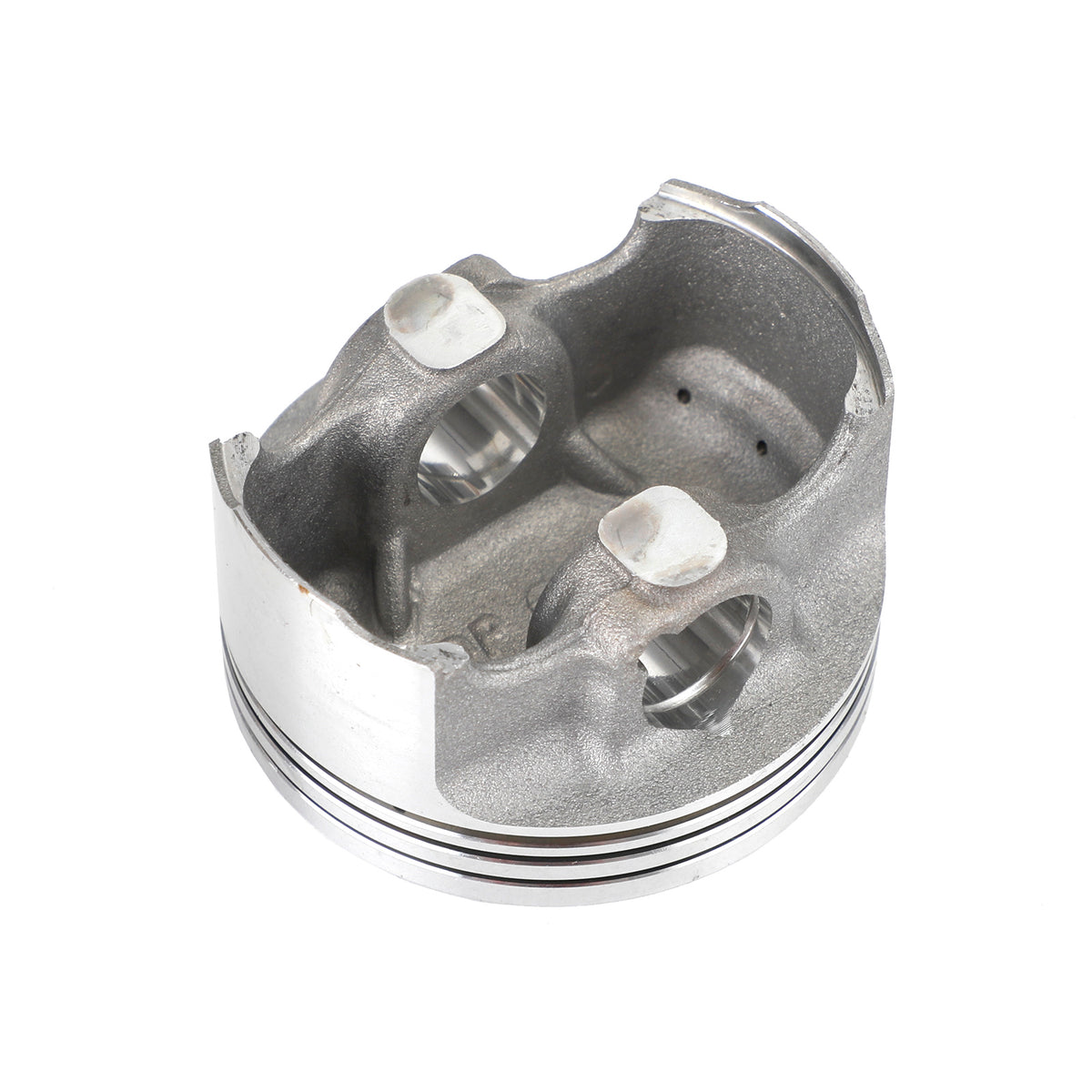

Specifications: Condition: Aftermarket 100% Brand New Quantity: 1 Set Piston Material: Forged Aluminum Actual Displacement: 155cc Bore Type: Standard Bore Bore Size: STD 58.00 mm Piston diameter: 58.00 mm Piston height: 33.40 mm Piston pin diameter: 14 mm Piston pin height: 36.8 mm Ring groove: 0.8 x 0.8 x 1.5 Cylinder type: 2DP00

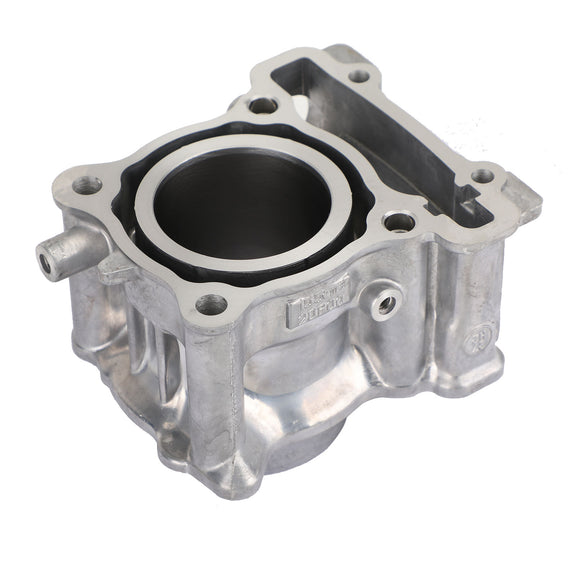

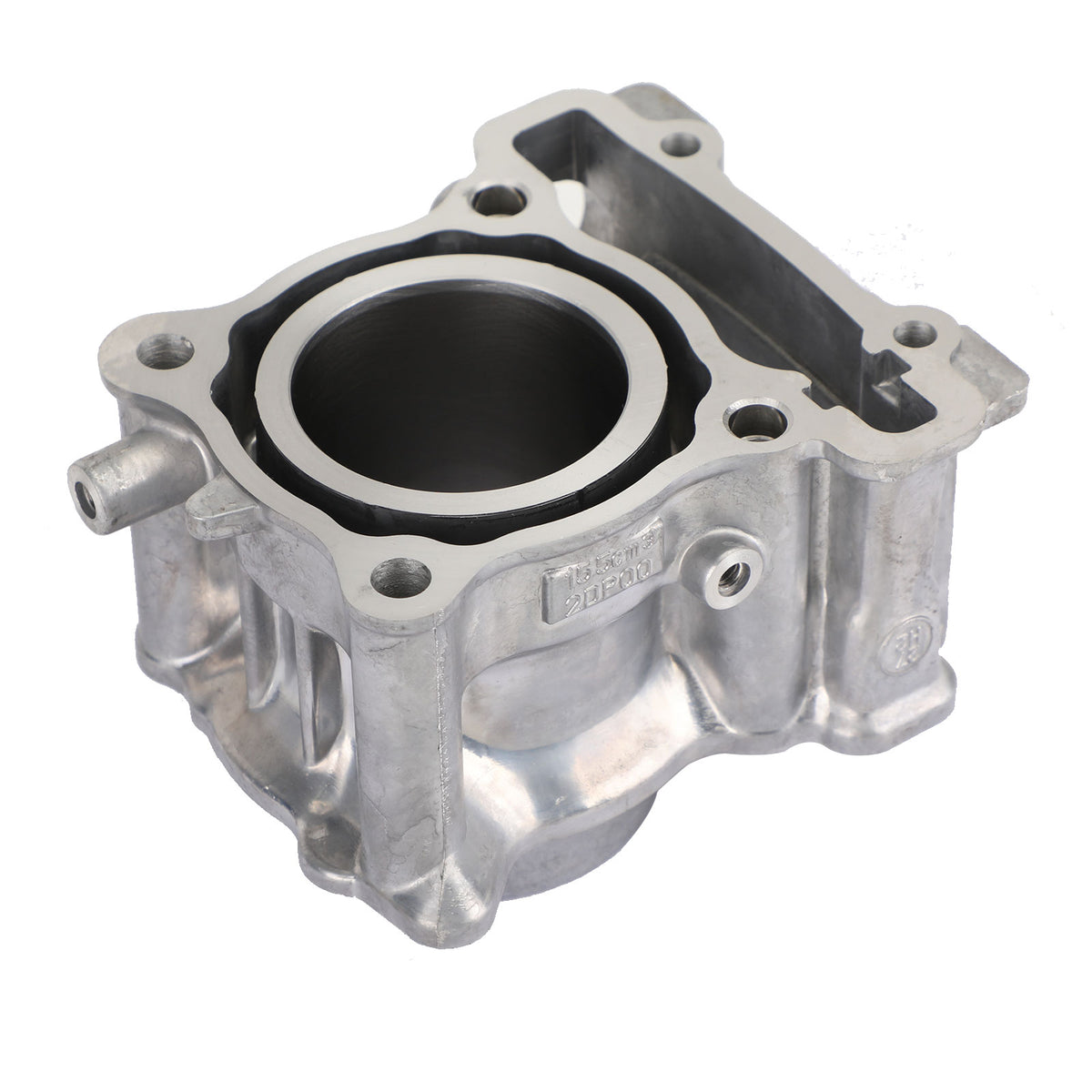

Replacement Part Number: Cylinder: 2DP-E1311-10 Cylinder Head Gasket: 2DP-E1181-00 Cylinder Block Gasket: 2DP-E1351-00 Piston(Std): 2DP-E1631-00 Pin, Piston: 2DP-E1633-00 Piston Ring Set (Std): 2DP-E1603-00, B63-E1603-00 Piston Ring Set: 2DP-E1603-00 Circlip(2): 93450-16115 Valve Stem Seal: 54P-E2119-00
Fits Models: Fit for Yamaha NMAX 155 GPD150 2017-2020 Fit for Yamaha TRICITY 155 MWS150 2018-2020 Fit for Yamaha AEROX 155 NVX155 2018-2020 Fit for Yamaha YZF-R155 Fit for Yamaha R15 V3 VVA Fit for Yamaha MT15 Fit for Yamaha WR155 Fit for Yamaha XSR155
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

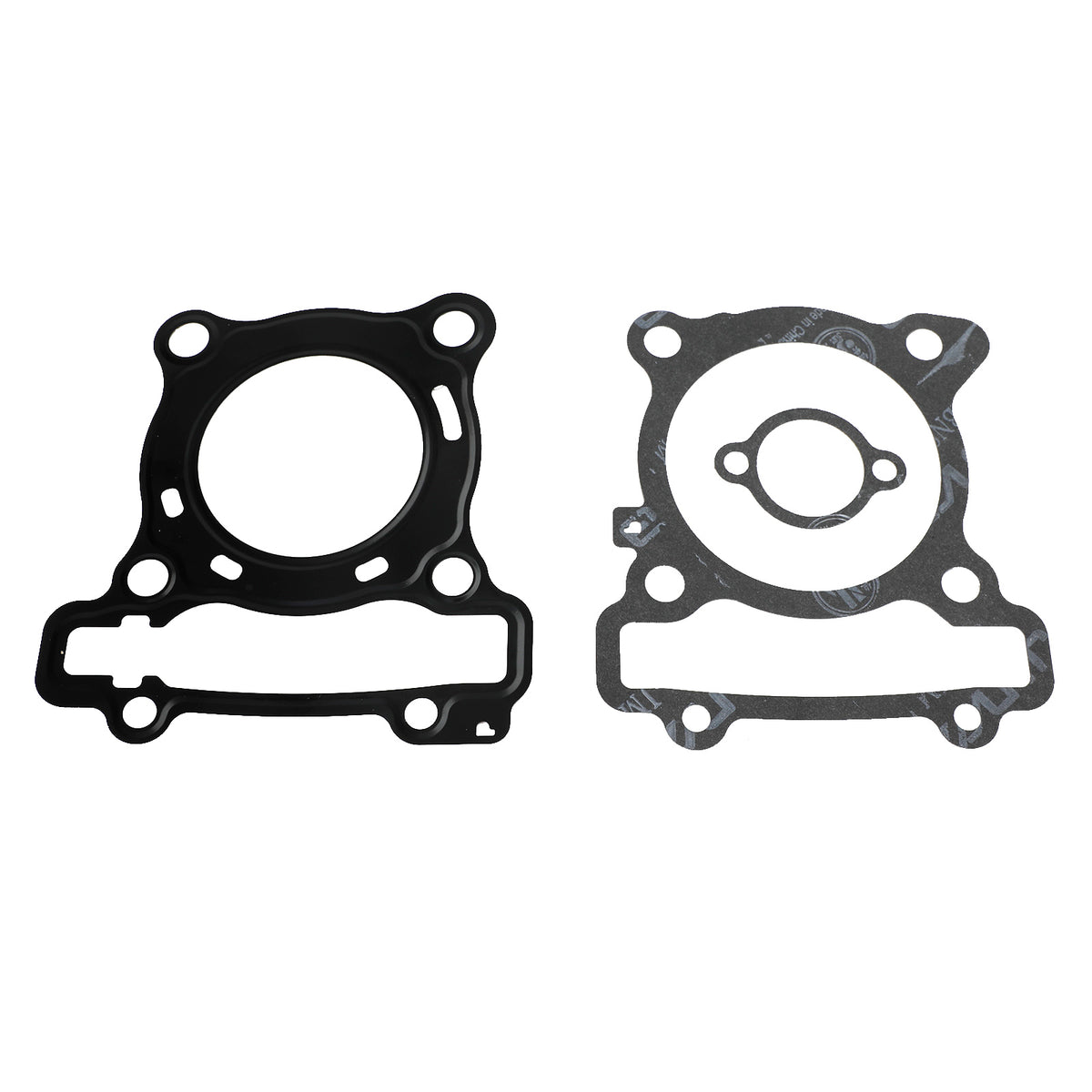

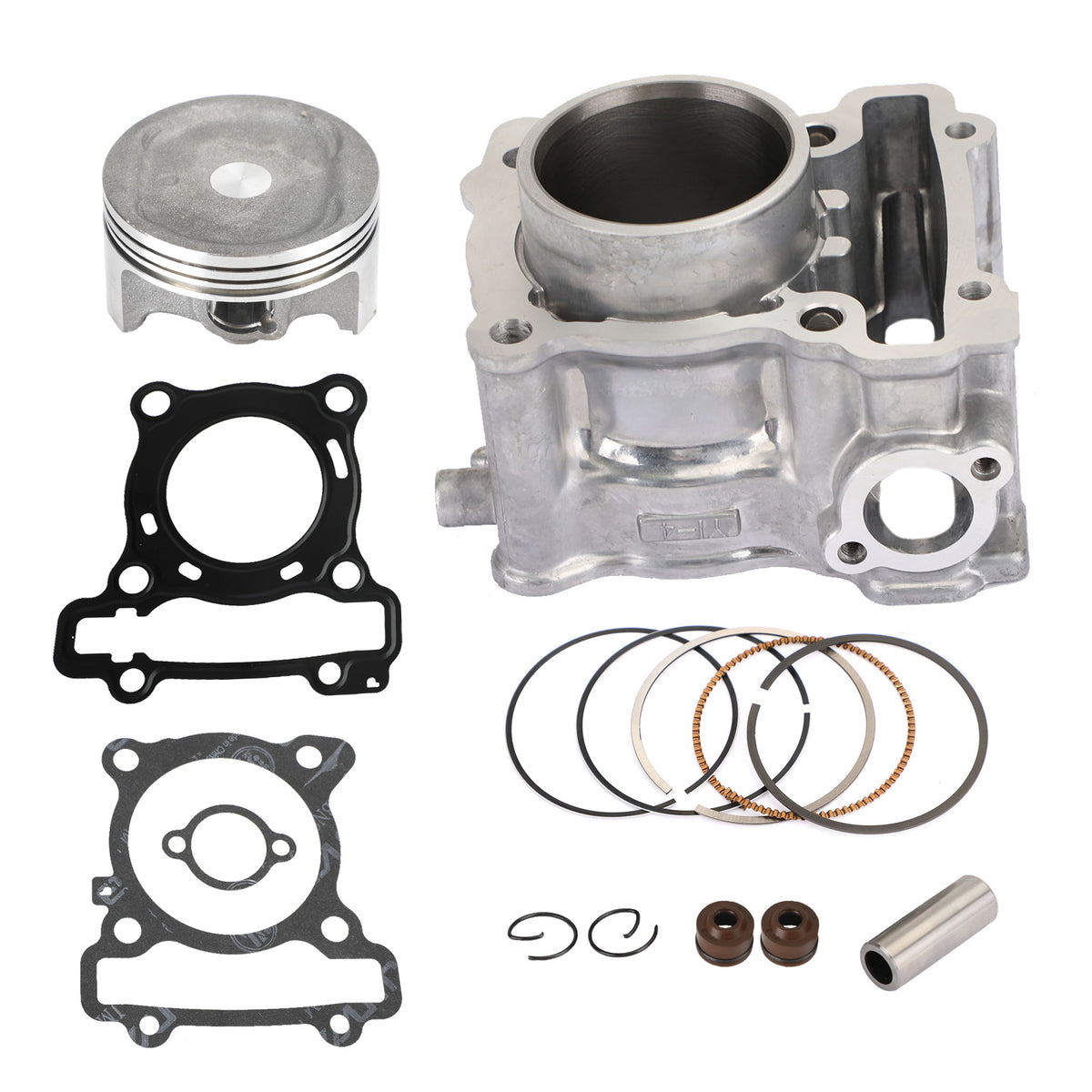

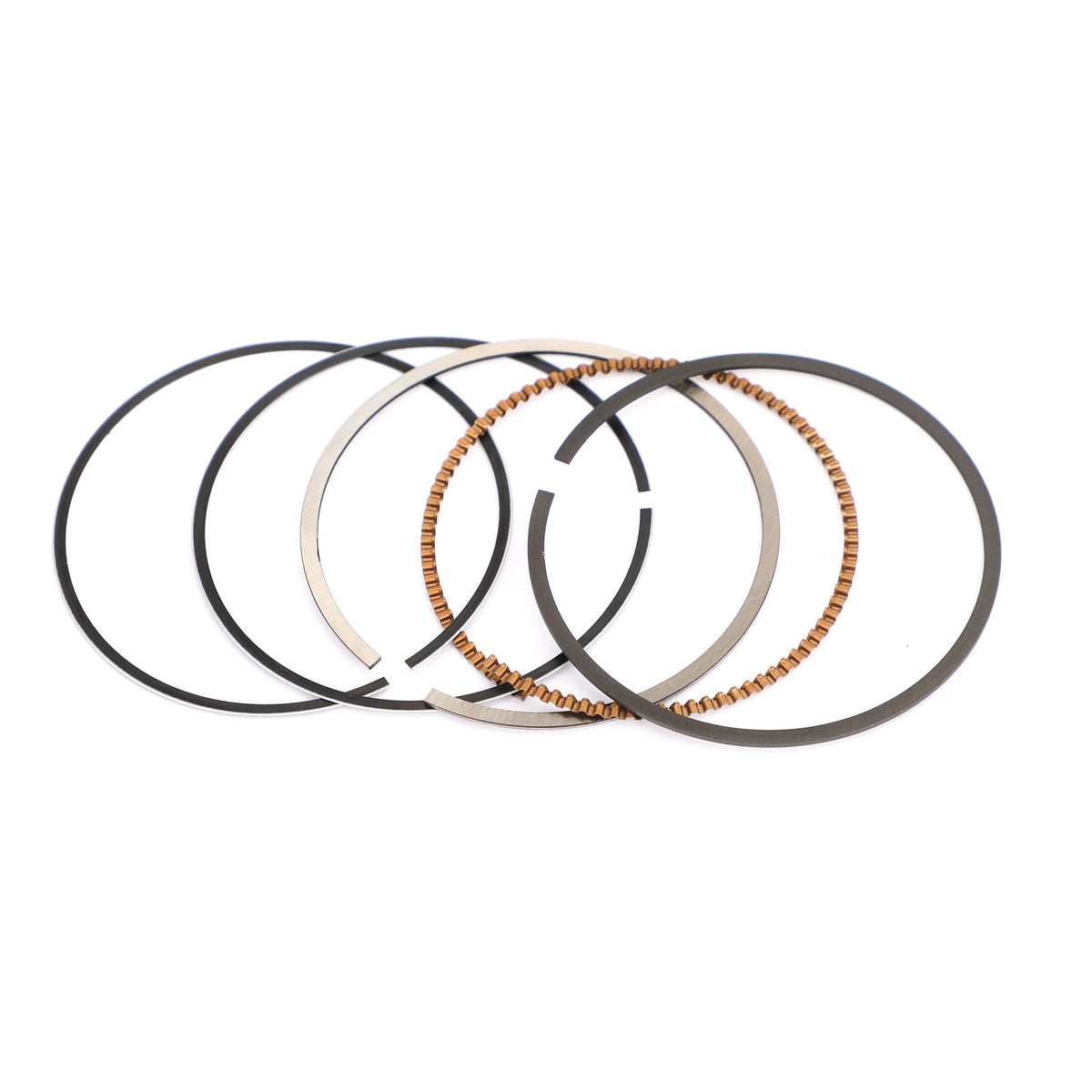

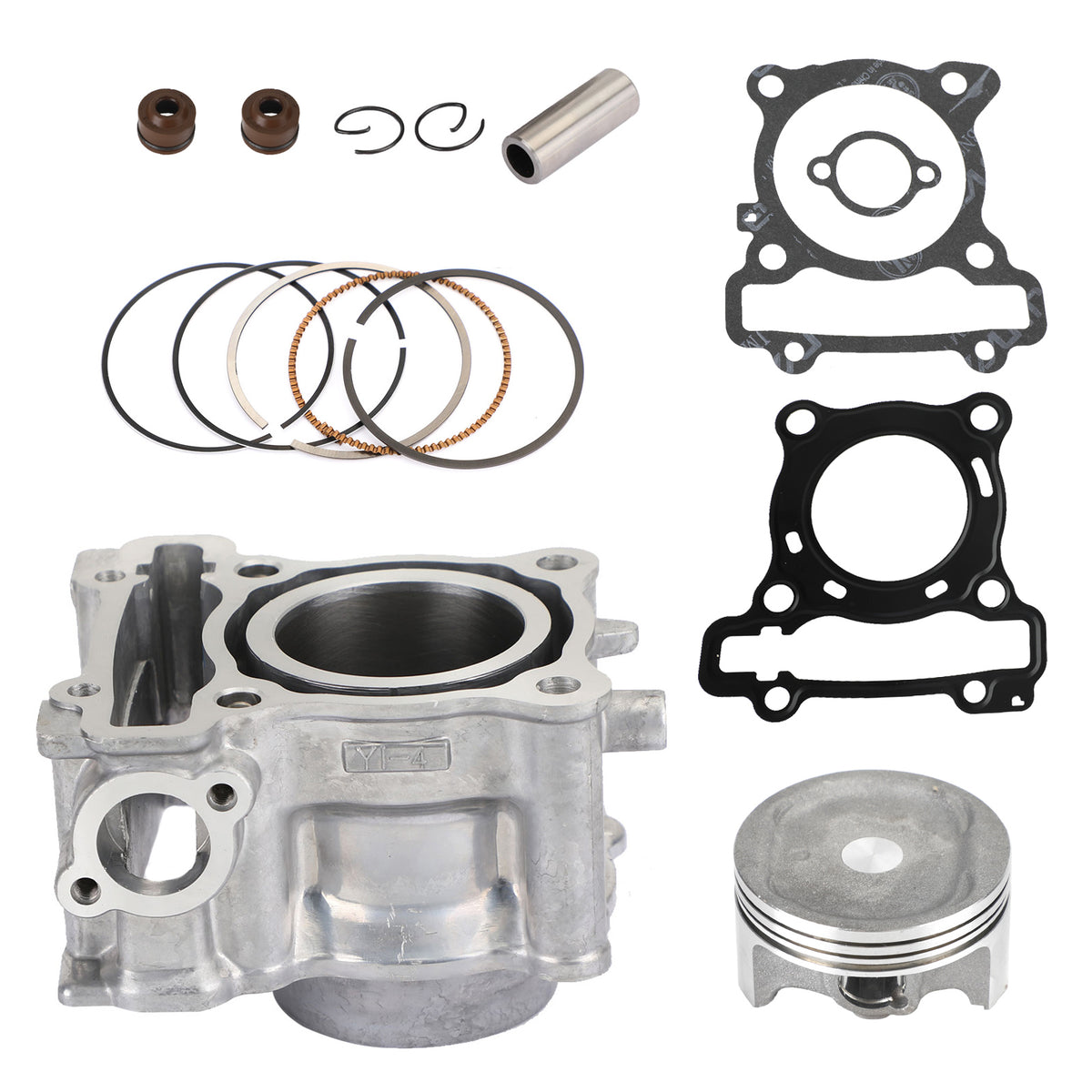

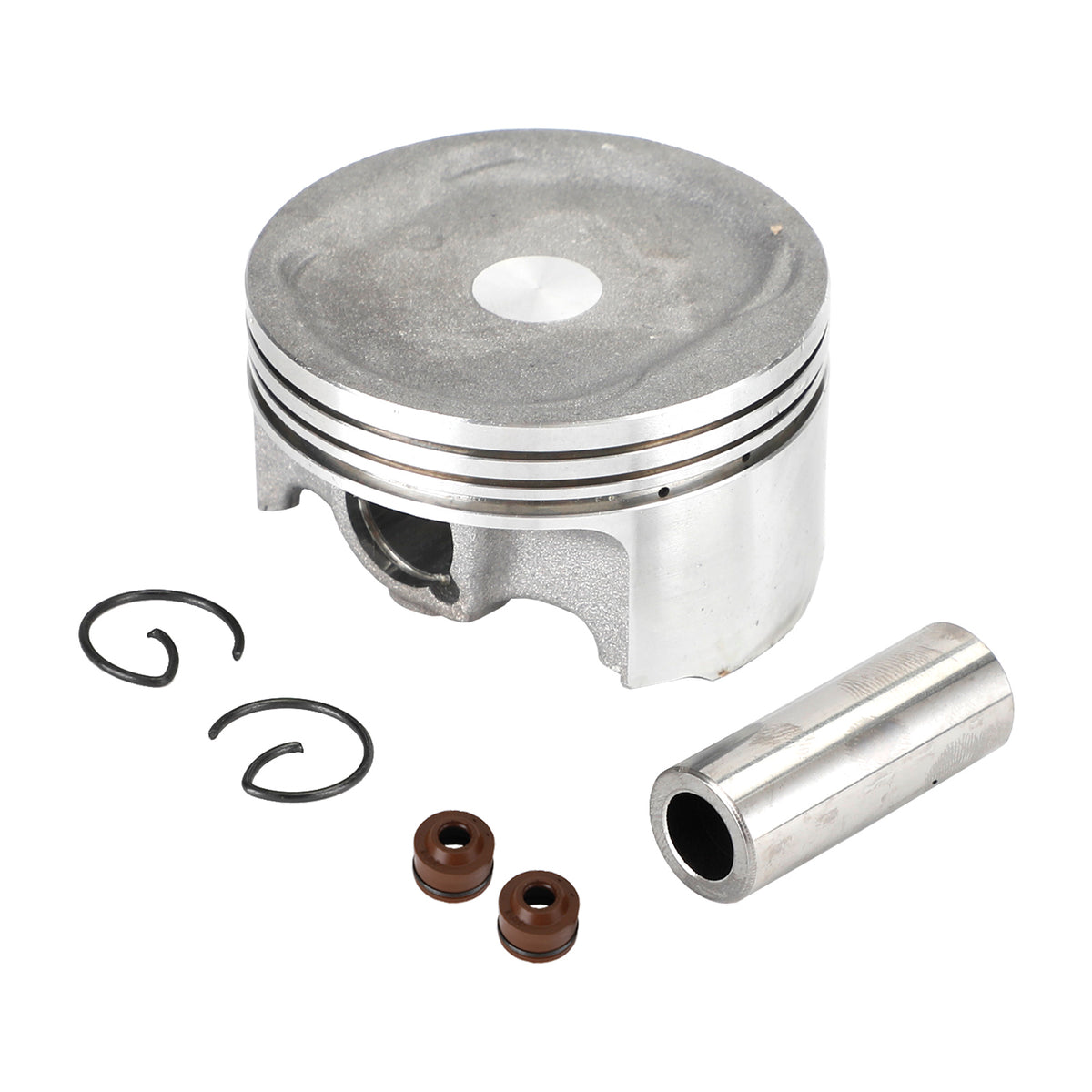

Package Includes: 1x Cylinder 1x Piston(STD) 1x Piston Ring Set 1x Wristpin 1x Circlip(2) 1x Cylinder Base Gasket 1x Cylinder Head Gasket 1x Tensioner Gasket 2x Valve Stem Seals
Note: Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
