Dometic 385230980 Pump Bellows Kit S & T Series Vacuum & Discharge Pump

Application:

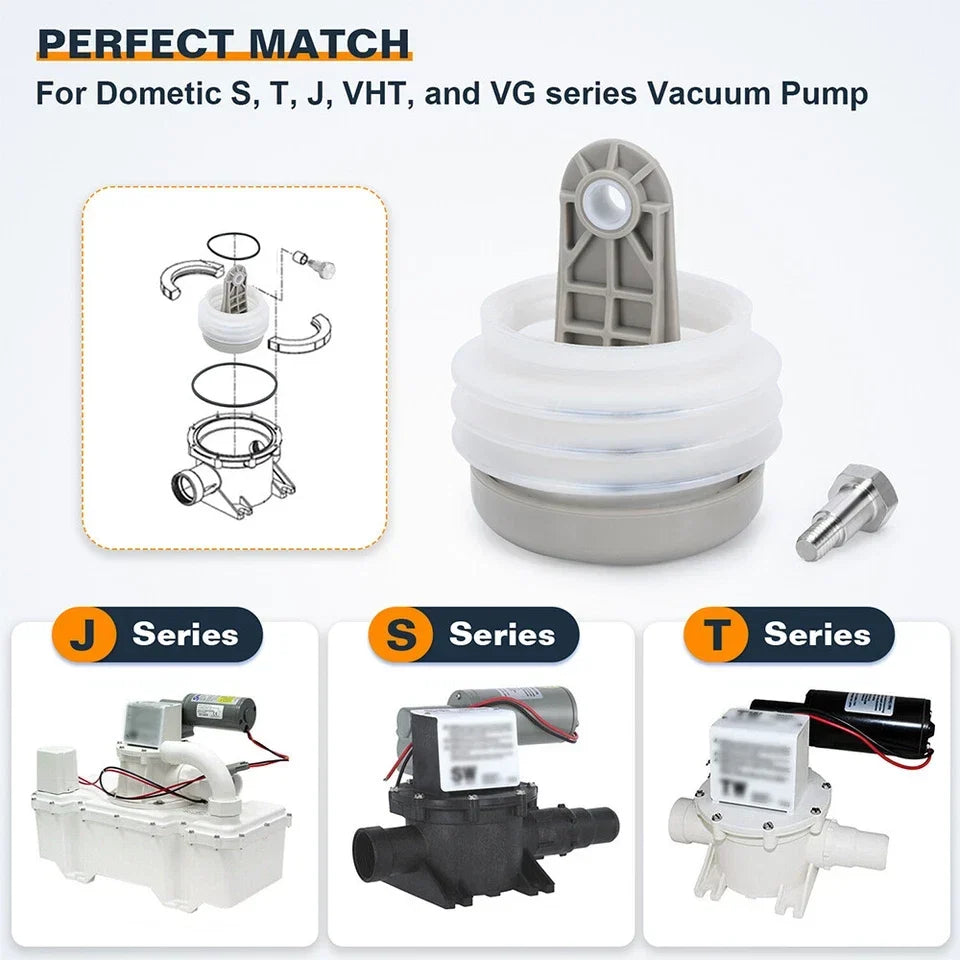

For Dometic S, T, J, VHT, and VG series Vacuum Pump.
For Pump Numbers including S12D, S12DAB, S24D, S32D, S115A, S12, 52A, S32, T12, T24, T32 Model.

Part Number:?385230980, 385310076, 385310151.

Specification:
100% quality assurance tested, more responsive, less expensive, easier to install.
Directly replace your worn or damaged pump. Good sealing to prevent leakage.
This is a high-quality tool kit. Simple to use, impossible to mess up, and well built.
It's a great selection for owners who want to keep spare parts on hand.

Material & Color:
Material: made of high quality Metal & Rubber.
Color: as picture.

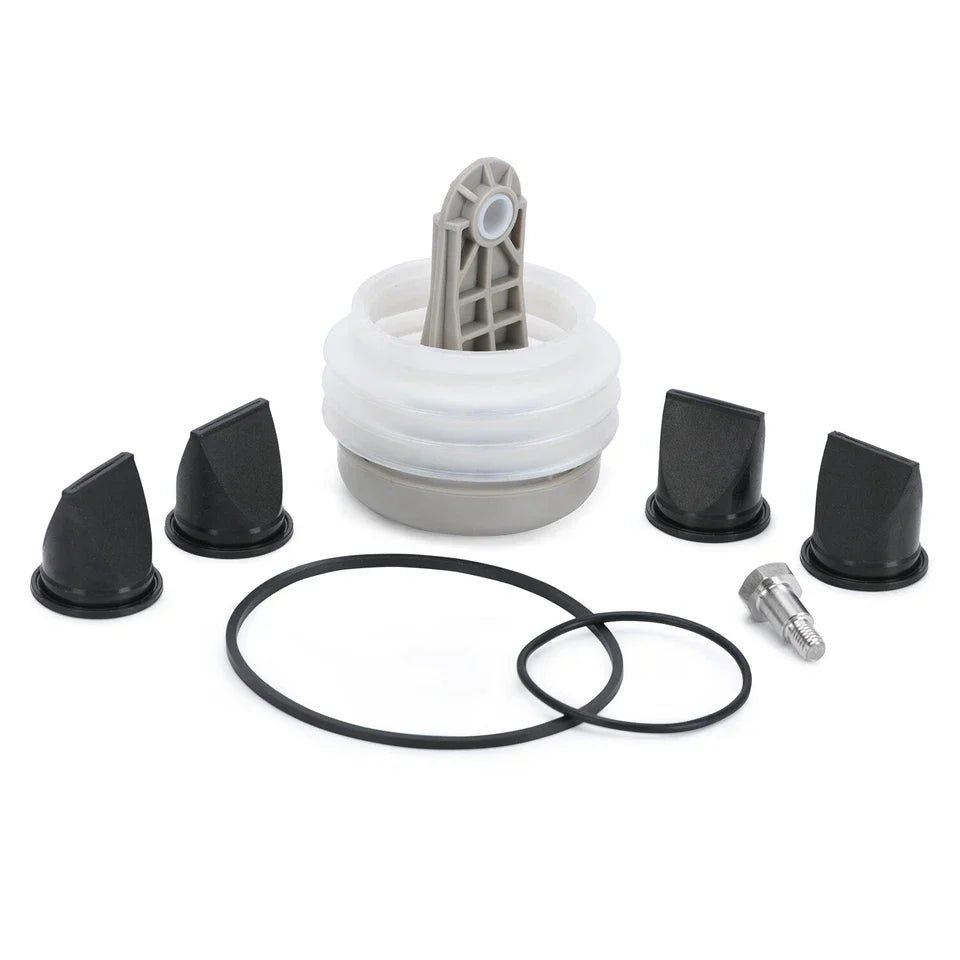

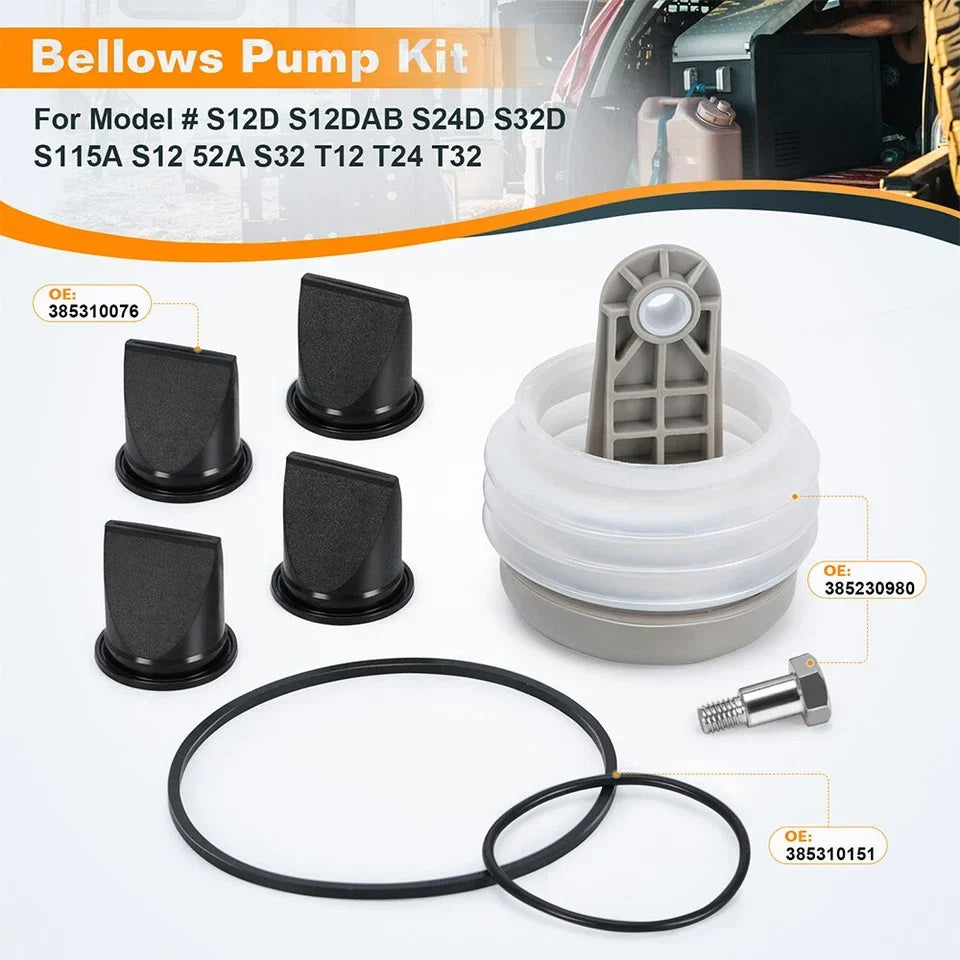

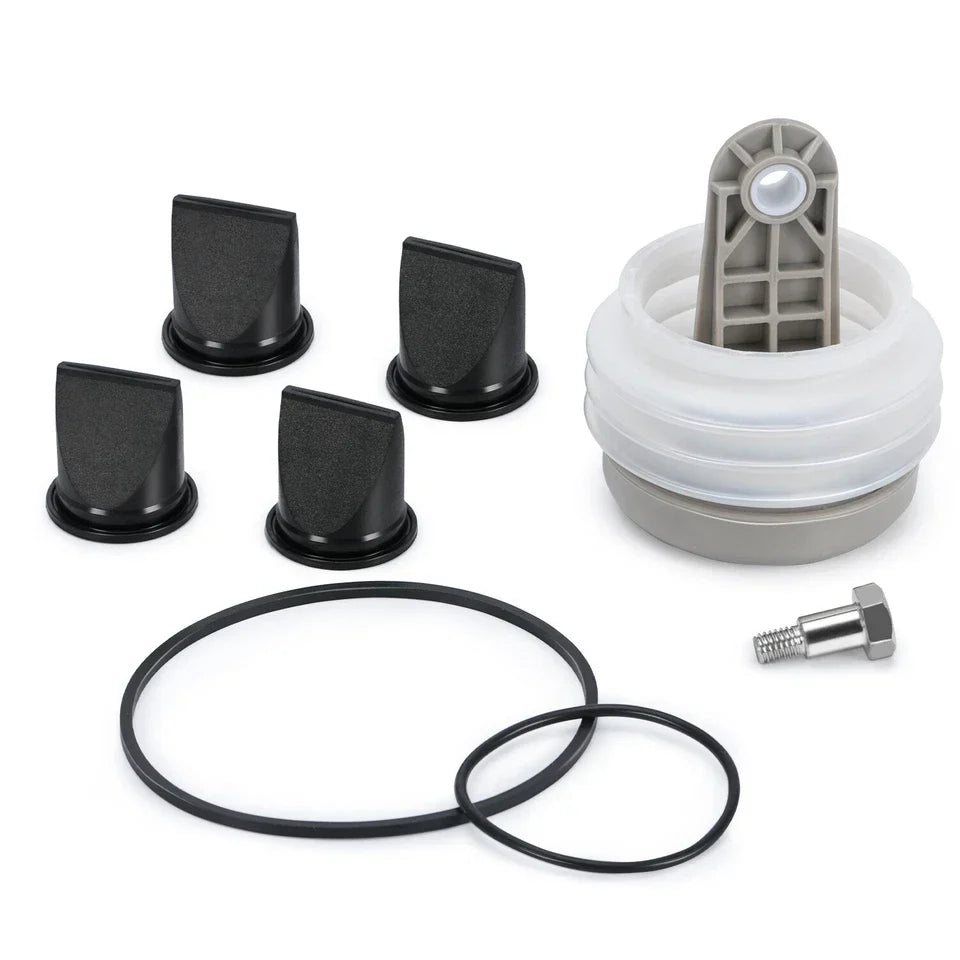

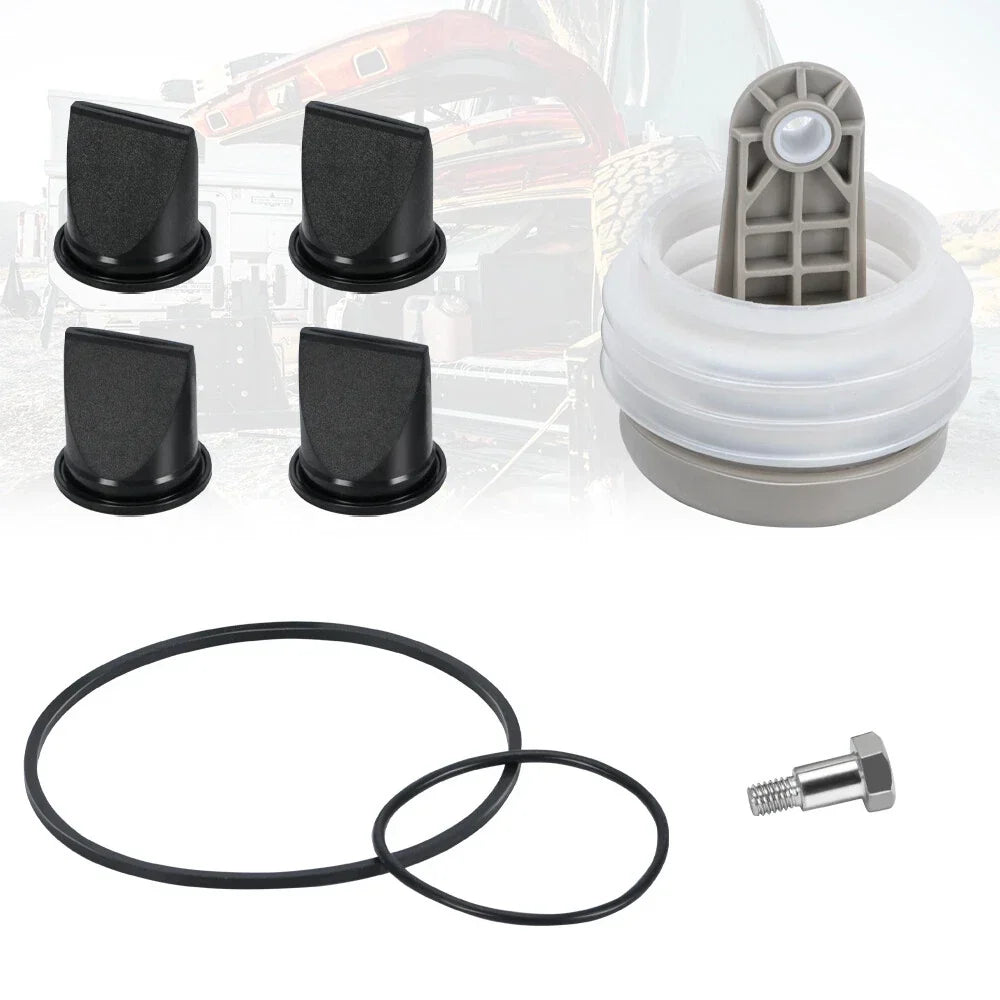

Package Included:

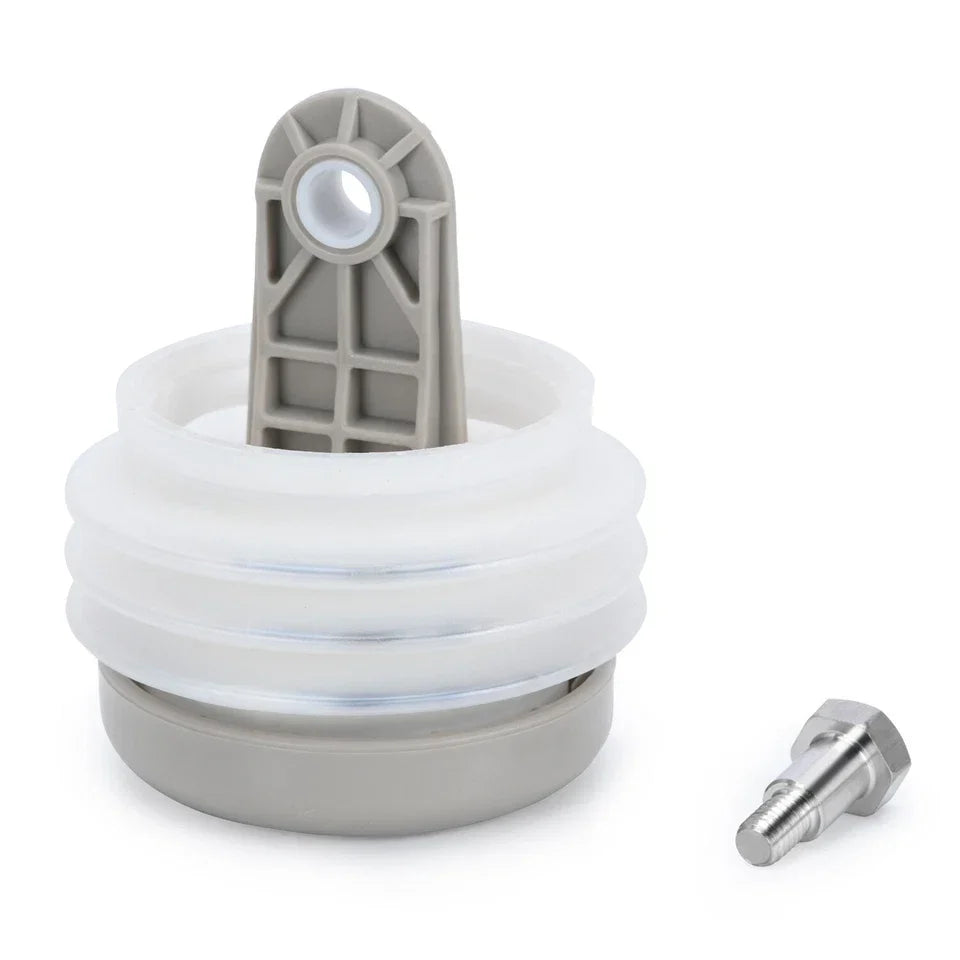

1x Bellows Pump (Part #385230980);

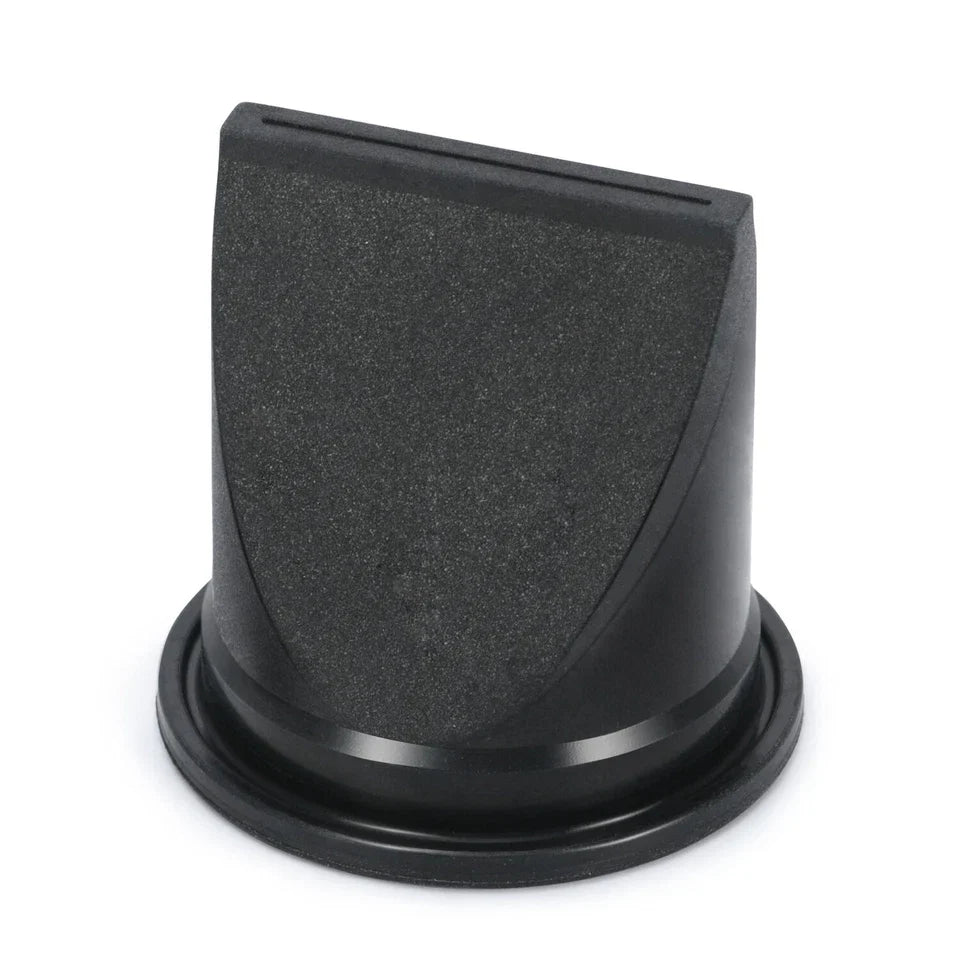

4x 1-1/2" Duckbill Valve (Part #385310076);
1x Large O-ring (Part #385310151);
1x Small O-ring. (100% Brand New Never Used Or Installed)
1x Bolt

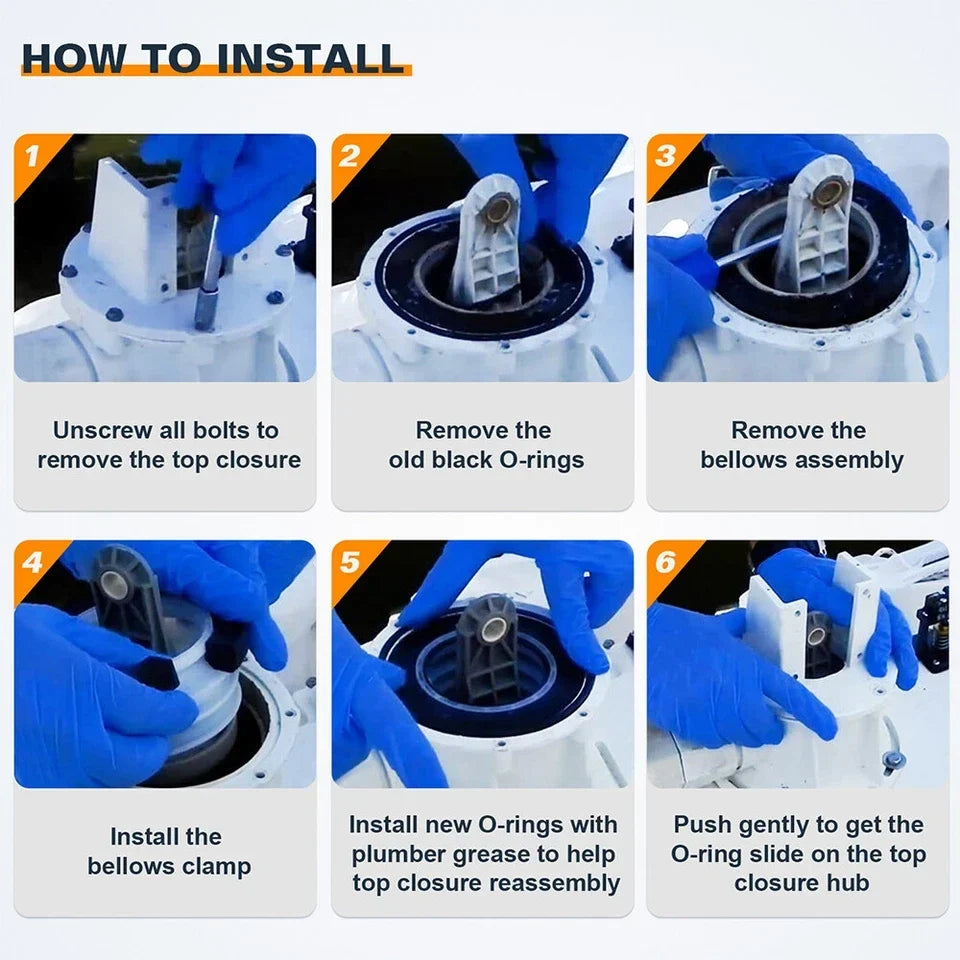

How to Install:
1. Unscrew all bolts to remove the top closure.
2. Remove the old black O-rings.
3. Remove the bellows assembly.
4. Install the bellows clamp.
5. Install new O-rings with plumber grease to help top closure reassembly.
6. Push gently to get the O-ring slide on the top closure hub.
