Cylinder Jug 102mm STD Top End Kit Fit for Honda 14-21 SXS700 Pioneer & 06-22 TRX680 Rincon Piston Rings Gaskets
Features: Kit includes piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). Cast piston has super-high silicone content for additional strength. Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life. Piston dome is anodized for superior heat resistance and longer lifespan. The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for standard bore size - 102.00 mm. All of the components within this kit are bolt-on ready for a hassle free installation.
Specifics: Condition: Aftermarket 100% Brand New Quantity: 1 Set Piston Material: Forged Aluminum Actual Displacement: 675cc Bore Type: Stanard Bore Bore Size: STD 102 mm Piston Bore: 101.5mm Pin Length: 63mm Pin Diameter: 28mm
Replacement Part Number: Cylinder: 12100-HN8-A60 Gasket Kit A: 06111-HL3-A00 Cylinder Base Gasket: 12191-HN8-000 Cylinder Head Gasket: 12251-HN8-A61 Cylinder Head Cover Gasket: 12315-HN8-000 Tensioner Gasket: 12194-HC5-740 Piston: 13101-HN8-A60 Pin, piston: 13111-HN8-A60 Ring Set, piston: 13010-HN8-A61 Circlips, piston: 90602-MBN-670
Fitments: Fit for Honda 2006-2022 TRX680FA/FGA Fourtrax Rincon 680 / GPScape Fit for Honda 2009-2013 MUV700 Big Red 700 Fit for Honda 2014-2021 Pioneer 700 SXS700 M2 & M4 Fit for Honda 2017-2021 Pioneer 700 Deluxe SXS700 M2 & M4
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

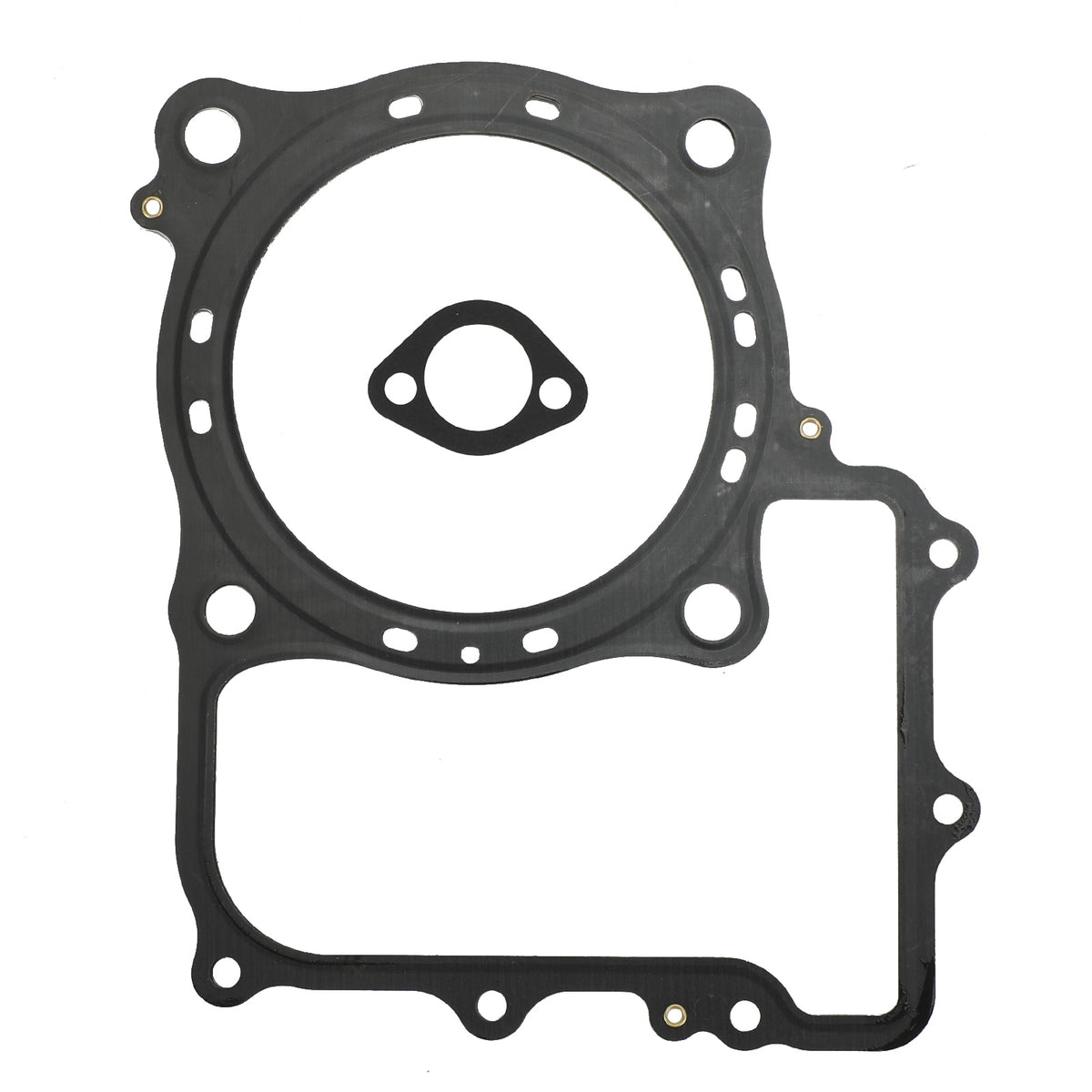

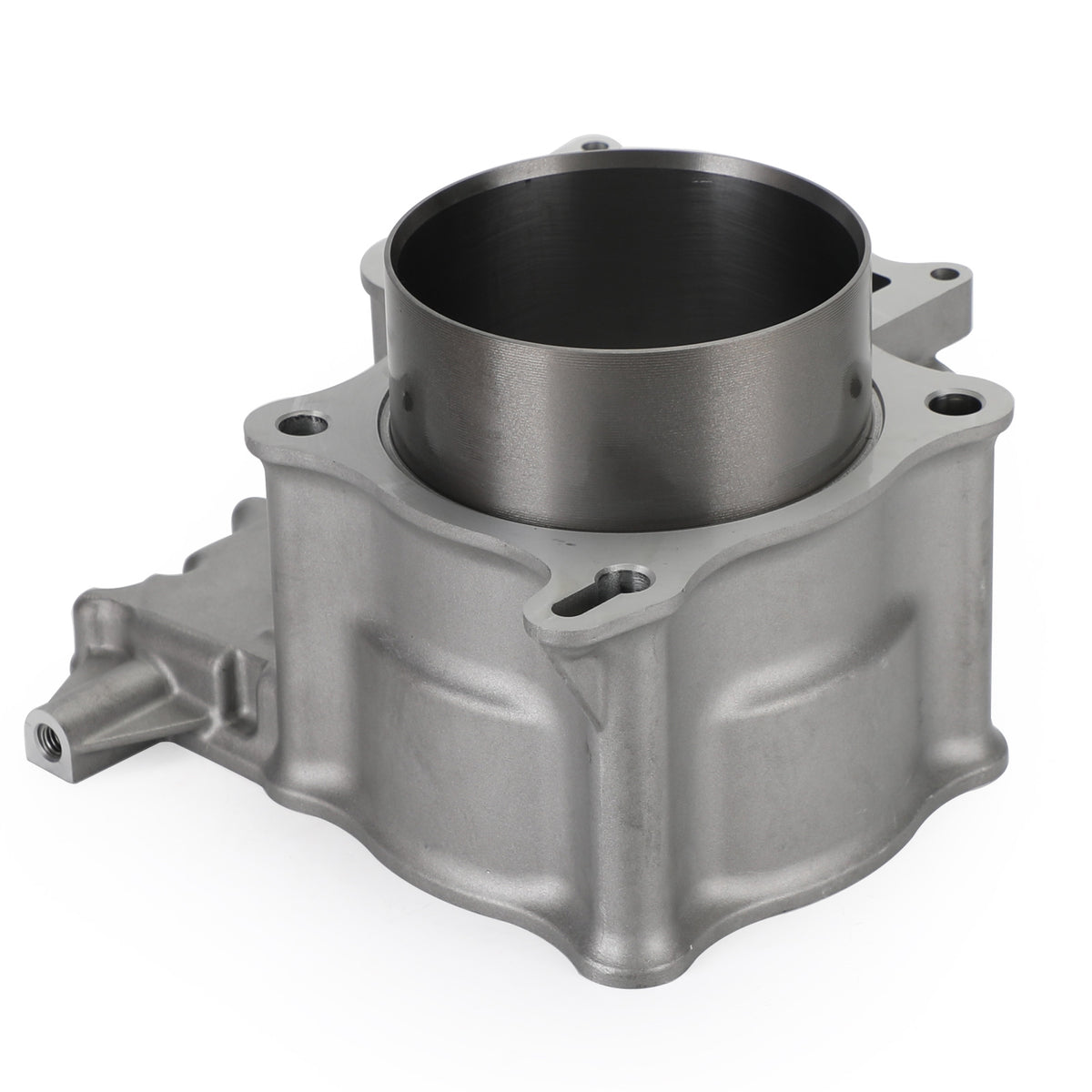

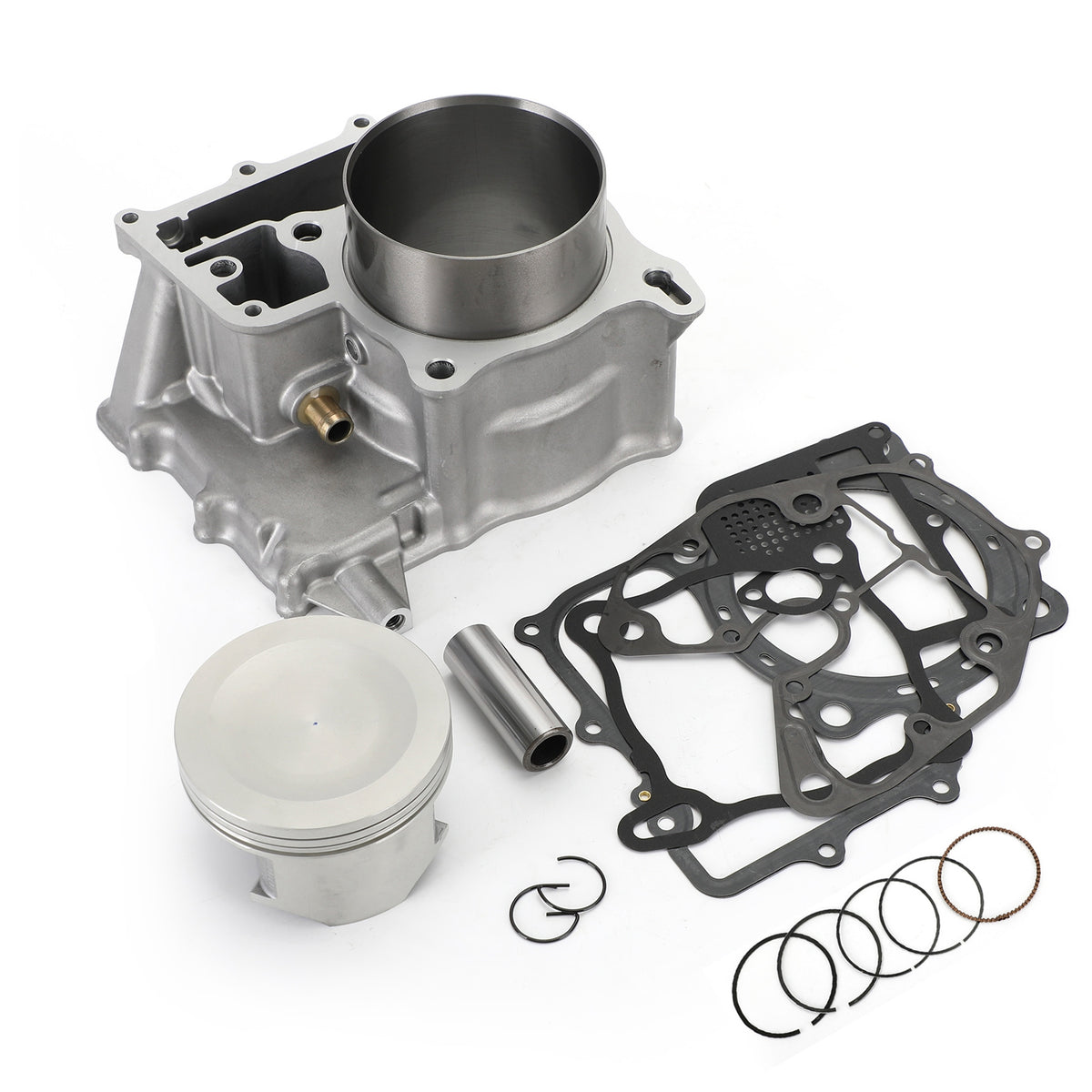

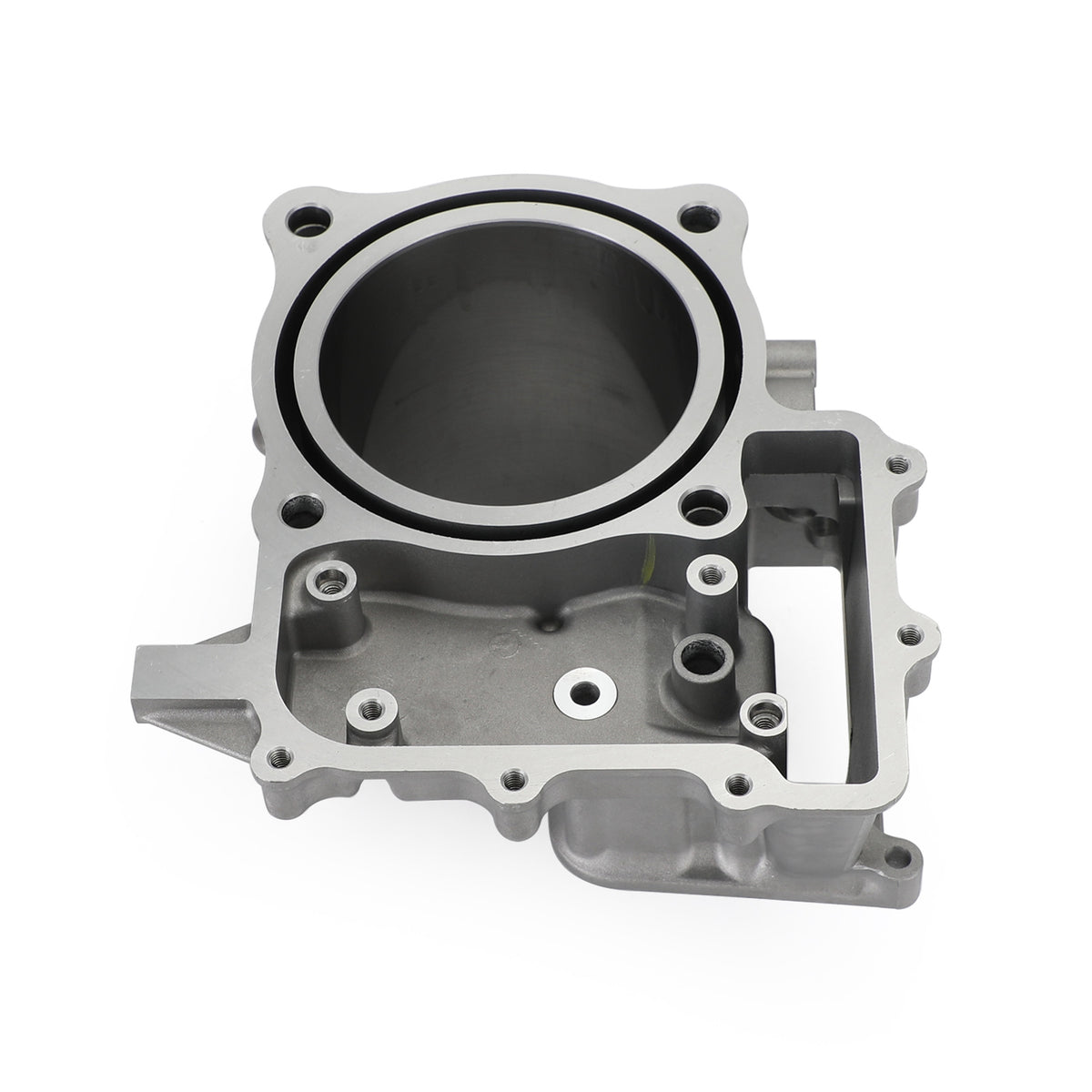

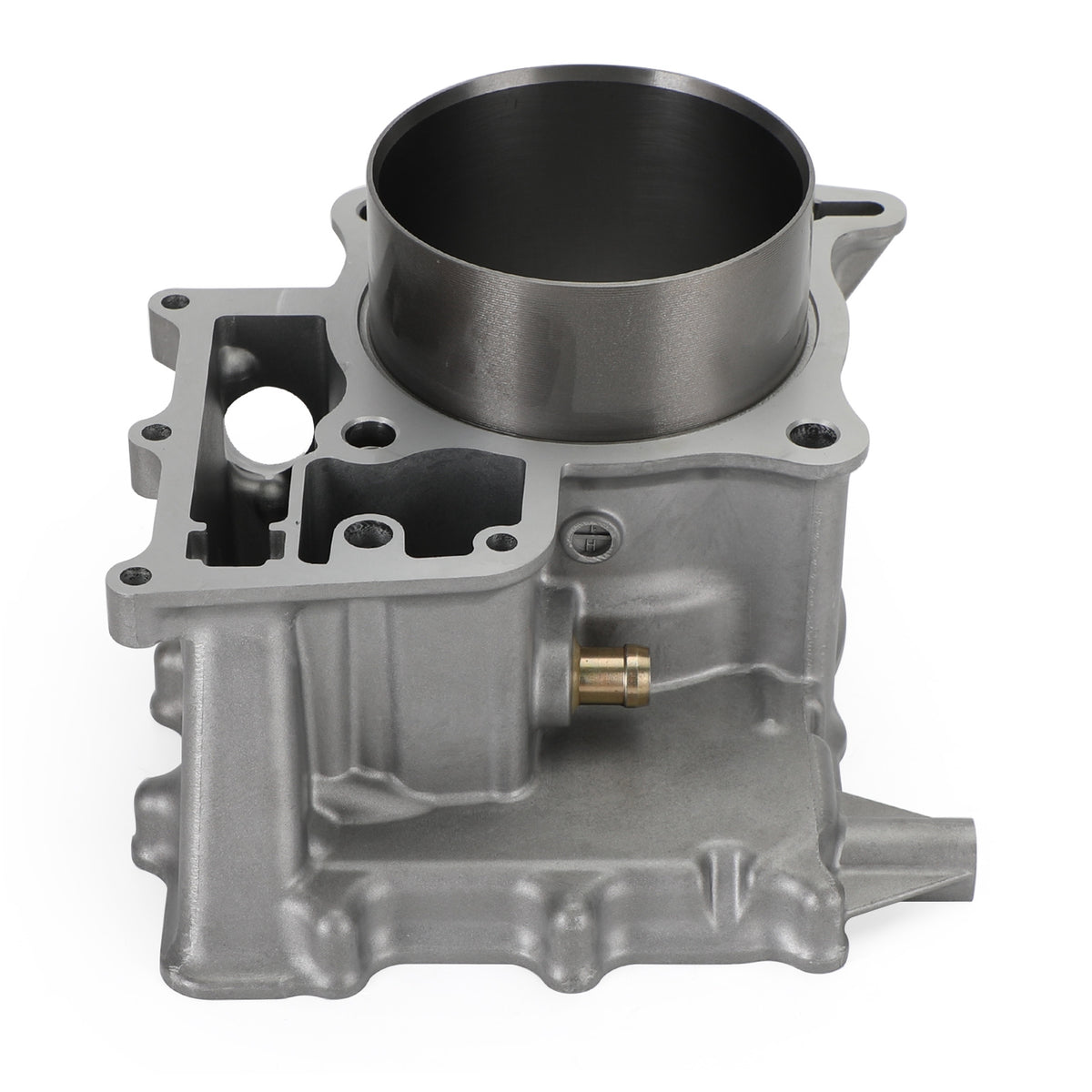

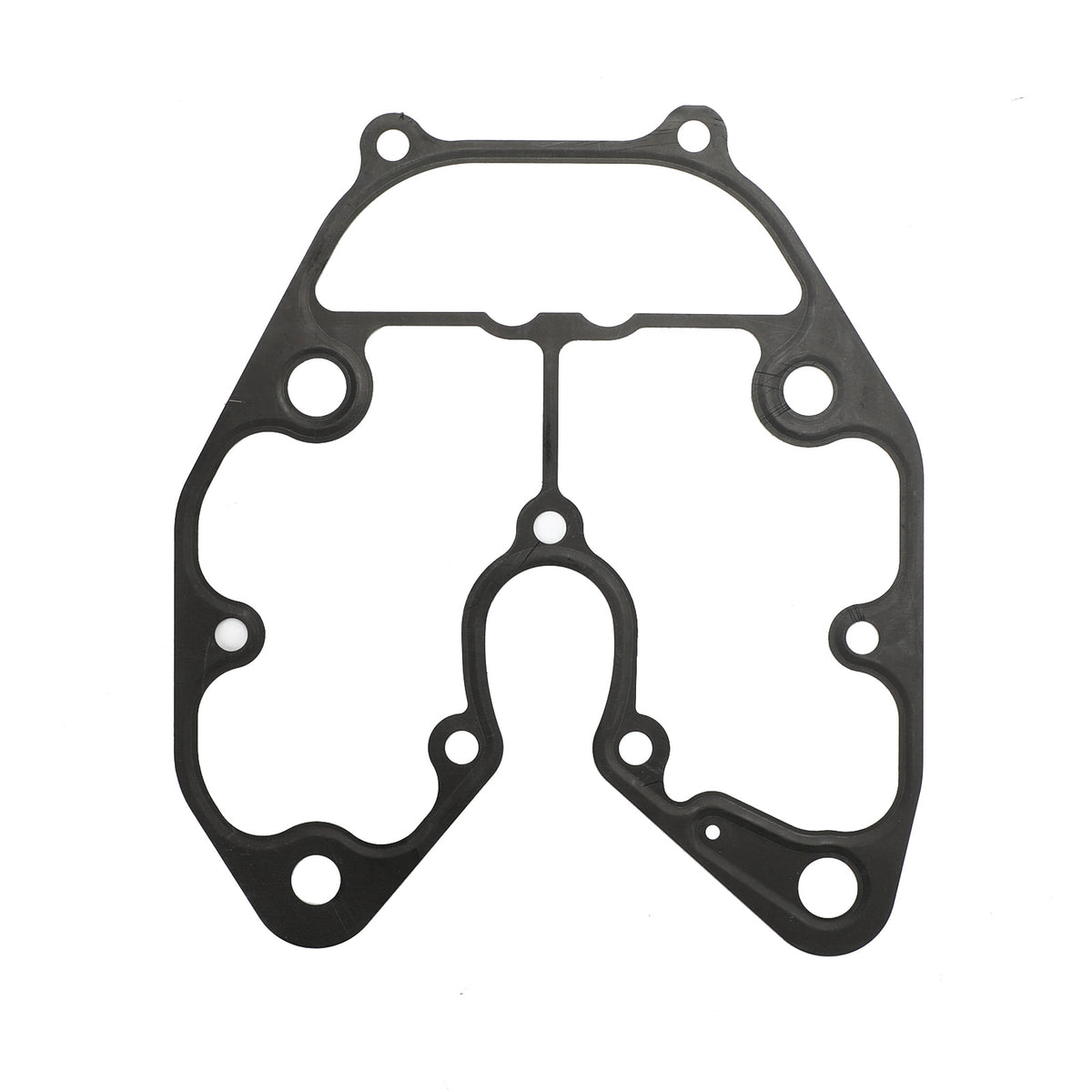

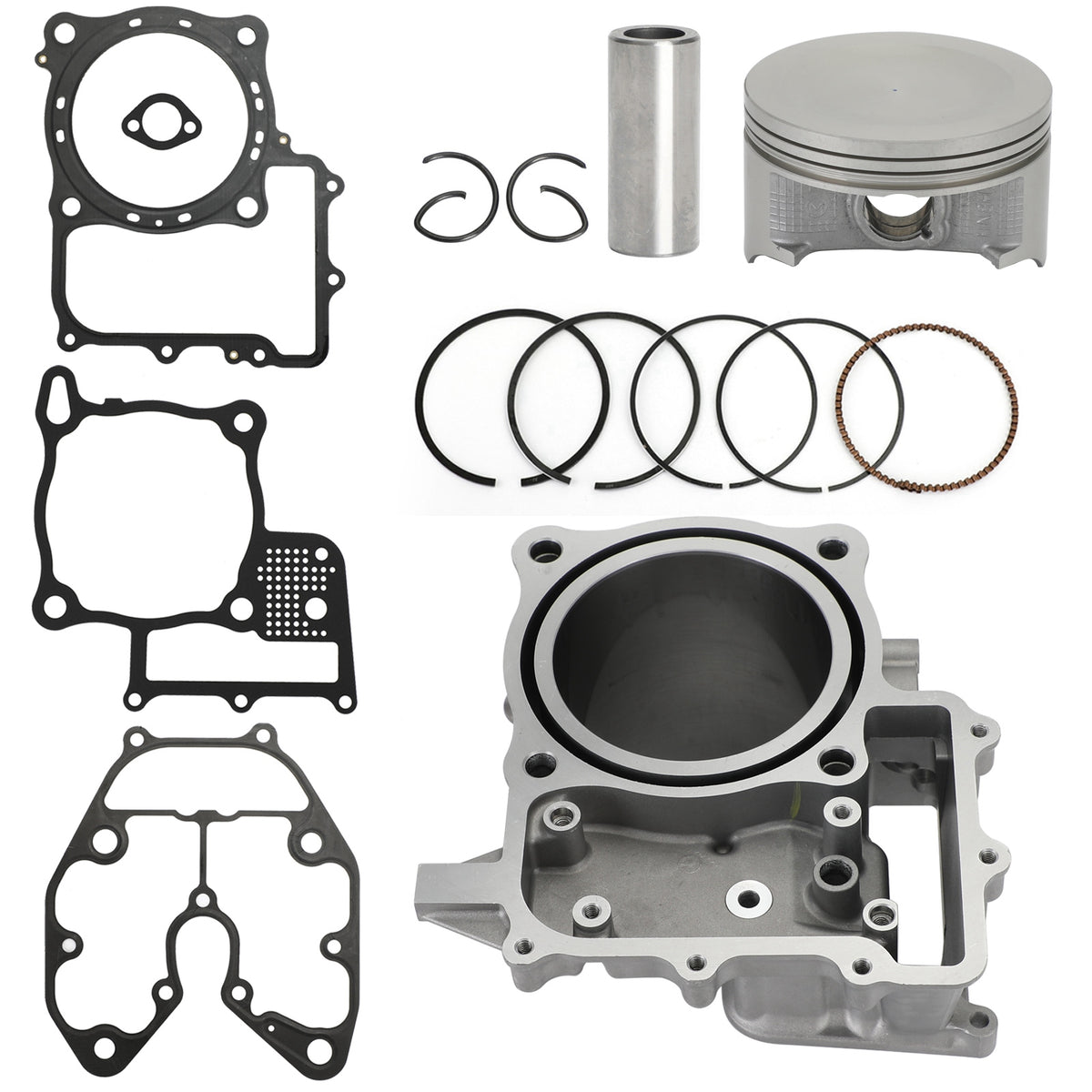

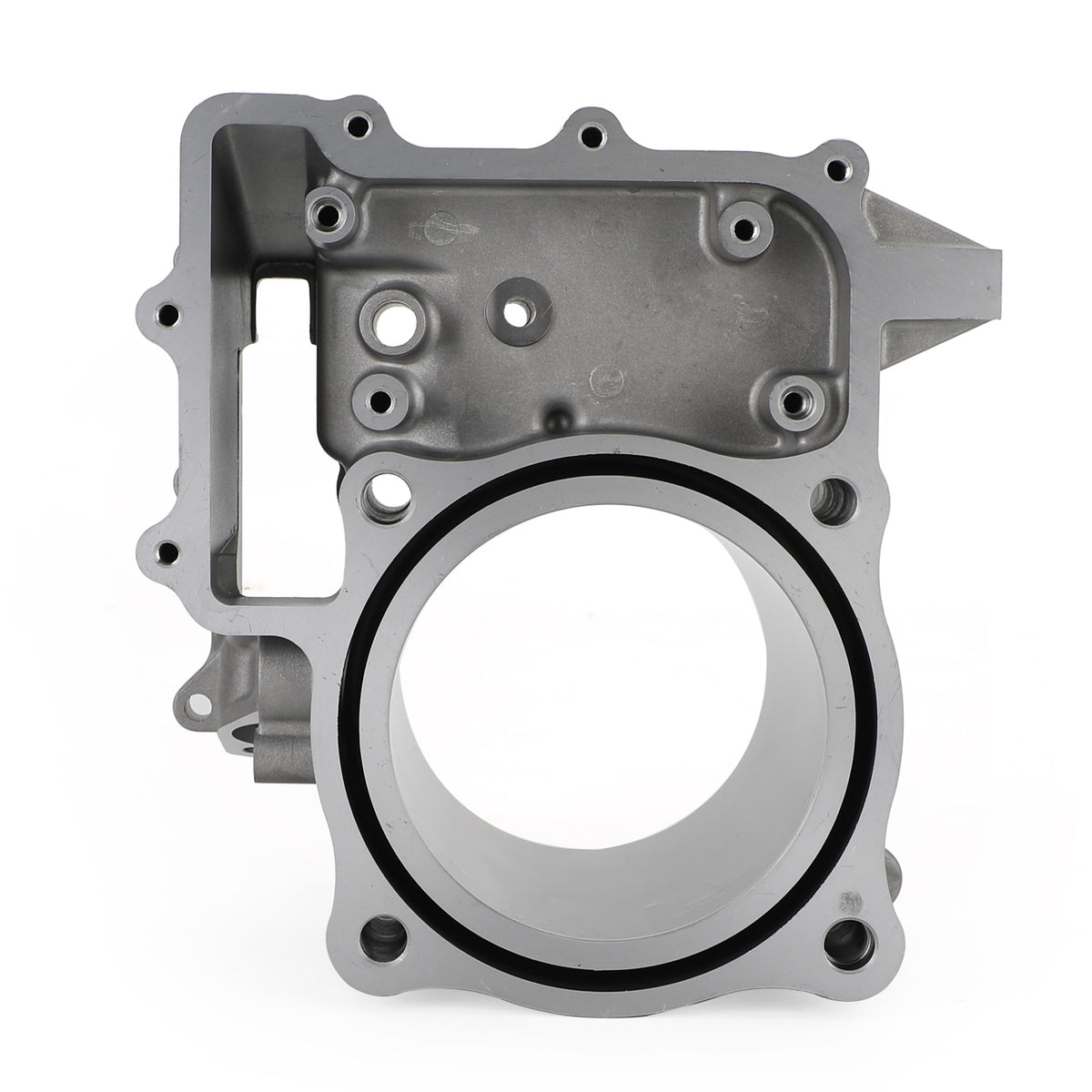

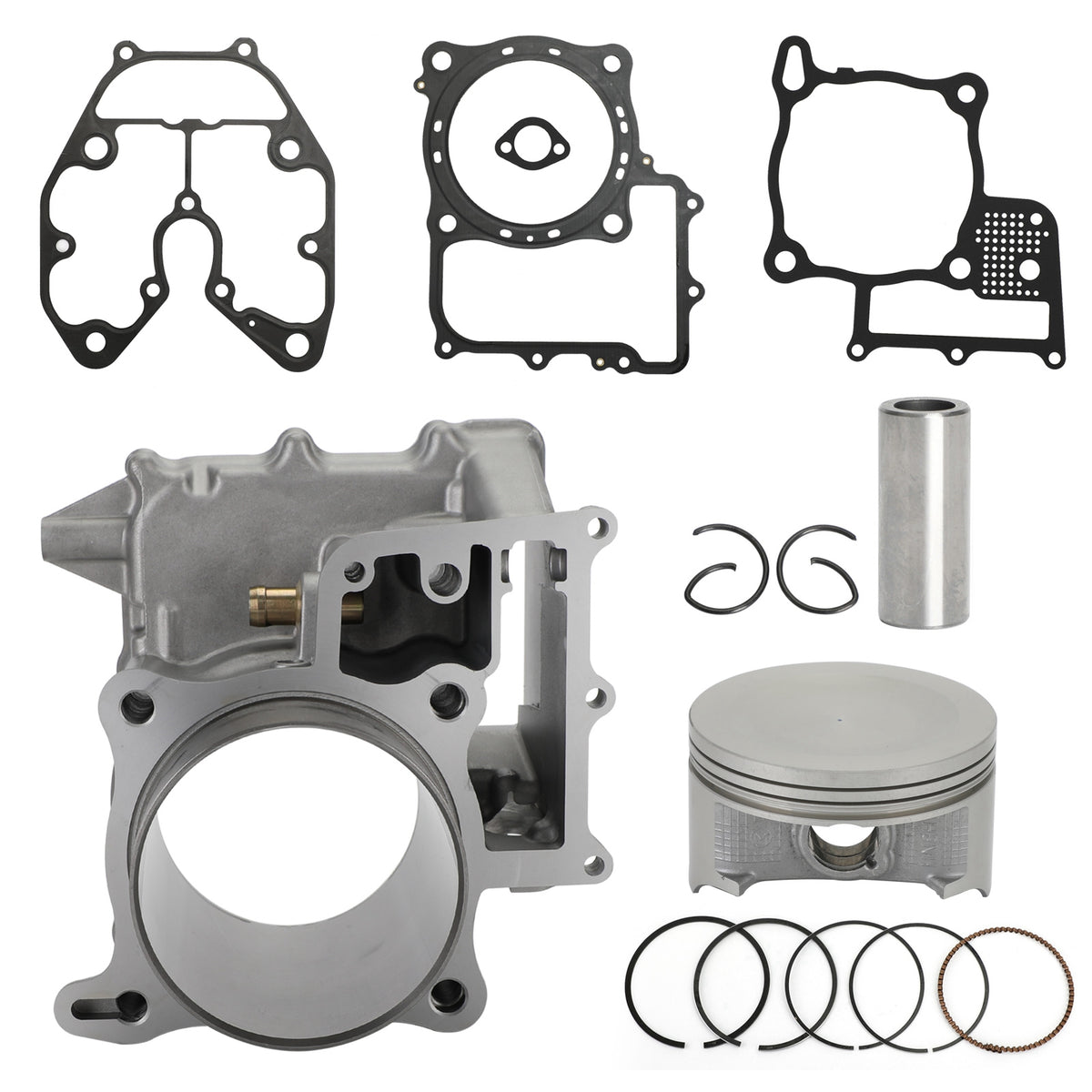

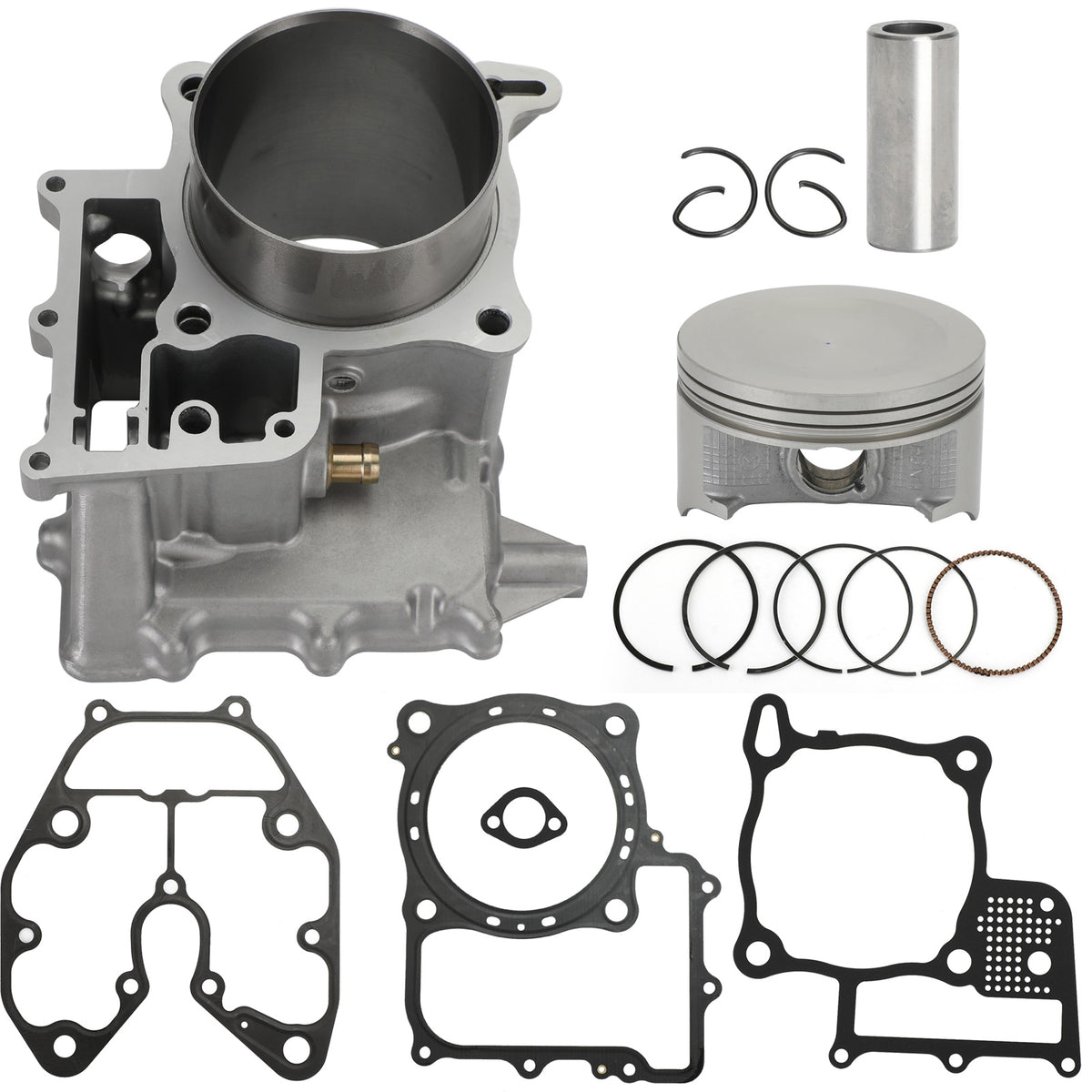

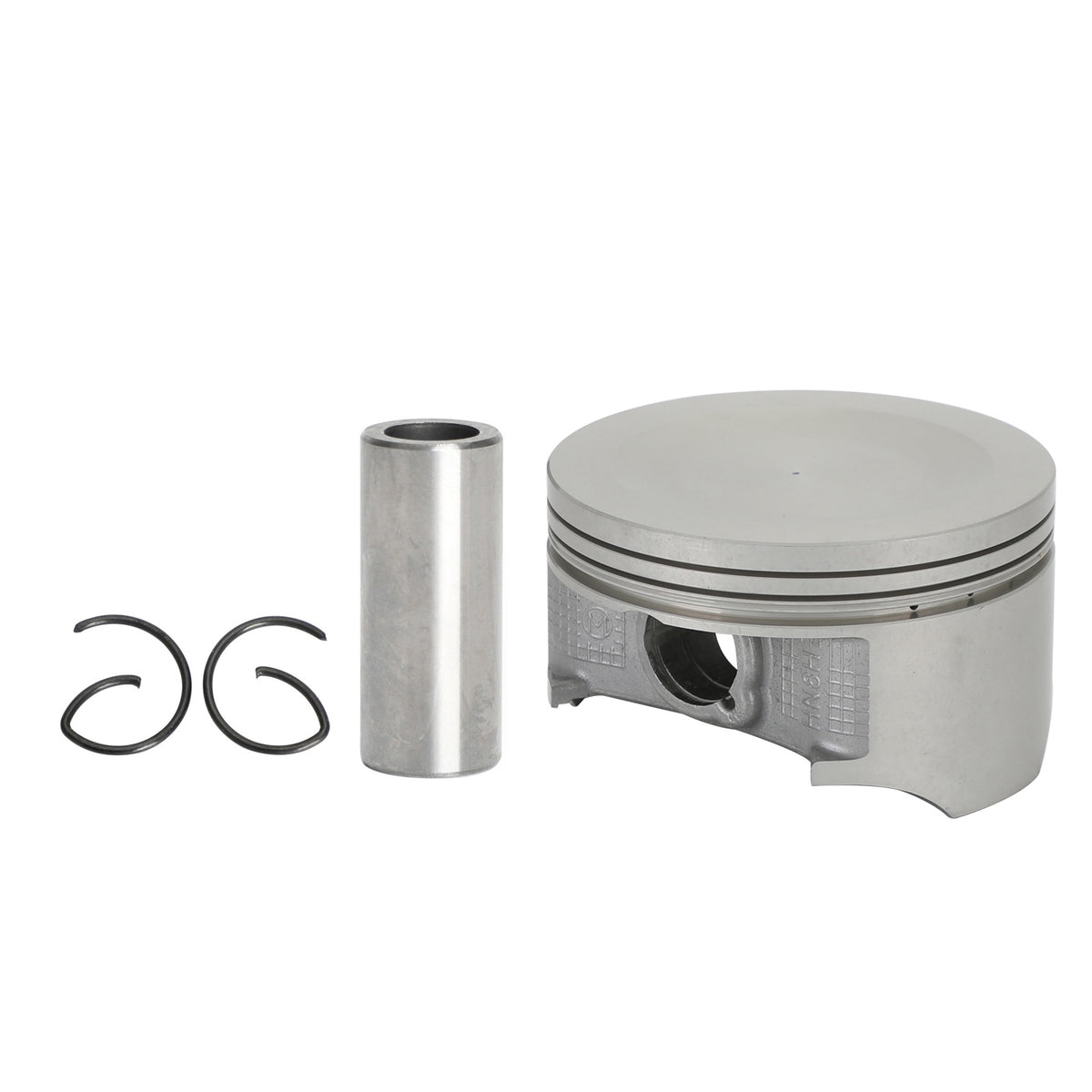

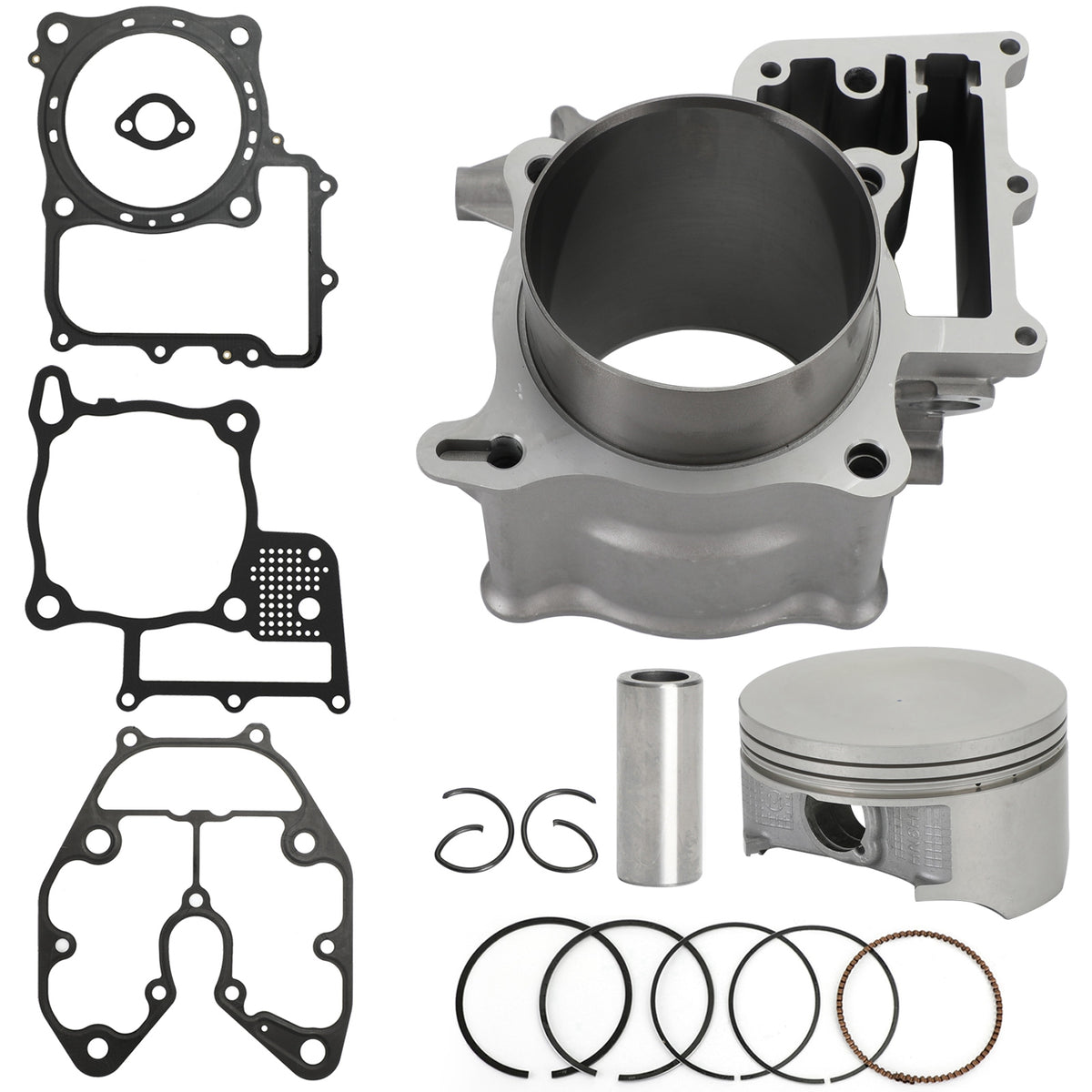

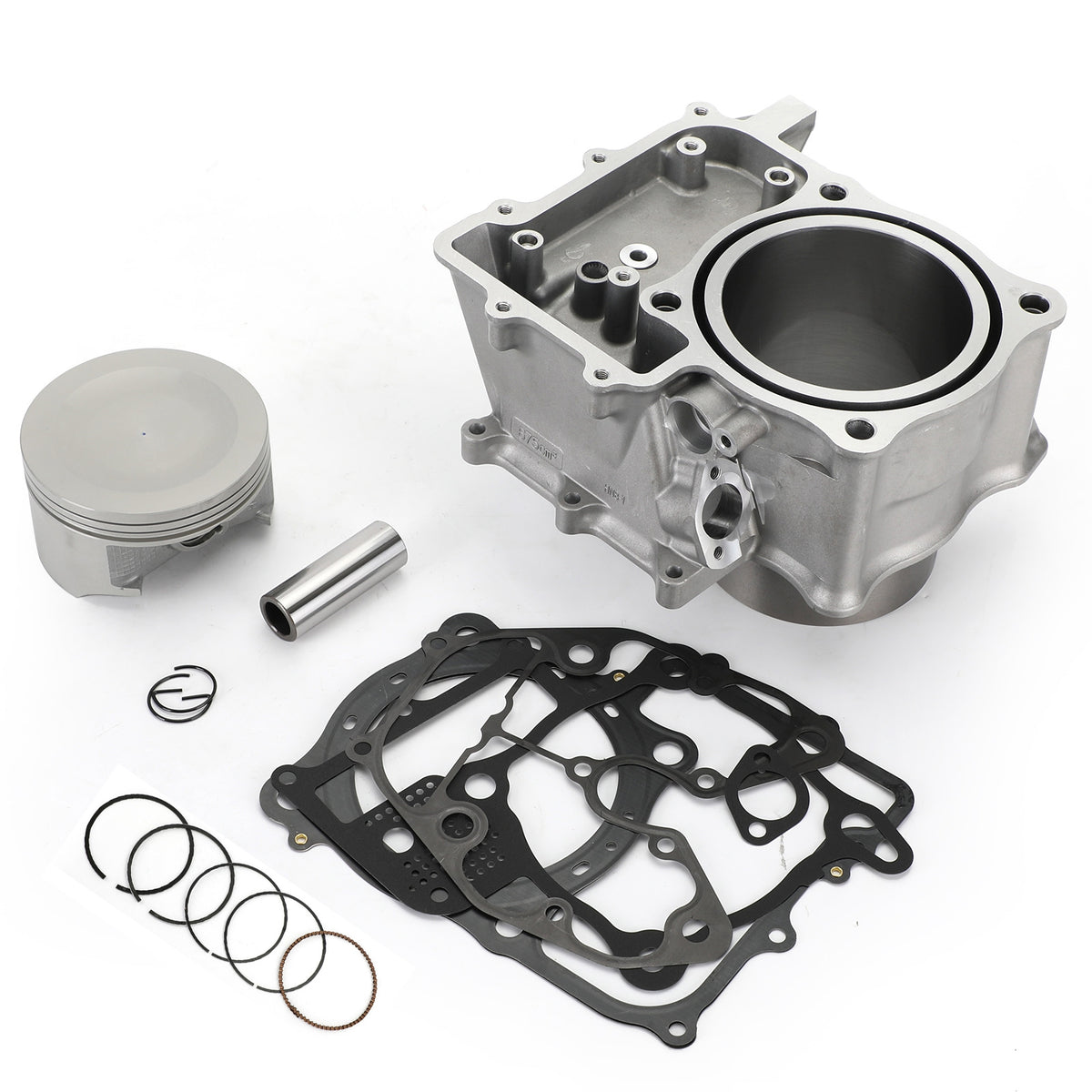

Package Includes: 1x Cylinder 1x Piston(STD) 1x Piston Ring Set 1x Wristpin 1x Circlip(2) 1x Cylinder Base Gasket 1x Cylinder Head Gasket 1x Cylinder Head Cover Gasket (Valve Cover Gasket) 1x Chain Tensioner Gasket
Note: Ring end gaps are checked prior to shipment for proper sizing. Please check out the product and size fits your motorcycle or not before you purchase.
