Cylinder Piston Gasket Top End Rebuild Kit 52,4mm For SYM Allo 125 Jet 4 125 Symphony 125

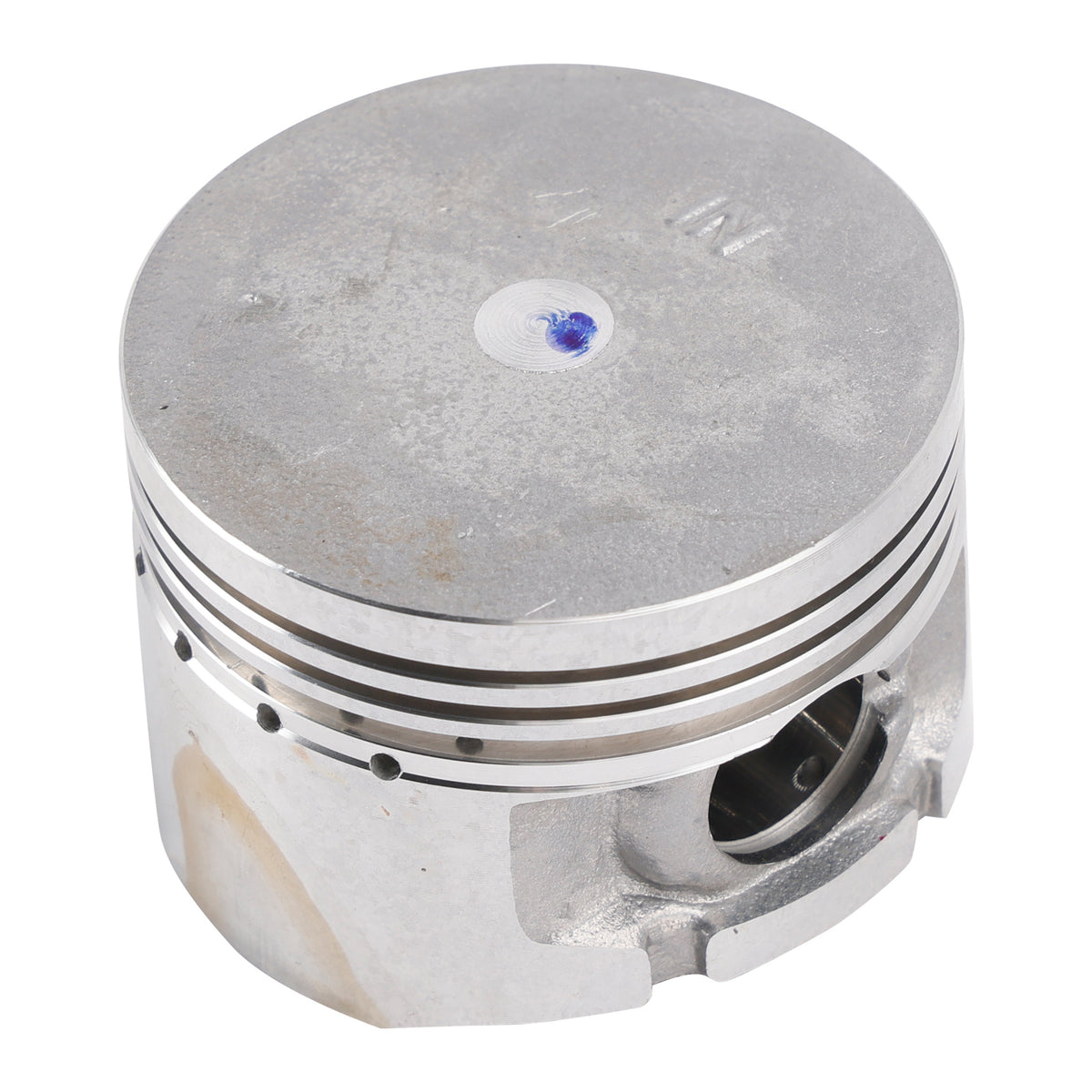

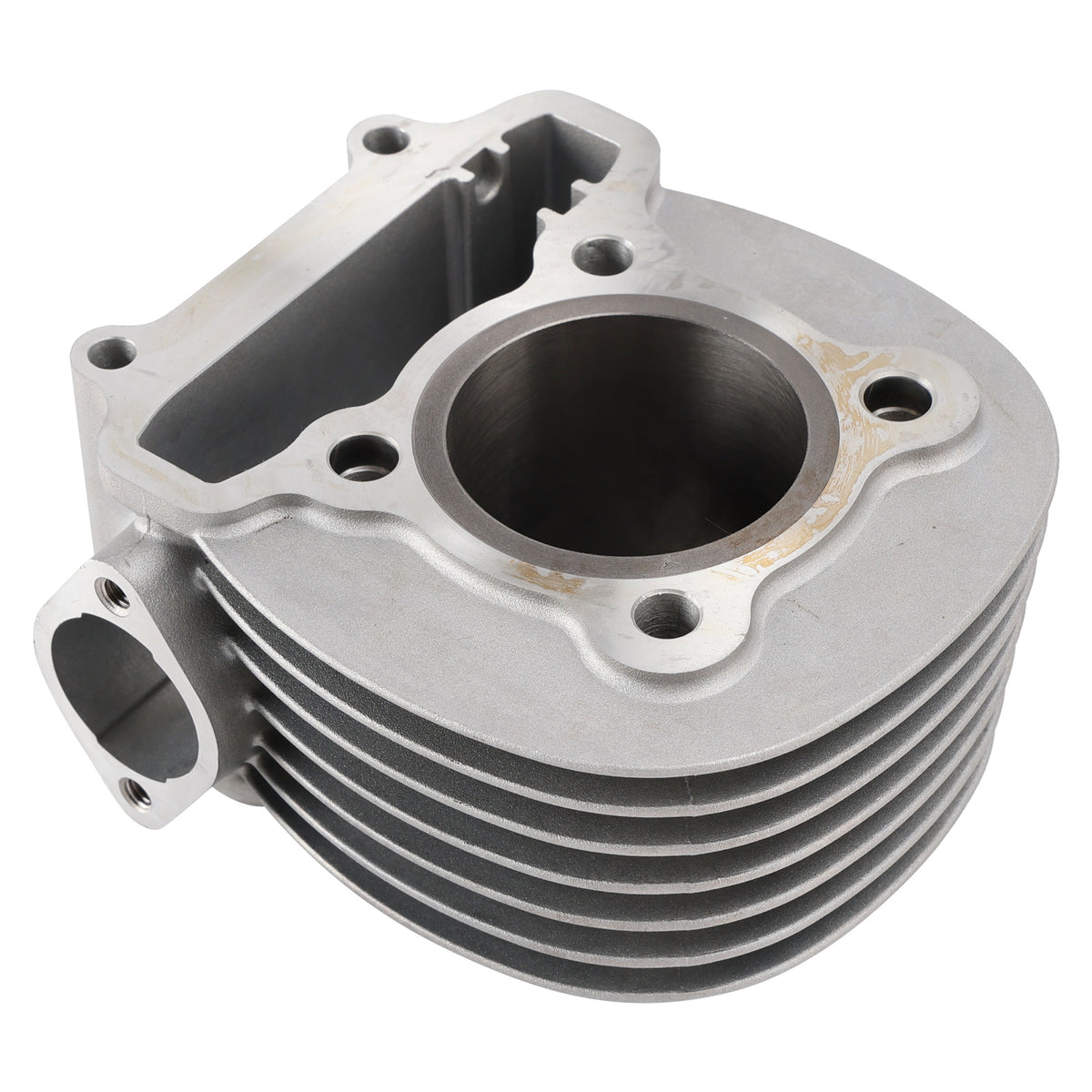

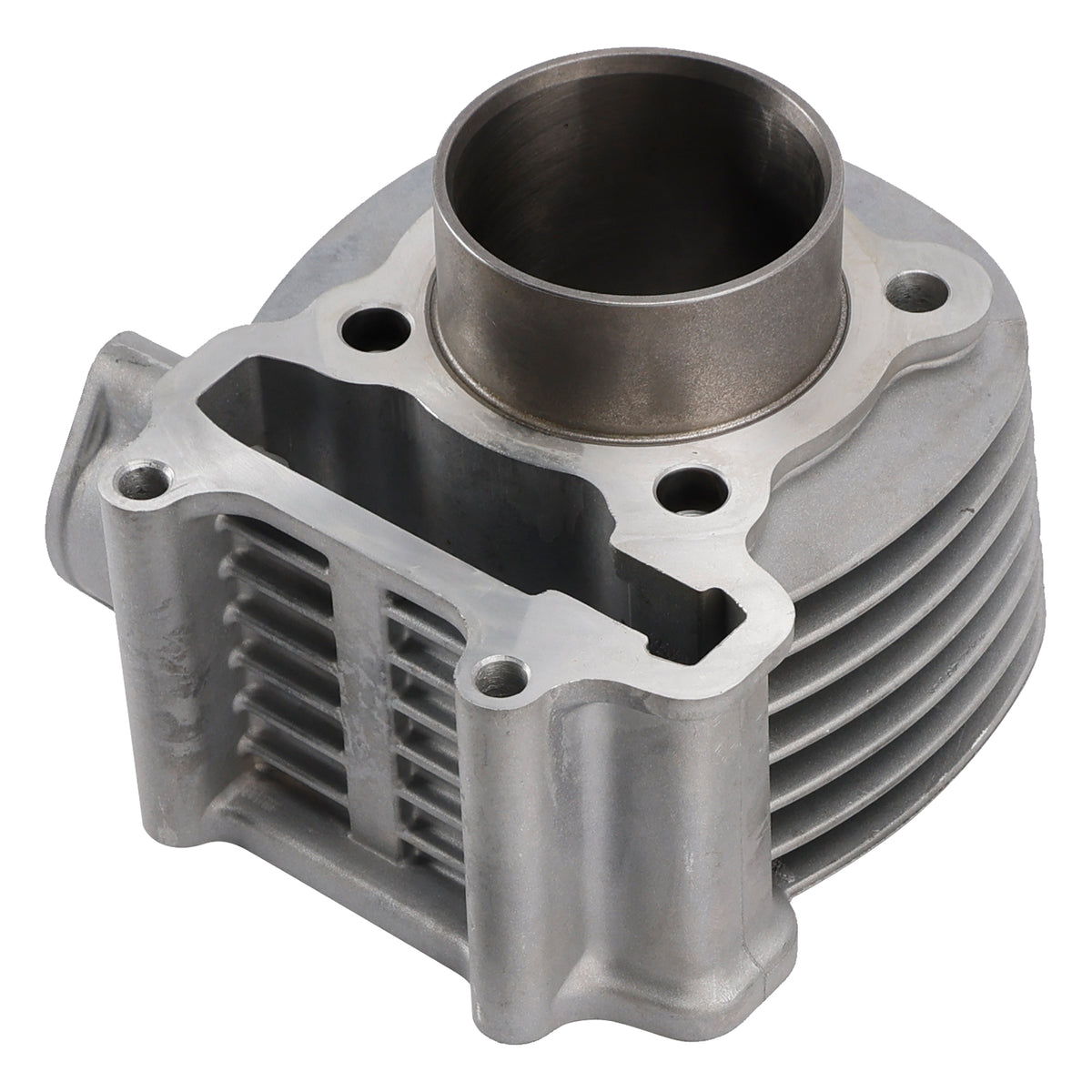

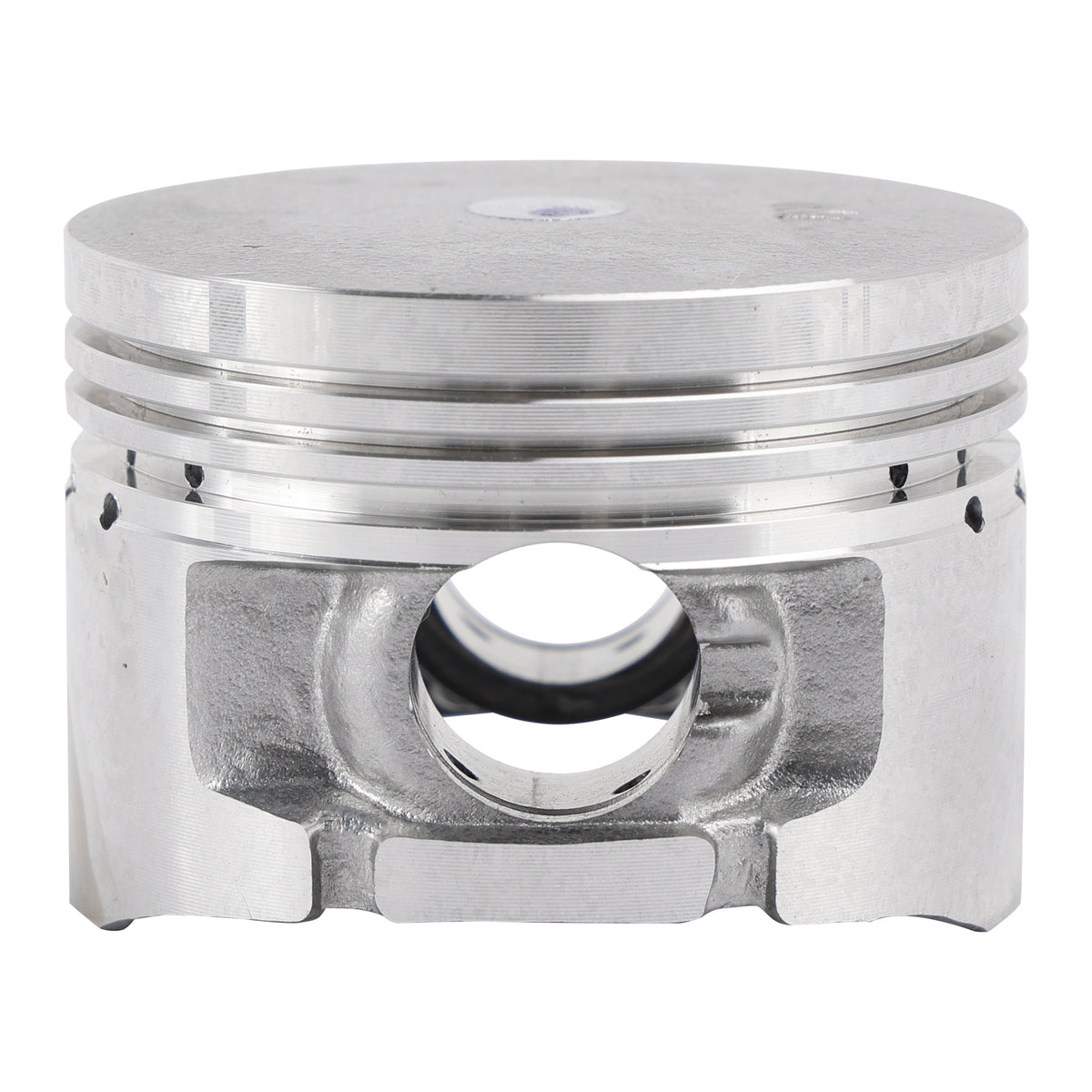

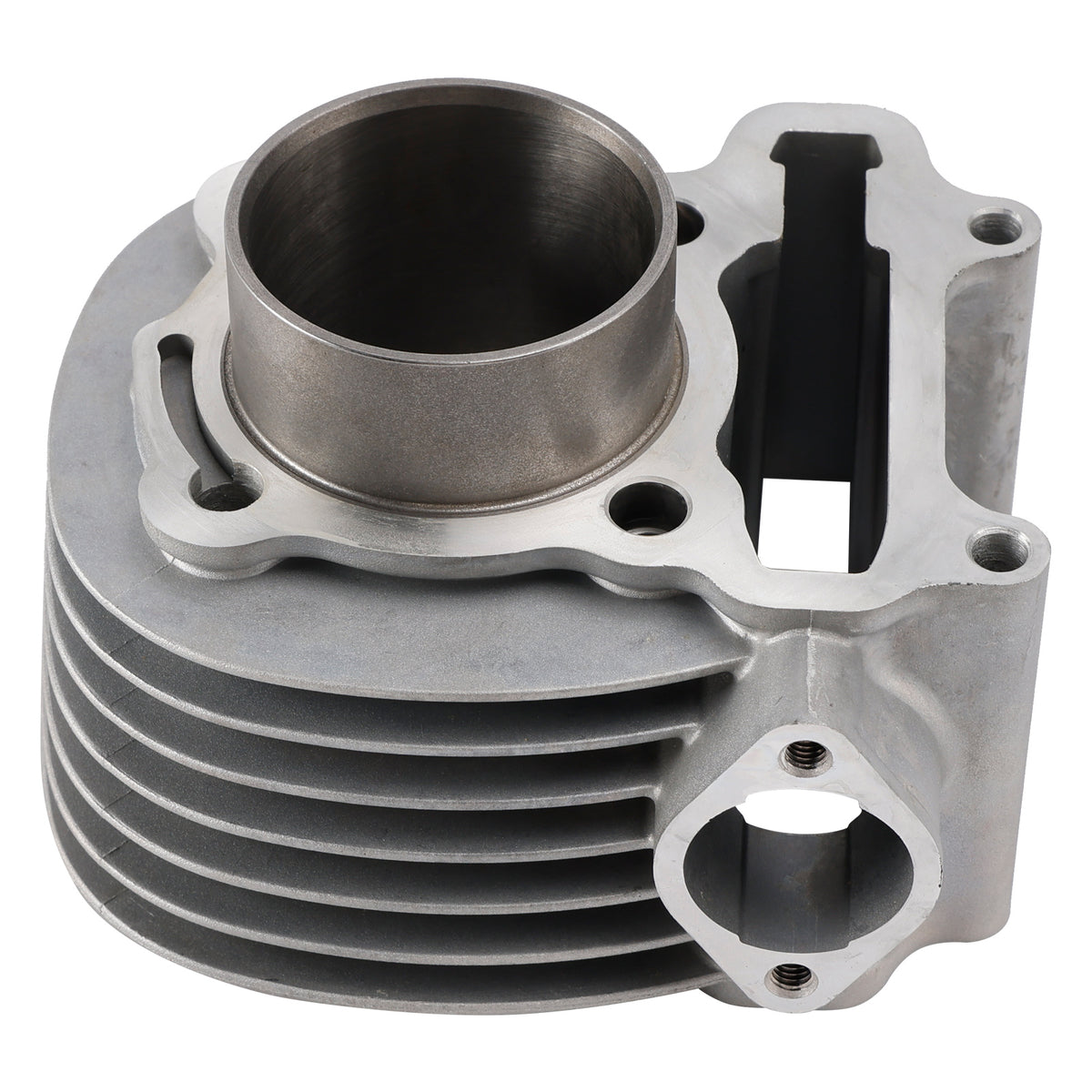

Features: If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you. Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment). The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for standard bore size - 52,4 mm, 15 mm steel piston pin. This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications: Condition: Aftermarket 100% Brand New Quantity: 1 Set Material: Aluminum, Steel Engine: 4 stroke Displacement: 125cc Bore Type: Standard Bore Bore diameter: 52,4 mm Pin diameter: 15 mm Pin length: 40 mm
Replacement Part Number: Cylinder: 12100-ARA-000 Cylinder Base Gasket: 12191-F6C-000 Cylinder Head Gasket: 12251-H7A-000 Piston: 13101-ANL-000 Pin, Piston: 13111-ARA-000 Piston Ring Set (Std): 13010-U3A-000 Circlips, piston (2): 94601-15000
(Always compare part numbers to your parts schematics and cross reference appropriately.) (This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)
Fits Make/Model/Year: Fit for Peugeot Citystar 125 Air 4T E3 2014 - 2017 Fit for Peugeot Django 125 Air 4T E3 2014 - 2017 Fit for Peugeot Speedfight 3 125 Air 4T E3 2014 - 2016 Fit for Peugeot Tweet 125 Air 4T E3 2010 - 2015 Fit for SYM Allo 125 Air 4T E3 2011 Fit for SYM Allo 125 Air 4T E3 2011 - 2015 Fit for SYM Cello 125 Air 4T E3 2010 Fit for SYM Fiddle II 125 Air 4T E3 2010 - 2014 Fit for SYM Jet 4 125 Air 4T E3 2010 - 2014 Fit for SYM Jet V 125 Air 4T E3 2011 Fit for SYM Orbit II 125 Air 4T E3 2010 - 2013 Fit for SYM Symphony 125 Air 4T E3 2009 - 2011 Fit for SYM Symphony SR 125 Air 4T E3 2012 - 2015
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

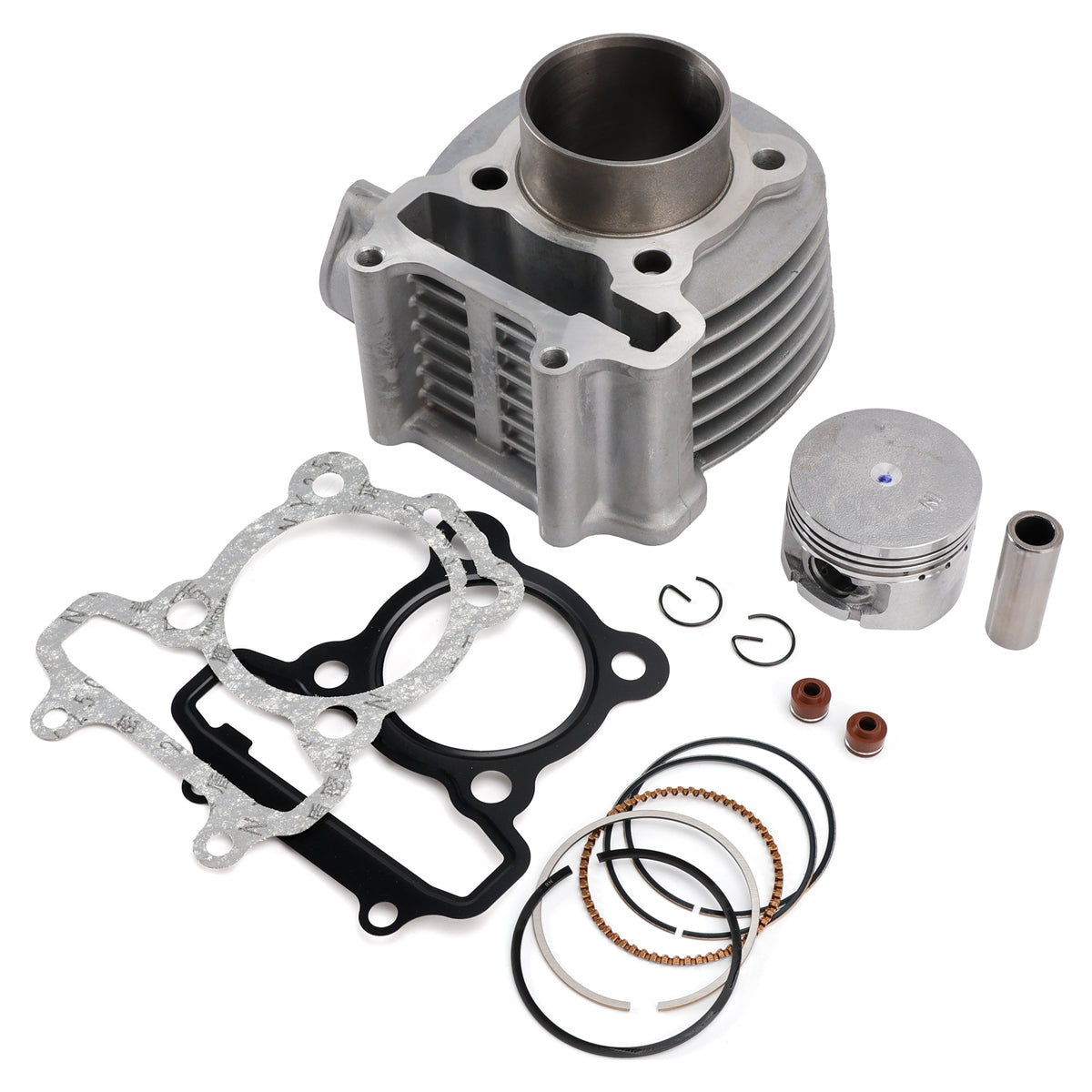

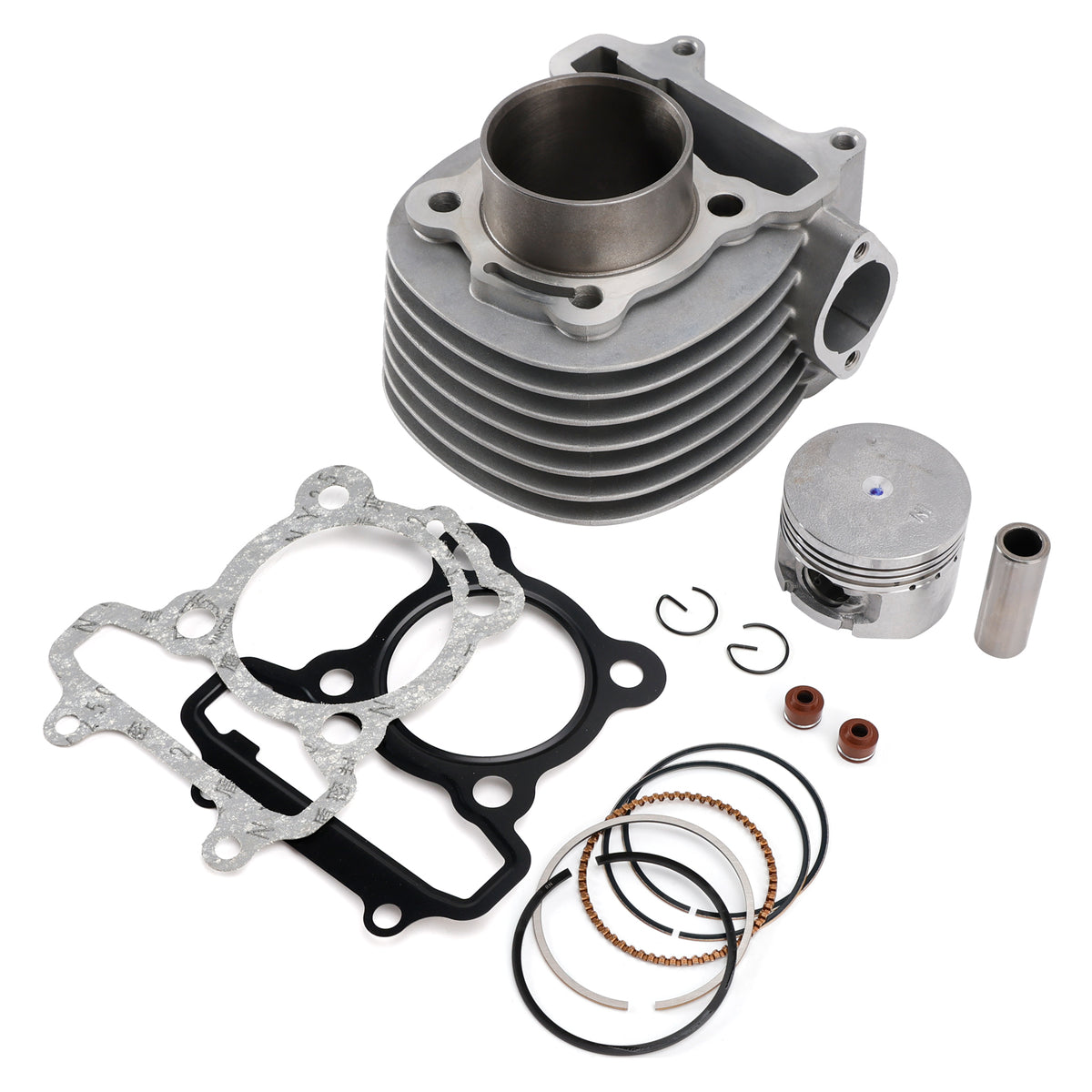

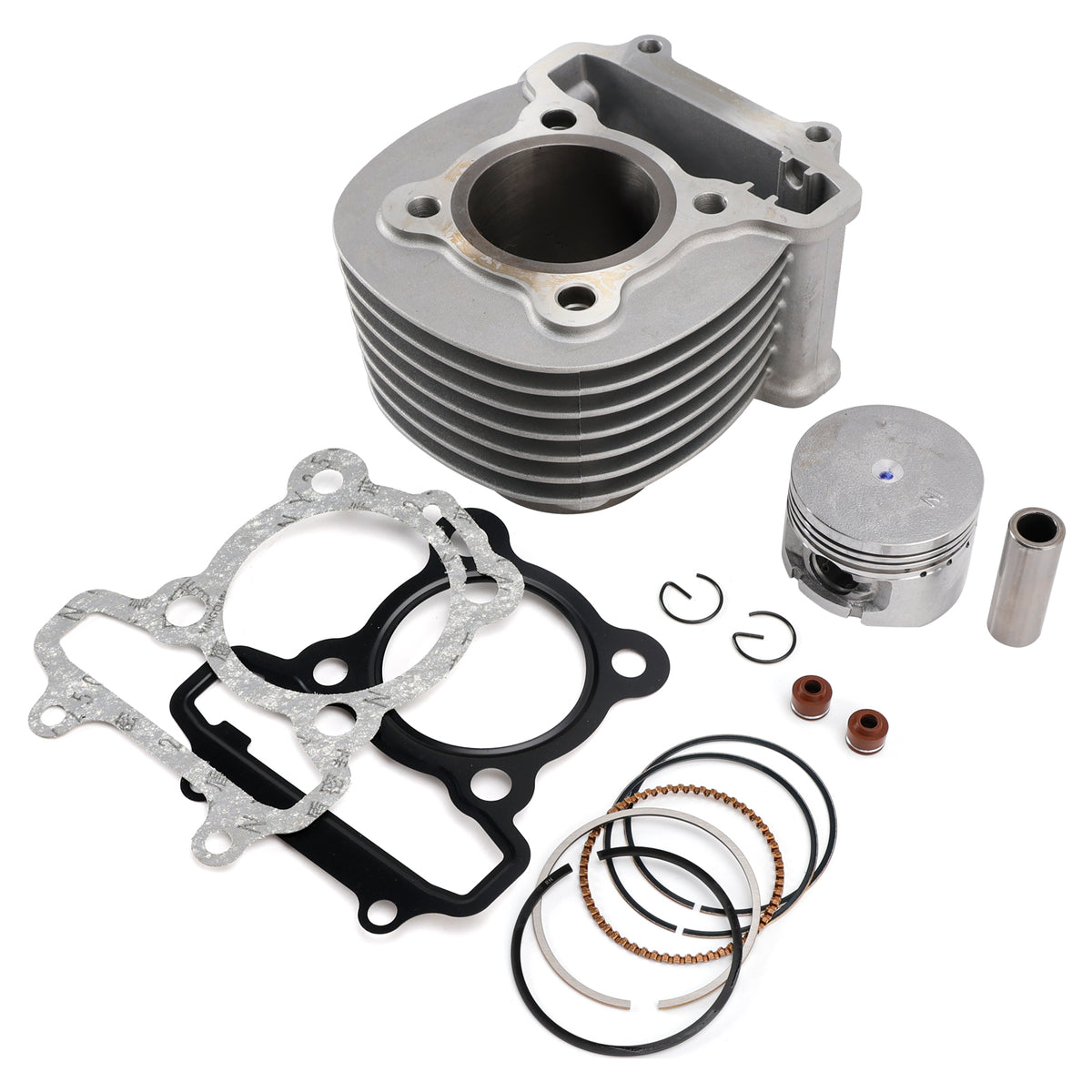

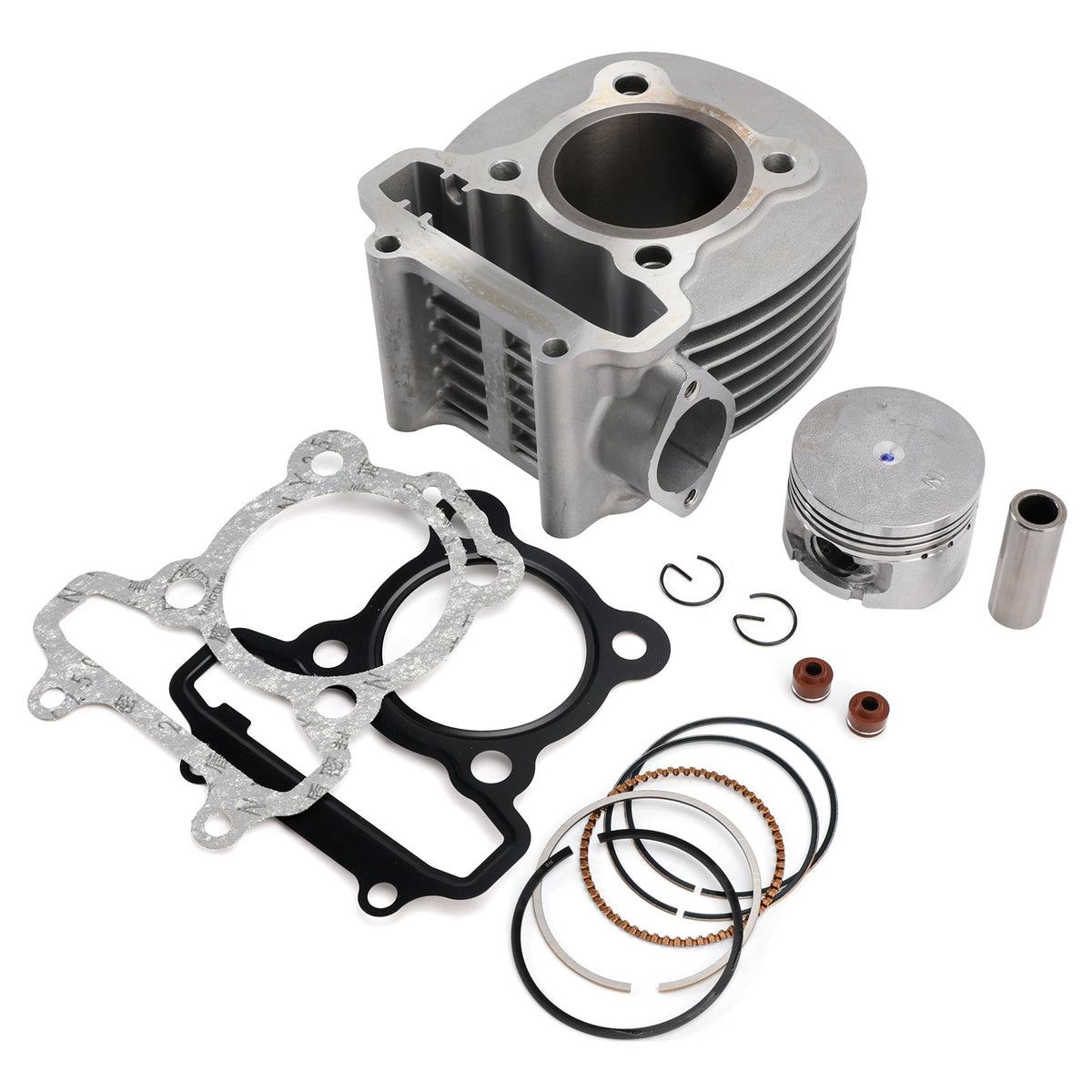

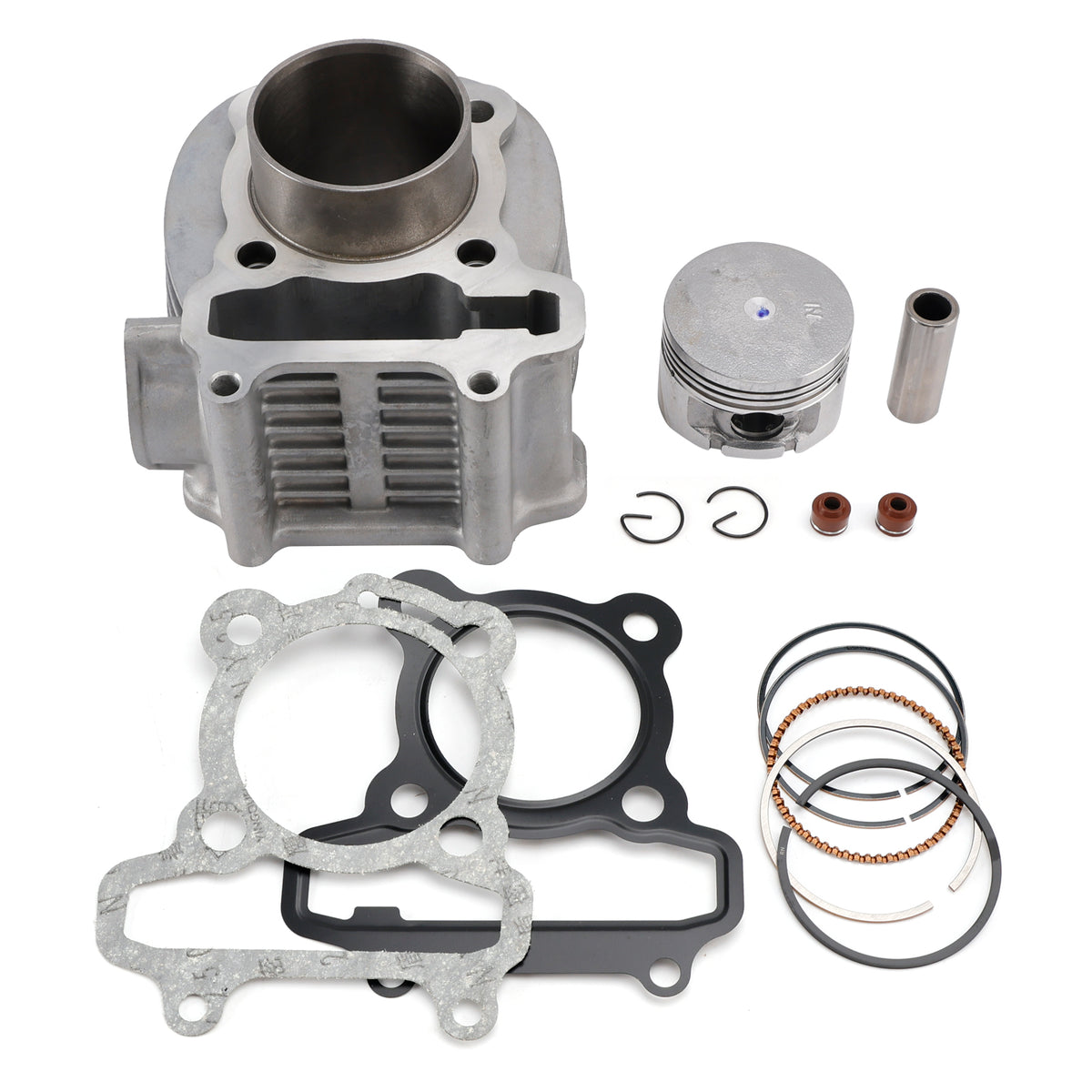

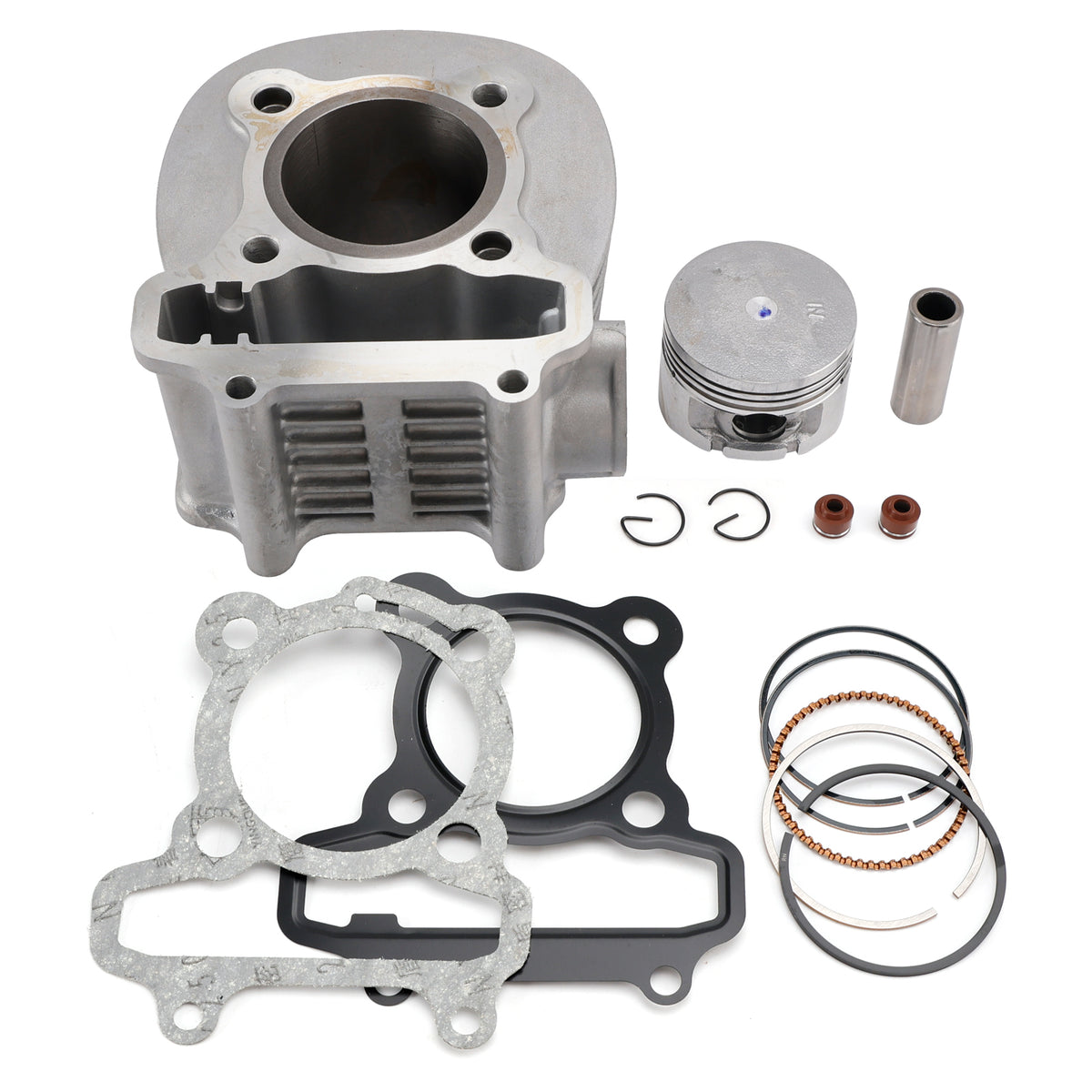

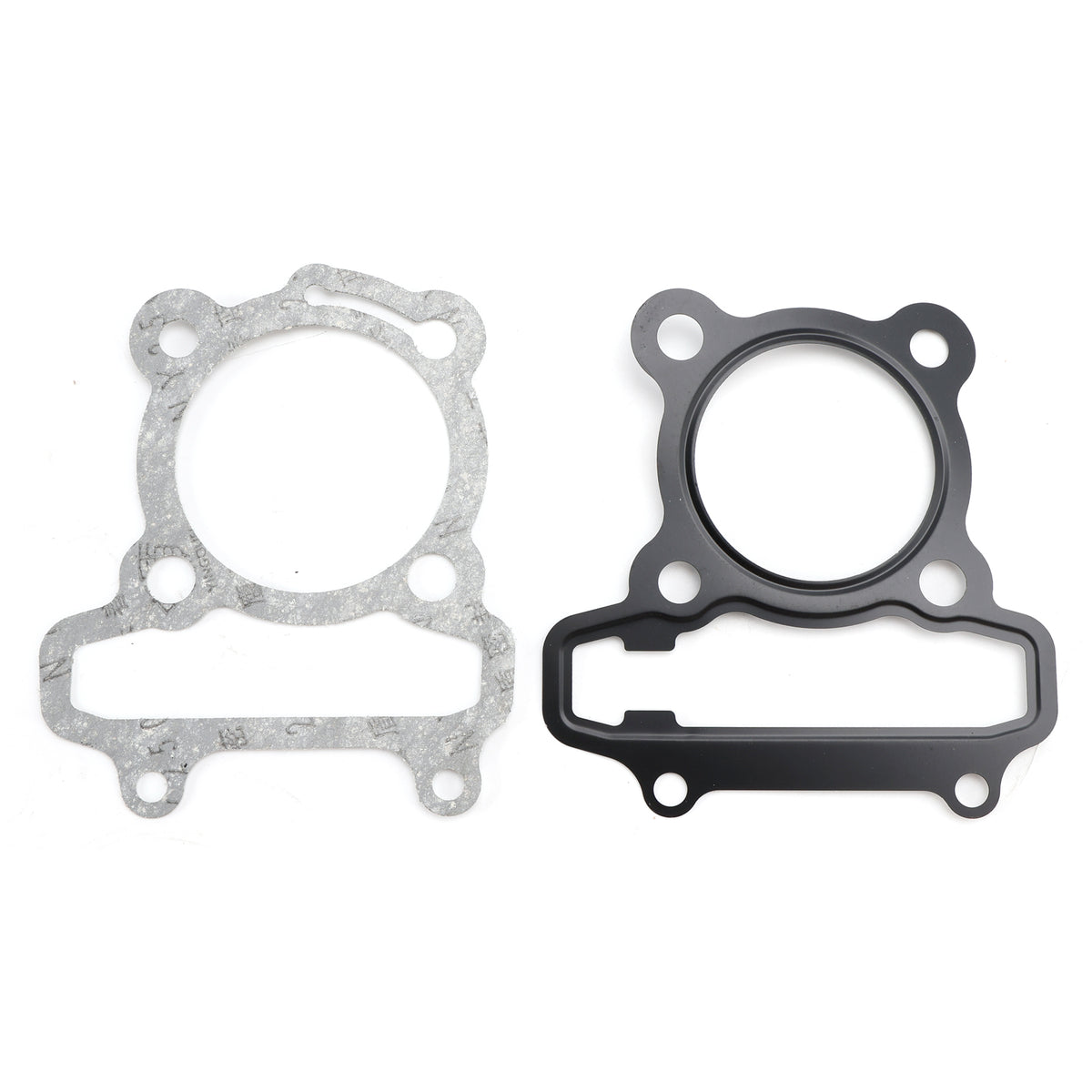

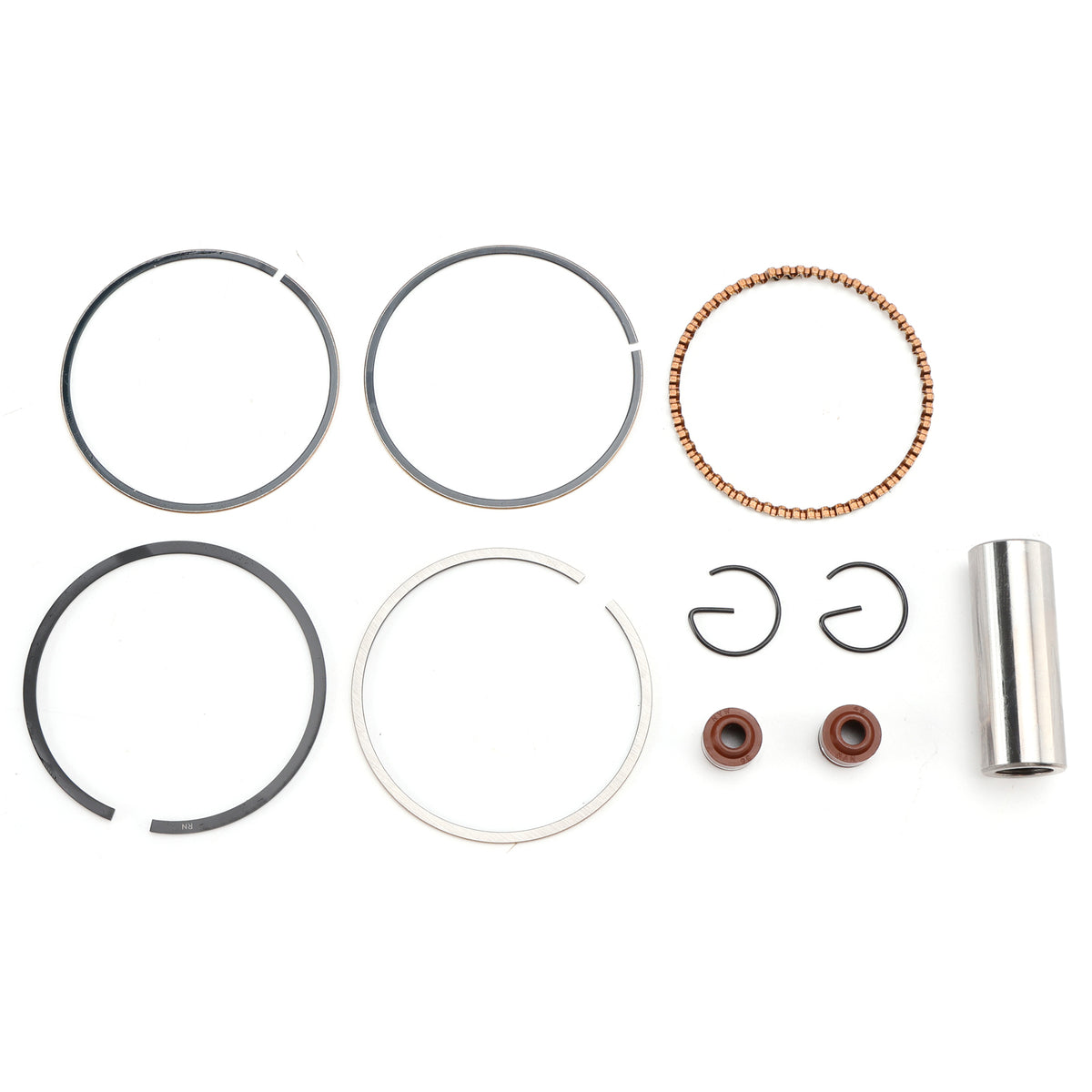

Package Includes: 1x 52.4mm Cylinder 1x Piston 1x Piston Ring Set 1x 15mm Wristpin 1x Circlip(2) 1x Cylinder Base Gasket 1x Cylinder Head Gasket 2x Valve Stem Seals
(Comes exactly as pictured.)
Note: Please check your existing cylinder prior to purchase to ensure that you are ordering the correct type for your machine. Key things to check are the distances between the, Fixing holes (measured centre of eye to centre of eye) and the internal diameter of the cylinder/barrel. The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
