93mm Cylinder Piston Gasket Top End Rebuild Kit For Polaris Ranger RZR General XP 1000 2017-2026

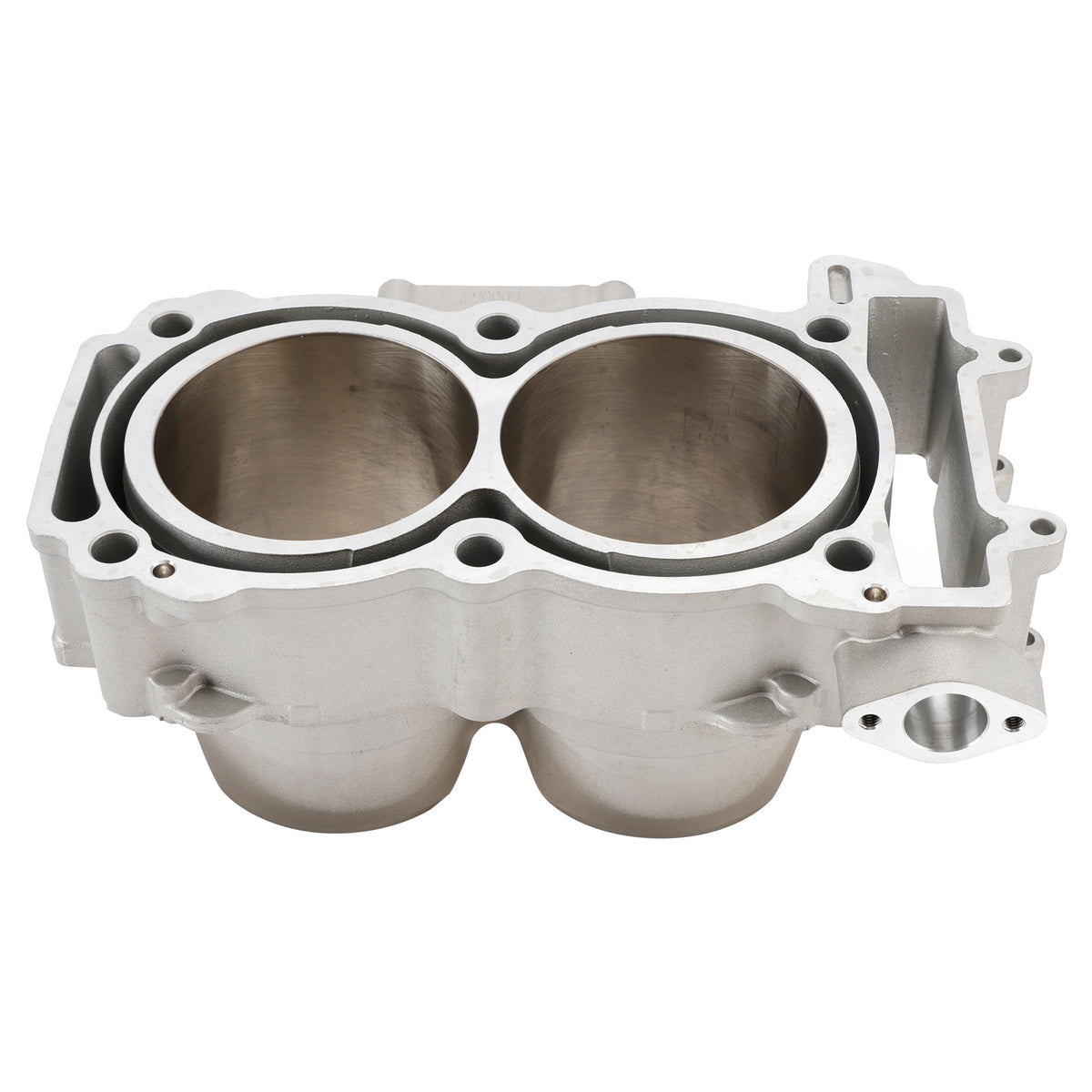

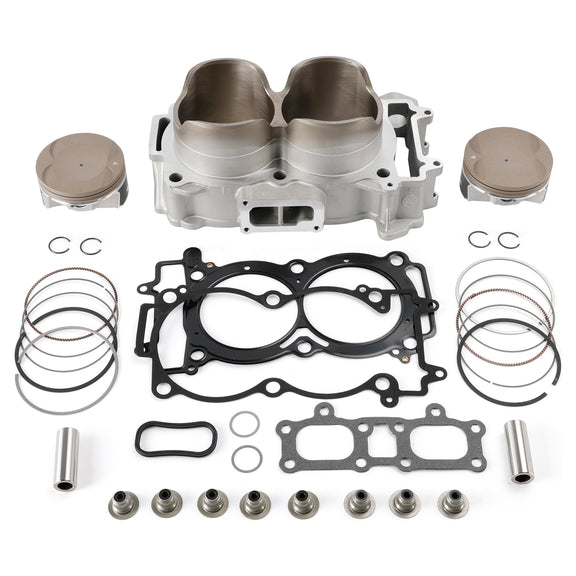

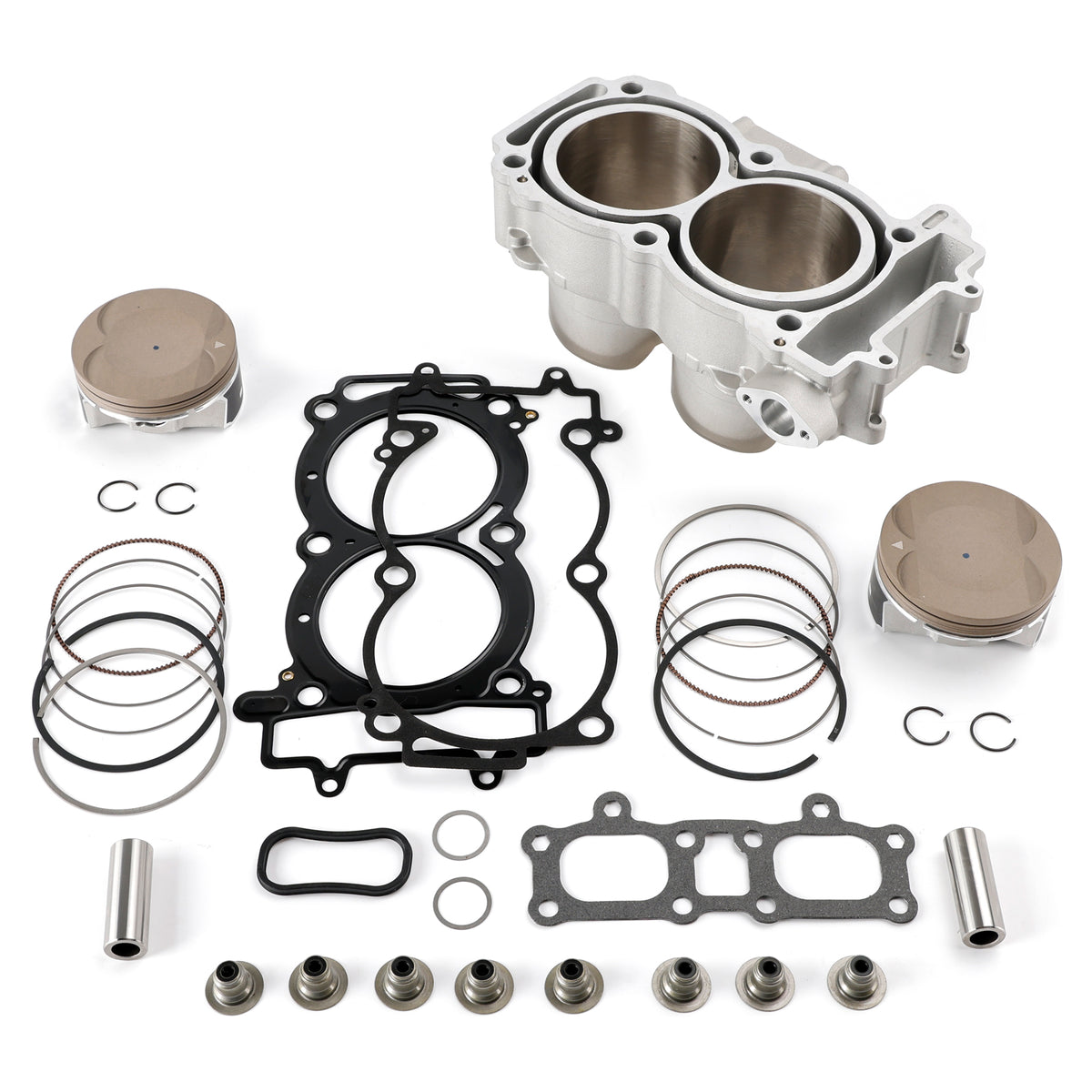

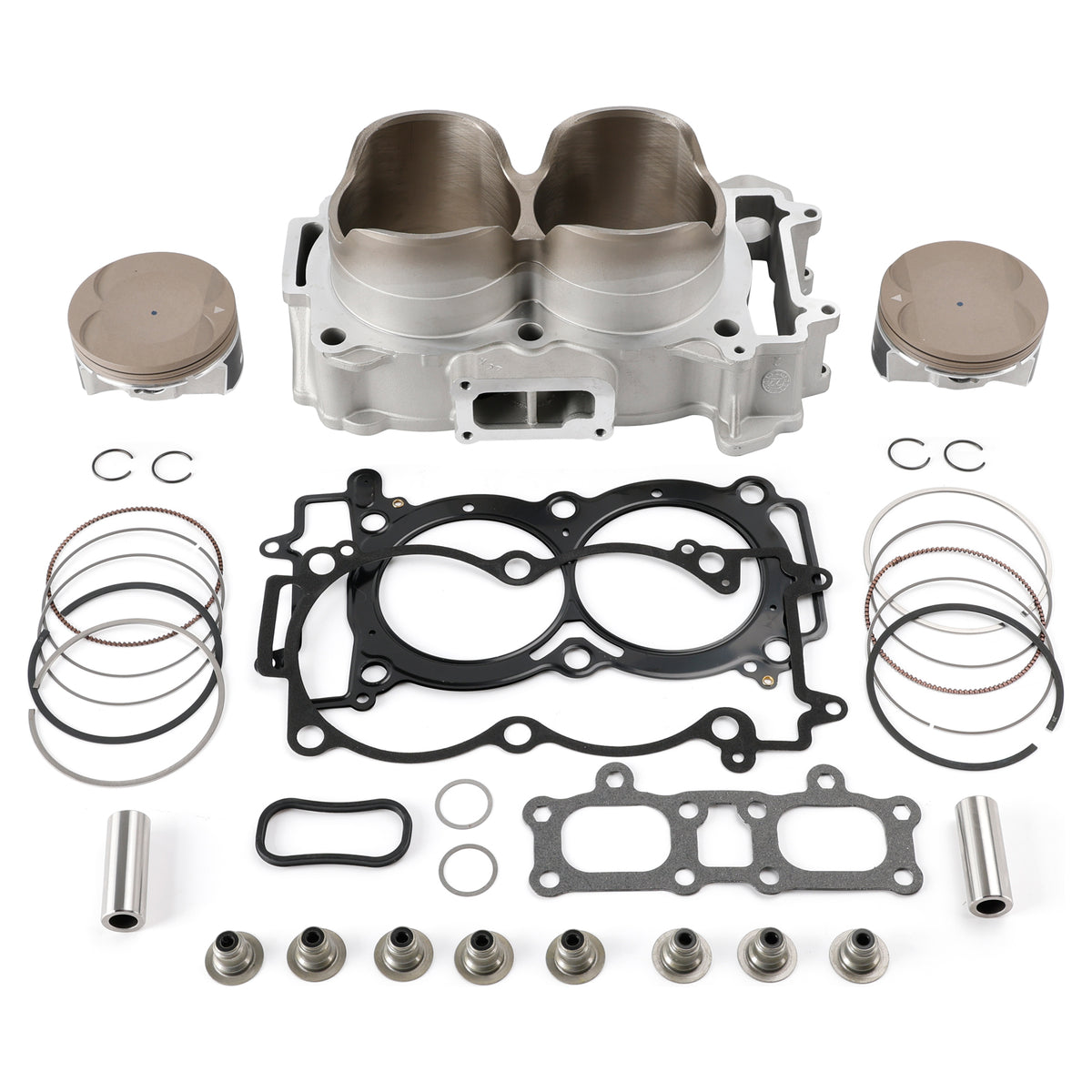

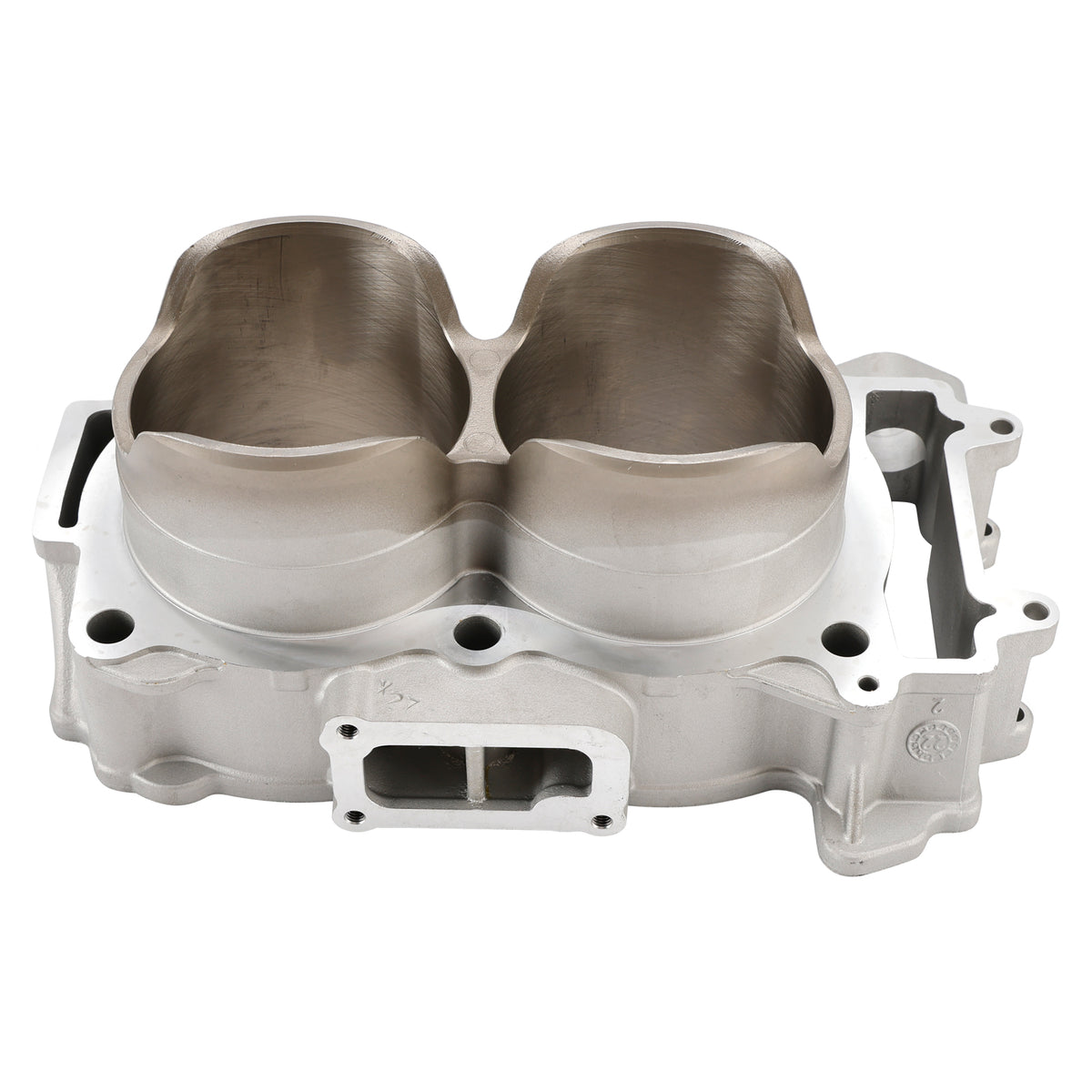

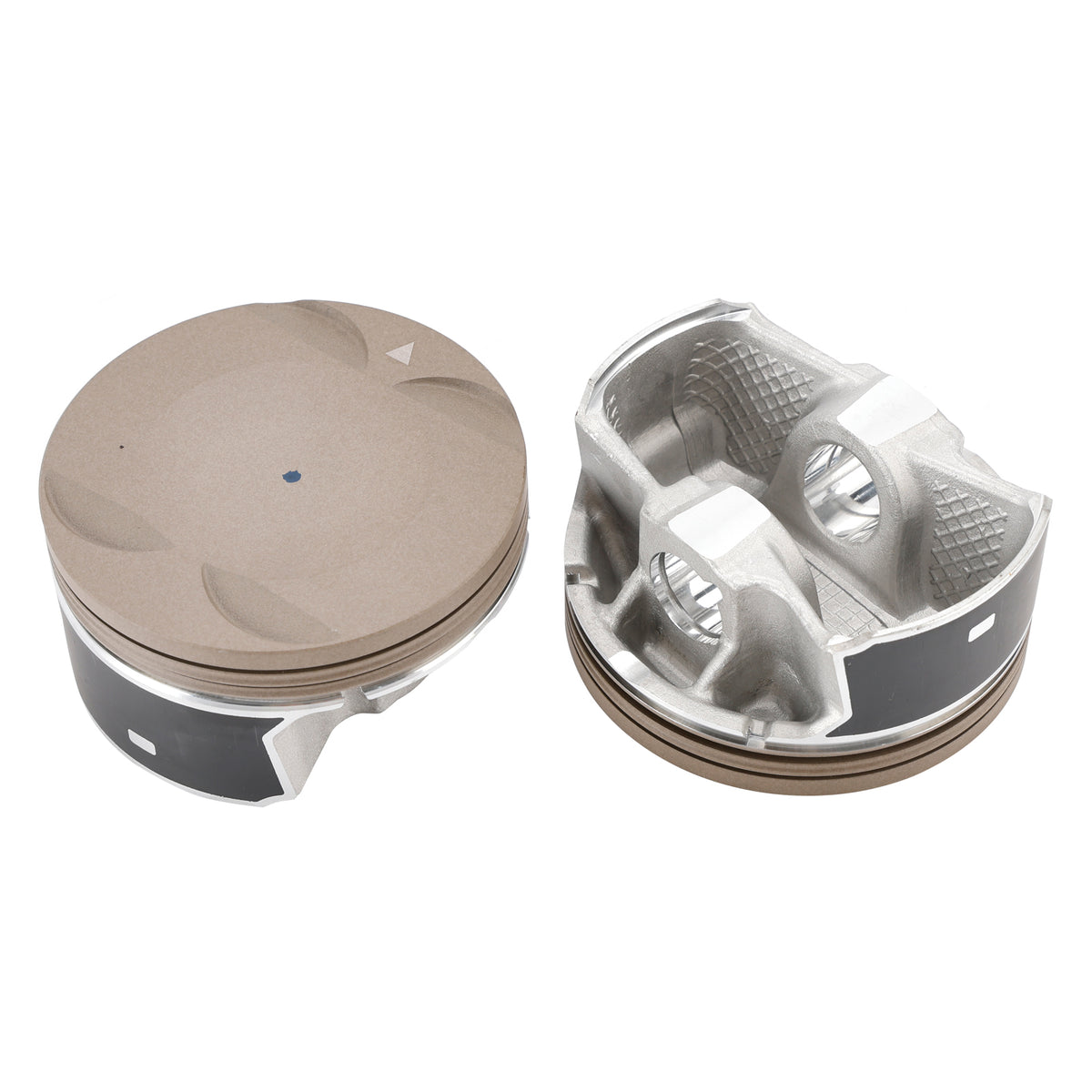

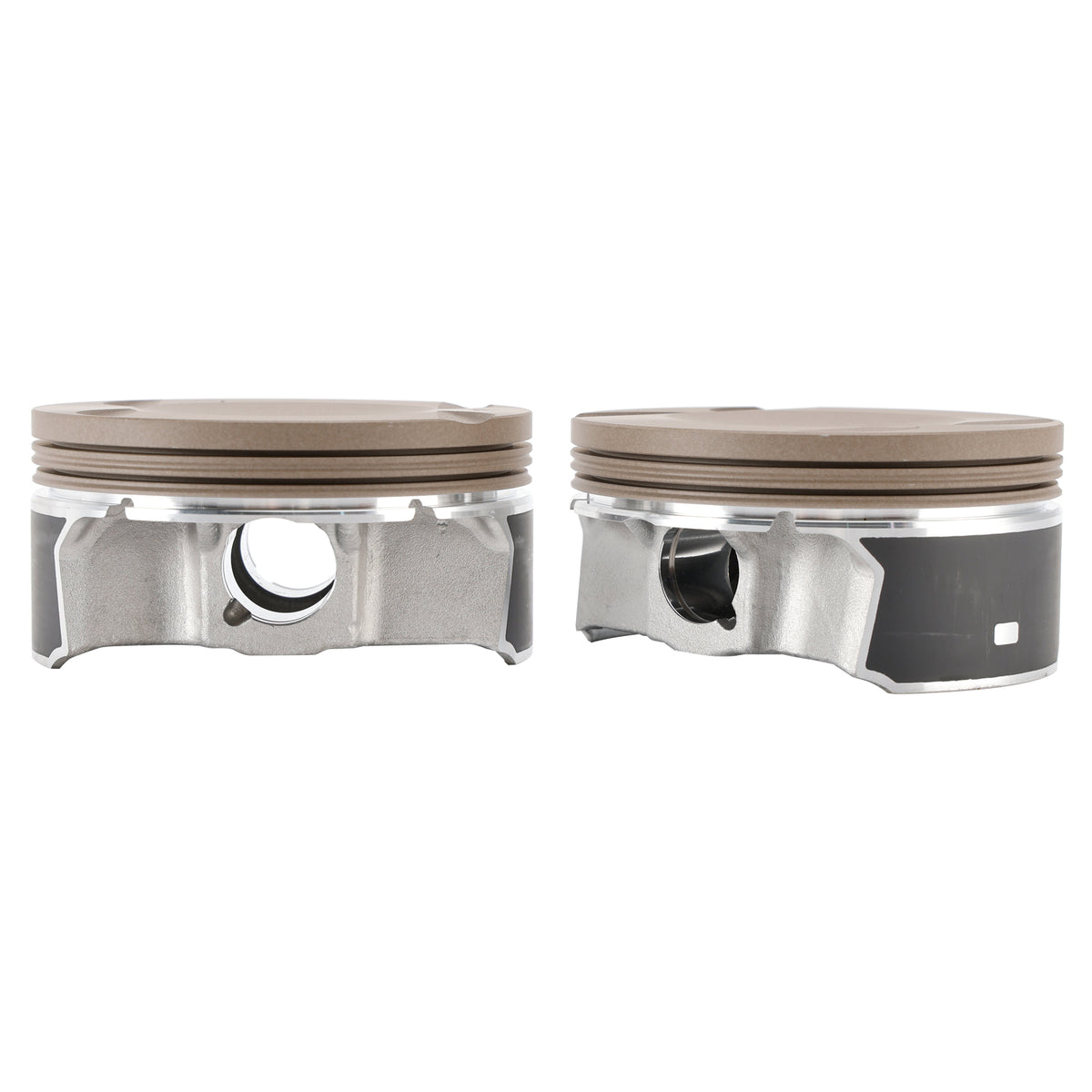

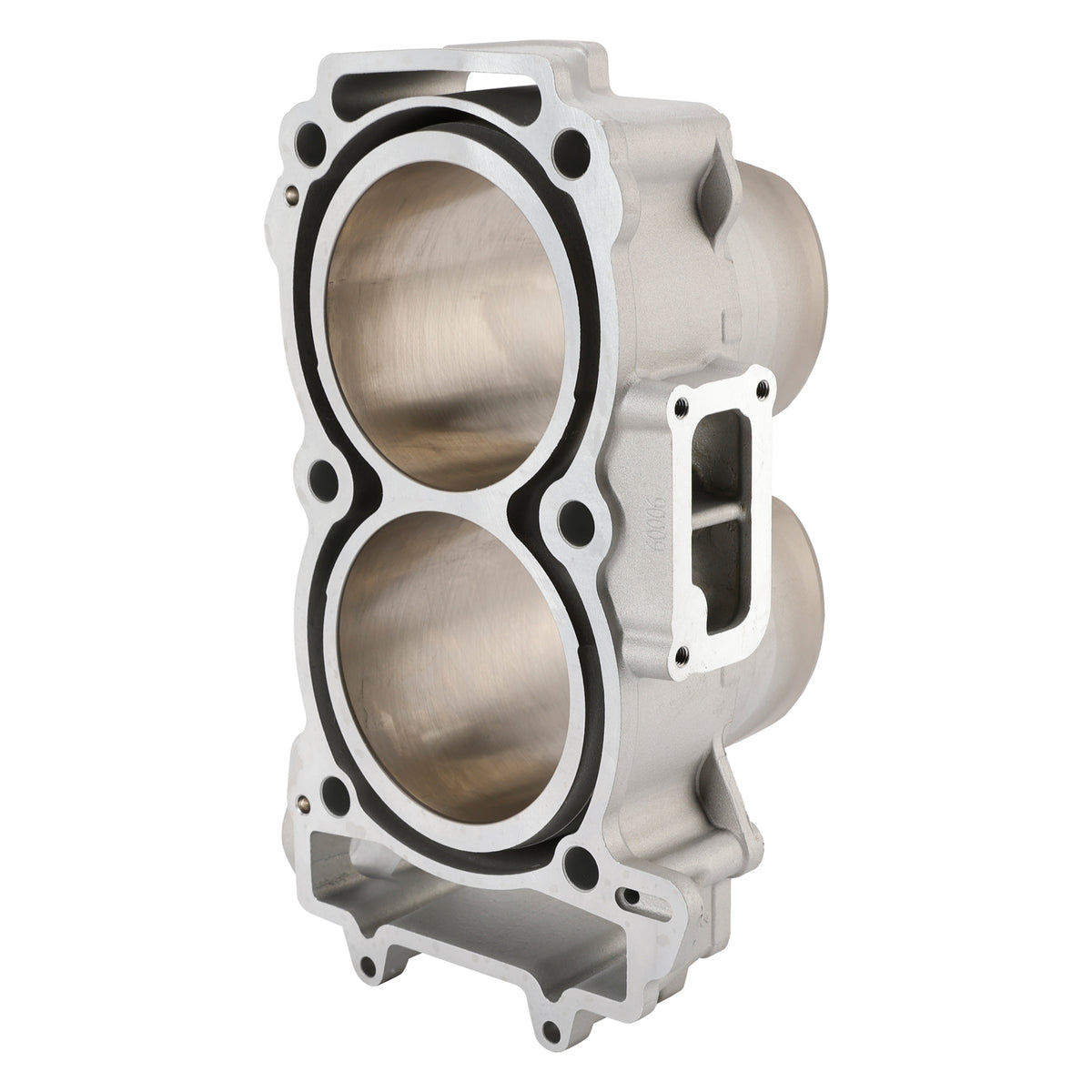

Features: If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you. Kit includes cylinder, domed piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). The cylinder is made of aluminum for good cooling with an internal cast iron jacket. The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Precision-machined and honed to OEM stock bore sizes - 93.0 mm x 73.5mm stroke, 20mm steel piston pin. Extremely durable low-friction bore surface allows for greater heat dissipation. This kit is excellent as a low-cost replacement for defects in the original cylinder.
Replacement Part Number: Cylinder: 3023156 Cylinder Base Gasket: 5272970 Cylinder Head Gasket: 5814793 Exhaust Gasket: 3610184 Piston Kit: 2205244 Pin, Piston (2): 3022358 Piston Rings Kit: 2204949 Circlips, piston (2): 3022413 Water Inlet Gasket: 5813736 Valve Spring Seat Seal(8): 3610212
(Always compare part numbers to your parts schematics and cross reference appropriately.) (This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)
Fits Make/Model/Year: Fit for Polaris General 1000 EPS ? 2016-2020 Fit for Polaris General 1000 EPS Deluxe ? 2016-2022 Fit for Polaris General 1000 EPS Deluxe w/Ride Command ? 2022 Fit for Polaris General 1000 EPS Deluxe w/Ride Command and Stage 4 Rockford Fosgate? Audio Pkg ? 2020 Fit for Polaris General 1000 EPS Hunter Edition ? 2018-2019 Fit for Polaris General 1000 EPS Limited Edition ? 2018-2019 Fit for Polaris General 1000 EPS Premium ? 2018-2022, 2024-2026 Fit for Polaris General 1000 EPS Ride Command Edition ? 2018-2019 Fit for Polaris General 1000 EPS Sport ? 2021-2026 Fit for Polaris General 1000 XP EPS Deluxe ? 2020 Fit for Polaris General 1000 XP EPS Deluxe w/Ride Command and Stage 4 Rockford Fosgate? Audio ? 2020 Fit for Polaris General 1000 XP EPS Premium ? 2023-2026 Fit for Polaris General 1000 XP EPS Sport ? 2023-2026 Fit for Polaris General 1000 XP EPS Ultimate ? 2023-2026 Fit for Polaris General 1000-4 EPS ? 2017-2019 Fit for Polaris General 1000-4 EPS Deluxe w/Ride Command ? 2022 Fit for Polaris General 1000-4 EPS Premium ? 2021-2022 Fit for Polaris General 1000-4 EPS Ride Command Edition ? 2019 Fit for Polaris General 1000-4 XP EPS Premium ? 2023-2026 Fit for Polaris General 1000-4 XP EPS Sport ? 2023-2026 Fit for Polaris General 1000-4 XP EPS Ultimate ? 2023-2026 Fit for Polaris Ranger 1000 ? 2021-2026 Fit for Polaris Ranger 1000 EPS ? 2021-2026 Fit for Polaris Ranger 1000 EPS Premium ? 2020-2026 Fit for Polaris Ranger 1000 XP Crew EPS 20th Anniversary ? 2019 Fit for Polaris Ranger 1000 XP Crew EPS Big Game Edition ? 2021-2022 Fit for Polaris Ranger 1000 XP Crew EPS High Lifter Edition ? 2017-2022 Fit for Polaris Ranger 1000 XP Crew EPS Northstar Big Game Edition ? 2022 Fit for Polaris Ranger 1000 XP Crew EPS Northstar Deluxe Edition ? 2017-2019 Fit for Polaris Ranger 1000 XP Crew EPS Northstar Premium Edition ? 2021-2024 Fit for Polaris Ranger 1000 XP Crew EPS Northstar Trail Boss ? 2021-2024 Fit for Polaris Ranger 1000 XP Crew EPS Northstar Ultimate Edition ? 2021-2024 Fit for Polaris Ranger 1000 XP Crew EPS Premium ? 2017-2024 Fit for Polaris Ranger 1000 XP Crew EPS Sage Green ? 2019 Fit for Polaris Ranger 1000 XP Crew EPS Texas Edition ? 2020-2022 Fit for Polaris Ranger 1000 XP Crew EPS Trail Boss ? 2021-2022 Fit for Polaris Ranger 1000 XP Crew EPS Waterfowl Edition ? 2021-2022 Fit for Polaris Ranger 1000 XP EPS 2017 Fit for Polaris Ranger 1000 XP EPS 20th Anniversary 2019 Fit for Polaris Ranger 1000 XP EPS High Lifter Edition 2017-2022 Fit for Polaris Ranger 1000 XP EPS Matte Titanium 2018 Fit for Polaris Ranger 1000 XP EPS Northstar Deluxe Edition 2017-2019 Fit for Polaris Ranger 1000 XP EPS Northstar Edition w/Ride Command Pkg 2019 Fit for Polaris Ranger 1000 XP EPS Northstar Premium Edition 2021-2026 Fit for Polaris Ranger 1000 XP EPS Northstar Trail Boss 2021-2026 Fit for Polaris Ranger 1000 XP EPS Northstar Ultimate Edition 2021-2026 Fit for Polaris Ranger 1000 XP EPS Premium 2019, 2021-2026 Fit for Polaris Ranger 1000 XP EPS Premium w/Ride Command Pkg. 2019 Fit for Polaris Ranger 1000 XP EPS Pursuit Camo 2018 Fit for Polaris Ranger 1000 XP EPS Pursuit Camo Hunter Deluxe Edition 2017 Fit for Polaris Ranger 1000 XP EPS Ranch Edition 2017 Fit for Polaris Ranger 1000 XP EPS Sage Green 2018-2019 Fit for Polaris Ranger 1000 XP EPS Suede Metallic 2018 Fit for Polaris Ranger 1000 XP EPS Sunset Red 2018 Fit for Polaris Ranger 1000 XP EPS Trail Boss 2021-2022 Fit for Polaris RZR 1000 4 XP EPS 2017-2019 Fit for Polaris RZR 1000 4 XP EPS Dynamix Edition 2019 Fit for Polaris RZR 1000 4 XP EPS High Lifter Edition 2017-2022 Fit for Polaris RZR 1000 4 XP EPS Premium 2020-2024 Fit for Polaris RZR 1000 4 XP EPS Ride Command Edition 2018-2019 Fit for Polaris RZR 1000 4 XP EPS Sport 2021-2024 Fit for Polaris RZR 1000 4 XP EPS Ultimate 2023-2024 Fit for Polaris RZR 1000 S EPS 2017-2019 Fit for Polaris RZR 1000 S4 EPS 2019 Fit for Polaris RZR 1000 XP EPS 2017-2019 Fit for Polaris RZR 1000 XP EPS Dynamix Edition 2019 Fit for Polaris RZR 1000 XP EPS High Lifter Edition 2017-2022 Fit for Polaris RZR 1000 XP EPS Premium 2020-2024 Fit for Polaris RZR 1000 XP EPS Ride Command Edition 2018-2019 Fit for Polaris RZR 1000 XP EPS Sport 2021-2024 Fit for Polaris RZR 1000 XP EPS Trails and Rocks Edition 2018-2022 Fit for Polaris RZR 1000 XP EPS Ultimate 2023-2024 Fit for Polaris RZR 1000 XP LE EPS 2017 Fit for Polaris RZR RS1 1000 EPS 2018-2022
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

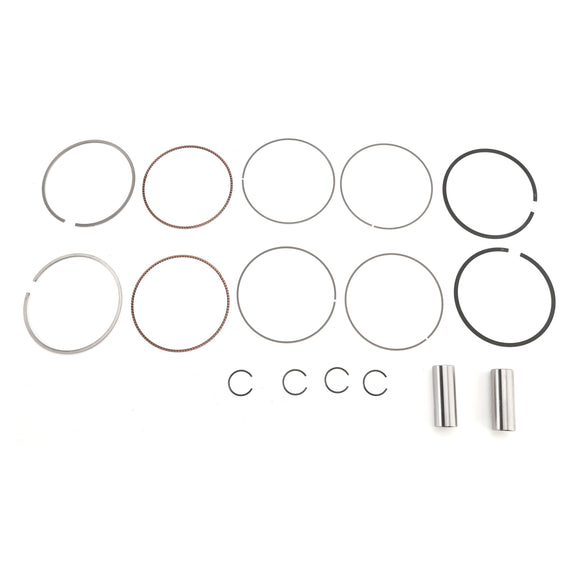

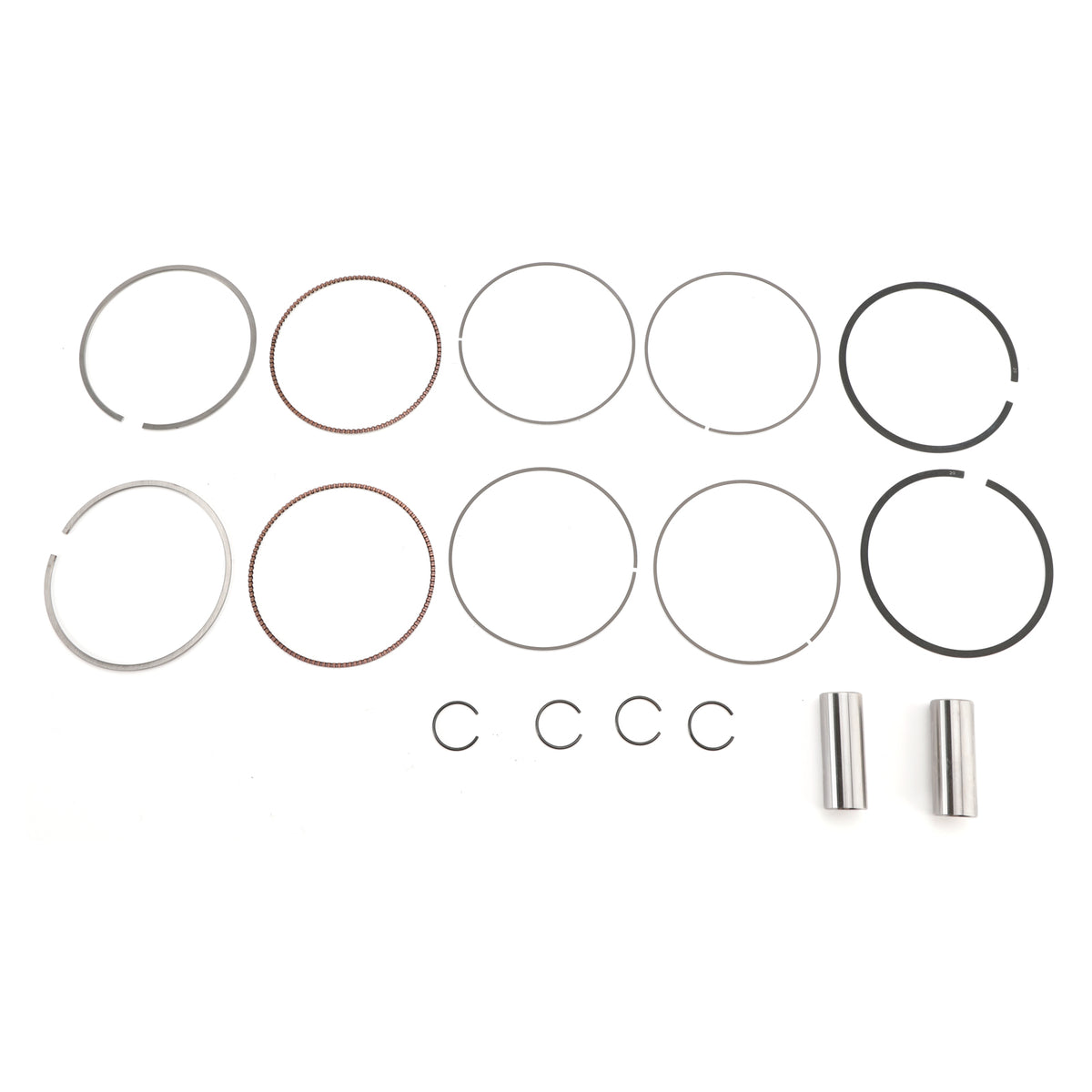

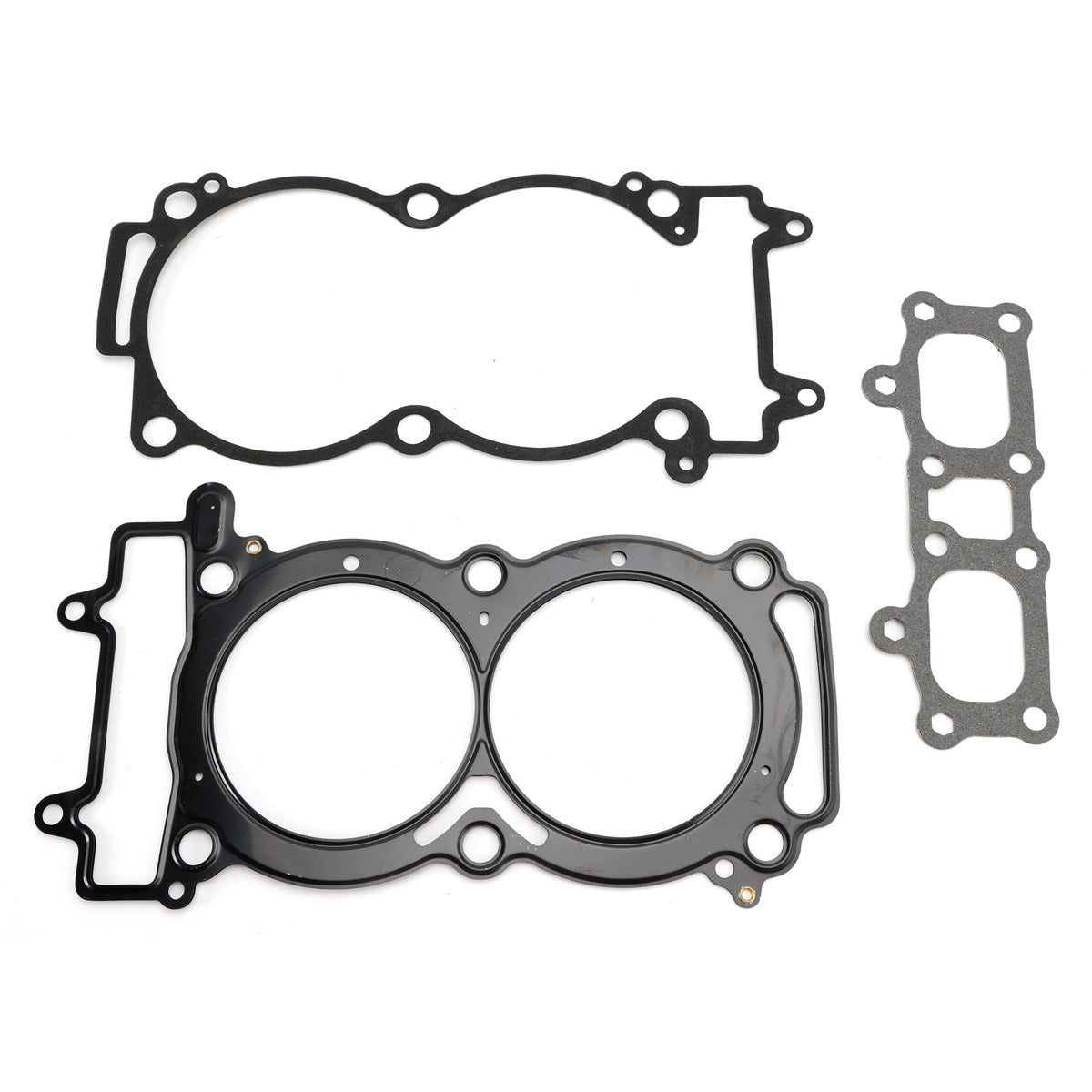

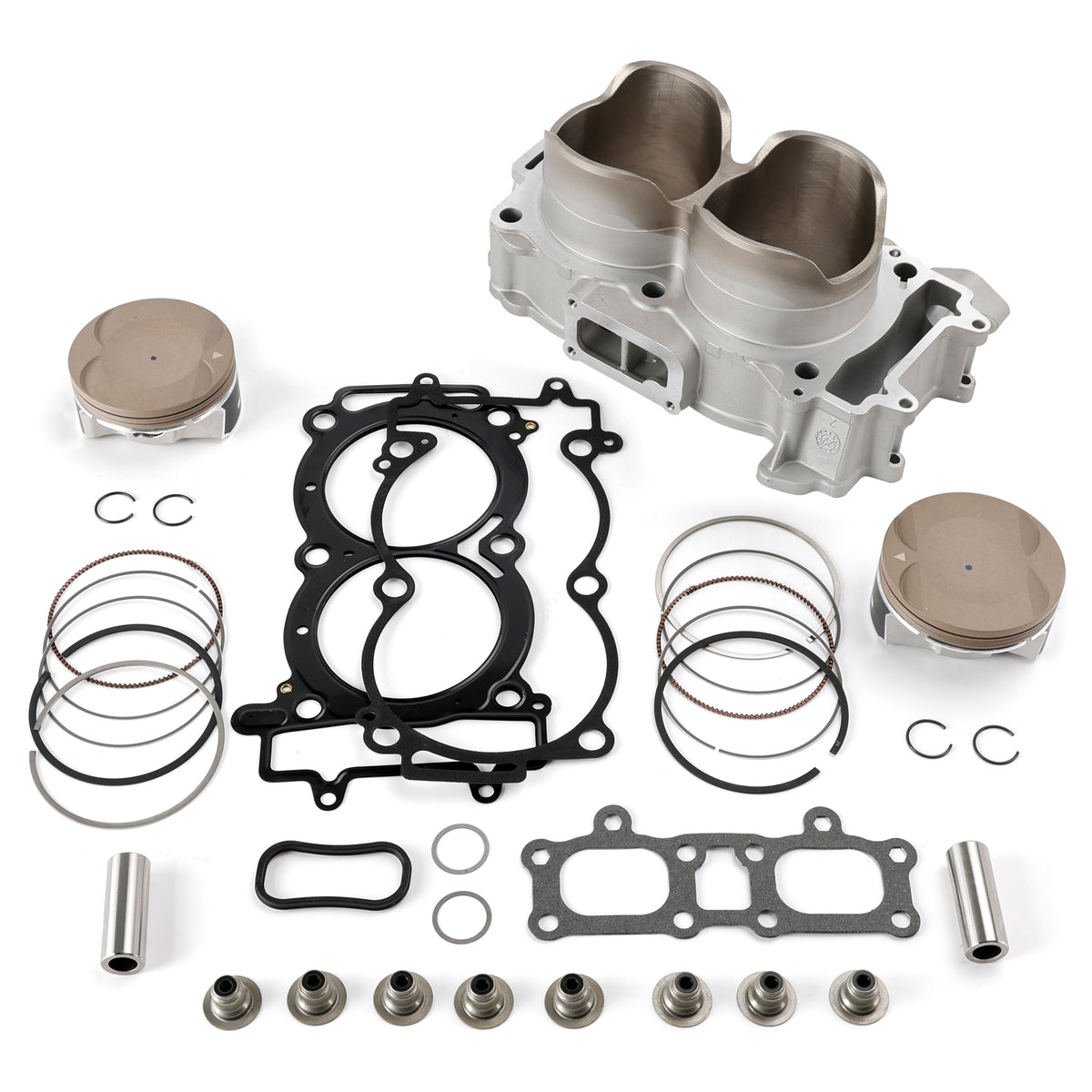

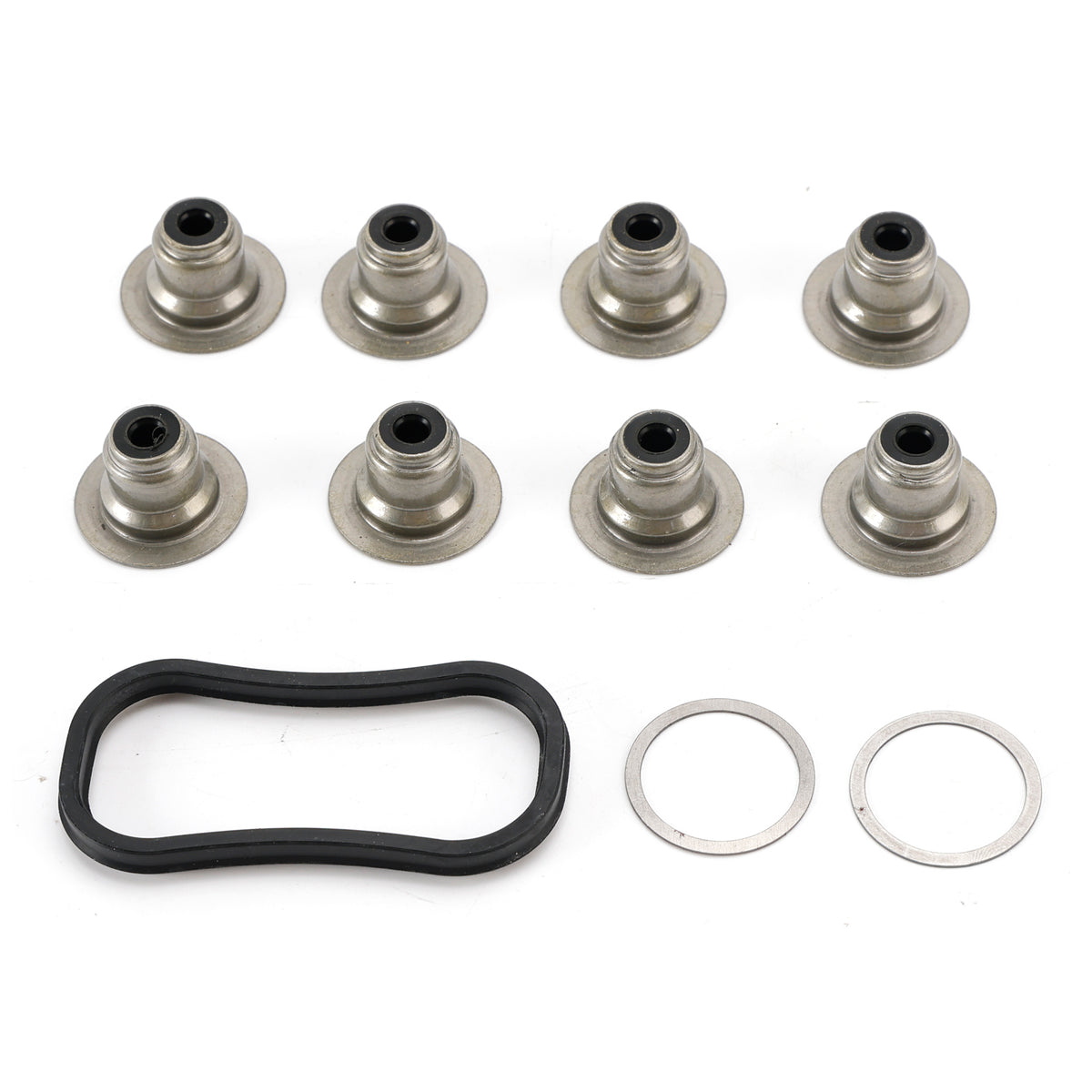

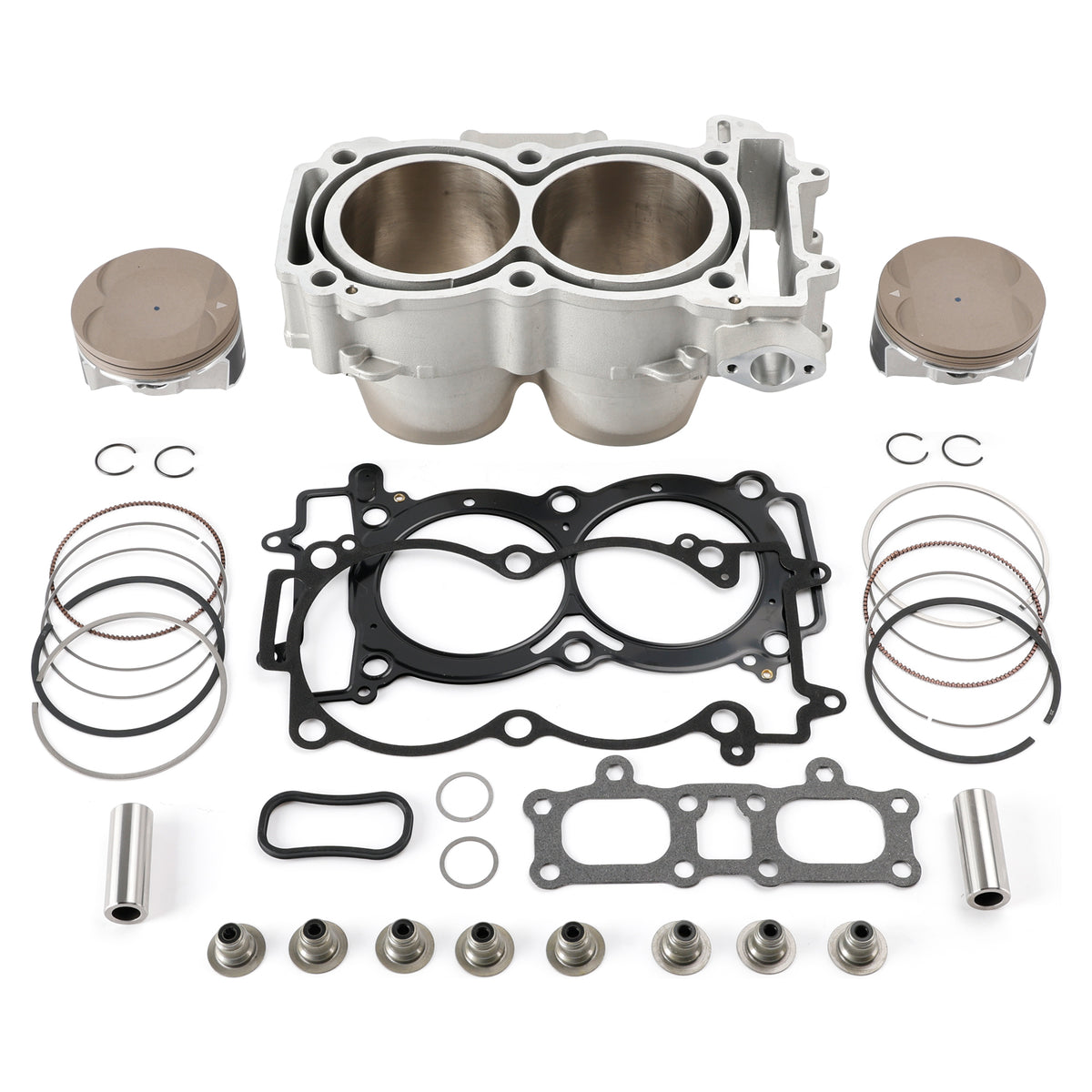

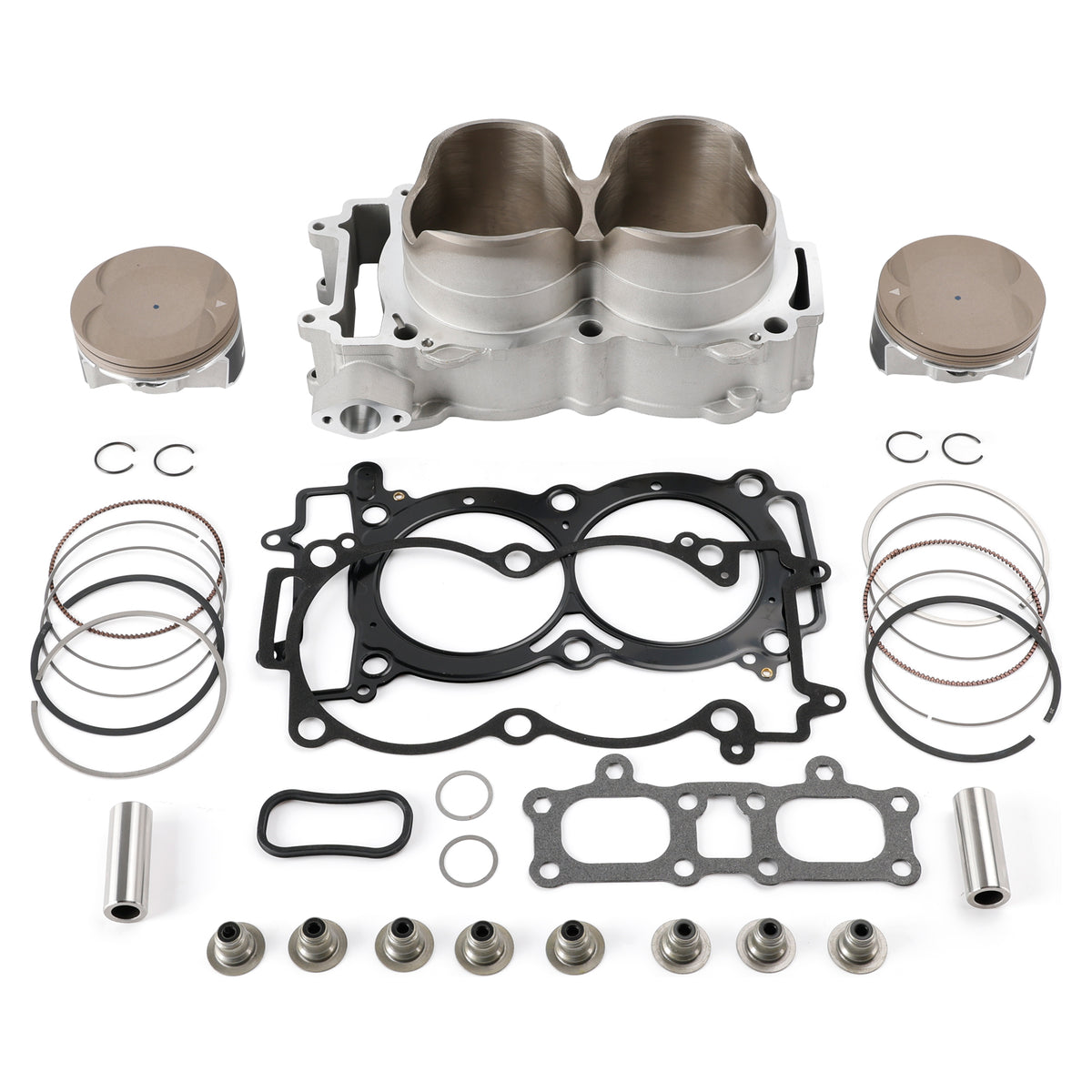

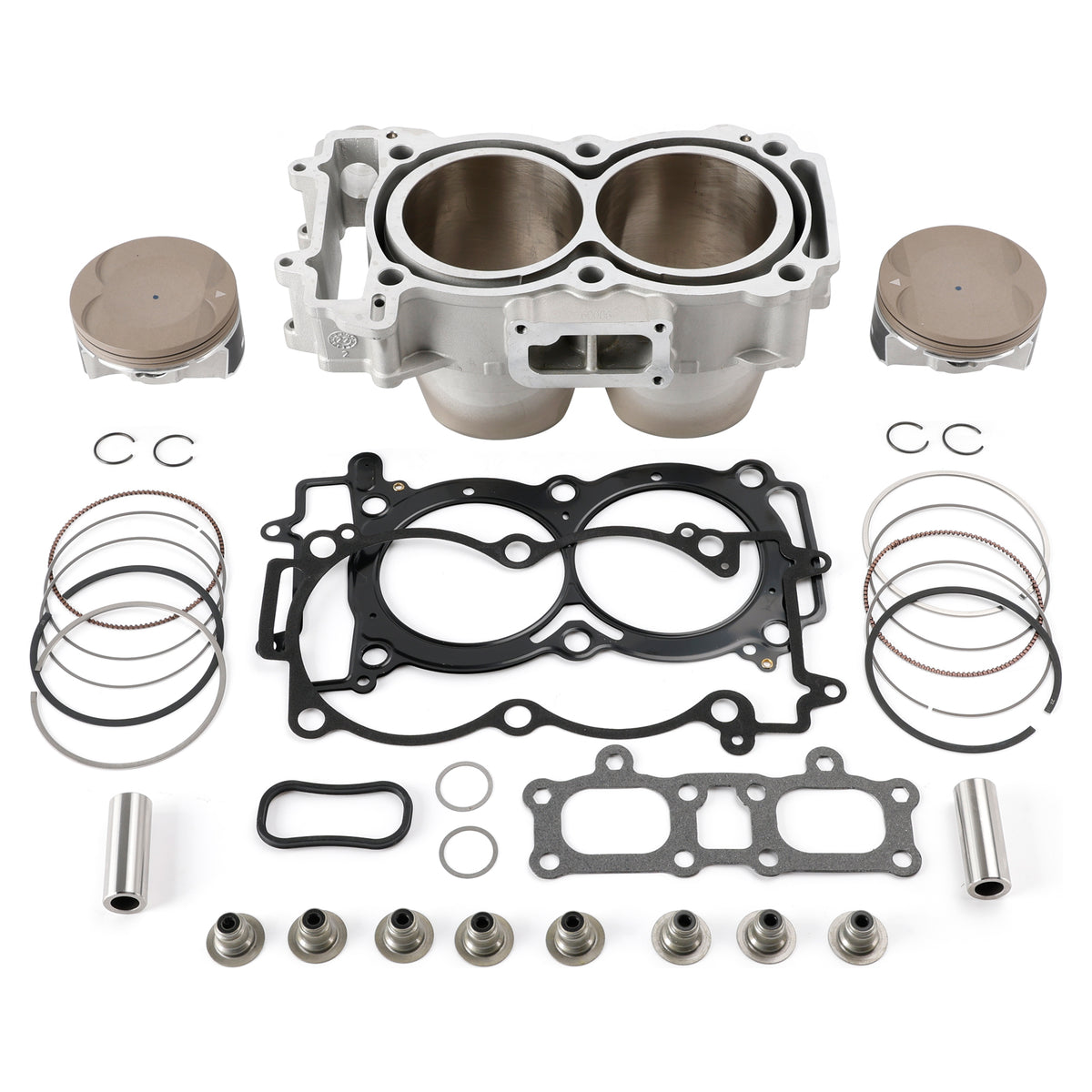

Package Includes: 1x Cylinder 2 x Pistons 2 Sets Piston Rings 2 x 20mm Piston Pins 2 Sets Piston Pin Circlip 1 x Cylinder Base Gasket 1 x Cylinder Head Gasket 1 x Exhaust Gasket Gasket 1 x Water Inlet Gasket 8 x Valve Stem Seals
(Comes exactly as pictured.)
Note: Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
The kit fit correctly and included everything needed for the rebuild. The engine regained strong compression and now runs smoothly with plenty of power.
