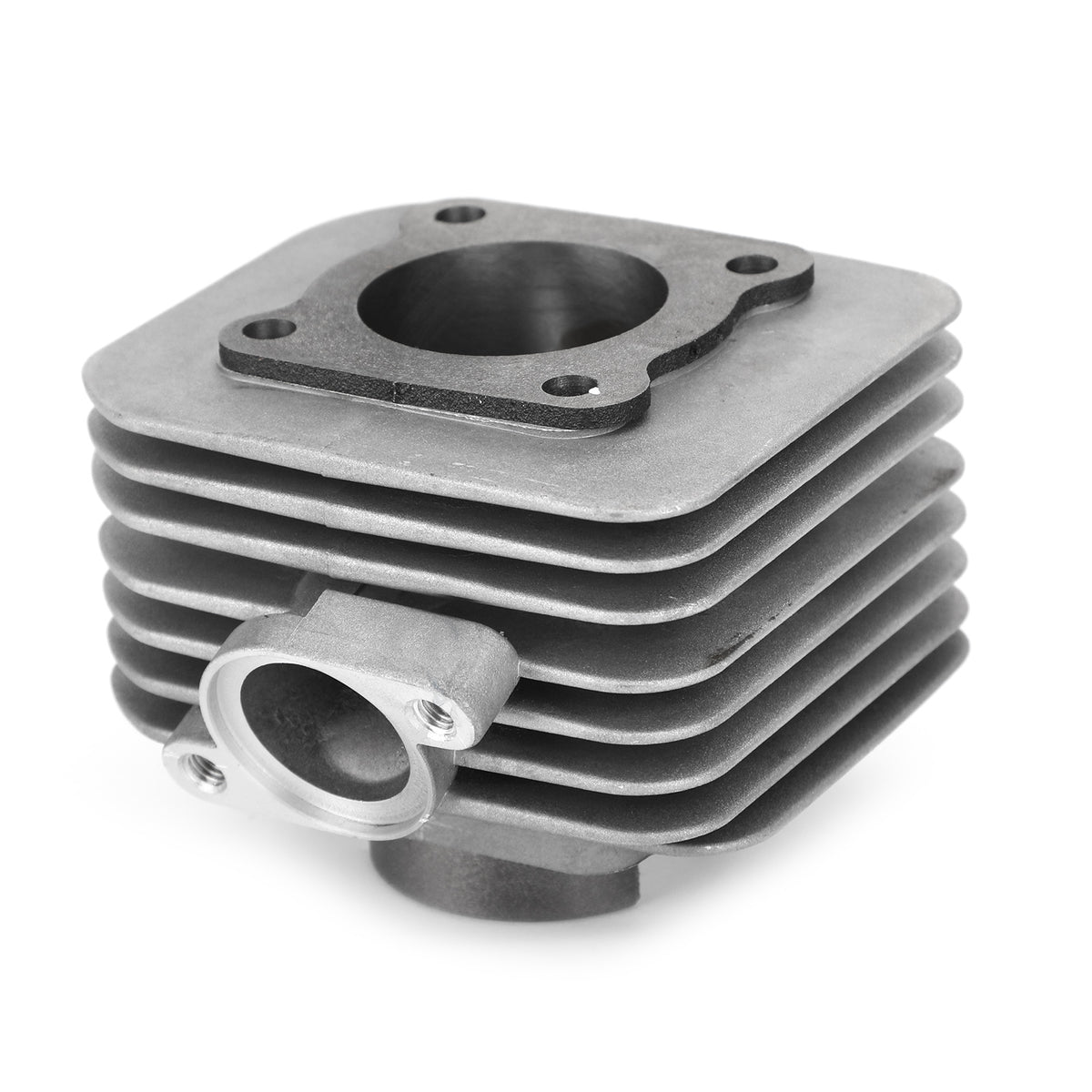

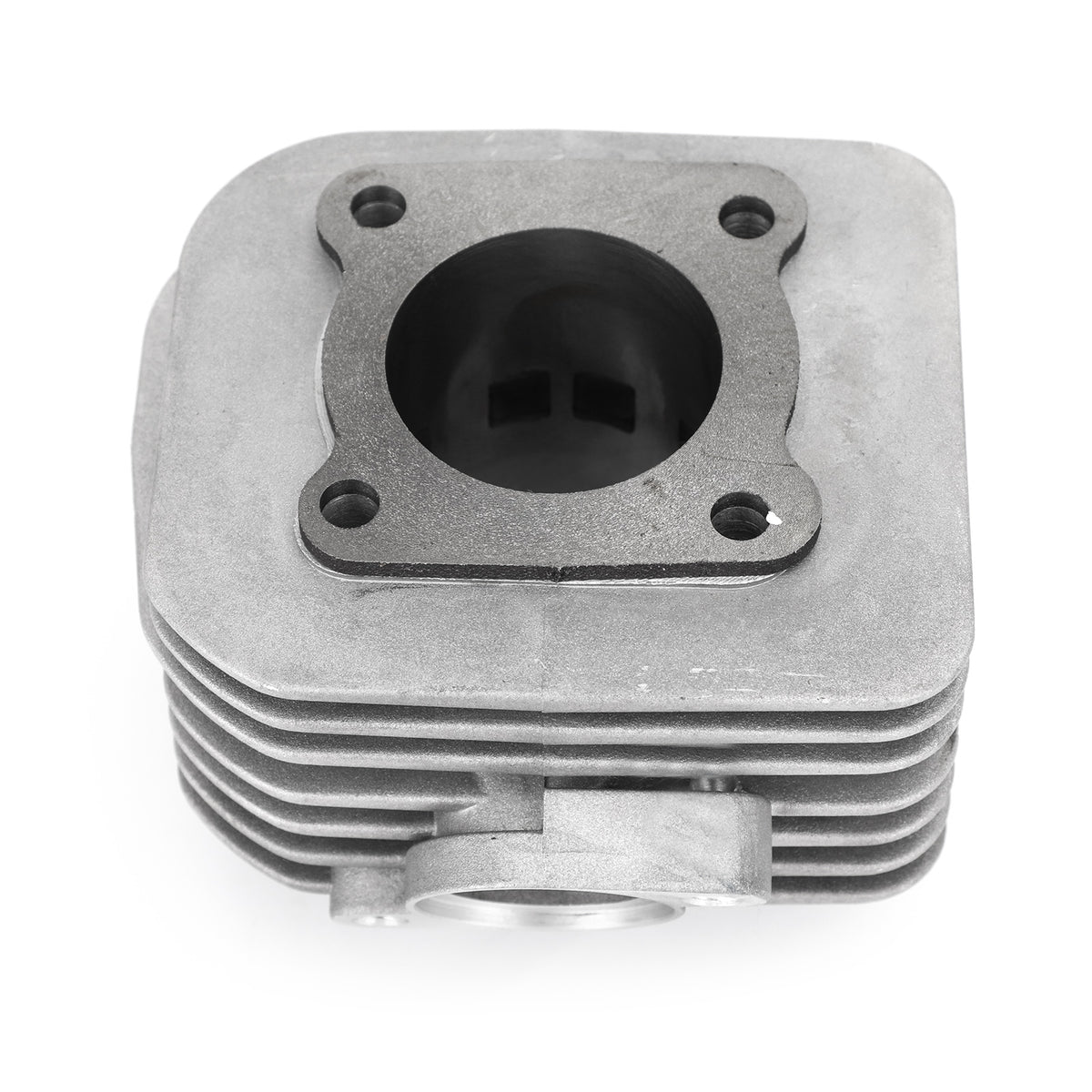

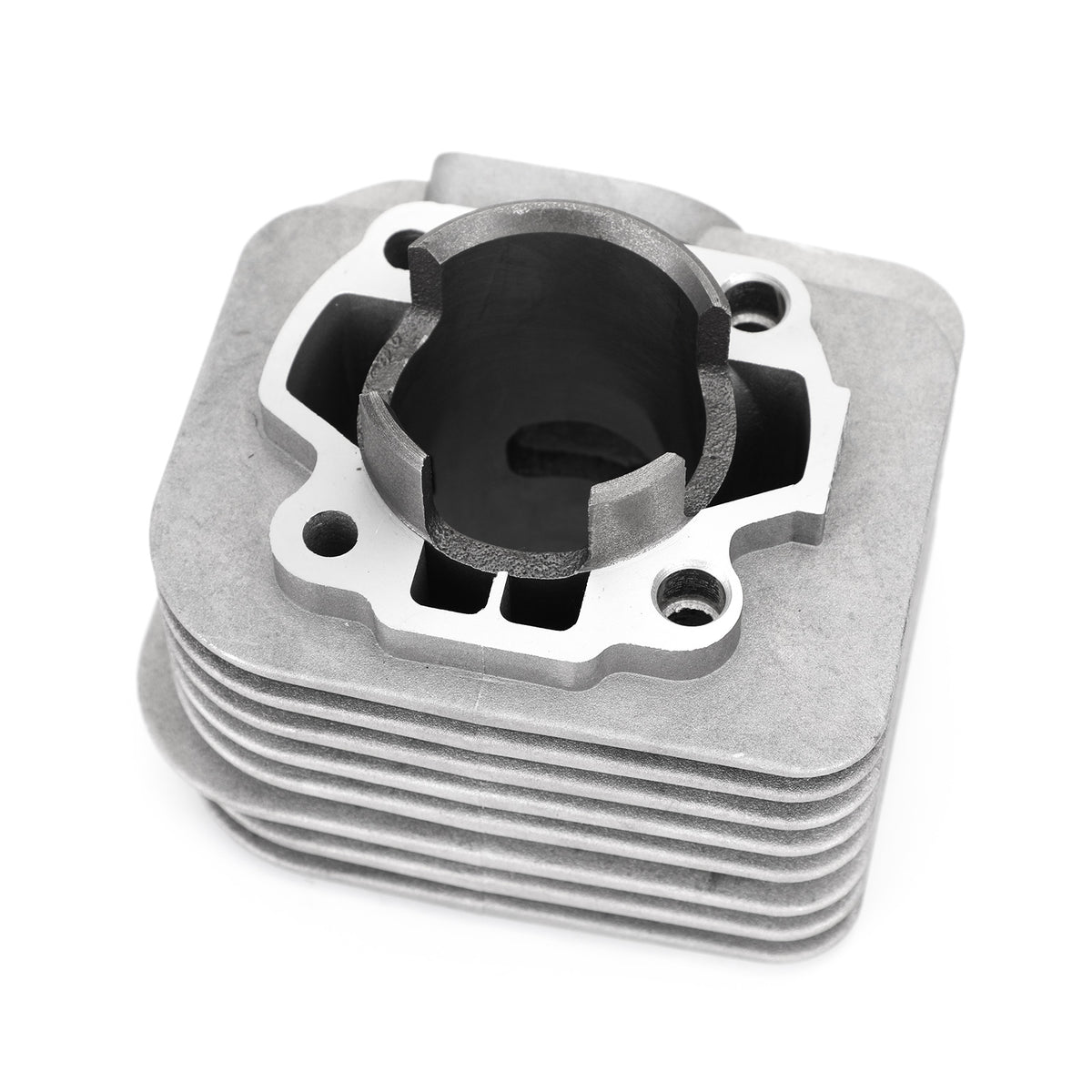

Suzuki Address AH100 Malaguti F12-Phantom Ciak Cylinder Piston Gasket Kit

Cylinder Piston Rings Gaskets Top End Kit 52.5mm Fit for Suzuki V100 / AG100 / AH100 Address 1991-2000

Features:
Kit includes piston, rings, pin, clips, & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 52.5mm.
Piston is 52.2mm.
All of the components within this kit are bolt-on ready for a hassle free installation.

Specifics:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 99 cc
Overview height: 103 mm
Cylinder height: 84 mm
Bore size: STD 52.5 mm
Piston diameter: 52.2 mm
Piston height: 56.8 mm
Piston pin diameter: 12 mm
Piston pin height: 39.8 mm

Replaces Part Number:
Cylinder: 11210-41D00-0F0
Piston: 12110-41D00-0F0
Piston Ring Set: 12140-35510
Piston Set: 12100-41D01-050, 12100-41D01-100
Cylinder Head Gasket: 11141-04C00
Cylinder Base Gasket: 11241-41D20, 11241-41D21
Wristpin: 12151-35500
Circlips: 9381-12001

Fitment:
Fit for Suzuki V100 / AG100 / AH100 Address 1991-2000
Fit for Malaguti F12 Phantom 2000-2004

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

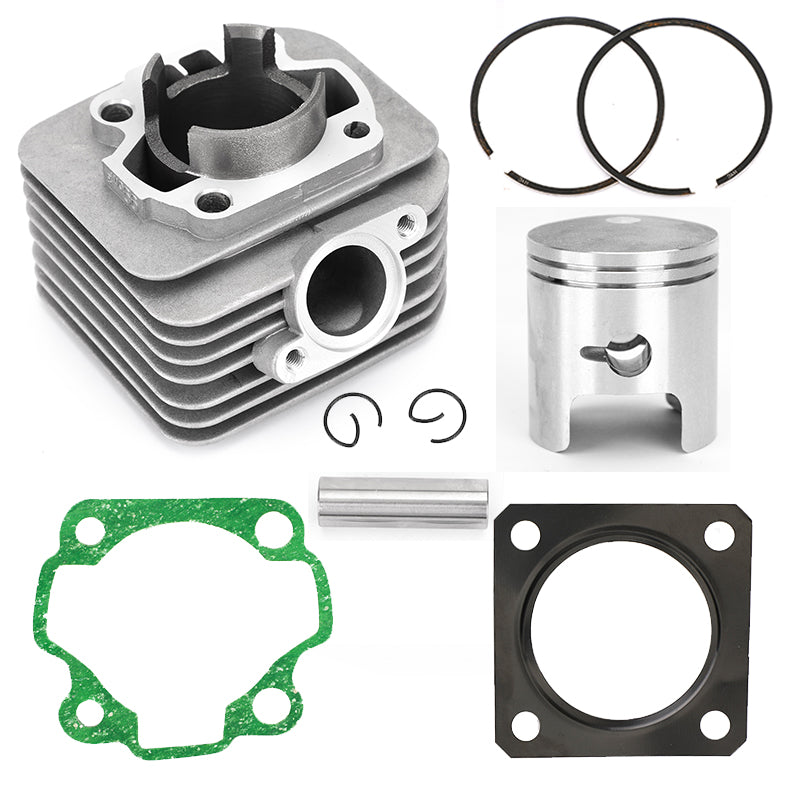

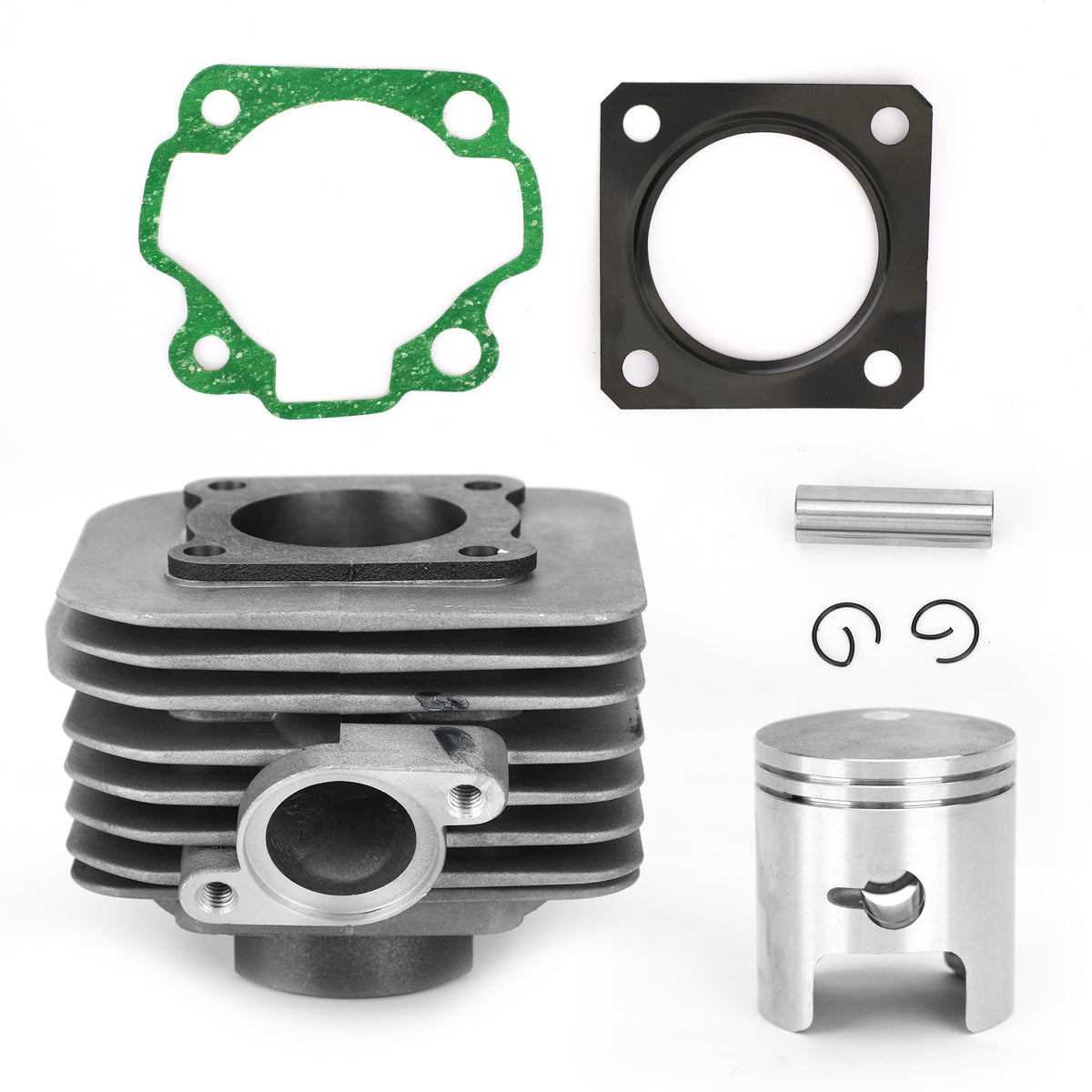

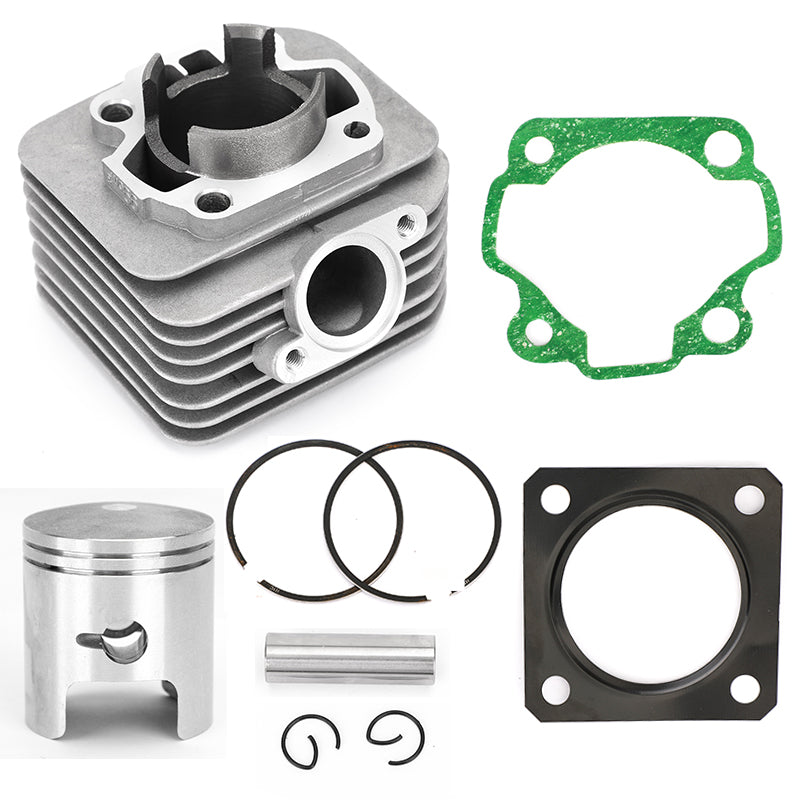

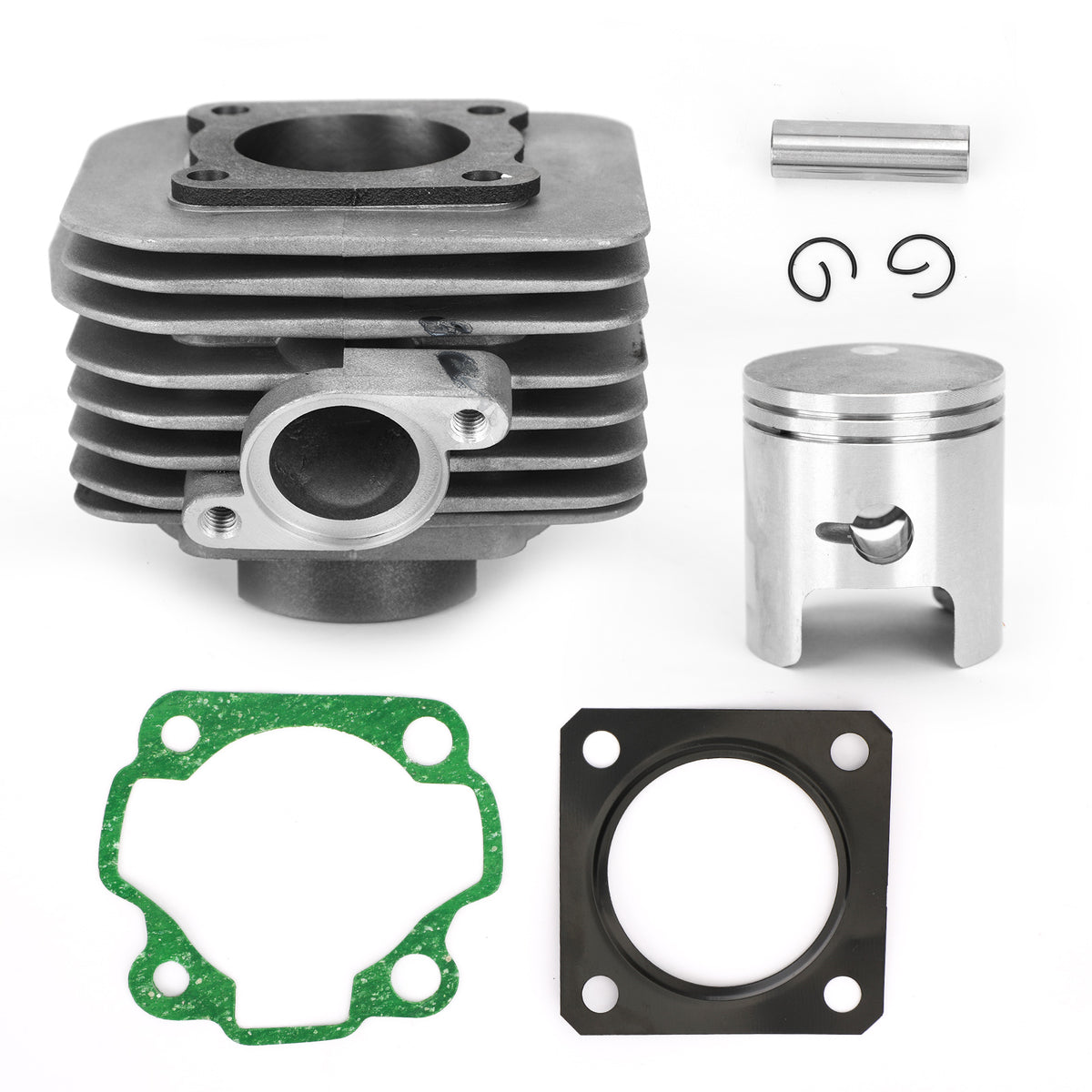

Package Includes:

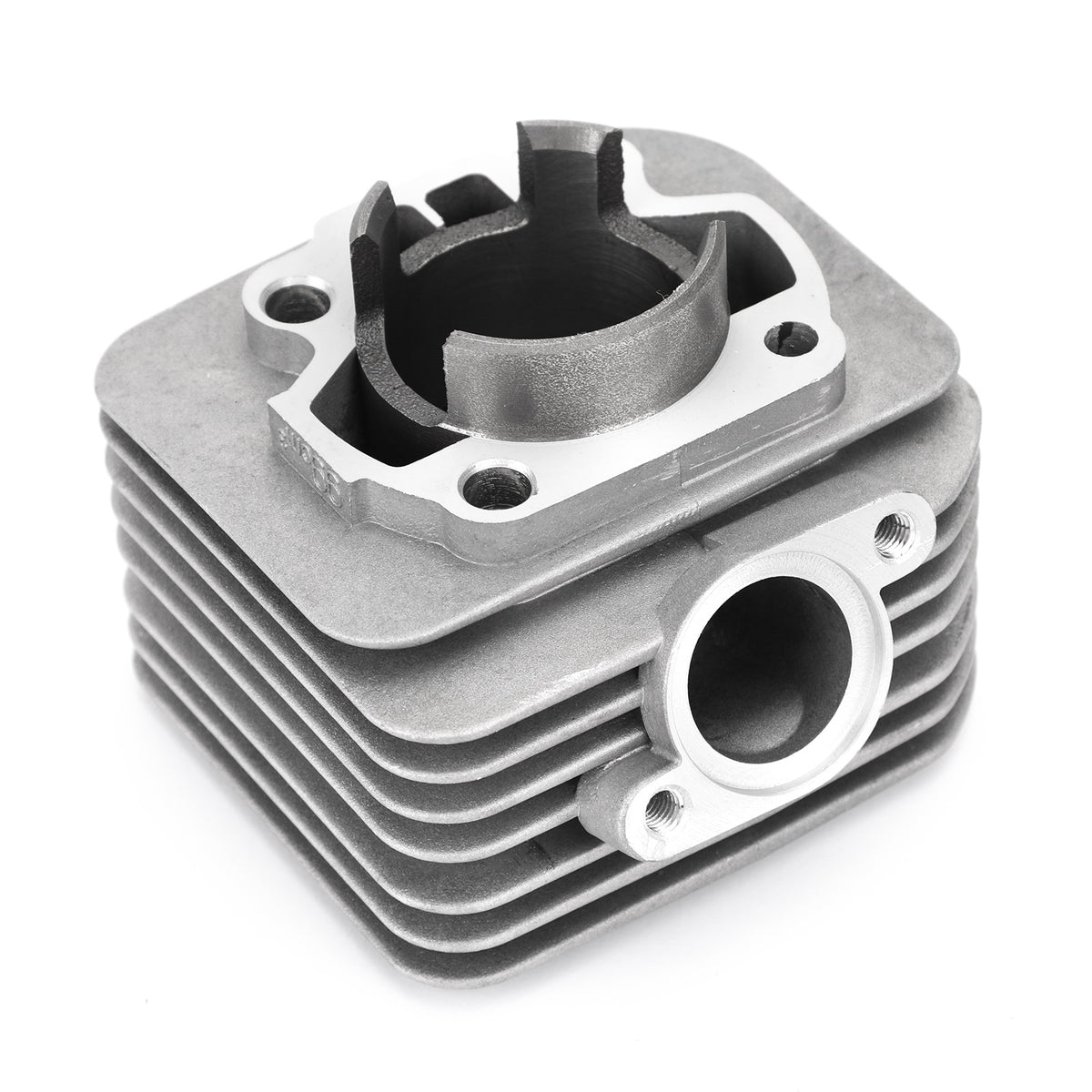

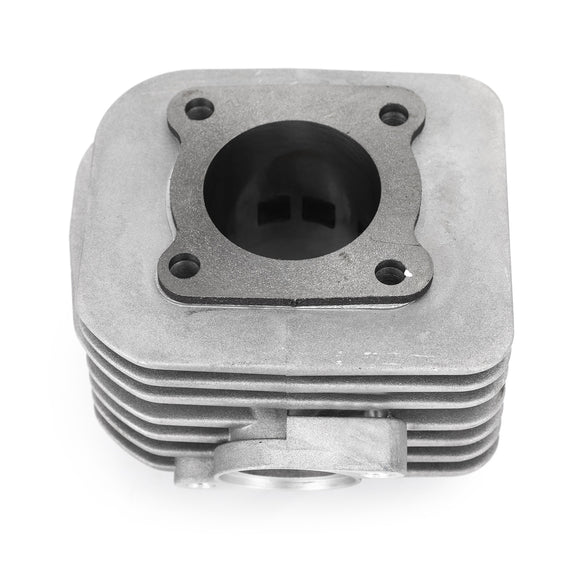

1x Cylinder
1x Piston

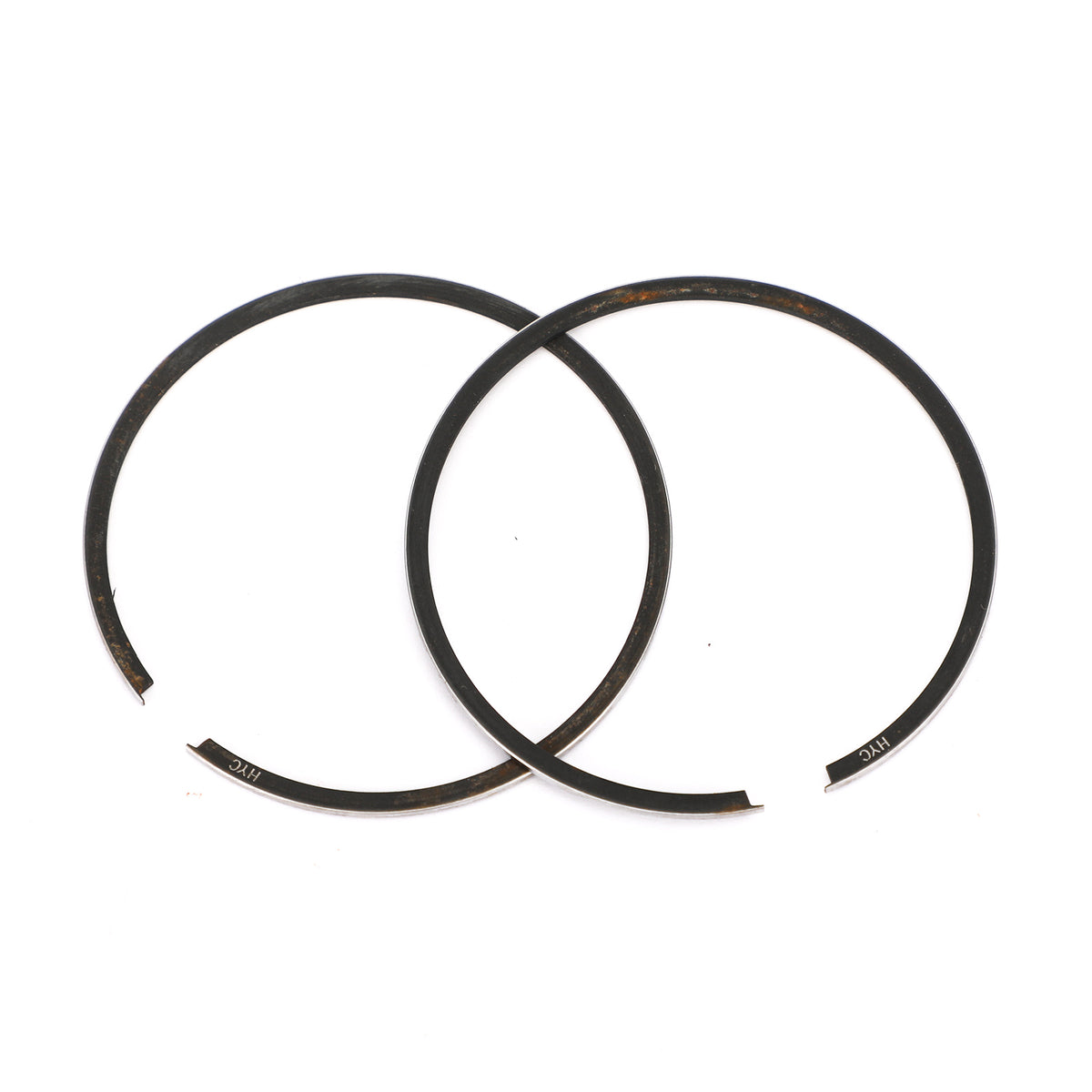

2x Piston Rings

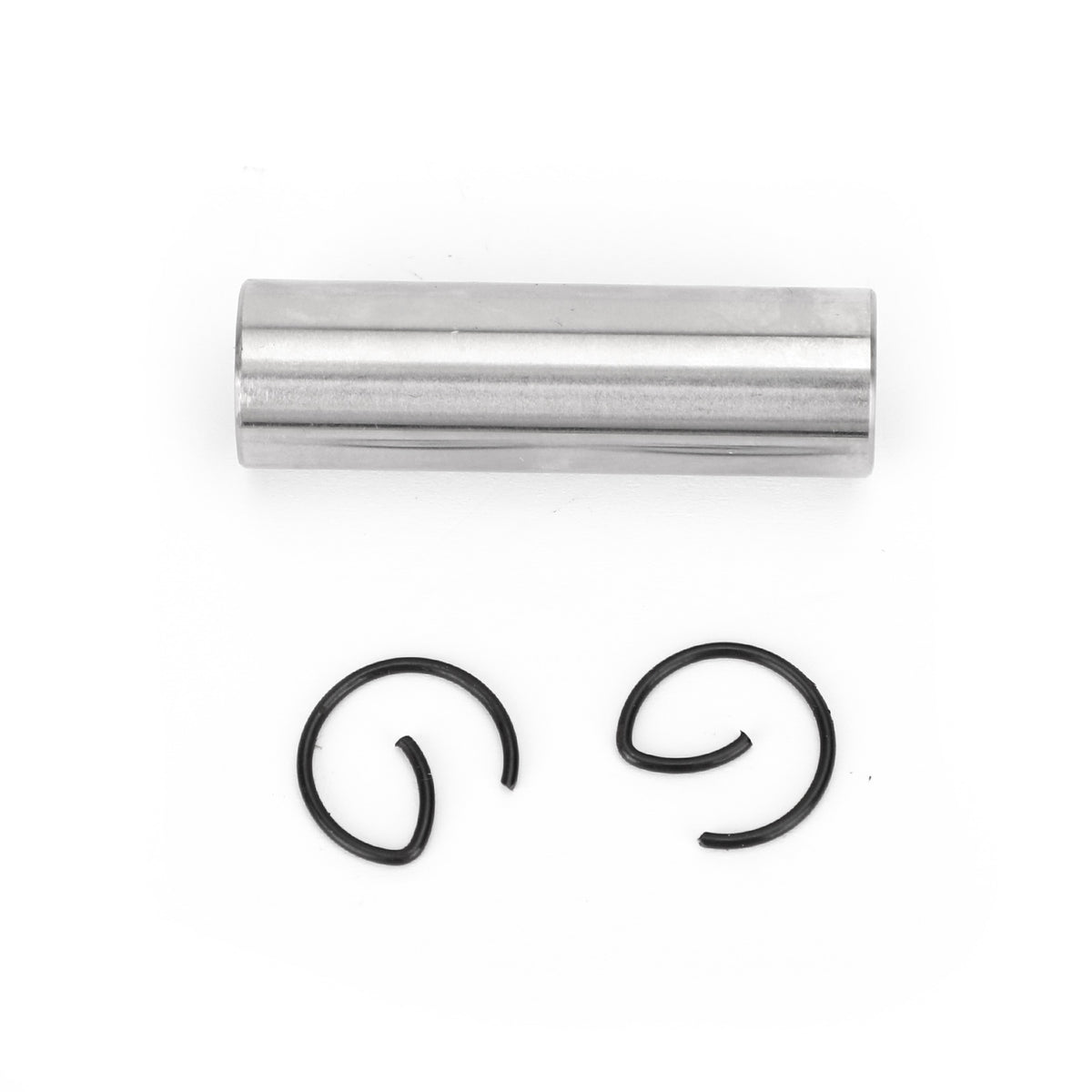

1x Wristpin
2x Circlips

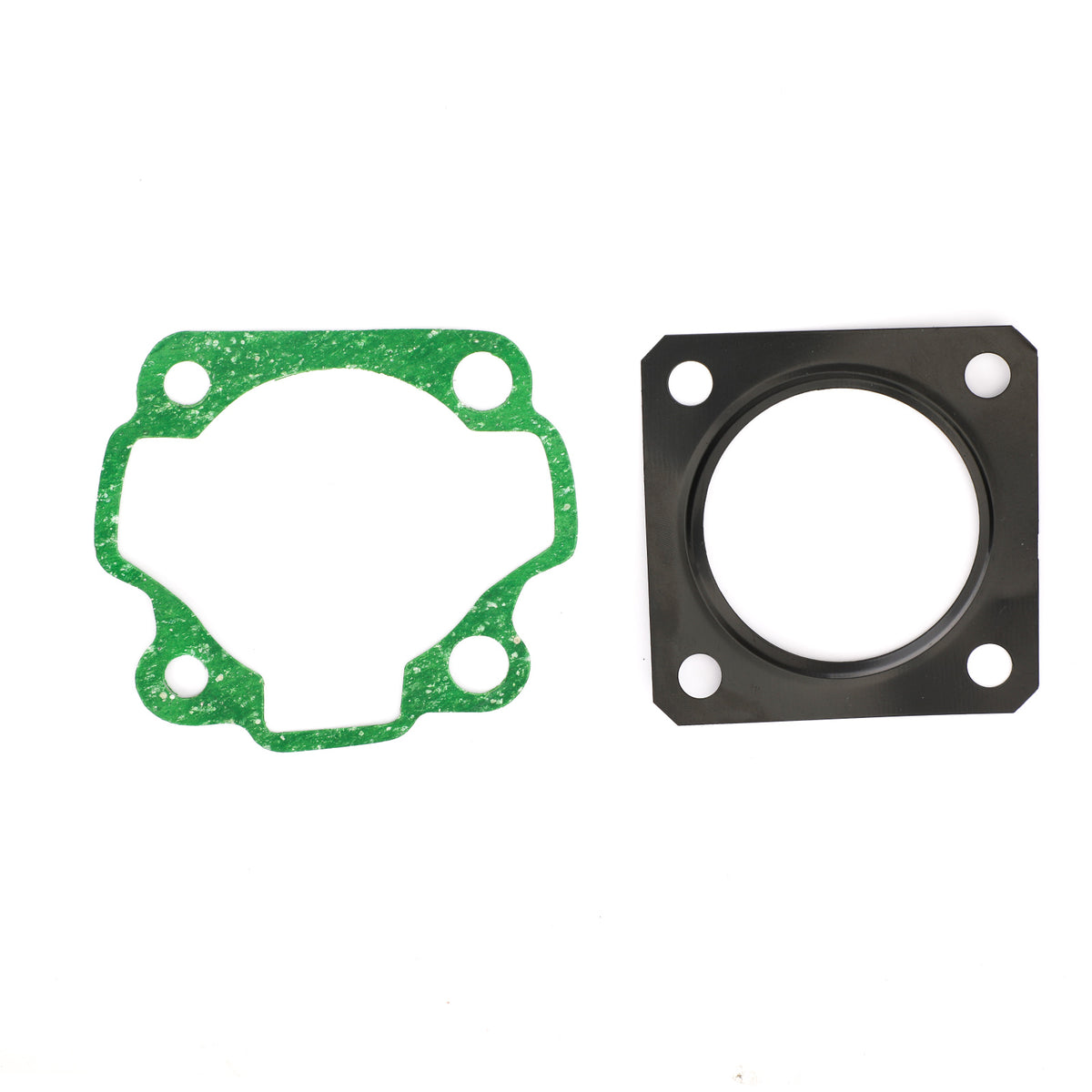

1x Cylinder Head Gasket
1x Cylinder Base Gasket

Note:
Ring end gaps are checked prior to shipment for proper sizing.
Please check out the product and size fits your motorcycle or not before you purchase.
