Cylinder Jug 87.50mm Top End Kit Fit for CFMoto CF500 CF188 500cc 493cc, CForce UForce U5 X5 Piston Rings Gaskets

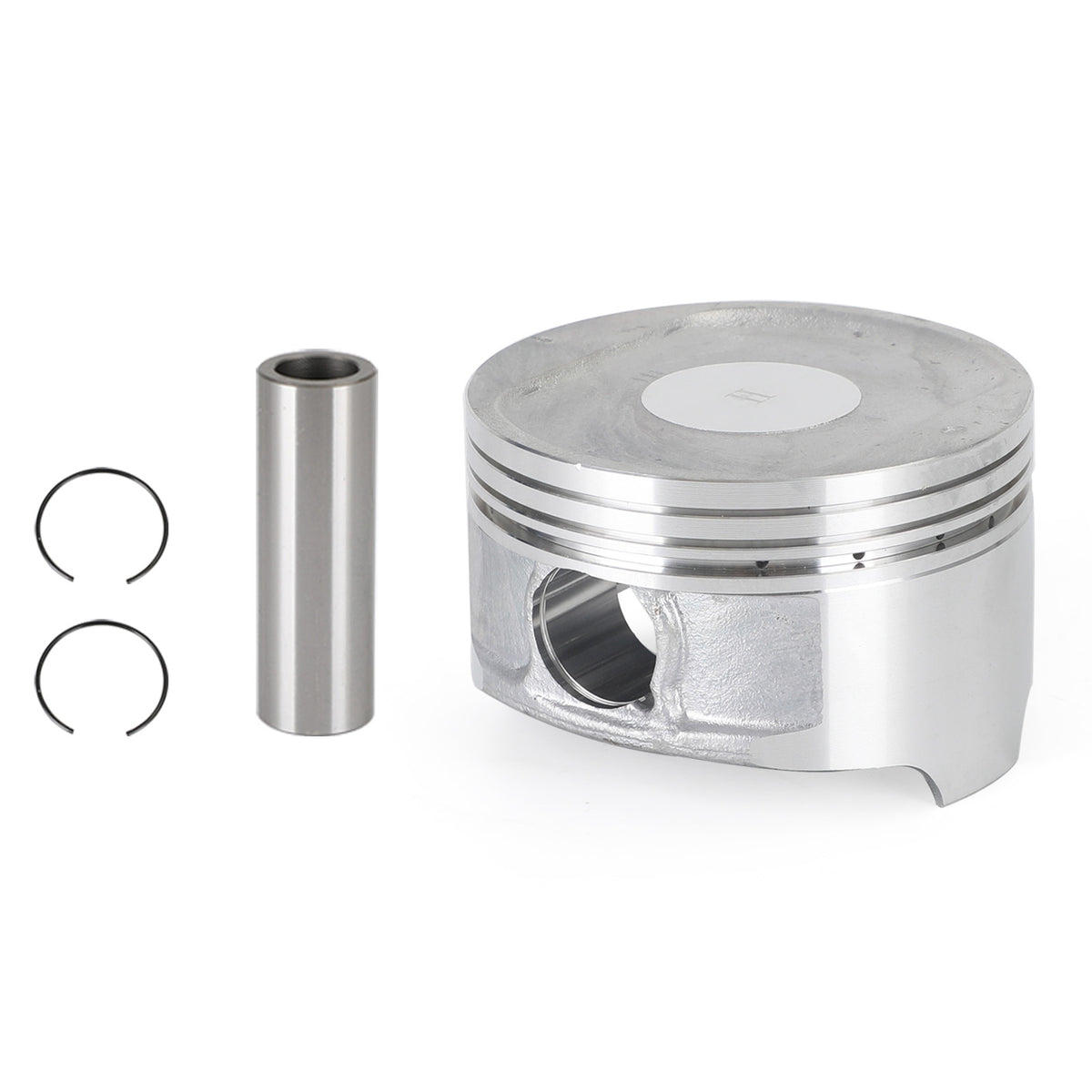

Features: Kit includes piston, rings, pin, clips, & top end gasket kit (you get exactly what is pictured). Cast piston has super-high silicone content for additional strength. Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life. Piston dome is anodized for superior heat resistance and longer lifespan. The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for standard bore size - 87.5 mm. All of the components within this kit are bolt-on ready for a hassle free installation.

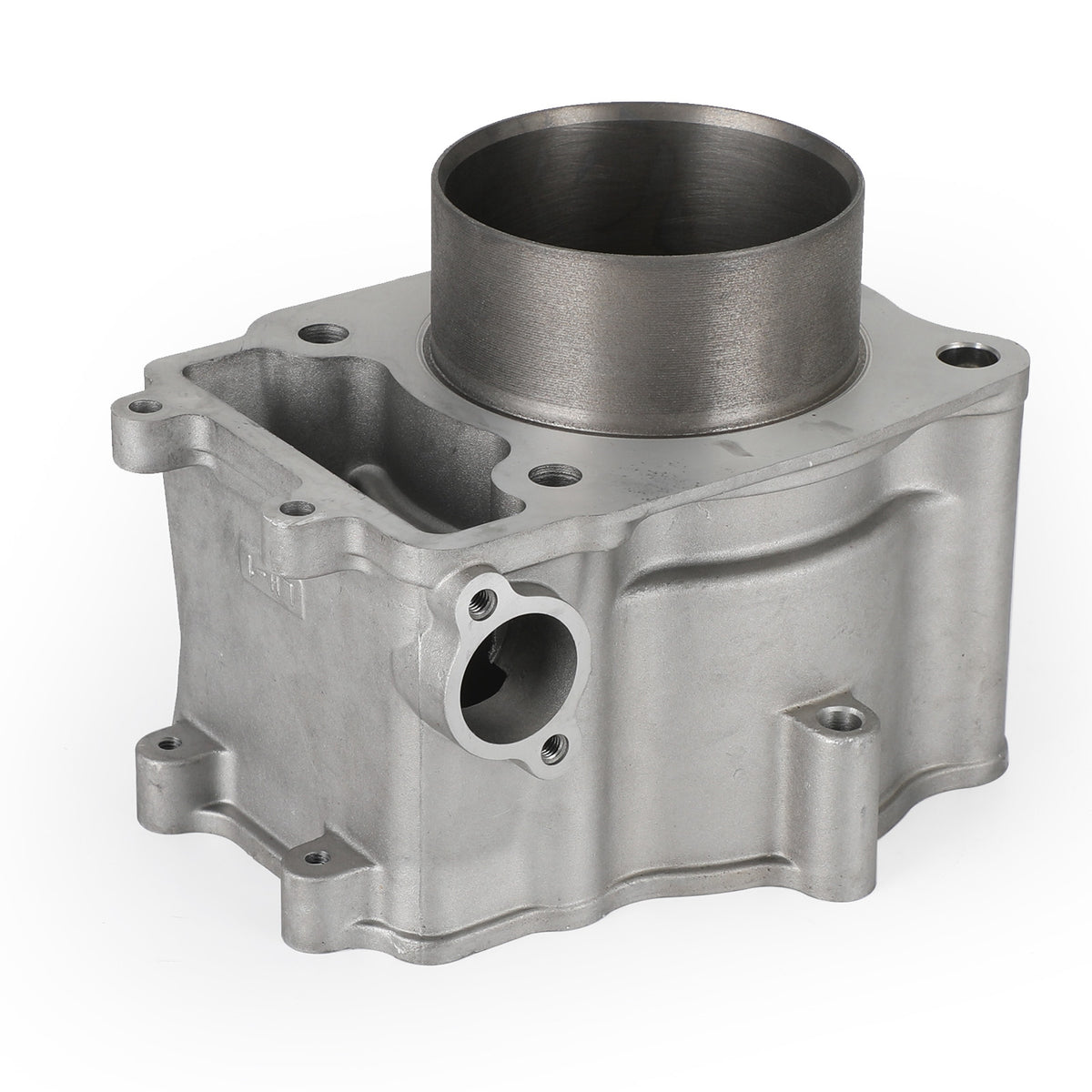

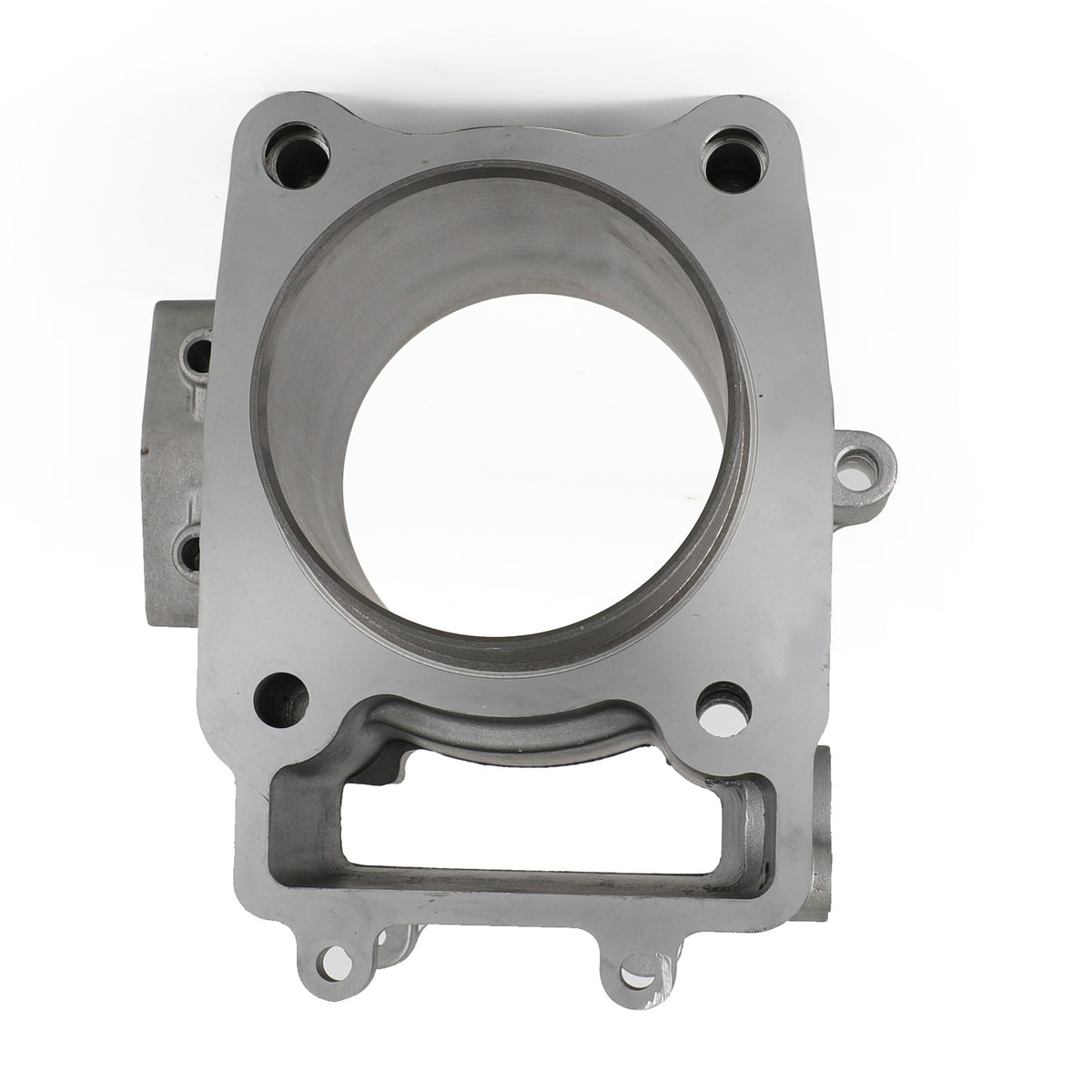

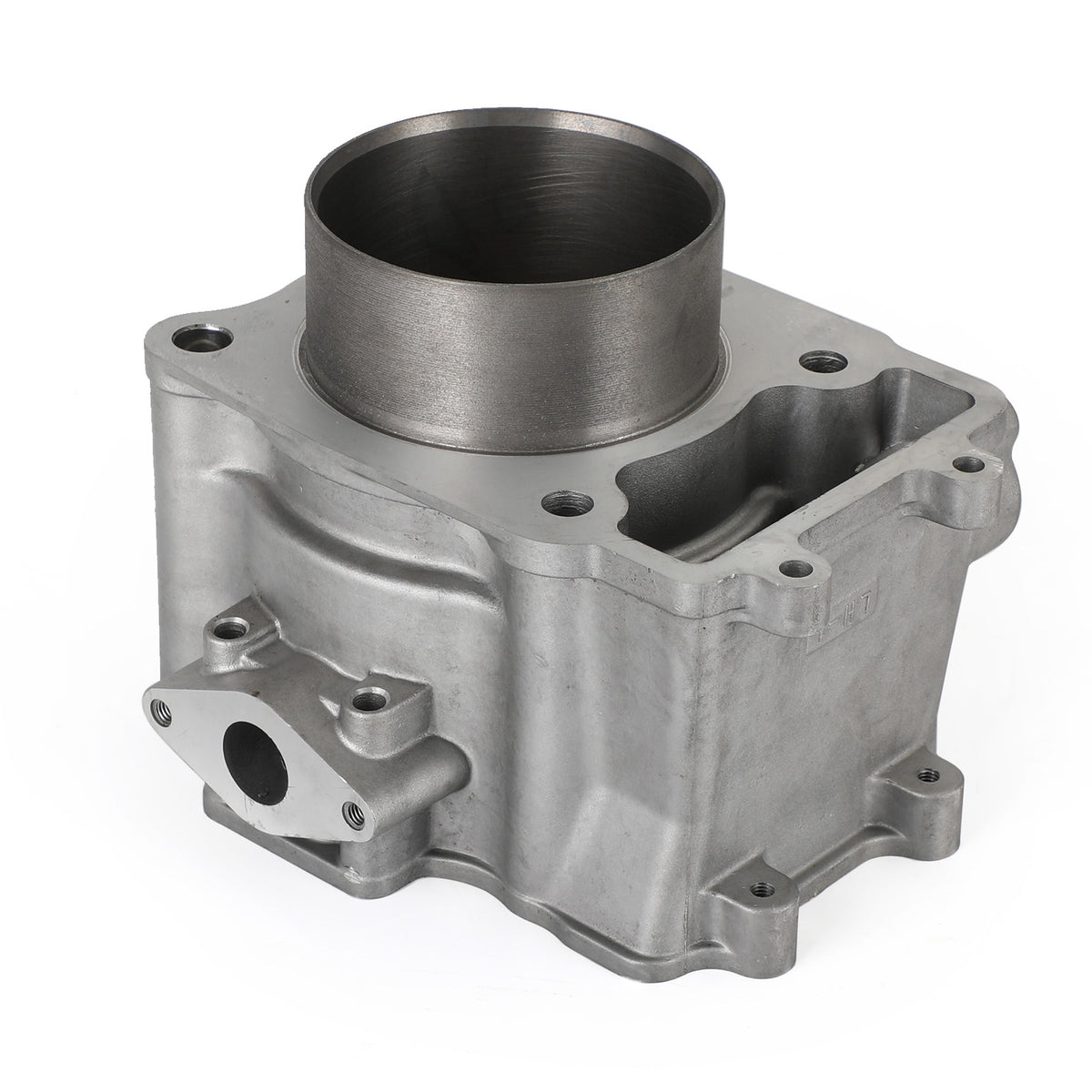

Specifics: Condition: Aftermarket 100% Brand New Quantity: 1 Set Piston Material: Forged Aluminum Engine Type: CF188 Displacement: 500cc Actual Displacement: 493cc Bore Type: Stanard Bore Bore Size: 87.5 mm Pin Diameter: 23mm Outer Diameter of Cylinder Skirt: 93.5mm Middle Height of Cylinder: 100mm Total Height of Cylinder: 139.5mm Total Height of Piston: 56.7mm Compression Height of Piston: 28.5mm
Replacement Part Number: Cylinder: CF188-023100, 0180-023100 Cylinder Base Gasket: 0180-023004 Cylinder Head Gasket: 0180-022200 Tensioner Gasket: CF188-02300, 0180-023003 Piston: CF188-040004, 0180-040004 Pin, piston: CF188-040002, 0180-040002 Ring Set, piston: CF188-0400A0, 0180-0400A0 Circlips, piston: CF188-040003, 0180-040003-0050
Fitments: CFMoto 500cc / 493cc Cylinder Kit for the CF188 / CF500 engine. Fit for CF-Moto ATV CF500 CForce X5 2011-2016 Fit for CF-Moto ATV CF500-2 CForce X5 2011-2016 Fit for CF-Moto ATV CF500-2A CForce X5 2011-2016 Fit for CF-Moto UTV CF500-3 UForce U500 U5 2011-2015 Fit for CF-Moto ATV CF500-A CForce X5 2011-2016 Fit for CF Moto CF500 XL One Fit for CF Moto Rancher 500 Fit for CF Moto Terralander 500 Fit for Explorer Atlas 500 Fit for Explorer Everest 500
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

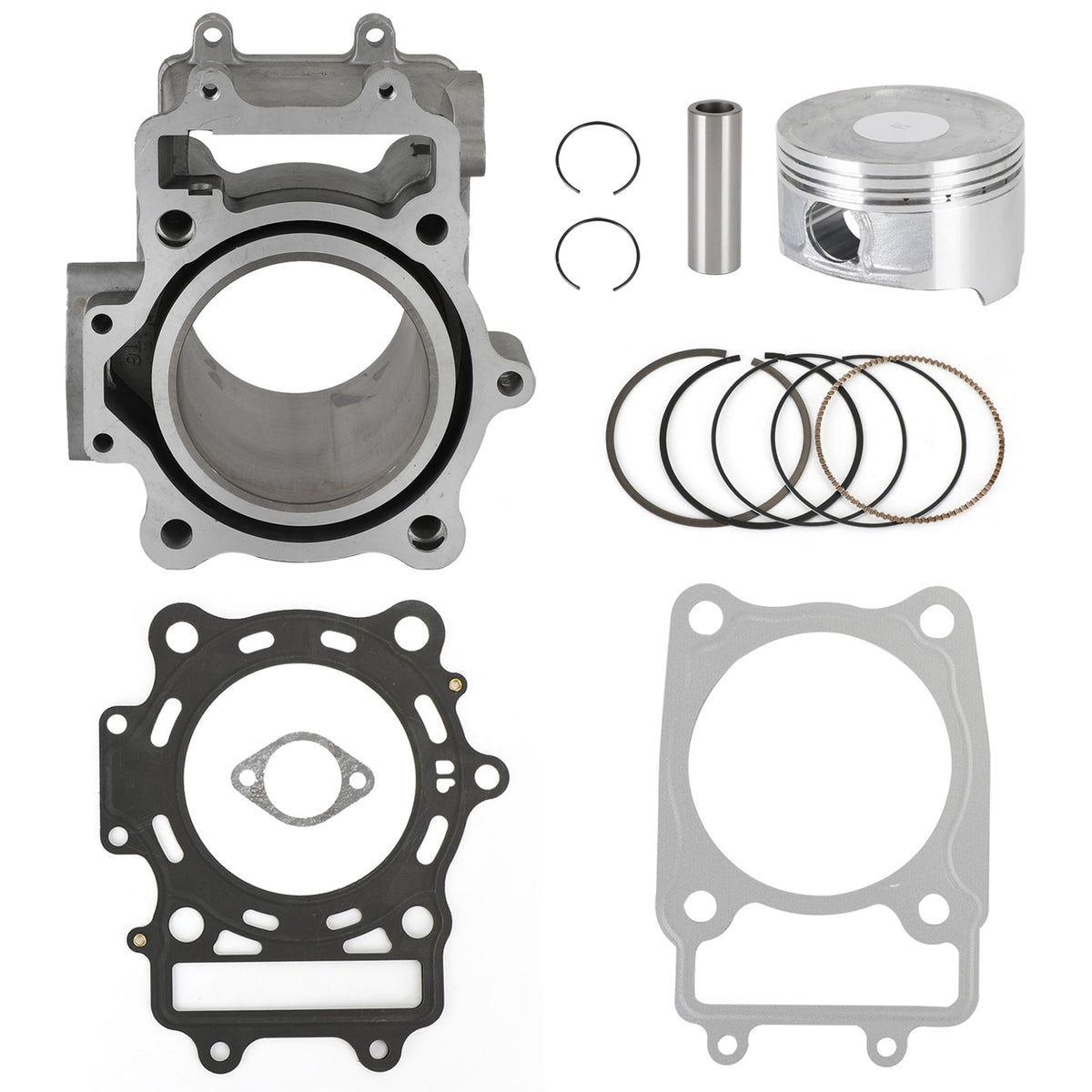

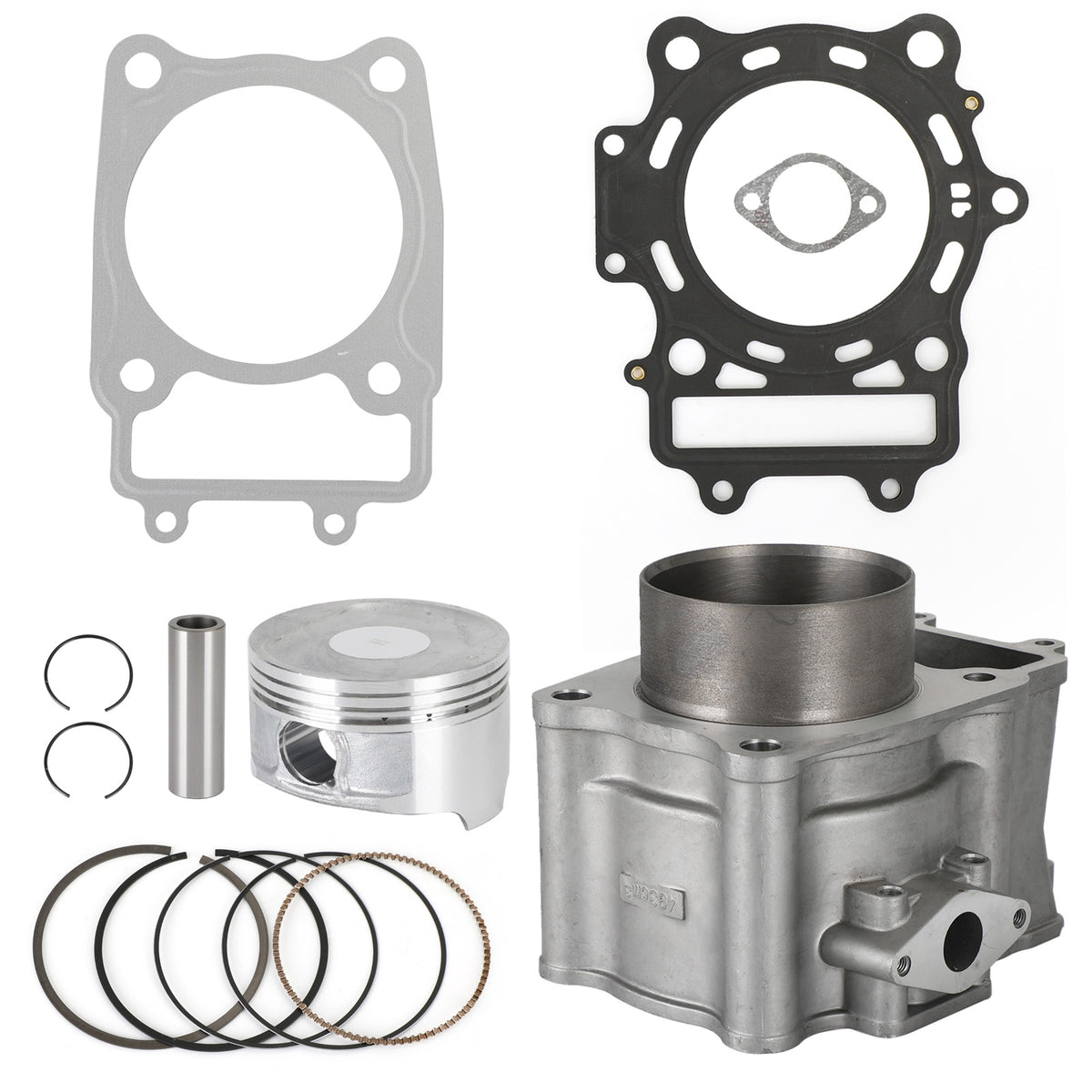

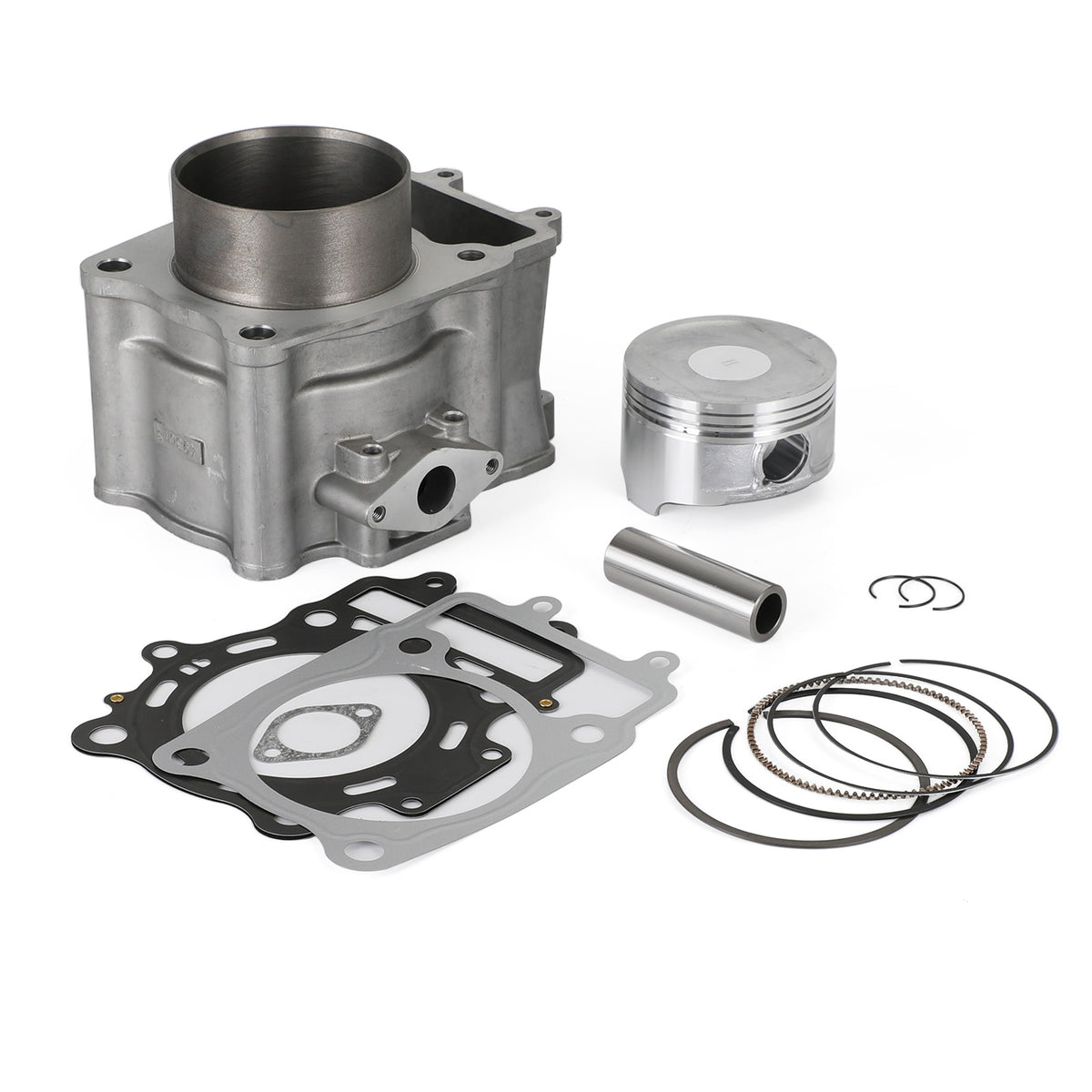

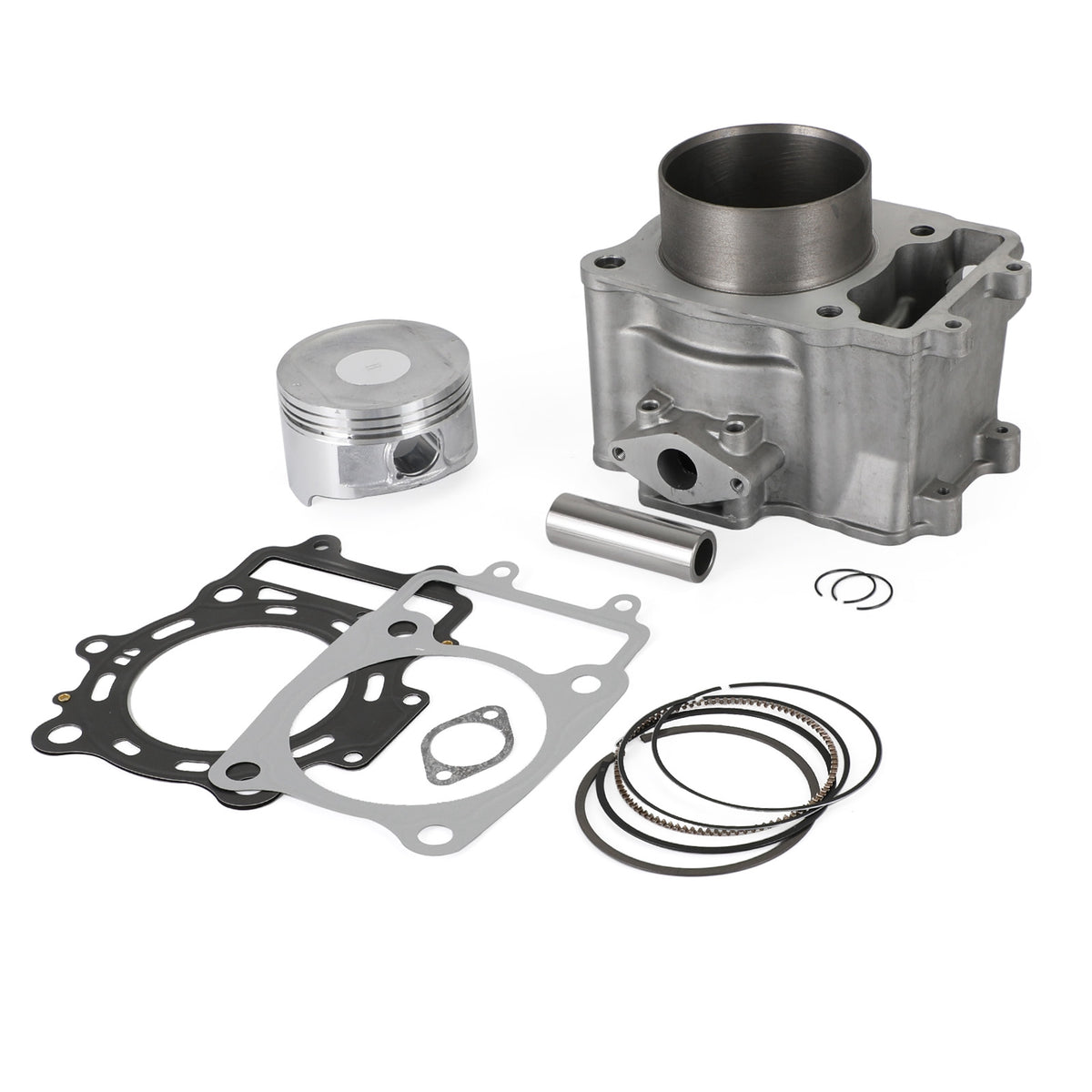

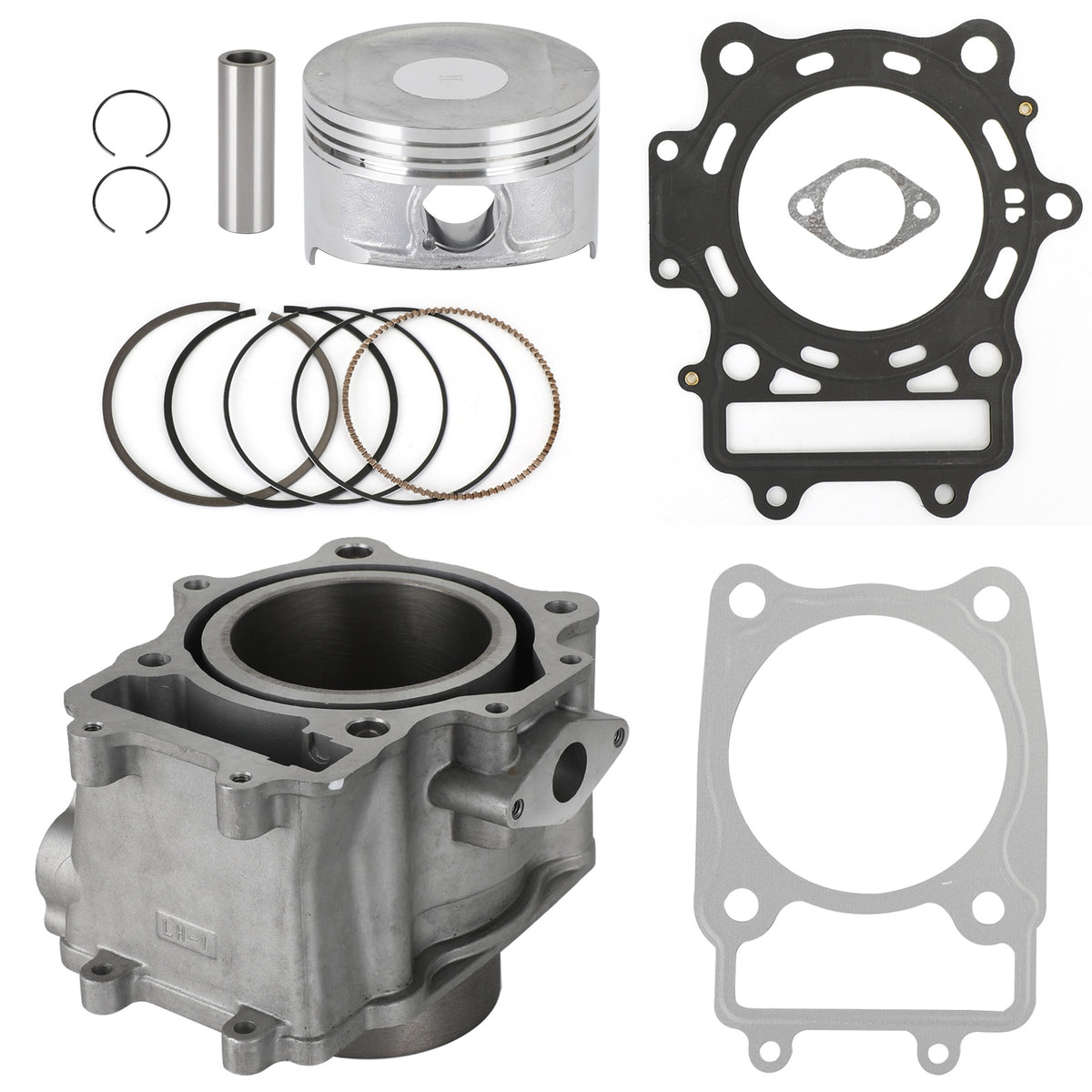

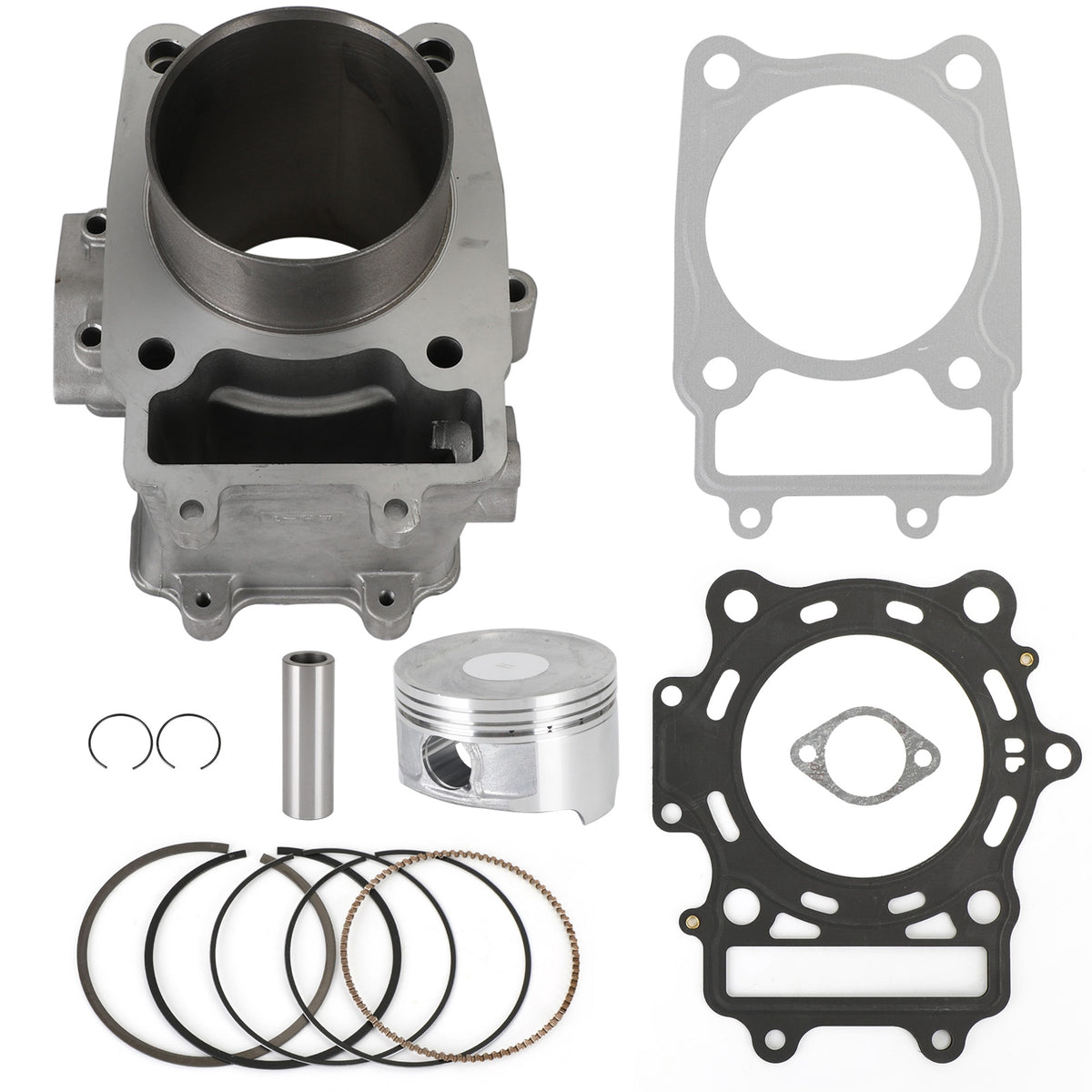

Package Includes: 1x Cylinder 1x Piston 1x Piston Ring Set 1x Wristpin 1x Circlip(2) 1x Cylinder Base Gasket 1x Cylinder Head Gasket 1x Chain Tensioner Gasket

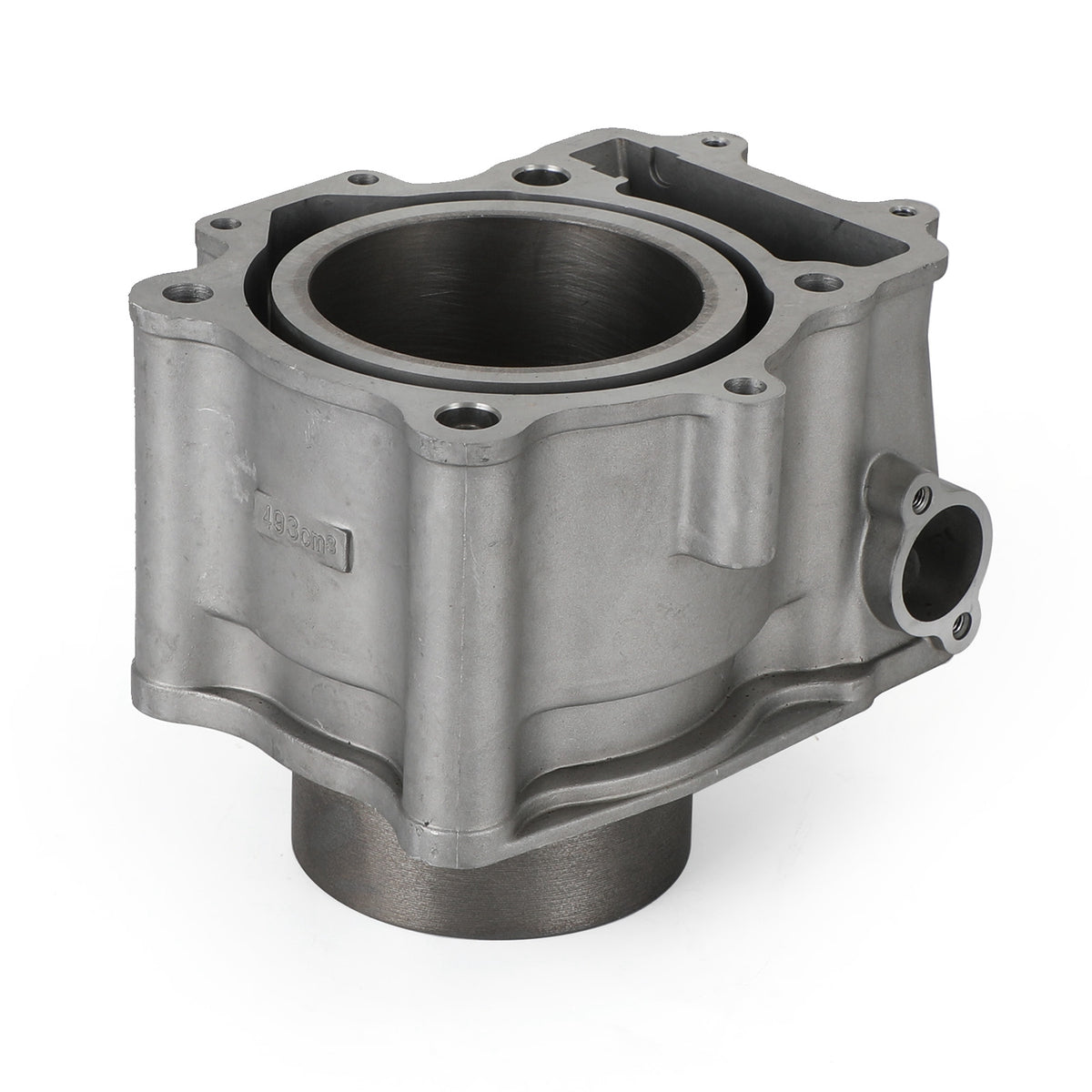

Note: The models this kit fits are called "500" but the engine size is actually 493cc. Make sure your cylinder it says "493cm3" on it. The CF191 is a CFMoto 500cc engine that looks very similar to the CF188 but is not the same. The cylinder looks different, so compare to your original cylinder carefully. This engine is found on various CFmoto models and many other CFmoto powered ATVs, UTVs & Sand / Dune Buggies.
