69mm Cylinder Piston Gasket Spark Plug Top End Rebuild Kit For Kawasaki Bayou 250 KLF250A 2003-2011

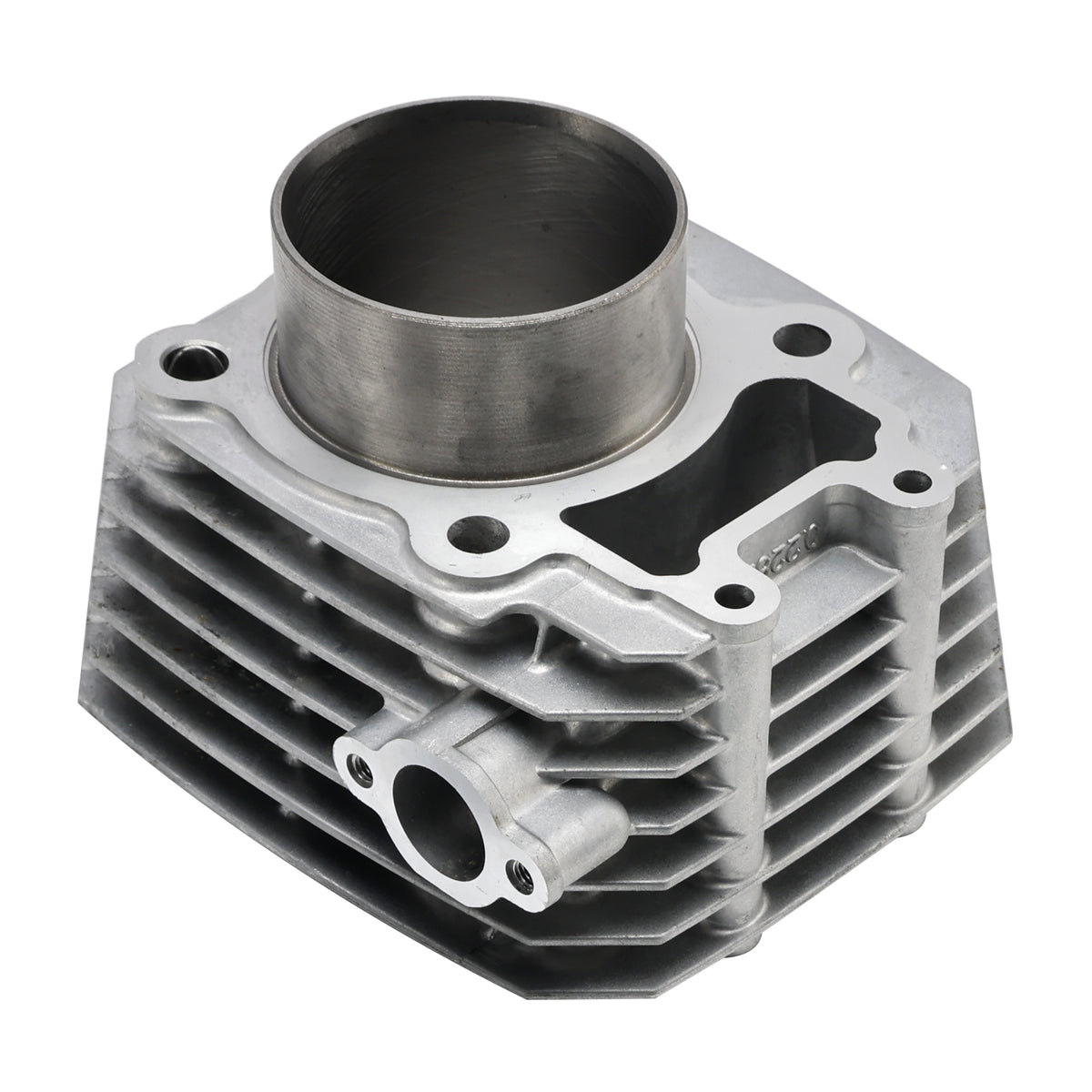

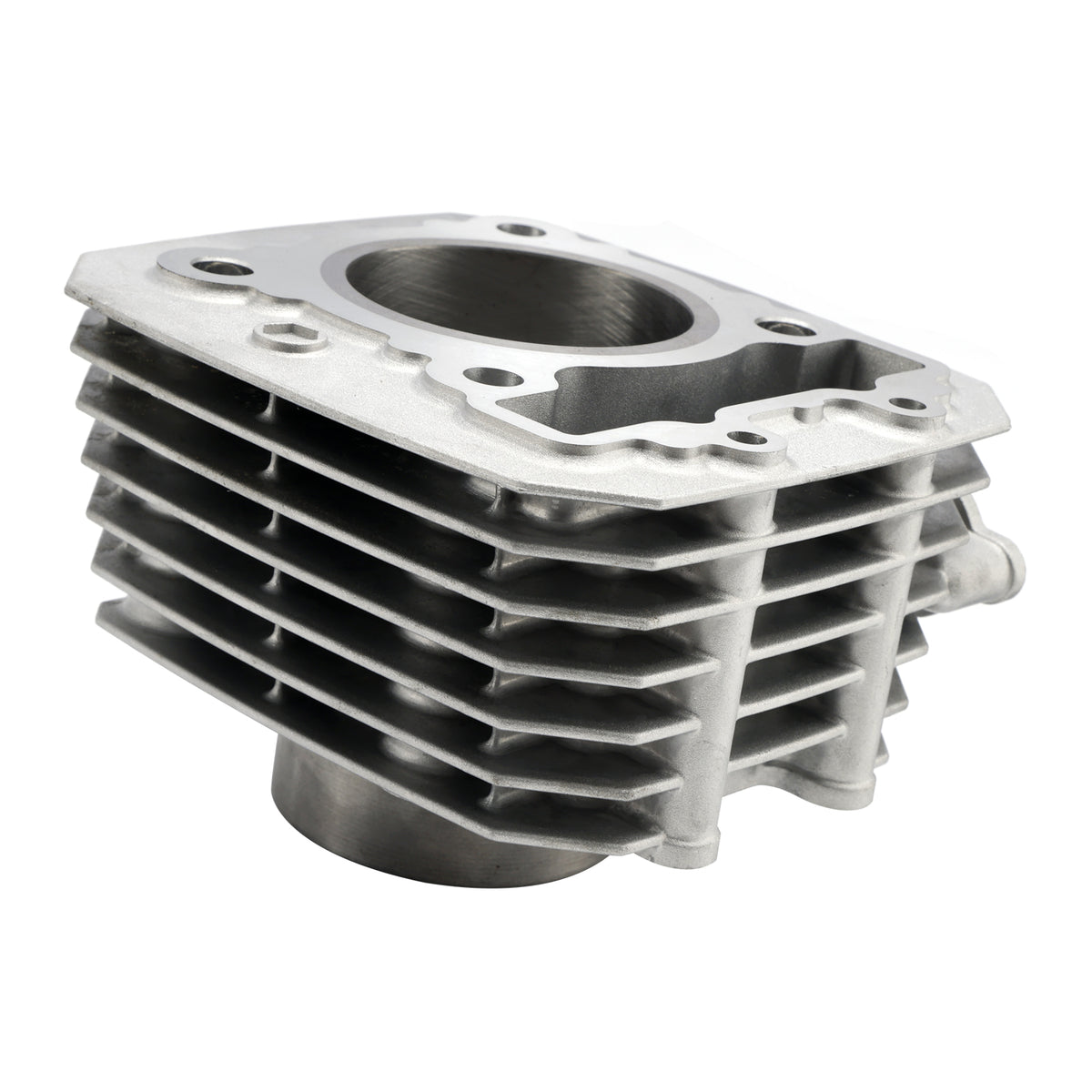

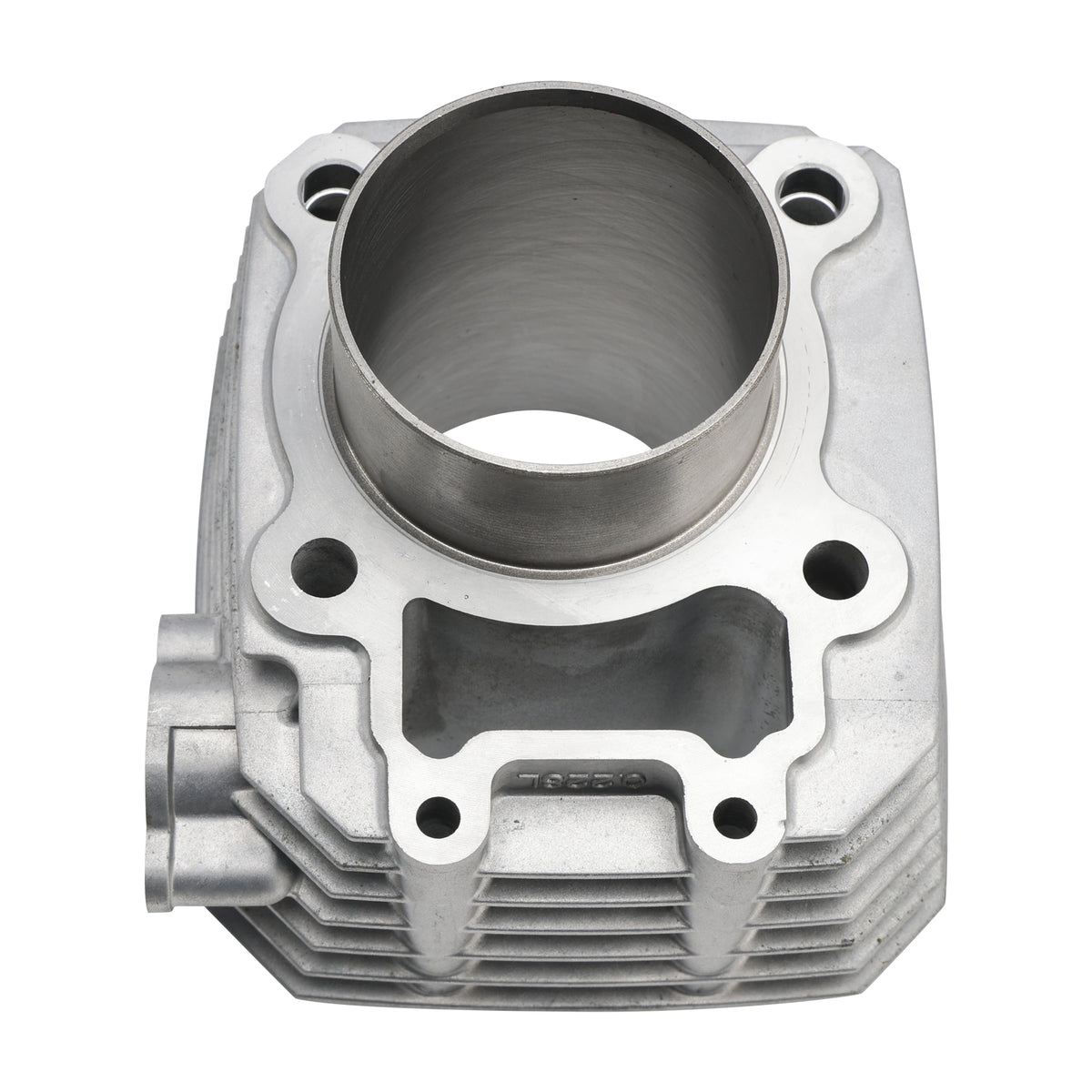

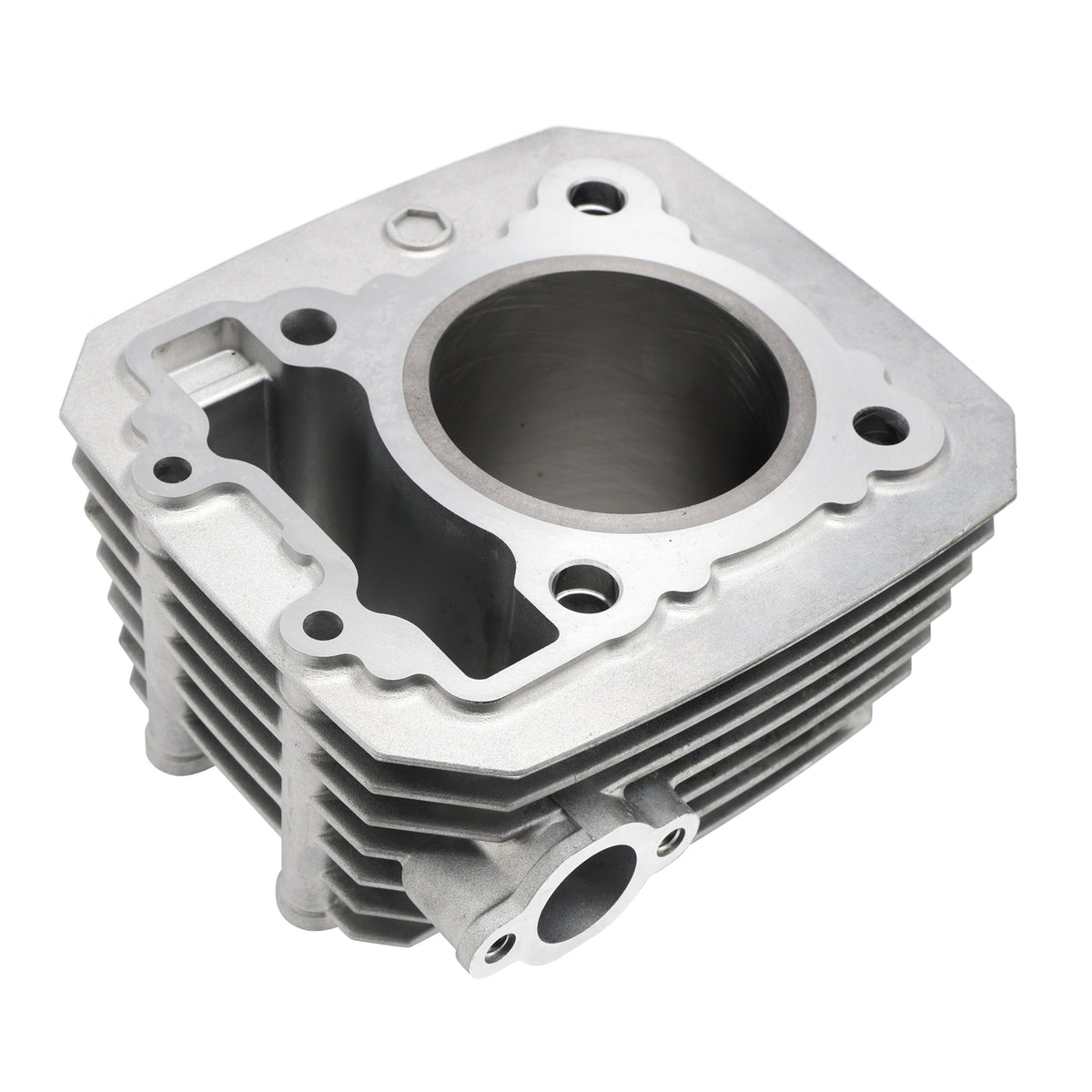

Features: If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you. Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). Piston is anodized for superior heat resistance and longer lifespan. The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for standard bore size - 69.0 mm x 61.0 mm stroke, 16mm steel piston pin. This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications: Condition: Aftermarket 100% Brand New Quantity: 1 Set Material: Aluminum Displacement: 228cc Bore Type: Standard Bore Bore diameter: STD 69mm Stroke: 61mm Pin diameter: 16mm
Replacement Part Number: Cylinder: 11005-1965 Cylinder Base Gasket: 11061-1104 Cylinder Head Gasket: 11004-1375 Piston (Std): 13001-1663 Pin, Piston: 13002-1004 Piston Ring Set (Std): 13008-1209 Circlips, piston (2): 92033-1161
Fits Make/Year/Model: Fit for Kawasaki ATV 2003 Bayou 250 - KLF250-A1 Fit for Kawasaki ATV 2004 Bayou 250 - KLF250-A2 Fit for Kawasaki ATV 2005 Bayou 250 - KLF250-A3 Fit for Kawasaki ATV 2006 Bayou 250 - KLF250A6F Fit for Kawasaki ATV 2007 Bayou 250 - KLF250A7F Fit for Kawasaki ATV 2008 Bayou 250 - KLF250A8F Fit for Kawasaki ATV 2009 Bayou 250 - KLF250A9F Fit for Kawasaki ATV 2010 Bayou 250 - KLF250AAF Fit for Kawasaki ATV 2011 Bayou 250 - KLF250ABF
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

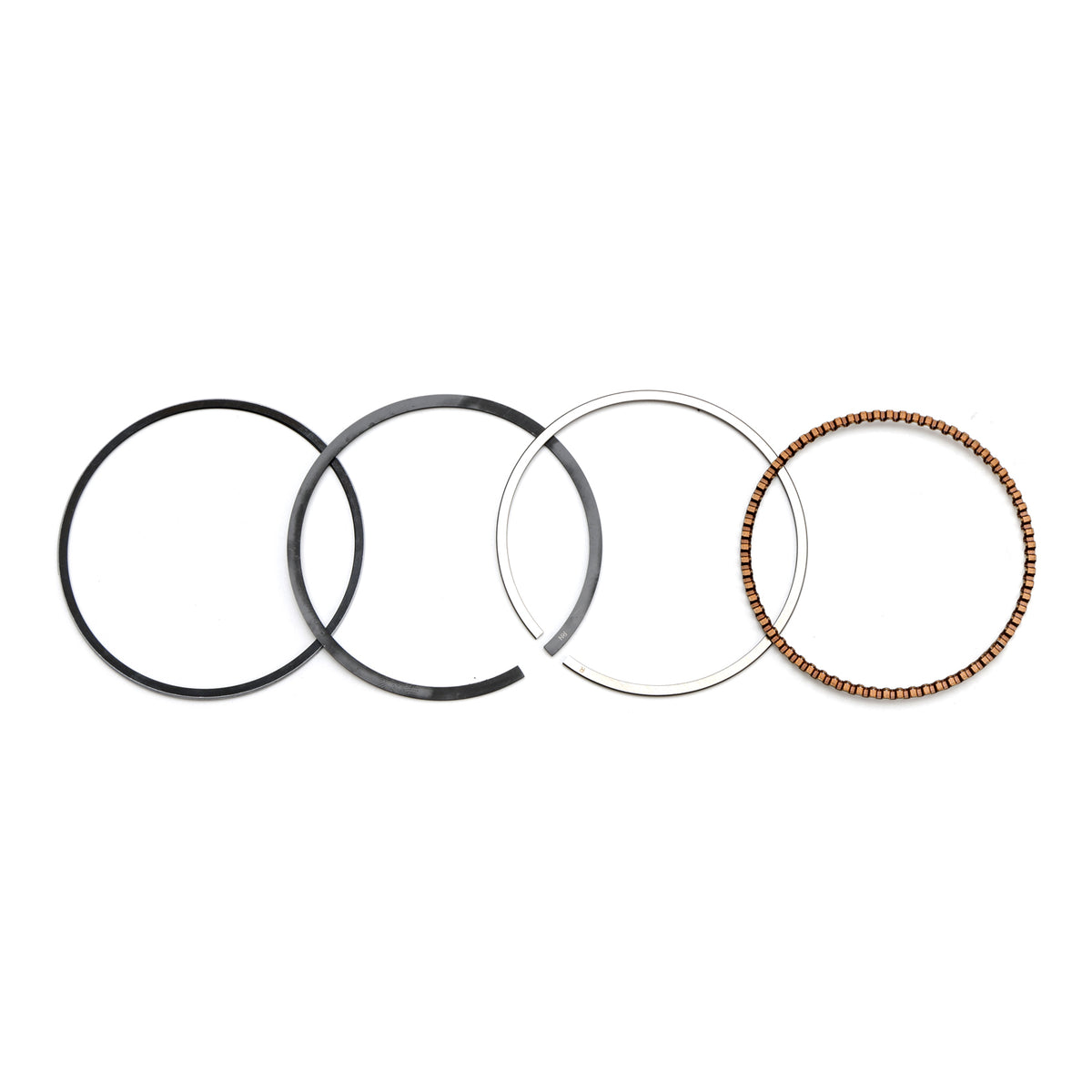

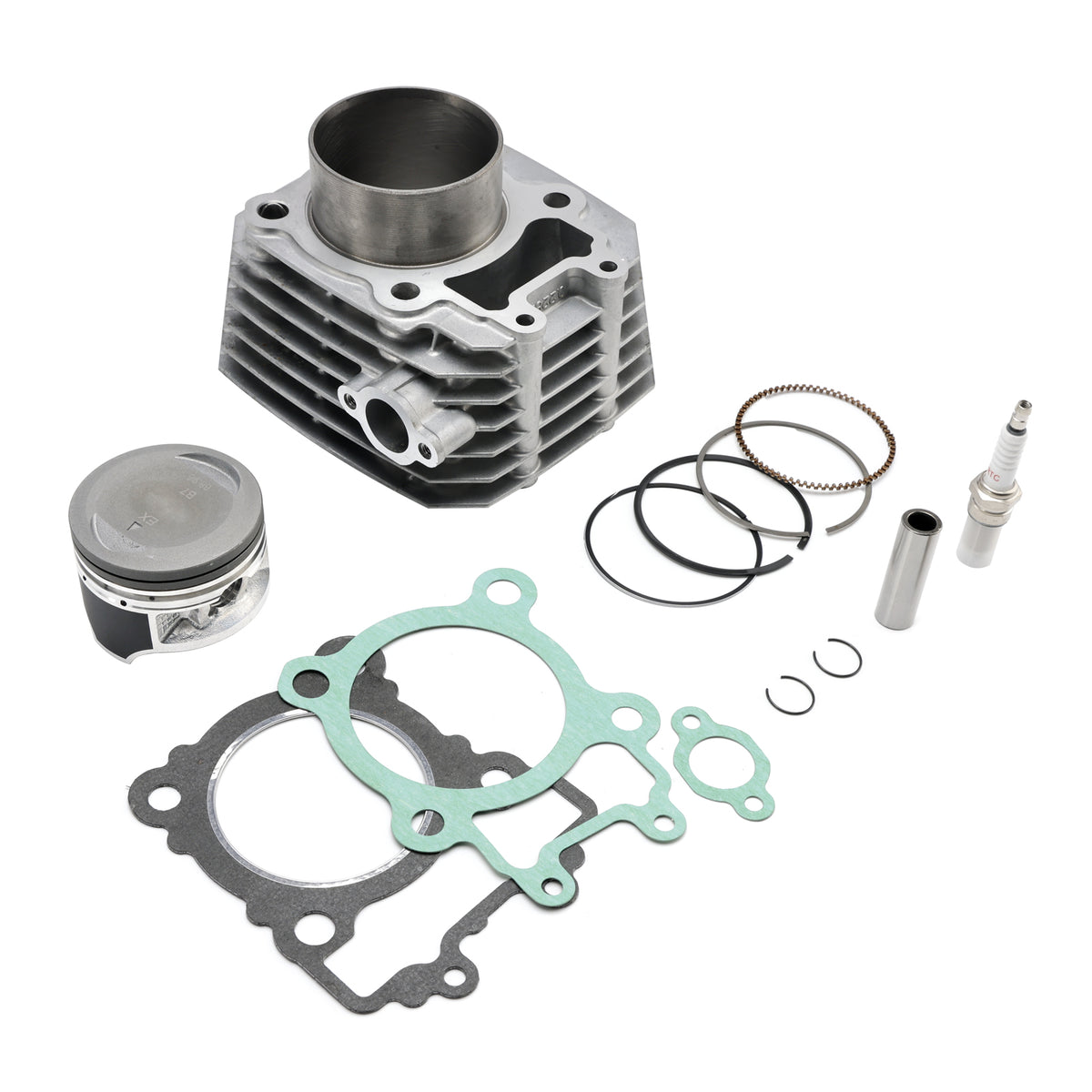

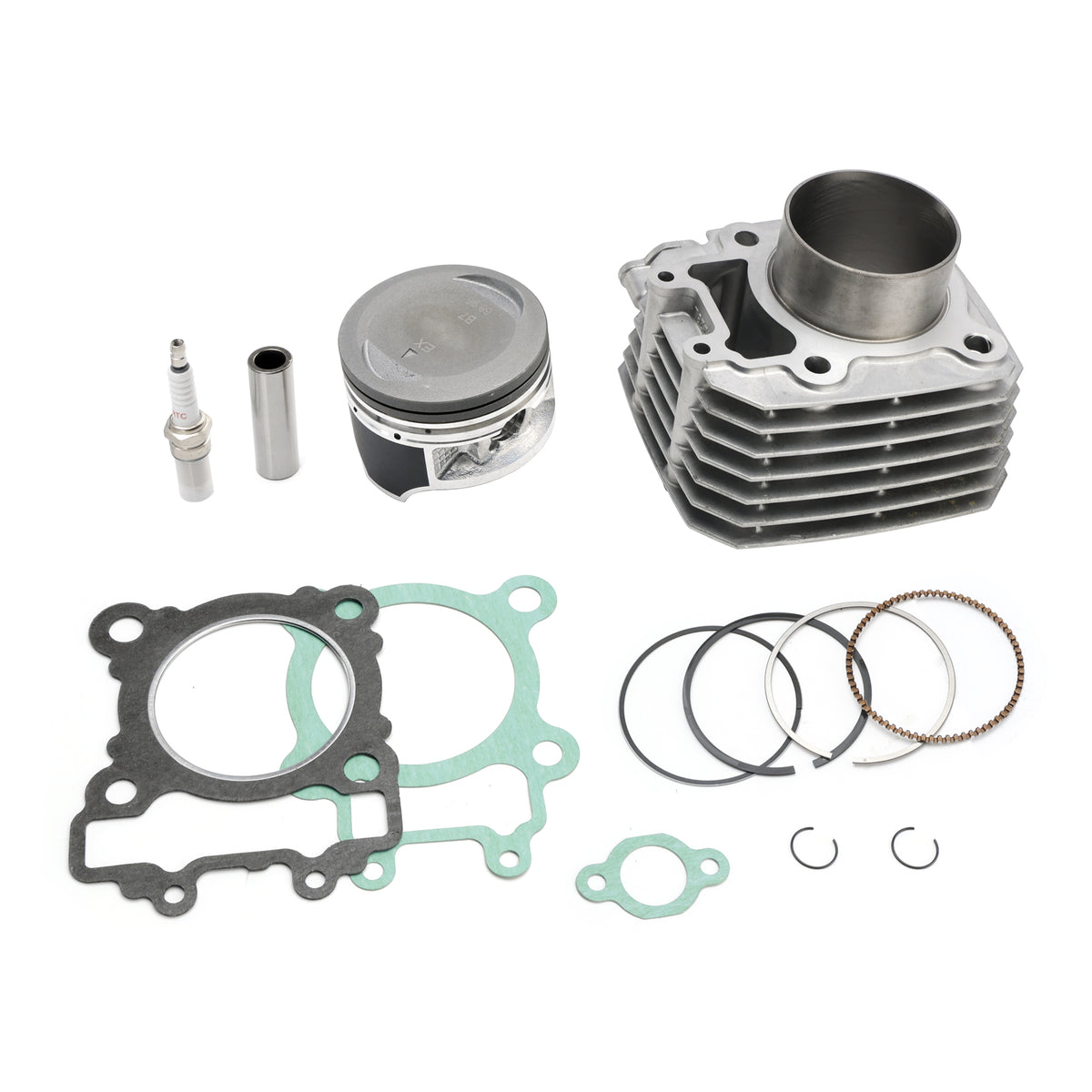

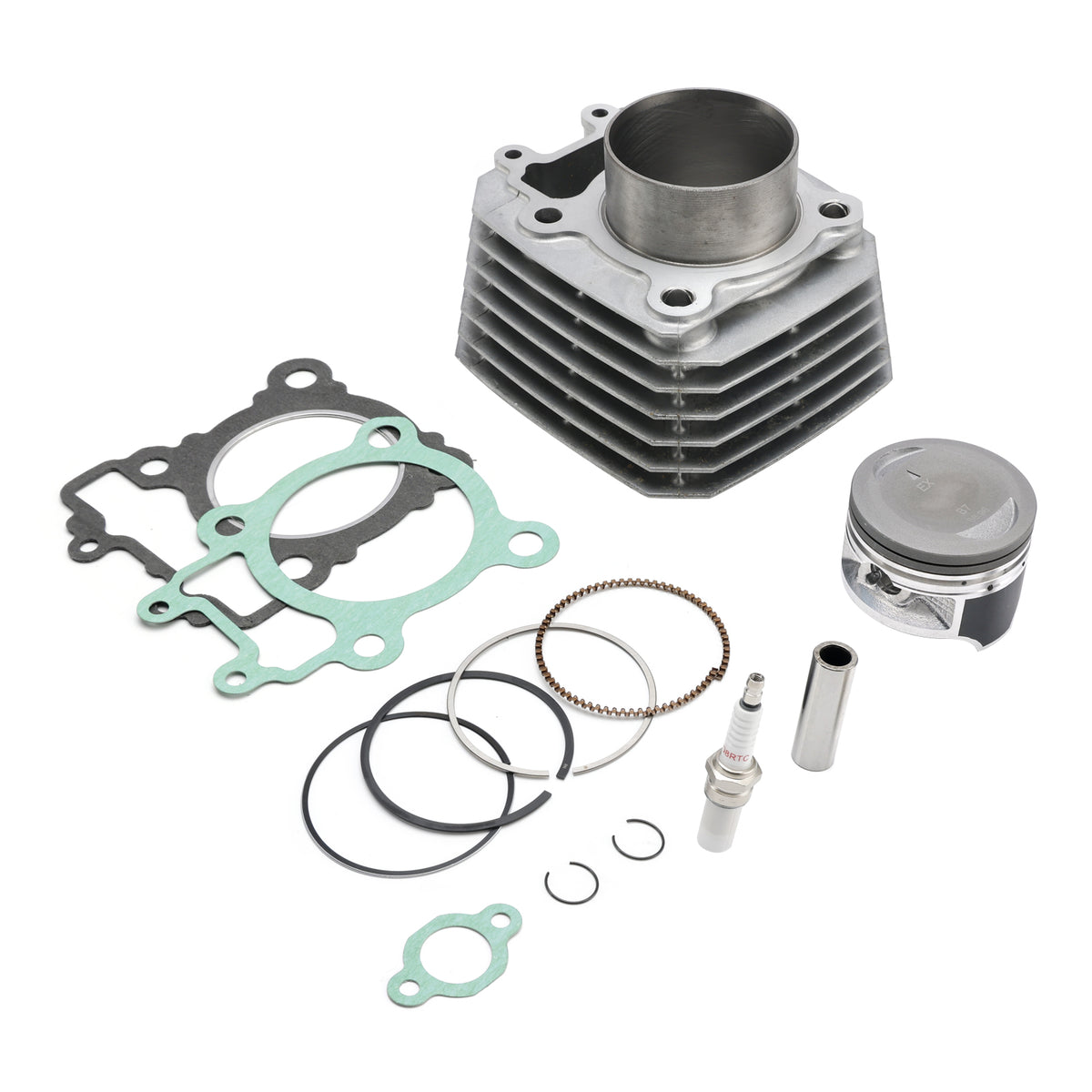

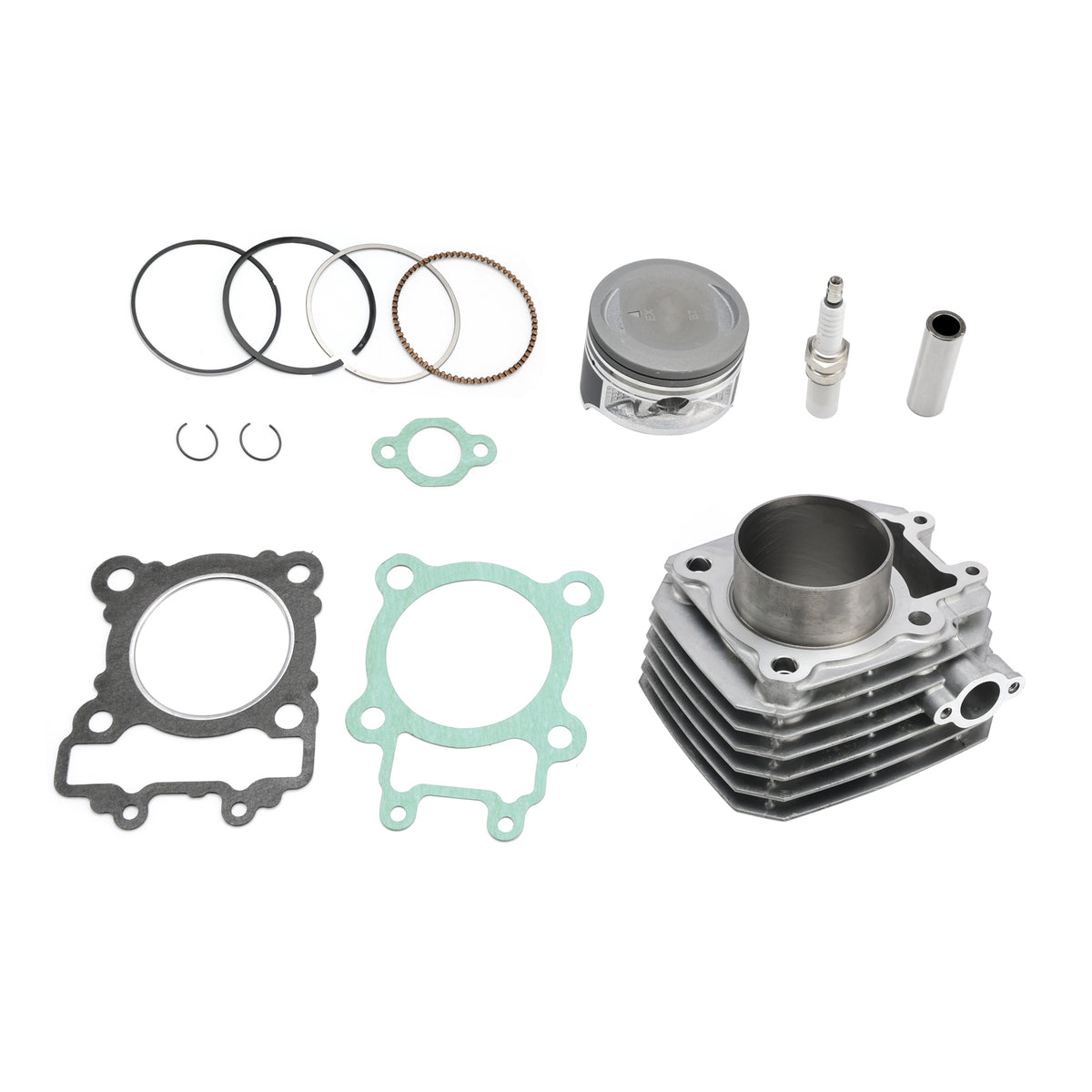

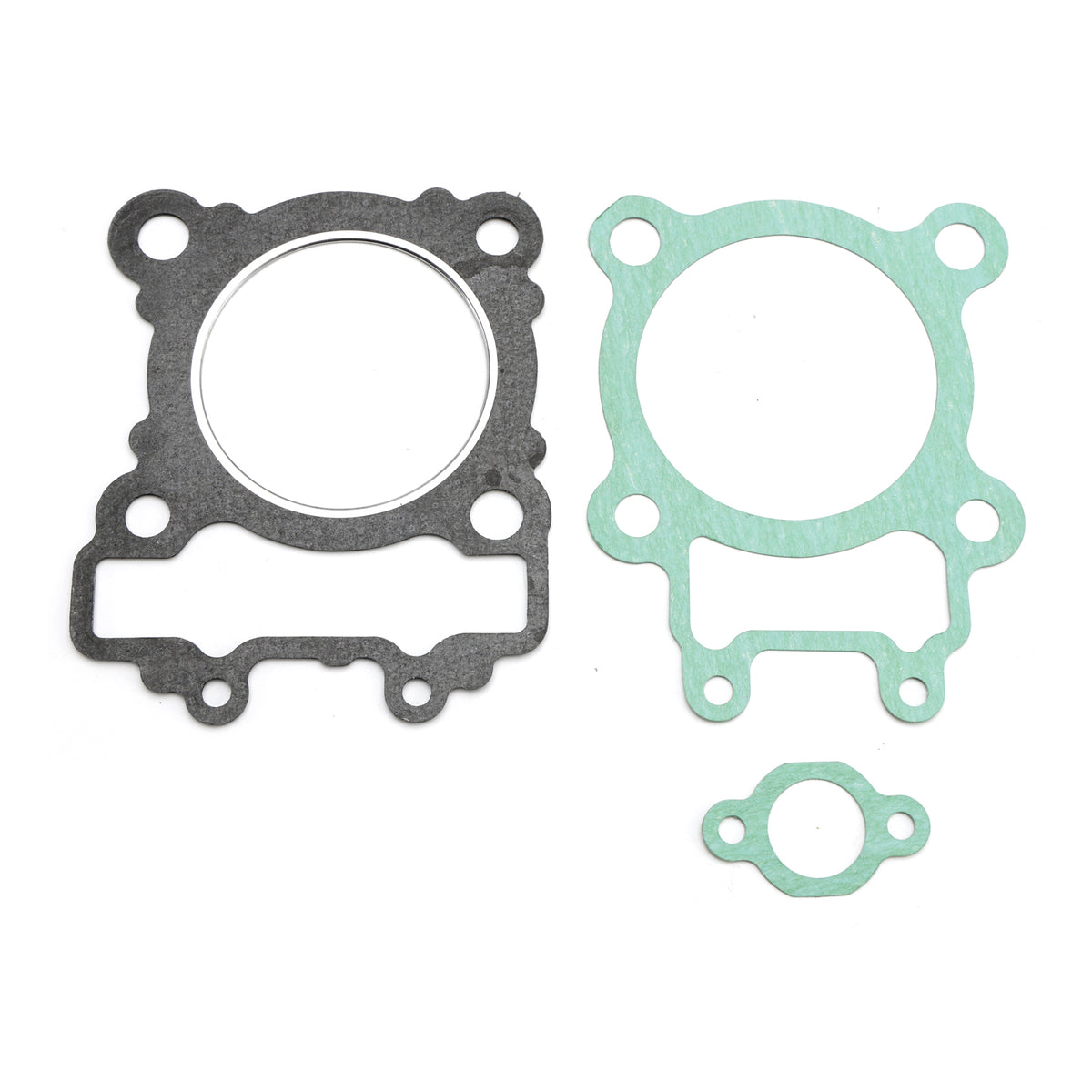

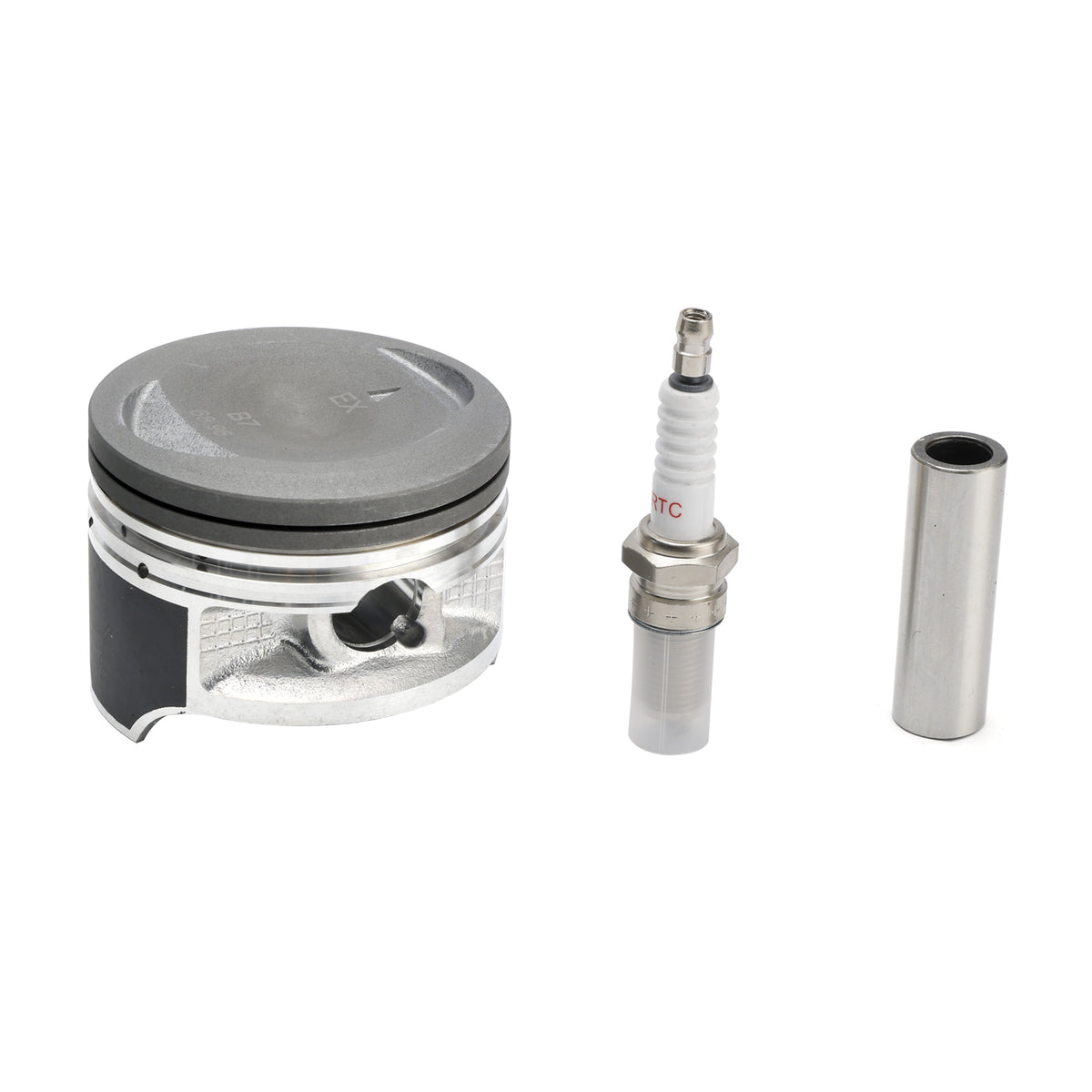

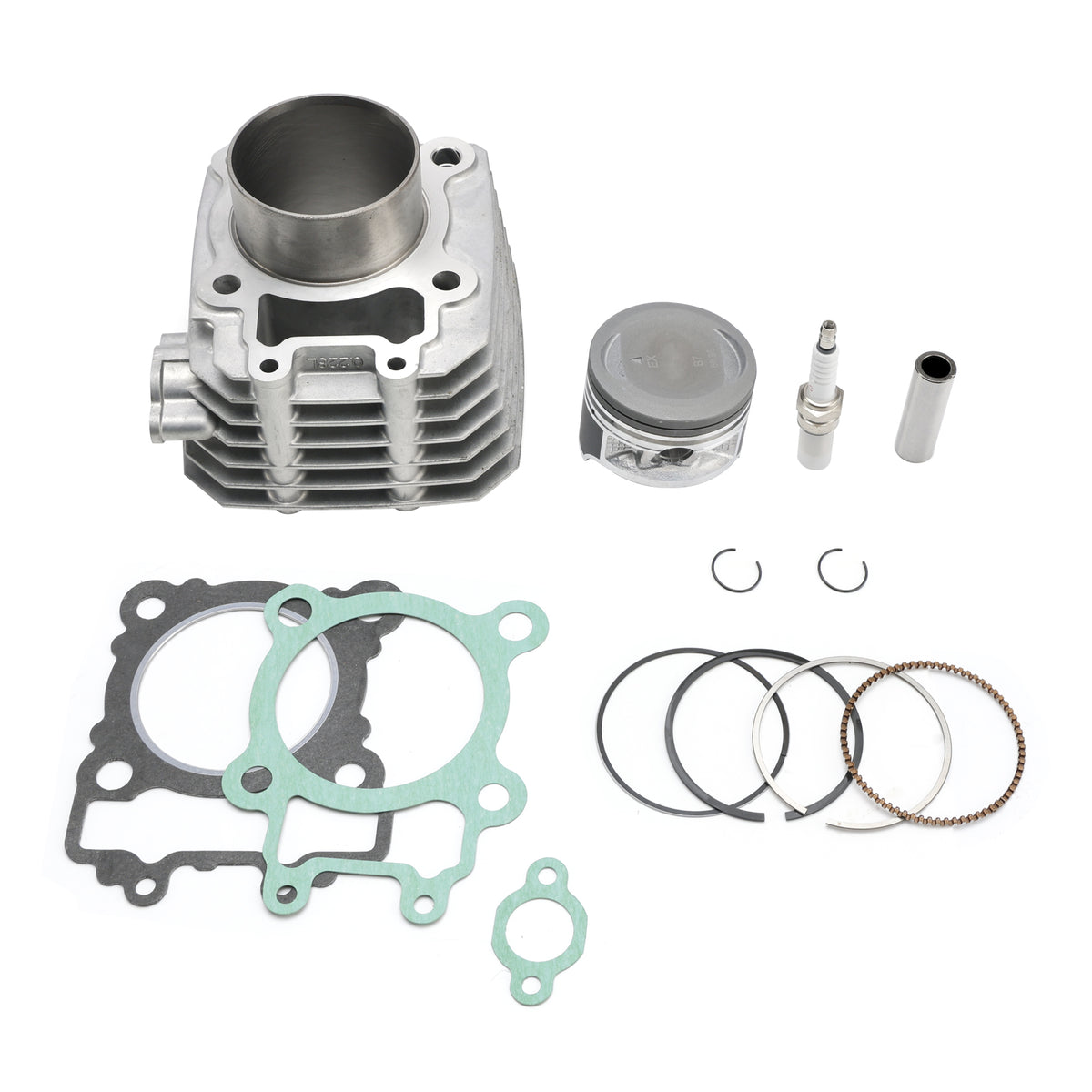

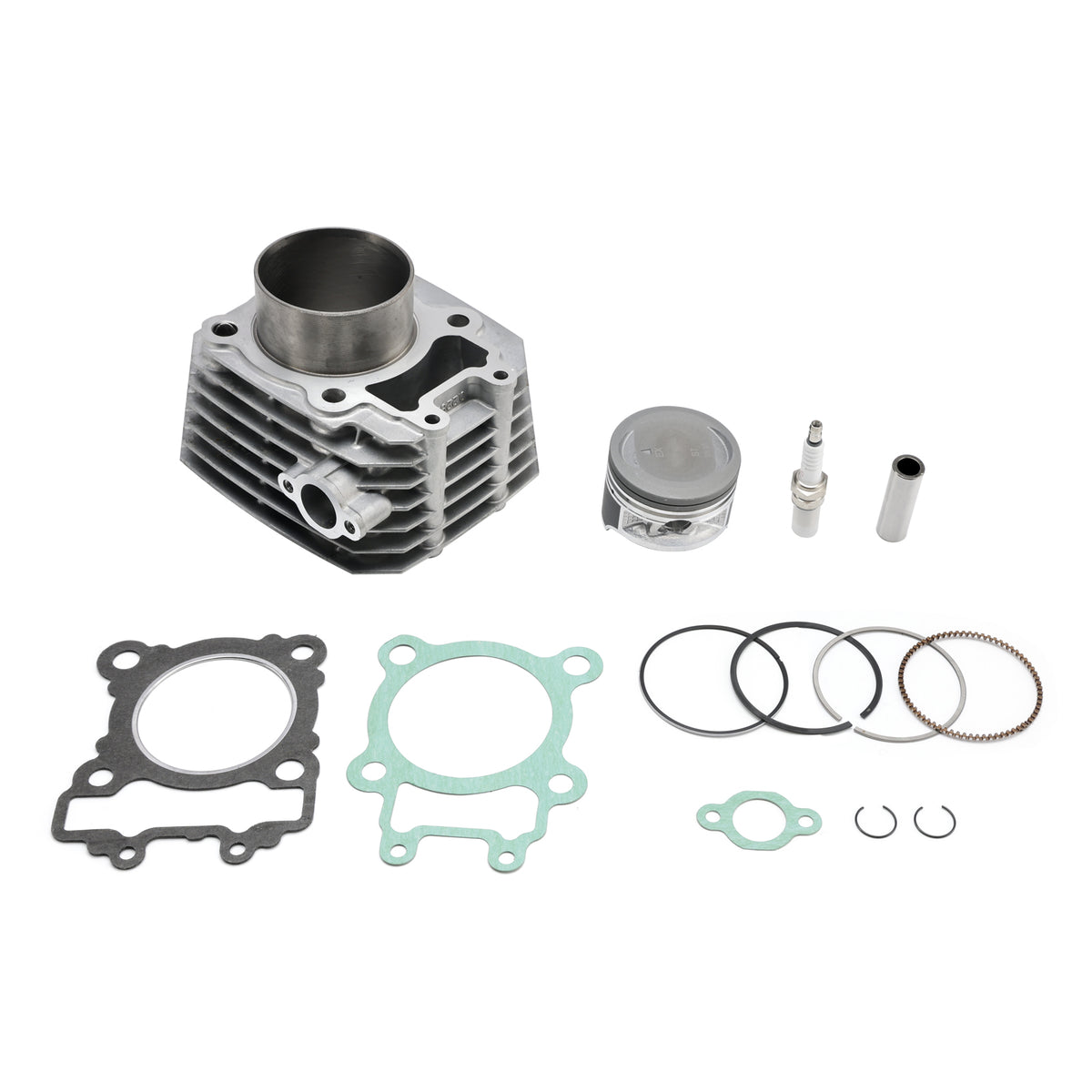

Package Includes: 1x Cylinder 1x Piston 1x Piston Ring Set 1x 16mm Wristpin 1x Circlip(2) 1x Cylinder Base Gasket 1x Cylinder Head Gasket 1x Tensioner Gasket 1x Spark Plug
(Comes exactly as pictured.)
Note: Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
