92mm Cylinder Piston Gasket Top End Rebuild Kit For Honda Rubicon TRX 500 FA FGA FPA 2001-2014

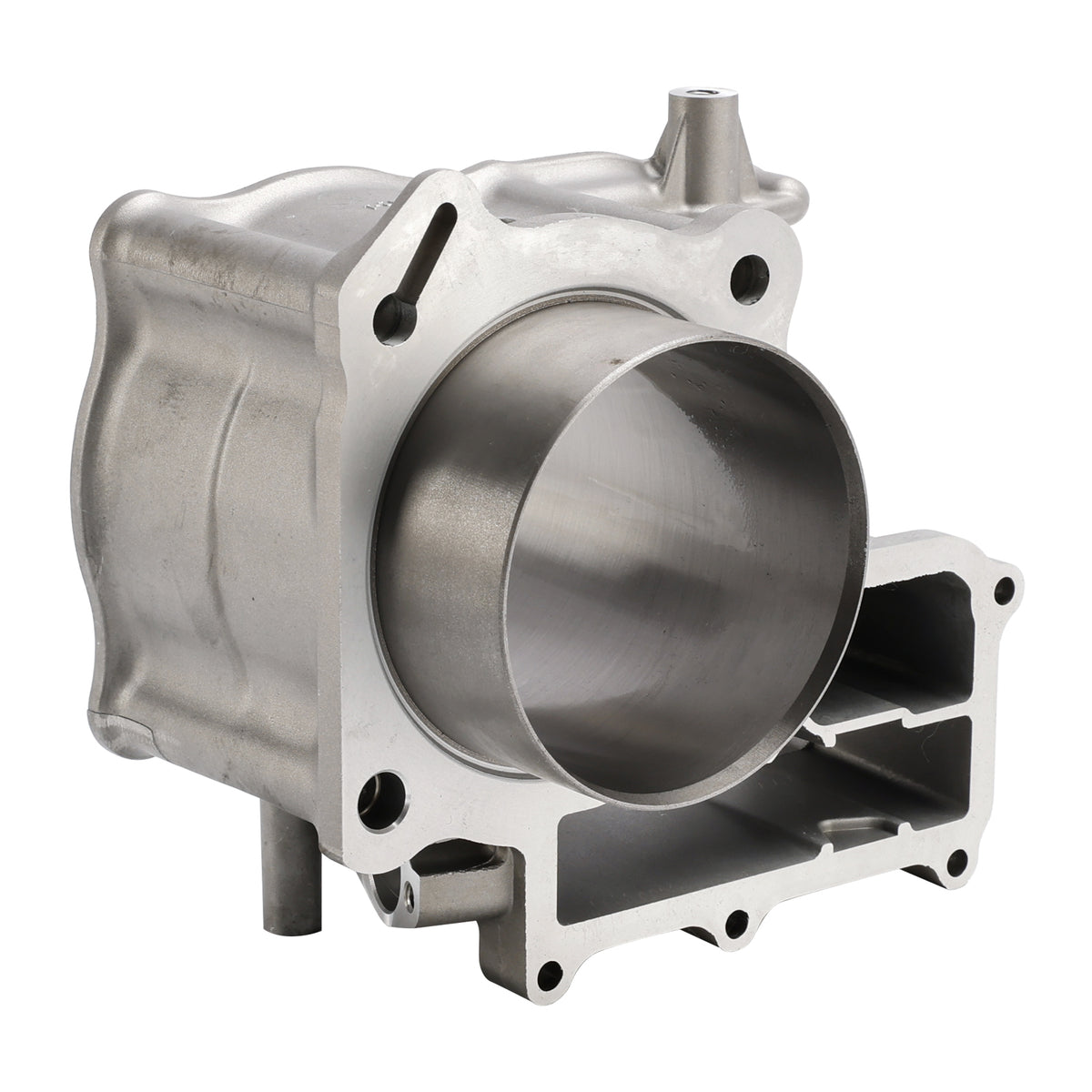

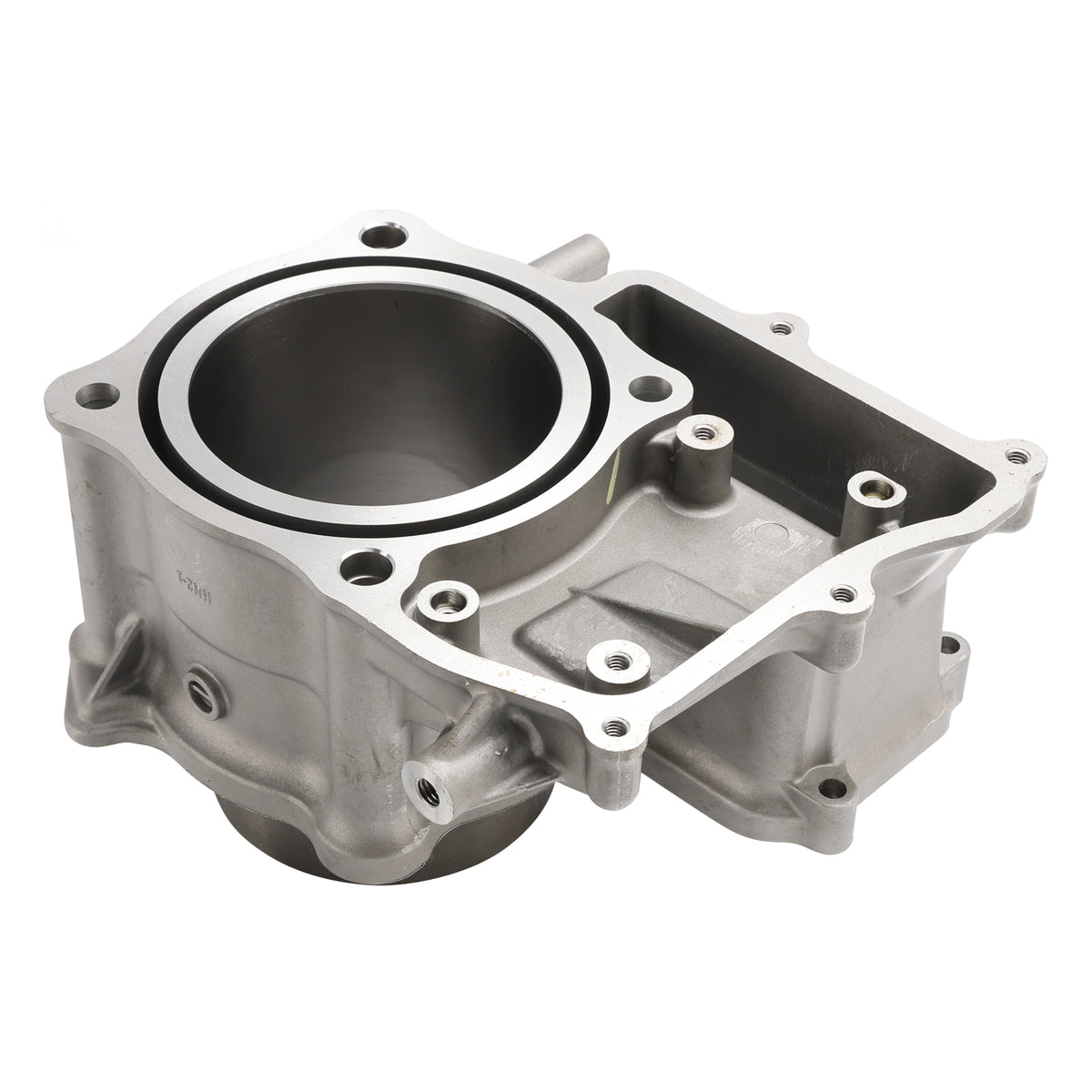

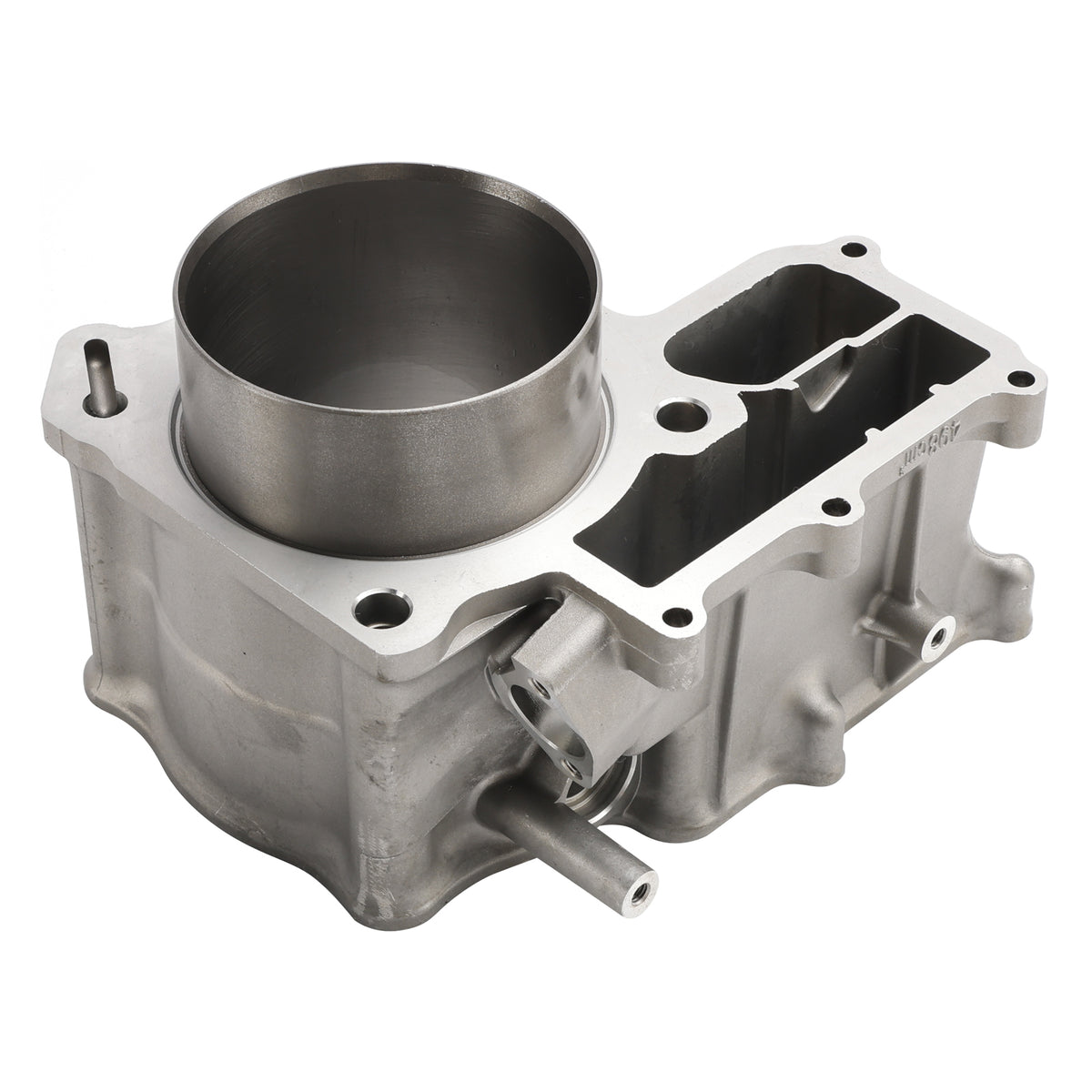

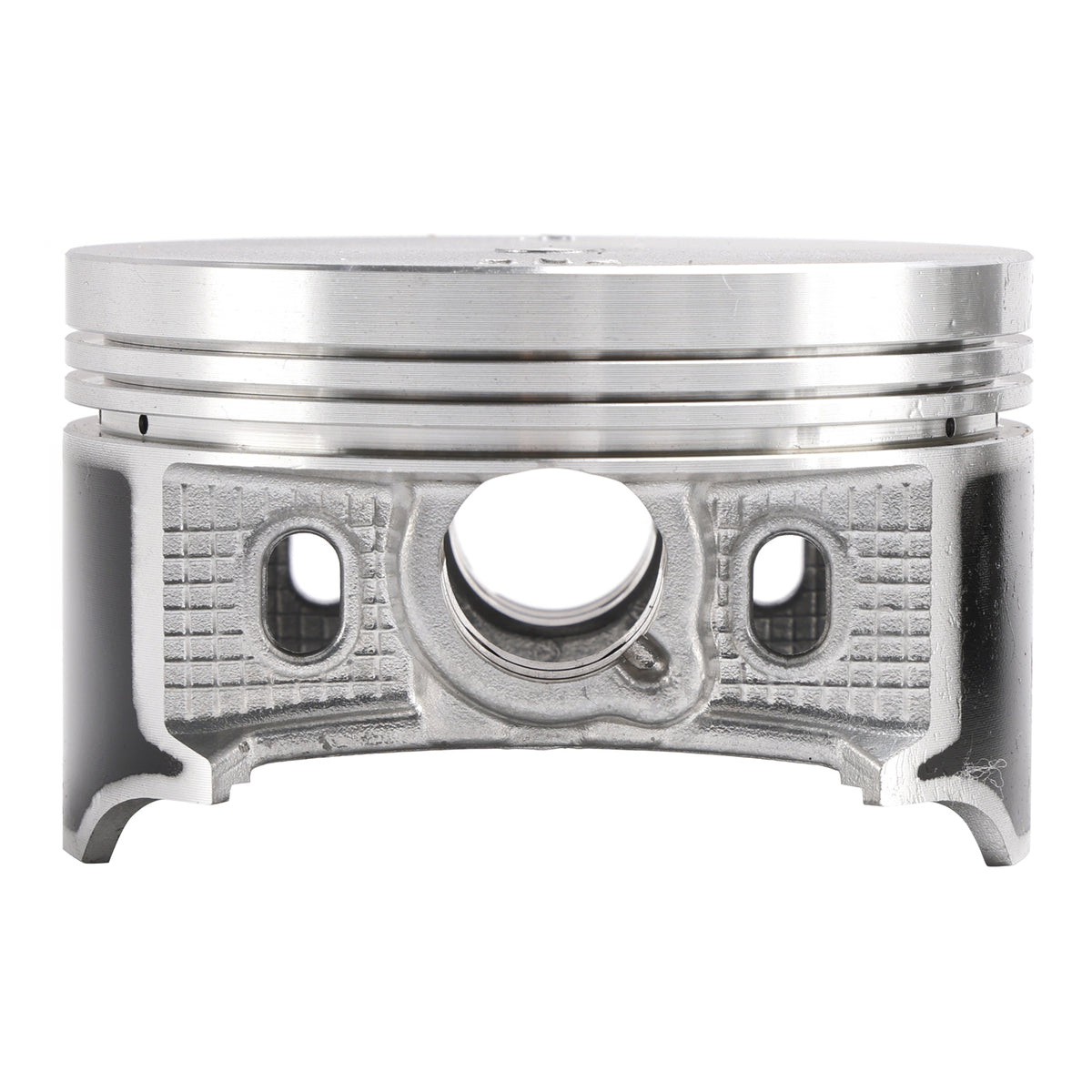

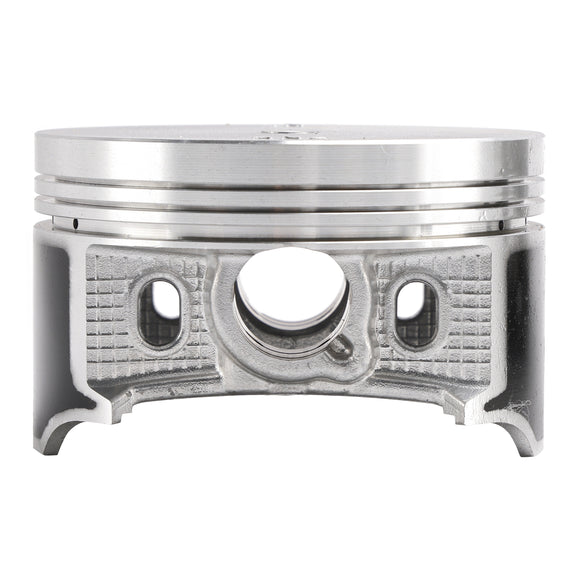

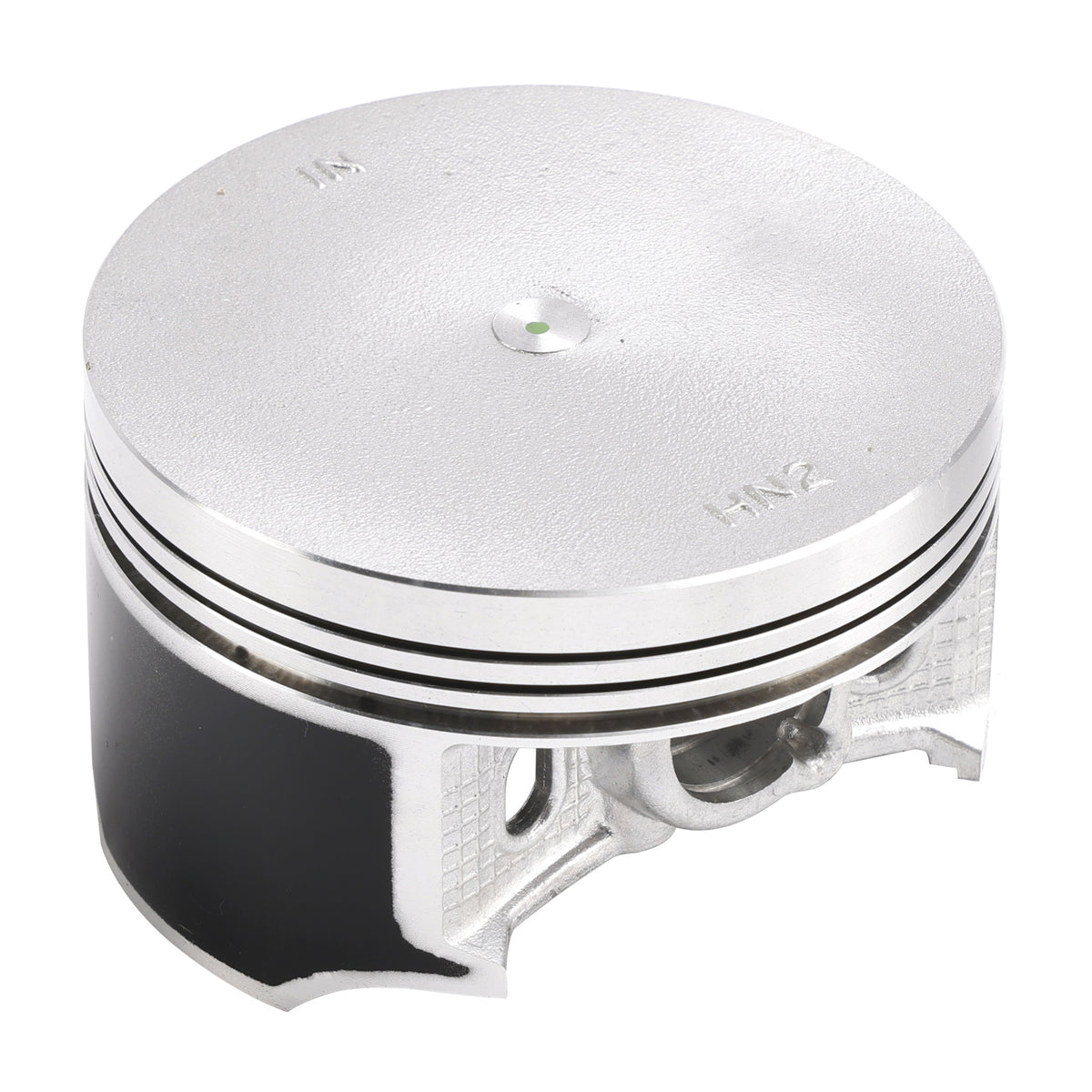

Features: If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you. Kit includes cylinder, domed piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). Piston is anodized for superior heat resistance and longer lifespan. The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for standard bore size - 92.0 mm x 75.0 mm stroke, 20mm steel piston pin. Compression Ratio 9.2 : 1. This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications: Condition: Aftermarket 100% Brand New Quantity: 1 Set Material: Aluminum Displacement: 498cc Bore Type: Standard Bore Bore diameter: STD 92mm Stroke: 75mm Pin diameter: 20mm Pin Height: 62mm
Replacement Part Number: Cylinder: 12100-HN2-000 Cylinder Base Gasket: 12191-HN2-000 Cylinder Head Gasket: 12251-HN2-003 Cylinder Head Cover Gasket: 12315-HN2-003 Chain Tensioner Gasket: 12194-HC5-740 Piston (Std): 13101-HN2-000, 13101-HN2-010 Pin, Piston: 13111-HN2-000 Piston Ring Set (Std): 13010-HN2-003 Circlips, piston (2): 90601-KA5-000
Fits Make/Model/Year: Fit for Honda TRX500FA FourTrax Foreman Rubicon 2001-2014 Fit for Honda TRX500FGA FourTrax Foreman Rubicon GPScape 2004-2009/2011 Fit for Honda TRX500FPA FourTrax Foreman Rubicon with EPS 2009/2011-2014
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

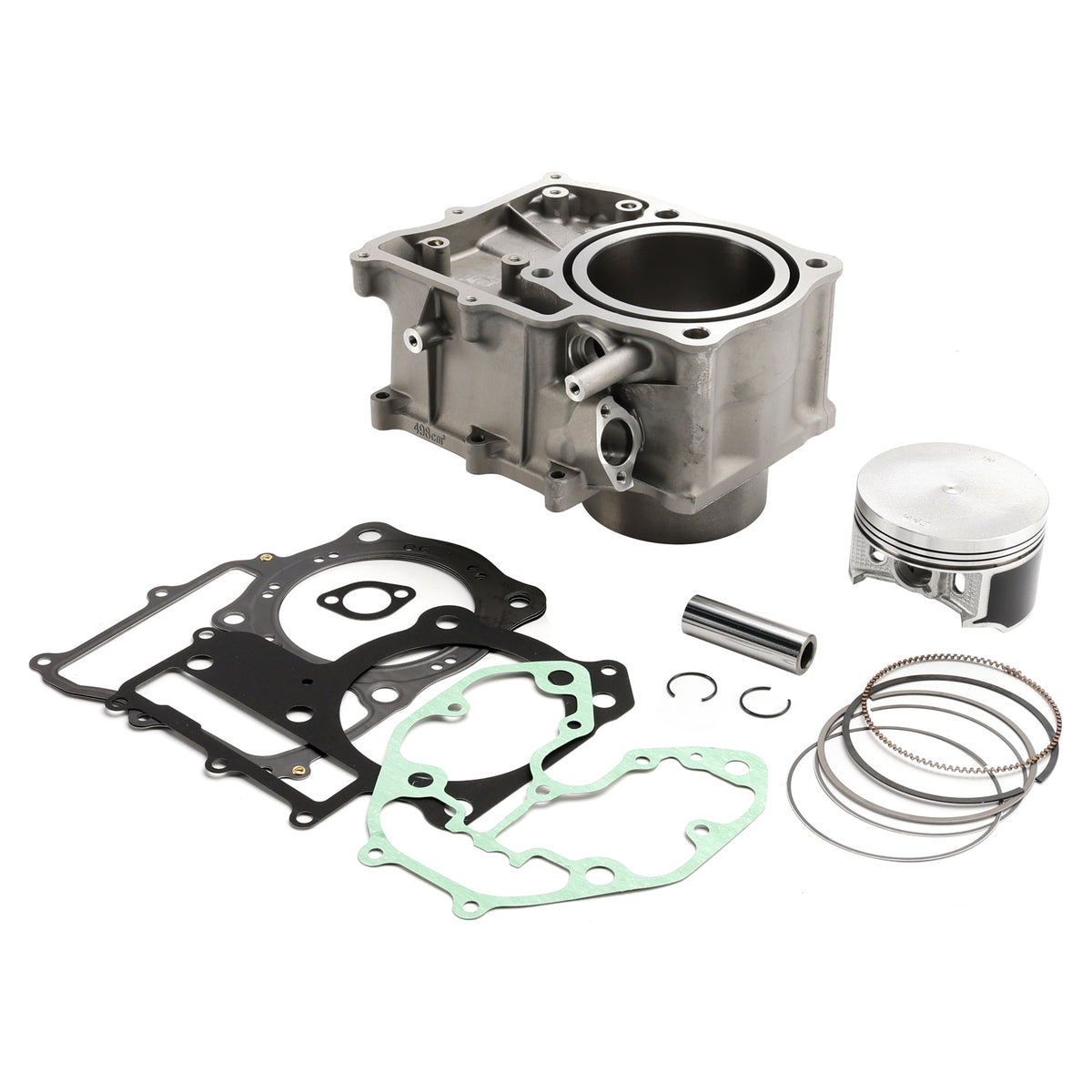

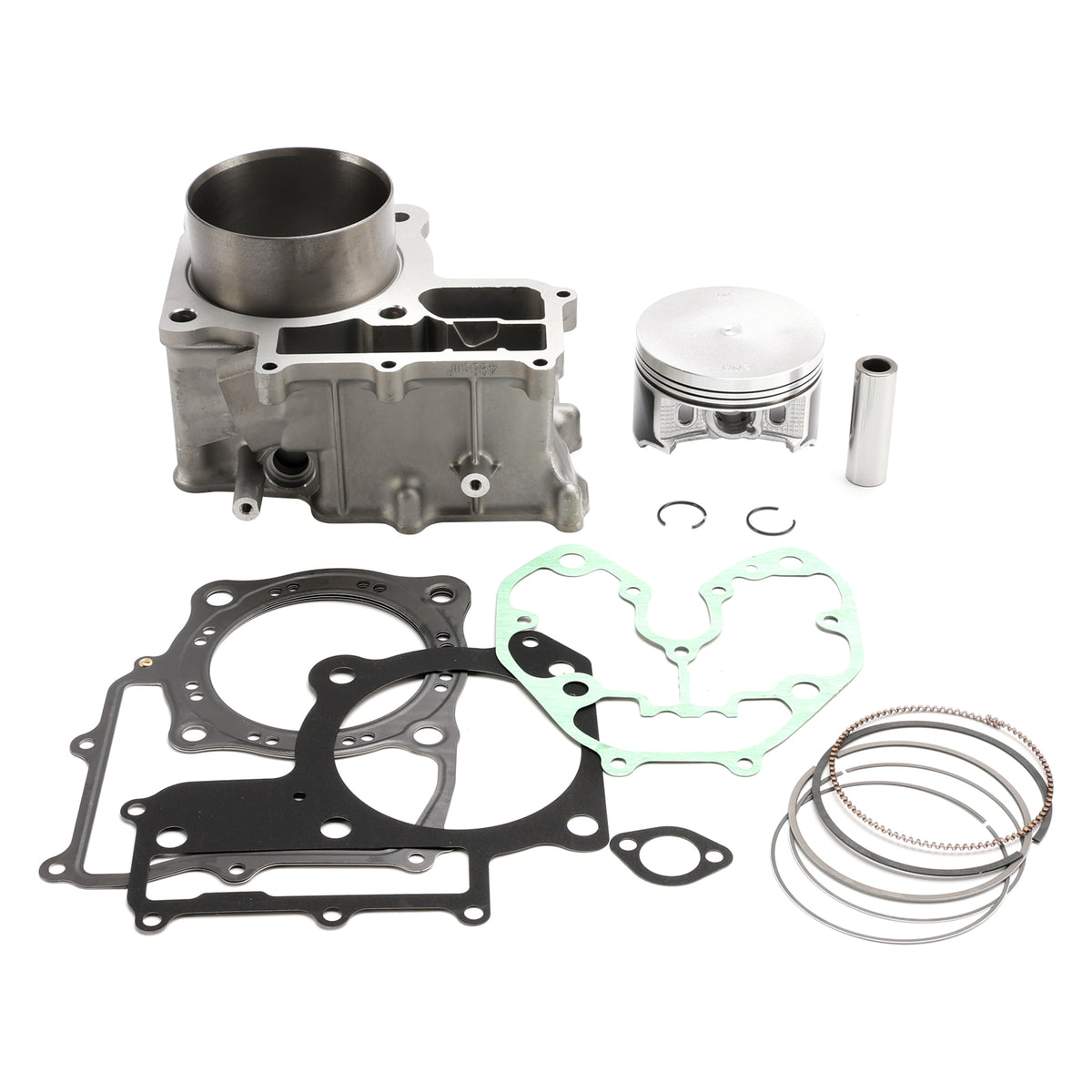

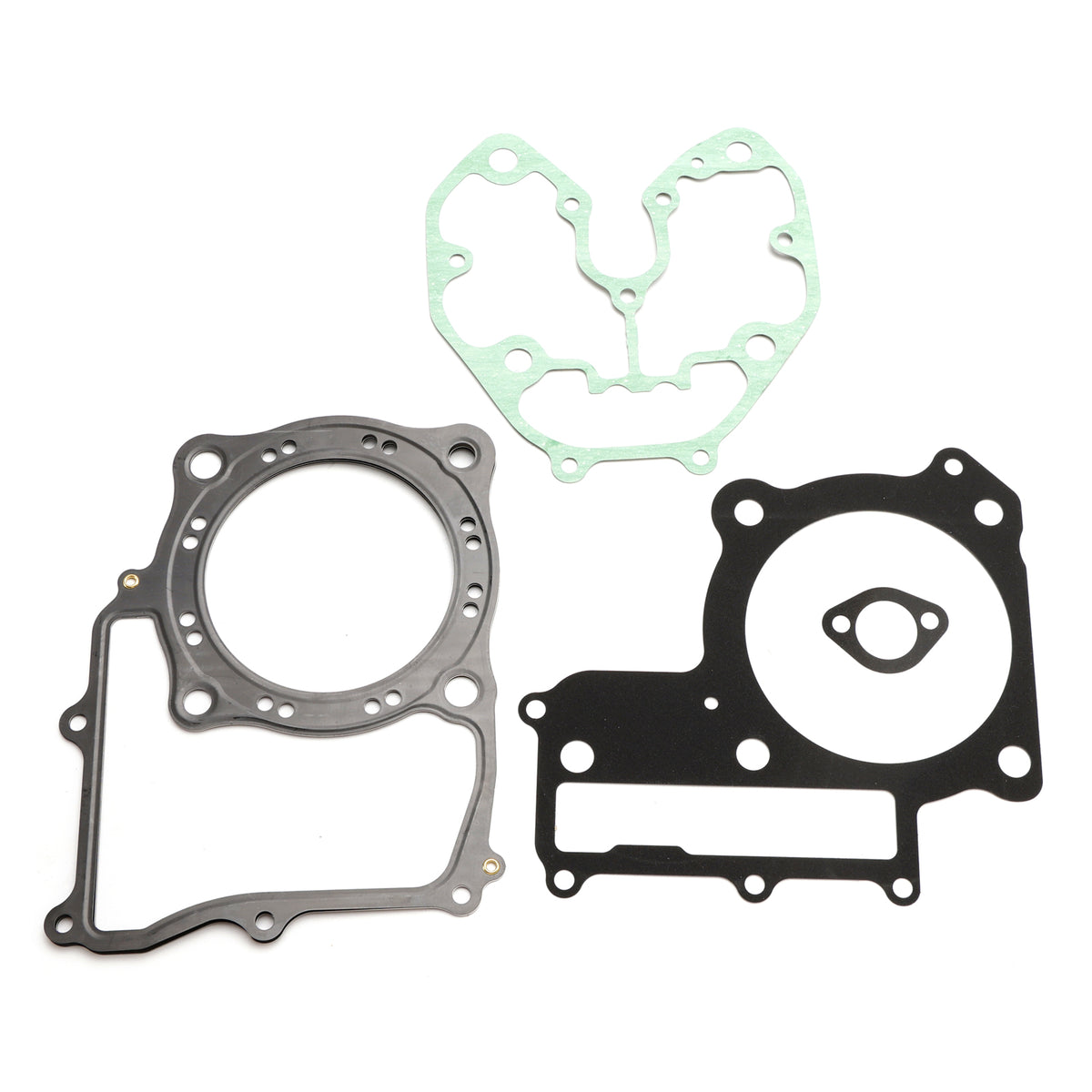

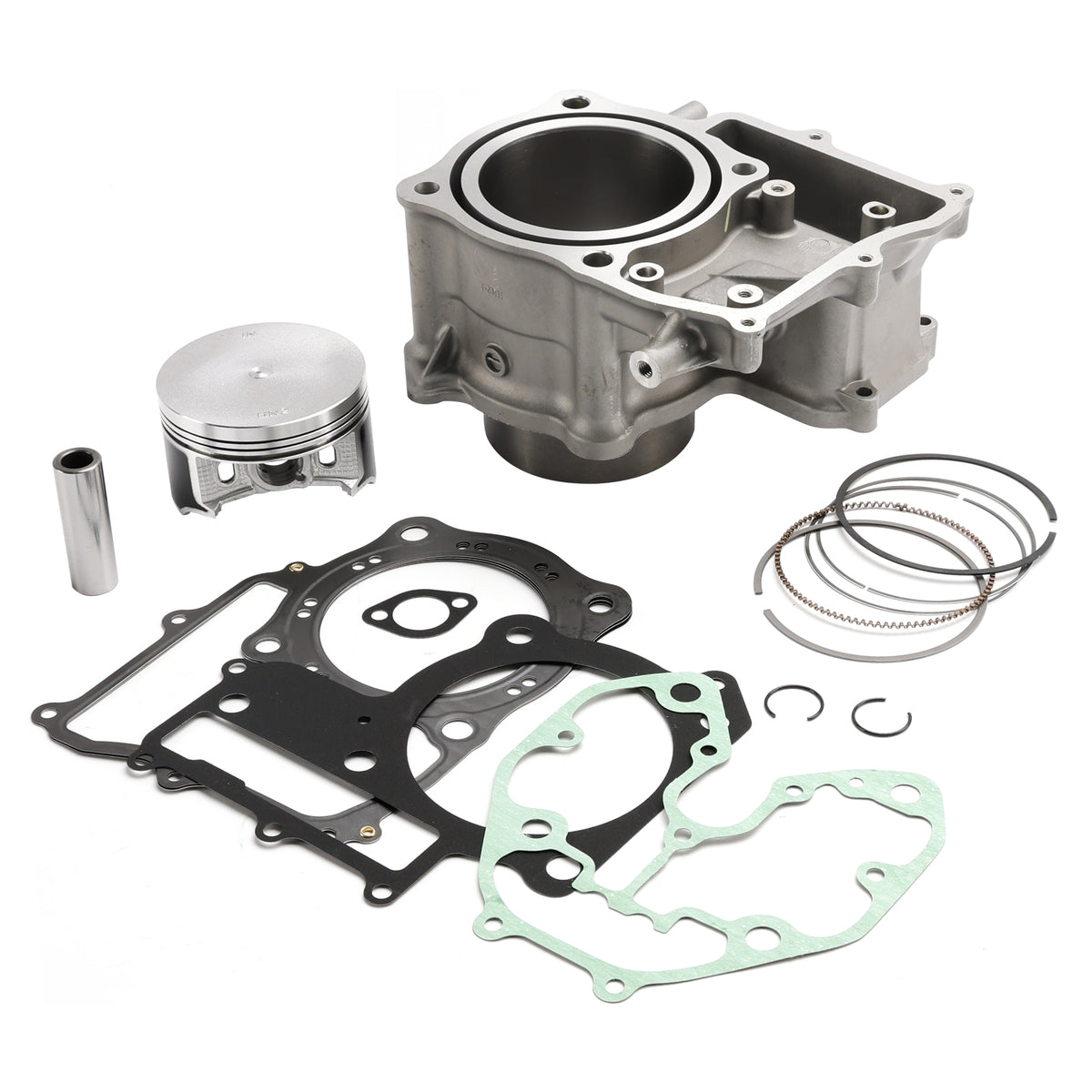

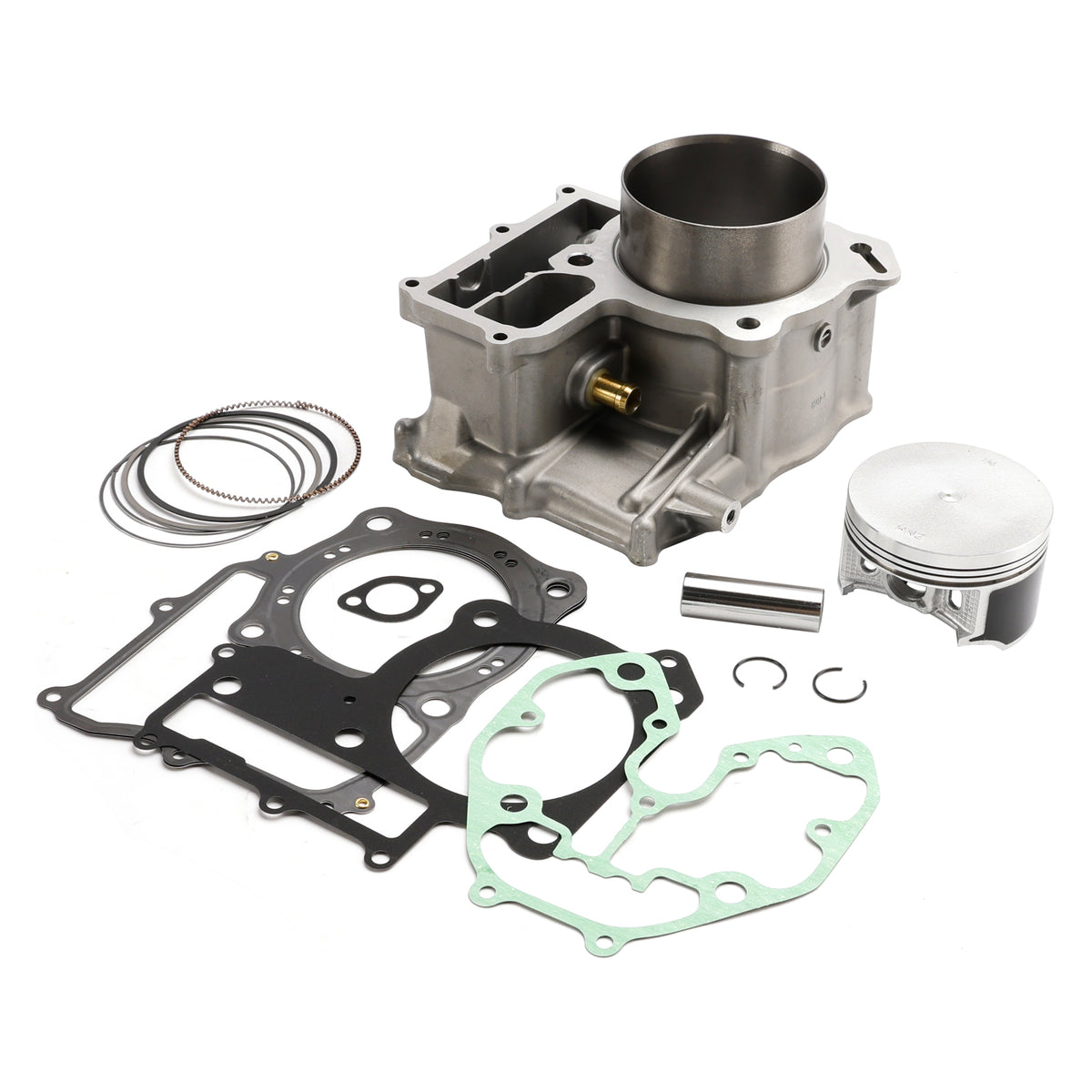

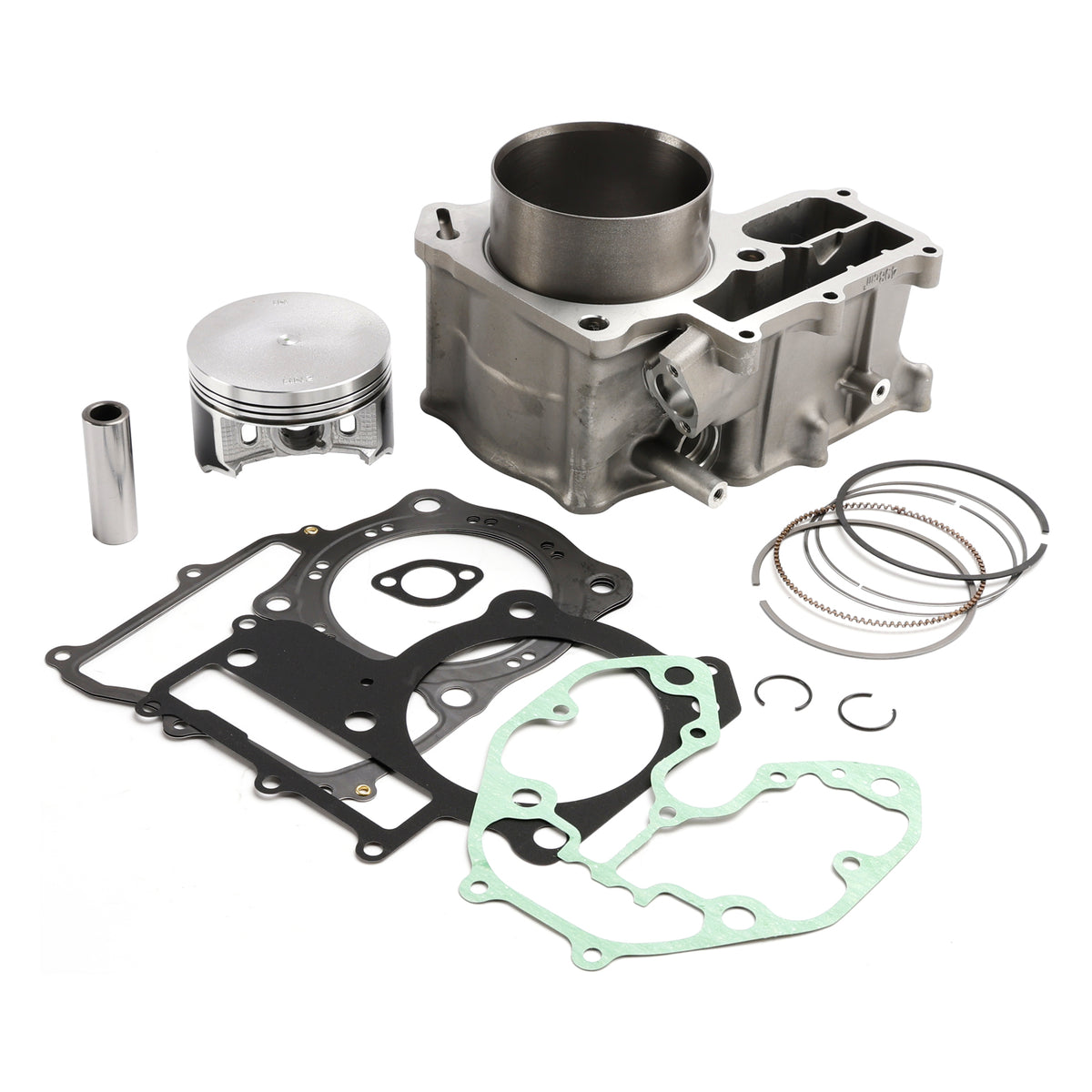

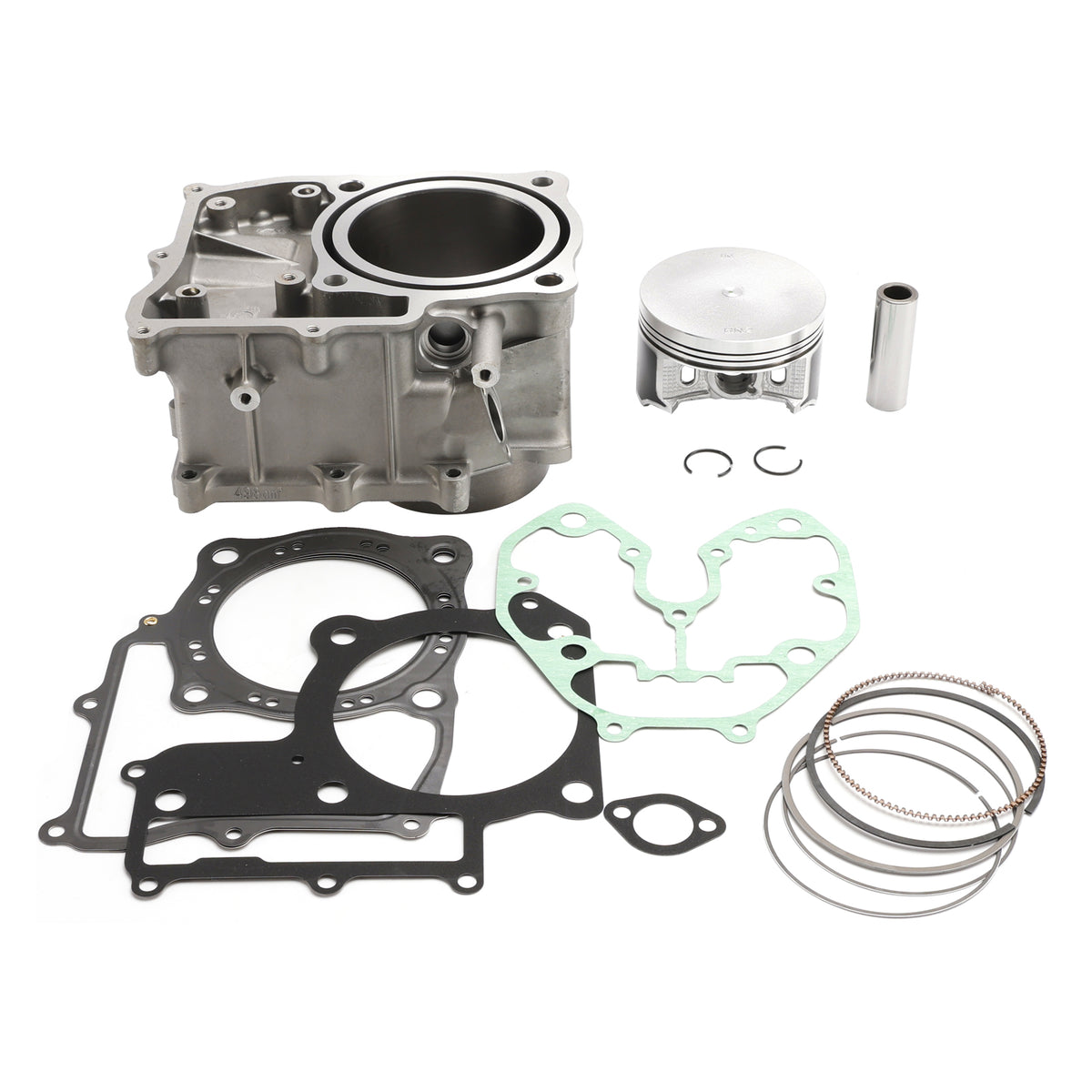

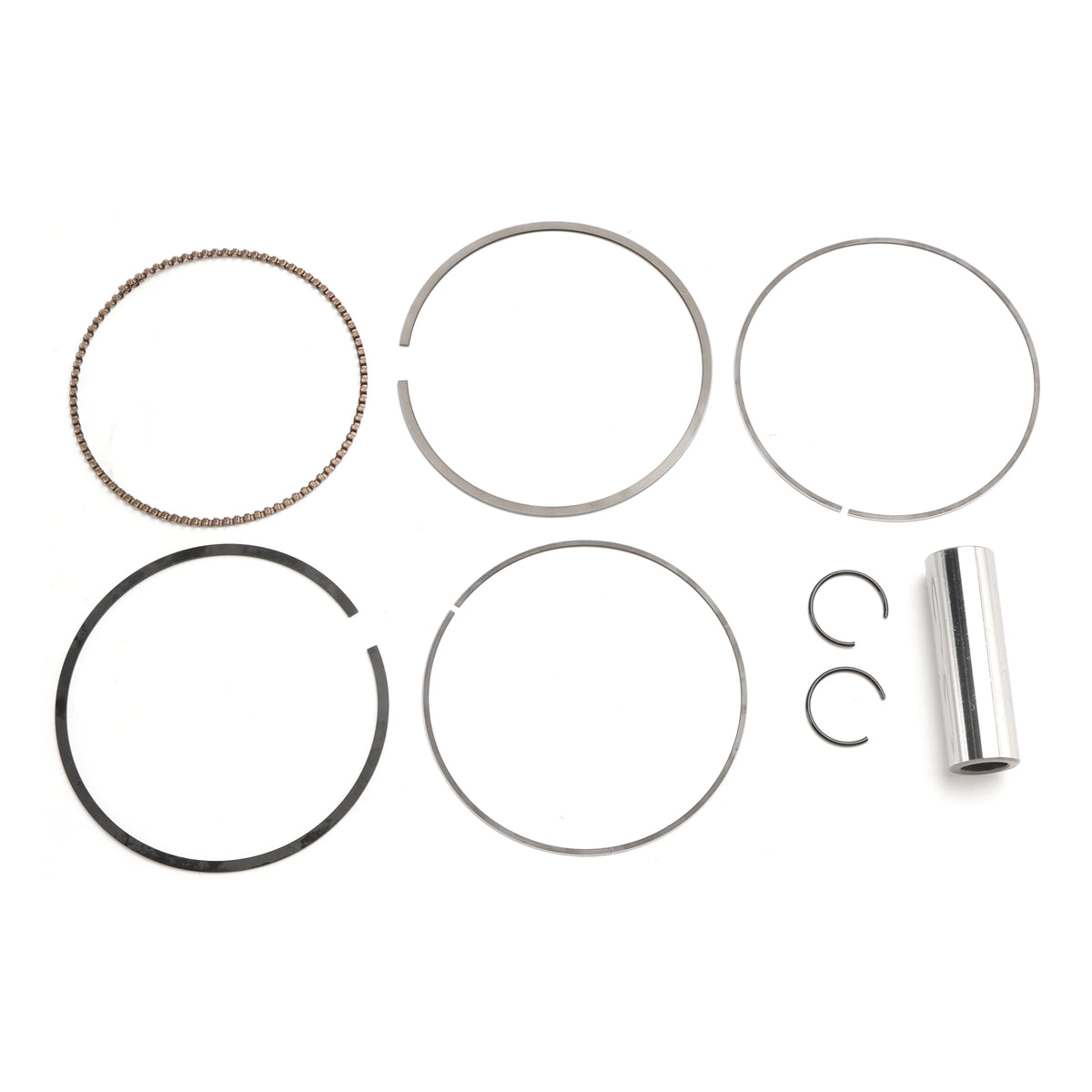

Package Includes: 1x Cylinder 1x Piston 1x Piston Ring Set 1x 20mm Wristpin 1x Circlip(2) 1x Cylinder Base Gasket 1x Cylinder Head Gasket 1x Cylinder Head Cover Gasket 1x Chain Tensioner Gasket
(Comes exactly as pictured.)
Note: Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
