Honda CRF110 CRF110F 2013-2025 Cylinder Block Piston Gaskets Top End Kit

Cylinder Piston Gasket Top End Rebuild Kit 50mm For Honda CRF110F Wave 110i C110 Super Cub

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

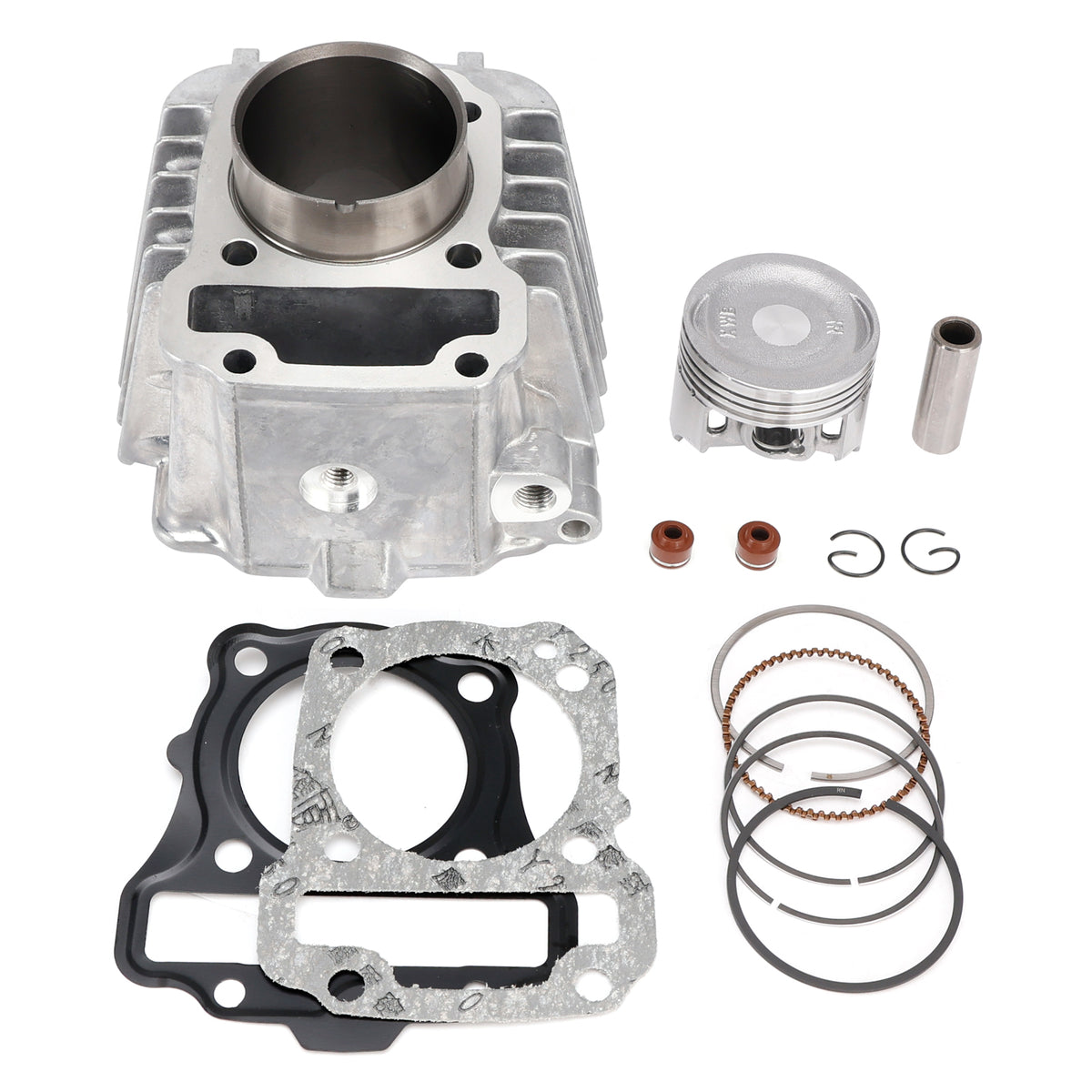

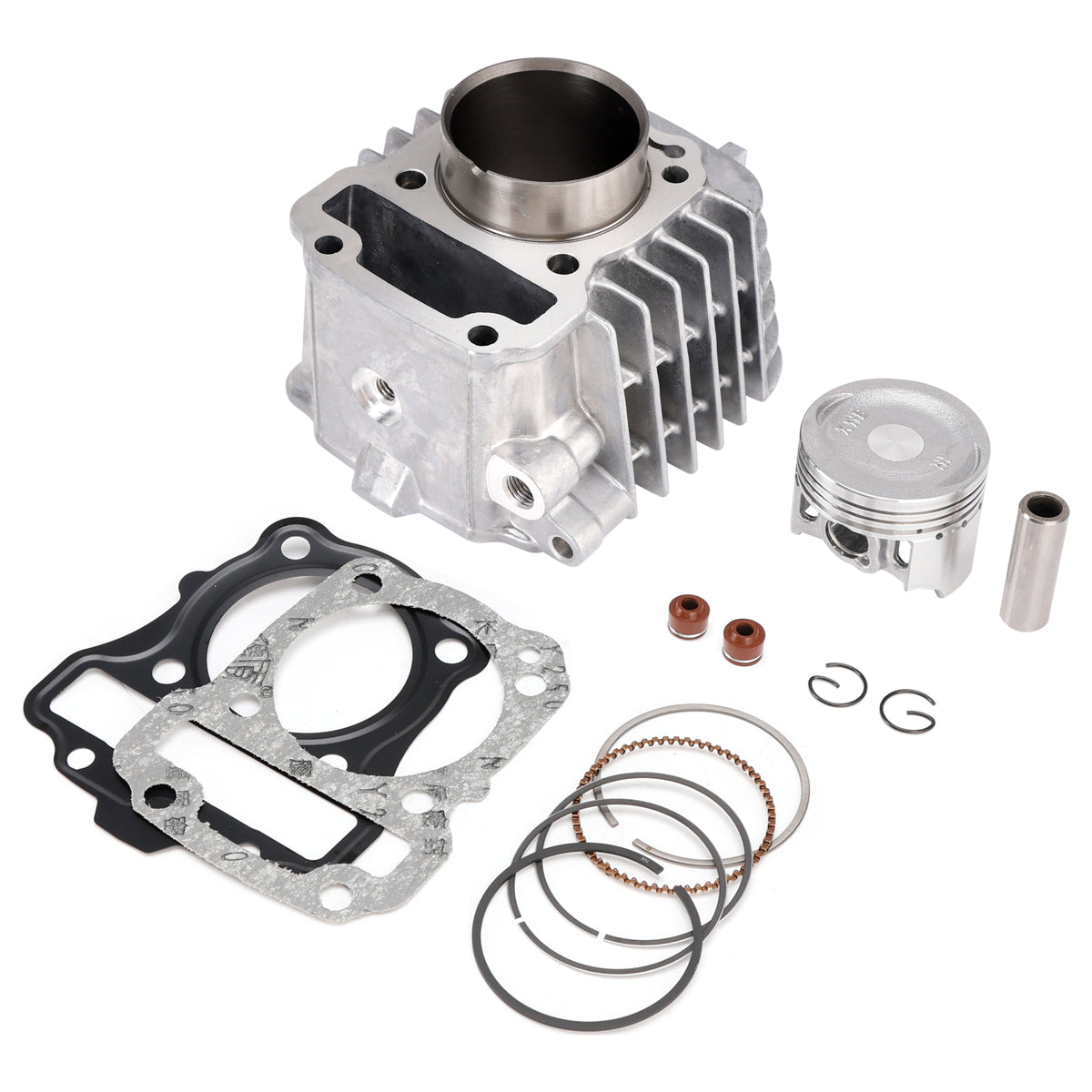

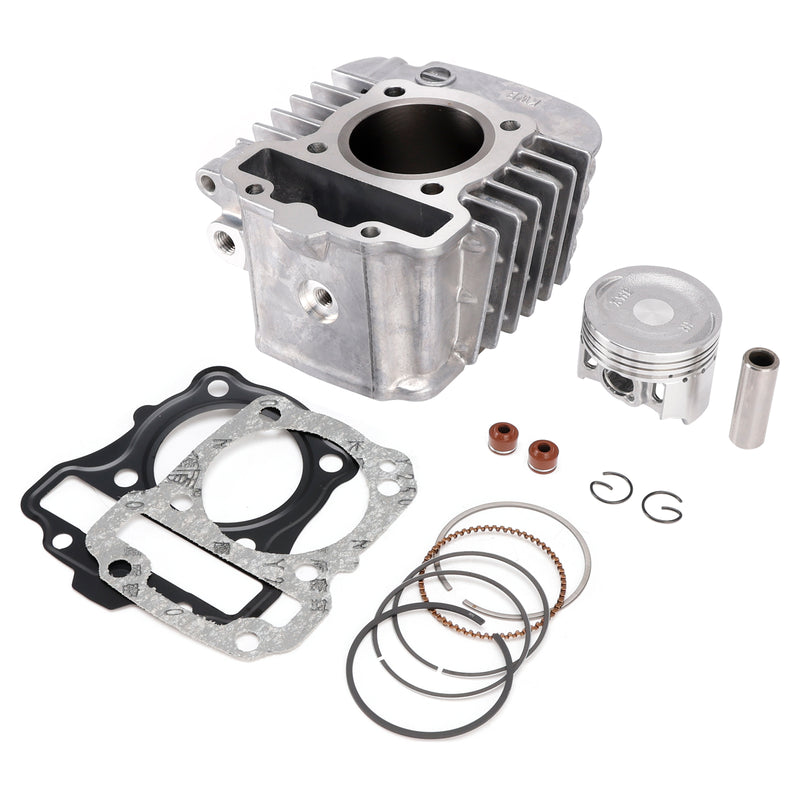

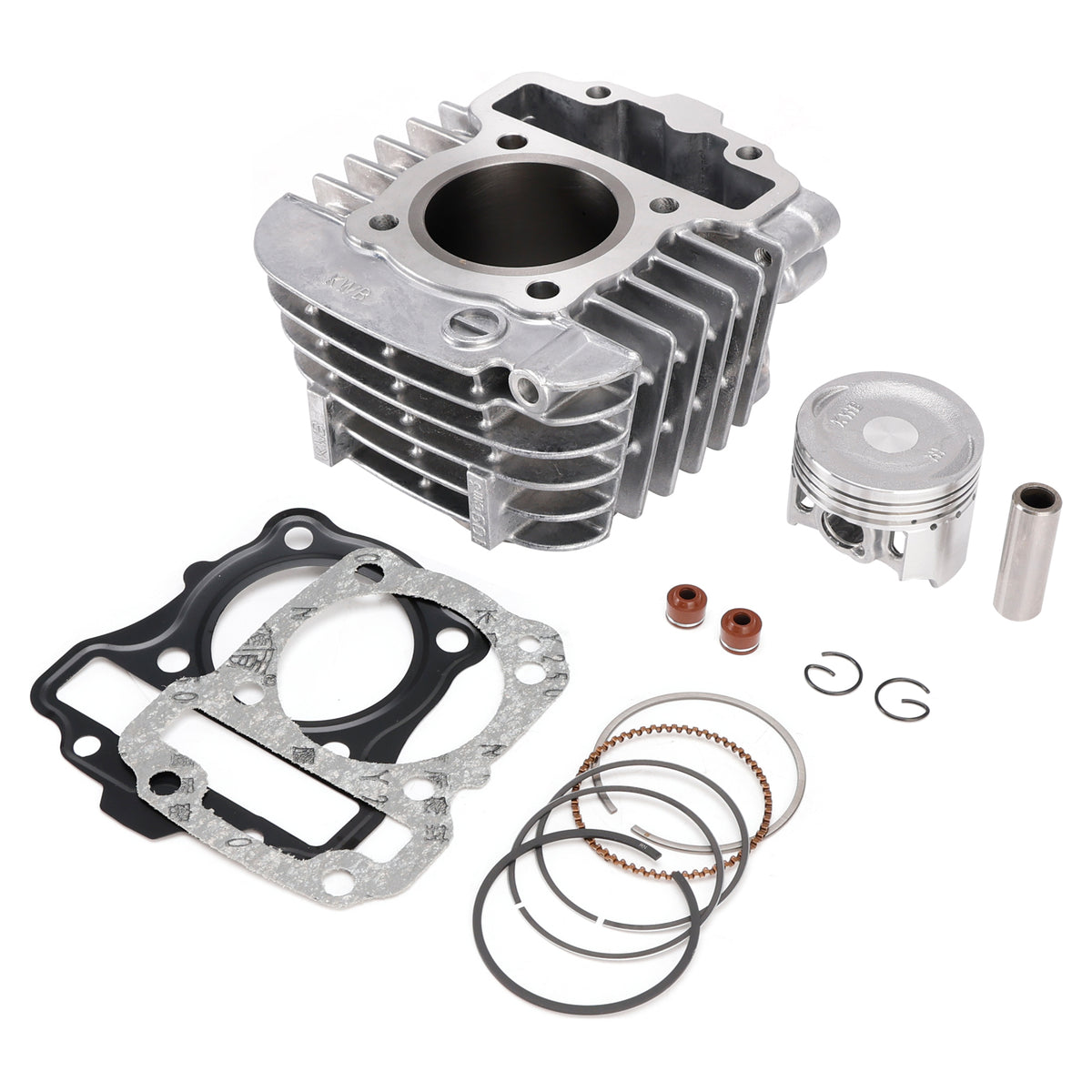

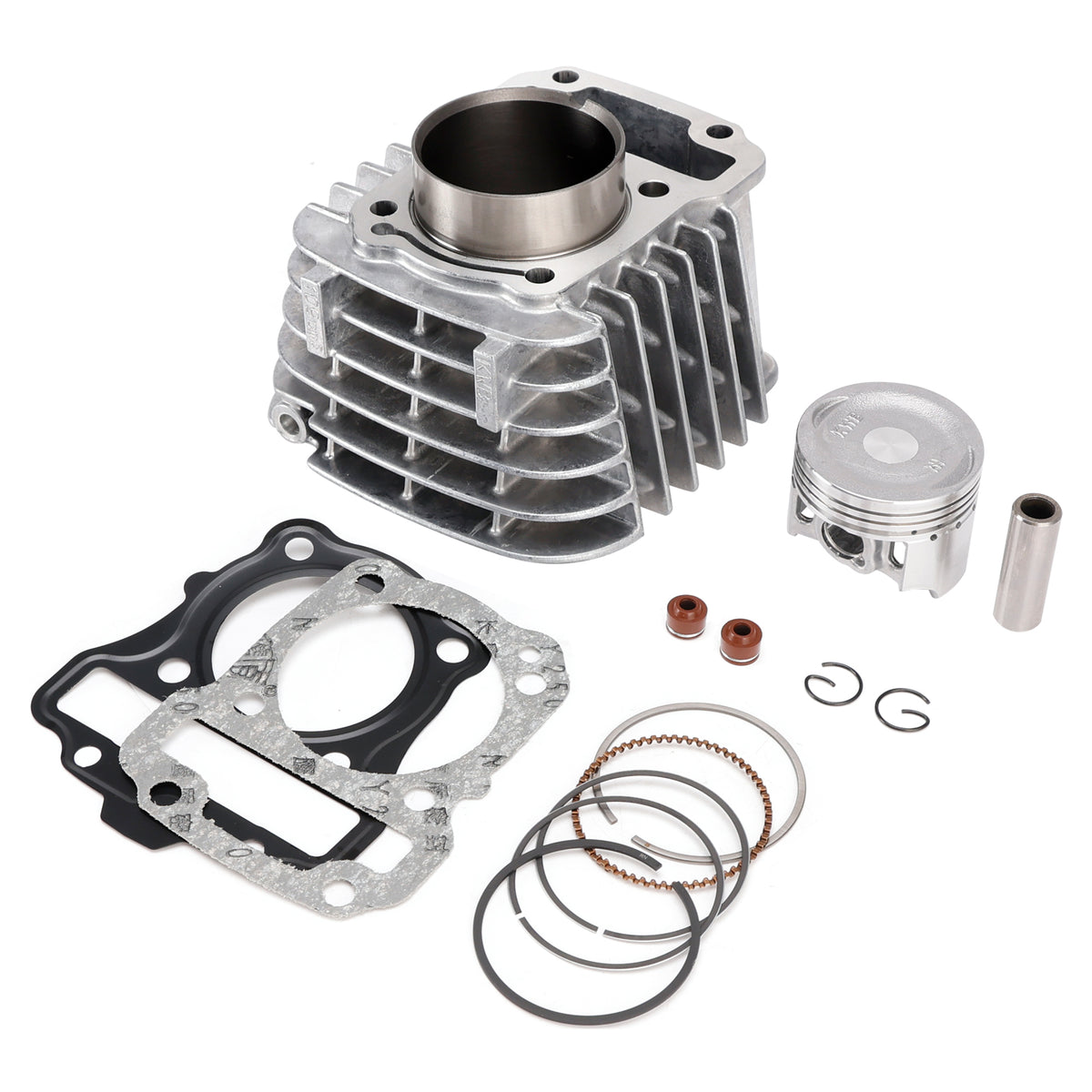

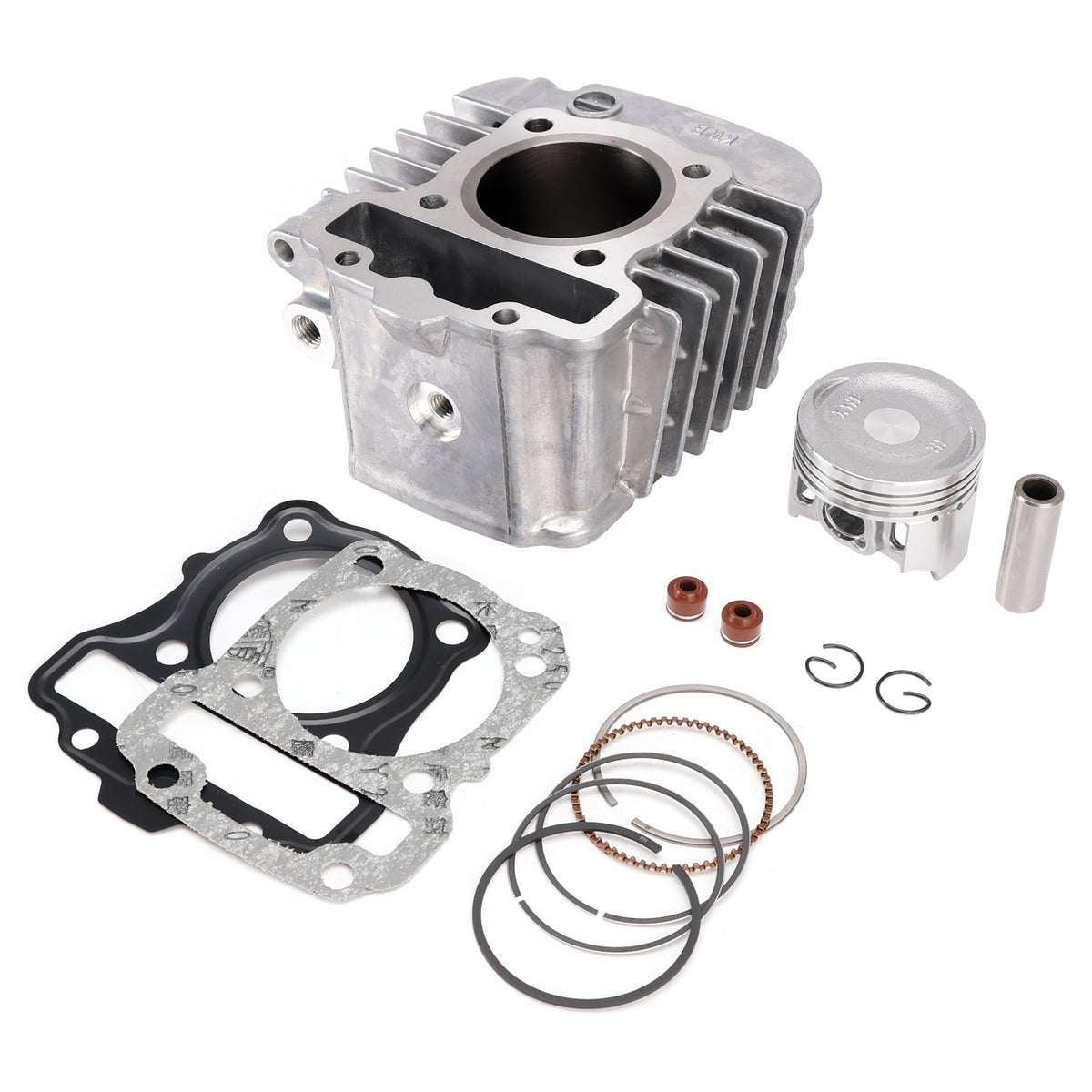

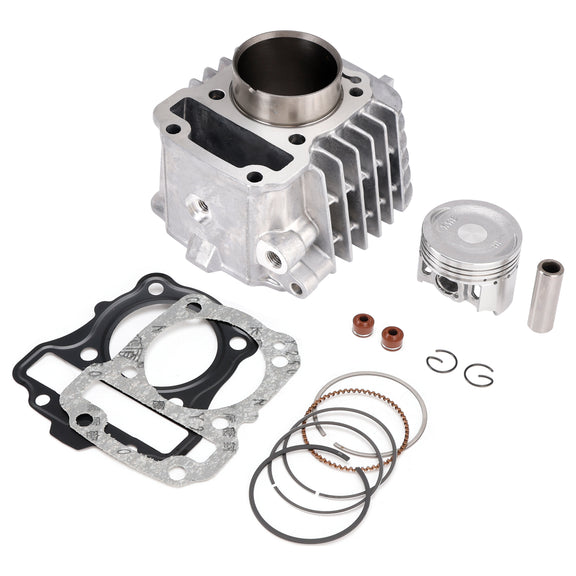

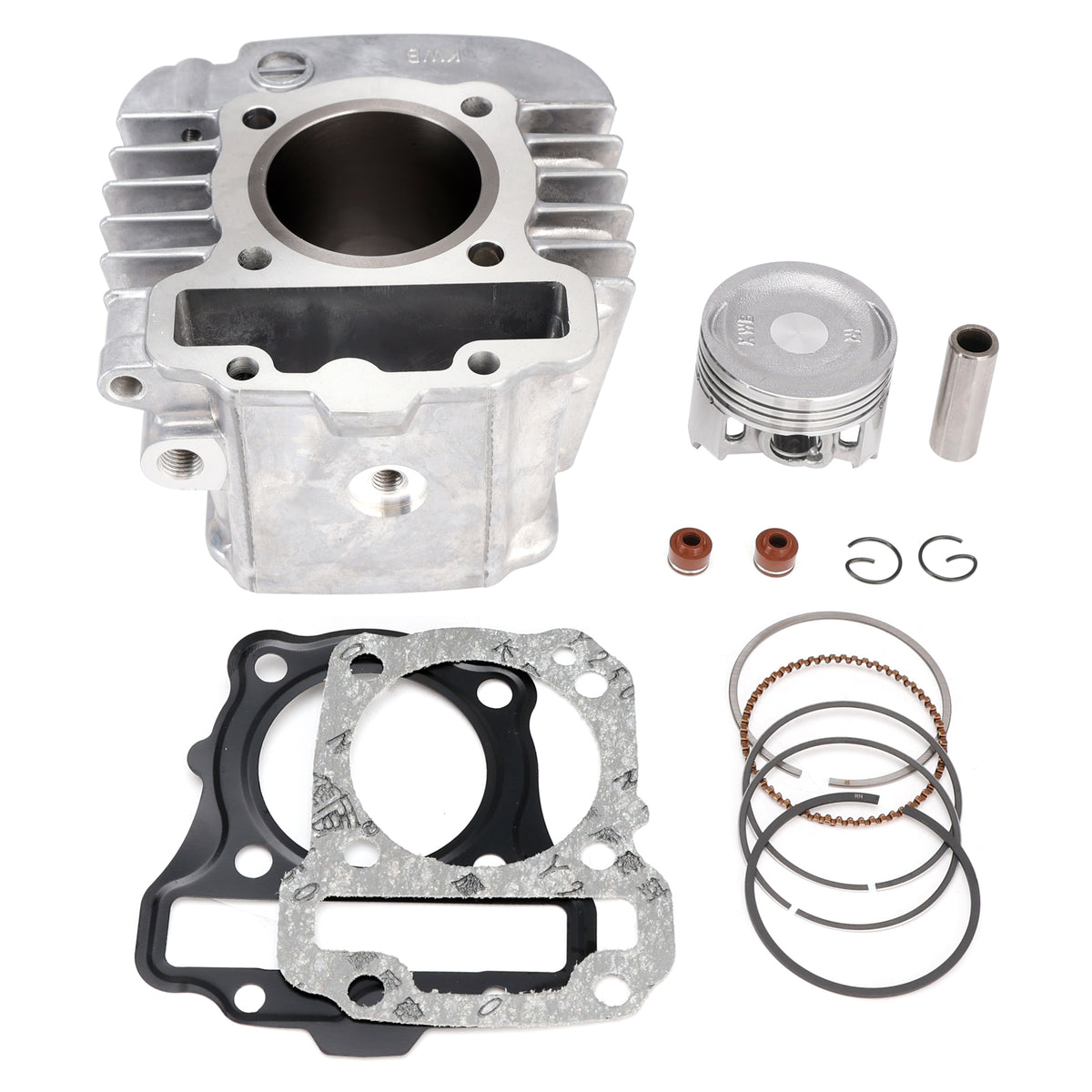

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).

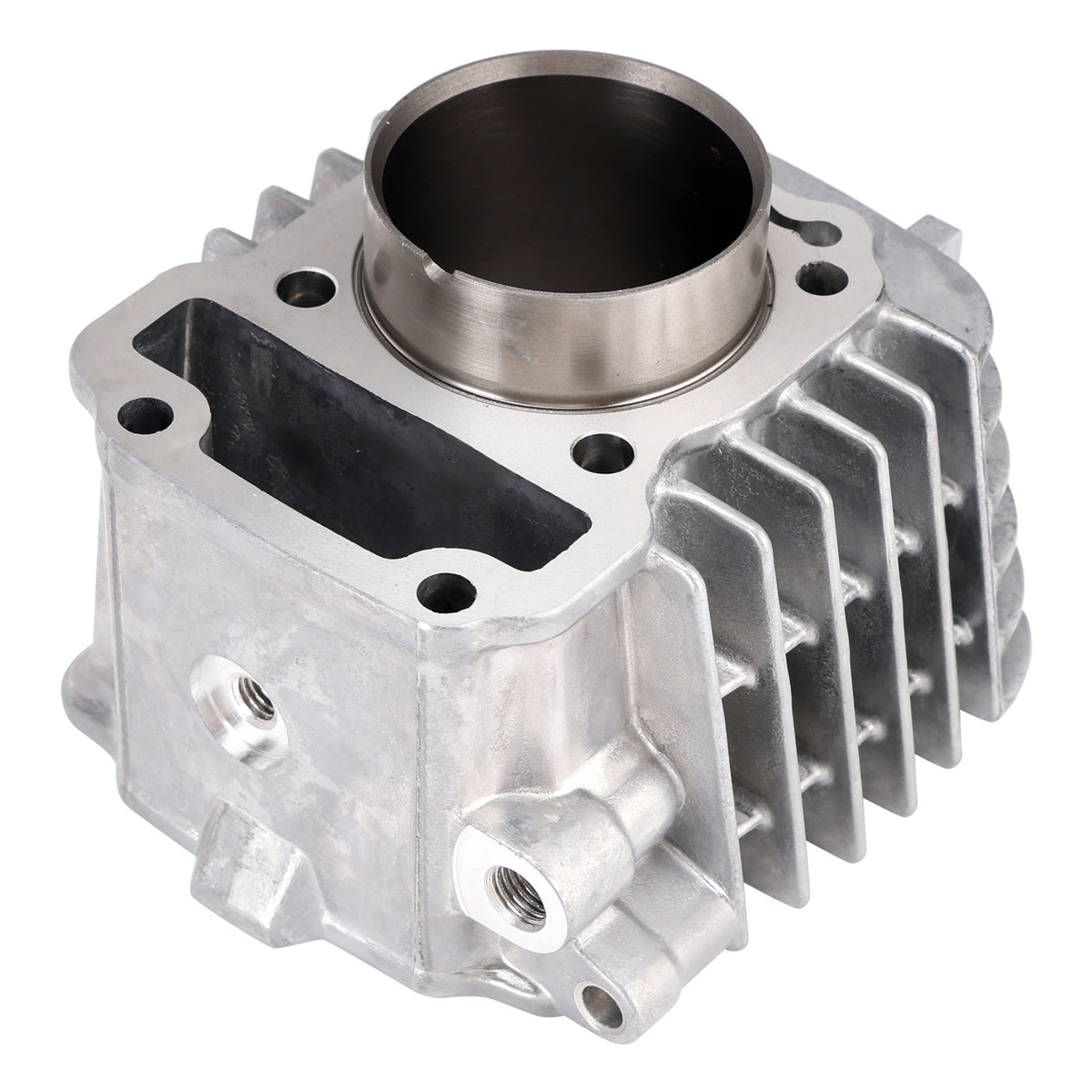

The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment).
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 50 mm x 55.6 mm stroke, 13 mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Engine: 4-Stroke
Displacement: 109cc
Bore Type: Standard Bore
With Temperature Sensor Port: Yes
Temperature Sensor Port Angle: 90掳
Bore diameter: 50 mm
Stroke: 55.6 mm
Pin diameter: 13 mm

Replacement Part Number:
Cylinder: 12100-KWB-600 / 12100-KYK-D10 / 12100-K03-H10

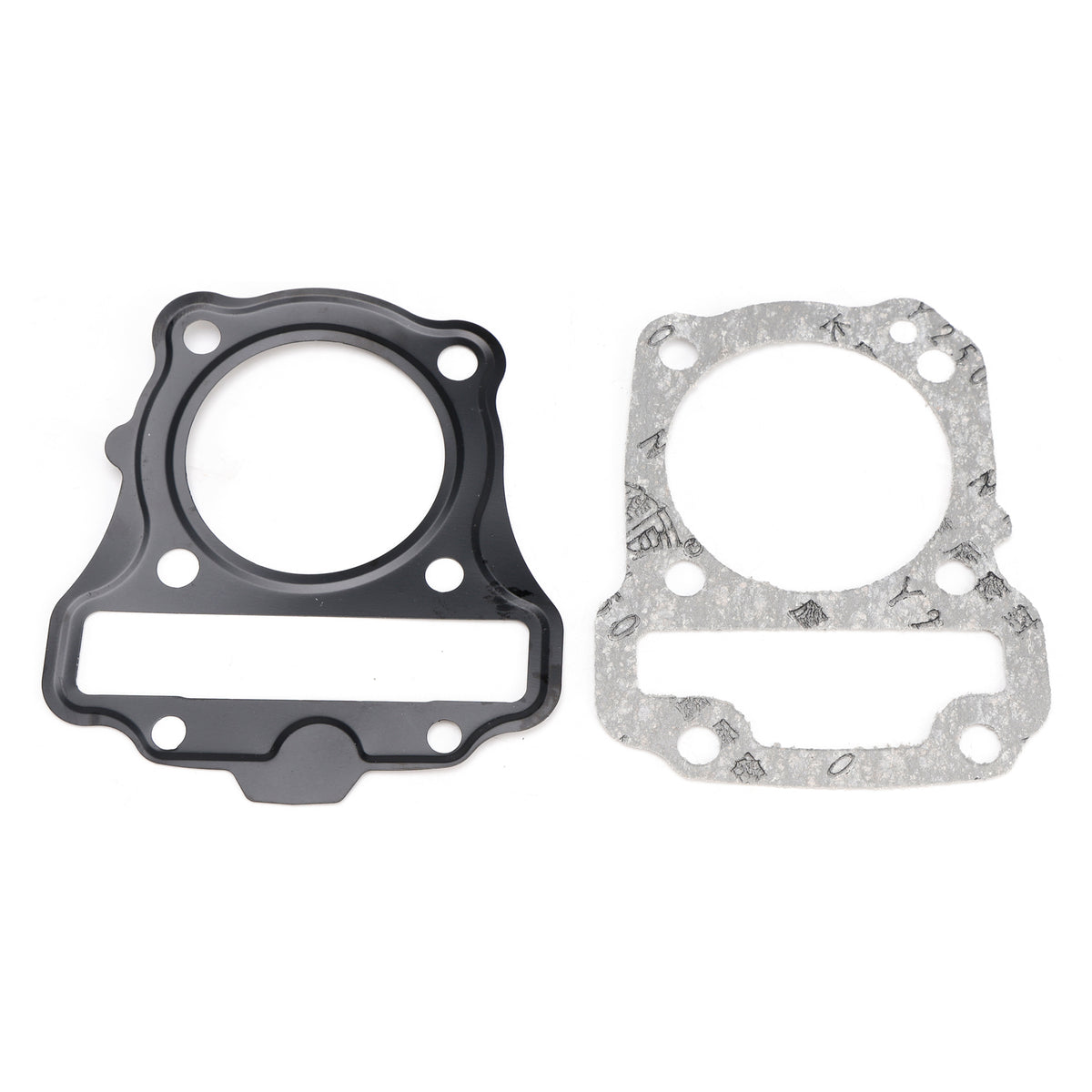

Cylinder Base Gasket: 12191-K58-TC0
Cylinder Head Gasket: 12251-KWB-601

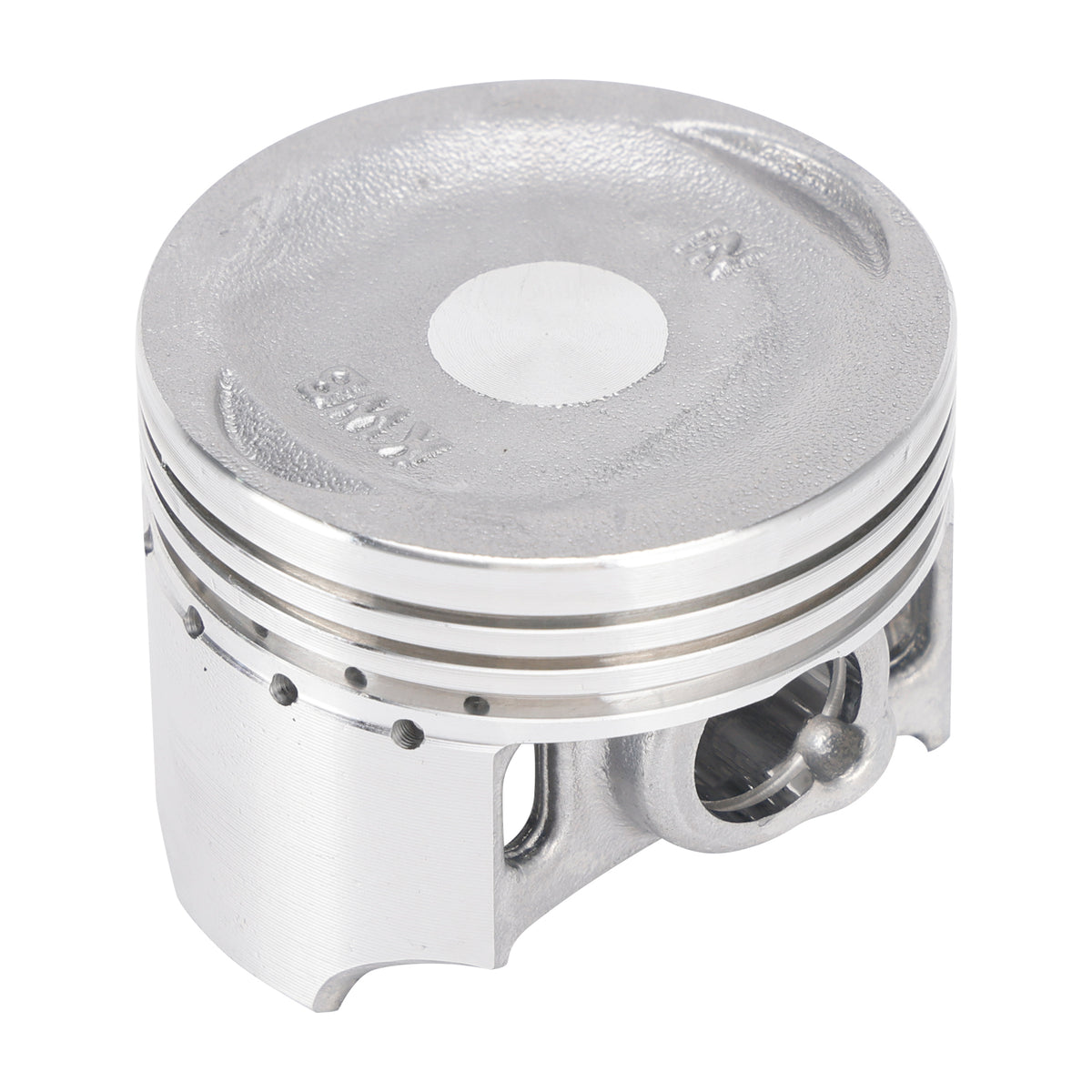

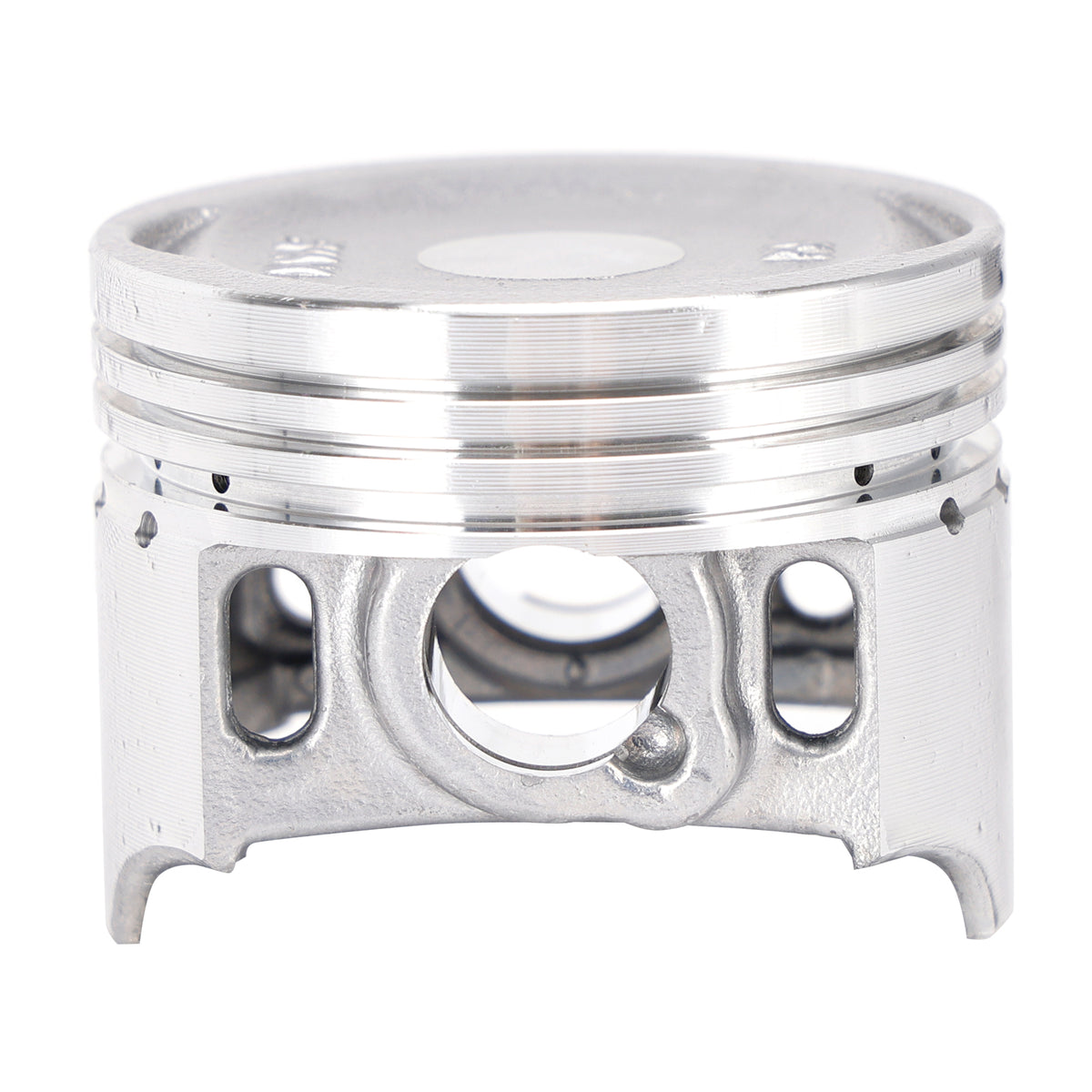

Piston: 13101-KWW-740
Pin, Piston: 13111-KVR-C00

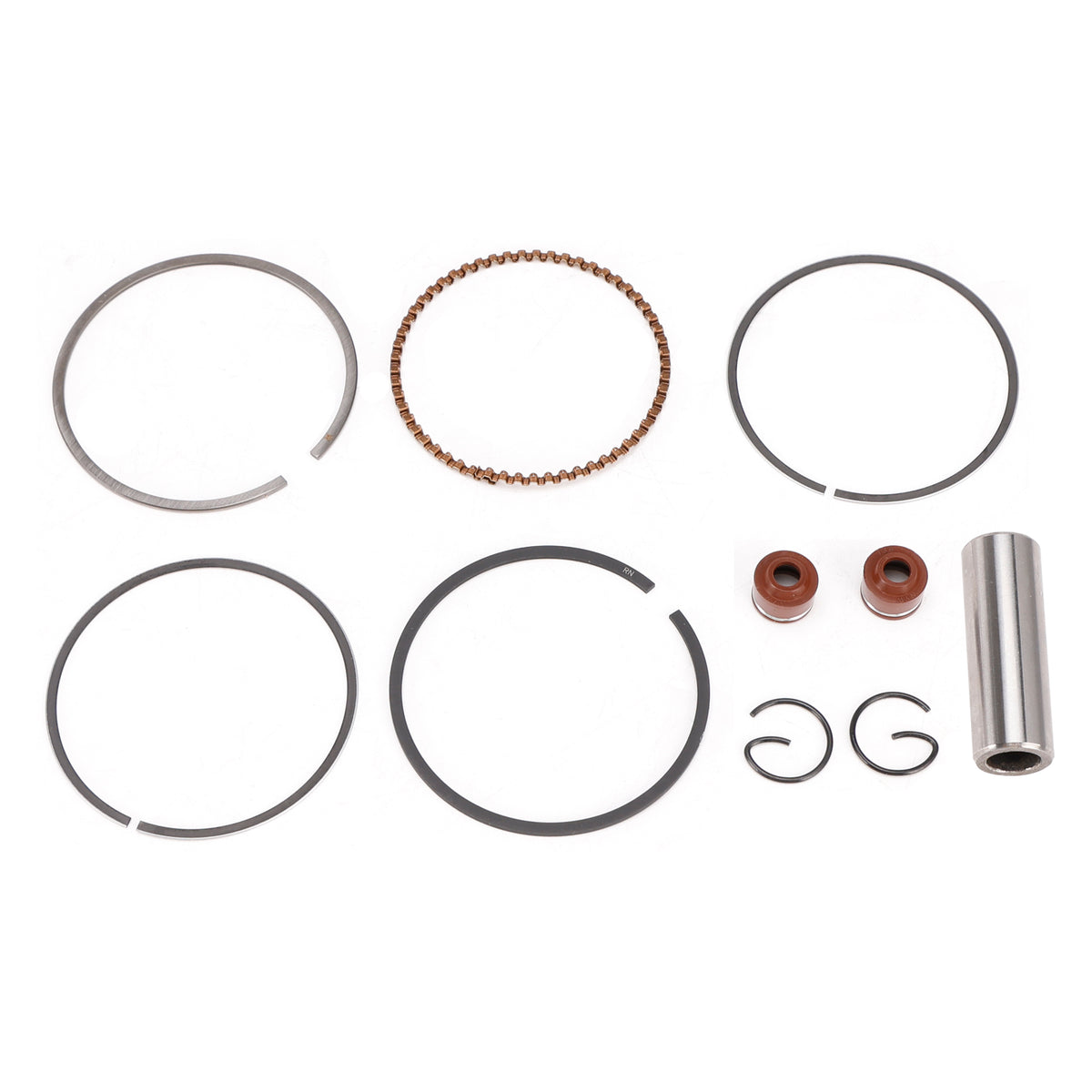

Piston Ring Set (Std): 13011-KWW-740
Circlips, piston (2): 13115-KVR-C00
Valve Stem Seal (2): 12209-GB4-682

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
This cylinder kit can be installed on almost all typical 110i fuel injected Honda engines.
Fit for Honda Wave 110i AFS110 (EFi)2011-2013
Fit for Honda EX5 Dream 110i
Fit for Honda Cross Cub 110, C110 Super Cub, NBC110 2012-2017
Fit for Honda Super Cub 110 C110 JA10 2018-2019
Fit for Honda Cross Cub 110 CC110 JA10 2018-2019
Fit for Honda CRF110F fuel injected models 2013-2025

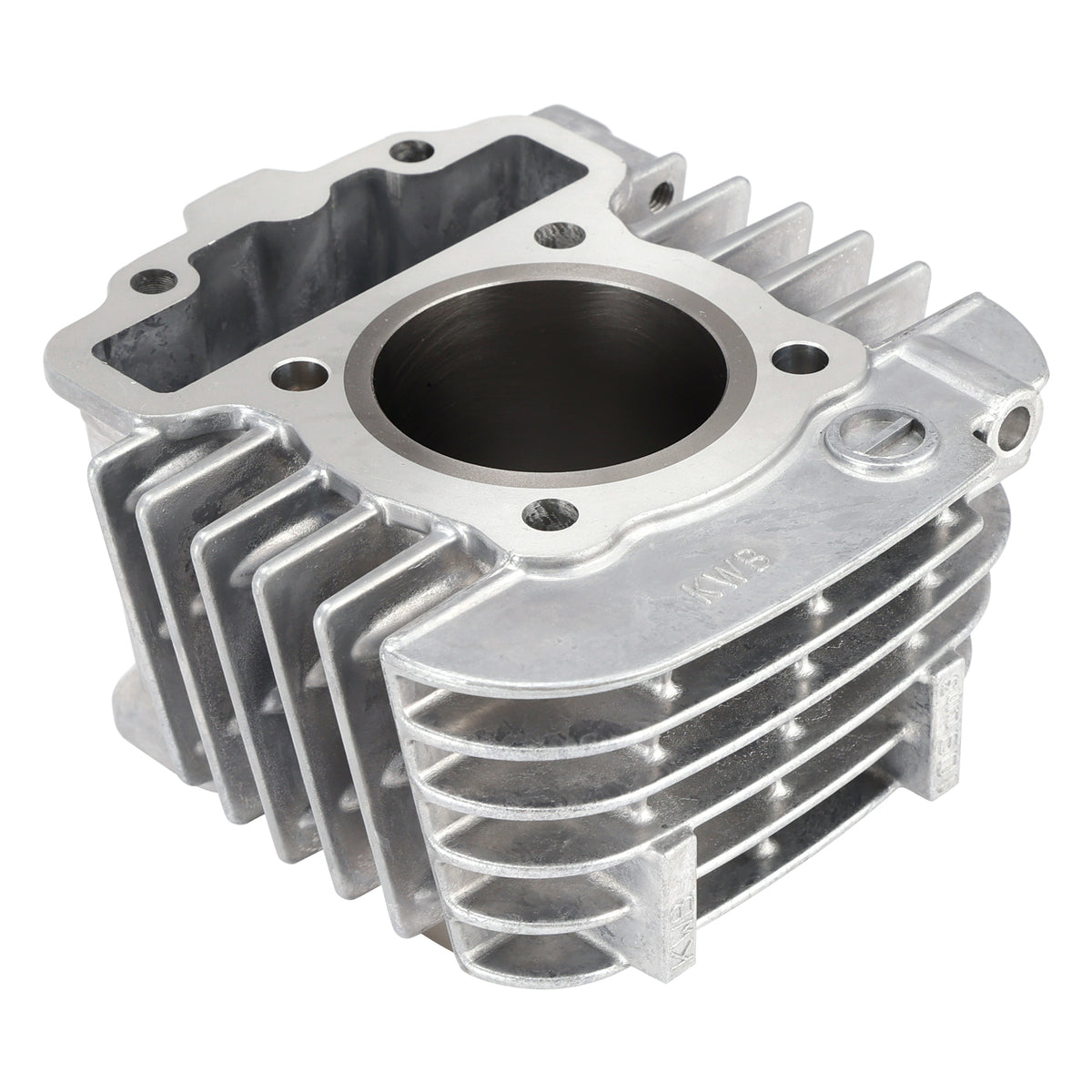

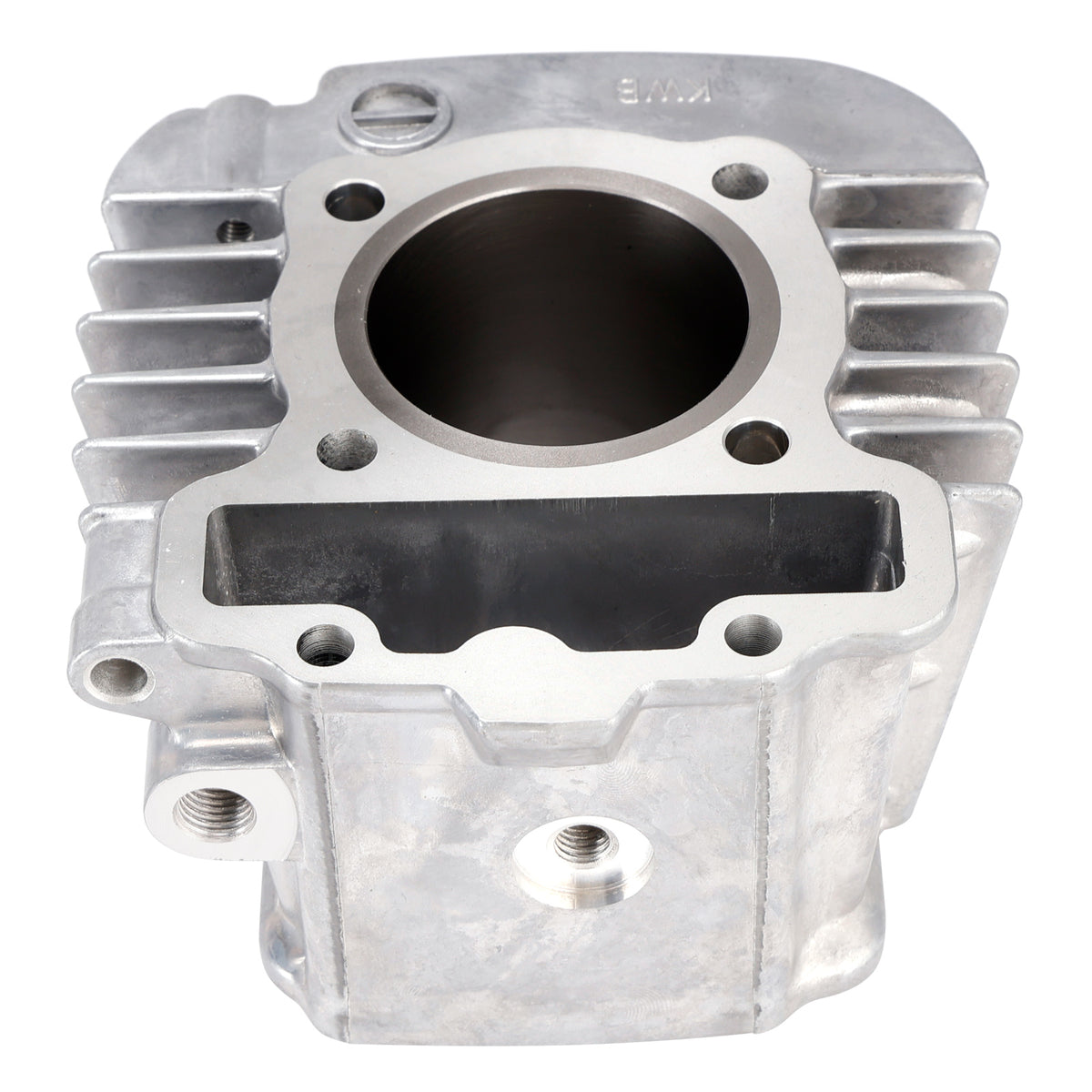

This is a cylinder block with a 90掳 angle for the oil temp sensor, so it will be plug and play ready to be installed on the fuel injected CRF110F.
Uses a straight mount for the oil temp sensor and does not use the sensor cover because of that.
If you install this specific cylinder block on your CRF110F that you will need to install also the KWB cylinder head type.
If you install this cylinder on a carbureted bike, then you need to close the hole for the oil temperature sensor with a bolt and a copper washer.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1x 50mm Cylinder
1x Piston
1x Piston Ring Set
1x 13mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
2x Valve Stem Seals

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
