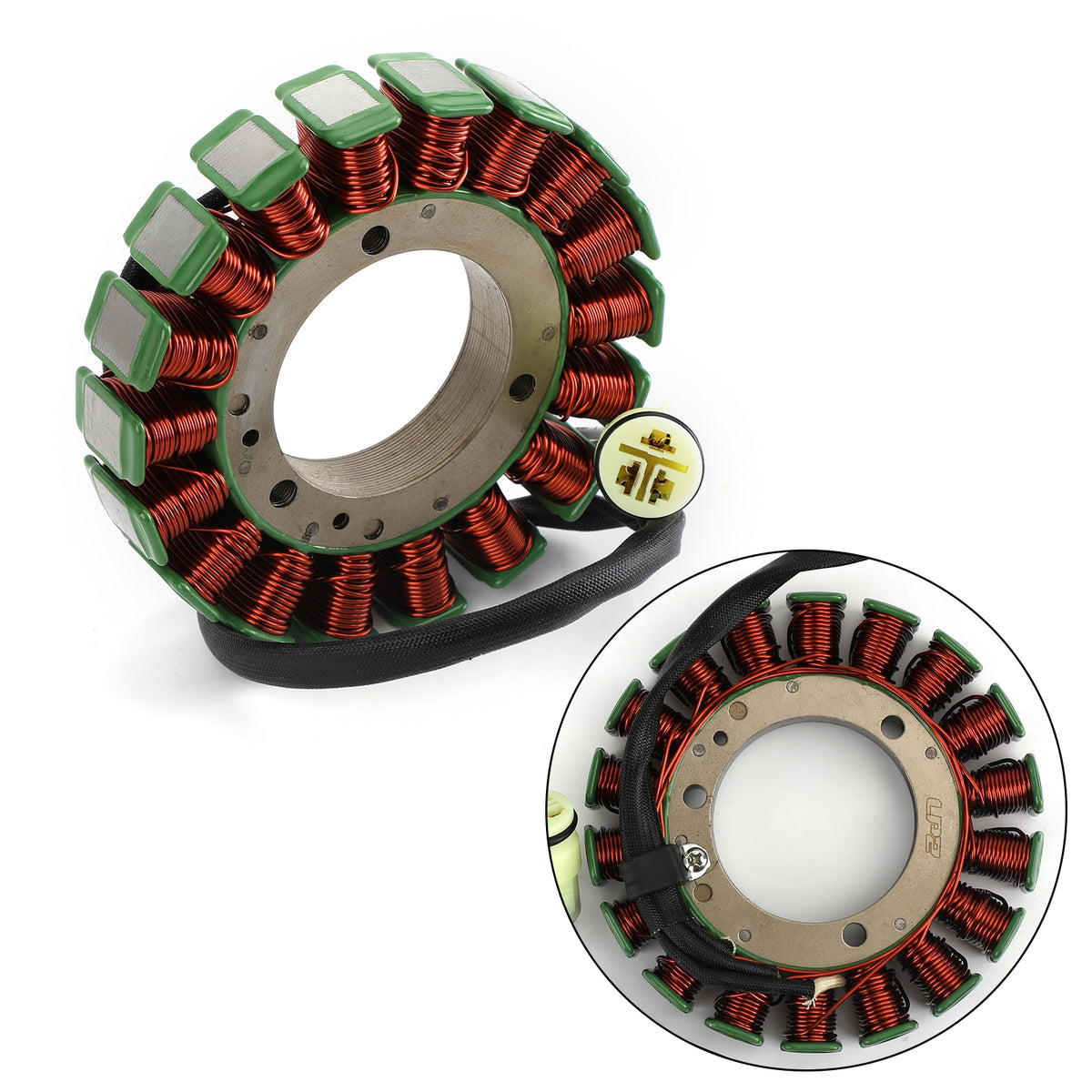

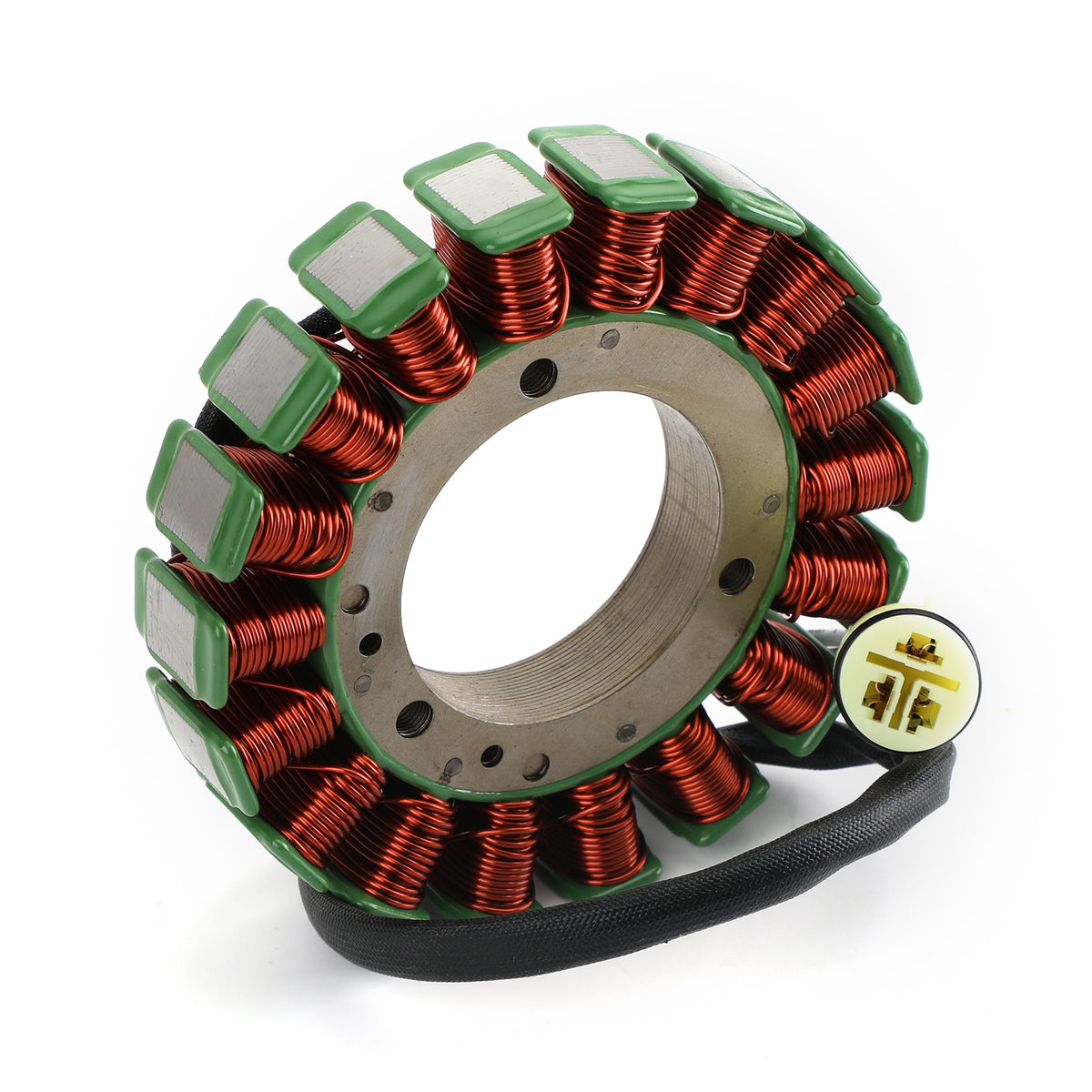

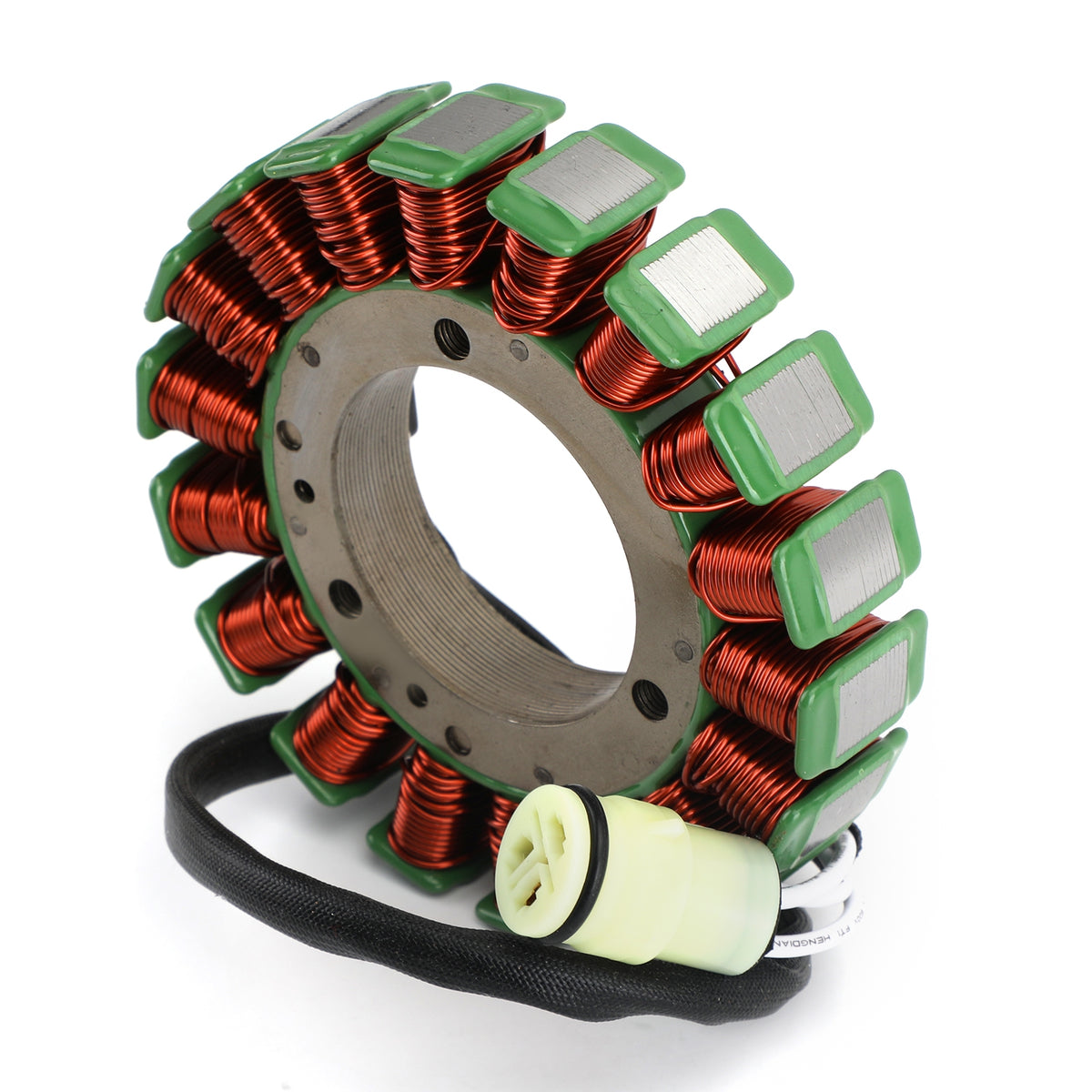

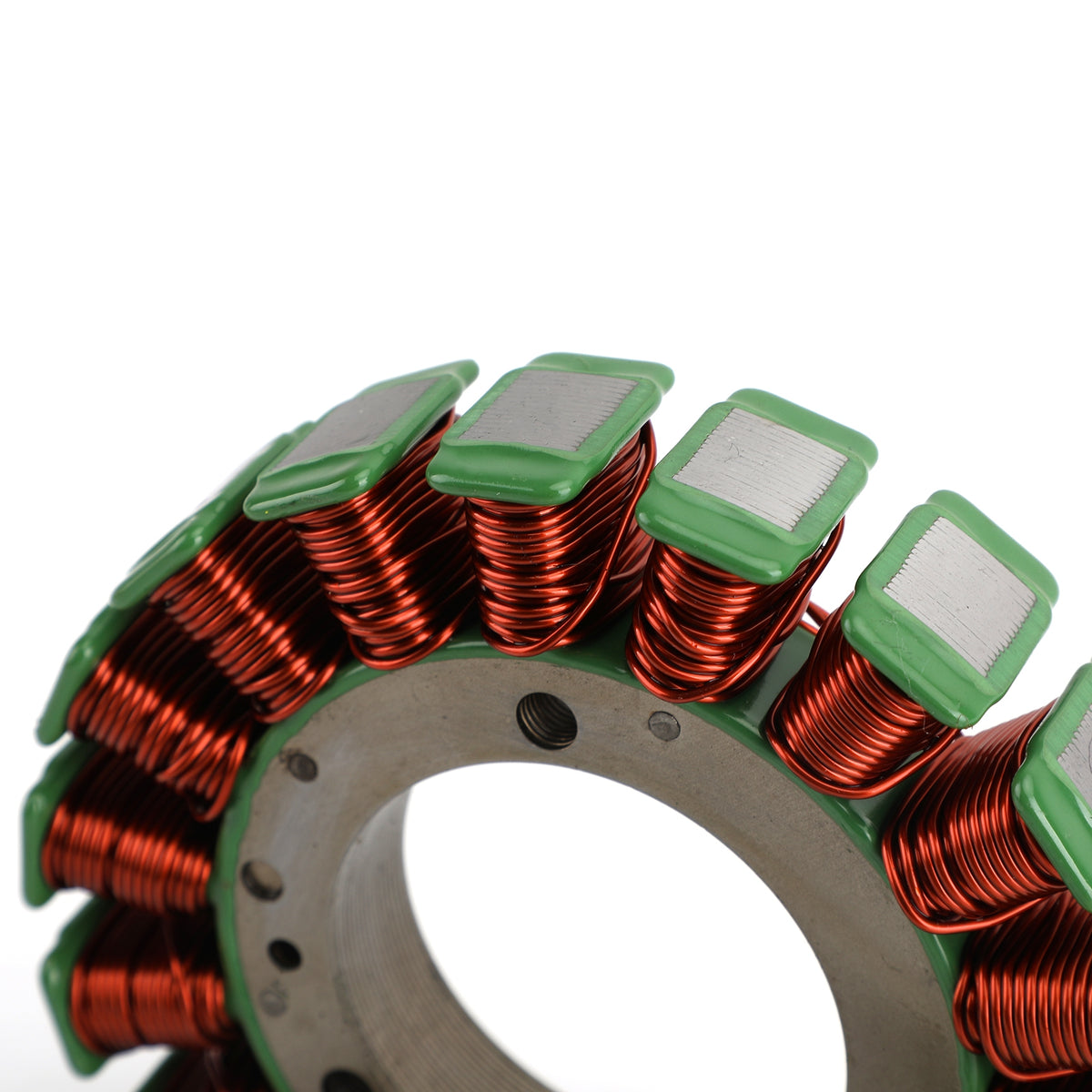

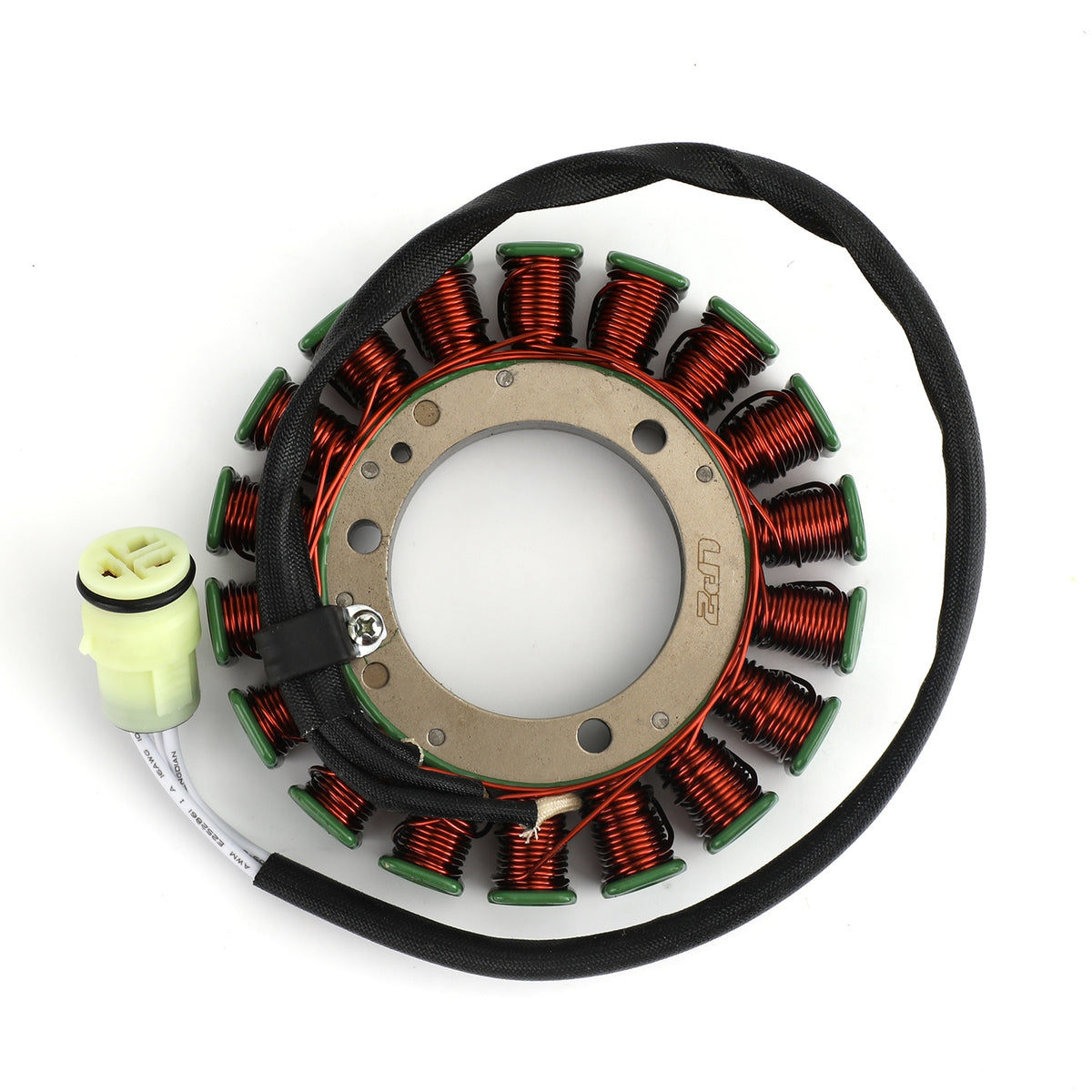

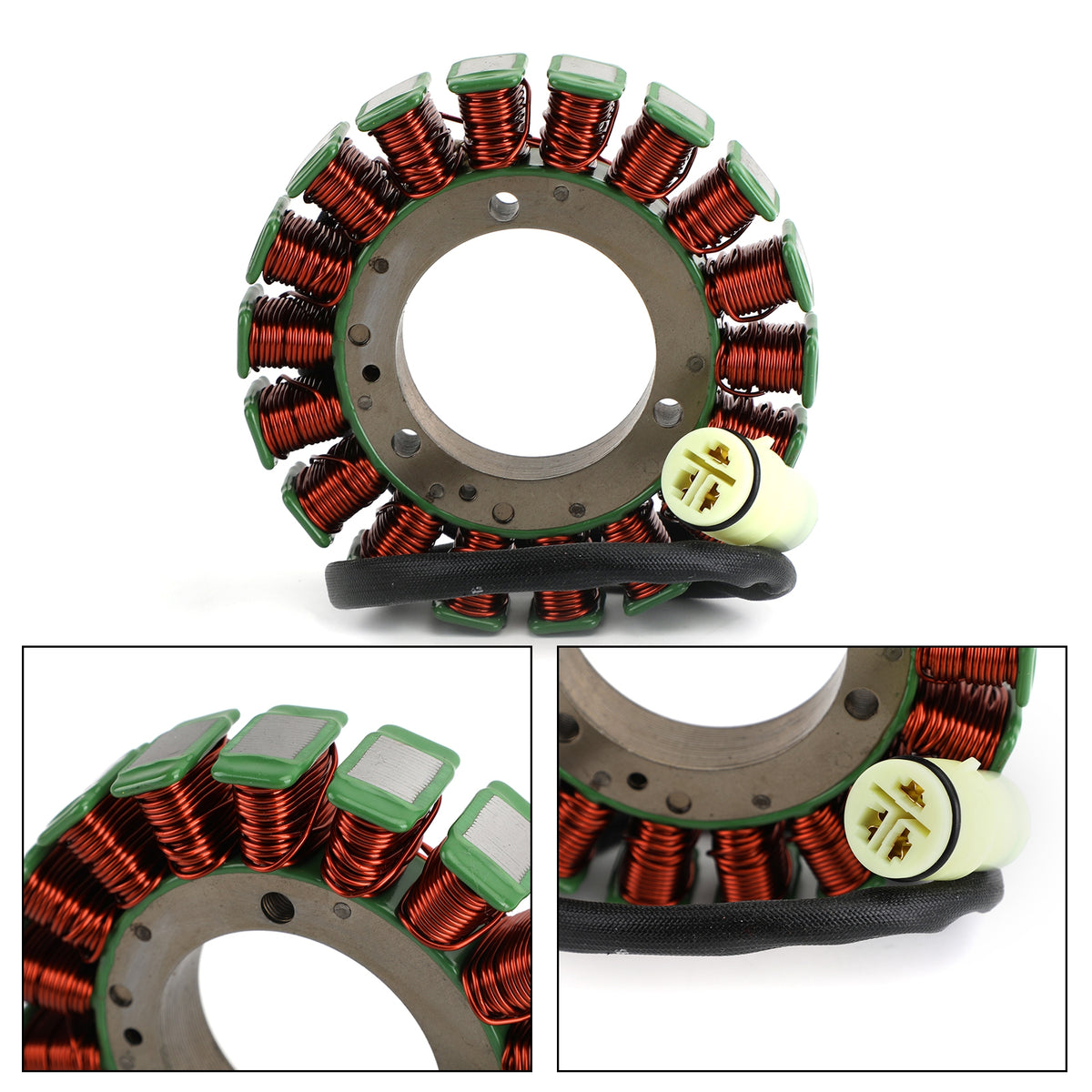

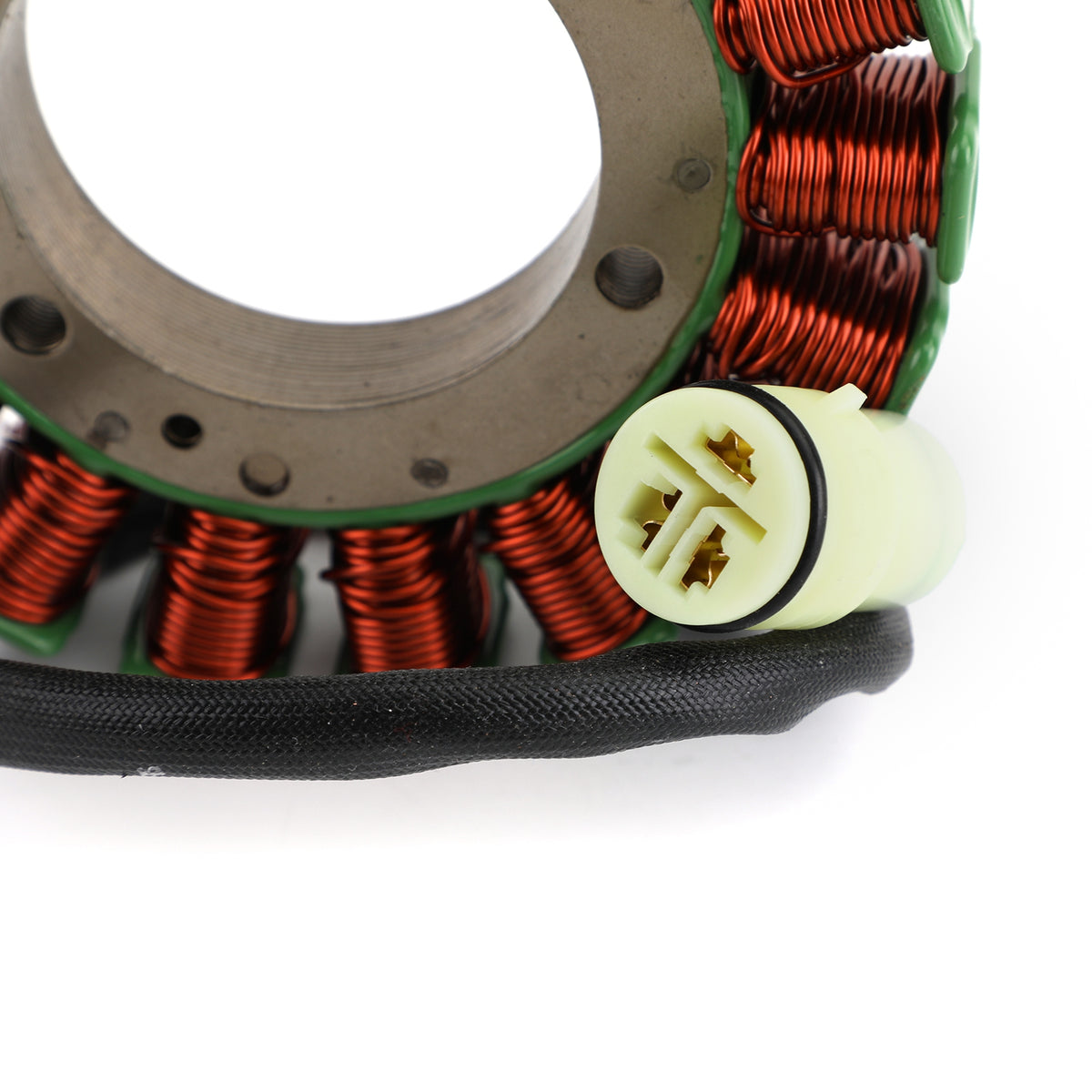

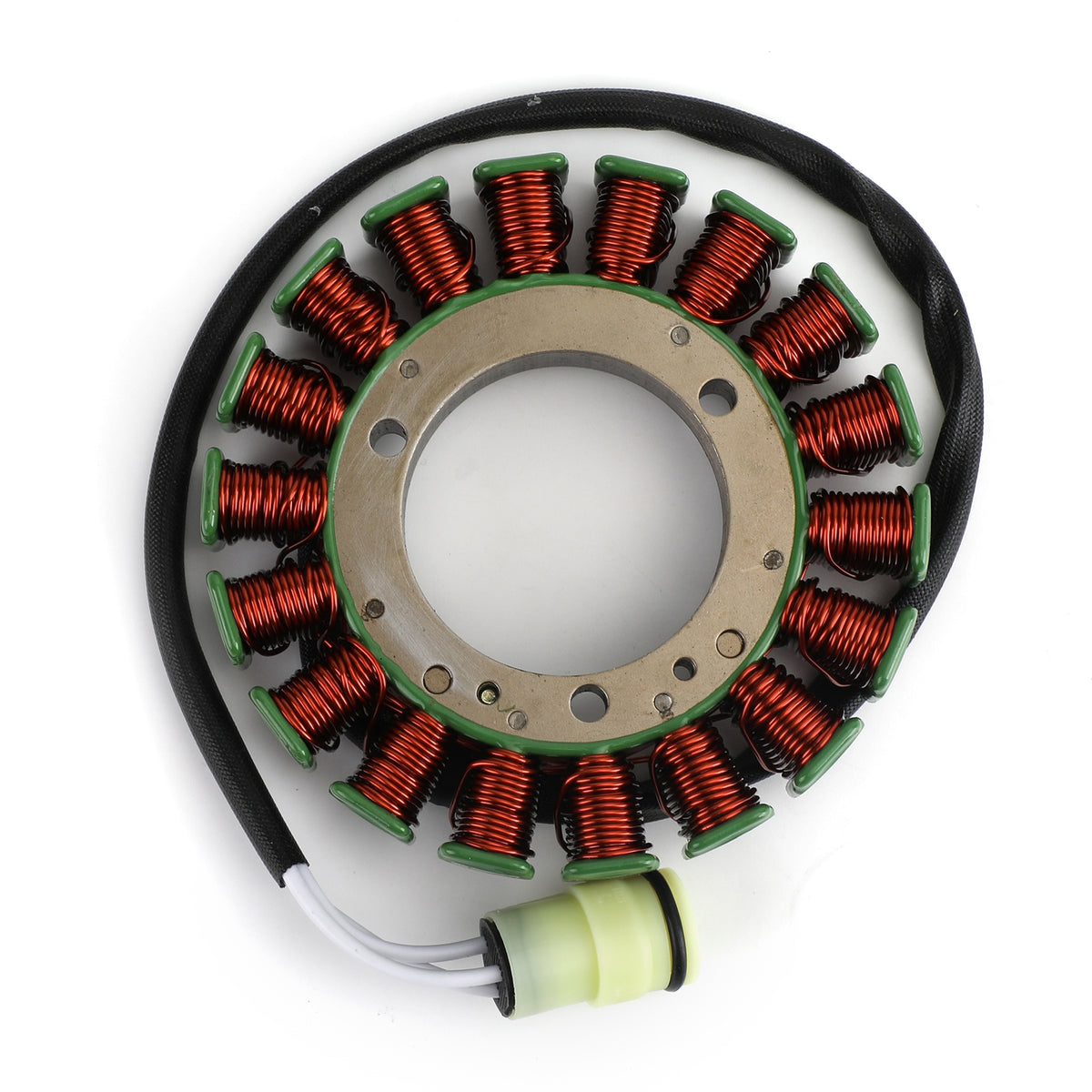

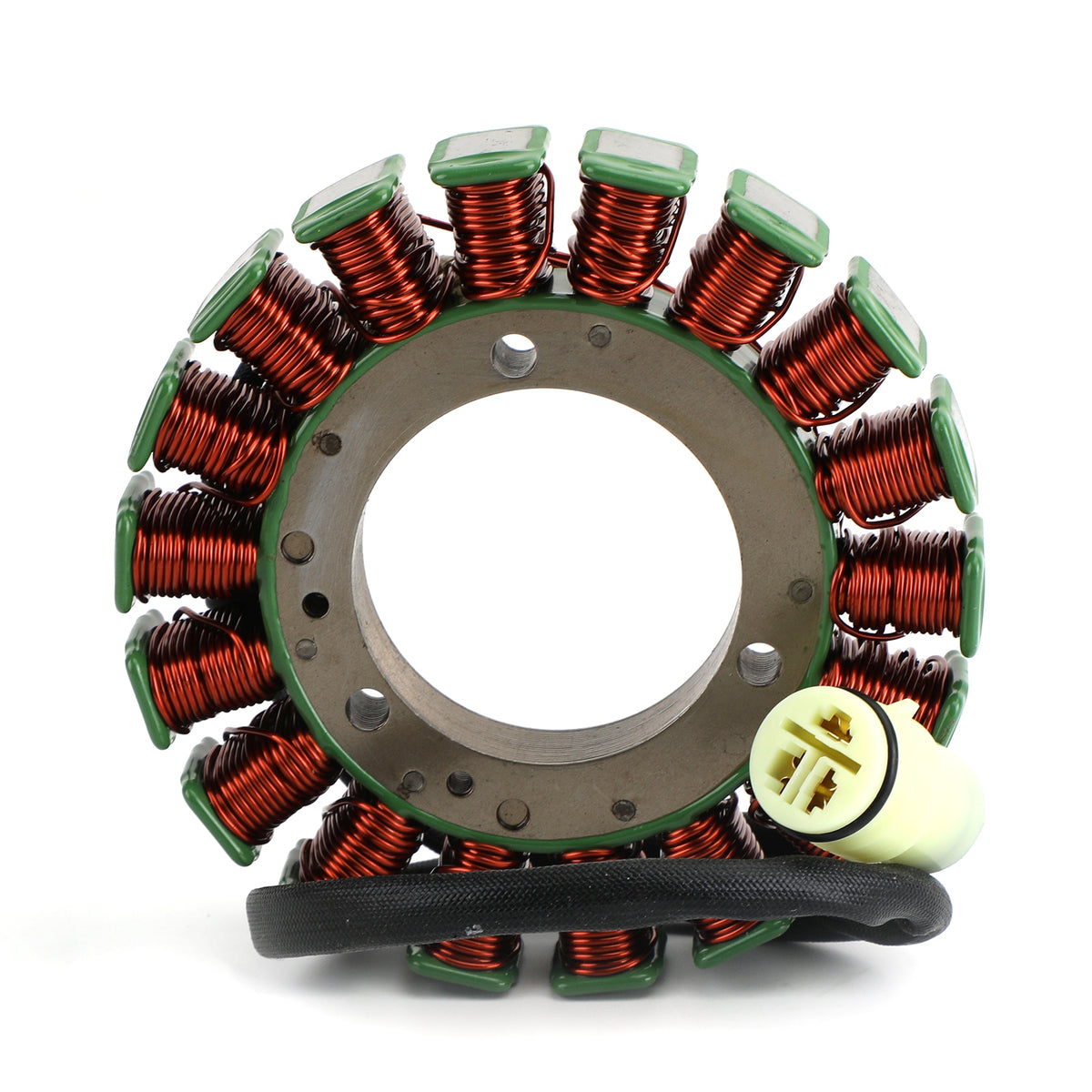

Yamaha F75 F80 F90 F100 67F-85510-00 67F-85510-01 Alternator Magneto Stator

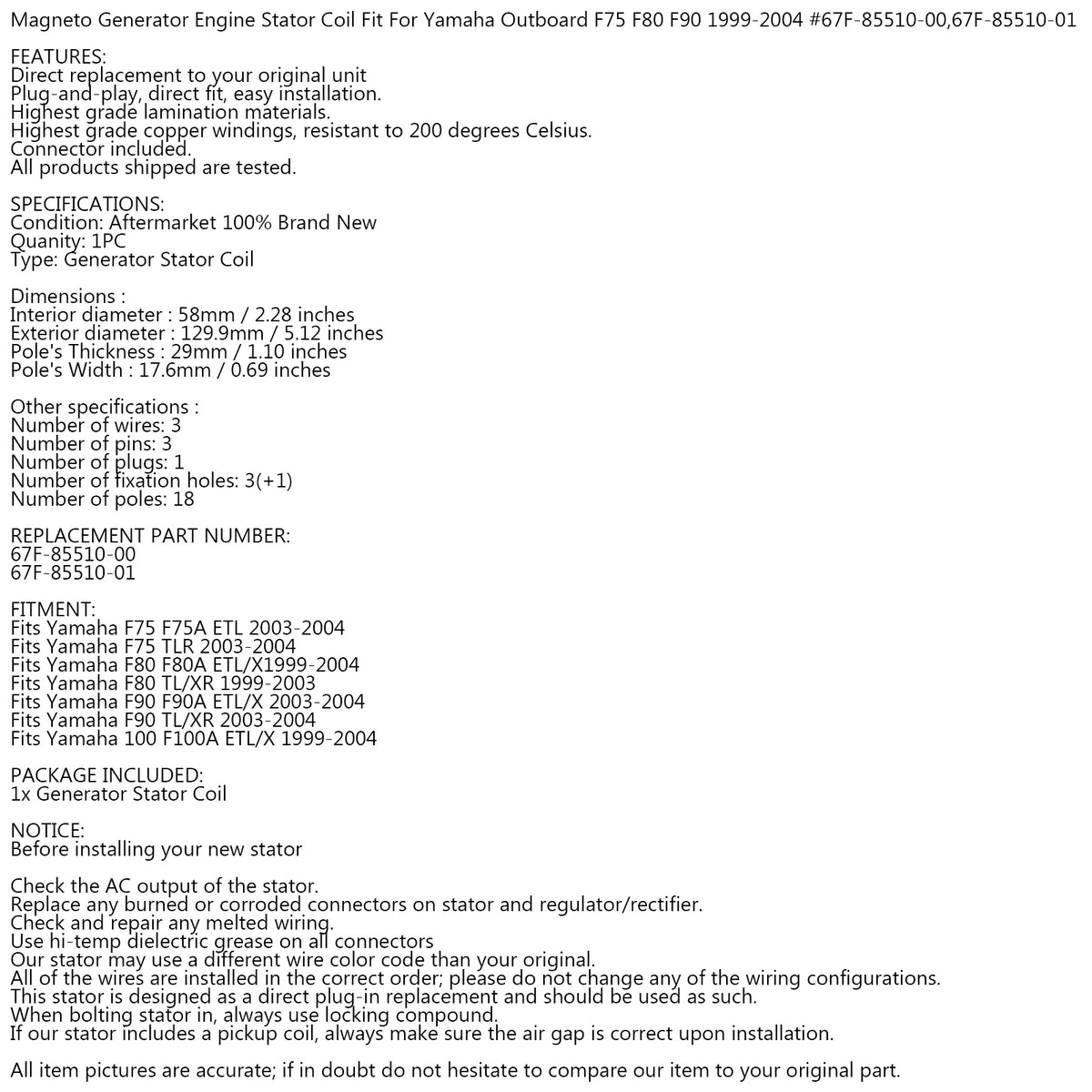

Magneto Generator Engine Stator Coil Fit For Yamaha Outboard F75 F80 F90 1999-2004 #67F-85510-00,67F-85510-01

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

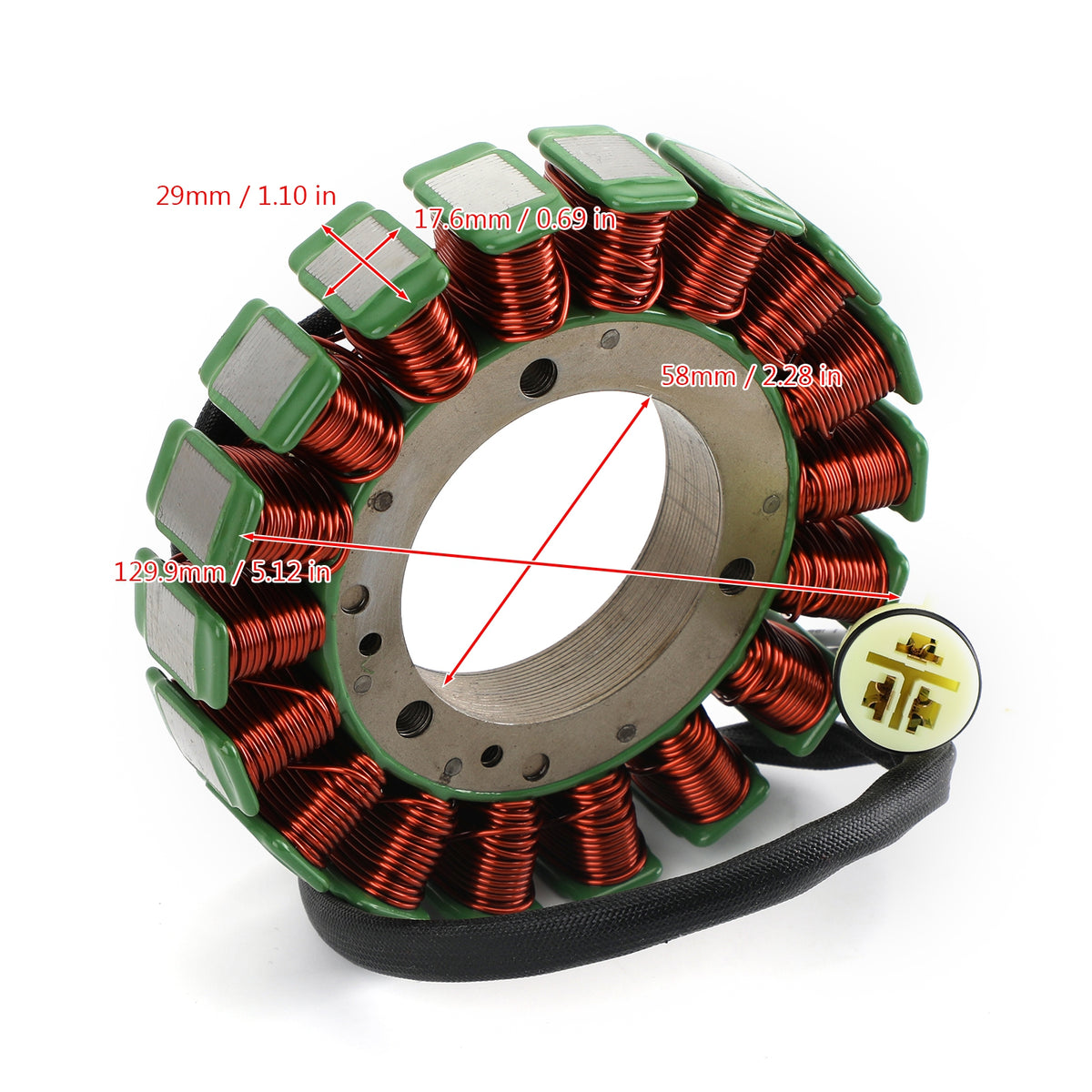

Dimensions :
Interior diameter : 58mm / 2.28 inches
Exterior diameter : 129.9mm / 5.12 inches
Pole's Thickness : 29mm / 1.10 inches
Pole's Width : 17.6mm / 0.69 inches

Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 3(+1)
Number of poles: 18

REPLACEMENT PART NUMBER:
67F-85510-00
67F-85510-01

Fitment:
Fits Yamaha F75 F75A ETL 2003-2004
Fits Yamaha F75 TLR 2003-2004
Fits Yamaha F80 F80A ETL/X1999-2004
Fits Yamaha F80 TL/XR 1999-2003
Fits Yamaha F90 F90A ETL/X 2003-2004
Fits Yamaha F90 TL/XR 2003-2004
Fits Yamaha 100 F100A ETL/X 1999-2004

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
