Cylinder Piston Gasket Top End Rebuild Kit 96mm For Suzuki RMZ450 RMZ 450 2008-2025

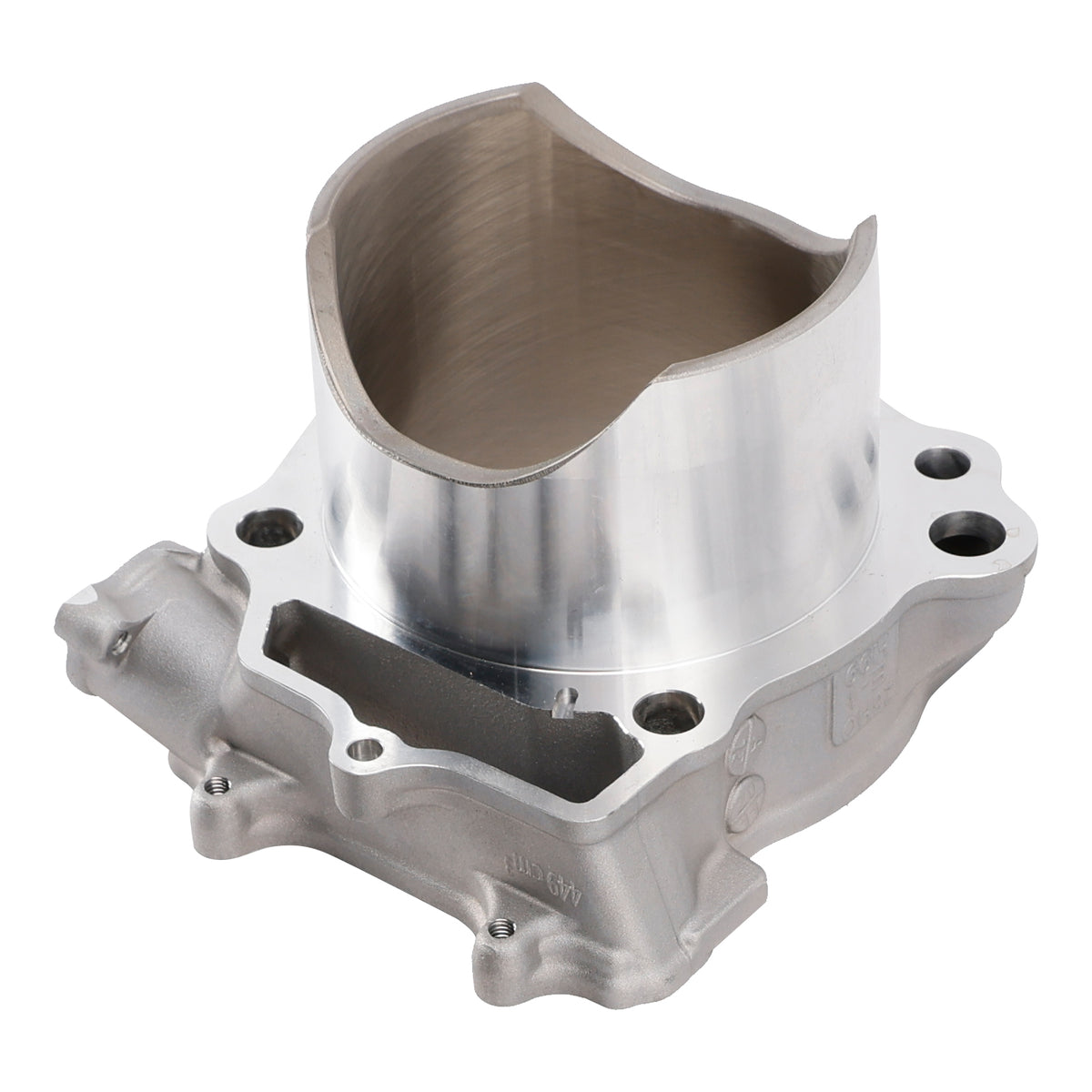

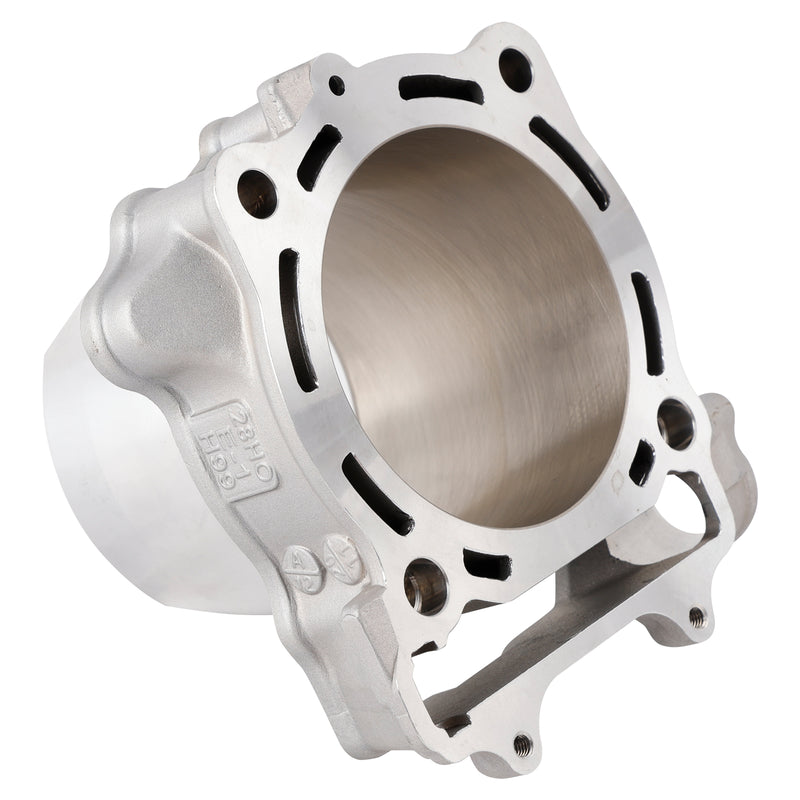

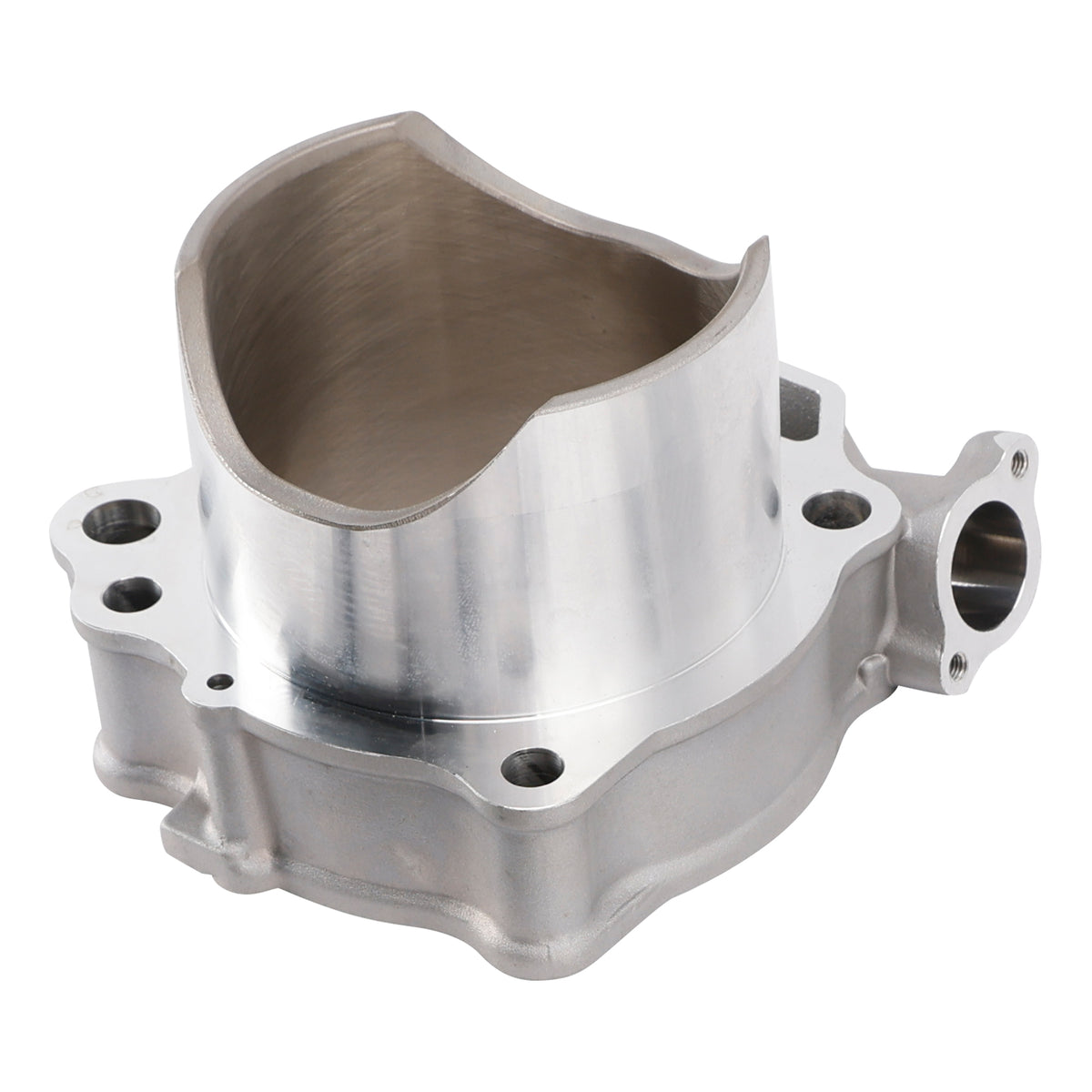

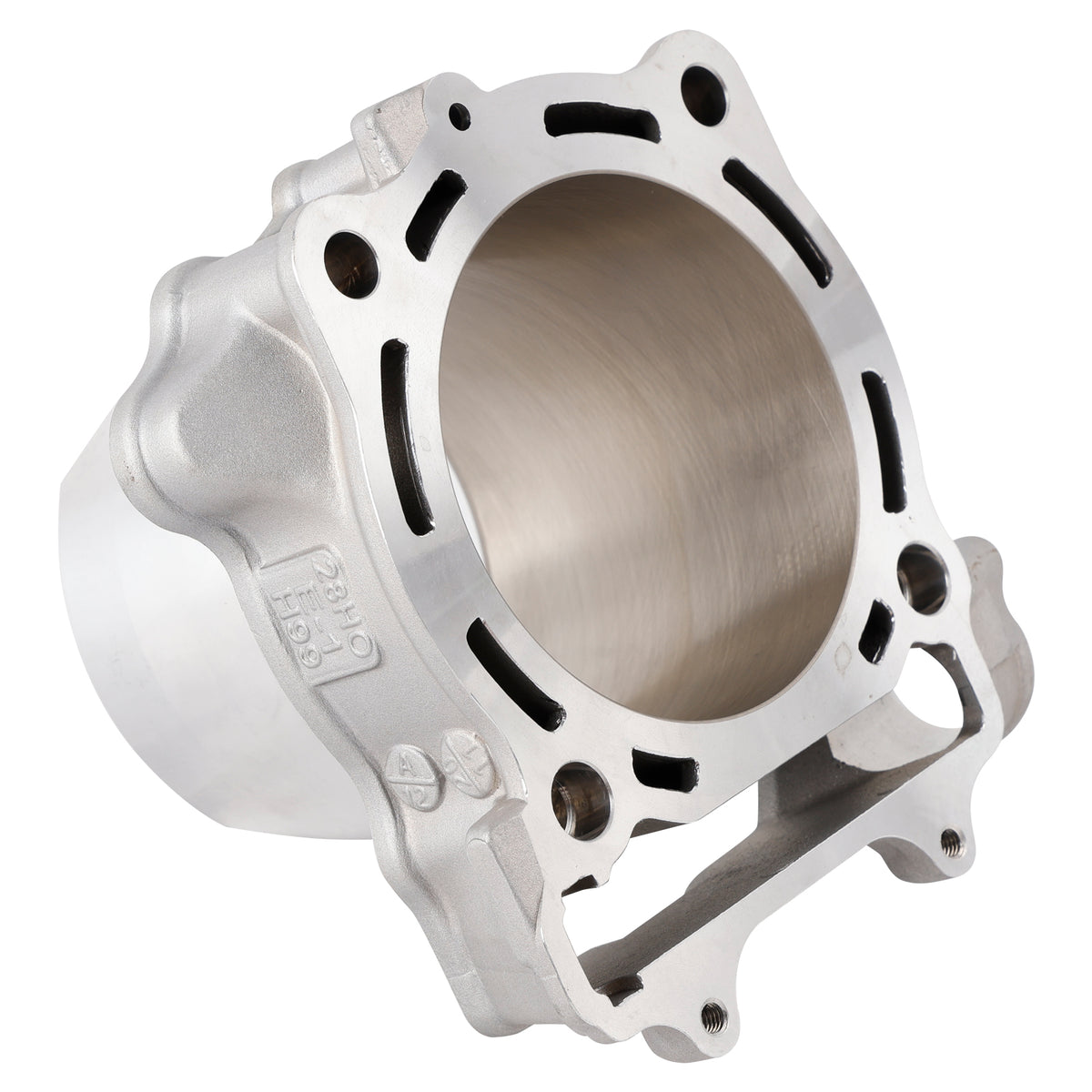

Features: If your cylinder blows through, or a piston seizure has occurred, then this kit is exactly the right thing for you. Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). The cylinder is made of aluminum for good cooling with an internal nickel silicon carbide plated for long life. The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for standard bore size - 96 mm x 61 mm stroke, 18 mm steel piston pin. This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications: Condition: Aftermarket 100% Brand New Quantity: 1 Set Material: Aluminum, Steel Engine: 4-Stroke Displacement: 449cc Bore Type: Standard Bore Bore diameter: 96 mm Stroke: 61 mm Pin diameter: 18mm Pin length: 50mm

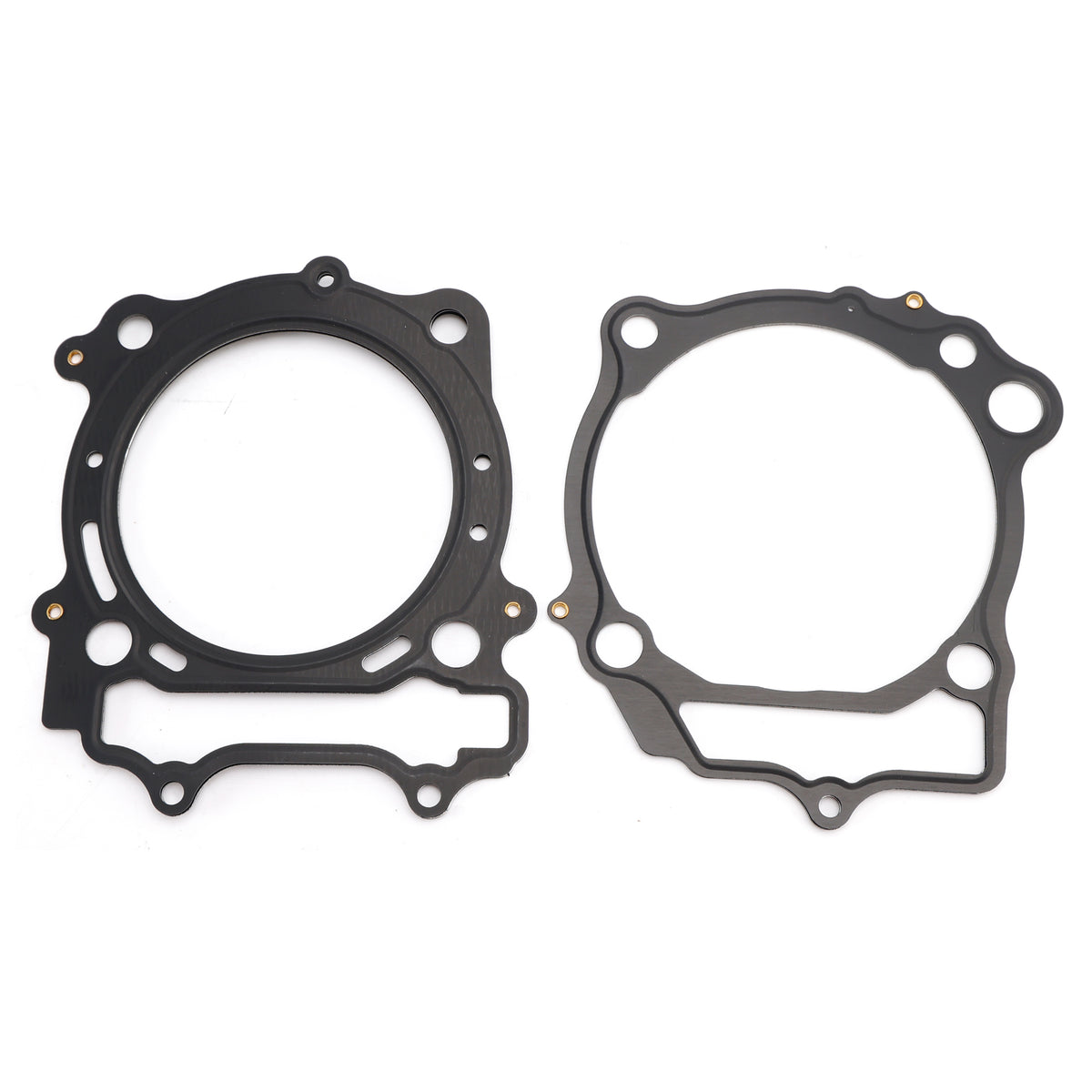

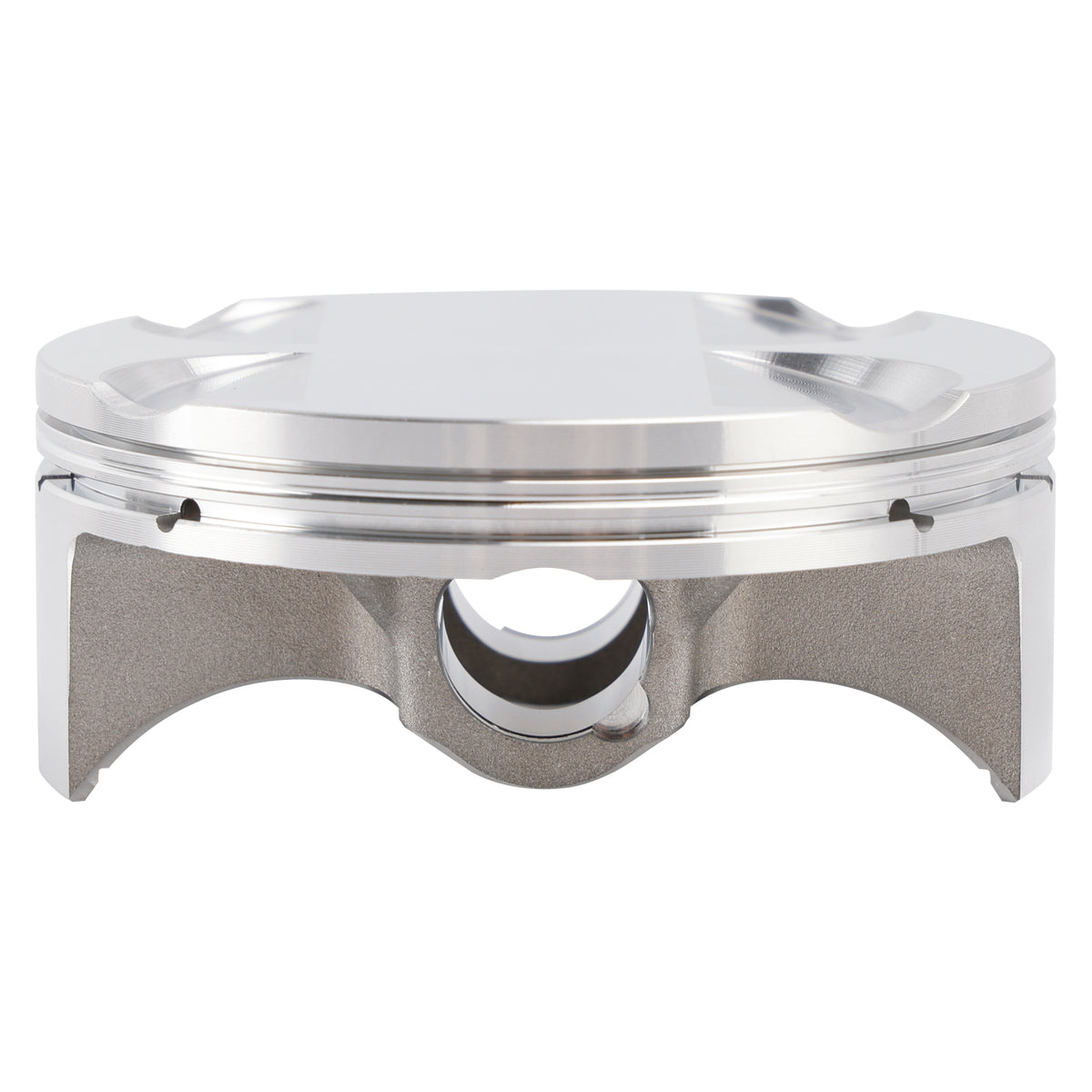

Replacement Part Number: Cylinder: 11211-28H00-0F0, 11211-28H10-0F0, 11211-28H11-0F0 Cylinder Base Gasket: 11241-28H00 Cylinder Head Gasket: 11141-28H00 Piston: 12111-28H10-0F0 Pin, Piston: 12151-35G01 Piston Ring Set (Std): 12140-28810 Circlips, piston (2): 09381-19001
(Always compare part numbers to your parts schematics and cross reference appropriately.) (This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)
Fits Make/Model/Year: Fit for Suzuki RM-Z 450 2008-2025
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

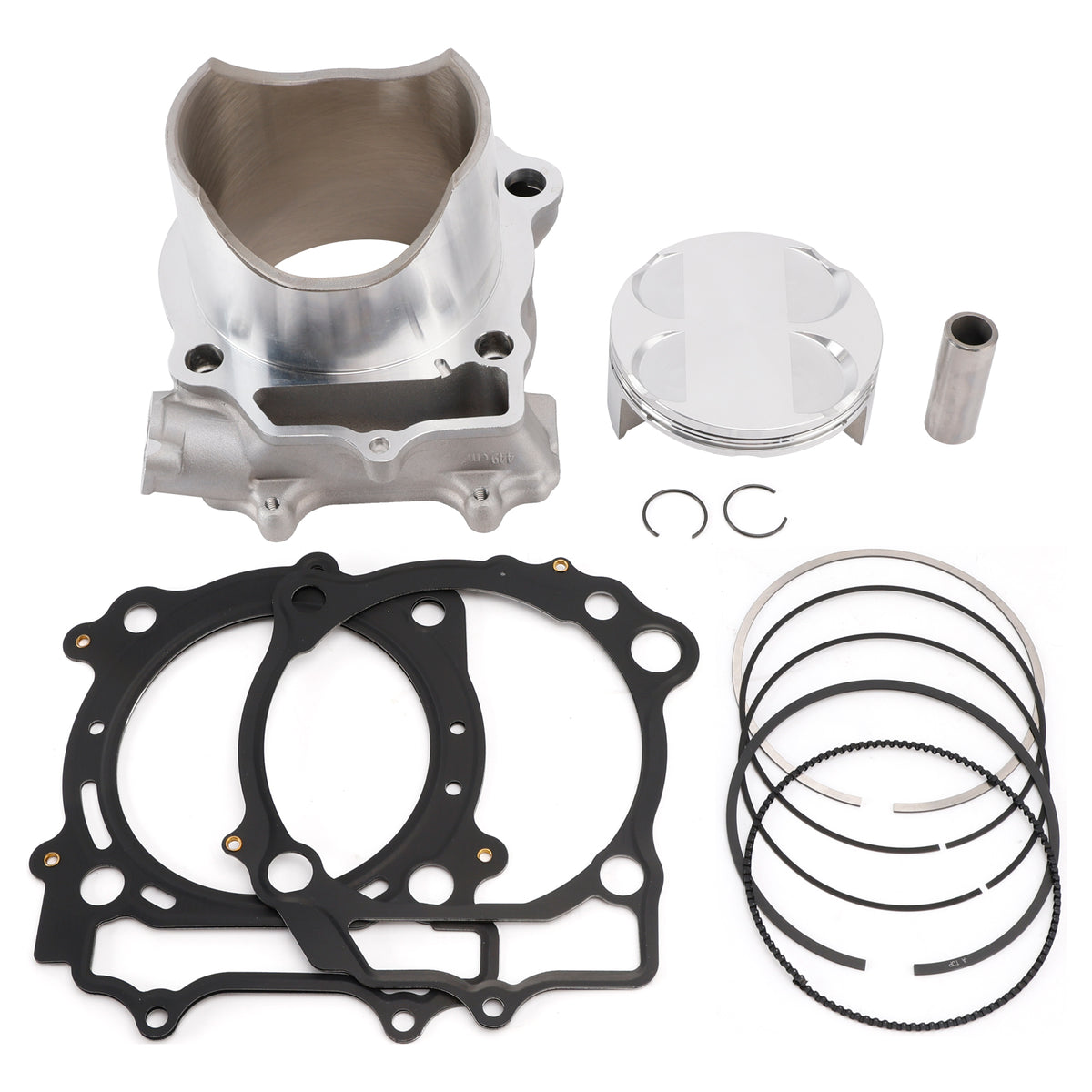

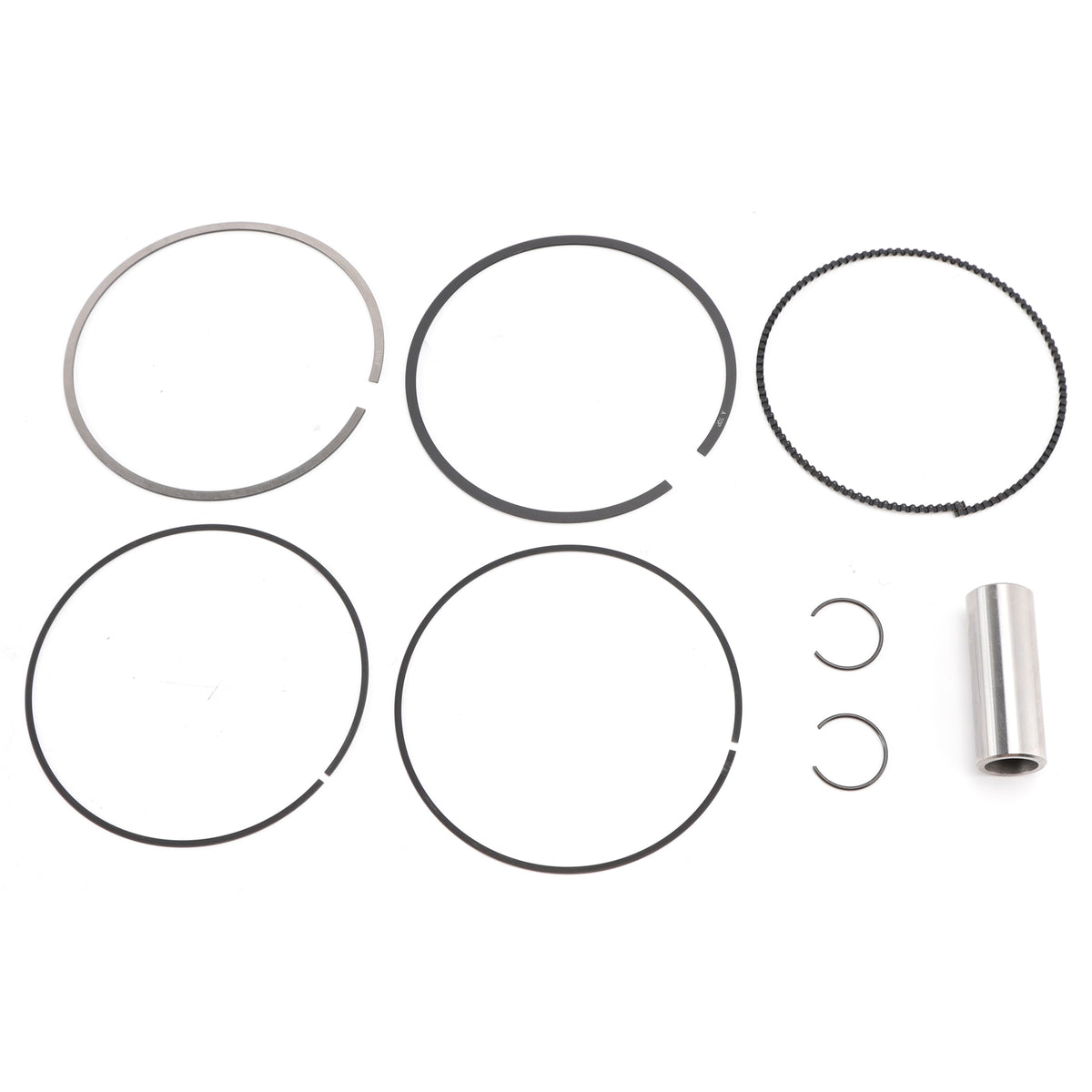

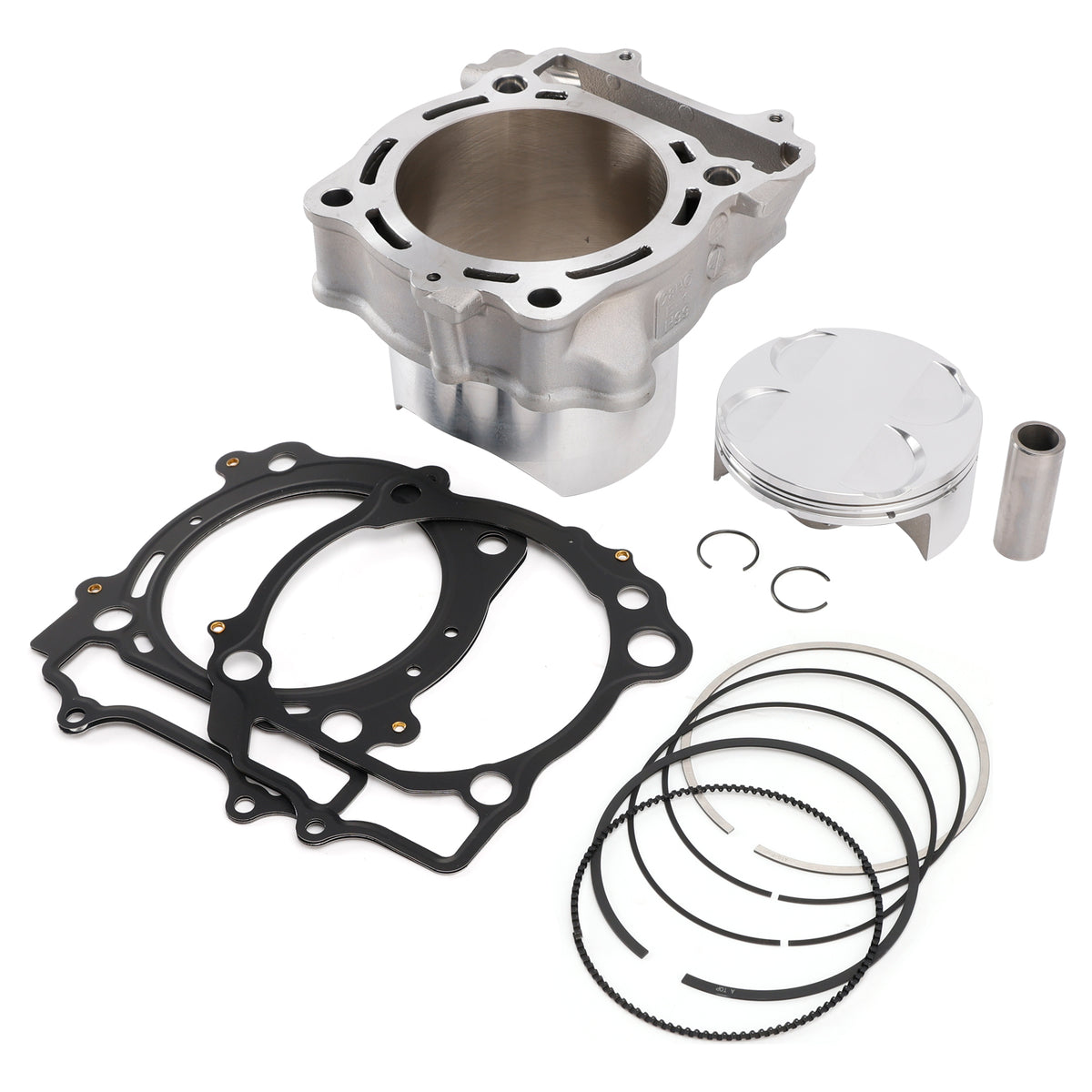

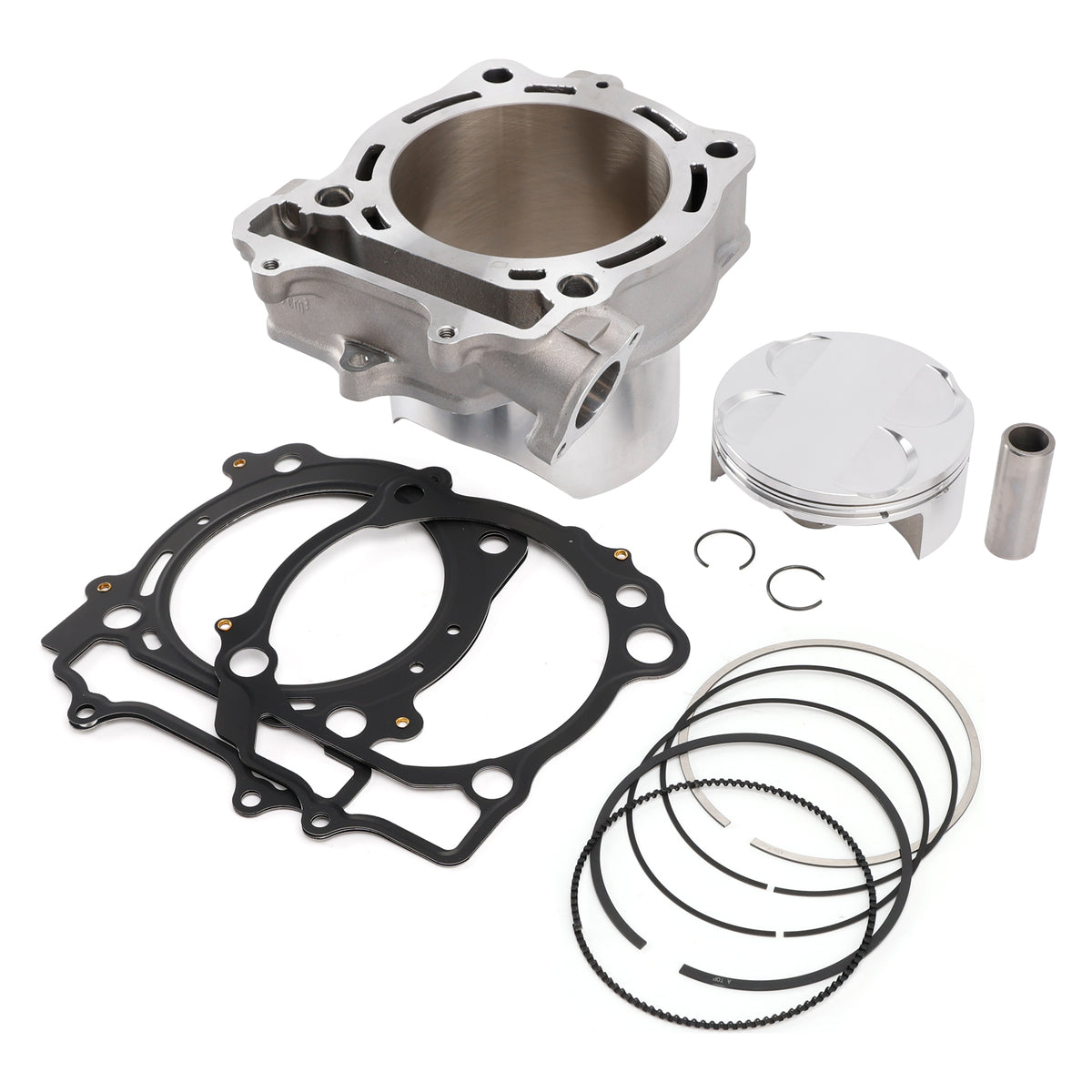

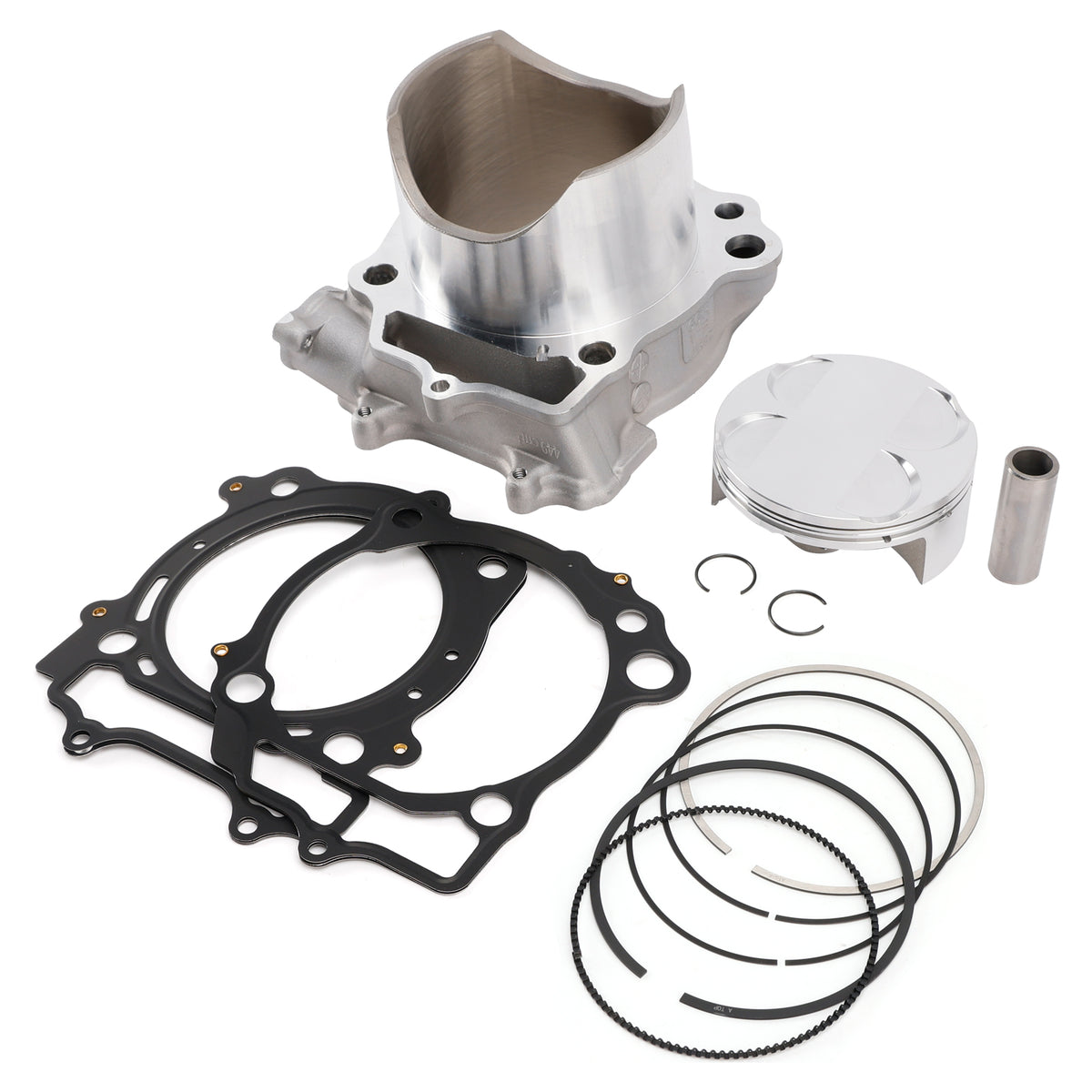

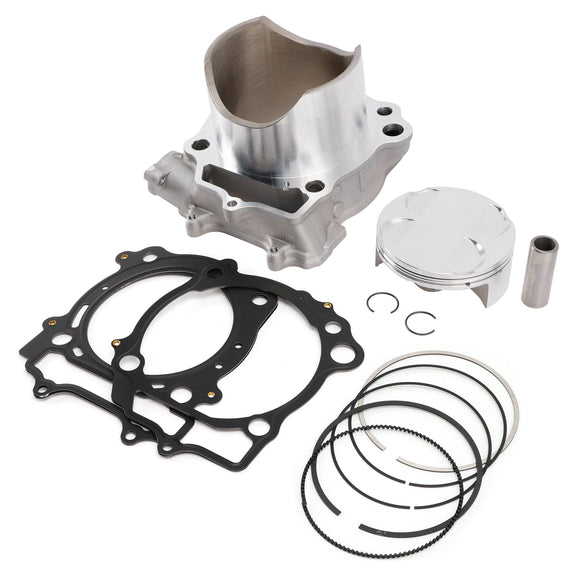

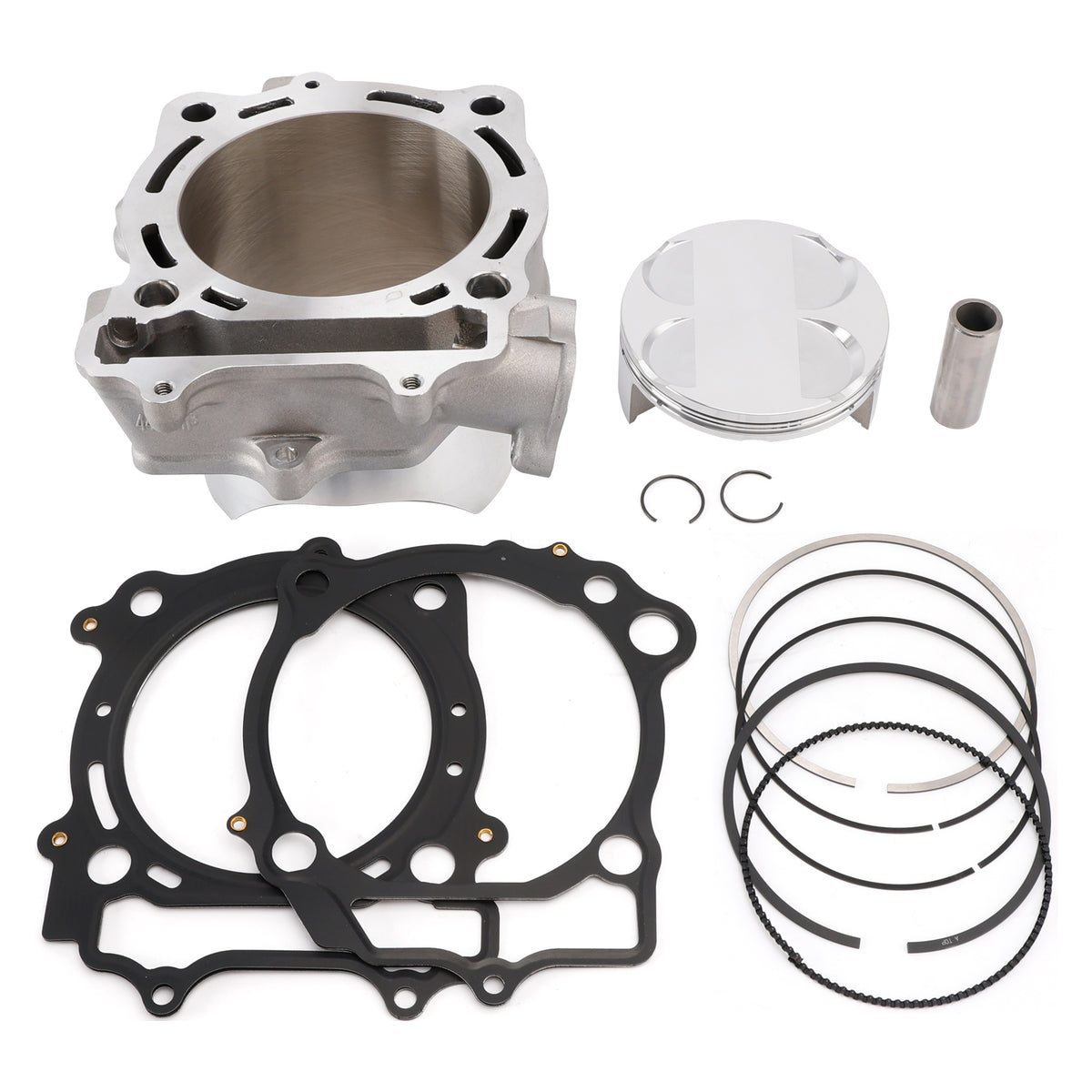

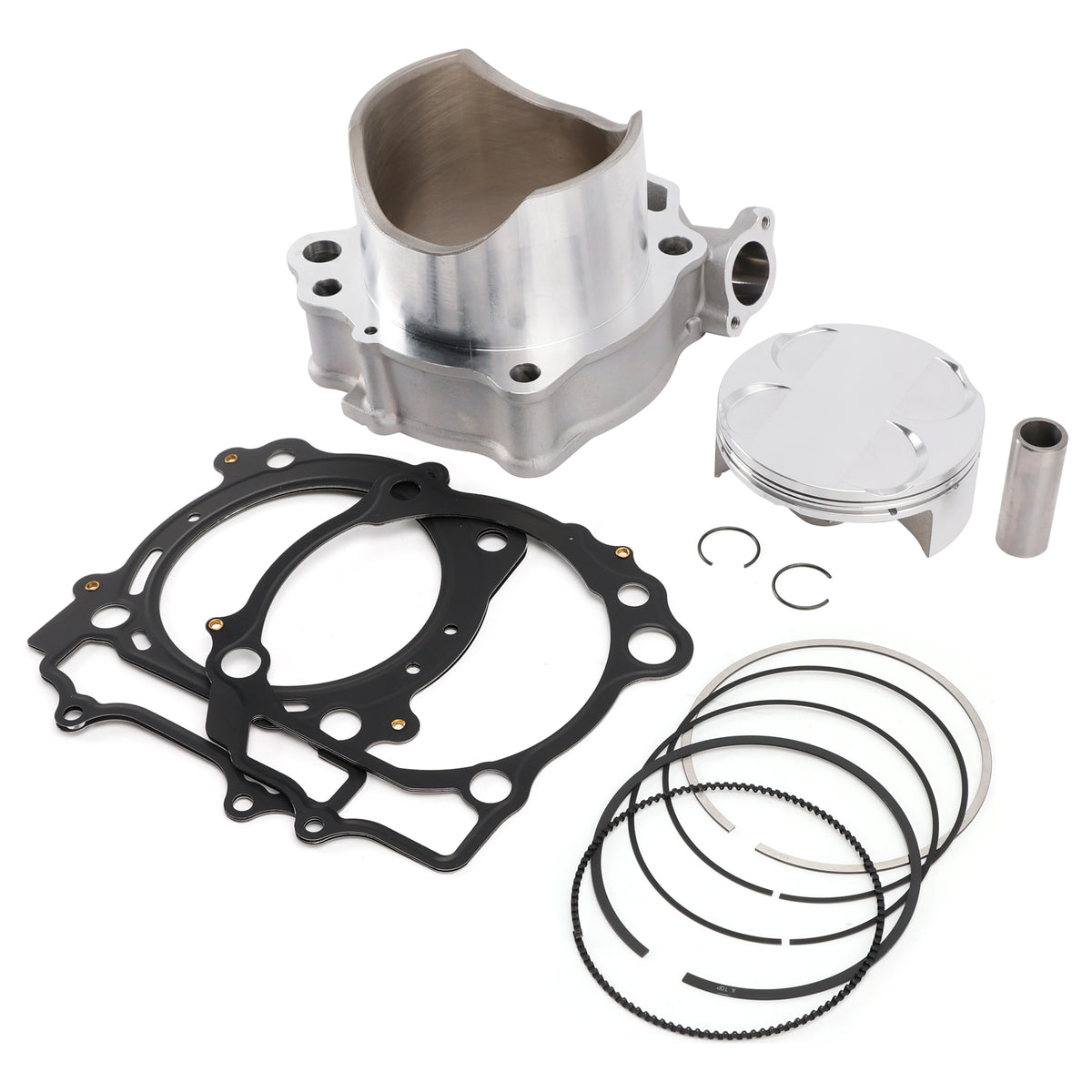

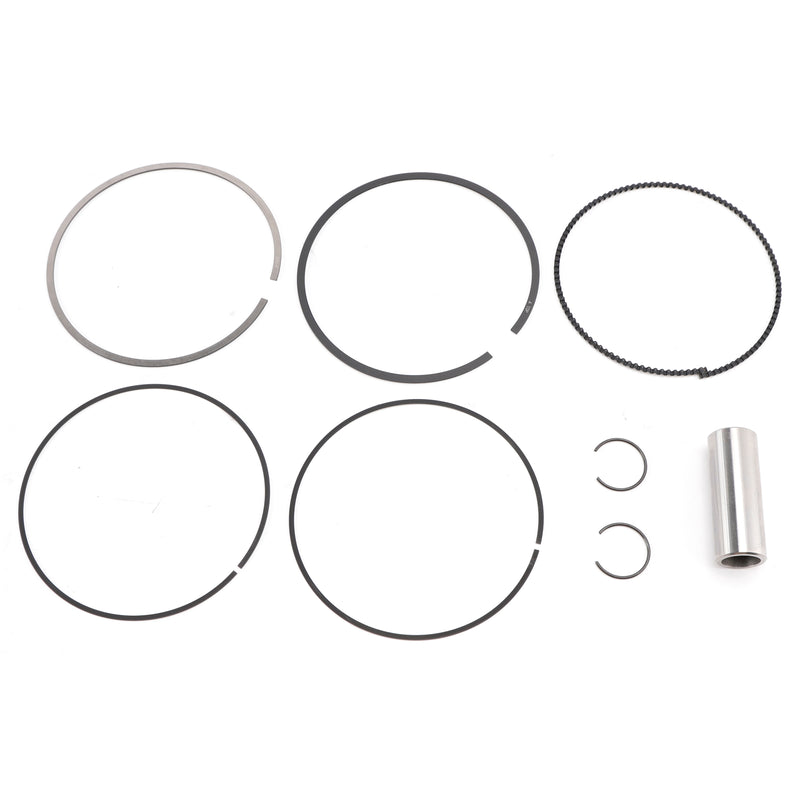

Package Includes: 1x 96mm Cylinder 1x Piston 1x Piston Ring Set 1x 18mm Wristpin 1x Circlip(2) 1x Cylinder Base Gasket 1x Cylinder Head Gasket
(Comes exactly as pictured.)
Note: Please check your existing cylinder prior to purchase to ensure that you are ordering the correct type for your machine. Key things to check are the distances between the, Fixing holes (measured centre of eye to centre of eye) and the internal diameter of the cylinder/barrel. The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
The kit fit correctly and included everything needed for the rebuild. The engine regained strong compression and now runs smoothly with plenty of power.
W
William Howeth

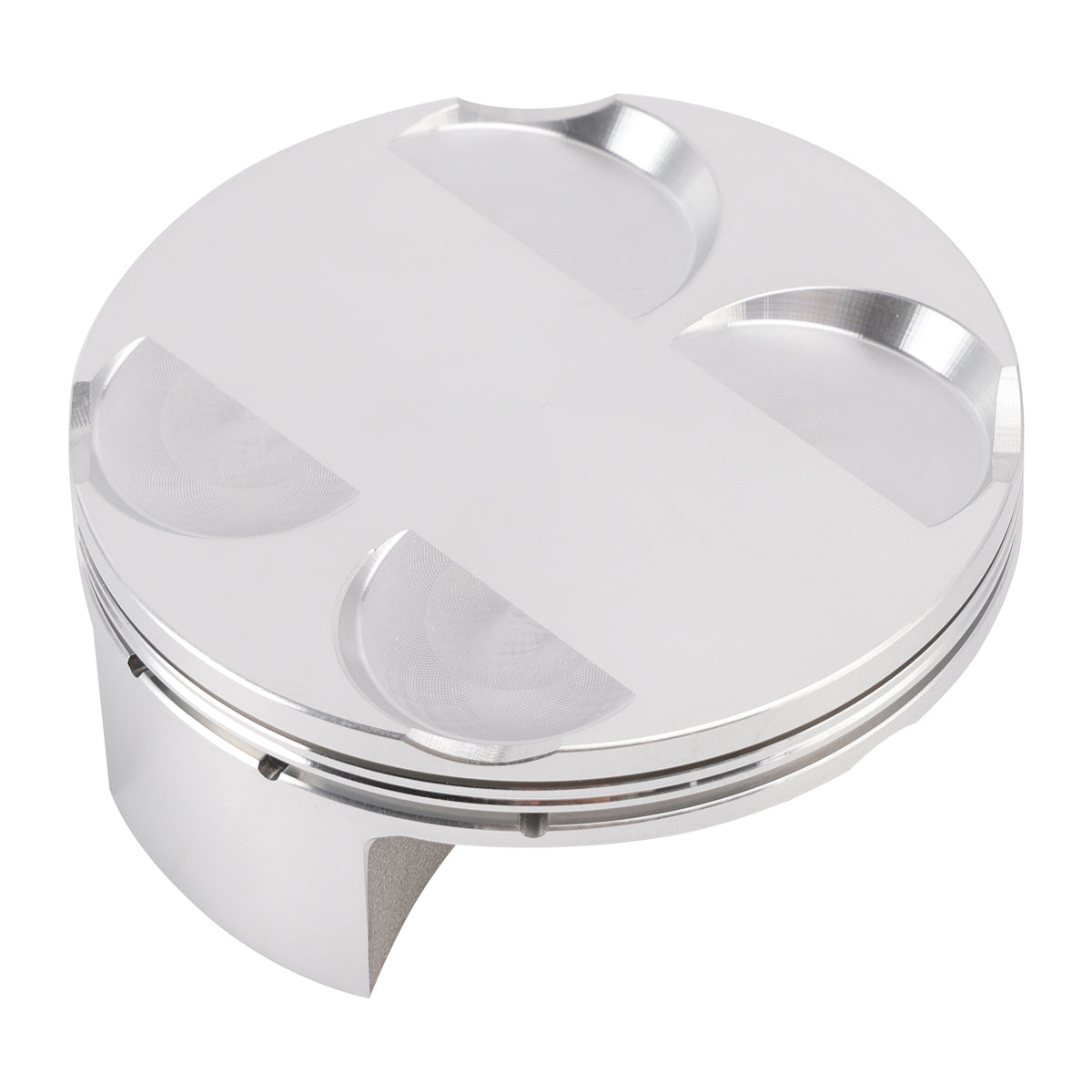

Check your piston. This one was an exact match for my engine. This one lined up with the valves perfectly. Others had different valve profiles in the piston.
