81mm Cylinder Piston Gasket Top End Rebuild Kit For Suzuki AN 400 Burgman 400 2007-2009/2011-2016/2018-2024
Features: If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you. Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). Piston is anodized for superior heat resistance and longer lifespan. The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for standard bore size - 81.0 mm x 77.6 mm stroke, 20mm steel piston pin. This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications: Condition: Aftermarket 100% Brand New Quantity: 1 Set Material: Aluminum Displacement: 400cc Bore Type: Standard Bore Bore diameter: STD 81 mm Stroke: 77.6 mm Pin diameter: 20 mm
Replacement Part Number: Cylinder: 11211-05H00-0F0 Cylinder Base Gasket: 11241-05H10 Cylinder Head Gasket: 11141-05H00, 11141-19K00 Piston (Std): 12111-05H00-0F0, 12111-05H10-0F0, 12111-19K00-0F0 Pin, Piston: 12151-05A00 Piston Ring Set (Std): 12140-05H00, 12140-05H10, 12140-10L00 Circlips, piston (2): 09381-20004
Fits Make/Year/Model: Fit for Suzuki Scooters 2007 Burgman 400 - AN400 Fit for Suzuki Scooters 2007 Burgman 400 - AN400AK9 Fit for Suzuki Scooters 2007 Burgman 400 - AN400K7 Fit for Suzuki Scooters 2007 Burgman 400 - AN400K8 Fit for Suzuki Scooters 2007 Burgman 400 - AN400K9 Fit for Suzuki Scooters 2008 Burgman 400 - AN400 Fit for Suzuki Scooters 2008 Burgman 400 - AN400AK9 Fit for Suzuki Scooters 2008 Burgman 400 - AN400K7 Fit for Suzuki Scooters 2008 Burgman 400 - AN400K8 Fit for Suzuki Scooters 2008 Burgman 400 - AN400K9 Fit for Suzuki Scooters 2009 Burgman 400 - AN400AK9 Fit for Suzuki Scooters 2009 Burgman 400 - AN400K7 Fit for Suzuki Scooters 2009 Burgman 400 - AN400K8 Fit for Suzuki Scooters 2009 Burgman 400 - AN400K9 Fit for Suzuki Scooters 2011 Burgman 400 - AN400 Fit for Suzuki Scooters 2011 Burgman 400 - AN400A Fit for Suzuki Scooters 2011 Burgman 400 - AN400ZAL1 Fit for Suzuki Scooters 2012 Burgman 400 - AN400A Fit for Suzuki Scooters 2012 Burgman 400 - AN400ZA Fit for Suzuki Scooters 2013 Burgman 400 - AN400A Fit for Suzuki Scooters 2013 Burgman 400 - AN400ZA Fit for Suzuki Scooters 2014 Burgman 400 - AN400A Fit for Suzuki Scooters 2014 Burgman 400 - AN400ZA Fit for Suzuki Scooters 2015 Burgman 400 - AN400A Fit for Suzuki Scooters 2015 Burgman 400 - AN400ZA Fit for Suzuki Scooters 2016 Burgman 400 - AN400A Fit for Suzuki Scooters 2016 Burgman 400 - AN400ZA Fit for Suzuki Scooters 2018 Burgman 400 - AN400A Fit for Suzuki Scooters 2019 Burgman 400 - AN400A Fit for Suzuki Scooters 2020 Burgman 400 - AN400A Fit for Suzuki Scooters 2022 Burgman 400 - AN400A 120A Fit for Suzuki Scooters 2023 Burgman 400 - AN400A Fit for Suzuki Scooters 2024 Burgman 400 - AN400A
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

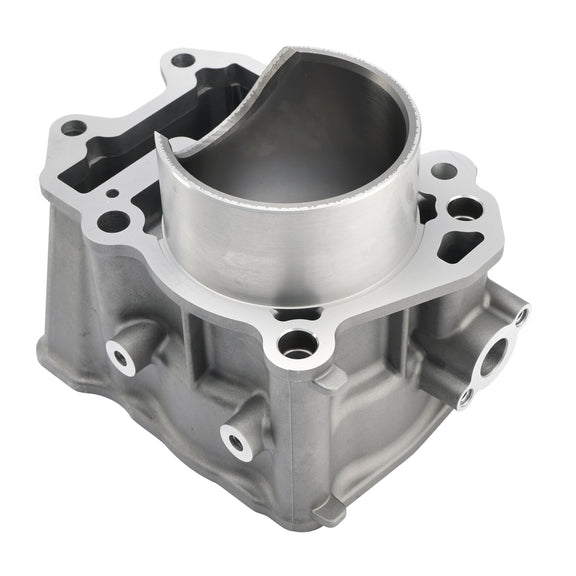

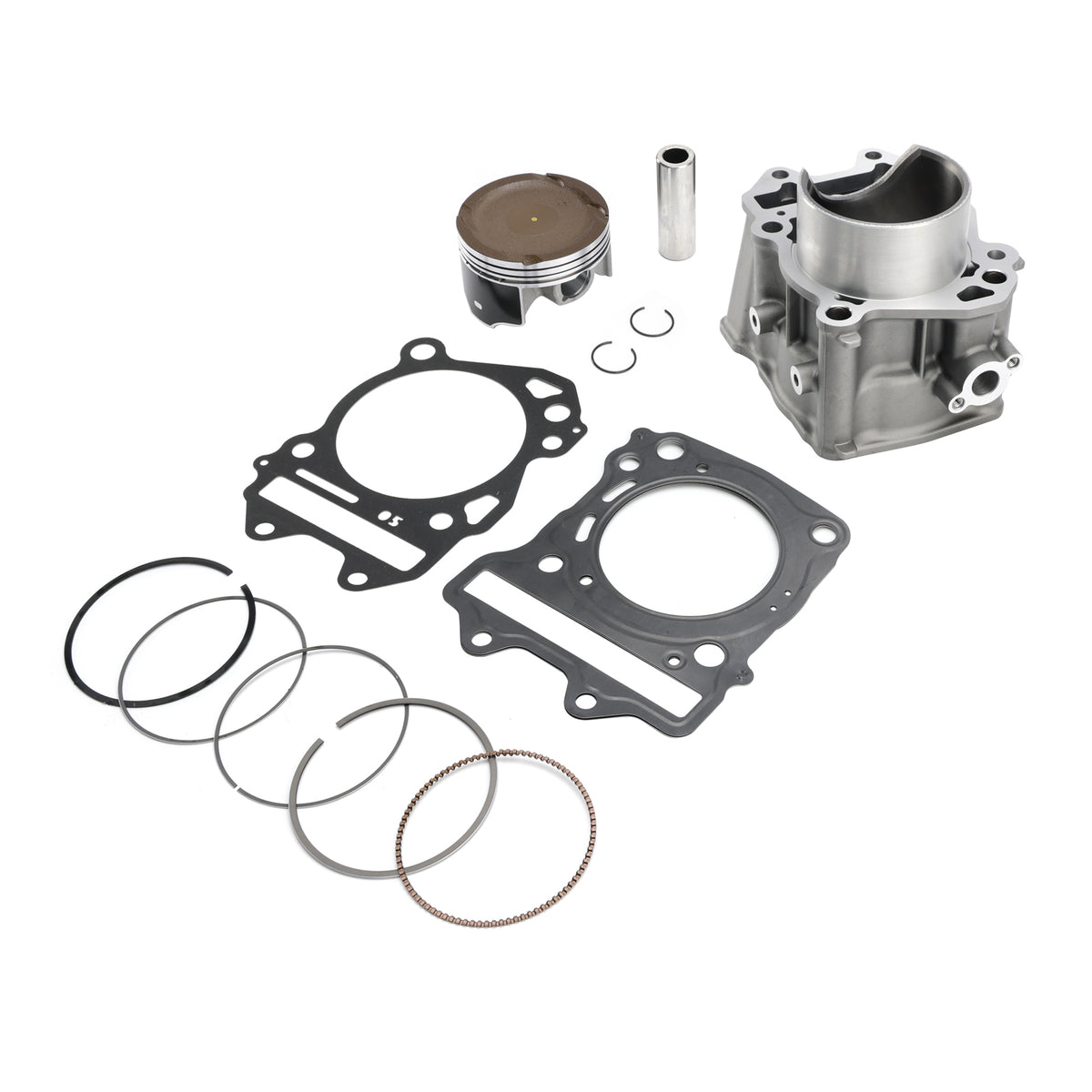

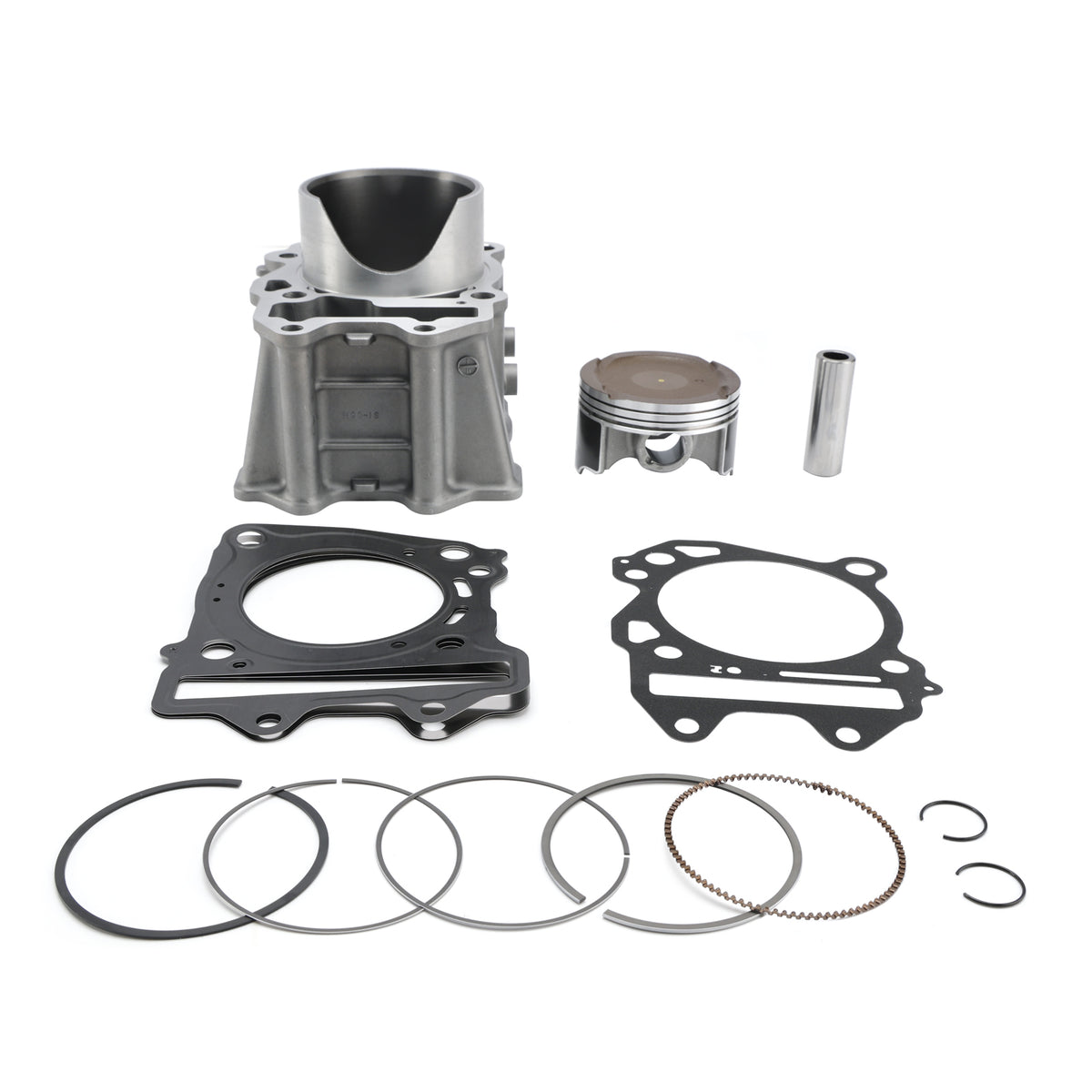

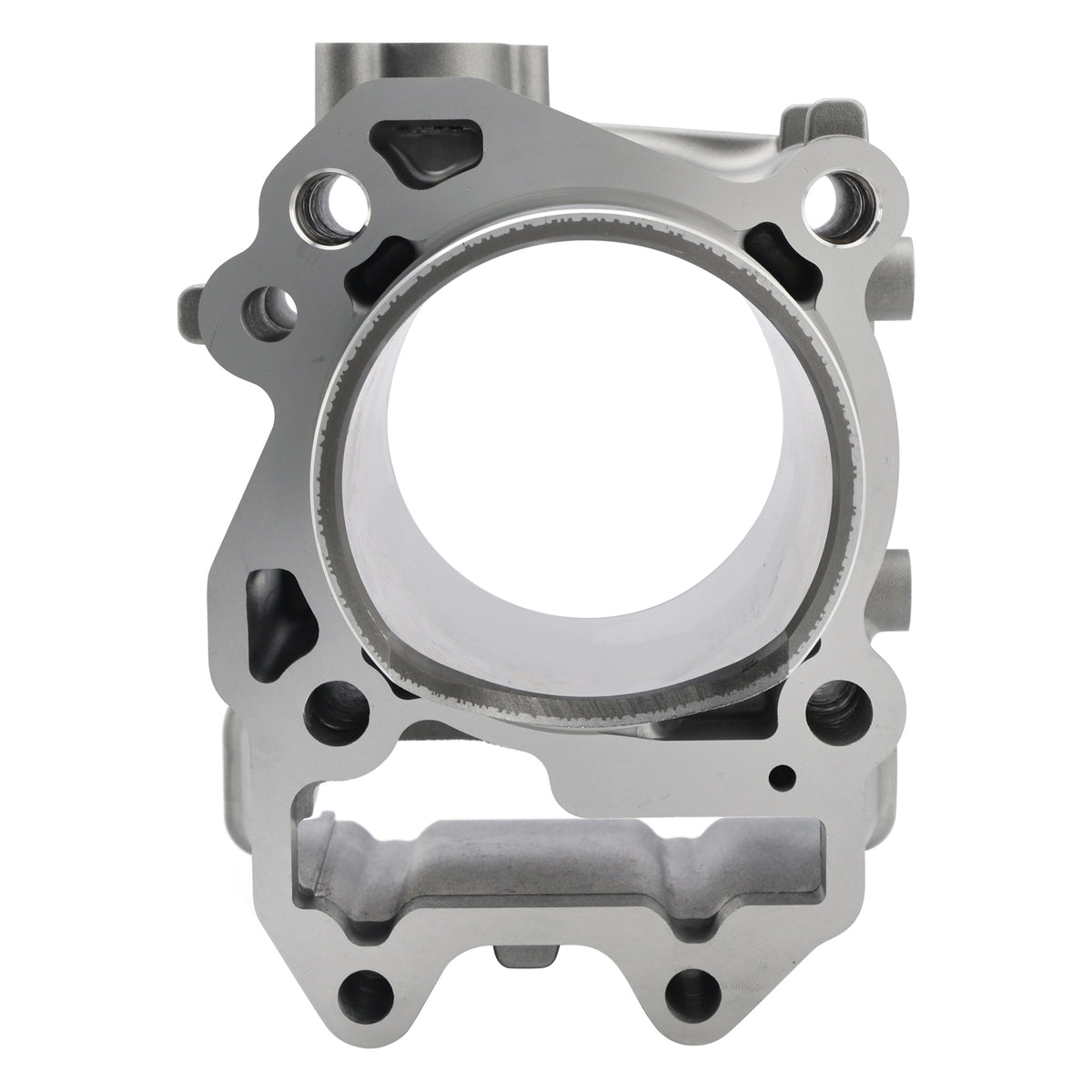

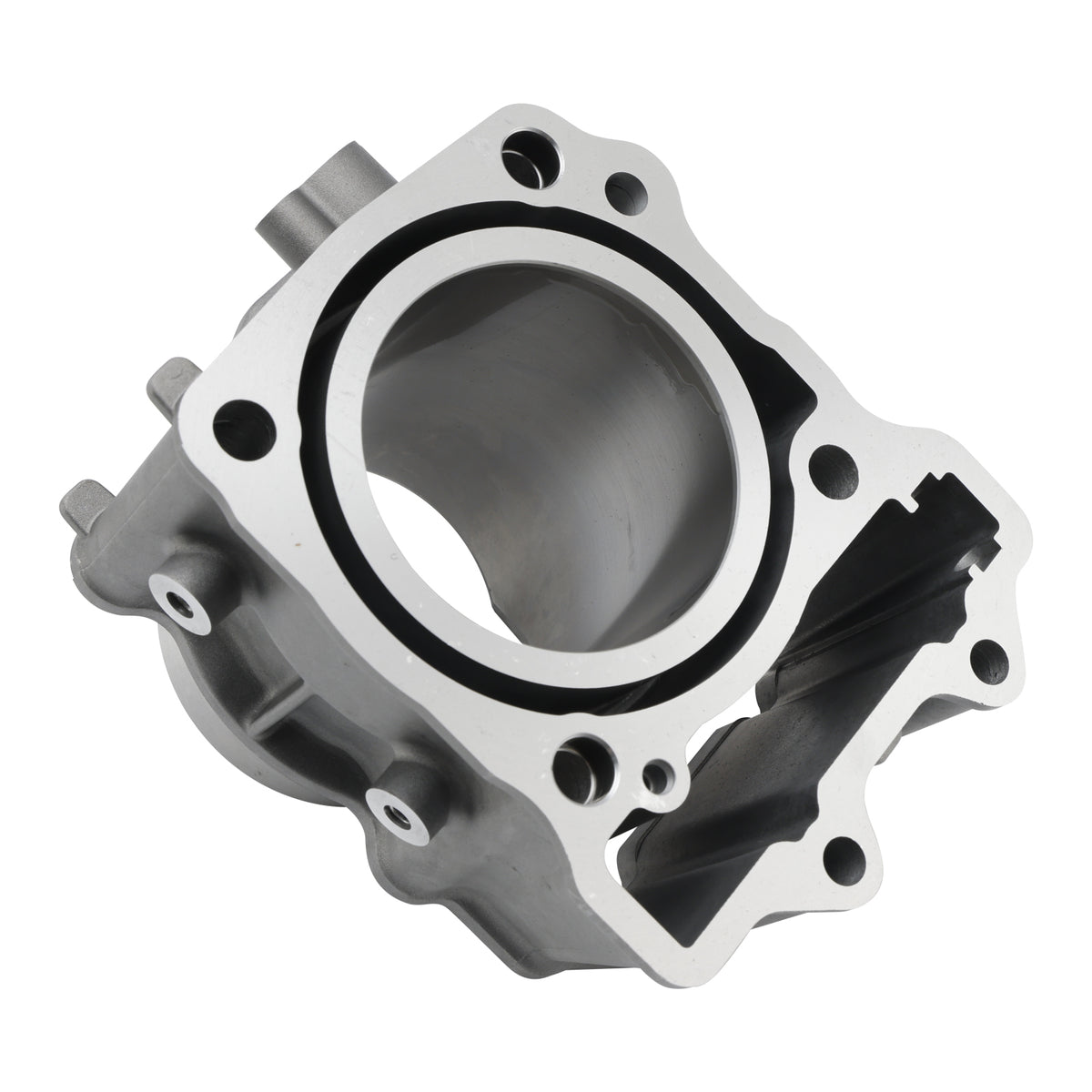

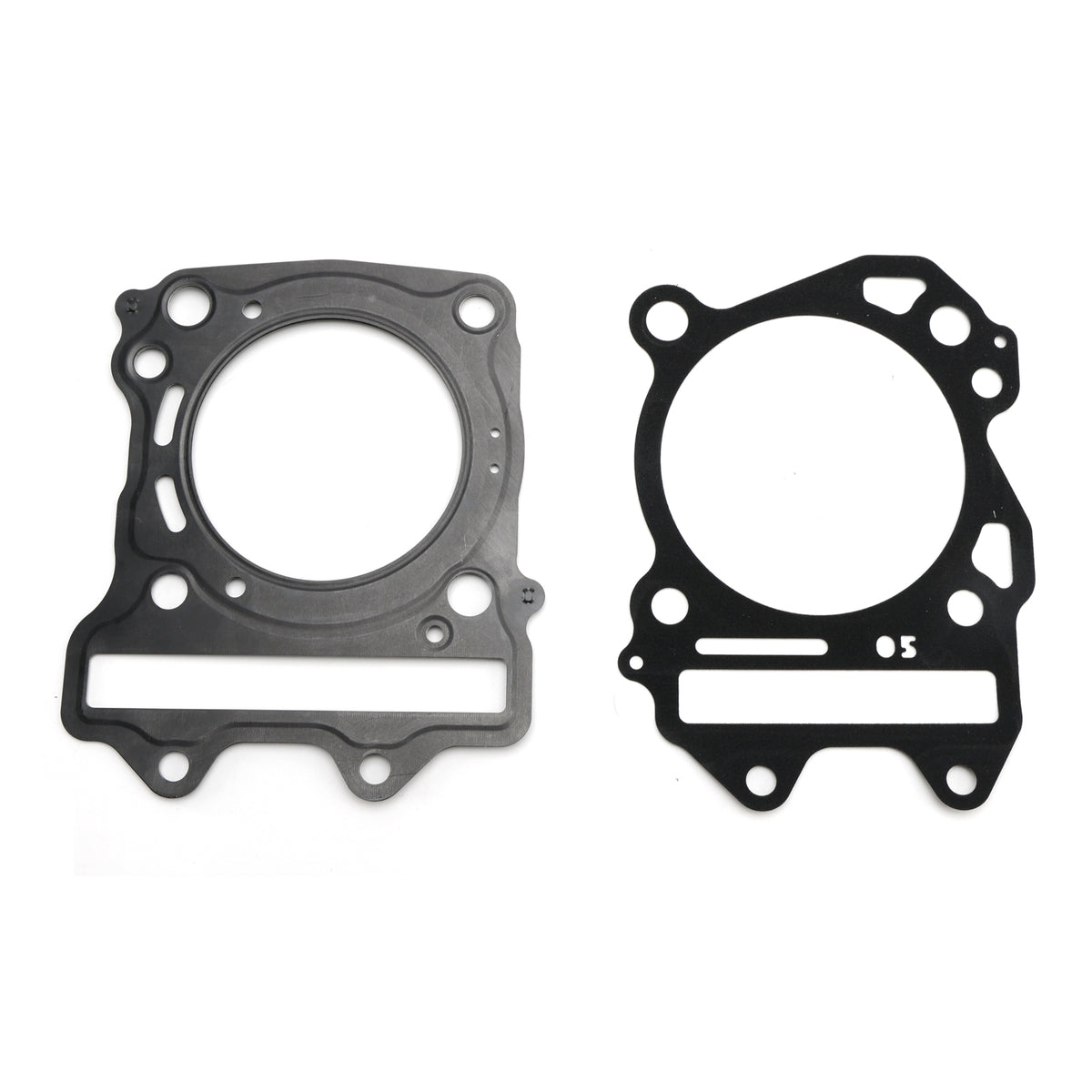

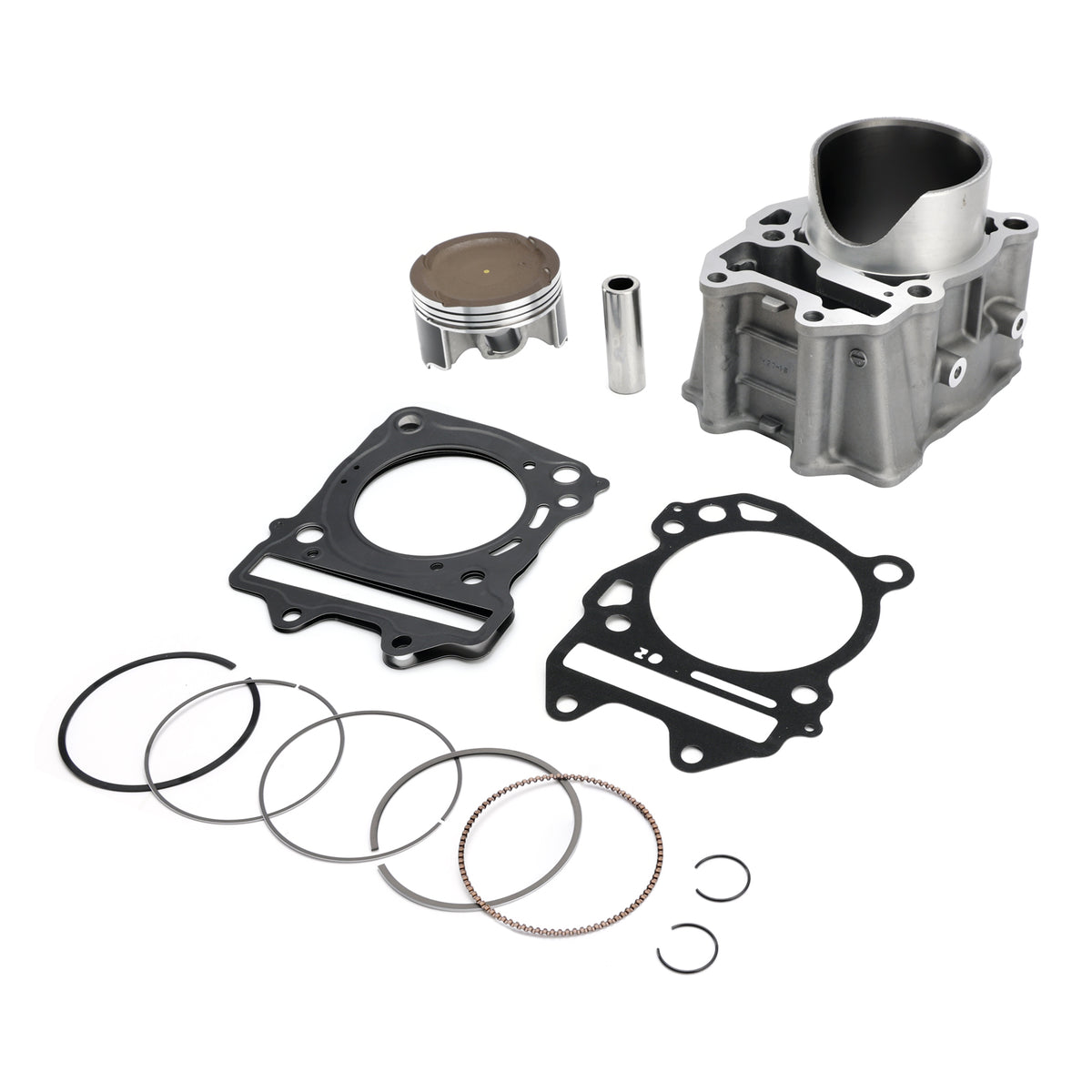

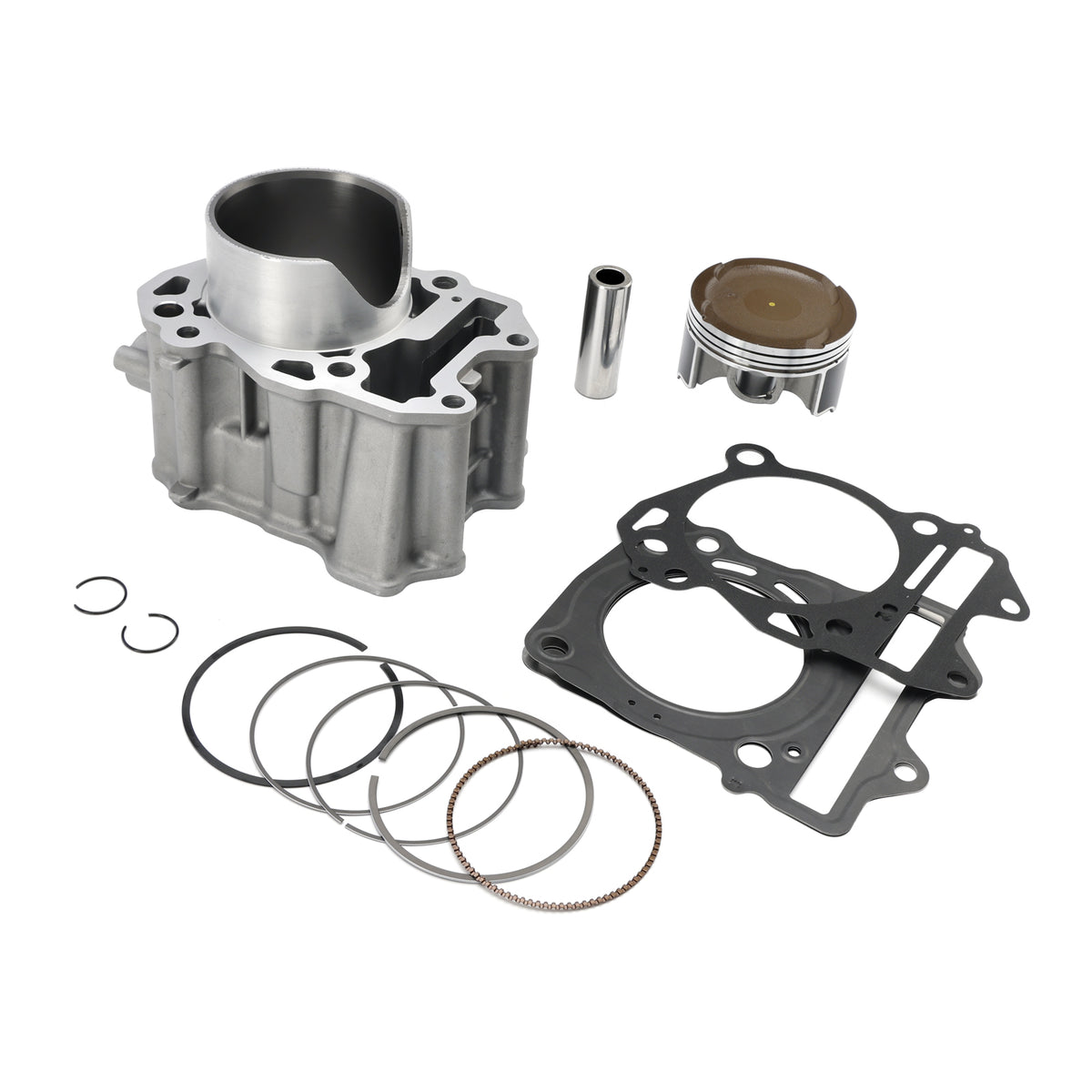

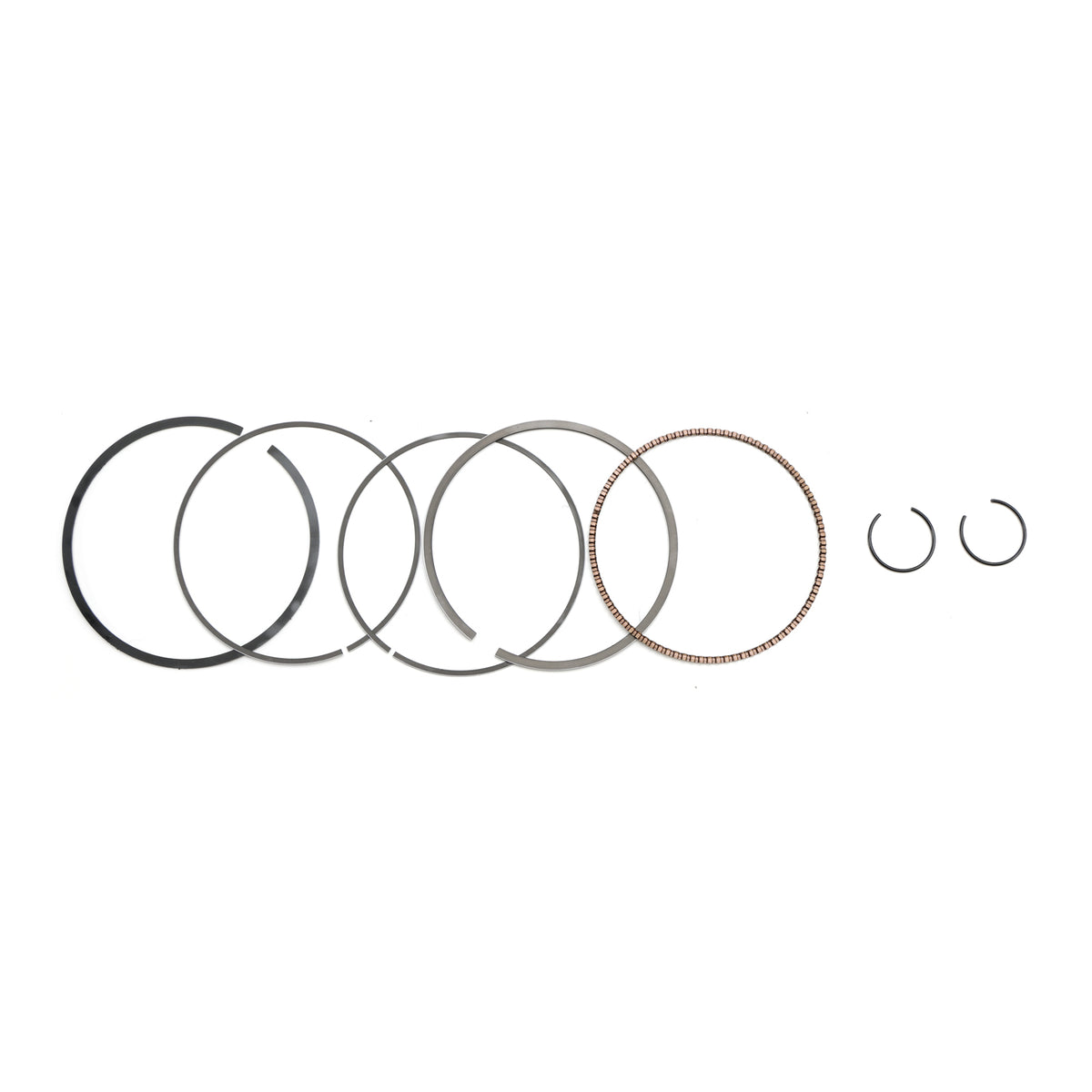

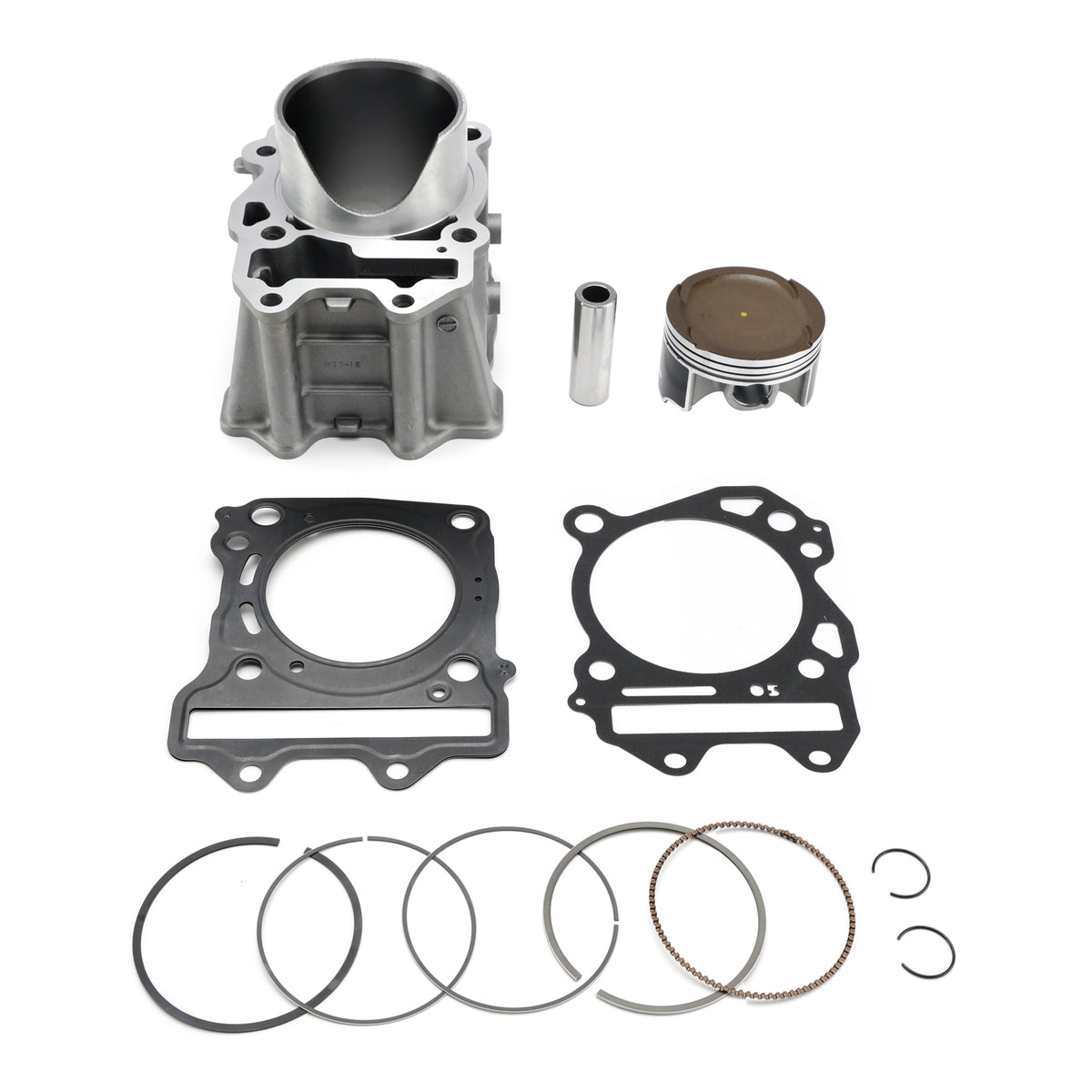

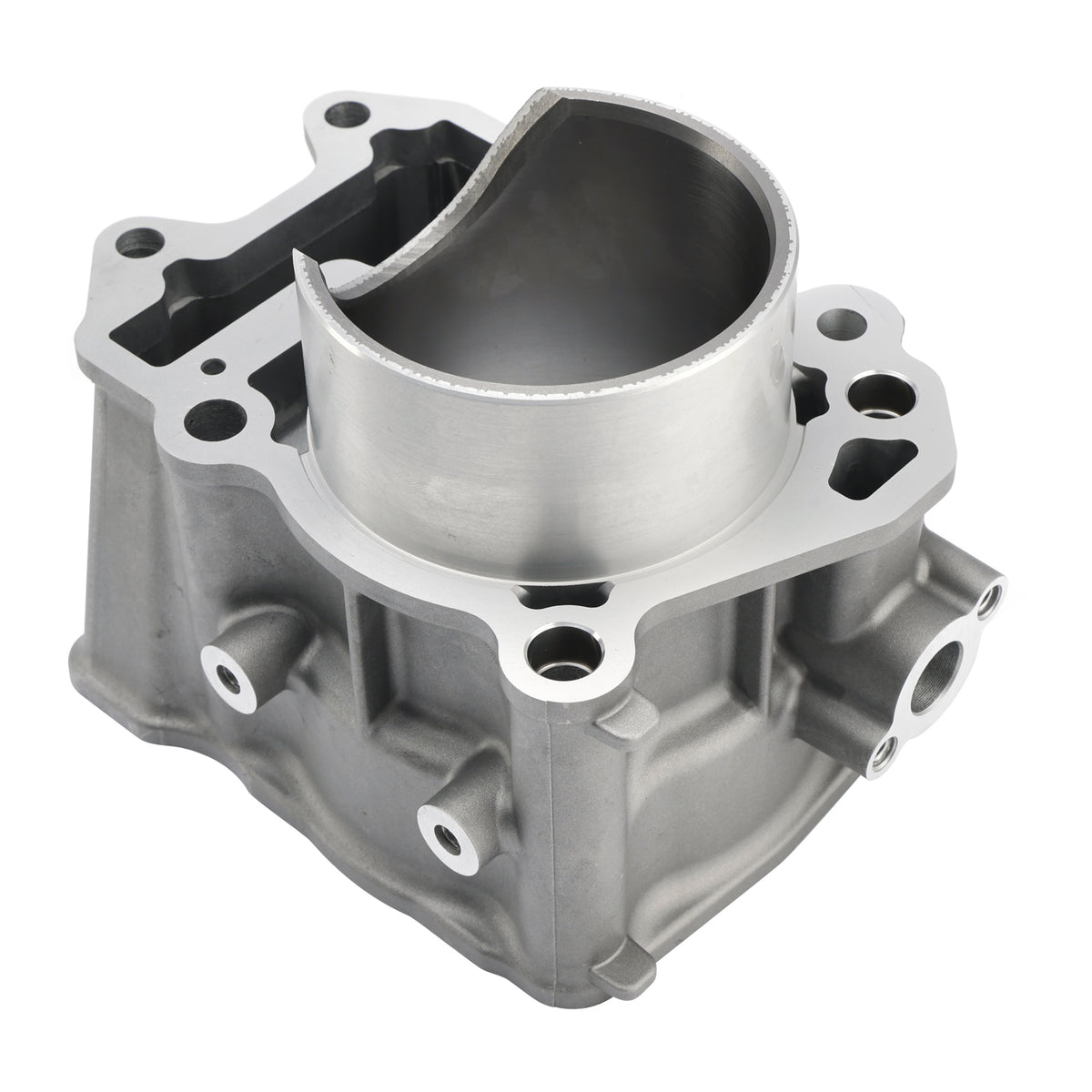

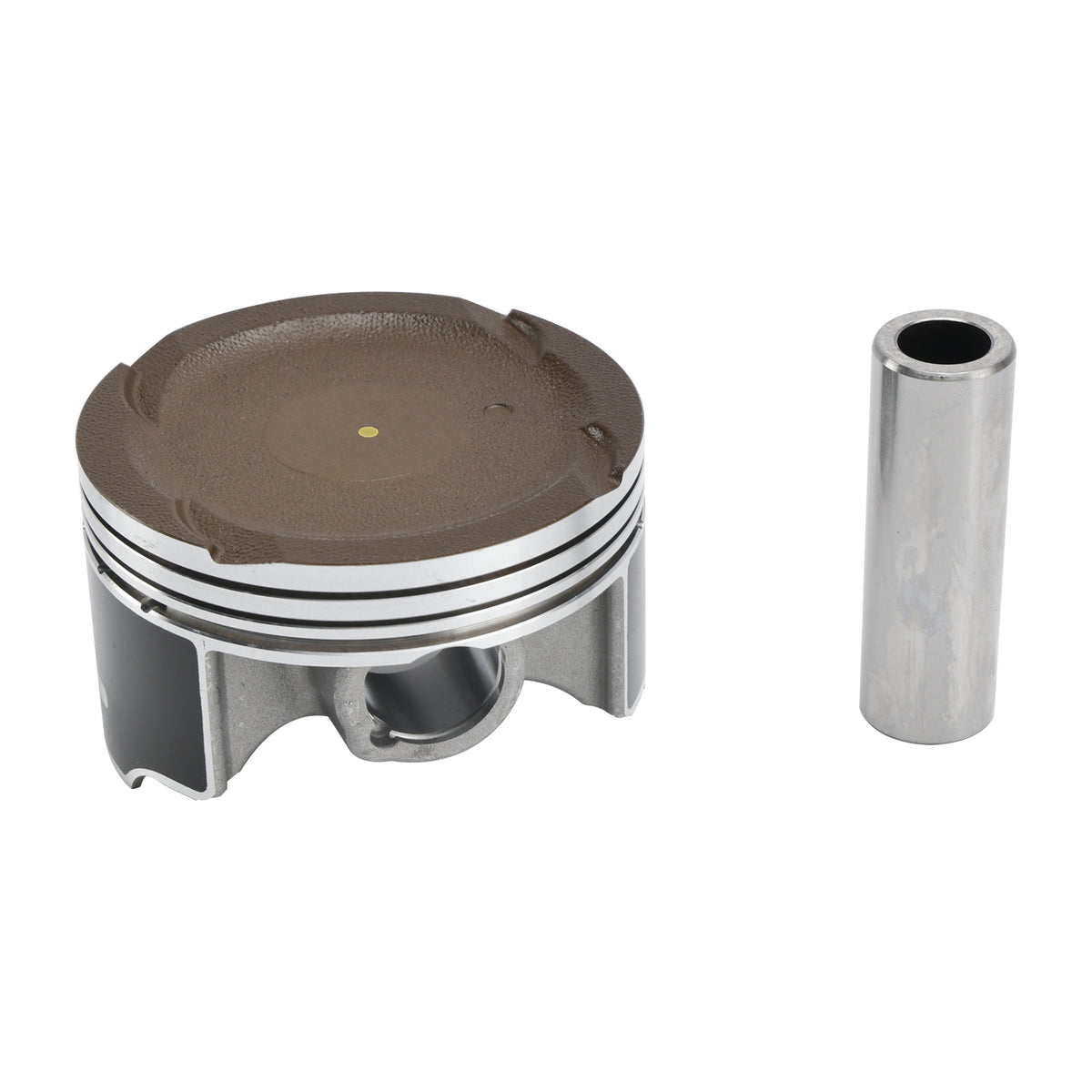

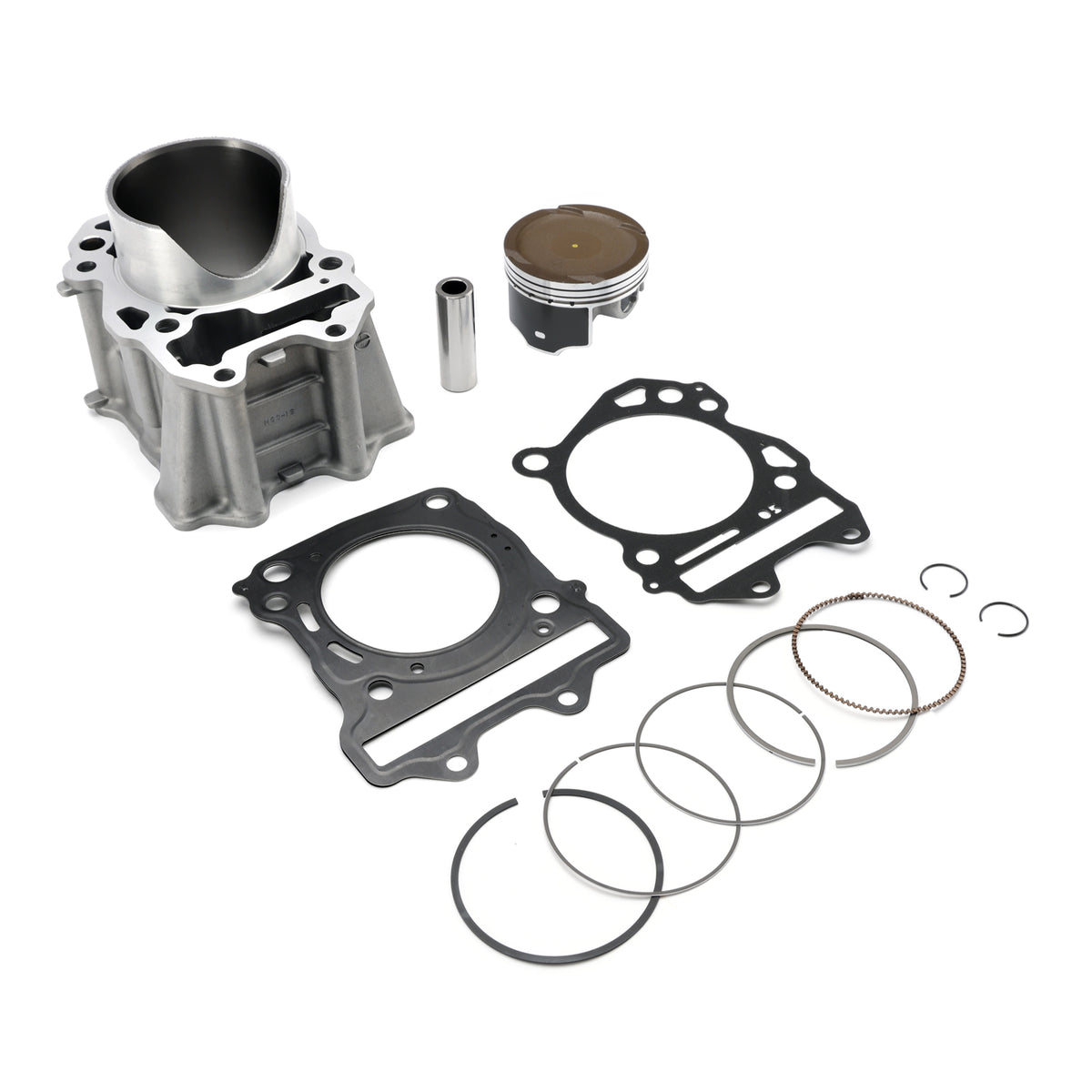

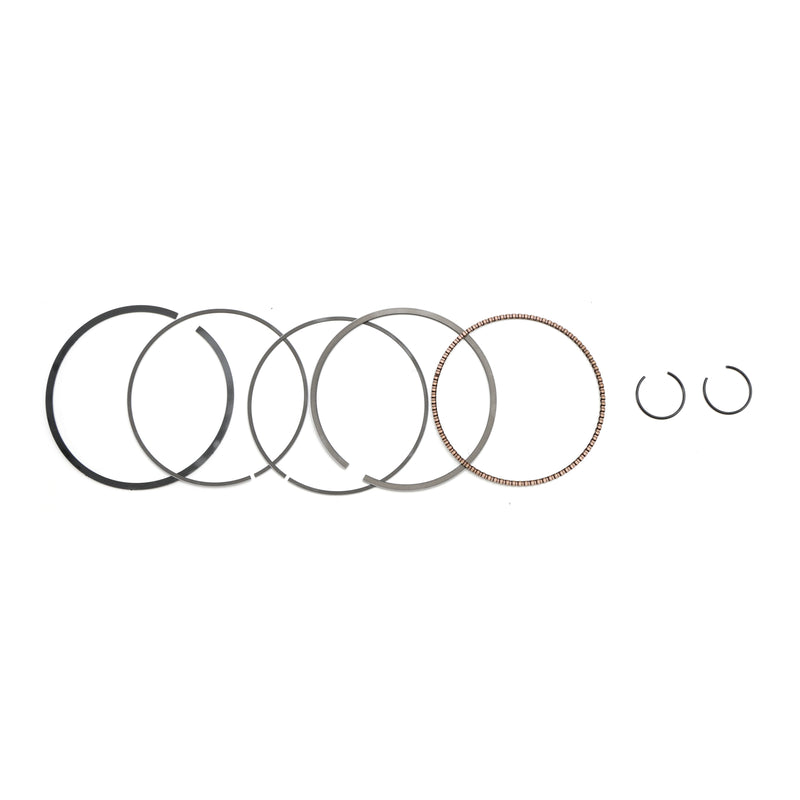

Package Includes: 1x Cylinder 1x Piston 1x Piston Ring Set 1x 20mm Wristpin 1x Circlip(2) 1x Cylinder Base Gasket 1x Cylinder Head Gasket
(Comes exactly as pictured.)
Note: Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
