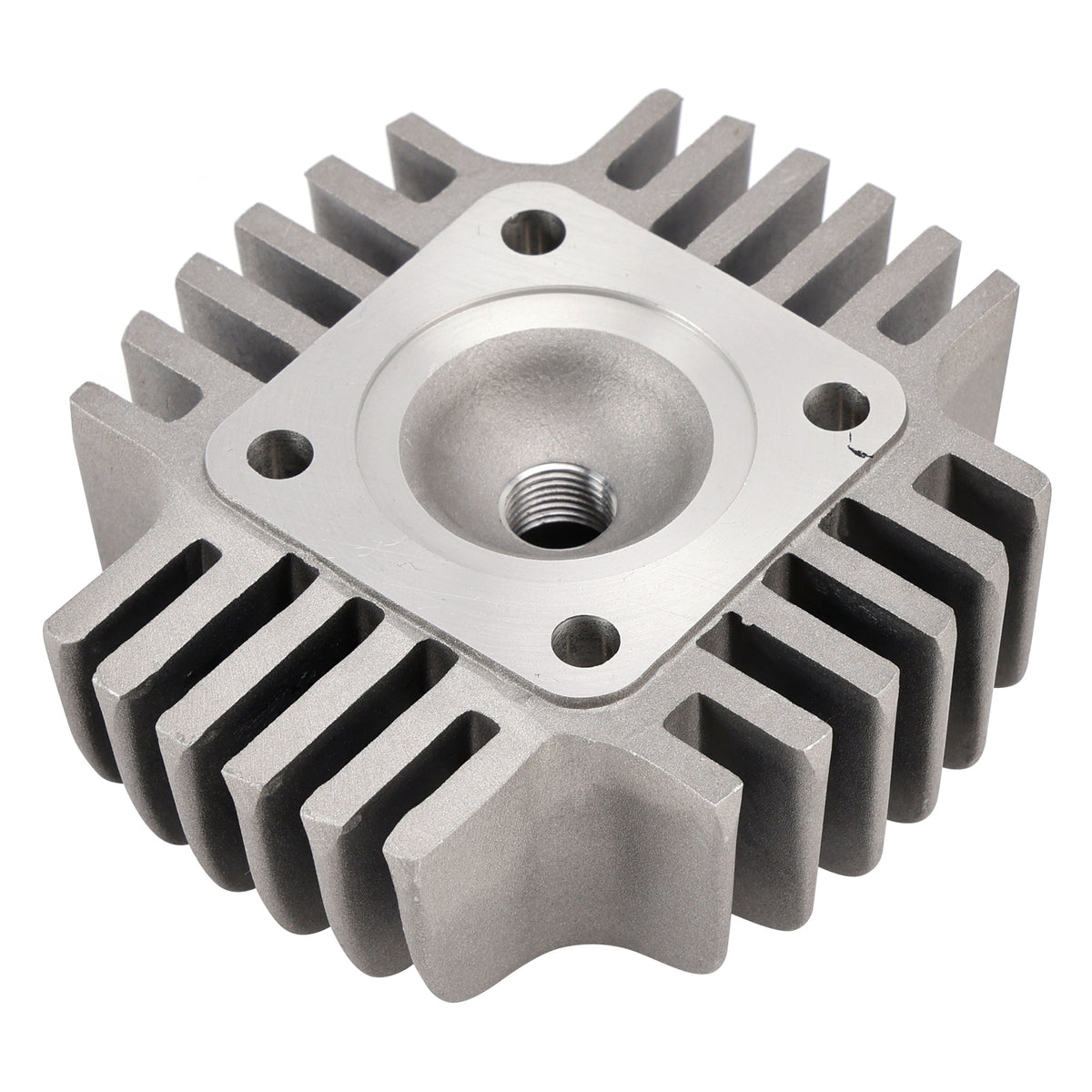

Cylinder Barrel Top End Rebuild Kit 60cc For Suzuki LTA50 LTA 50 2002-2005 JR50 1978-2006

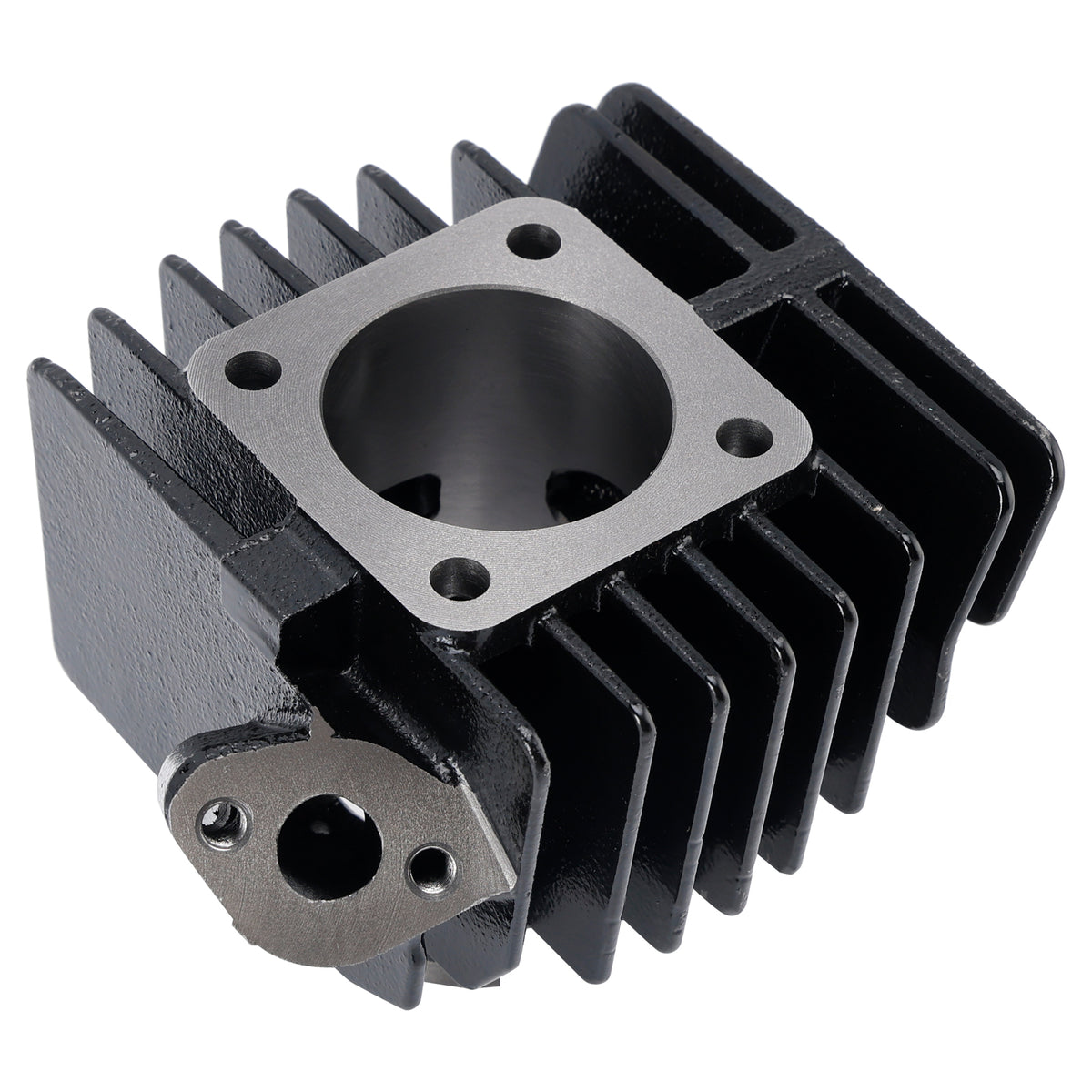

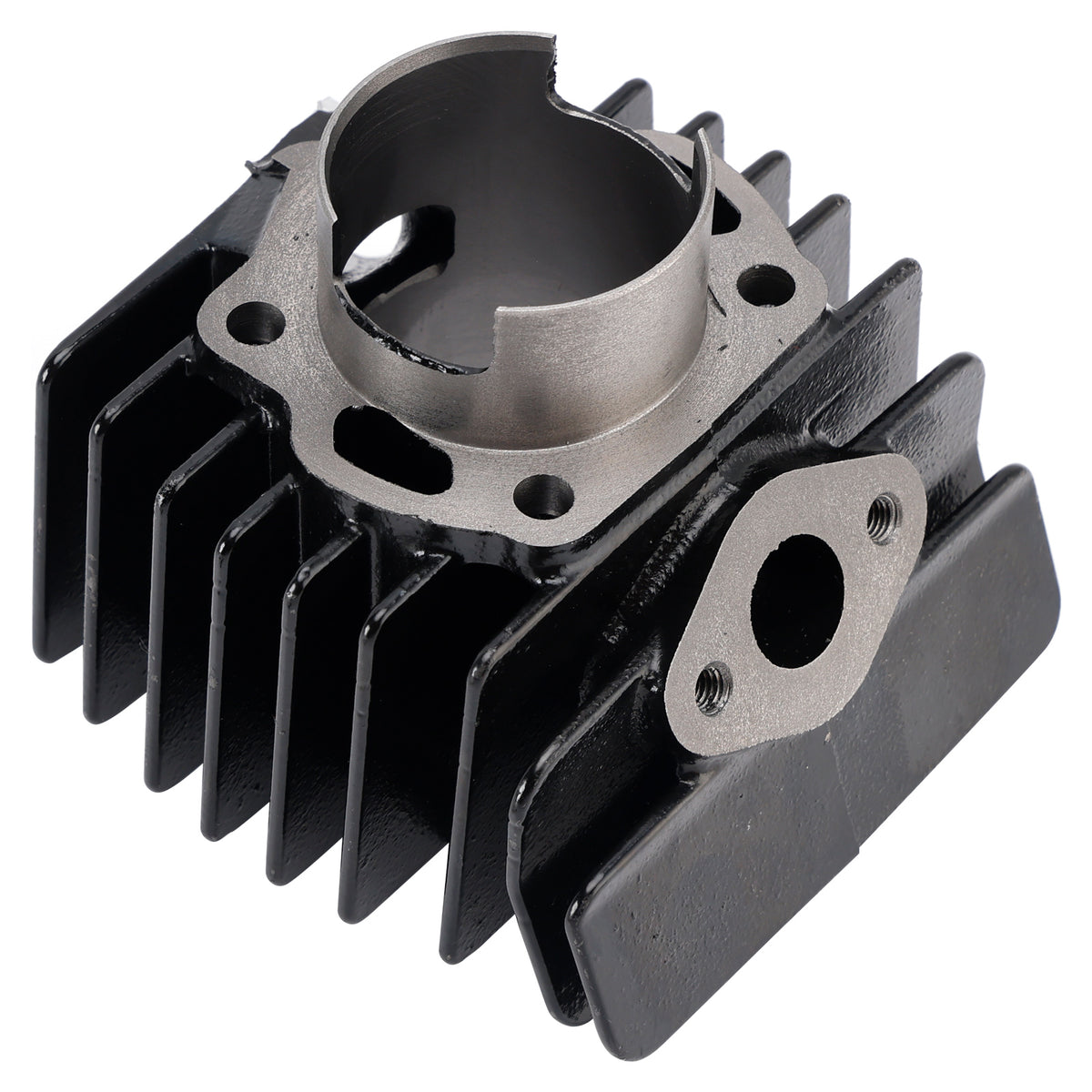

Features: If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you. Kit includes barrel, head, studs, nuts, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment). The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for big bore size - 44 mm, 12 mm steel piston pin. This kit is excellent as a low-cost replacement for defects in the original cylinder.

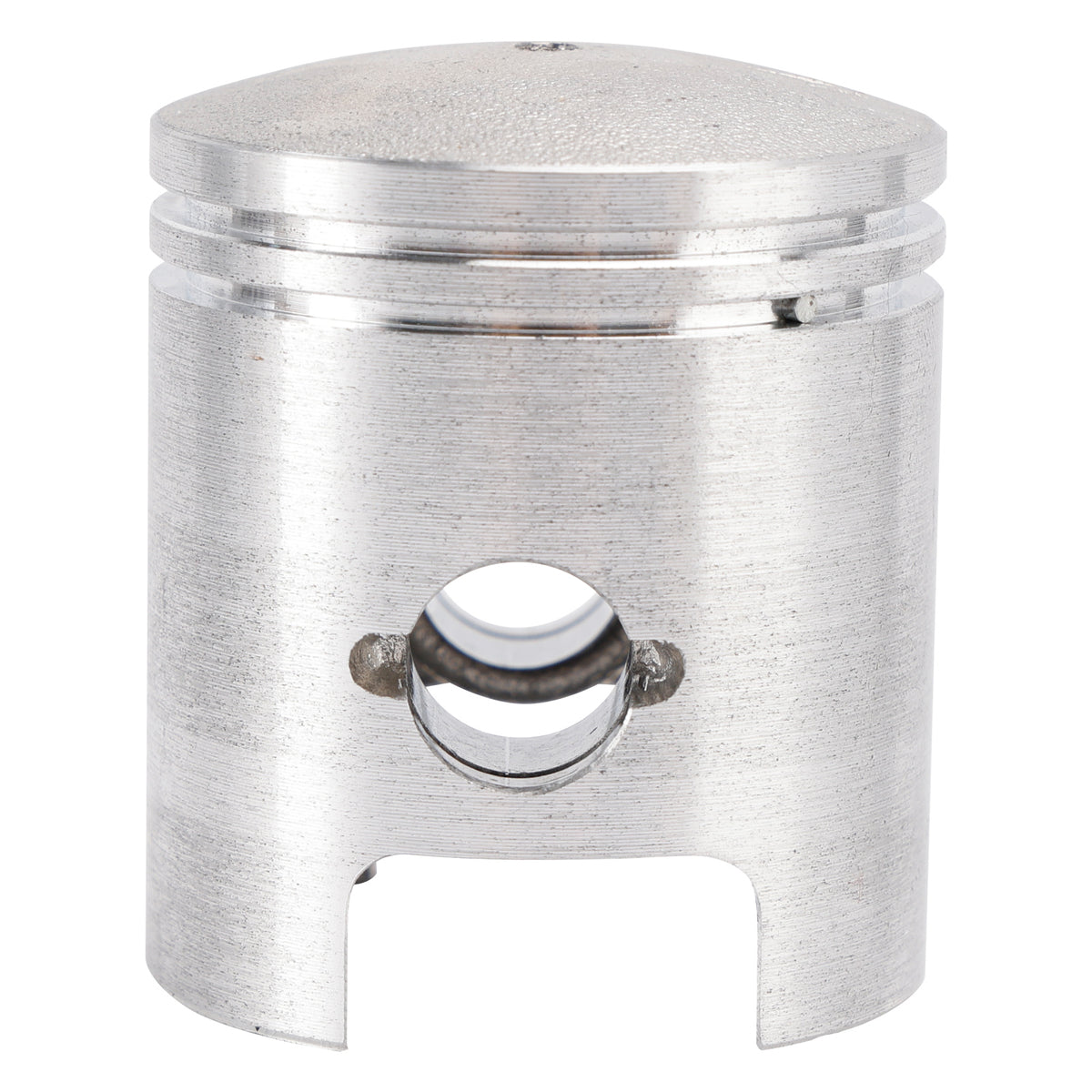

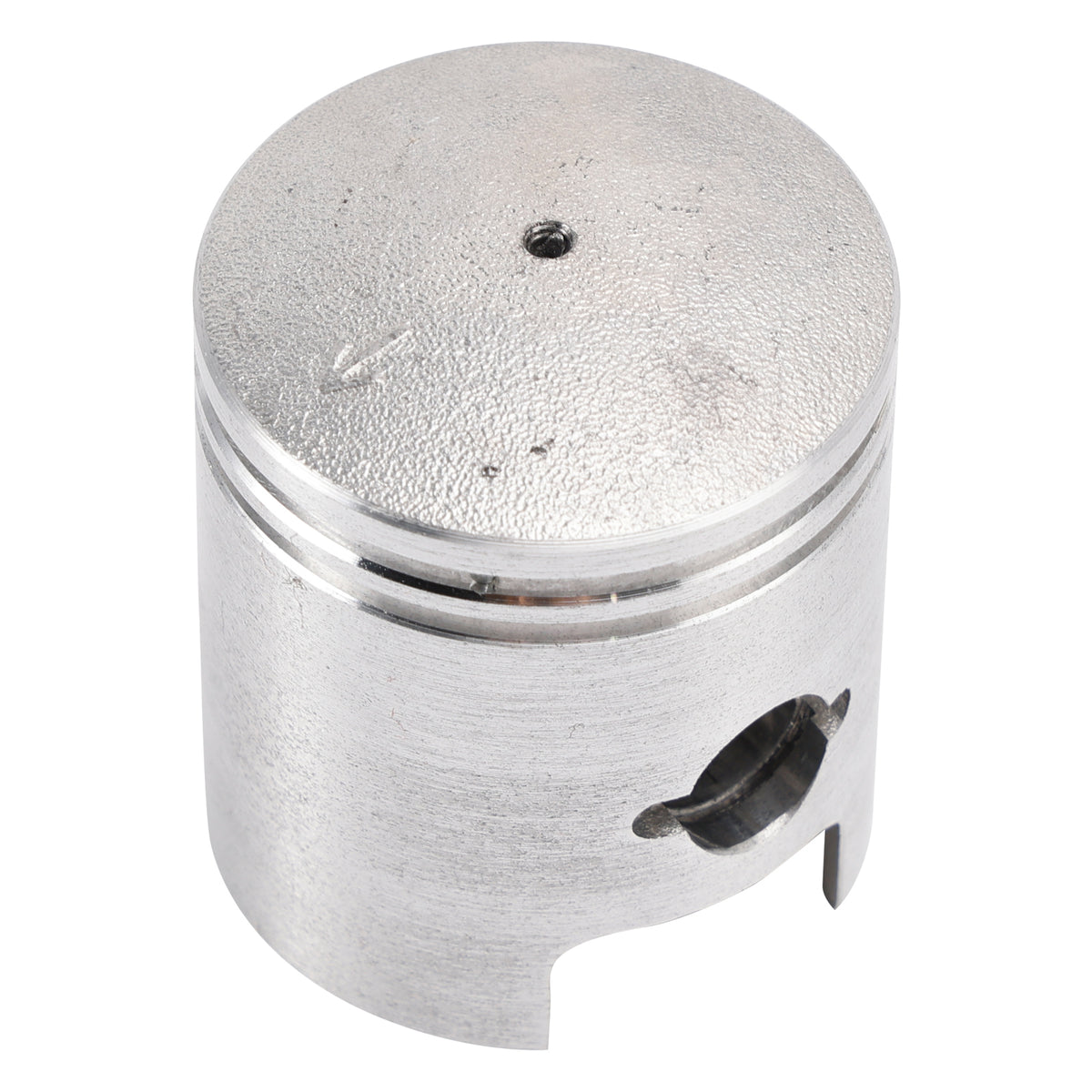

Specifications: Condition: Aftermarket 100% Brand New Quantity: 1 Set Material: Aluminum, Steel Engine: 2-Stroke Displacement: 60cc Bore Type: Standard Bore Bore diameter: 44 mm Pin diameter: 12mm Pin length: 35mm

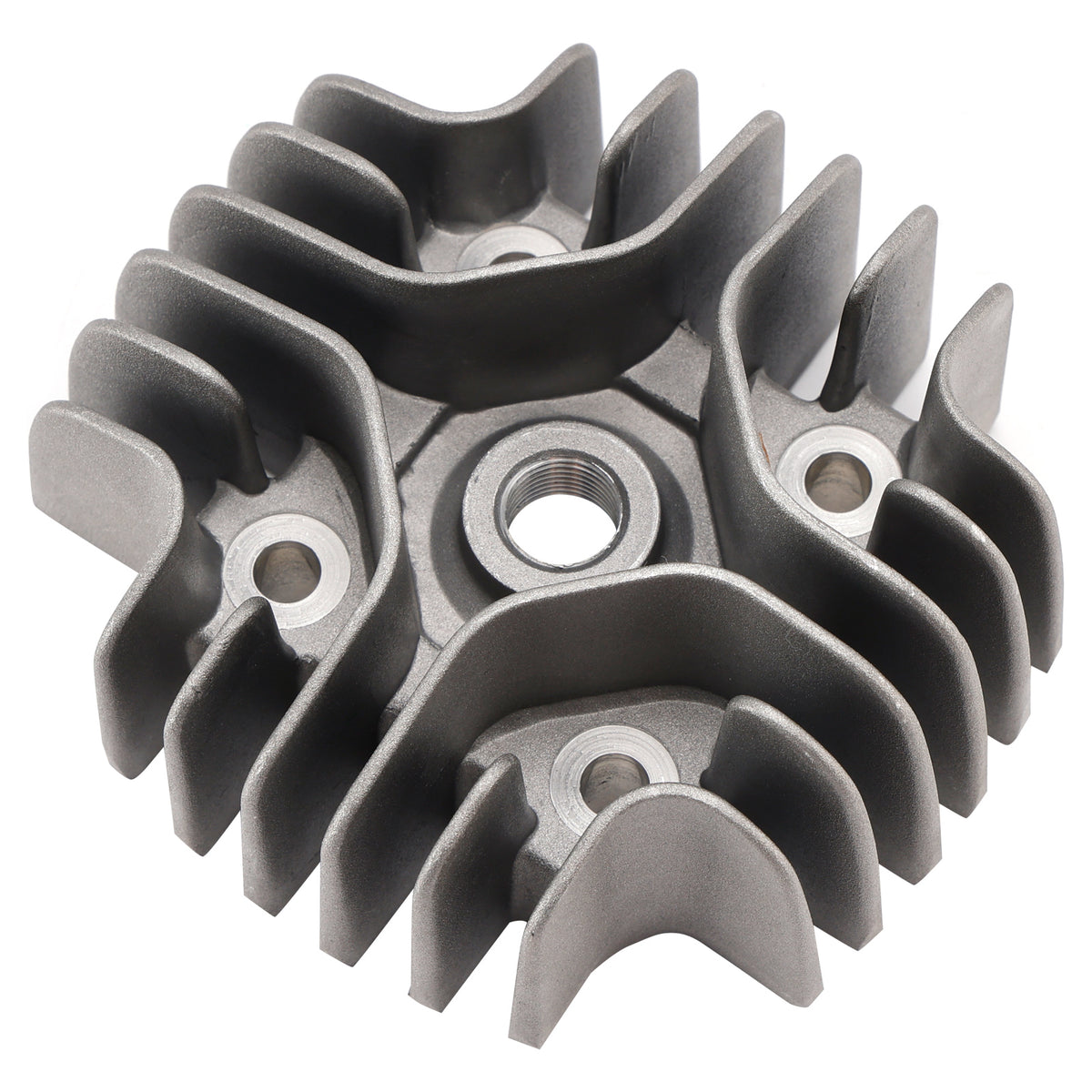

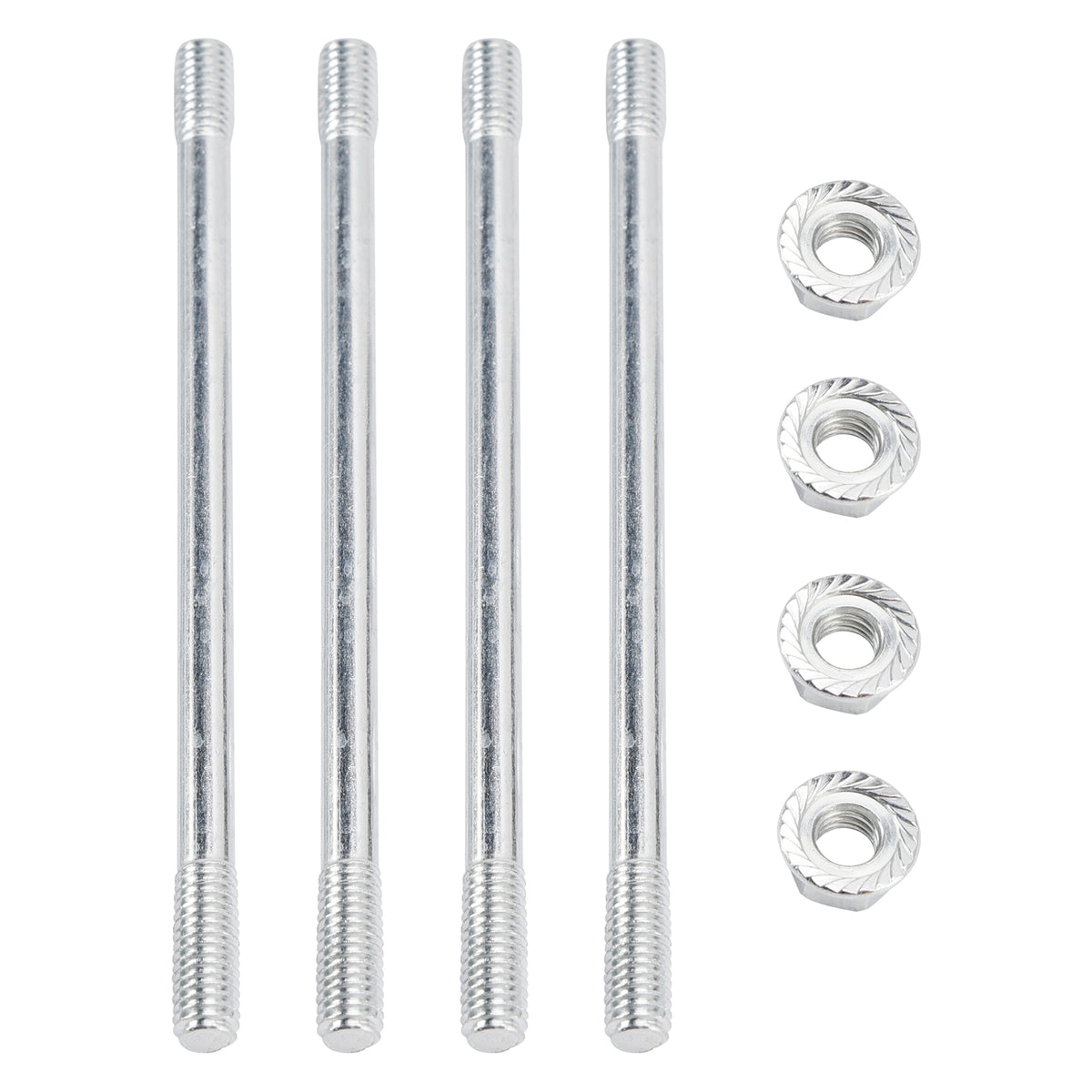

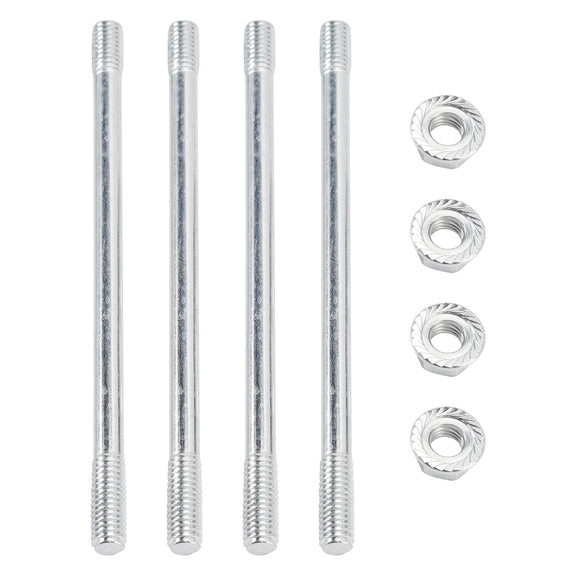

Replacement Part Number: Cylinder: 11211-04002-0F0 Cylinder Head: 11111-04001 Cylinder Head Gasket: 11141-04000 Cylinder Base Gasket: 11241-04010 Stud Bolt: 09108-06108 Nut: 08319-31067
(Always compare part numbers to your parts schematics and cross reference appropriately.) (This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)
Fits Make/Model/Year: Fit for Suzuki LTA50 2002-2005 Fit for Suzuki JR50 1978-2006
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

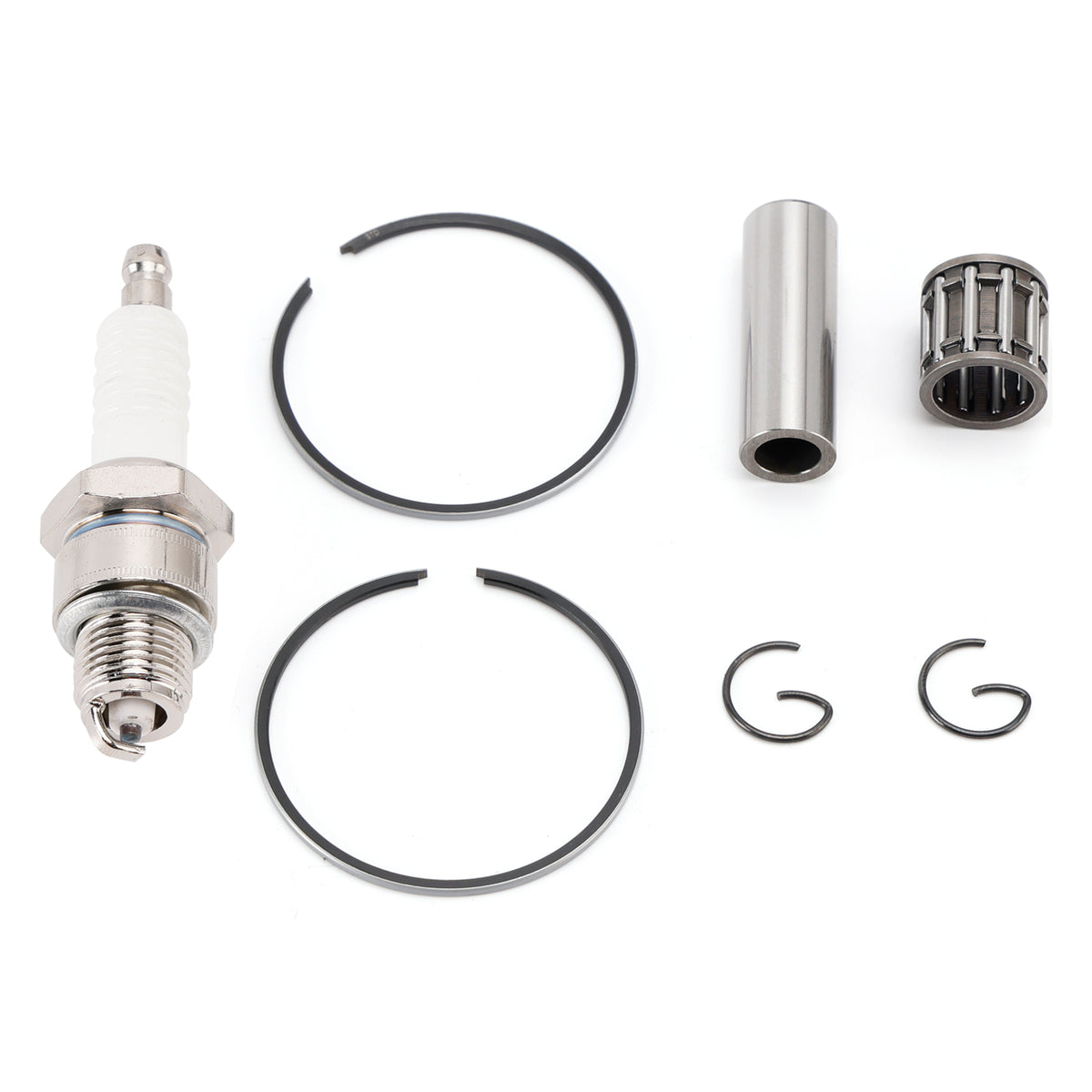

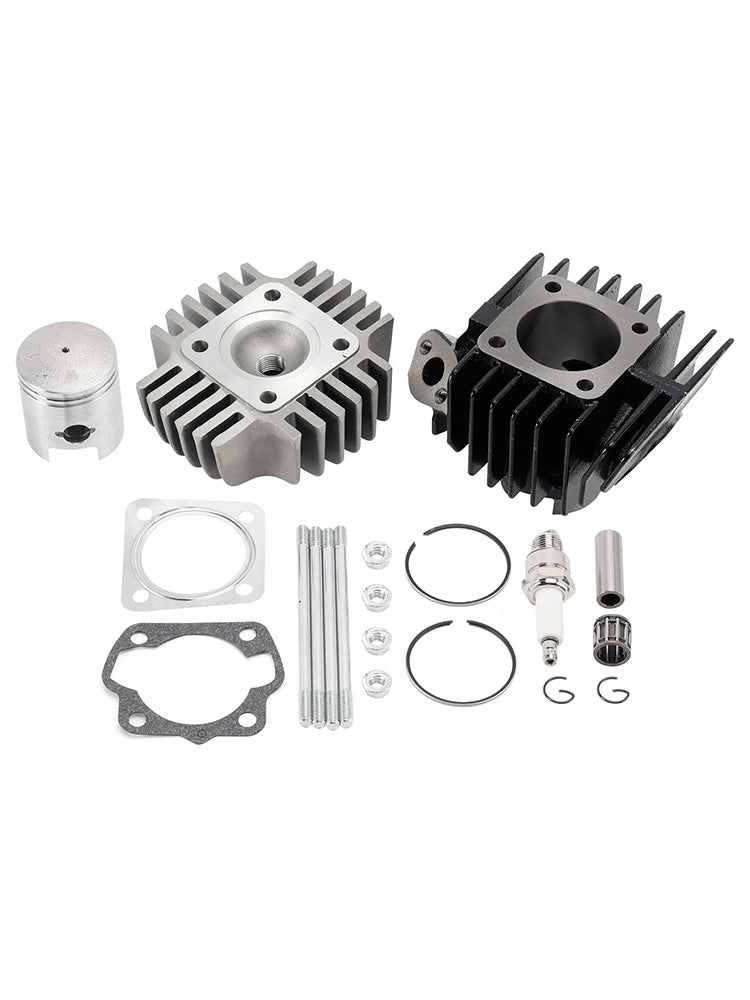

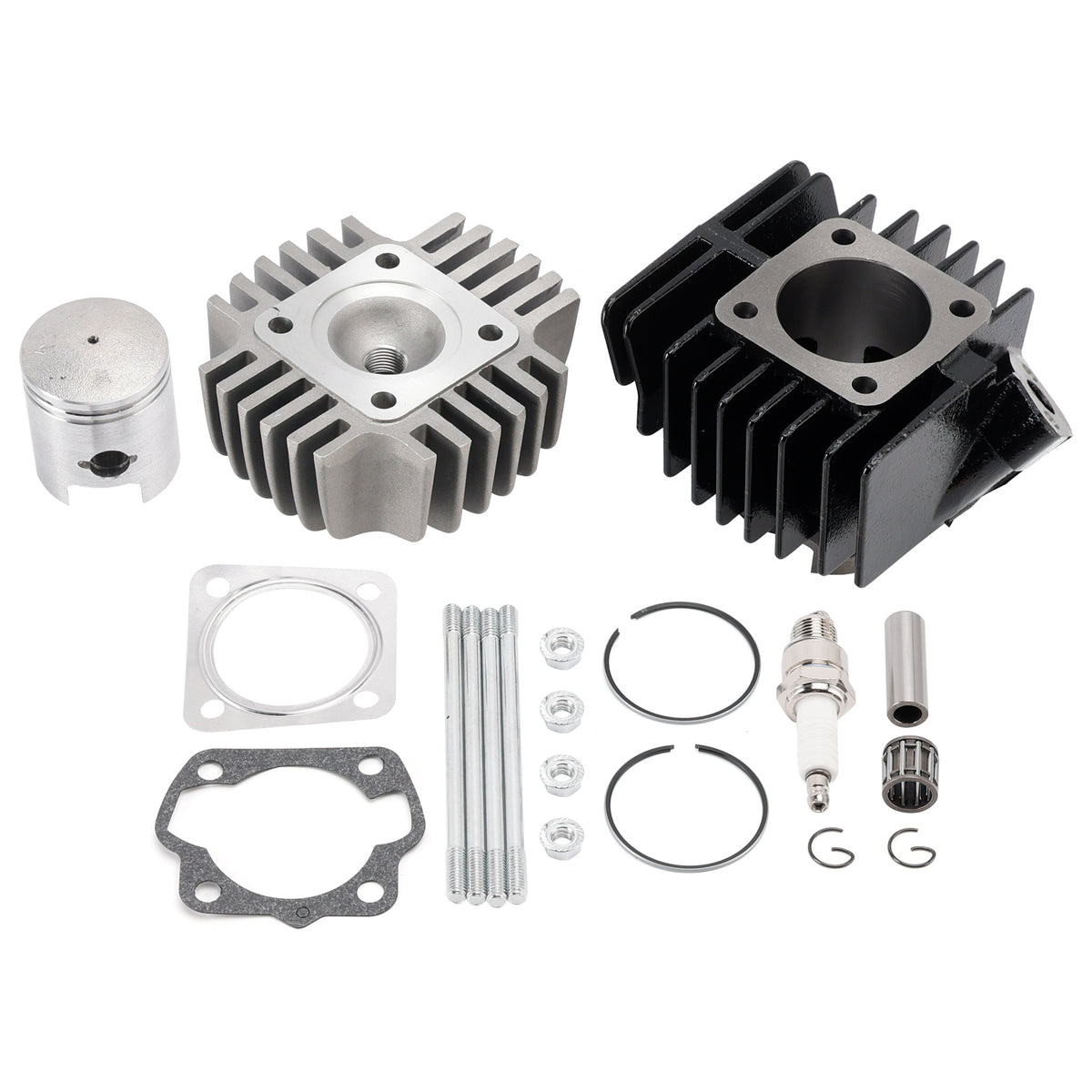

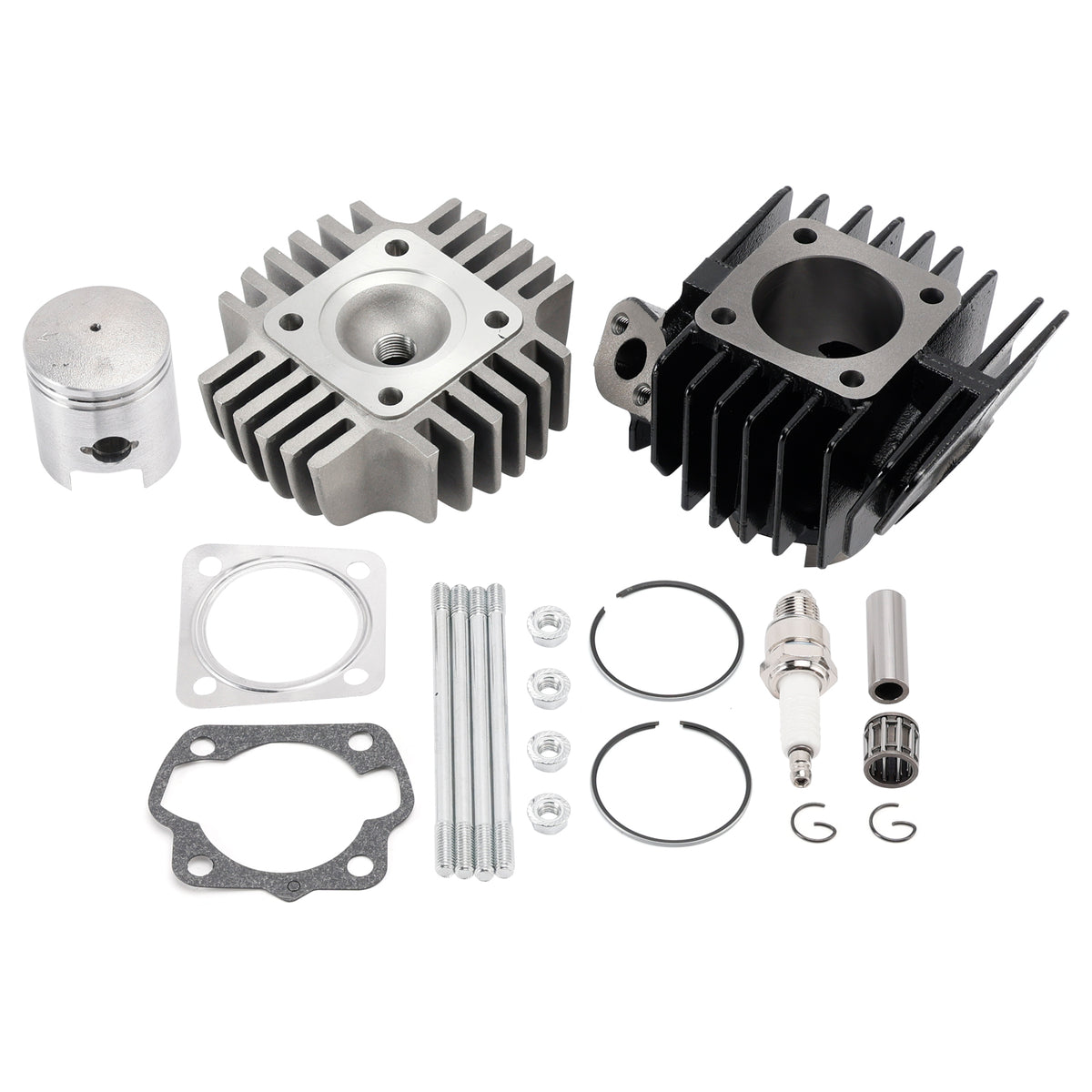

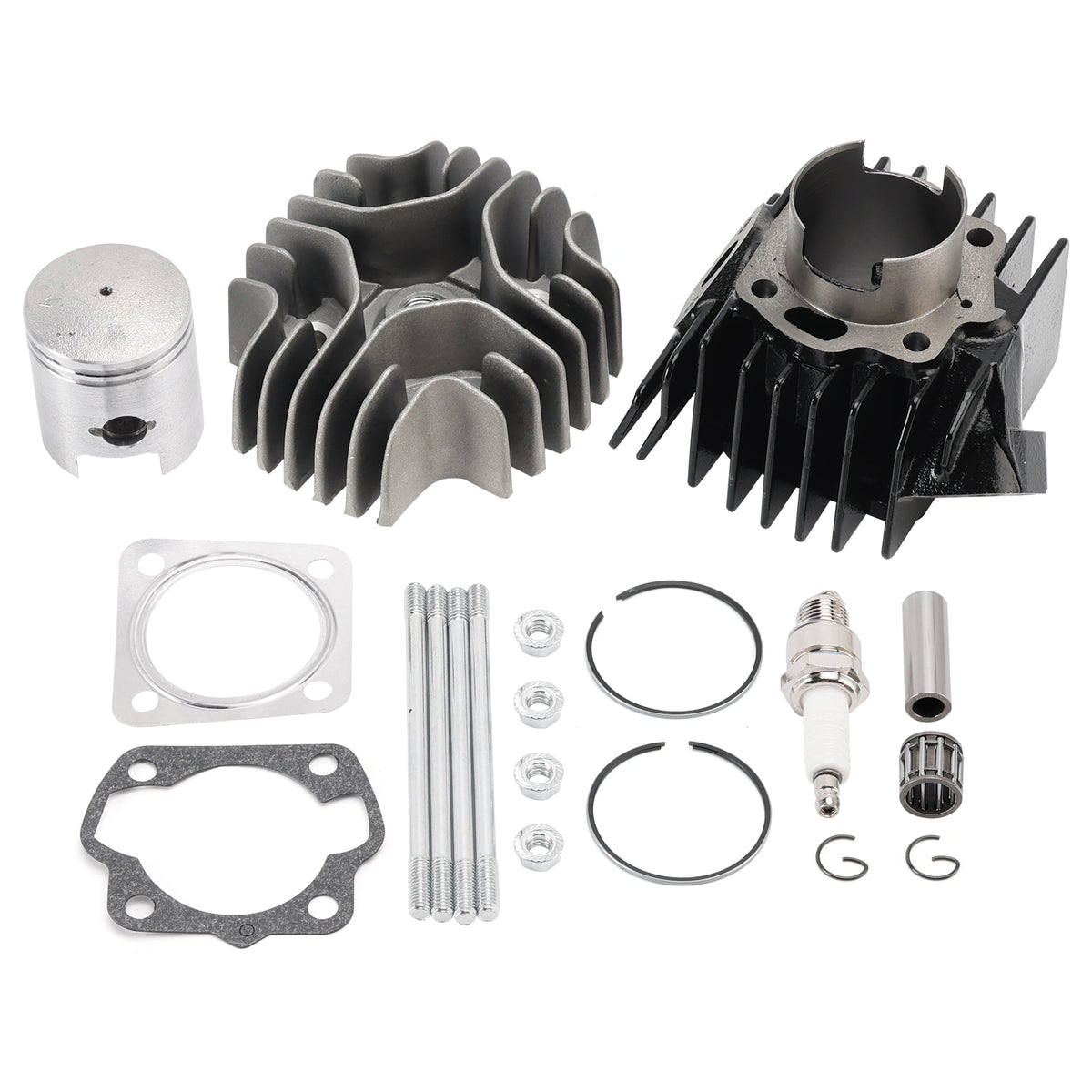

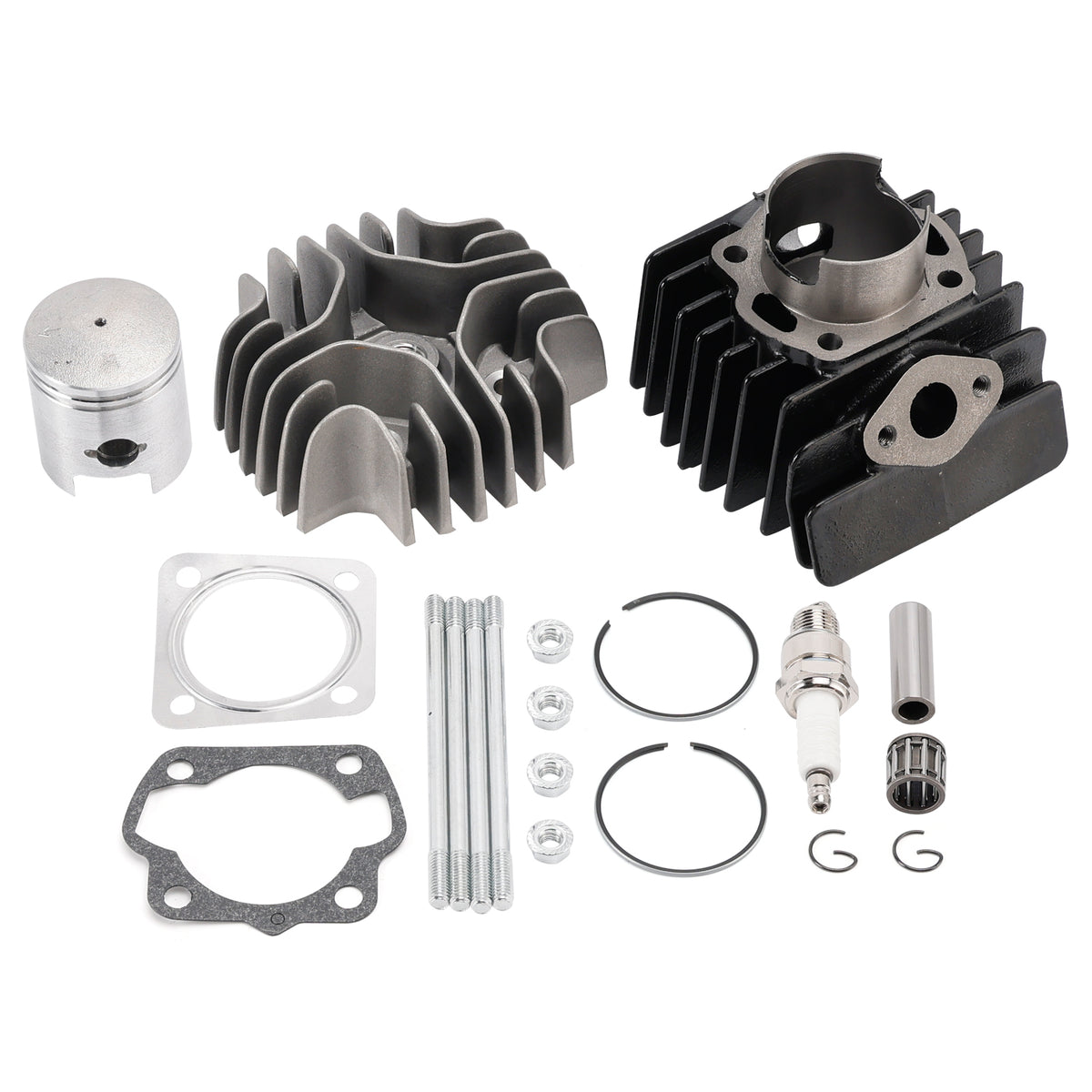

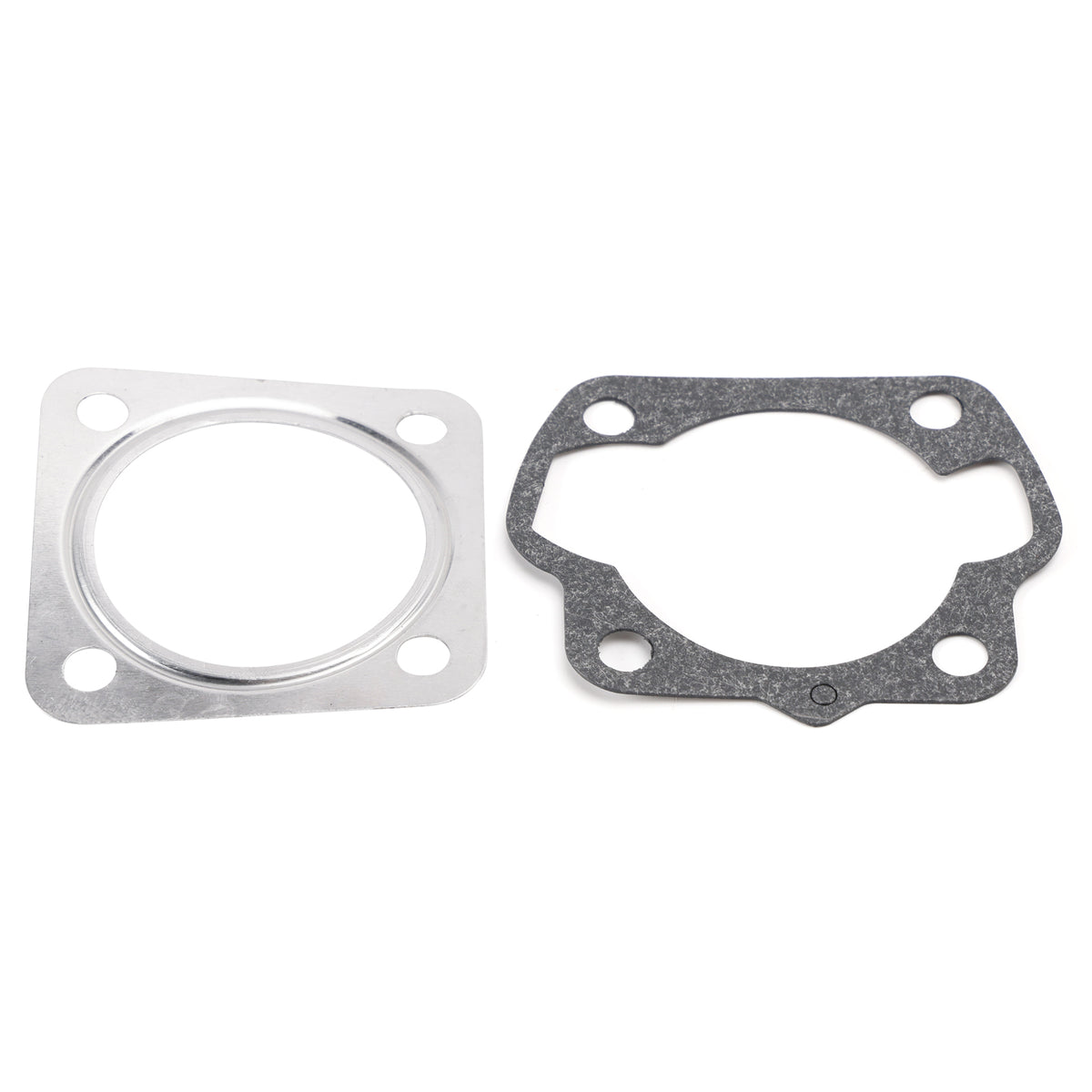

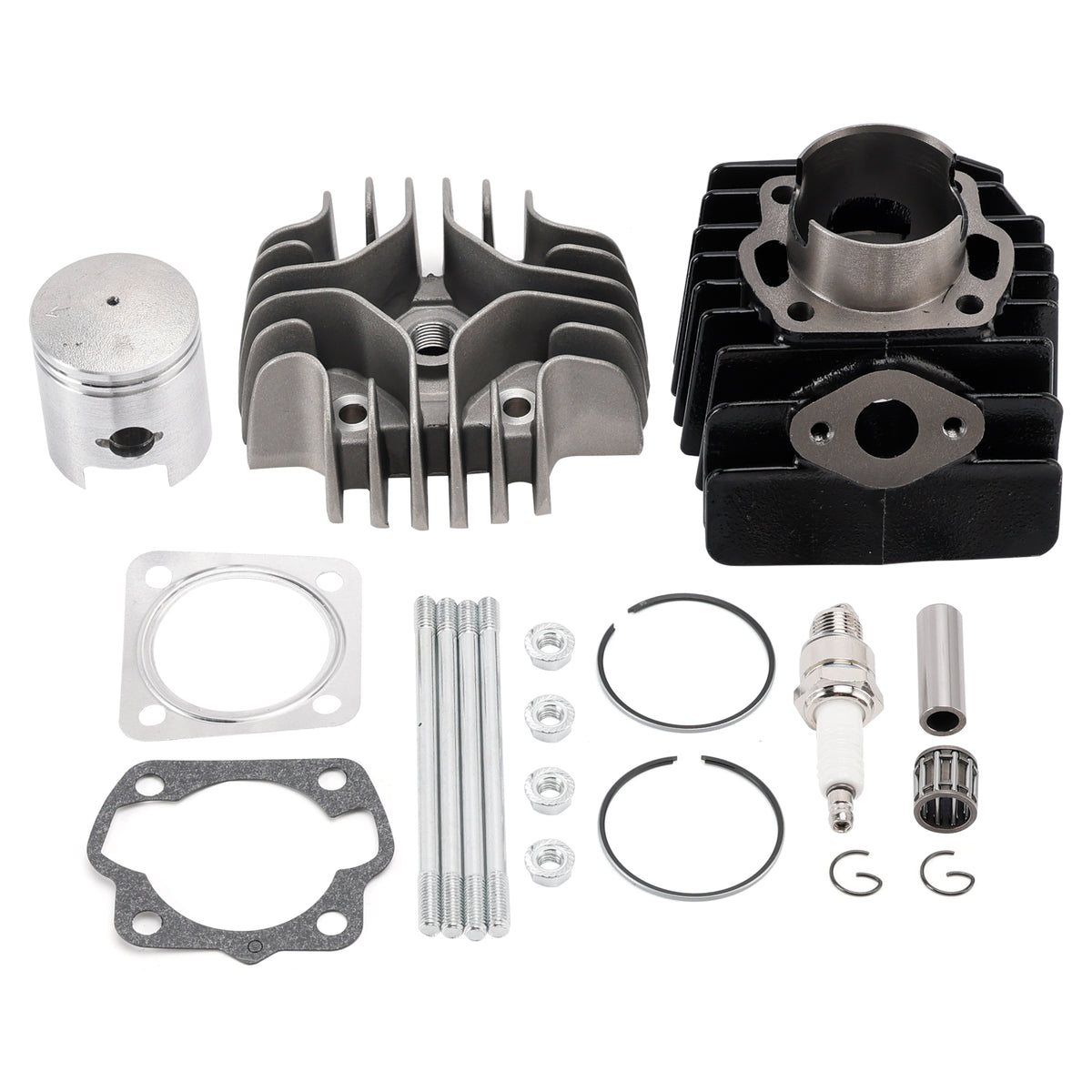

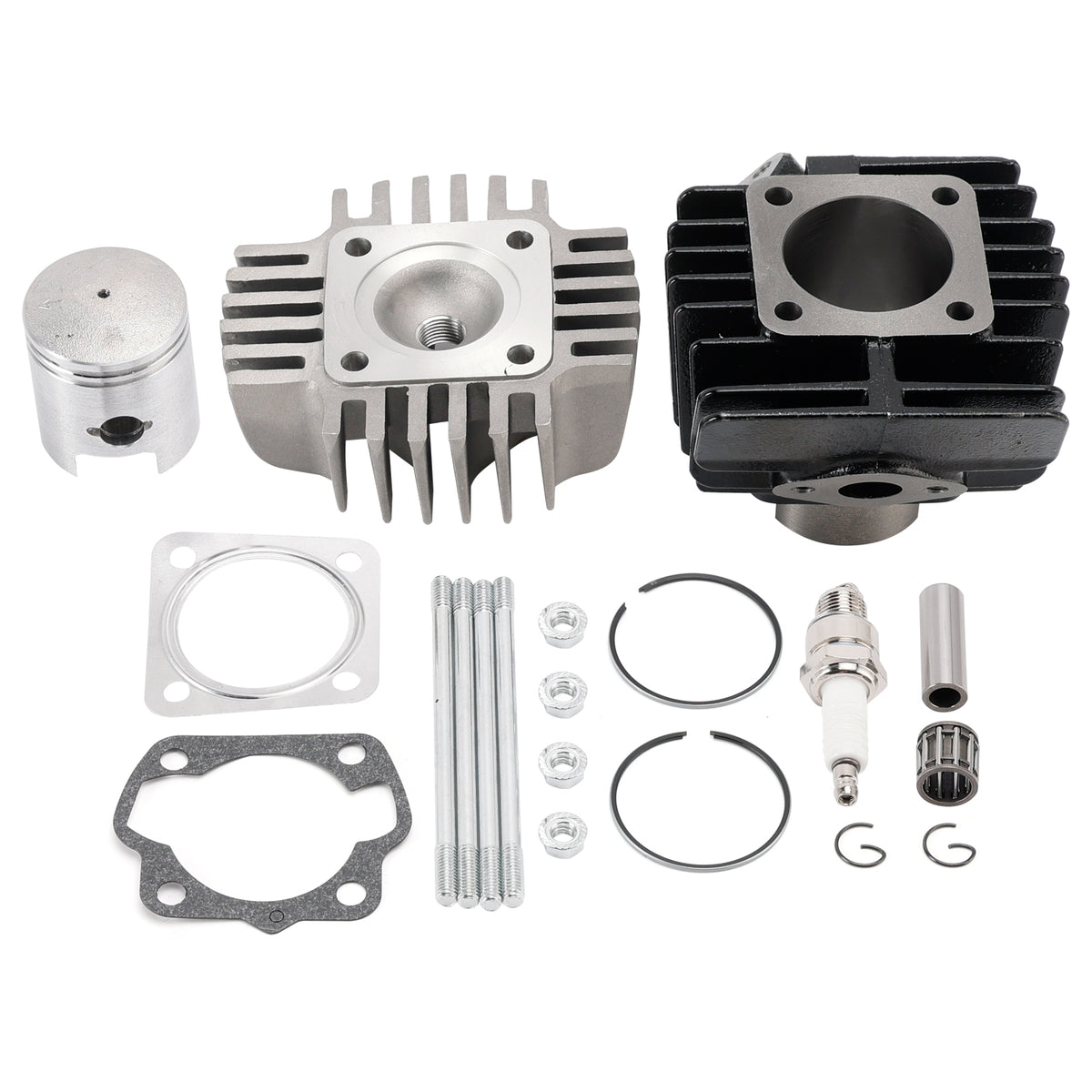

Package Includes: 1x Cylinder 1x Cylinder Head 1x 44mm Piston 1x Piston Ring Set 1x 12mm Wristpin 1x Circlip(2) 1x Cylinder Head Gasket 1x Cylinder Base Gasket 1x Needle Bearing 4x Stud Bolts 4x Nuts 1x Spark
(Comes exactly as pictured.)
Note: Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
