Cylinder Piston Gasket Top End Rebuild Kit 52.4mm For Honda ANF125 Innova 2003-2013

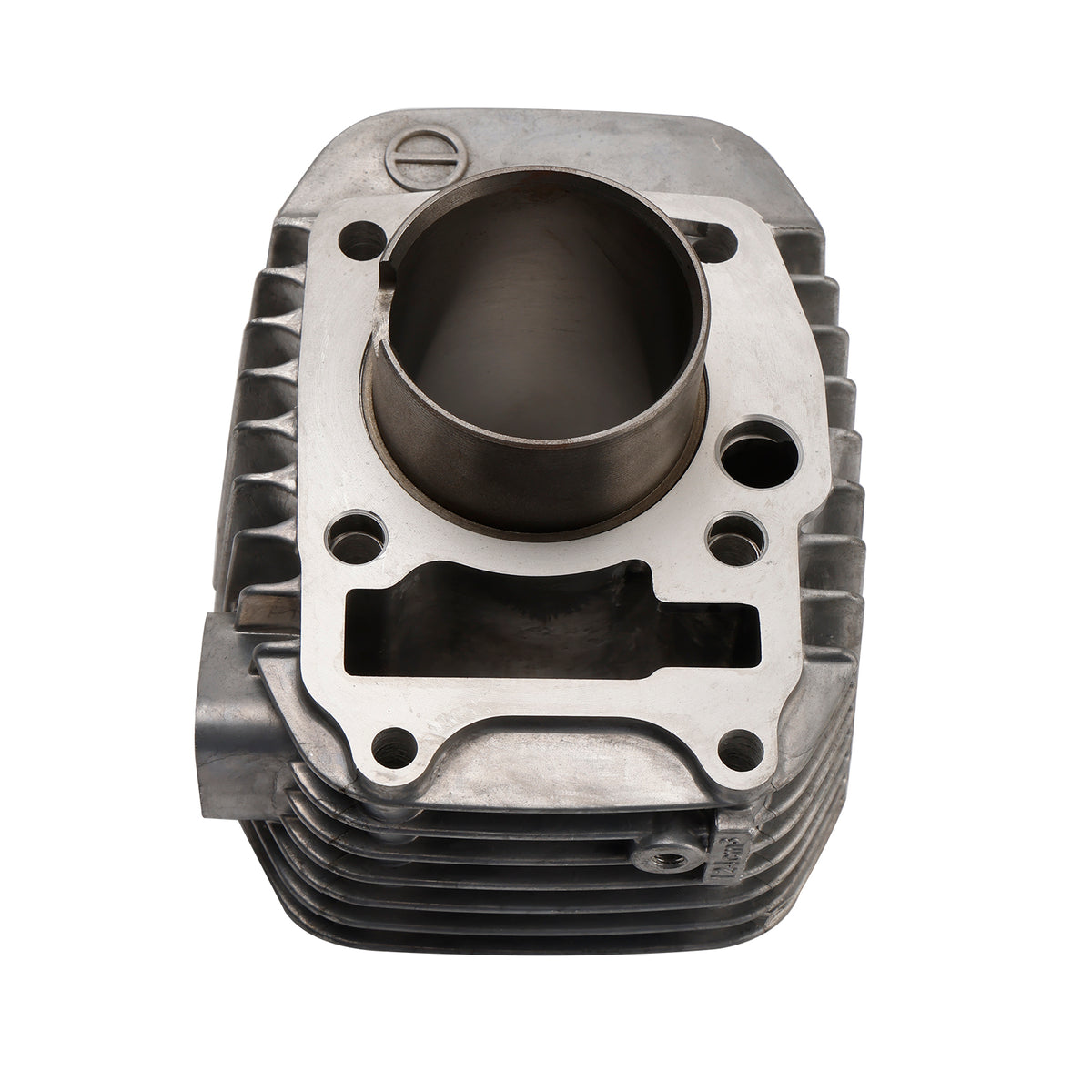

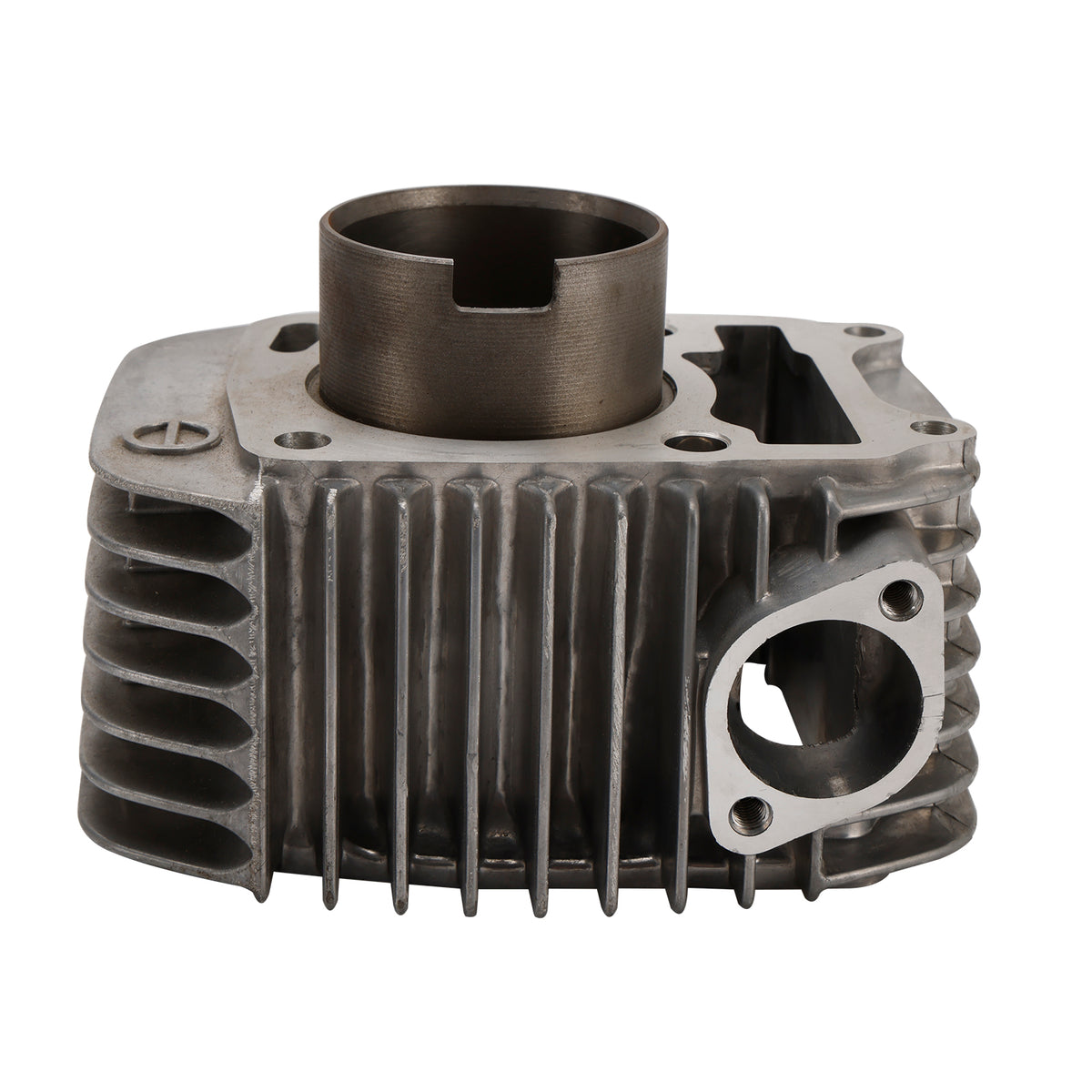

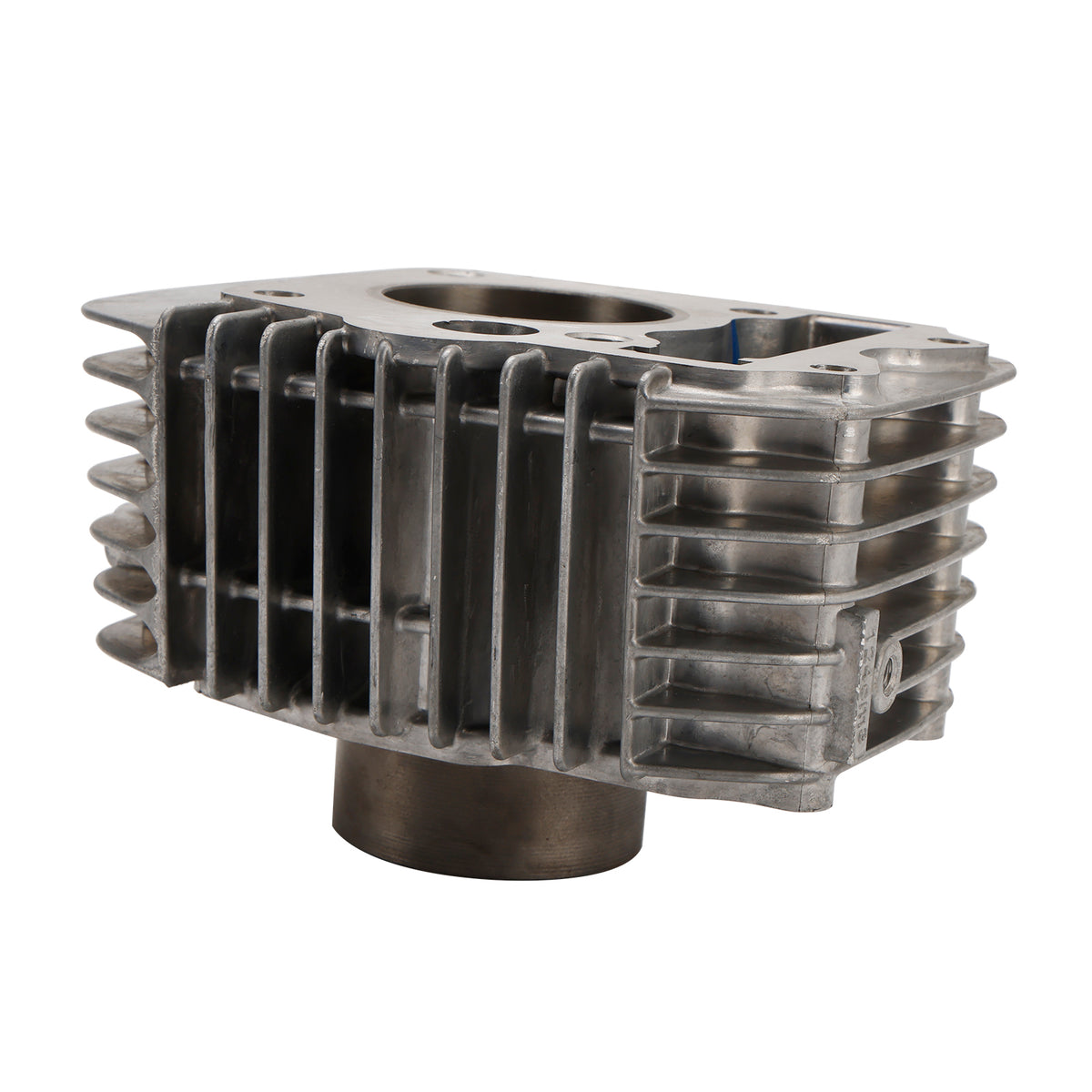

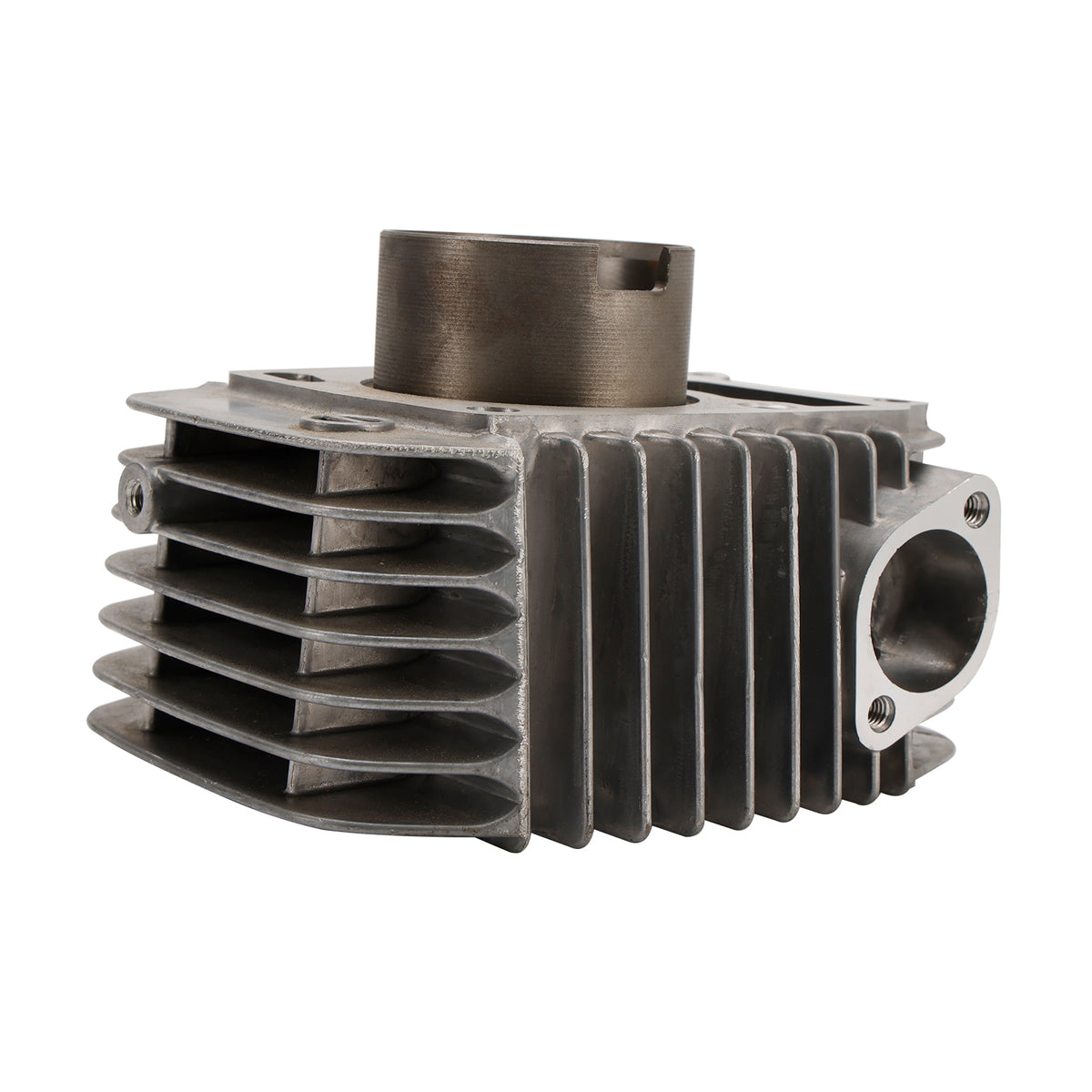

Features: If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you. Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment). The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for standard bore size - 52.4 mm x 57.9 mm stroke, 13 mm steel piston pin. This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications: Condition: Aftermarket 100% Brand New Quantity: 1 Set Material: Aluminum, Steel Engine: 4-Stroke Displacement: 124cc Bore Type: Standard Bore With Temperature Sensor Port: No With Oil Cooled Sensor Port: No Bore diameter: 52.4 mm Stroke: 57.9 mm Pin diameter: 13 mm
Replacement Part Number: Cylinder: 12100-KPH-970, 12100-KPH-700 Cylinder Base Gasket: 12191-KPH-902 Cylinder Head Gasket: 12251-KPH-901 Piston (Std): 13101-KTM-D20 Pin, Piston: 13111-GB0-910 Piston Ring Set (Std): 13011-KPH-900 Circlips, piston: 13115-GN5-910 Tensioner Gasket: 14560-KGH-900 Valve Stem Seal: 12209-GB4-681
(Always compare part numbers to your parts schematics and cross reference appropriately.) (This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)
Fits Make/Model/Year: Fit for Honda ANF125 Innova 2003-2013 (Carburetor Model) Fit for Honda Wave 125
Only fit Carburetor versions, without oil temperature sensor and oil cooler port. For EFI models, you may need to connect an extra oil temperature sensor for this bore kit to work,
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

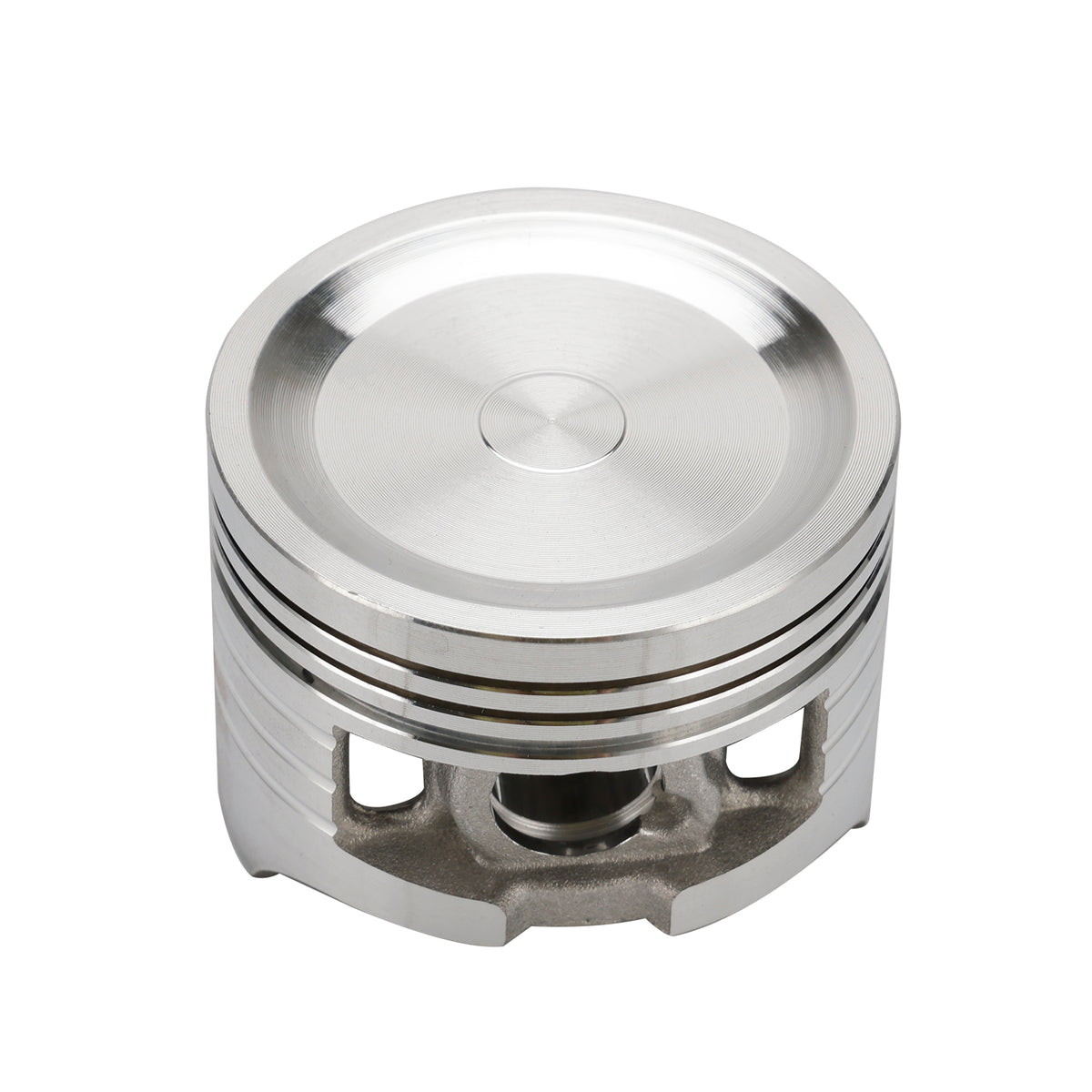

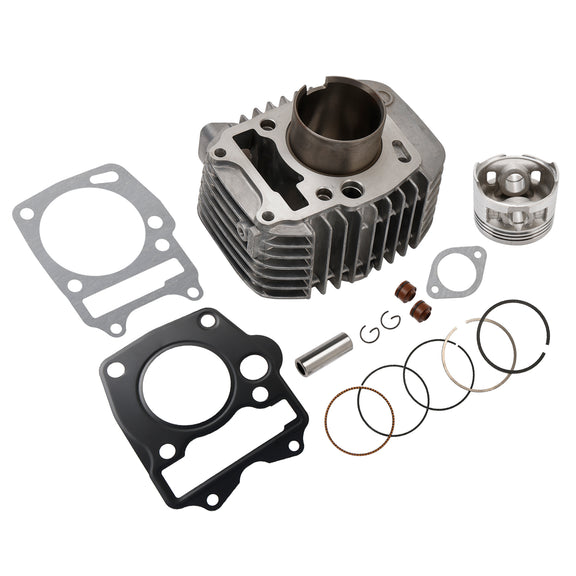

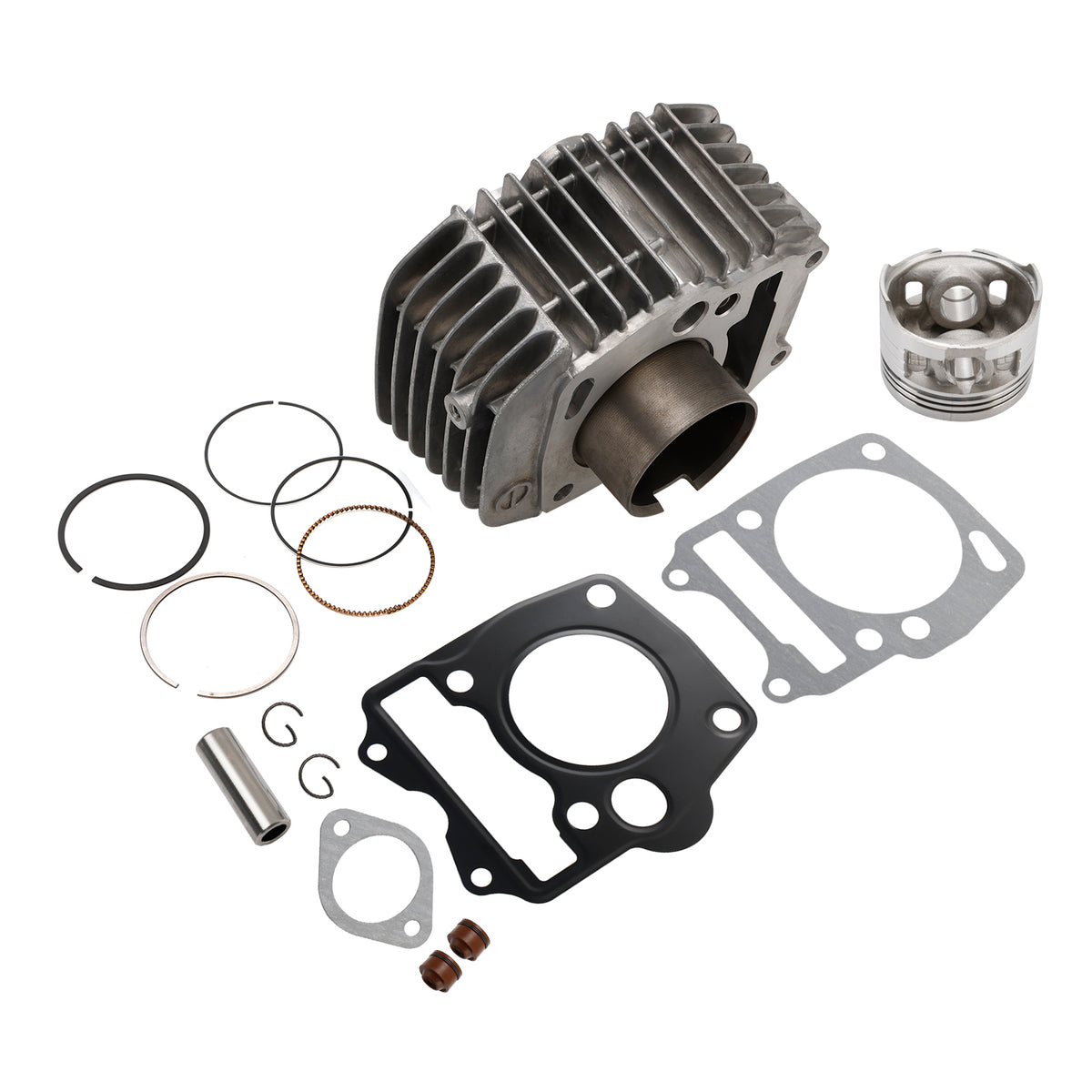

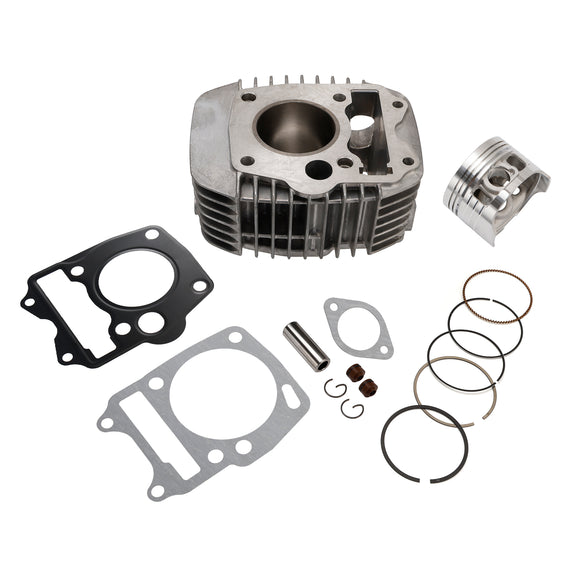

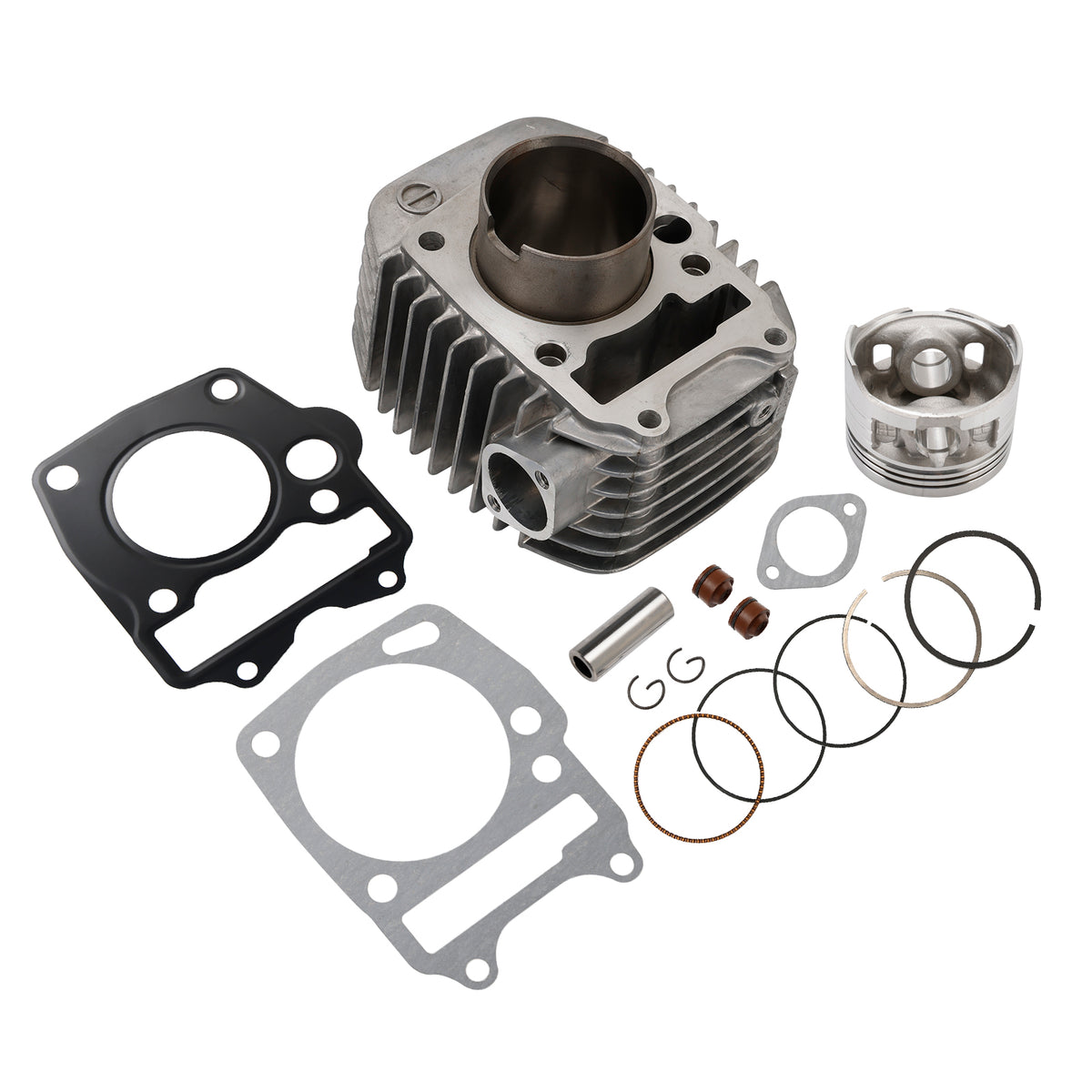

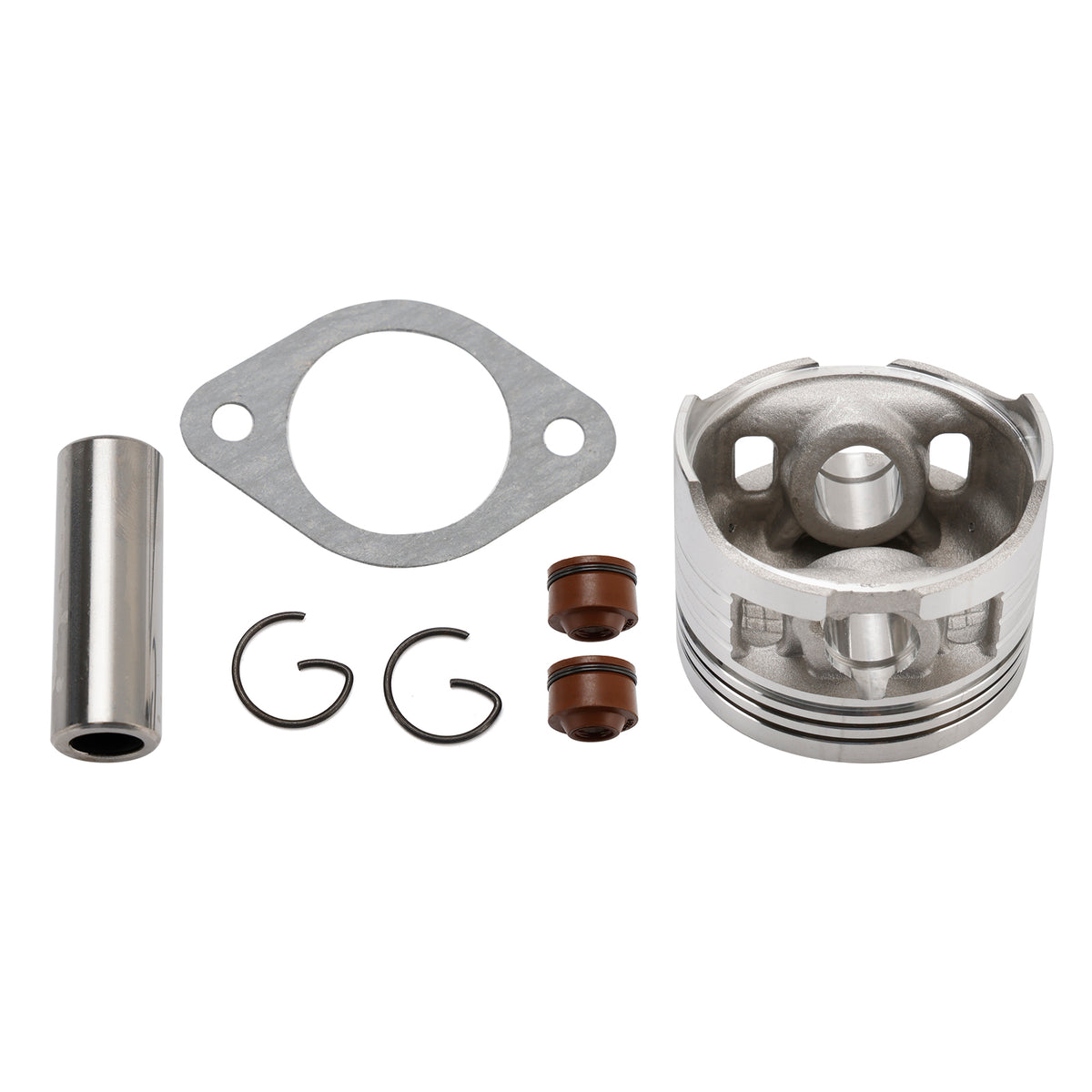

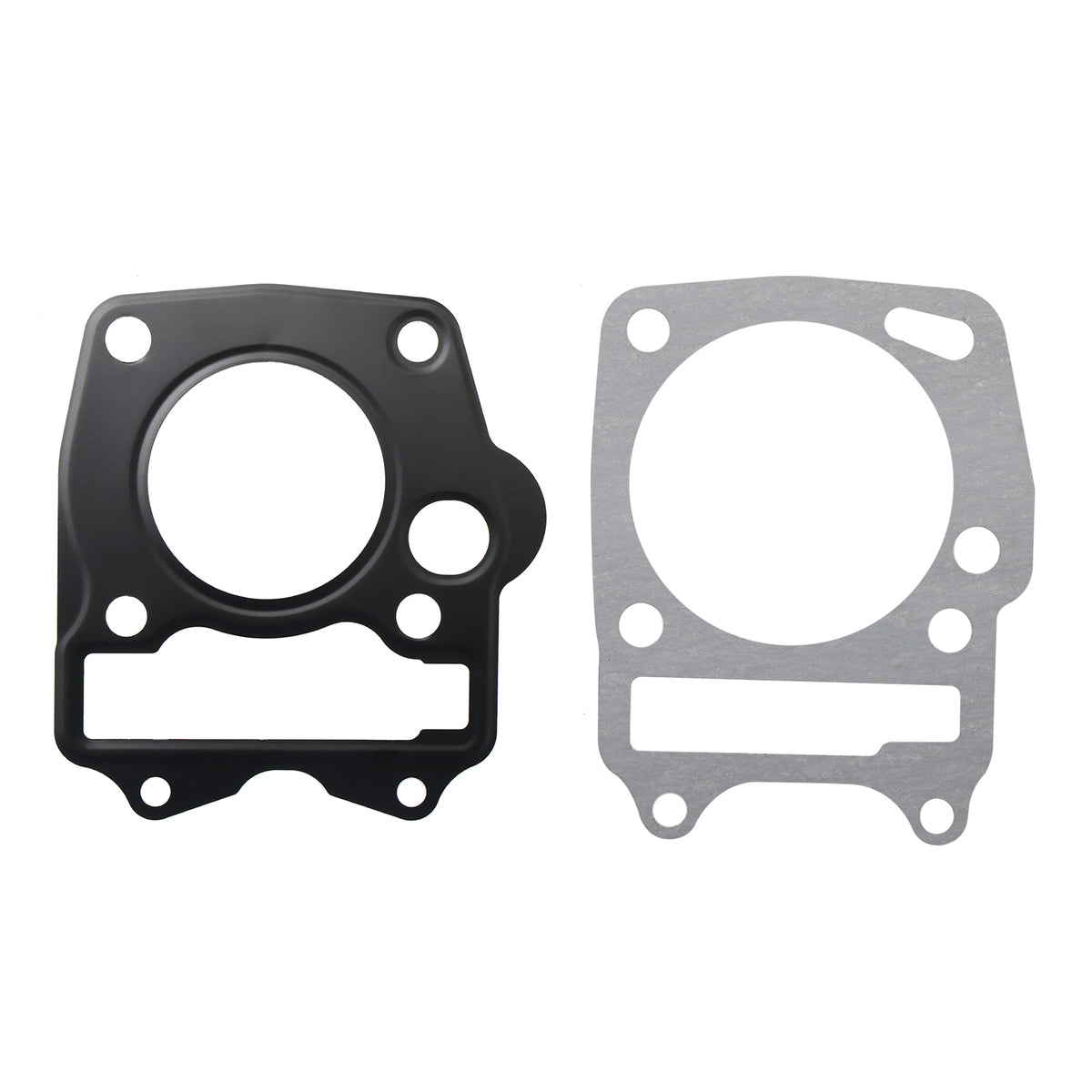

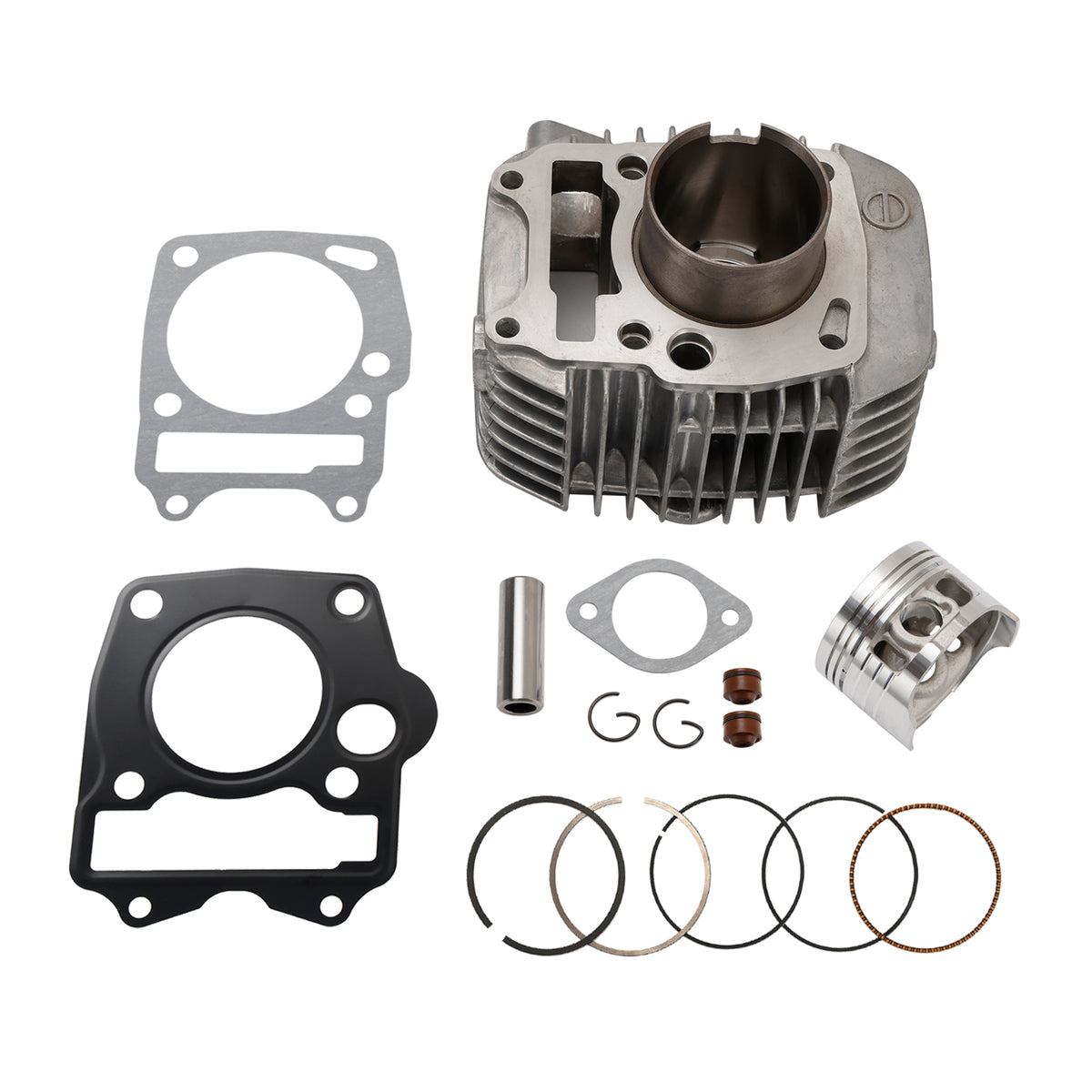

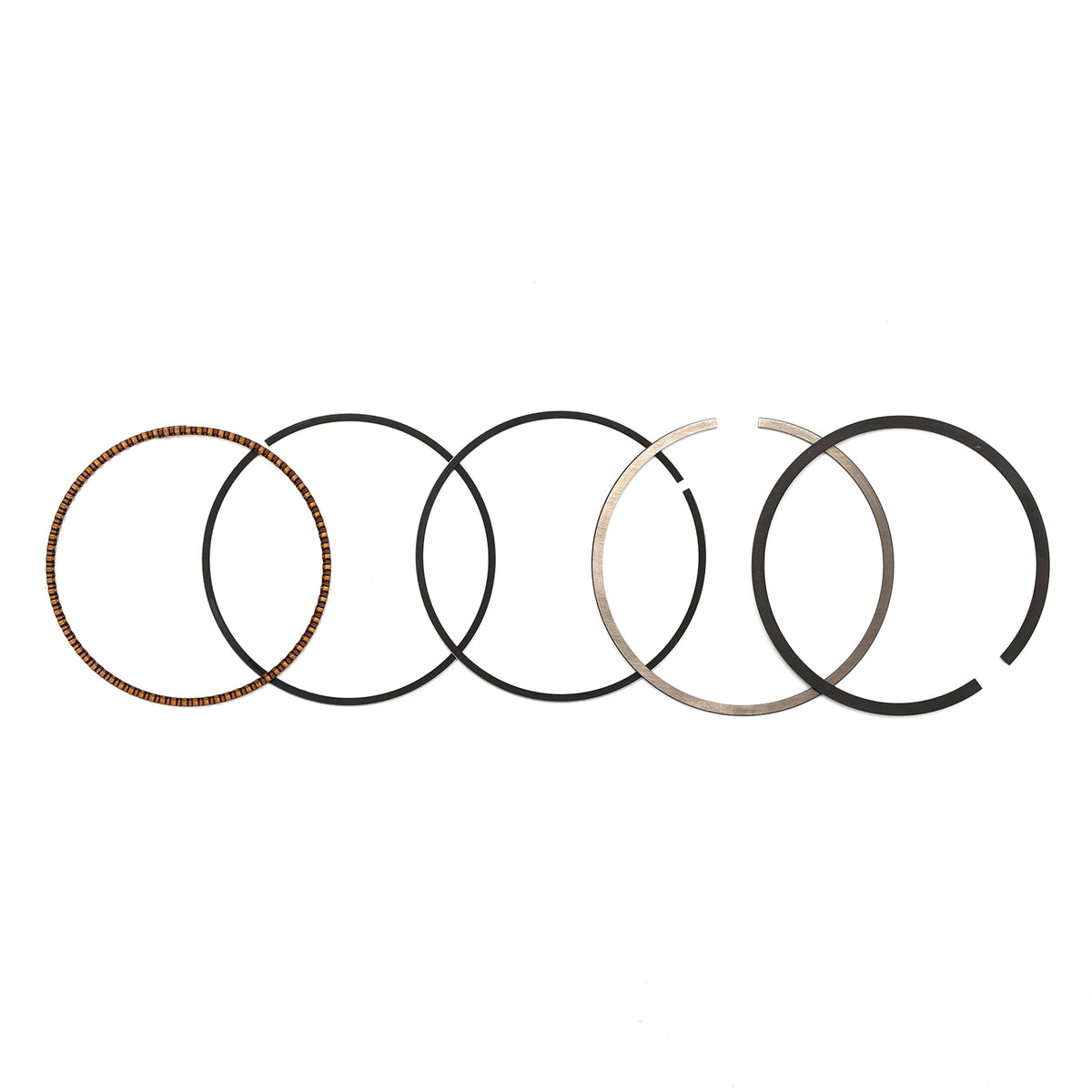

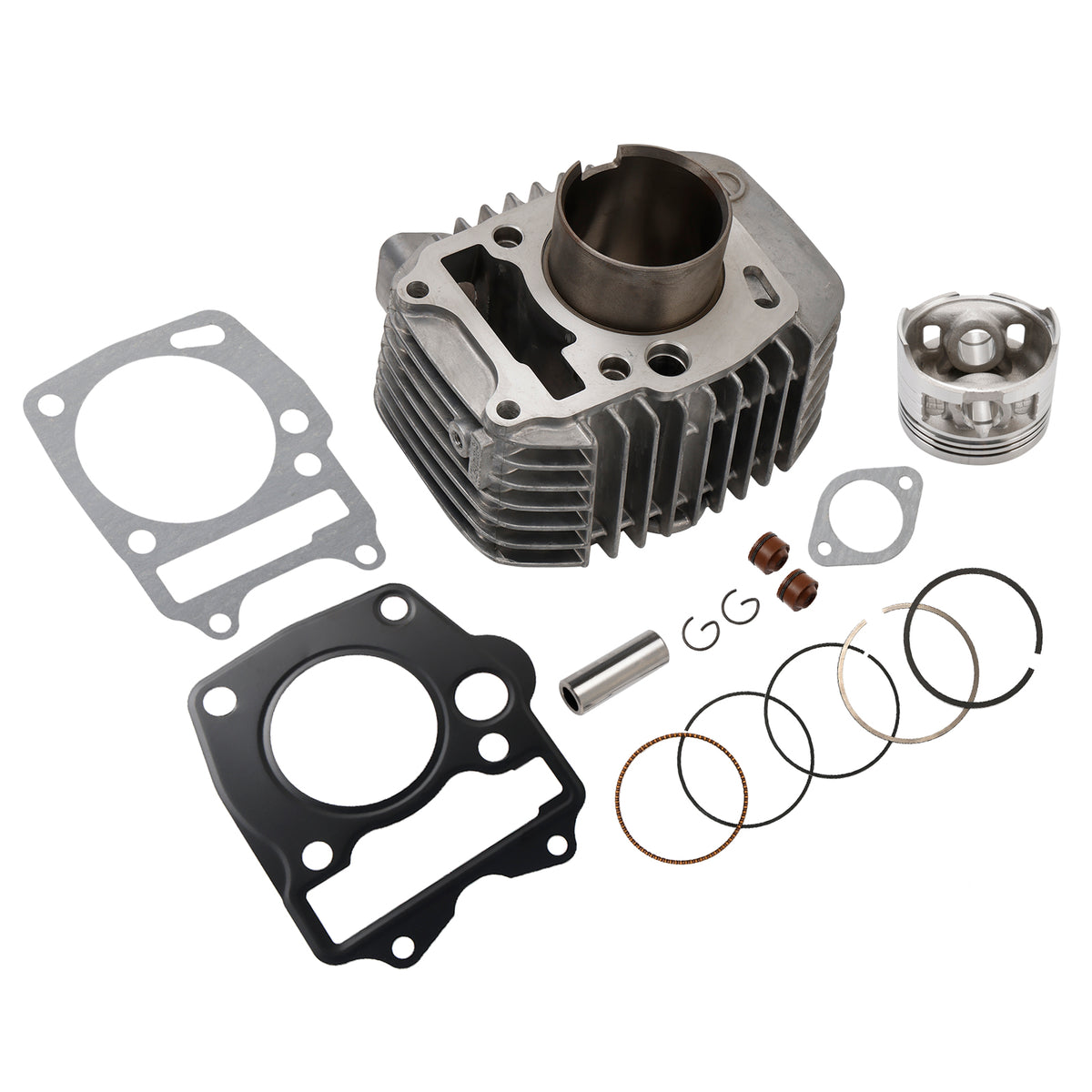

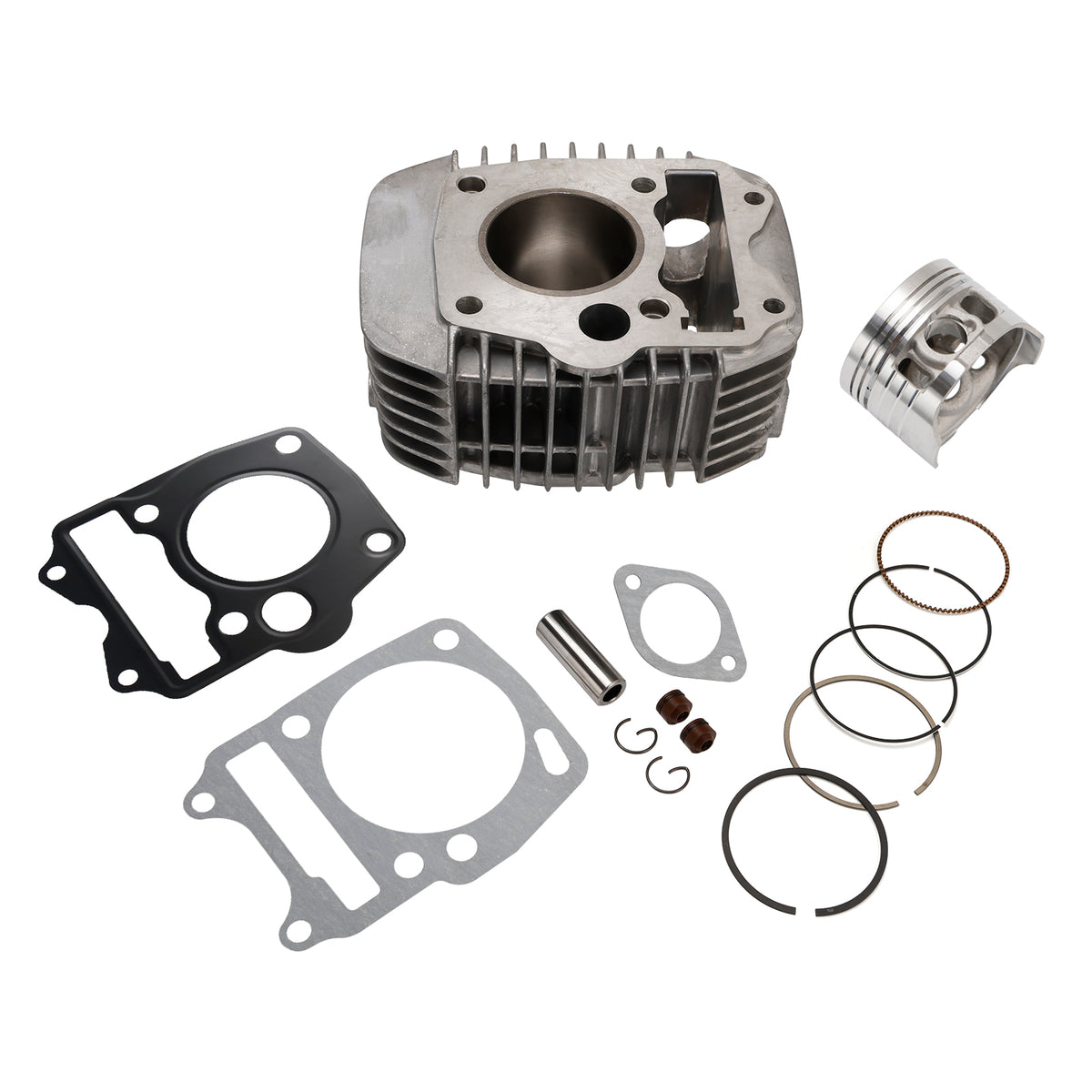

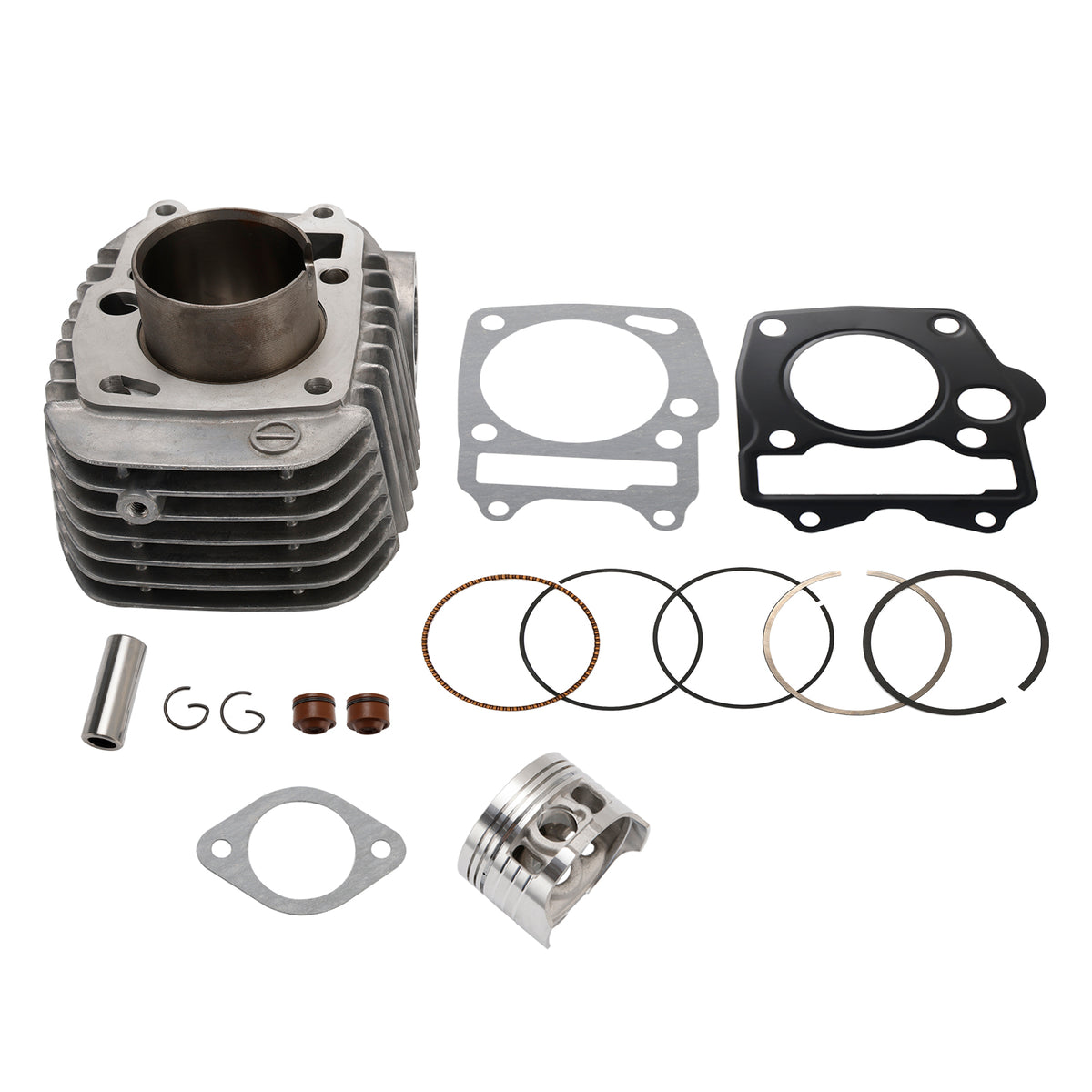

Package Includes: 1x 52.4mm Cylinder 1x Piston 1x Piston Ring Set 1x 13mm Wristpin 1x Circlip(2) 1x Cylinder Base Gasket 1x Cylinder Head Gasket 2x Valve Stem Seals
(Comes exactly as pictured.)
Note: Carefully compare to your old parts to be sure this is the correct part for your machine.
