94mm Big Bore Cylinder Piston Rebuild Kit 434cc Fit for Suzuki LTZ LT-Z 400 2003-2014 DRZ DR-Z400 2000-2021
Features: Kit includes piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). Cast piston has super-high silicone content for additional strength. Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life. Piston dome is anodized for superior heat resistance and longer lifespan. The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for big bore size - 94.00 mm. All of the components within this kit are bolt-on ready for a hassle free installation.
Specifics: Condition: Aftermarket 100% Brand New Quantity: 1 Set Piston Material: Forged Aluminum Actual Displacement: 434cc Bore Type: Big Bore Bore Size: 94.00mm Stroke: 62.60mm

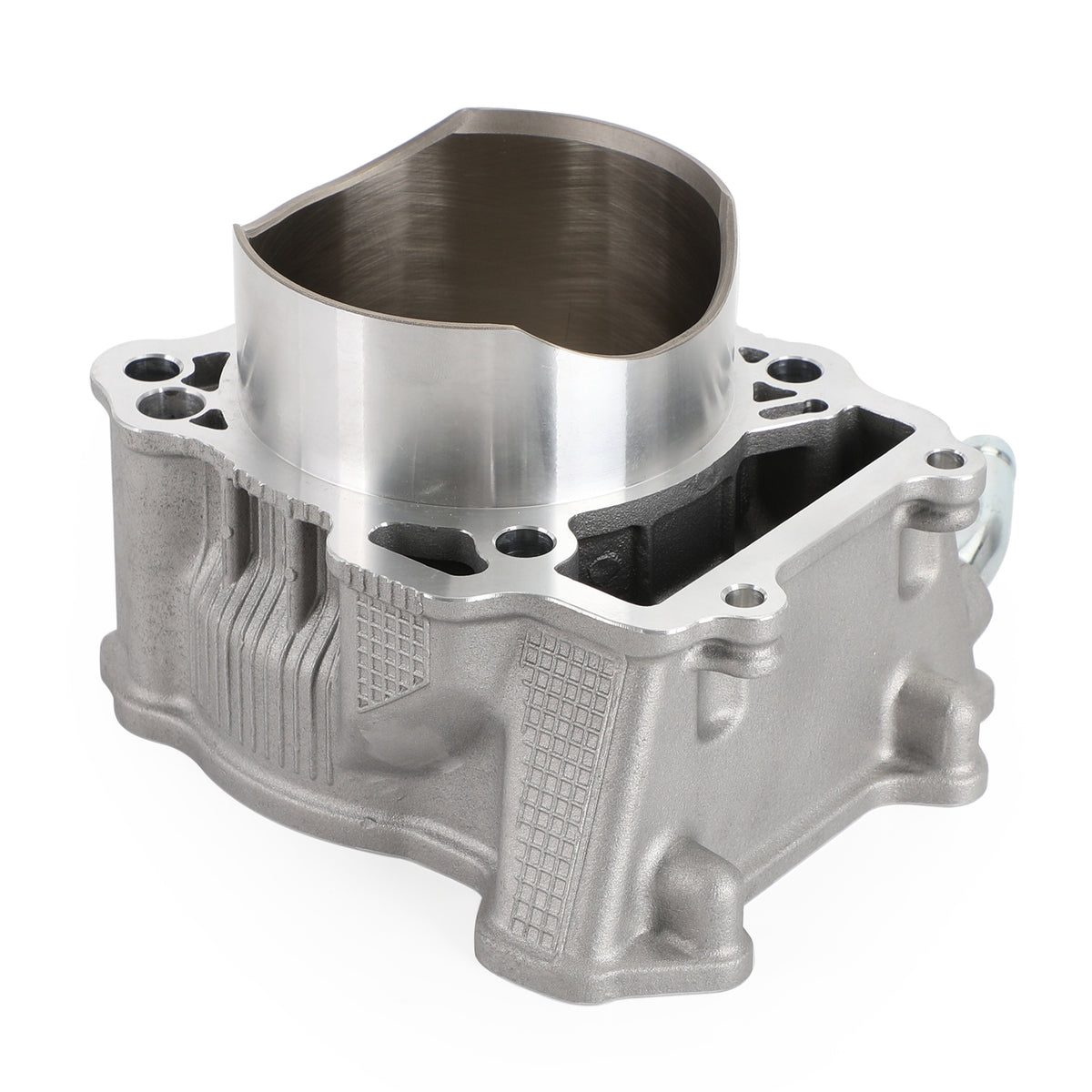

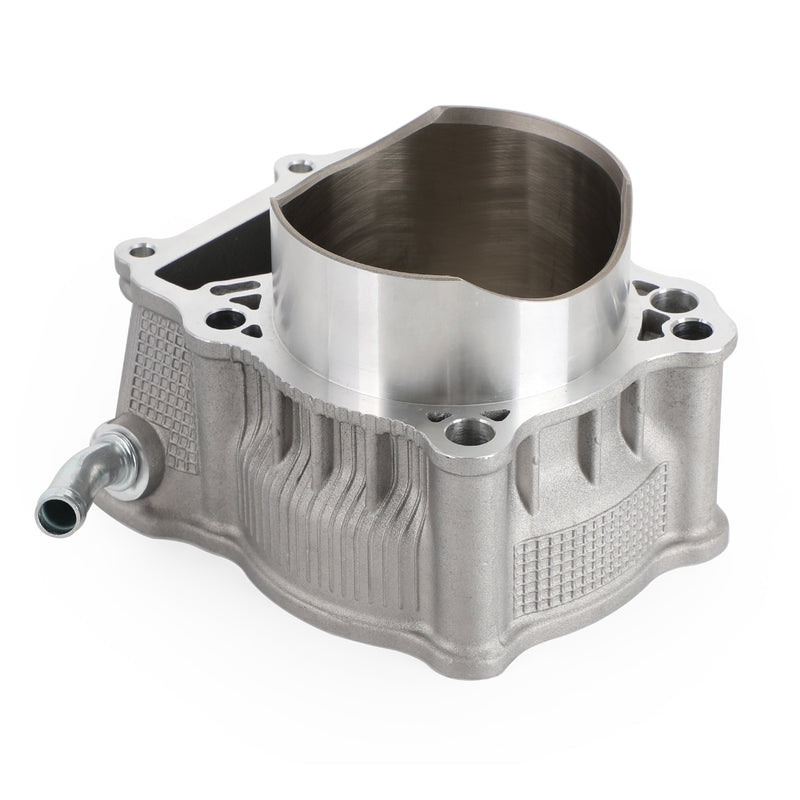

Replacement Part Number: Fits Suzuki LTZ400 Cylinder: 11210-29F20-0F0 Cylinder Base Gasket: 11241-29F10, 11241-29F11 Cylinder Head Gasket: 11141-29F01 Chain Tensioner Gasket: Piston: 12111-29F00-0F0 Pin, piston: 12151-24F10 Ring Set, piston: 12140-29F00 Circlips, piston: 09381-20004 Head Cover Washser: 11191-13E00 Washers(4): 09160-10082 10.5x19x2.0
Fitments: Fit for Suzuki DR-Z400 2000-2021 Fit for Suzuki DRZ400SM 2005-2009/2013-2021 Fit for Suzuki DRZ400S 2000-2009/2011-2021 Fit for Suzuki DRZ400E 2000-2007 Fit for Suzuki LTZ 400 Quadsport Z400 2003-2014 Fit for Kawasaki KFX400 2003-2006 Fit for Arctic Cat DVX 400 2004-2008
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

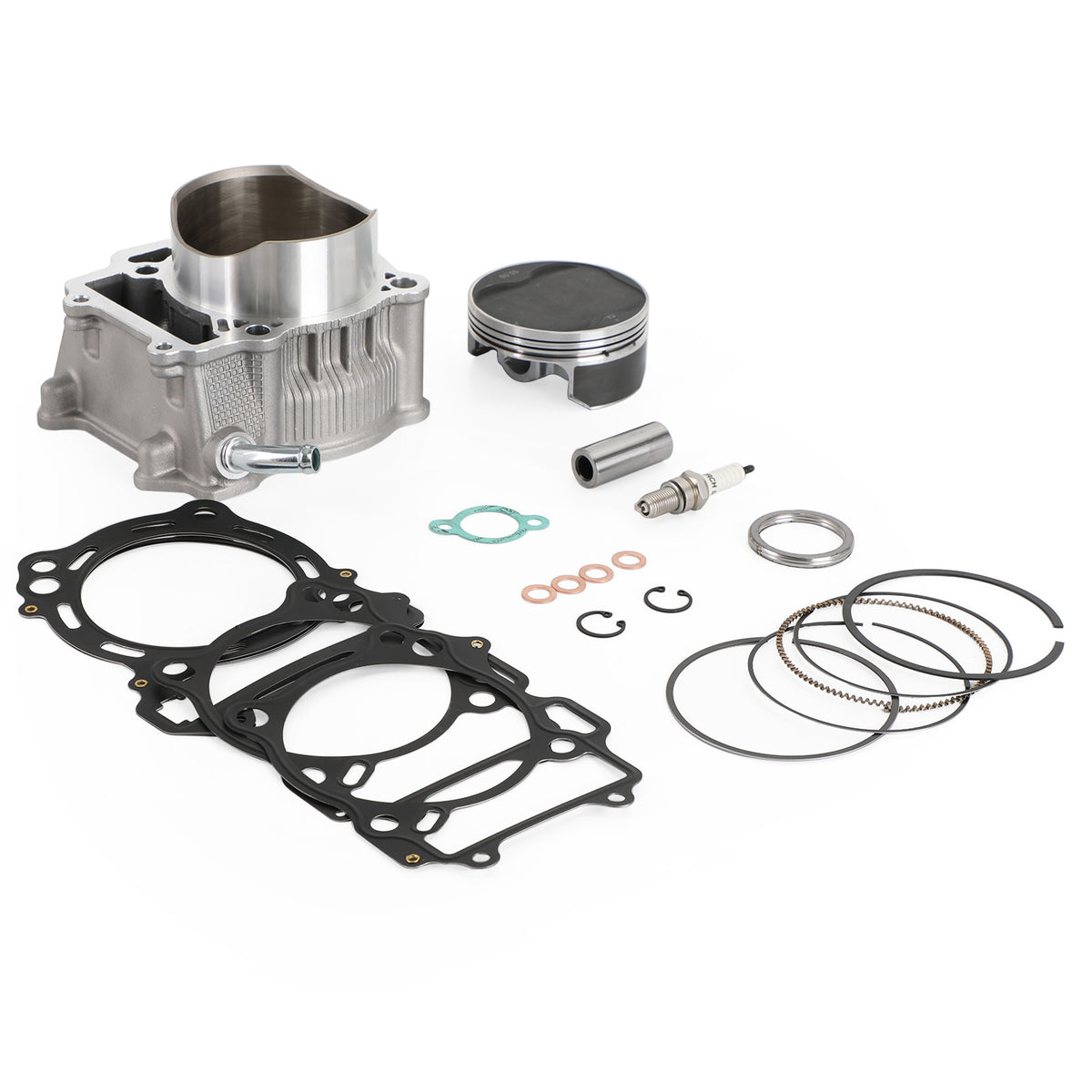

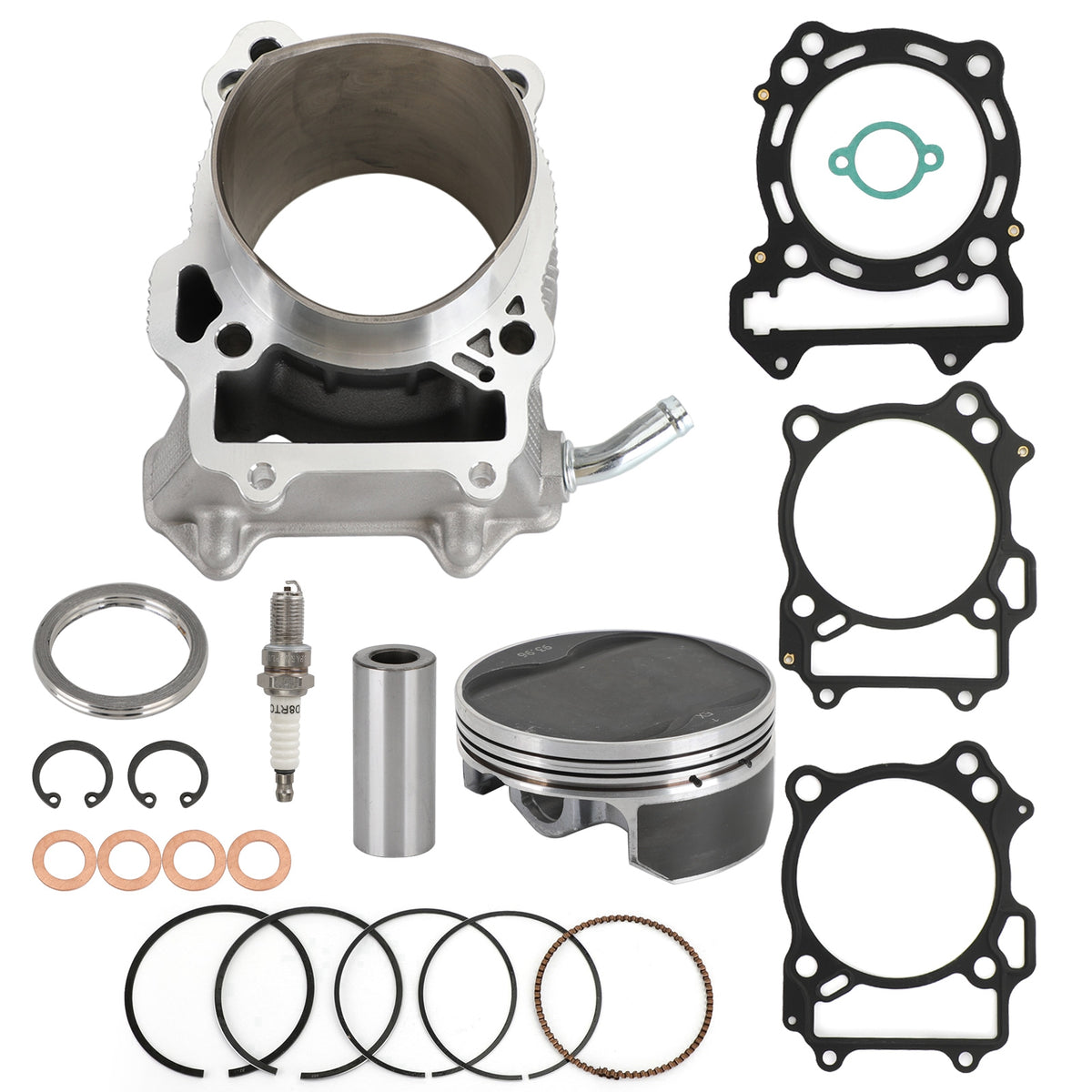

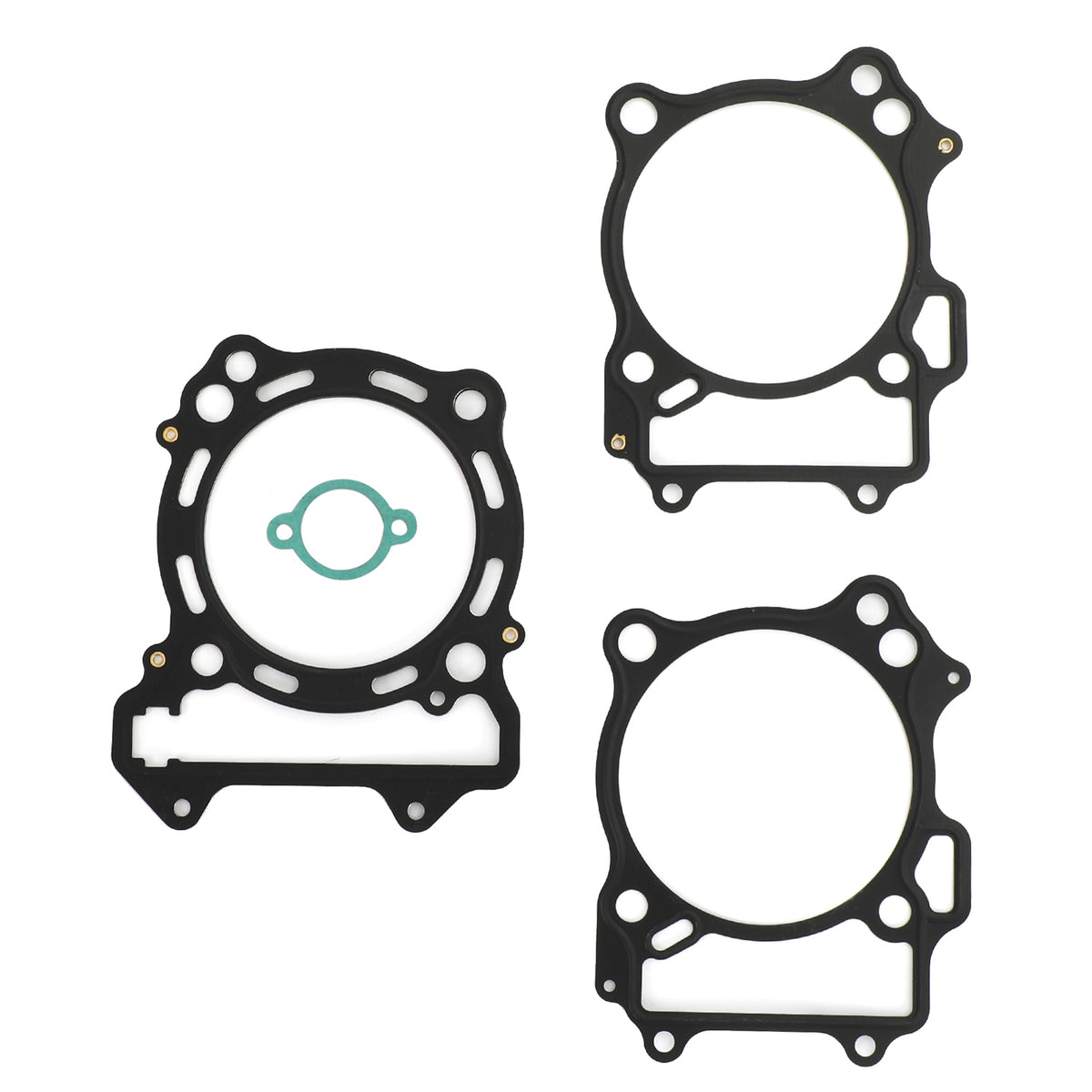

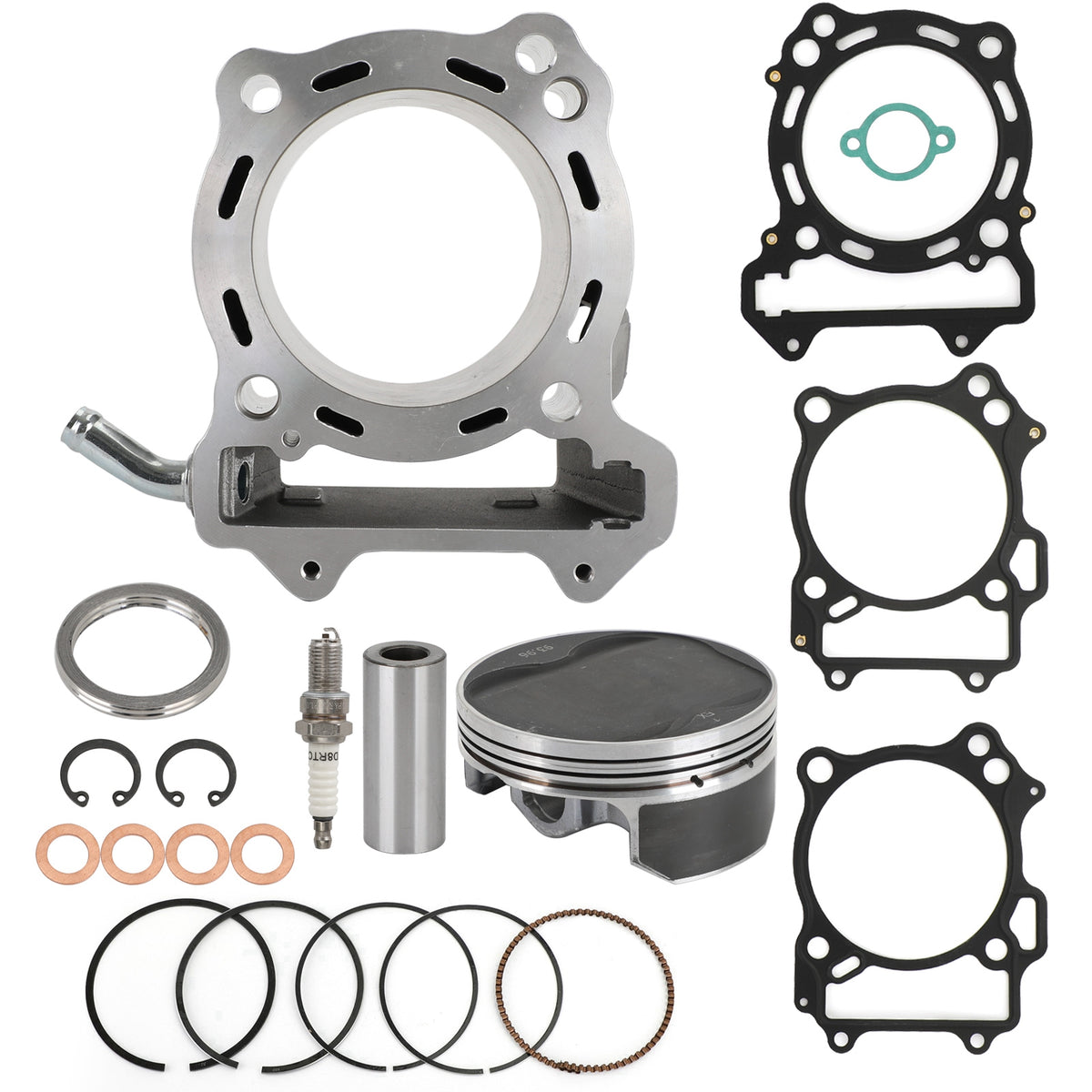

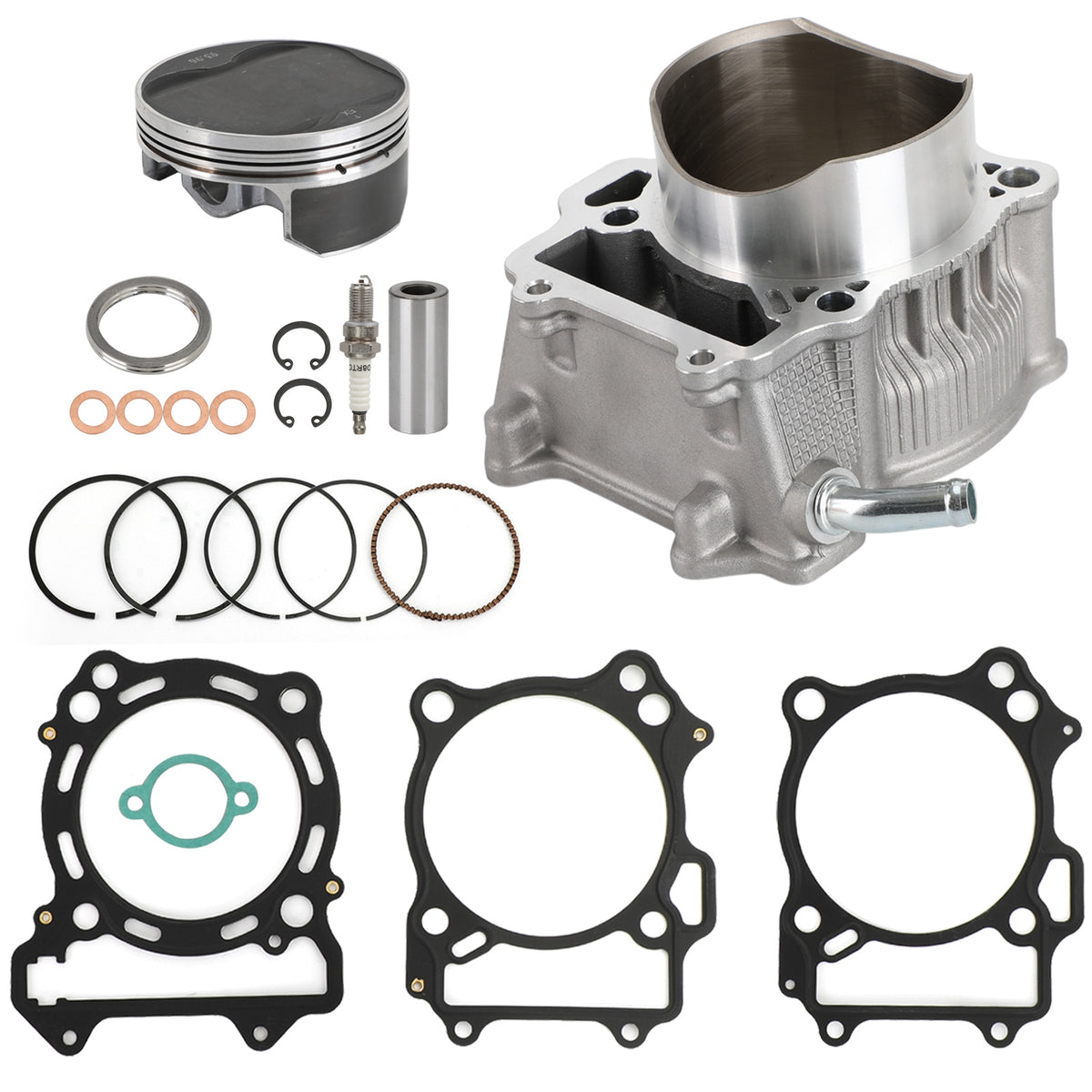

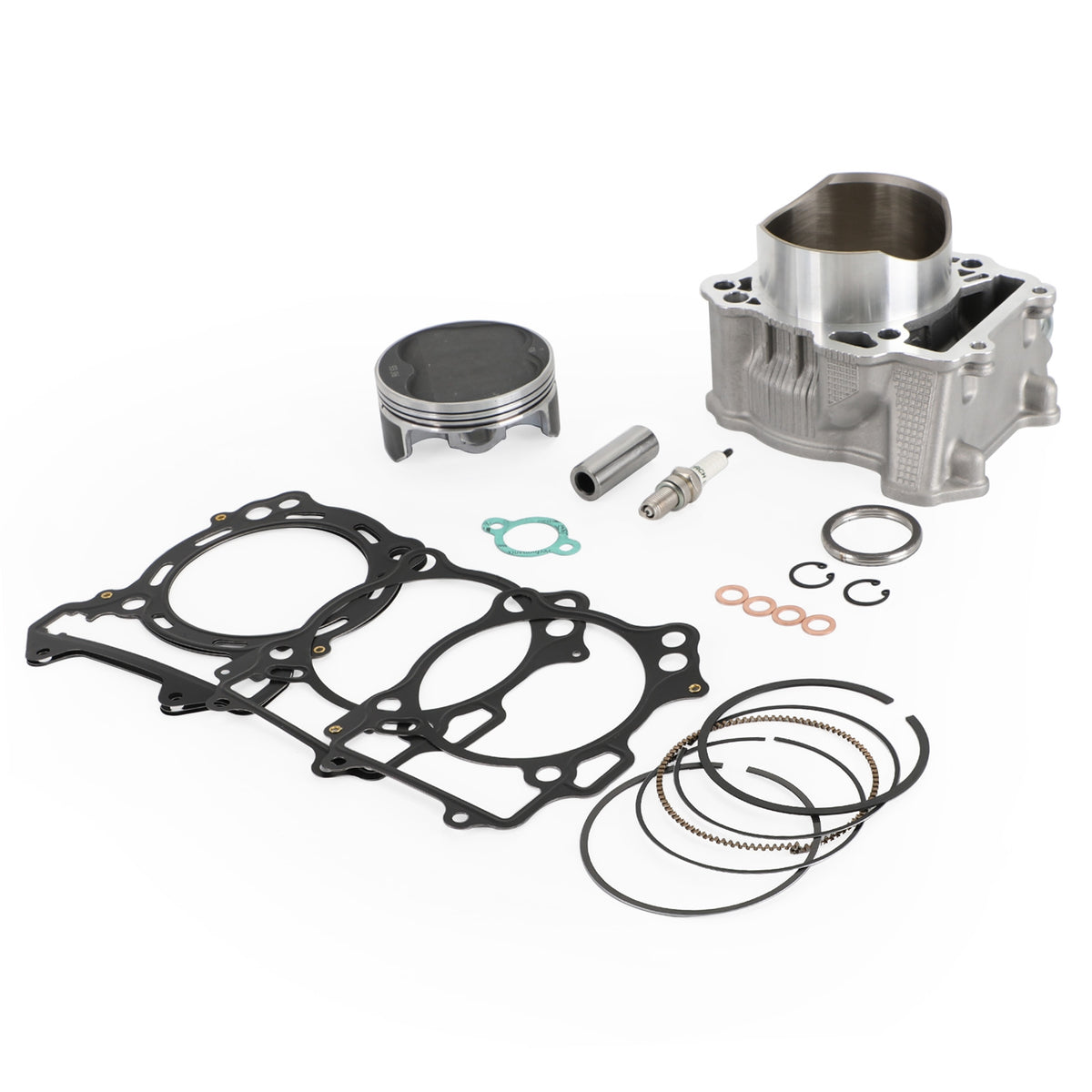

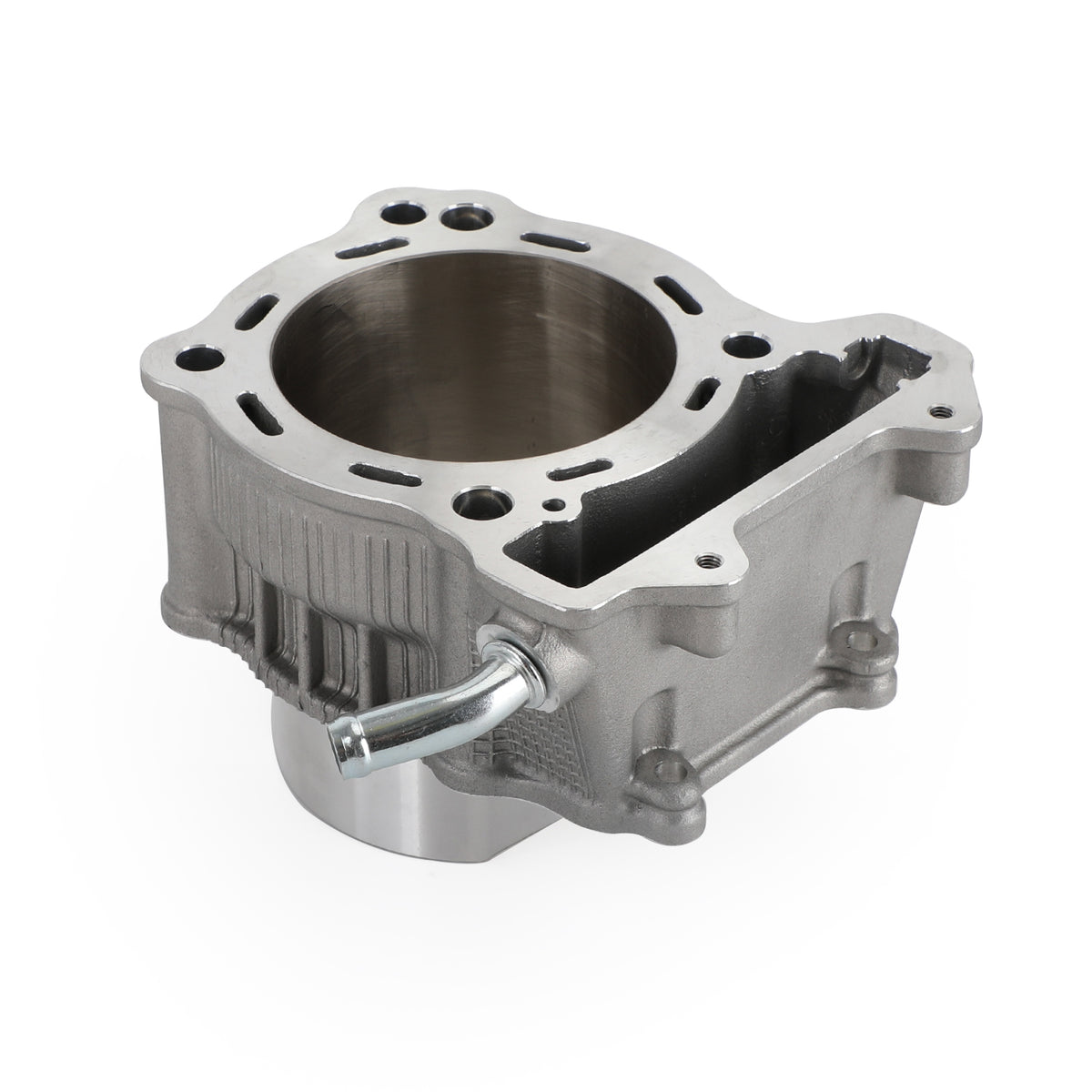

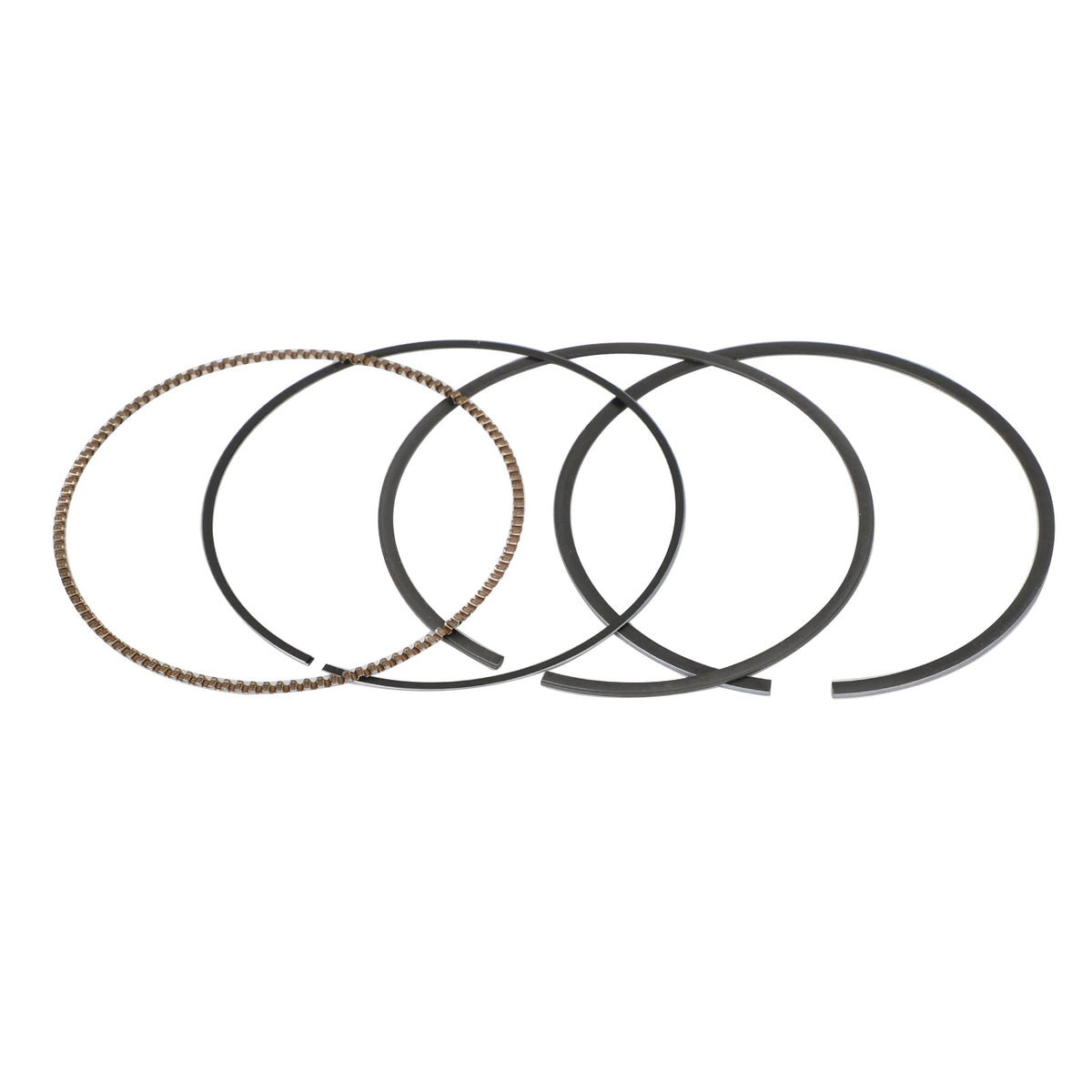

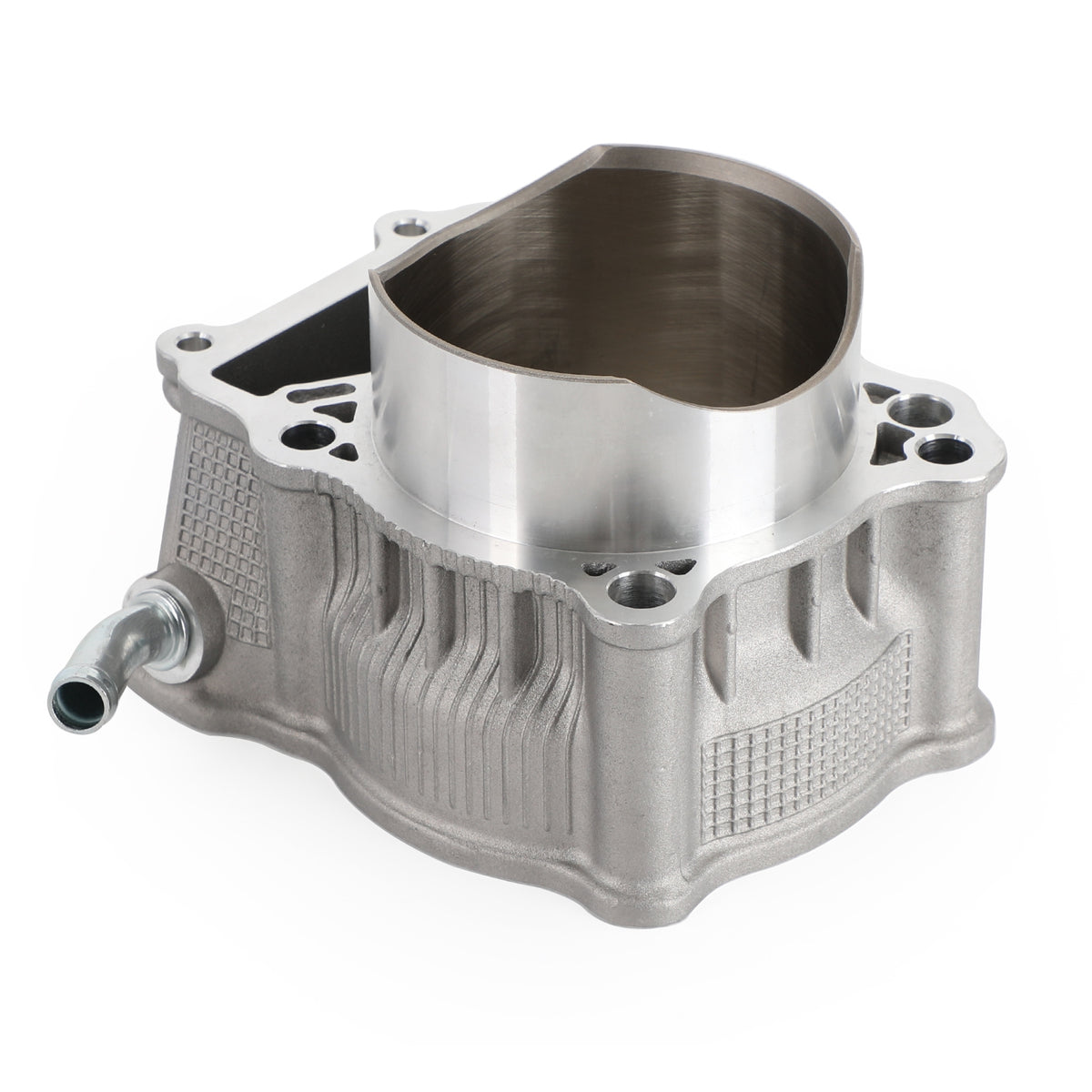

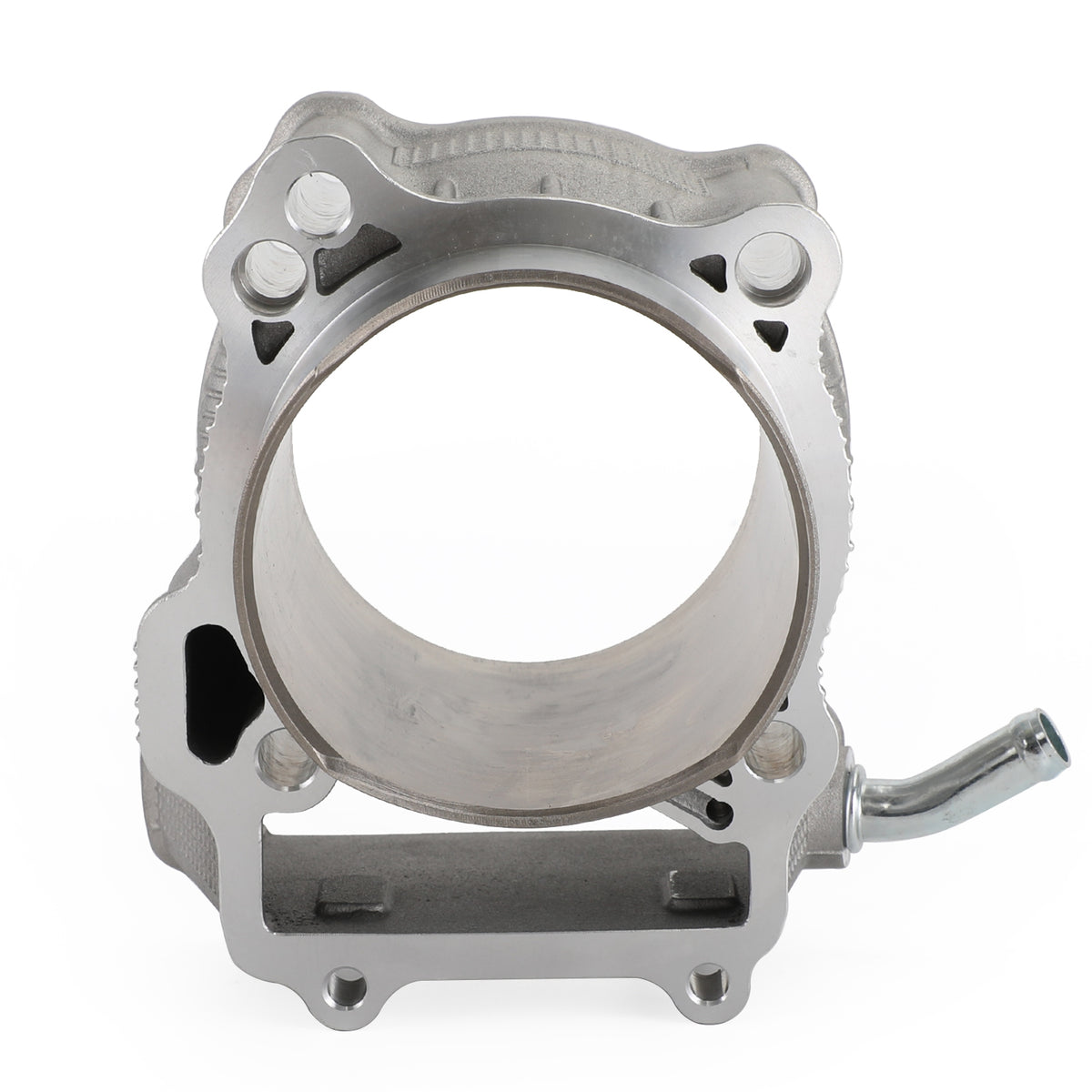

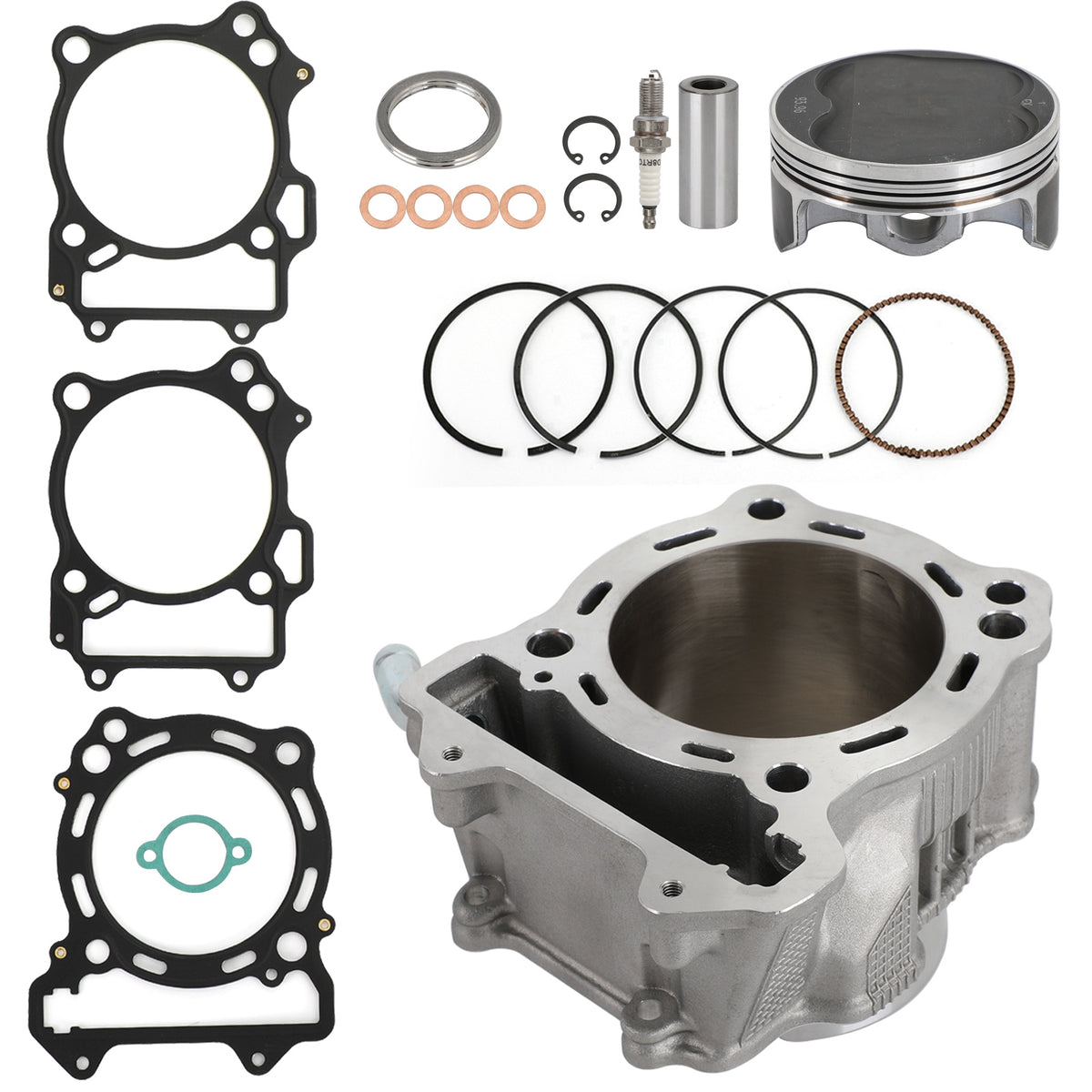

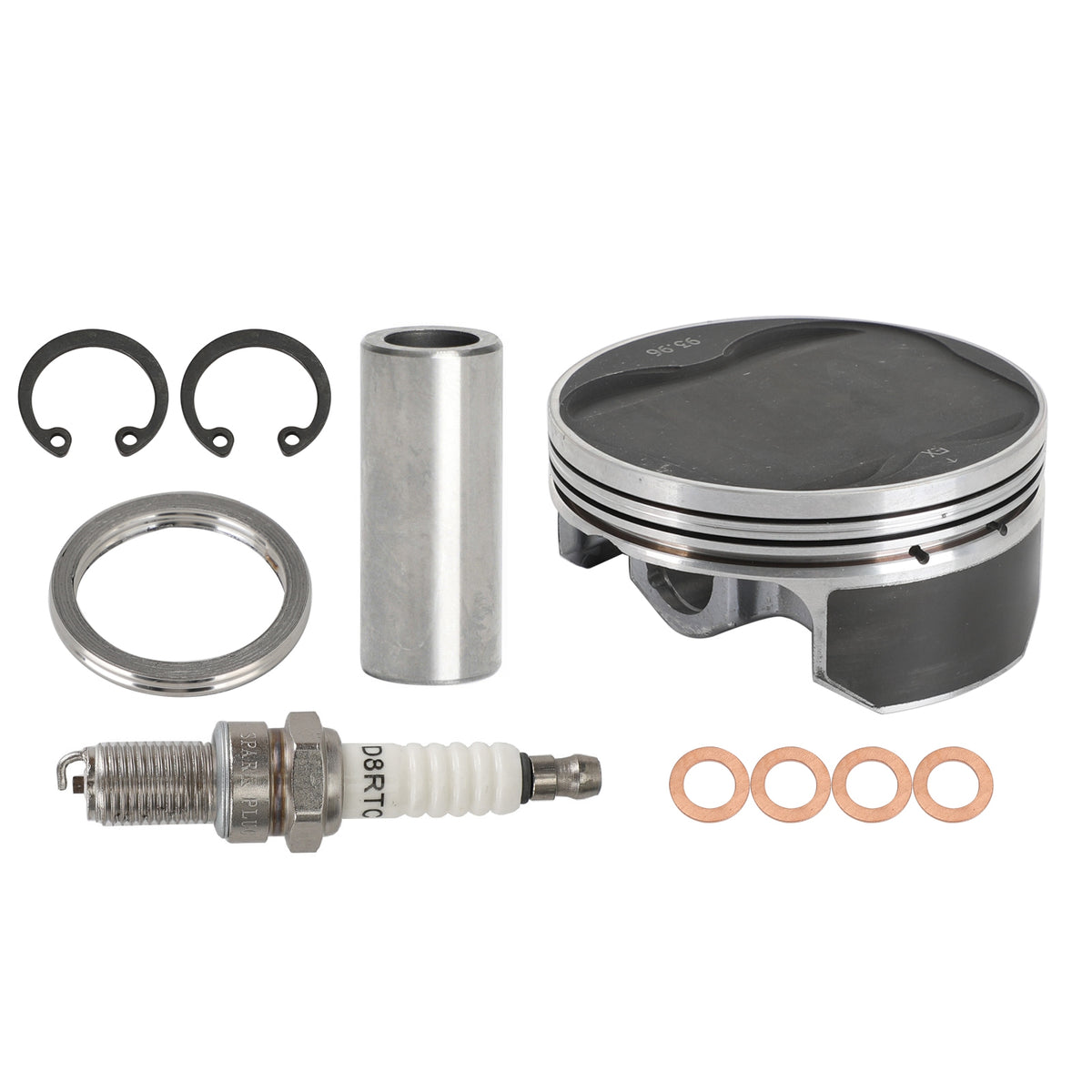

Package Includes: 1x 94mm Cylinder 1x Piston 1x Piston Ring Set 1x Wristpin 1x Circlip(2) 2x Cylinder Base Gasket 1x Cylinder Head Gasket 1x Chain Tensioner Gasket 1x Head Cover Washser 4x Valve Washers 1x Spark Plug
Note: Ring end gaps are checked prior to shipment for proper sizing. Please check out the product and size fits your motorcycle or not before you purchase.
