63.6mm Cylinder Piston Gasket Top End Rebuild Kit 150cc For Aprilia RS RX SX Tuono RS4 125 4T 2017-2024

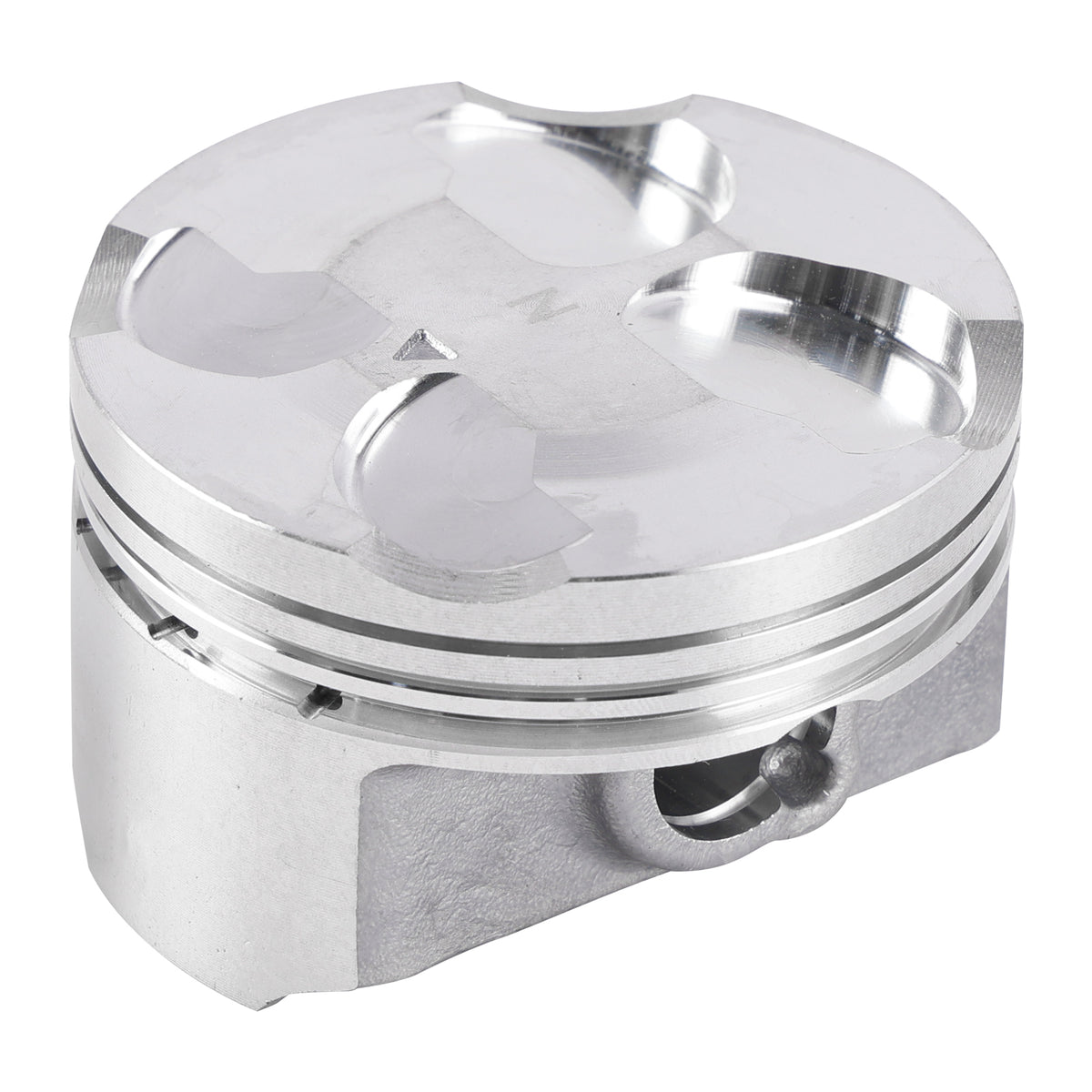

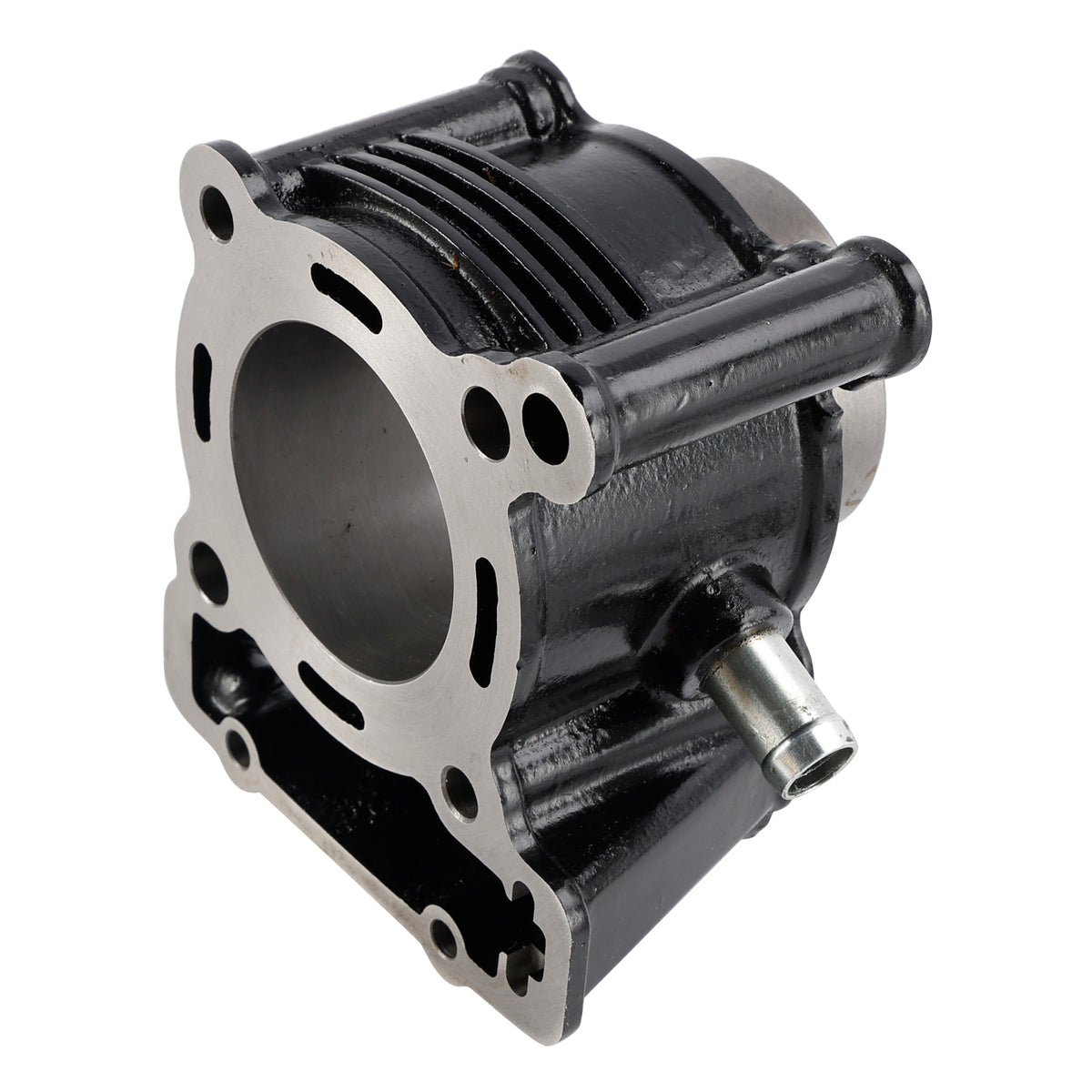

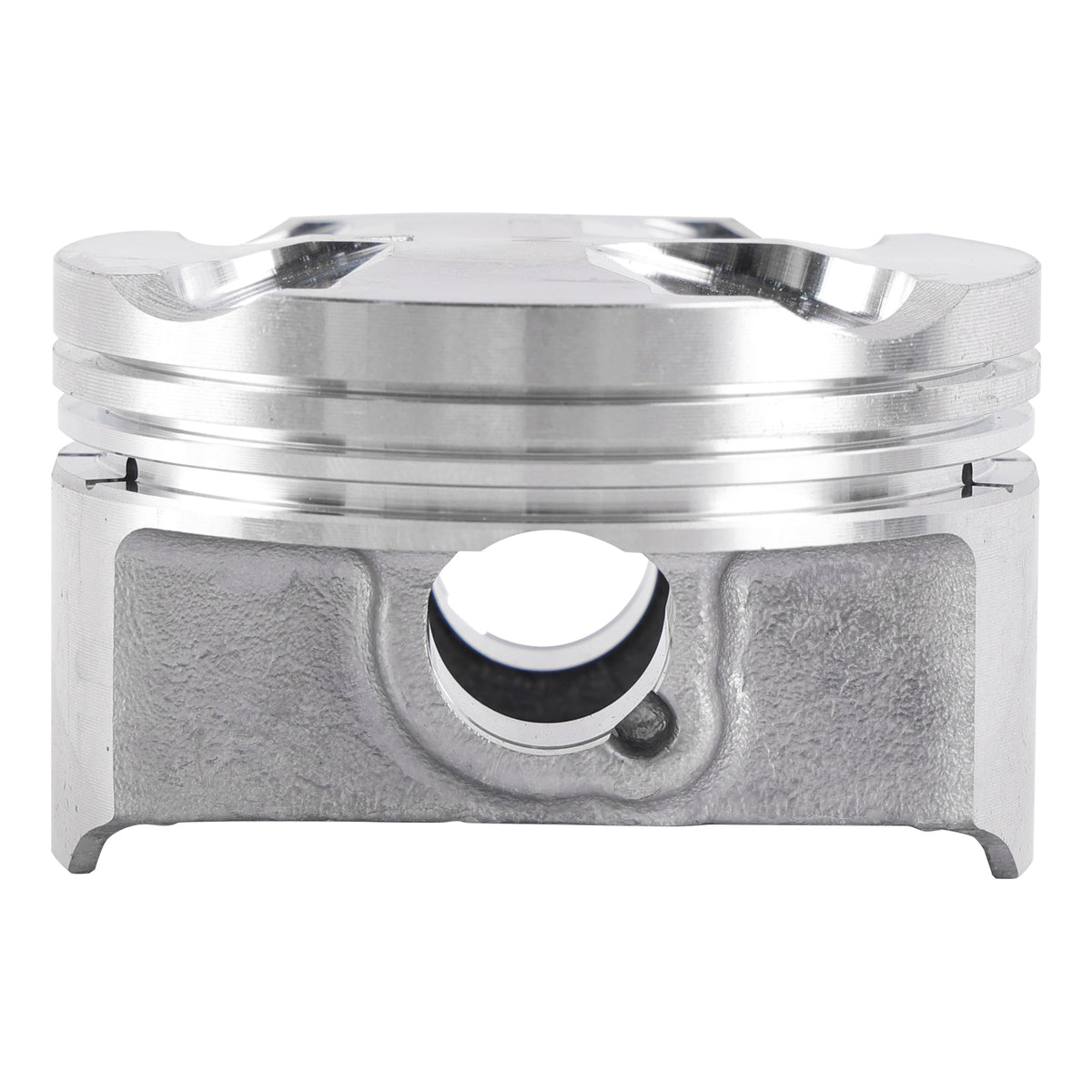

Features: If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you. Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). Piston is anodized for superior heat resistance and longer lifespan. The gaskets use performance materials to increase durability and provide greater reliability. Includes all gaskets pictured to rebuild top end. Kit is for big bore size - 63.6 mm, 15mm steel piston pin. This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications: Condition: Aftermarket 100% Brand New Quantity: 1 Set Material: Aluminum, Steel Displacement: 150cc Engine: 4-Stroke Bore Type: Big Bore Bore diameter: 63.6mm Pin diameter: 15mm Pin Overall Length: 39mm
Replacement Part Number: Cylinder kit: 1L002731, 1L005212C Cylinder Base Gasket: CM278203 Cylinder Head Gasket: 1A007851 Pin, Piston: 873173 Piston Ring Set : 872692, 872693, 872694 Circlips, piston (2): 1A007518 Valve Stem Seals (4): 1A013679
Fits Make/Model/Year: Only fit for 4-Stroke Engine, does NOT fit 2-Stroke engine.
Fit for Aprilia RS4 125 4T 2011-2013 - ZD4TW000 Fit for Aprilia RS4 125 4T 2014-2016 - ZD4TW000 Fit for Aprilia RS 125 4T ie E3 2011-2013 - ZD4TW000 Fit for Aprilia RS 125 4T ie E3 2014-2016 - ZD4TW000 Fit for Aprilia RS 125 4T ABS ie E4 2017-2020 - ZD4KC000 Fit for Aprilia RS 125 4T ABS ie E5 (EMEA-EU) 2021-2023 - ZD4XAA00 Fit for Aprilia RS 125 4T Replica ie ABS E4 (Asia) 2017-2019 - ZD4KC000 Fit for Aprilia RS 125 4T Replica ie ABS E4 2017-2018 - ZD4KC000 Fit for Aprilia RS 125 4T Replica ie ABS E4 (EMEA-EU) 2019-2021 - ZD4KC000 Fit for Aprilia RS 125 4T Replica ie GP ABS E5 (APAC) 2021-2023 - ZD4XAA00 Fit for Aprilia RS 125 4T Replica ie GP ABS E5 (EMEA-EU) 2021-2023 - ZD4XAA00 Fit for Aprilia RX 125 4T ie 4V E4 (APAC) 2018-2020 - ZD4KXJ Fit for Aprilia RX 125 4T ie 4V E4 2018-2020 - ZD4KXA00/ ZD4KXA Fit for Aprilia RX 125 4T ie 4V E5 (APAC) 2021-2023 - ZD4KTA Fit for Aprilia RX 125 4T ie 4V E5 (EMEA-EU) 2021-2023 - ZD4KTA00 Fit for Aprilia RX 125 4T ie 4V E5 (APAC) 2022-2024 - ZD4KTA Fit for Aprilia RX 125 4T ie 4V E5 (EMEA-EU) 2022-2024 - ZD4KTA00 Fit for Aprilia SX 125 4T ie 4V E4 2018-2020 - ZD4KXB00 Fit for Aprilia SX 125 4T ie 4V E4 (APAC) 2019-2020 - ZD4KXJB0 Fit for Aprilia SX 125 4T ie 4V E5 (APAC) 2021 ZD4KTB00 Fit for Aprilia SX 125 4T ie 4V E5 (EMEA-EU) 2021 ZD4KTB00 Fit for Aprilia SX 125 4T ie 4V E5 (APAC) 2022-2024 - ZD4KTB00 Fit for Aprilia SX 125 4T ie 4V E5 (EMEA-EU) 2022-2024 - ZD4KTB00 Fit for Aprilia Tuono 125 4T ABS ie 4V E4 (APAC) 2017-2019 - ZD4KCA00 Fit for Aprilia Tuono 125 4T ABS ie 4V E4 (EMEA-EU) 2017-2019 - ZD4KCA00 Fit for Aprilia Tuono 125 4T ABS ie 4V E5 (EMEA-EU) 2021-2023 - ZD4XAB00 Fit for Aprilia Tuono 125 4T ABS ie 4V E4 (EMEA-EU) 2020 - ZD4KCA00 Fit for Derbi GPR 125 4T 4V LC E3 2009-2010 - VTHRG1A1A Fit for Derbi Senda 125 R DRD Racing 4T LC 4V E3 2009-2011- VTHDR1A1A/ VTHDR2A1A Fit for Derbi Senda 125 SM DRD Motard 4T LC 4V 2013-2015 - ZDPKA Fit for Derbi Senda 125 SM DRD Racing 4T LC 4V E3 2009-2011 - VTHDR1A1A/ VTHDR2A1A
(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitment)

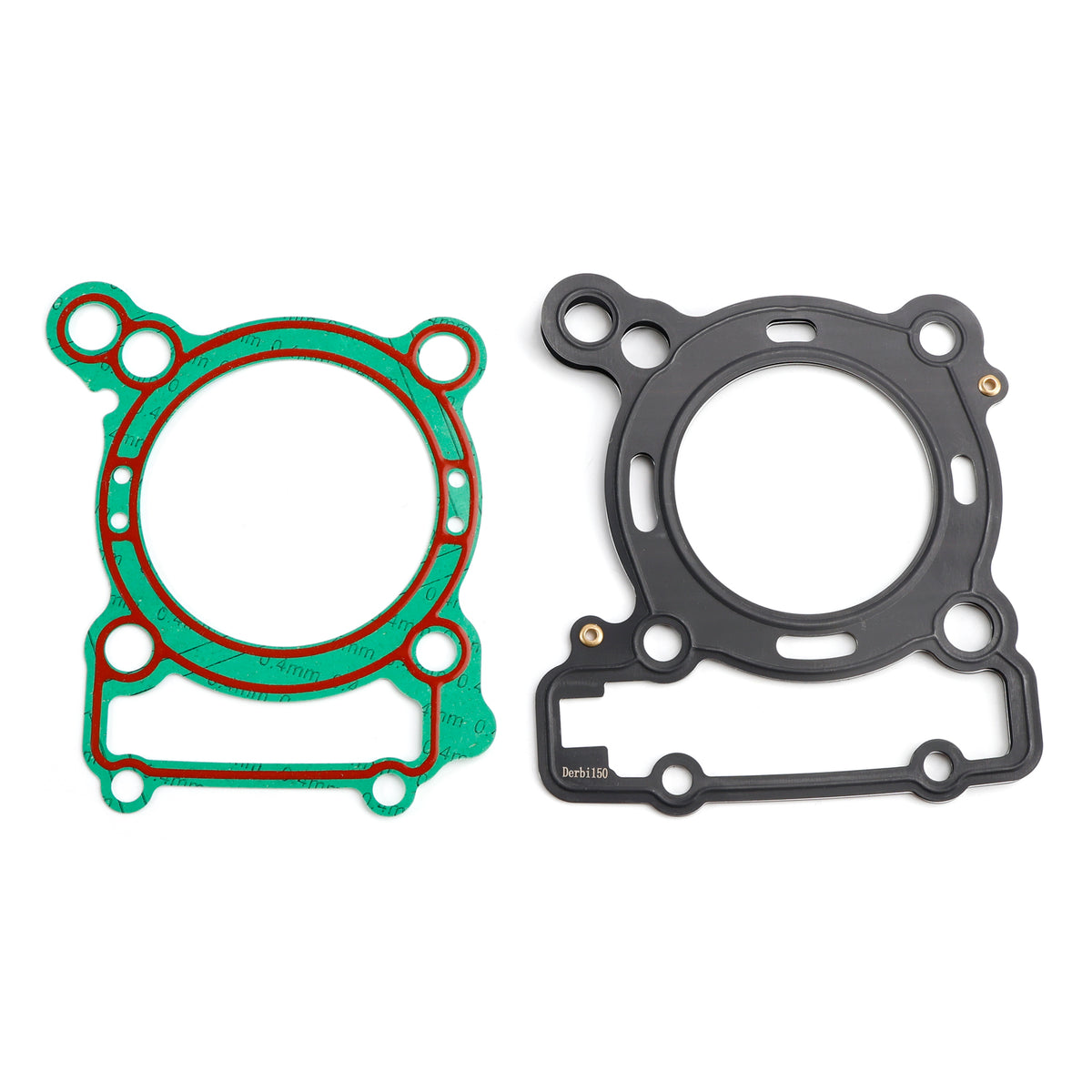

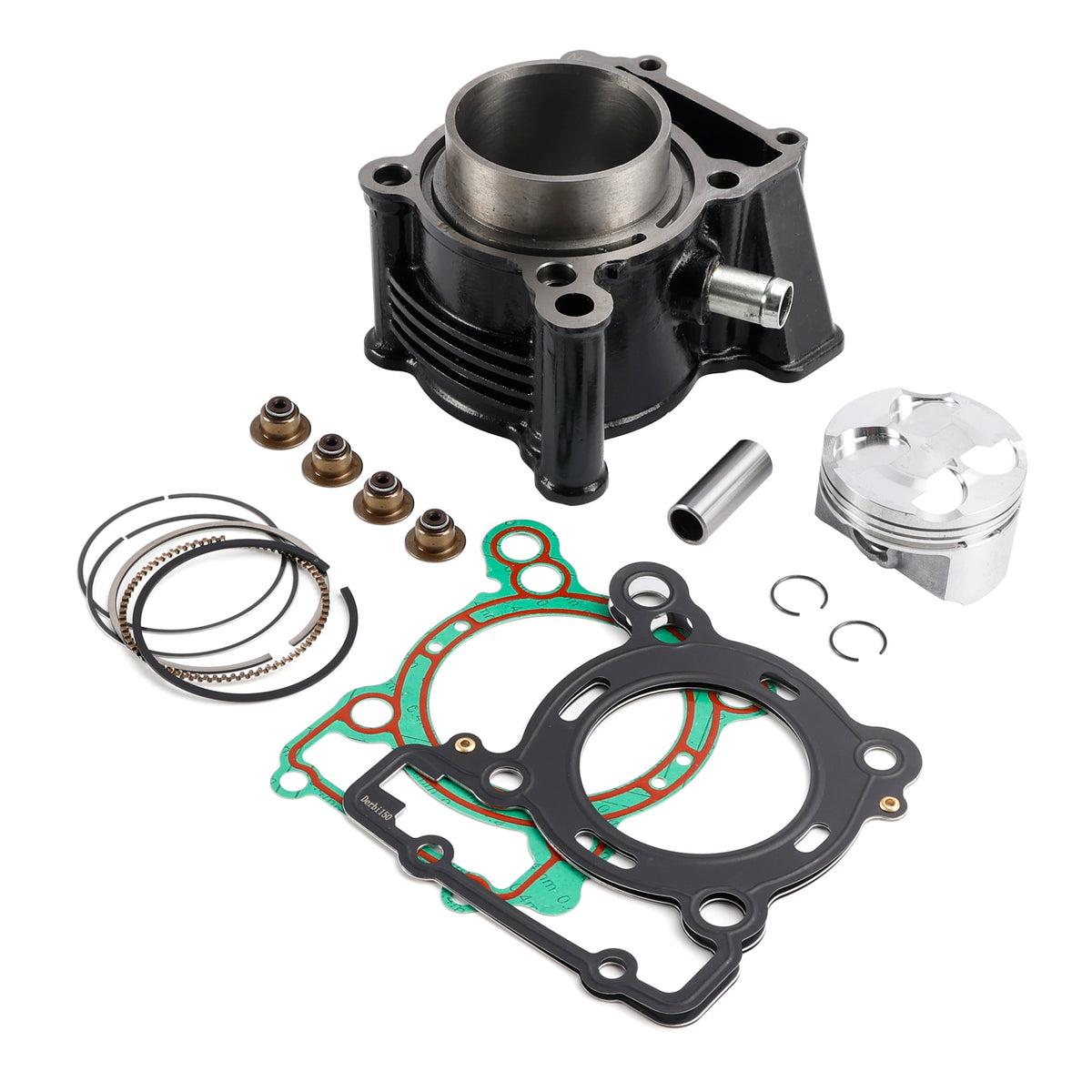

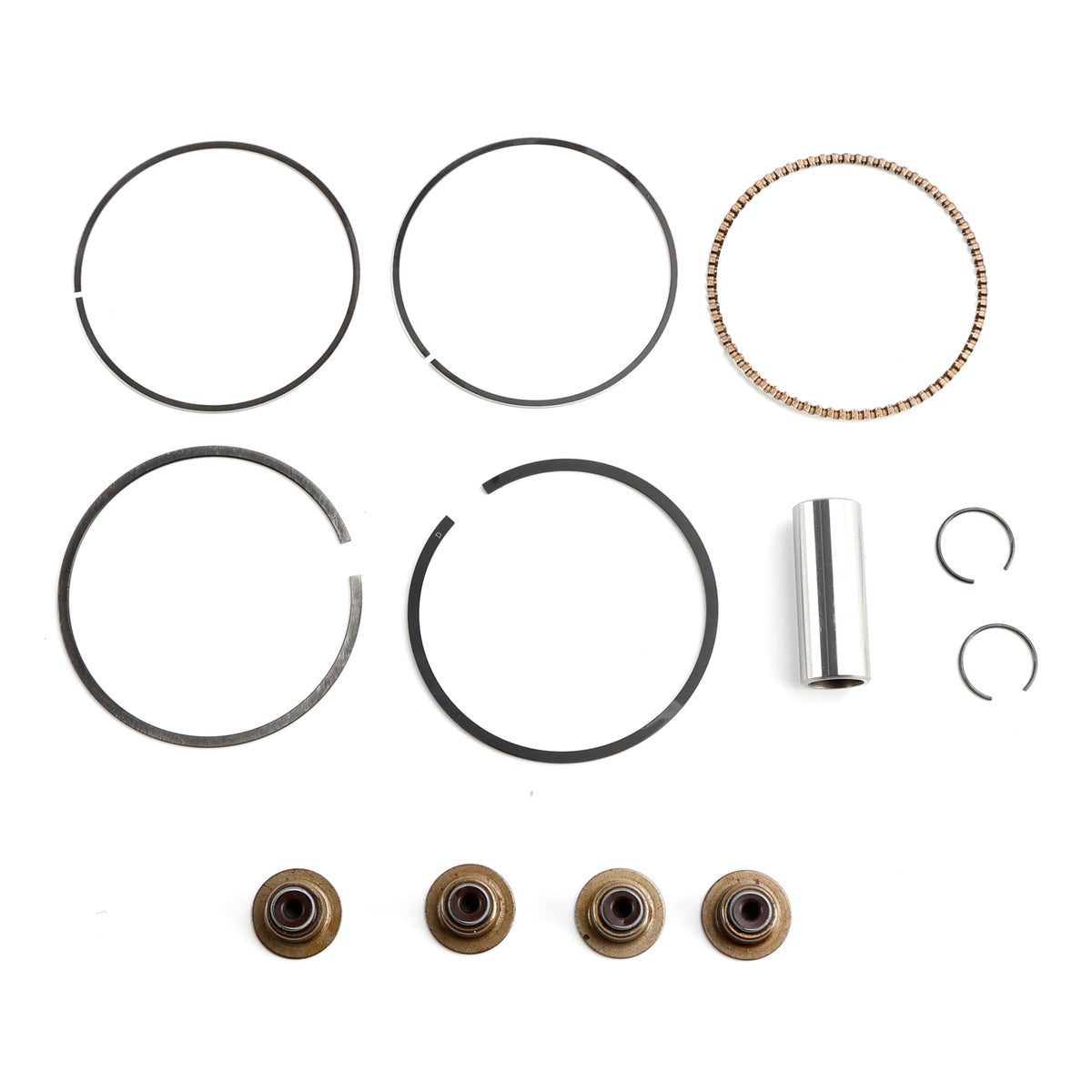

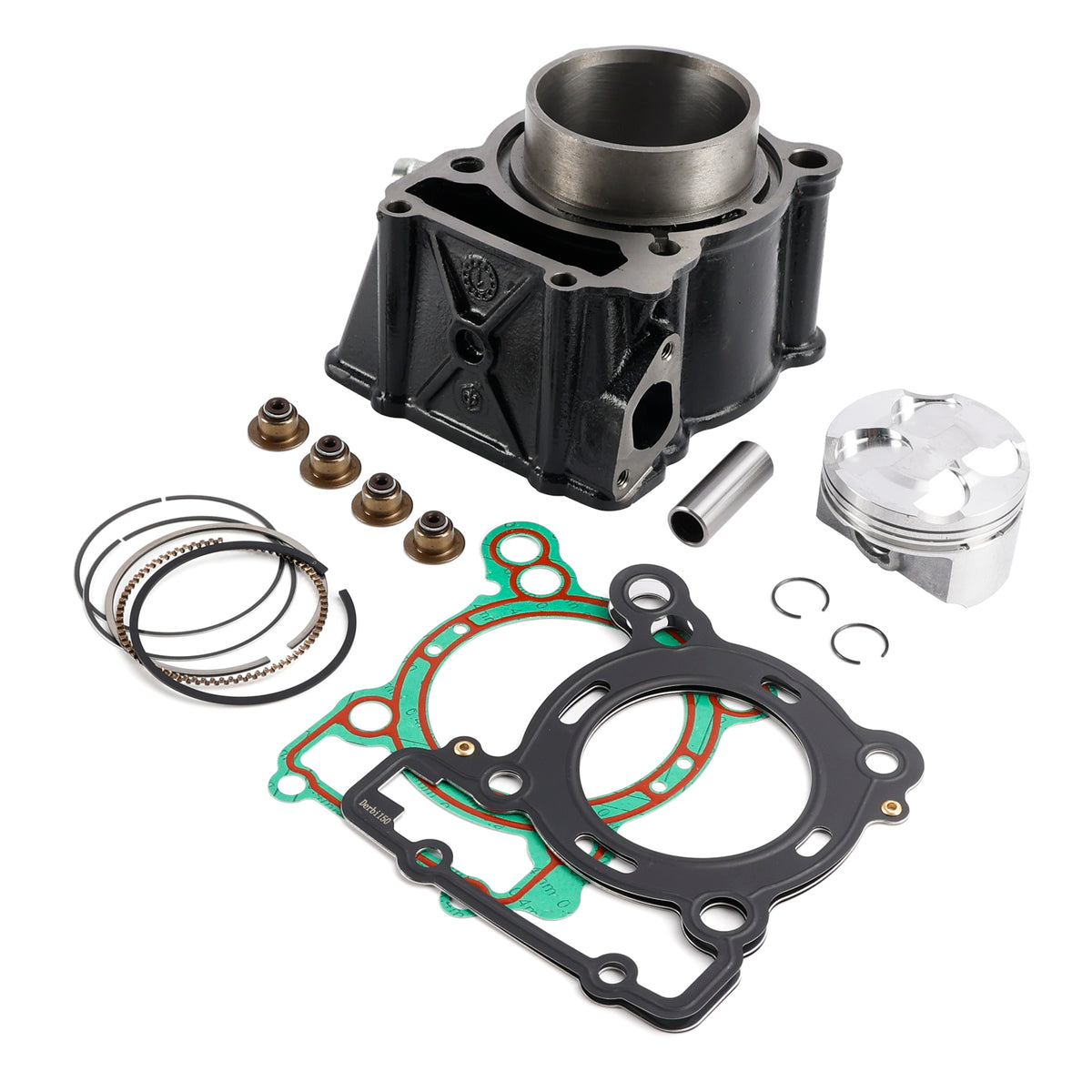

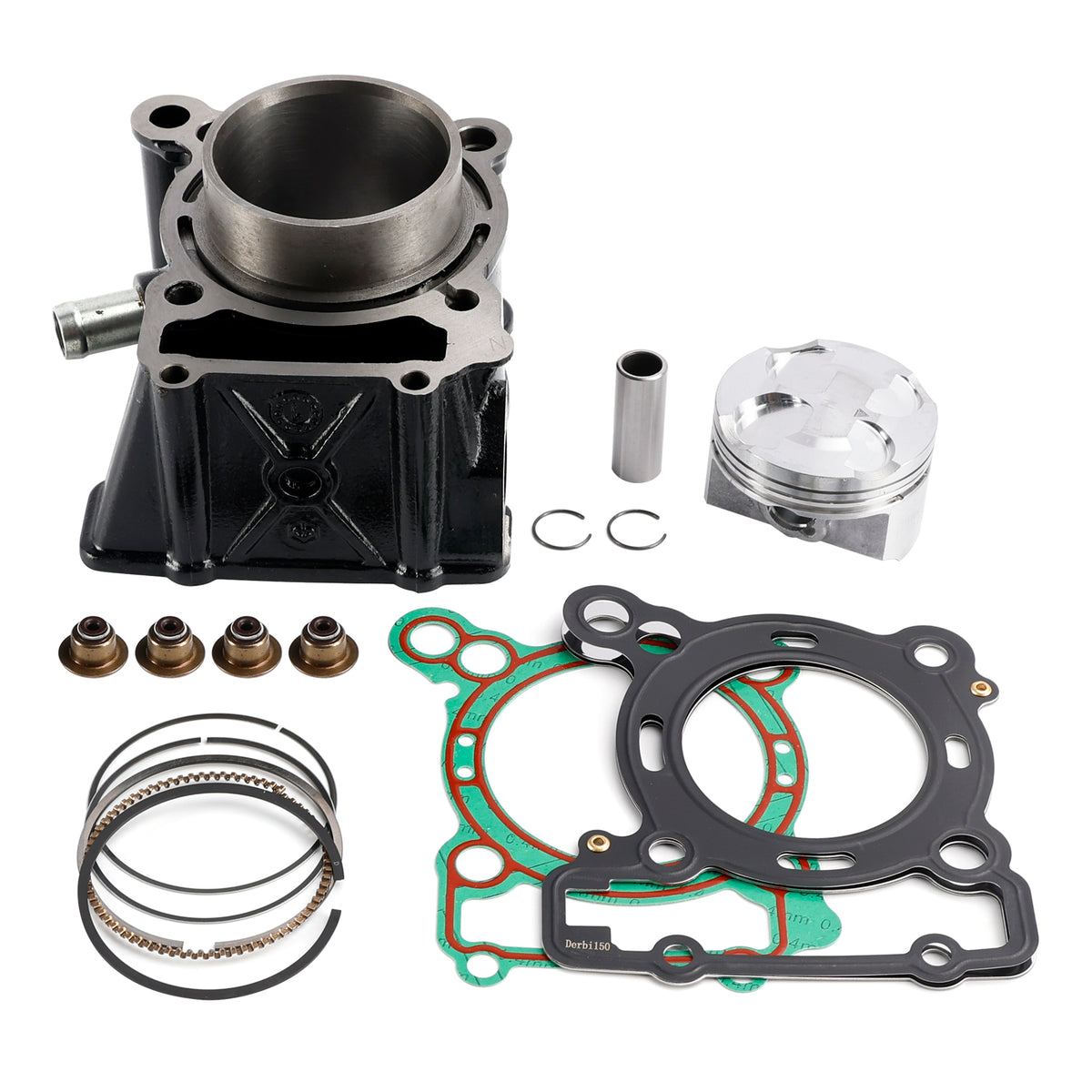

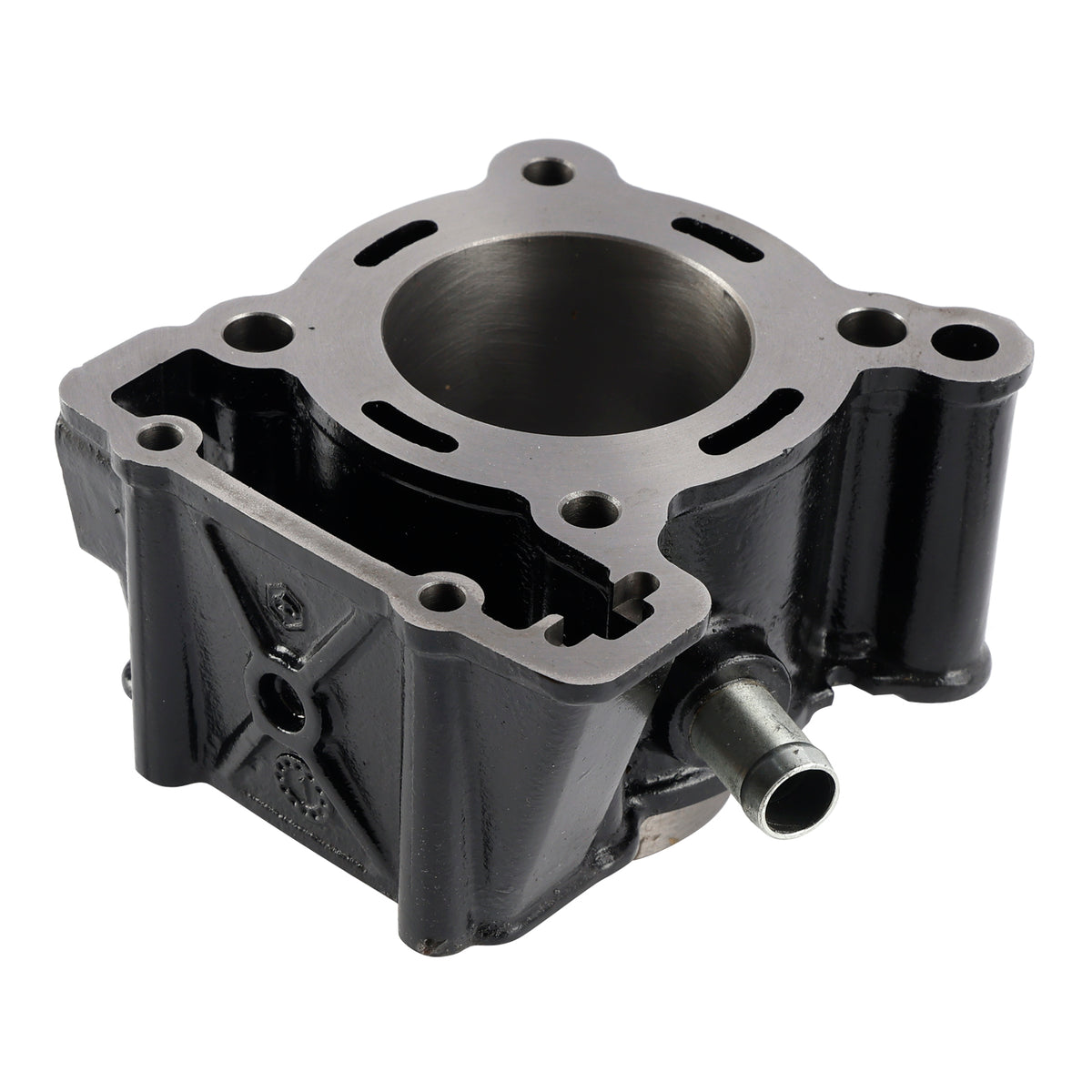

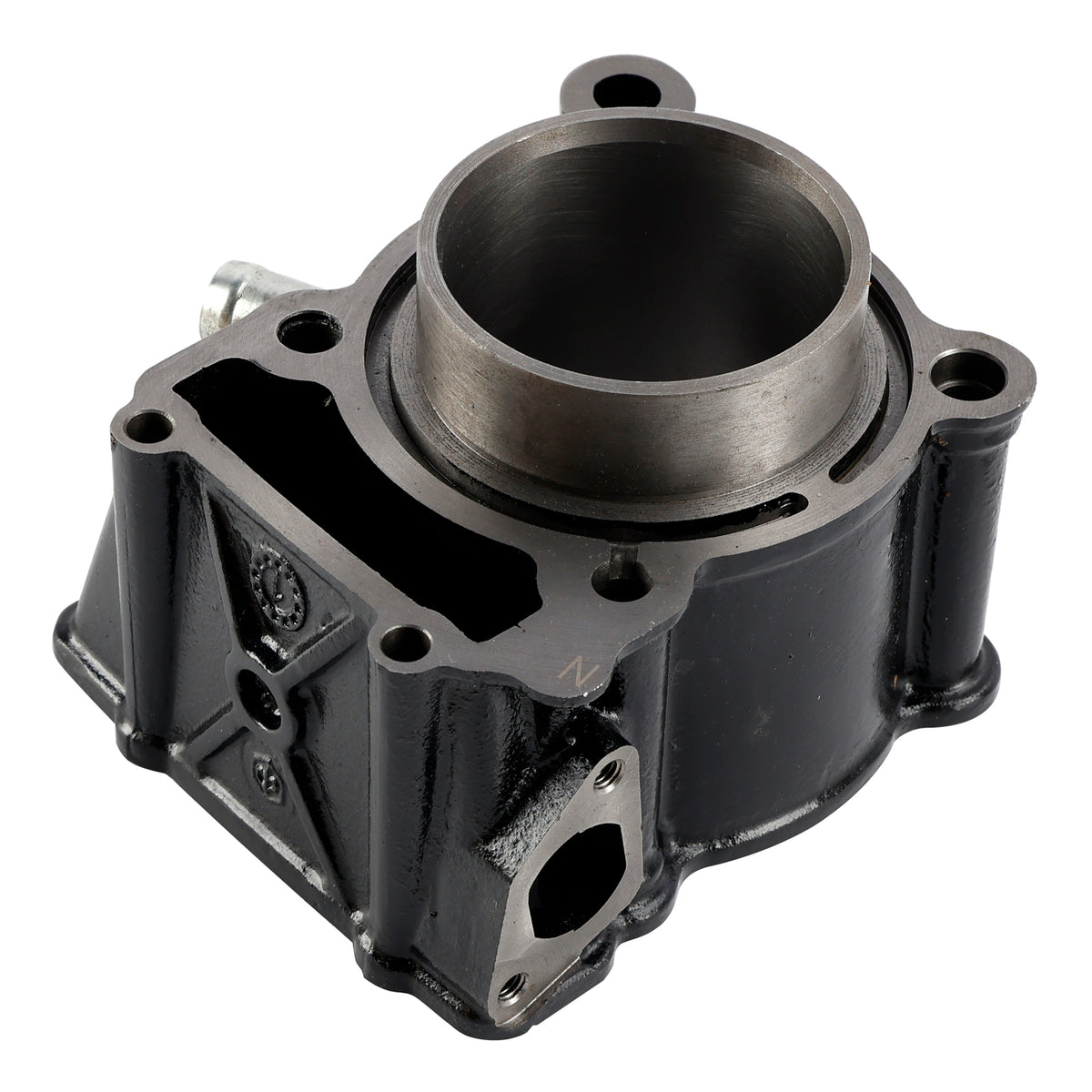

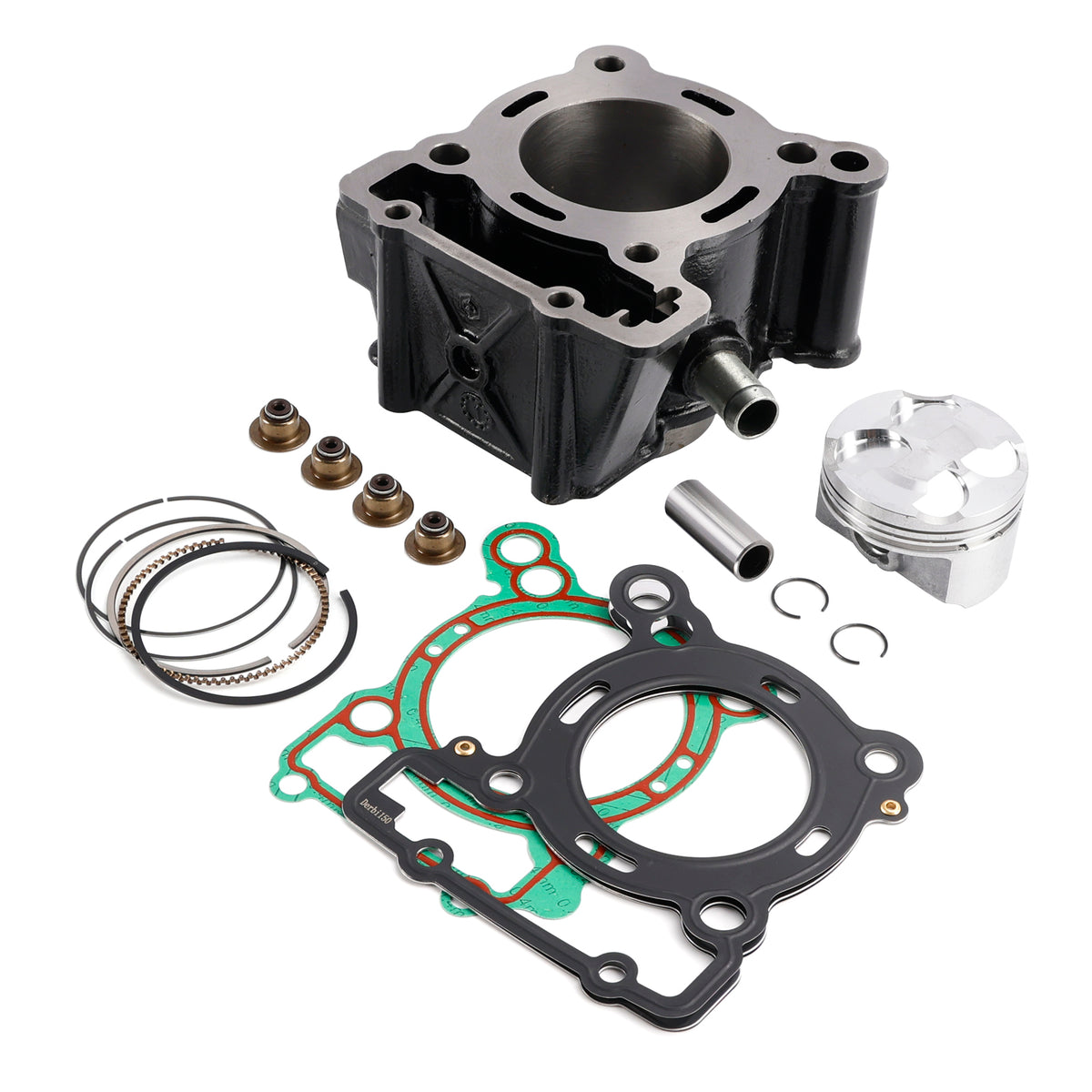

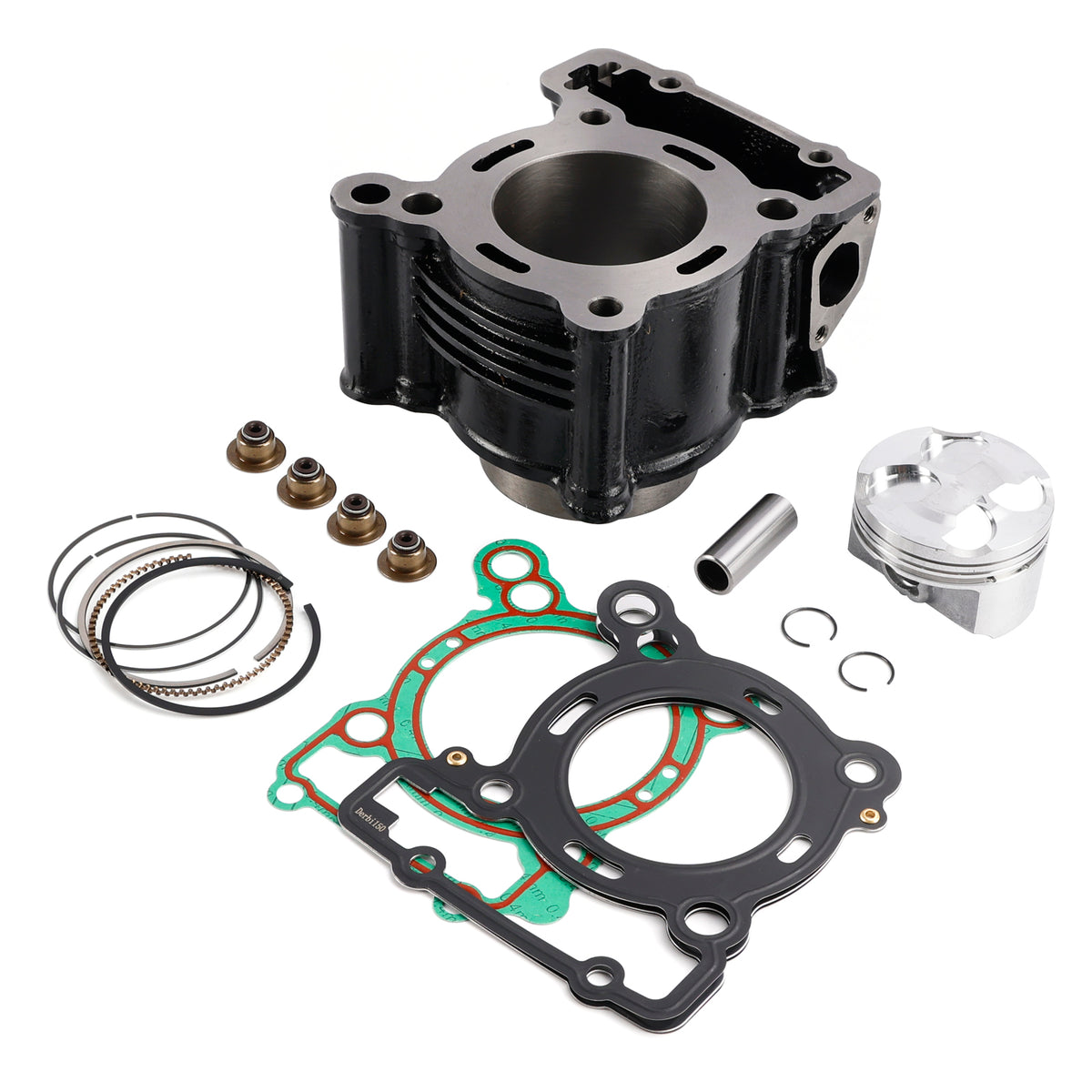

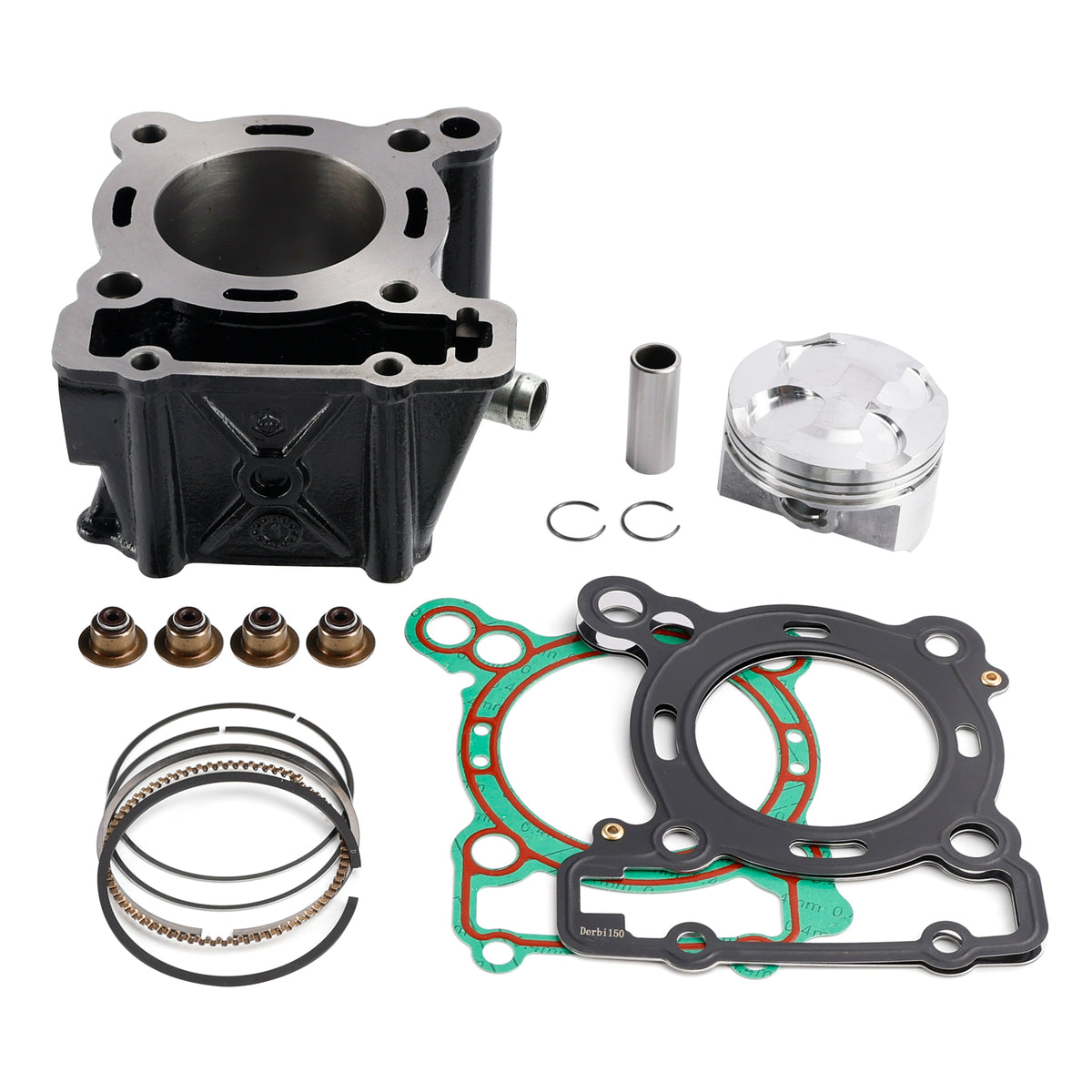

Package Includes: 1x Cylinder 1x Piston 1x Piston Ring Set 1x 15mm Wristpin 1x Circlip(2) 1x Cylinder Base Gasket 1x Cylinder Head Gasket 4x Valve Stem Seals
(Comes exactly as pictured.)
Note: Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
