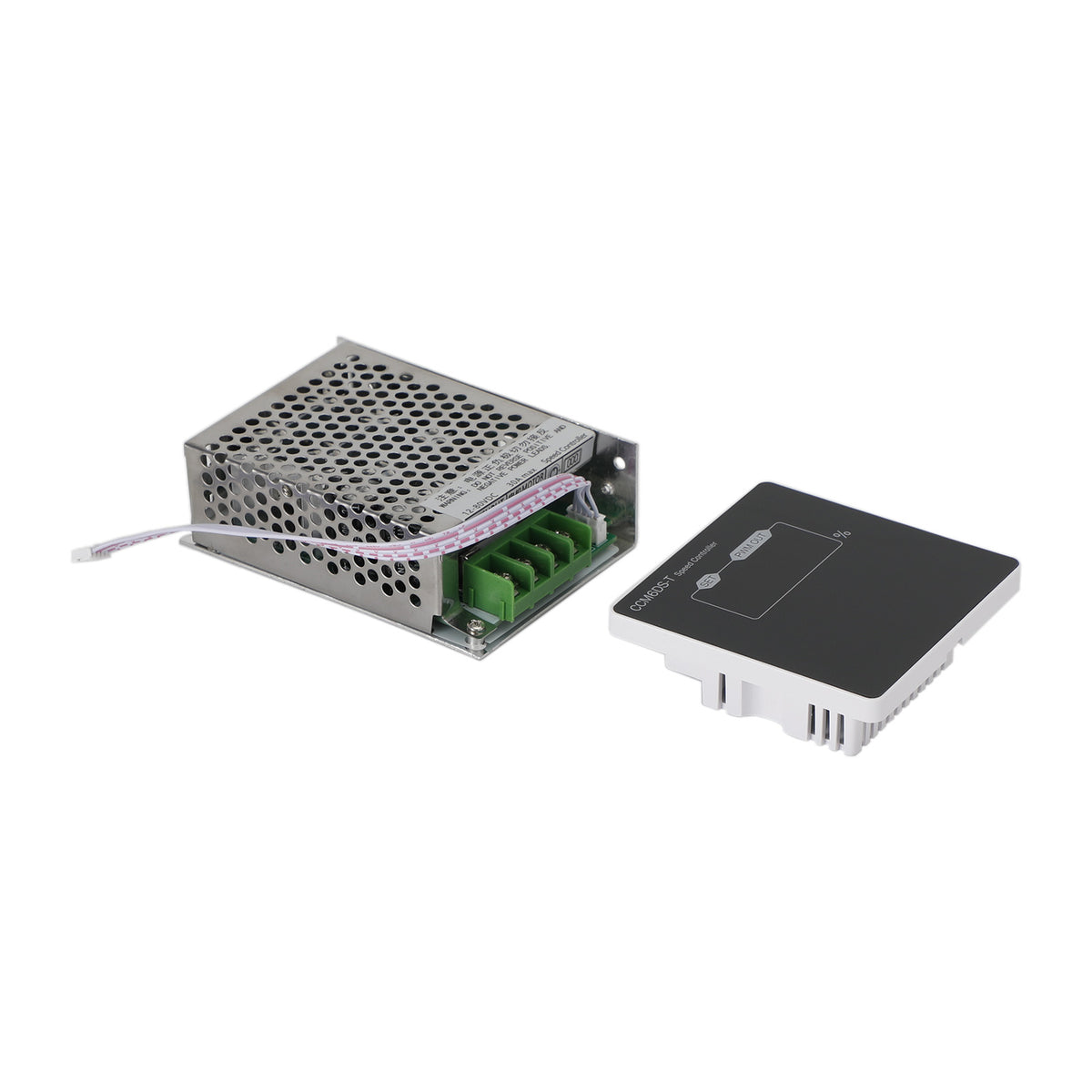

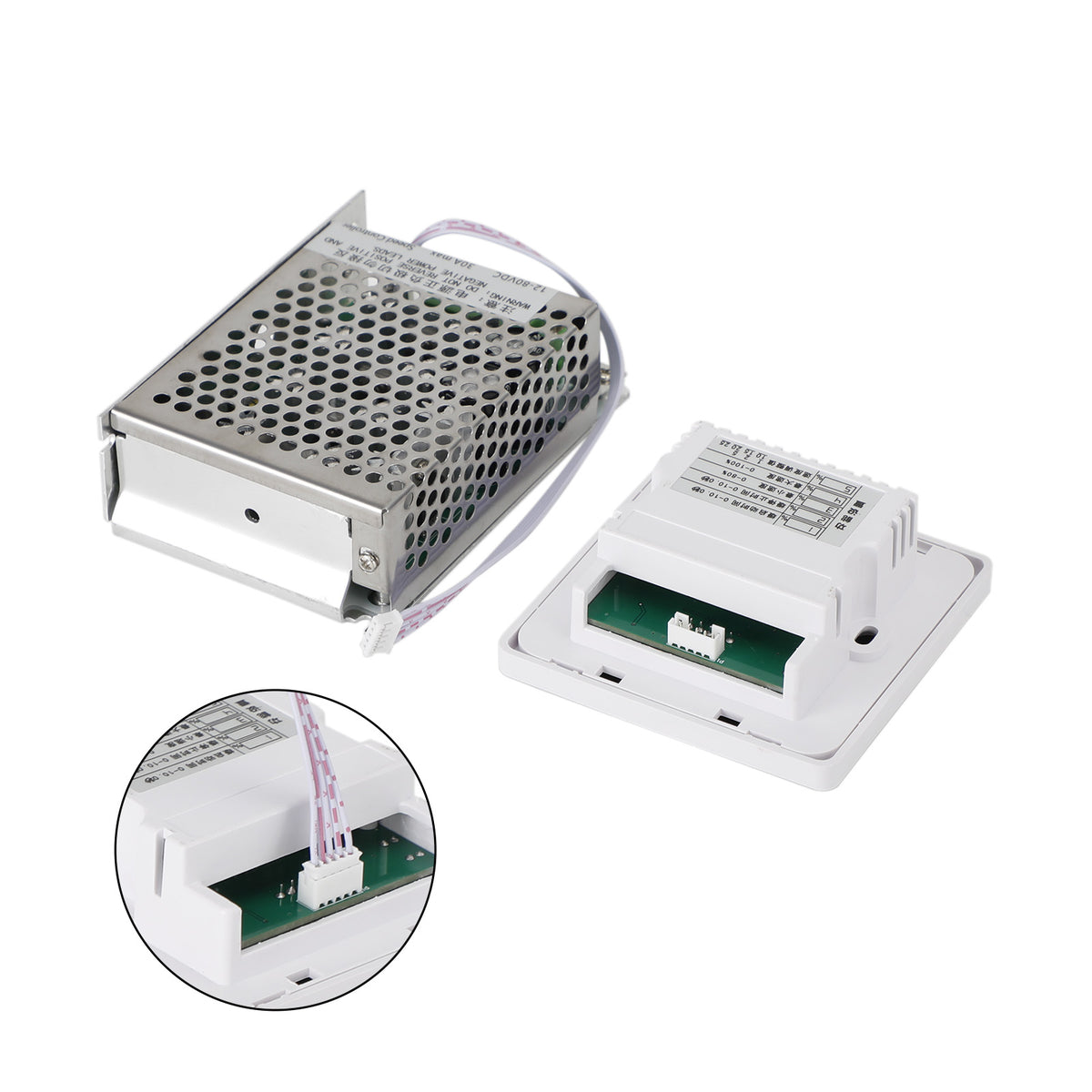

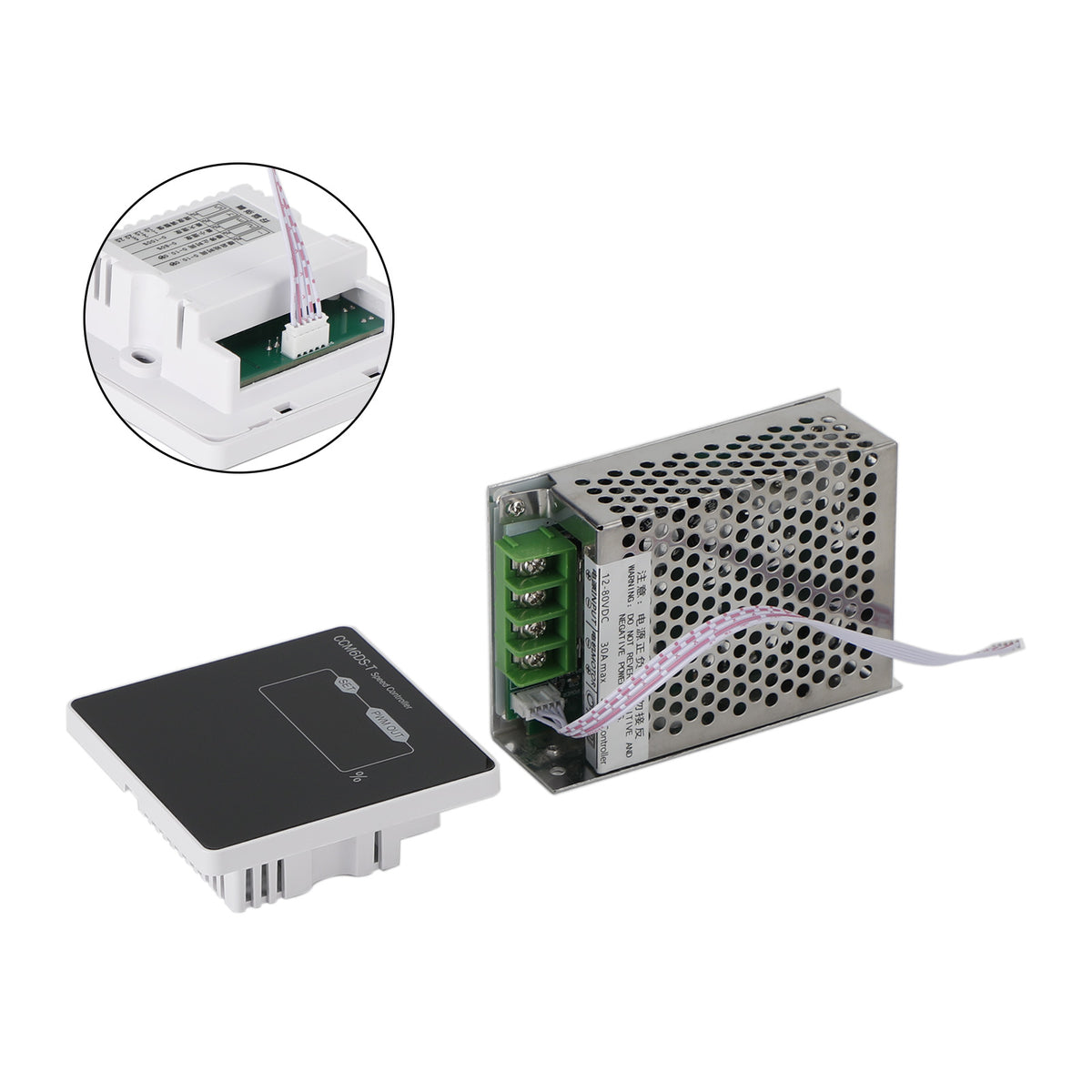

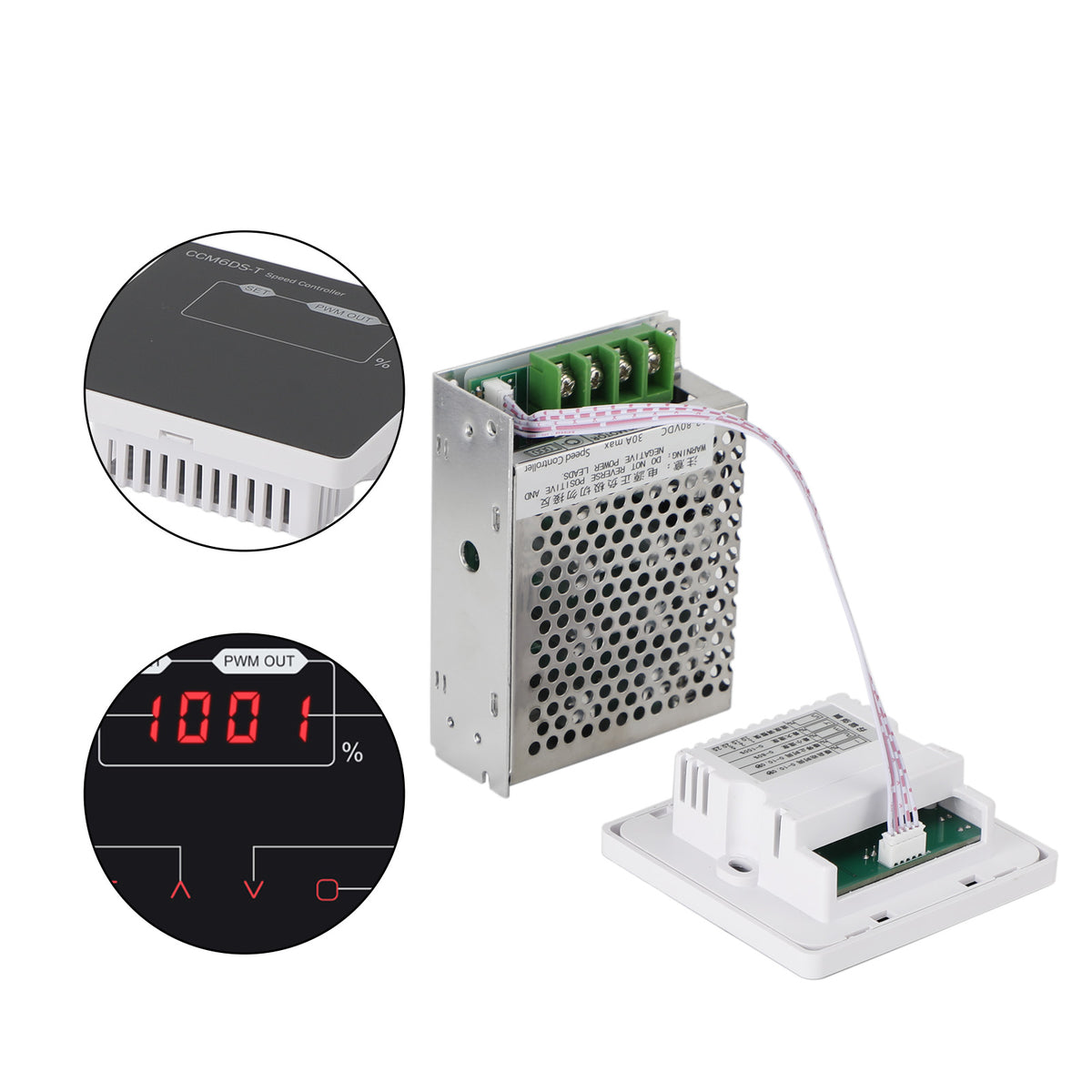

12V 24V 48V 30A PWM Motor Speed Controller Dimmer Soft Start /Stop DC 12-80V

12V 24V 48V 30A PWM Motor Speed Controller Dimmer Soft Start /Stop DC 12-80V

Feature:
1: The product adopts metal shell, high temperature flame retardant and not easy to deform.
2: Metal spray paint does not rust, effectively prevents high temperature and heavy pressure.
3: Touch panel, simple and elegant, convenient and fast operation, easy to read.

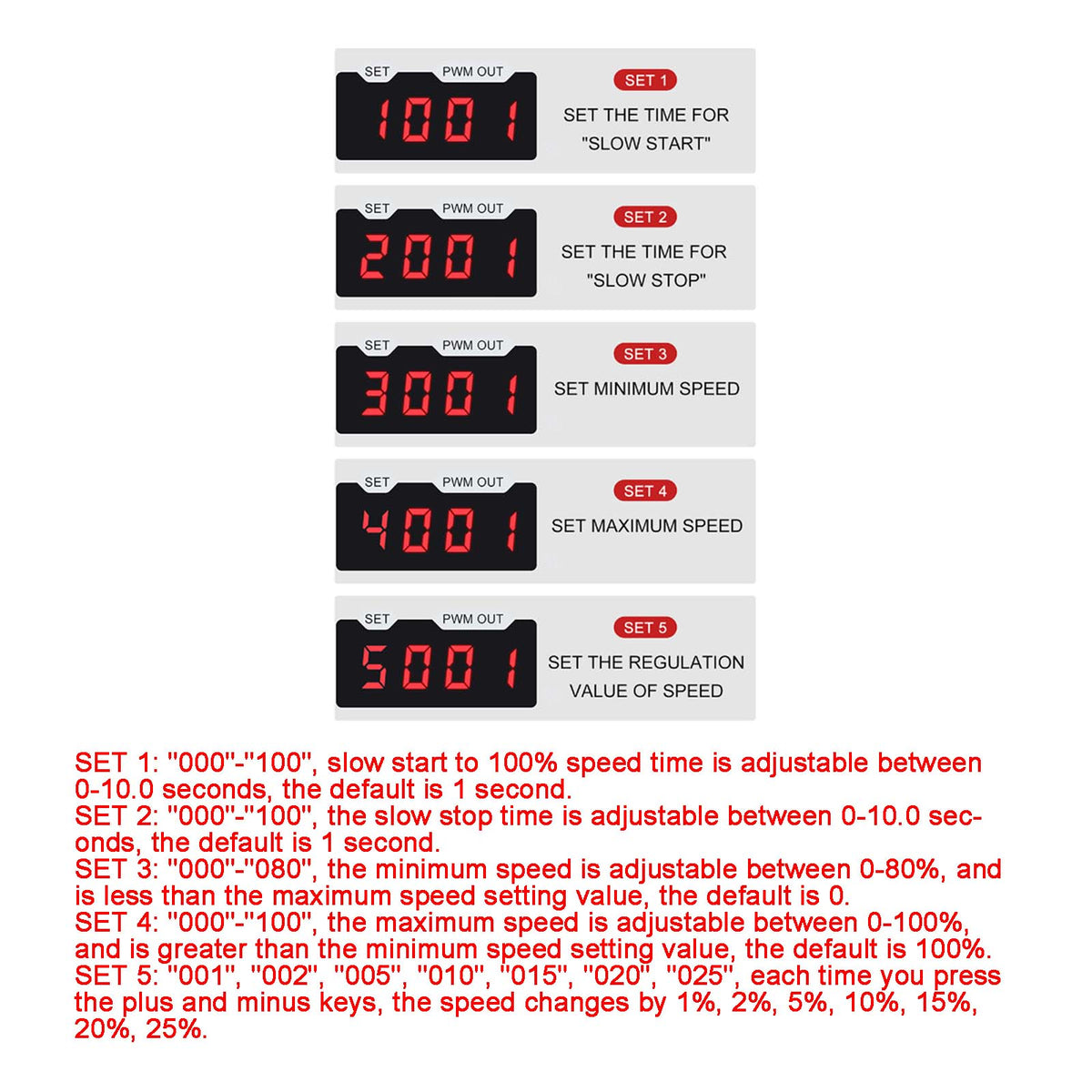

4: The smart panel adopts digital display menu options, which is convenient and quick to modify settings.
5: DC motor governor input is DC, not directly connected to AC (such as: household 220V AC).Otherwise it will burn out.
6: The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged.

Specifics:
Condition: 100% Brand New
Model: CCM6DS-T
Working voltage: DC 12-80V
Maximum amps: 30A
Speed adjustment range: 0%-100%
PWM frquency: 21Khz
The output voltage is 0-100% of the input voltage
Recommend use range: within 12V 250W , within 24V 350W , ......within 48V 500W

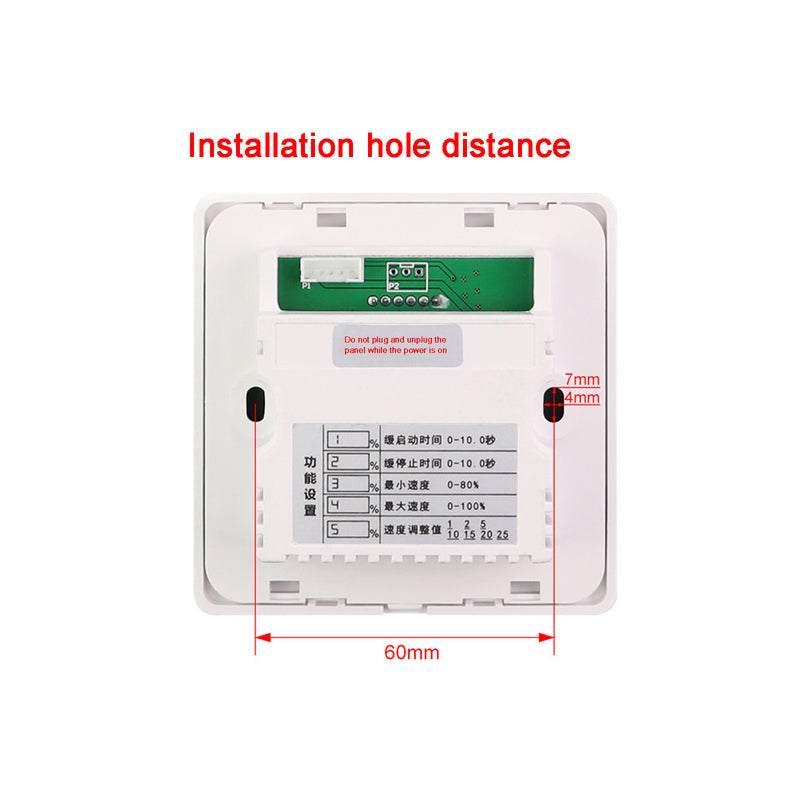

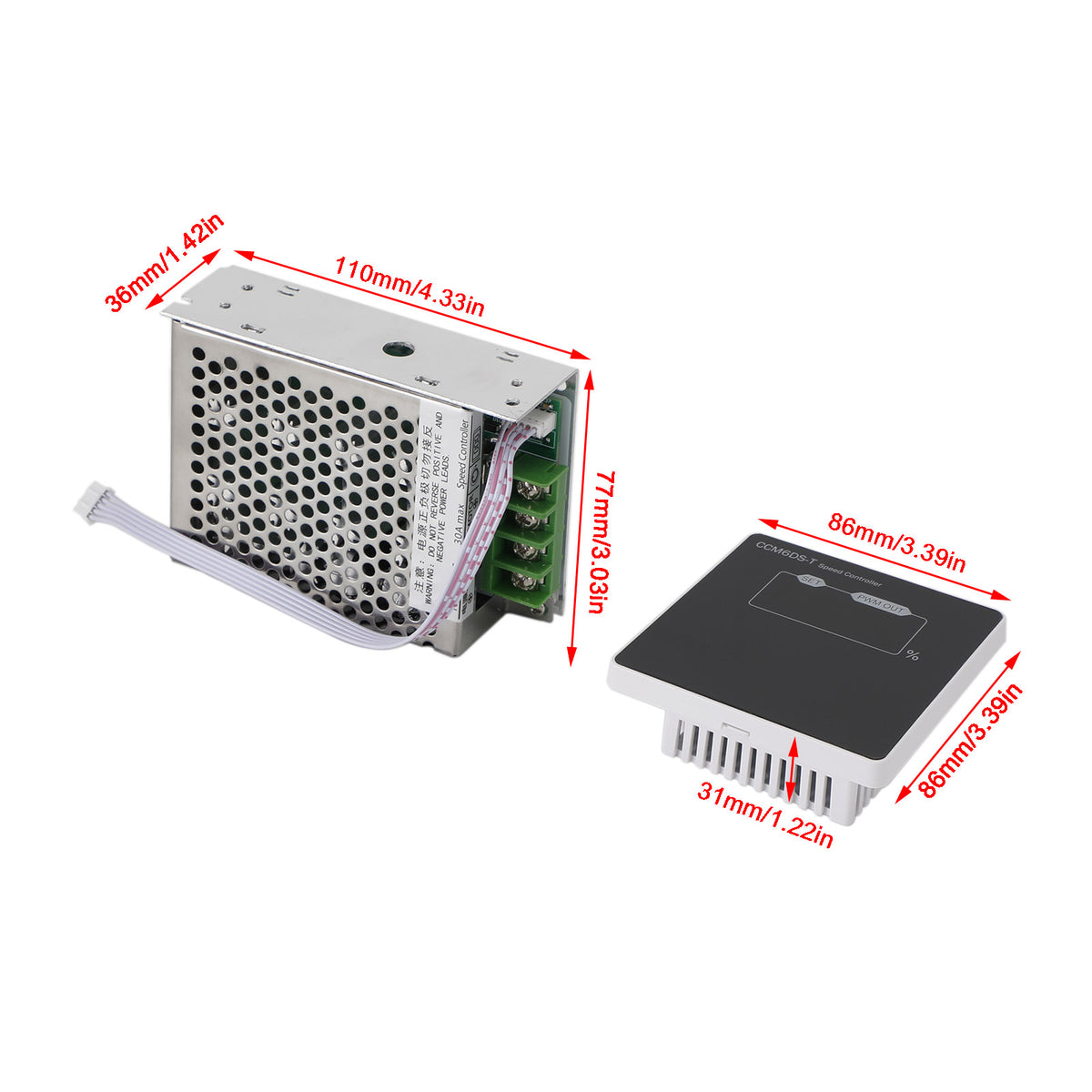

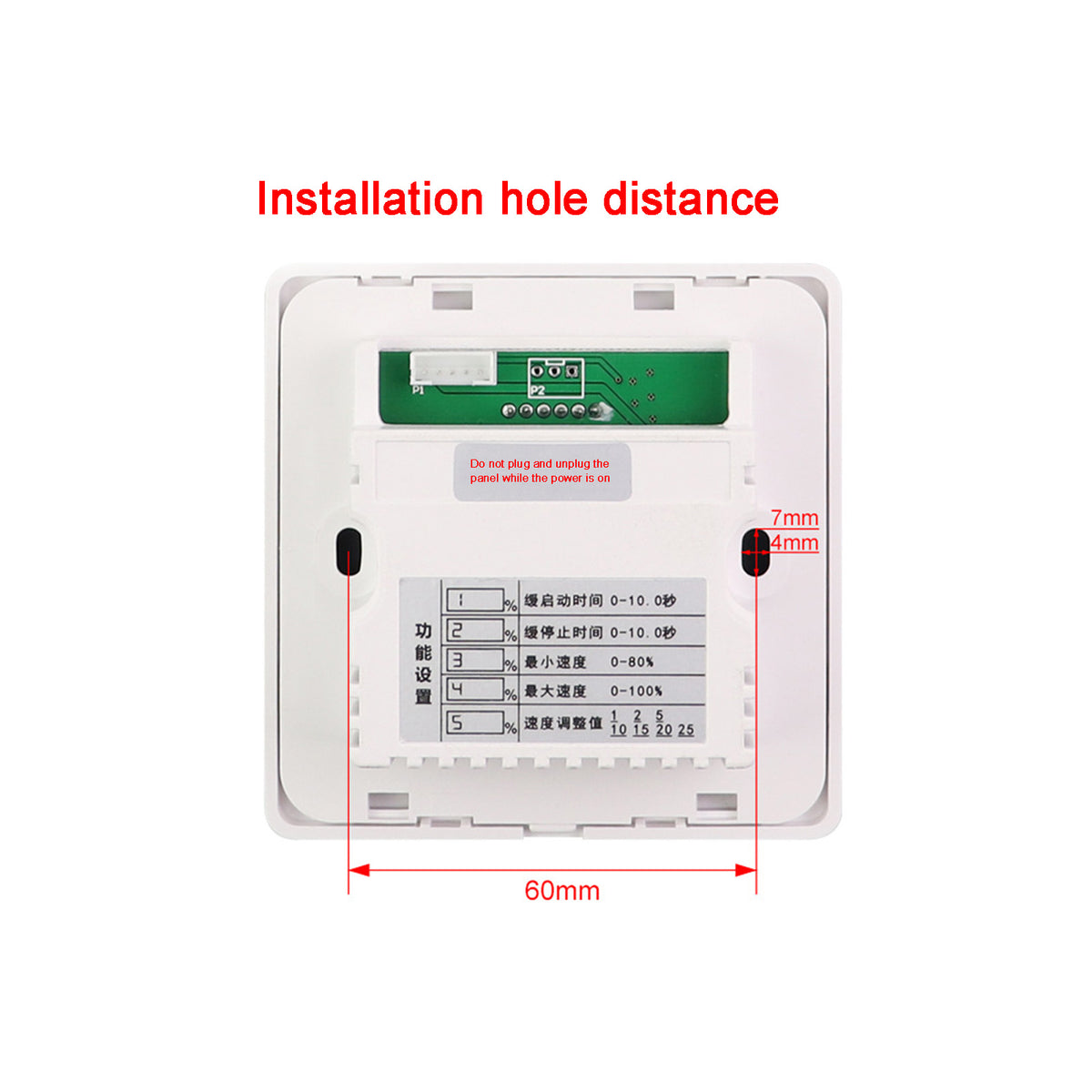

Dimensions: 110*77*36 mm (controller) / 4.33*3.03*1.42 in ; 86*86*31 mm (display panel) /3.39*3.39*1.22 in

Note:
1. Please allow 1-3mm difference due to manual measurement.
2. Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

Package Included:
1 X PWM DC motor controller
